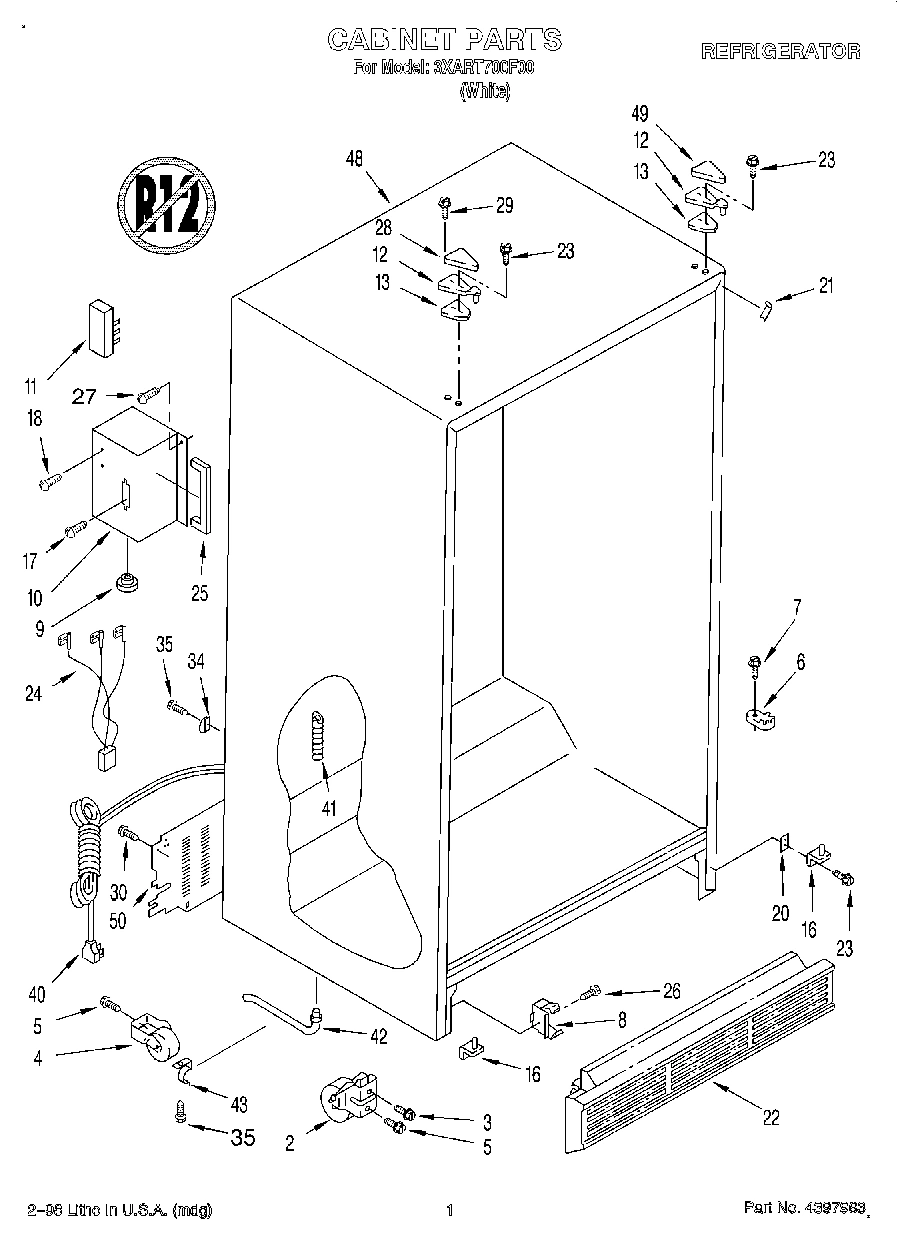

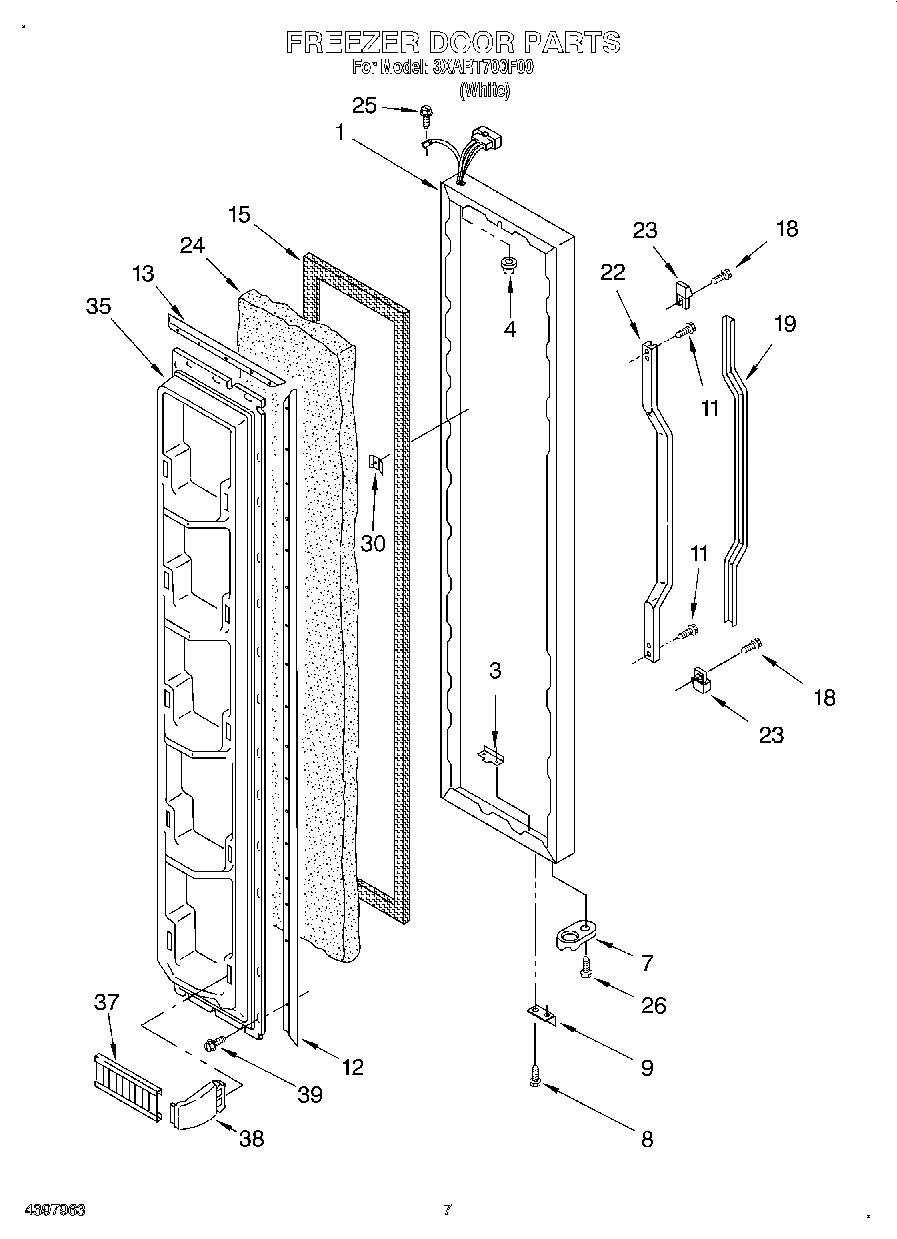

Model Whirlpool 3XART700F00 REFRIGERATOR – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL LIT2187053 WPL LIT2187053 Contact Us For Availability

WPL LIT2197732 WPL LIT2197732 Contact Us For Availability

WPL LIT2198363 WPL LIT2198363 Contact Us For Availability

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Refrigerator Door Panel (Also Order Item 20) WPL 2194611W Contact Us For Availability

1

Control Box WPL 2169147 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

Fan, Blade WPL 1108179 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Tap, Plate WPL 2155335 Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

4318165 Whirlpool Refrigerator Door Closure C In Stock WPL 4318165 $9.42

3

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

3

Screw (2) WPL 489397 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

5

WP2175210 Whirlpool Refrigerator Shroud Backorder WPL WP2175210 $26.21

5

Bracket, Door Stop WPL 2195950 Contact Us For Availability

6

Defrost Timer WPL 2176651 Contact Us For Availability

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability

8

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

8

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

Cover, Unit Compartment WPL 2182057 Contact Us For Availability

WP2158826 Whirlpool Refrigerator Dampener Backorder WPL WP2158826 $0.90

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Grommet (10) WPL 2176134 Contact Us For Availability

Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability

11

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

11

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

11

Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

2188404A Whirlpool Refrigerator Door Gasket In Stock WPL 2188404A $119.63

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $30.03

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $33.95

13

WP2169412 Whirlpool Overload Relay Backorder WPL WP2169412 $50.33

13

Cap, Hinge Sleeve WPL 509929 Contact Us For Availability

14

W10169512 Whirlpool Clip Backorder WPL W10169512 $26.21

14

WP2196062 Whirlpool Refrigerator Clip Backorder WPL WP2196062 $4.59

14

Insert, Handle WPL 2187033 Contact Us For Availability

15

WP2262184 Whirlpool Refrigerator Start Relay Backorder WPL WP2262184 $41.23

15

Pivot Arm WPL 1110559 Contact Us For Availability

15

Reinforcement, Shelf WPL 2152266 Contact Us For Availability

16

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $27.14

16

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

Screw Anchor WPL 941242 Contact Us For Availability

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.70

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

Washer WPL 486632 Contact Us For Availability

19

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

19

WP67002552 Whirlpool Refrigerator Light Bulb In Stock WPL WP67002552 $2.56

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $11.97

Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability

Control Box Harness WPL 2198307 Contact Us For Availability

21

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

22

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

22

Retainer, Insert WPL 2187031 Contact Us For Availability

22

CLIP, WIRING WPL 1115375 Contact Us For Availability

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $46.34

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

Clip, Heater (2) WPL 2161330 Contact Us For Availability

Endcap WPL 2194778W Contact Us For Availability

Connecting Rod WPL 1123959 Contact Us For Availability

24

8201703 Whirlpool Refrigerator Condenser Moto Backorder WPL 8201703 $132.02

24

WP2182189 Whirlpool Door Shelf Bar In Stock WPL WP2182189 $53.69

24

Fastener, Push-On WPL 489285 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $53.89

Escutcheon, Control Box WPL 2194977 Contact Us For Availability

26

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

26

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

26

Harness, Intermediate WPL 2195106 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

Knob WPL 2197871 Contact Us For Availability

Interior Door Panel (Also Order Item No.15) WPL 1124961 Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

W10183407 Whirlpool Refrigerator Compressor Backorder WPL W10183407 $361.52

WP2179343 Whirlpool Refrigerator Control Body In Stock WPL WP2179343 $13.98

WP2256010 Whirlpool Door Shelf Trim Backorder WPL WP2256010 $34.66

29

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

29

WP2196189 Whirlpool Shelf Retainer Bar Backorder WPL WP2196189 $4.48

29

WP2196190 Whirlpool Shelf Retainer Bar Suppor Backorder WPL WP2196190 $4.48

30

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

30

Unit Mounting Frame WPL 2160498 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Hole Plug WPL 2166844 Contact Us For Availability

xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability

Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

Compartment Door WPL 2148289 Contact Us For Availability

33

WP2313330 Whirlpool Refrigerator Heater Backorder WPL WP2313330 $62.86

34

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

34

WP2201147 Whirlpool Refrigerator Capacitor Backorder WPL WP2201147 $48.06

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

36

Nameplate WPL 2195061 Contact Us For Availability

37

Trim, Door Shelf WPL 2195921 Contact Us For Availability

38

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

38

WP2196100 Whirlpool Shelf Retainer Bar Suppor Backorder WPL WP2196100 $3.70

39

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

41

Air Baffle WPL 2155301 Contact Us For Availability

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

42

Clip, Heat Shield WPL 2155547 Contact Us For Availability

43

Trim, Door Compartment WPL 2188148 Contact Us For Availability

44

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

48

Unit Mounting Rail WPL 2149717 Contact Us For Availability

49

WP1129262 Whirlpool Refrigerator Cover Backorder WPL WP1129262 $10.38

49

Screw WPL 488624 Contact Us For Availability

50

1105612 Whirlpool Fan Guard Backorder WPL 1105612 $24.10

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

Wire Connector WPL 850145 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Clip, Wire And Water Tube WPL 2155658 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
