Model Whirlpool 3XARG496WP00 REFRIGERATOR – Common Parts & Diagrams
07 - UNIT
06 - REFRIGERATOR DOOR

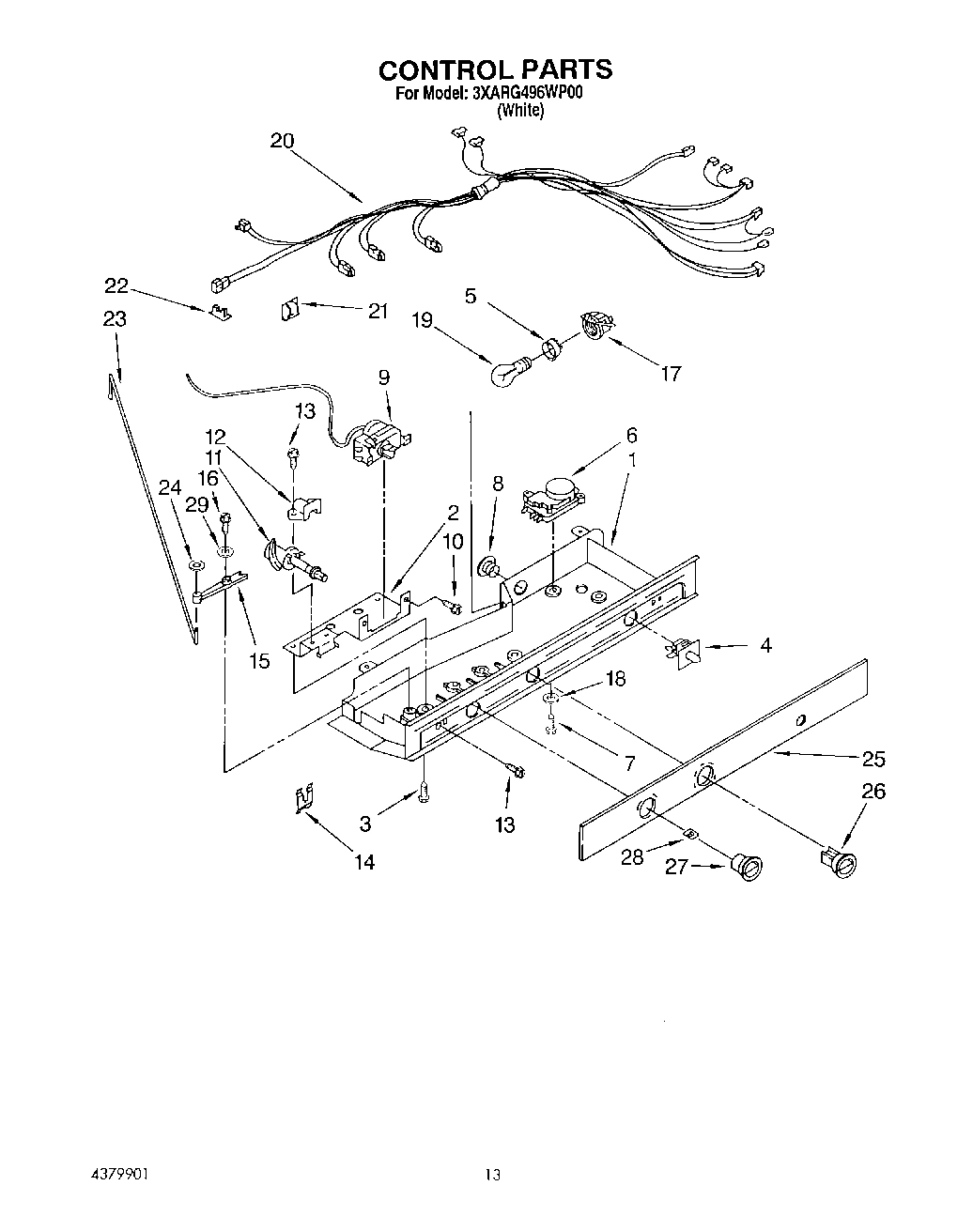

08 - CONTROL, LIT/OPTIONAL

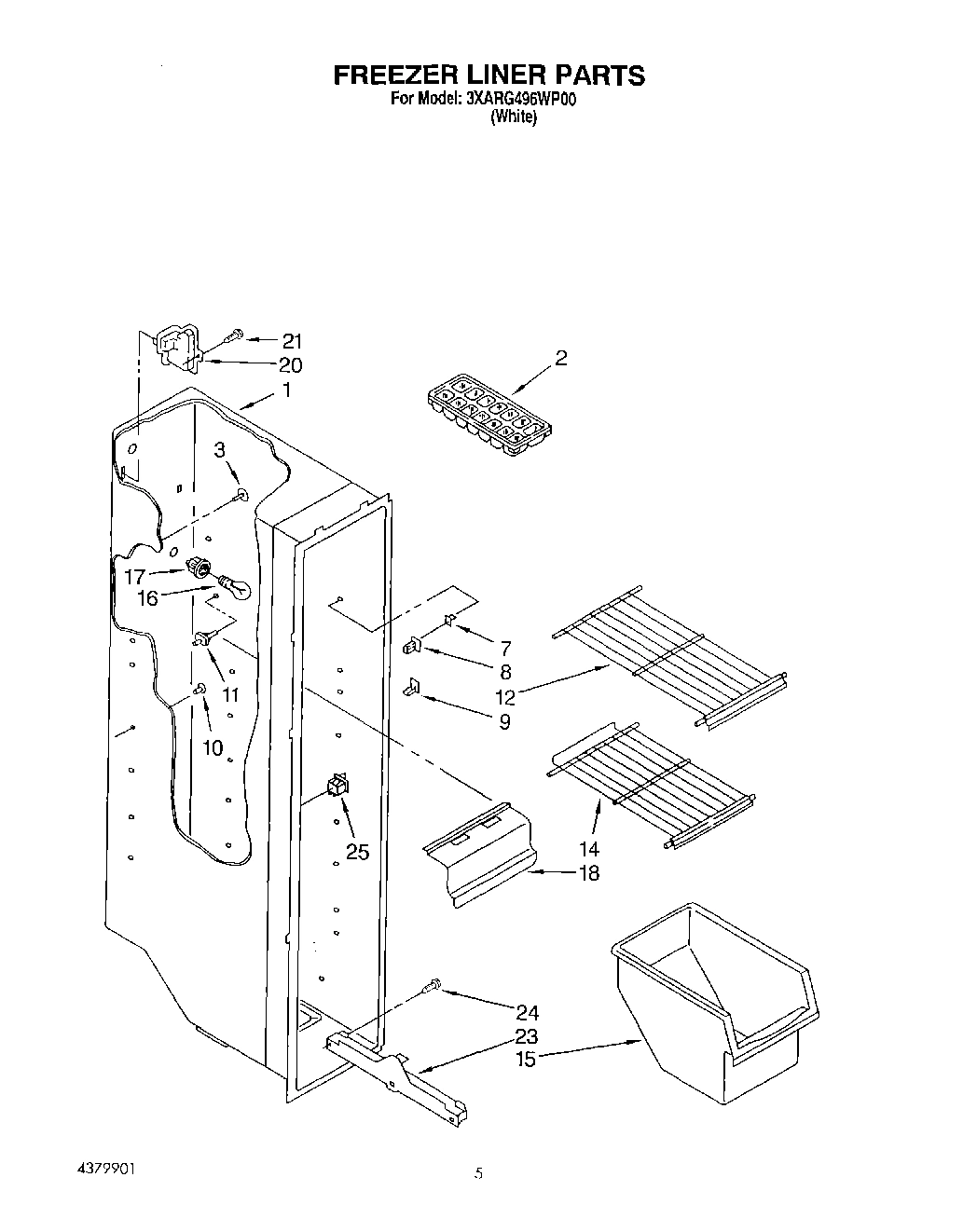

03 - FREEZER LINER

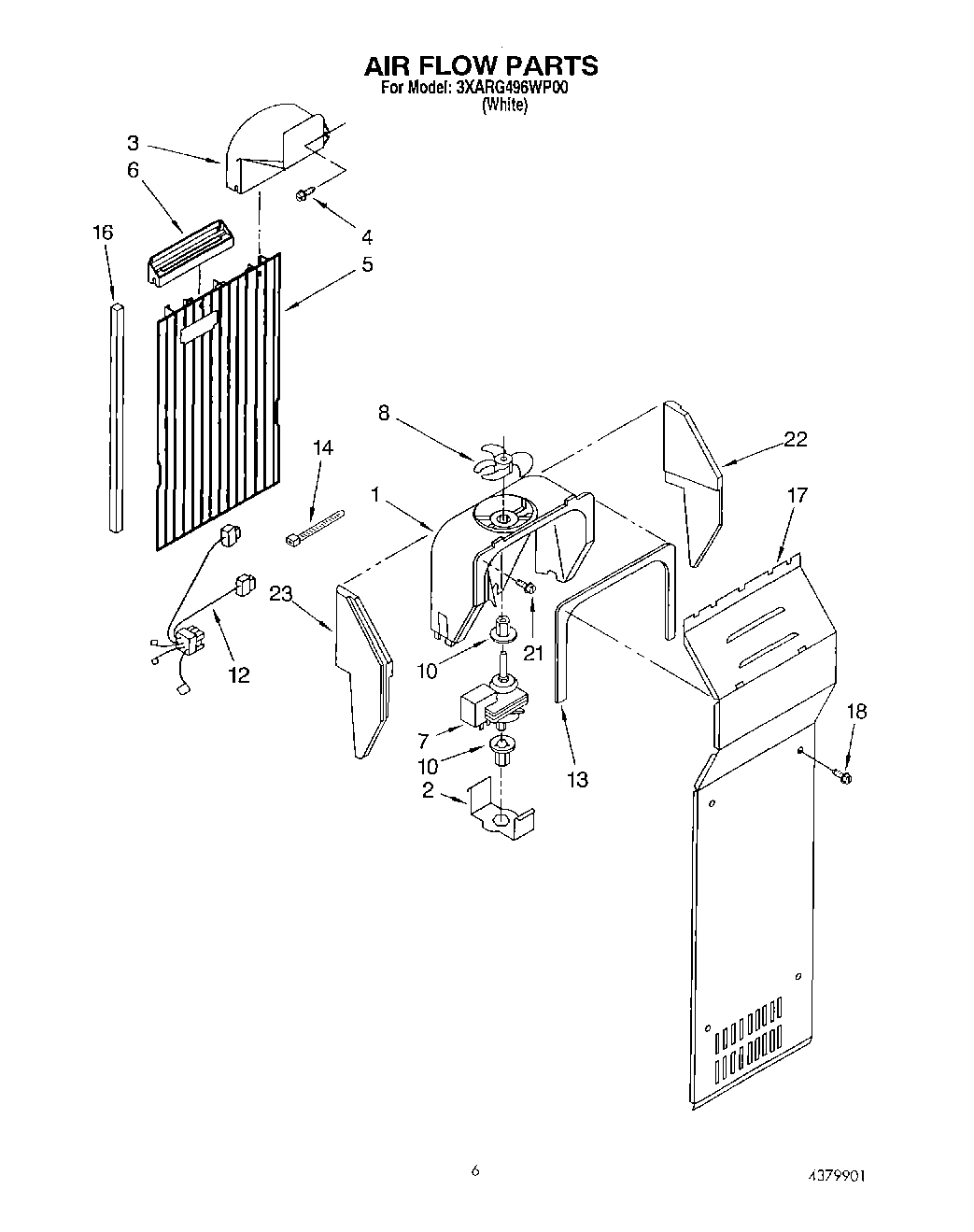

04 - AIR FLOW

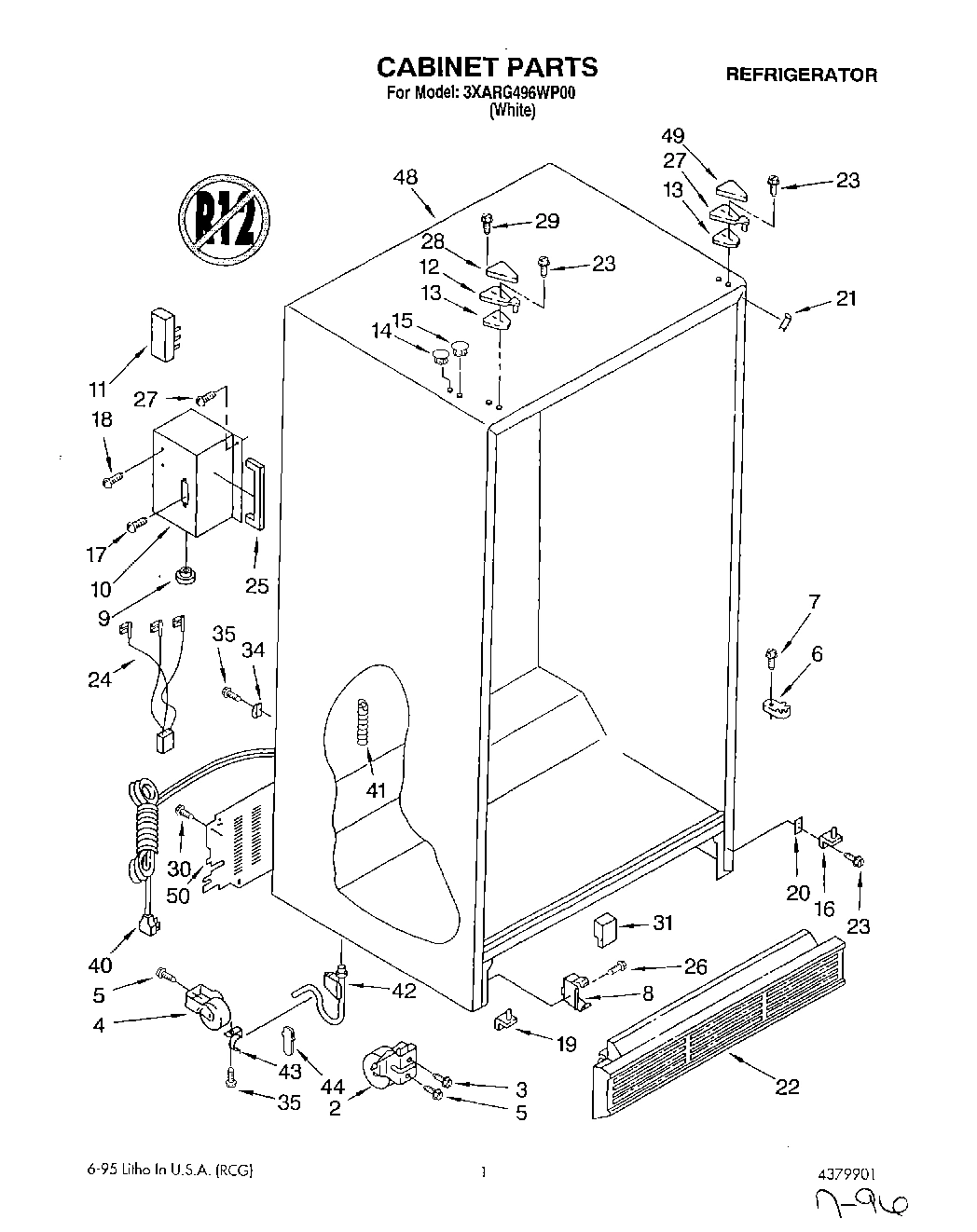

01 - CABINET

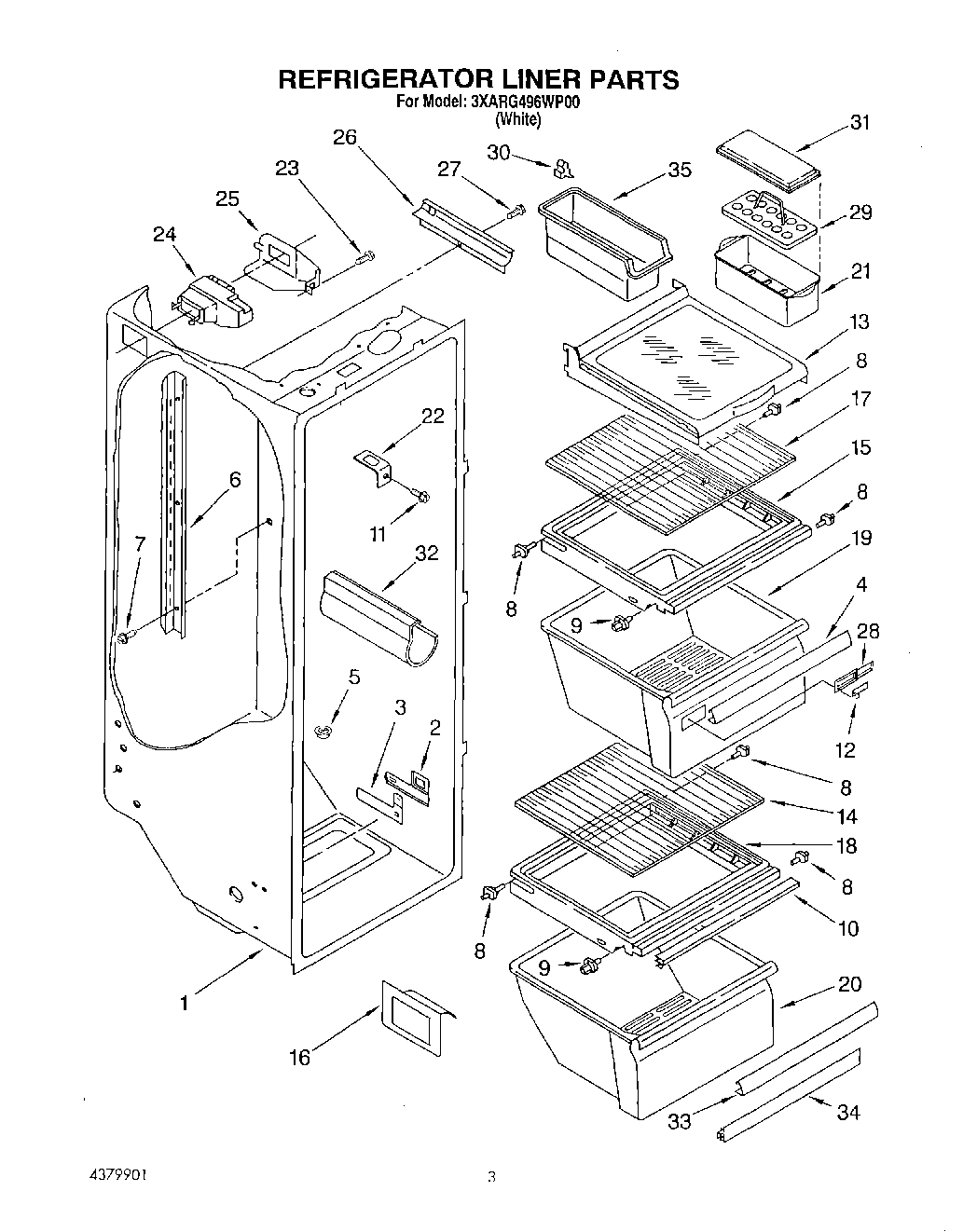

02 - REFRIGERATOR LINER

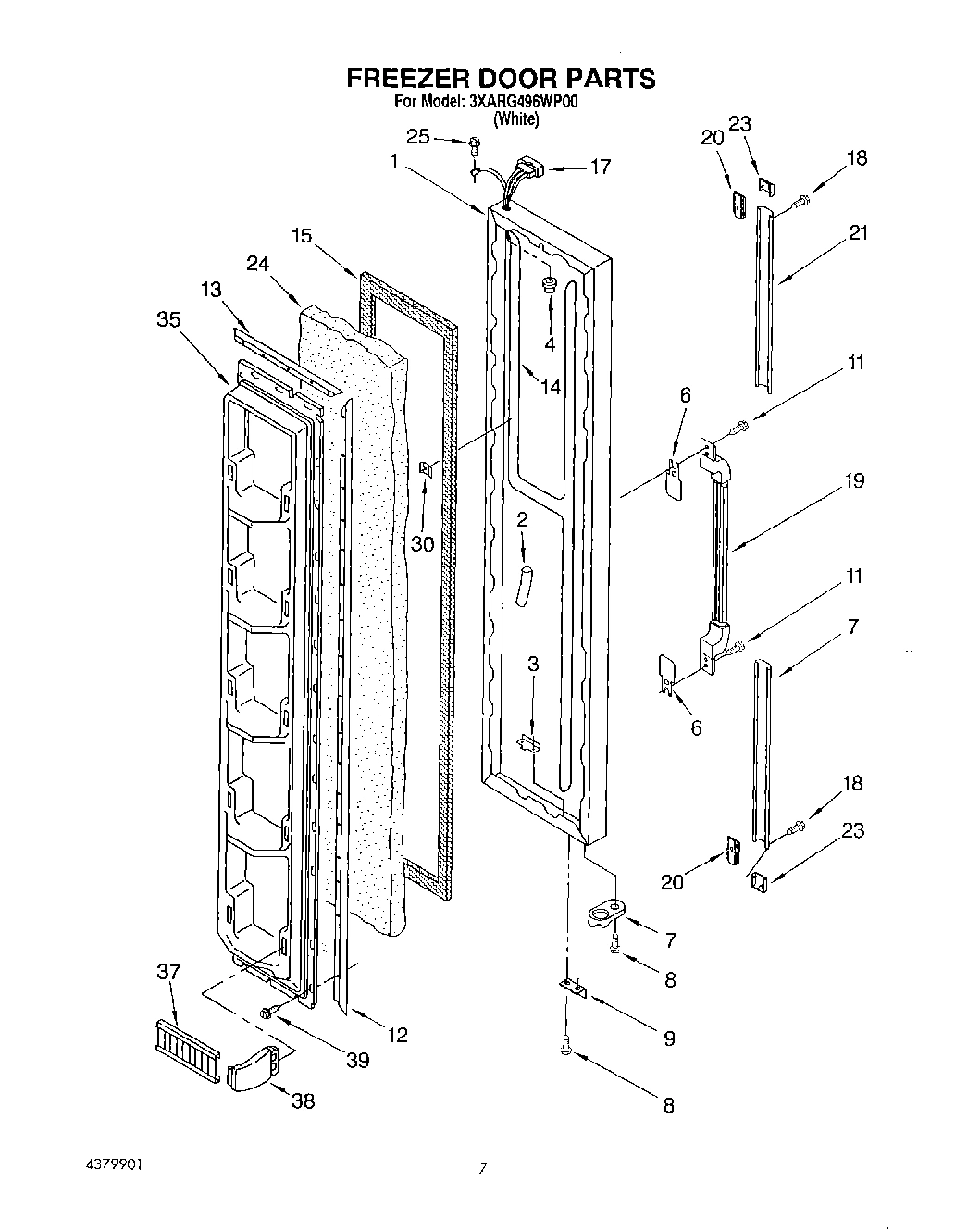

05 - FREEZER DOOR
Common parts from model Whirlpool 3XARG496WP00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2175188 WPL LIT2175188 Contact Us For Availability
WPL LIT2175190 WPL LIT2175190 Contact Us For Availability
1
Control Box WPL 2166841 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI12809A6 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI12808A9 Contact Us For Availability
1
Freezer Door Panel (Also Order Item 24) WPL 4362049 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Tube, Door Wiring WPL 1119059 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Tap, Plate WPL 2155335 Contact Us For Availability
4
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
6
Shelf Ladder (2) WPL 2171995 Contact Us For Availability
6
Shim WPL 2179399 Contact Us For Availability
7
Support, Stud (10) WPL 946355 Contact Us For Availability
7
Fan, Motor WPL 2154976 Contact Us For Availability
8
Stud, Front (4) WPL 946356 Contact Us For Availability
9
Stud R.S. Rear (4) WPL 1106982 Contact Us For Availability
9
Bushing WPL 1129449 Contact Us For Availability
9
Bracket, Door Stop WPL 2155332 Contact Us For Availability
10
Grommet (10) WPL 2176134 Contact Us For Availability
10
Enclosure, Terminal Block WPL 2158579 Contact Us For Availability
10
Gasket, Front WPL 2174442 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
11
Terminal Block WPL 1129346 Contact Us For Availability
12
Shelf WPL 2163612 Contact Us For Availability
12
Harness, Fan, Evaporator, And Heater WPL 2176138 Contact Us For Availability
12
Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability
13
Shim, Hinge (2) WPL 1123515 Contact Us For Availability
13
Shelf, Cantilever WPL 2174057 Contact Us For Availability
13
Gasket Retainer, Top & Bottom WPL 1117767 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Shelf (1) WPL 2174269 Contact Us For Availability
14
Shelf (2) WPL 2174270 Contact Us For Availability
14
Hole Plug WPL 849391 Contact Us For Availability
14
Heater, Door WPL 2165272 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Bin, Freezer WPL 2171707 Contact Us For Availability
15
Hole Plug WPL 1115352 Contact Us For Availability
16
Hinge Bottom (R.H.) WPL 2155321 Contact Us For Availability
17
Connector WPL 2154491 Contact Us For Availability
18
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
18
Washer WPL 486632 Contact Us For Availability
18
Screw WPL 489346 Contact Us For Availability
18
Screw WPL 489075 Contact Us For Availability
19
Hinge Bottom (L.H.) WPL 2155323 Contact Us For Availability
19
Handle, Center WPL 2179366 Contact Us For Availability
20
Control Box Harness WPL 2149185 Contact Us For Availability
20
Cover, Wiring WPL 2167336 Contact Us For Availability
20
Spacer, Hinge WPL 836196 Contact Us For Availability
21
Filler, Wrapper WPL 1110708 Contact Us For Availability
21
Extension, Top WPL 2174276 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Grille WPL 2155477 Contact Us For Availability
22
Extension, Bottom WPL 2174282 Contact Us For Availability
23
Connecting Rod WPL 1123959 Contact Us For Availability
23
Slide, Freezer Bin (Left Side) WPL 1115383 Contact Us For Availability
23
Cover, End Cap WPL 2174006 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Wiring Assembly WPL 2165297 Contact Us For Availability
25
Escutcheon, Control Box WPL 2179361 Contact Us For Availability
25
Gasket WPL 2167227 Contact Us For Availability
26
Cover, Conduit WPL 2150330 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
28
Trim, Door Shelf (2) WPL 2179977 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
WPL 876029 WPL 876029 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
PAINT, BULK (1 QT.) (W WPL 799344 Contact Us For Availability
29
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
29
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
29
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
29
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
29
WPL 799833 WPL 799833 Contact Us For Availability
29
WPL 978883 WPL 978883 Contact Us For Availability
29
Screw WPL 489284 Contact Us For Availability
30
Screw Anchor WPL 941242 Contact Us For Availability
31
Insert, Air Baffle WPL 2176796 Contact Us For Availability
31
Cover WPL 2169935 Contact Us For Availability
32
Compartment Door WPL 2148289 Contact Us For Availability
34
Extension, Cover WPL 2179561 Contact Us For Availability
35
Panel, Interior Door WPL 1129241 Contact Us For Availability
36
Nameplate WPL 2166630 Contact Us For Availability
37
Trim, Door Shelf WPL 2179978 Contact Us For Availability
40
Service Cord WPL 1129332 Contact Us For Availability
42
Tube, Extension WPL 2172932 Contact Us For Availability
43
Trim, Door Compartment WPL 2162896 Contact Us For Availability
44
Flappper, Drain Extension WPL 2172957 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI12807A5 Contact Us For Availability
49
Hinge Cover WPL 1129262 Contact Us For Availability
50
Cover, Unit WPL 2160521 Contact Us For Availability
55
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
