Model Whirlpool 3XARG486WP00 REFRIGERATOR – Common Parts & Diagrams

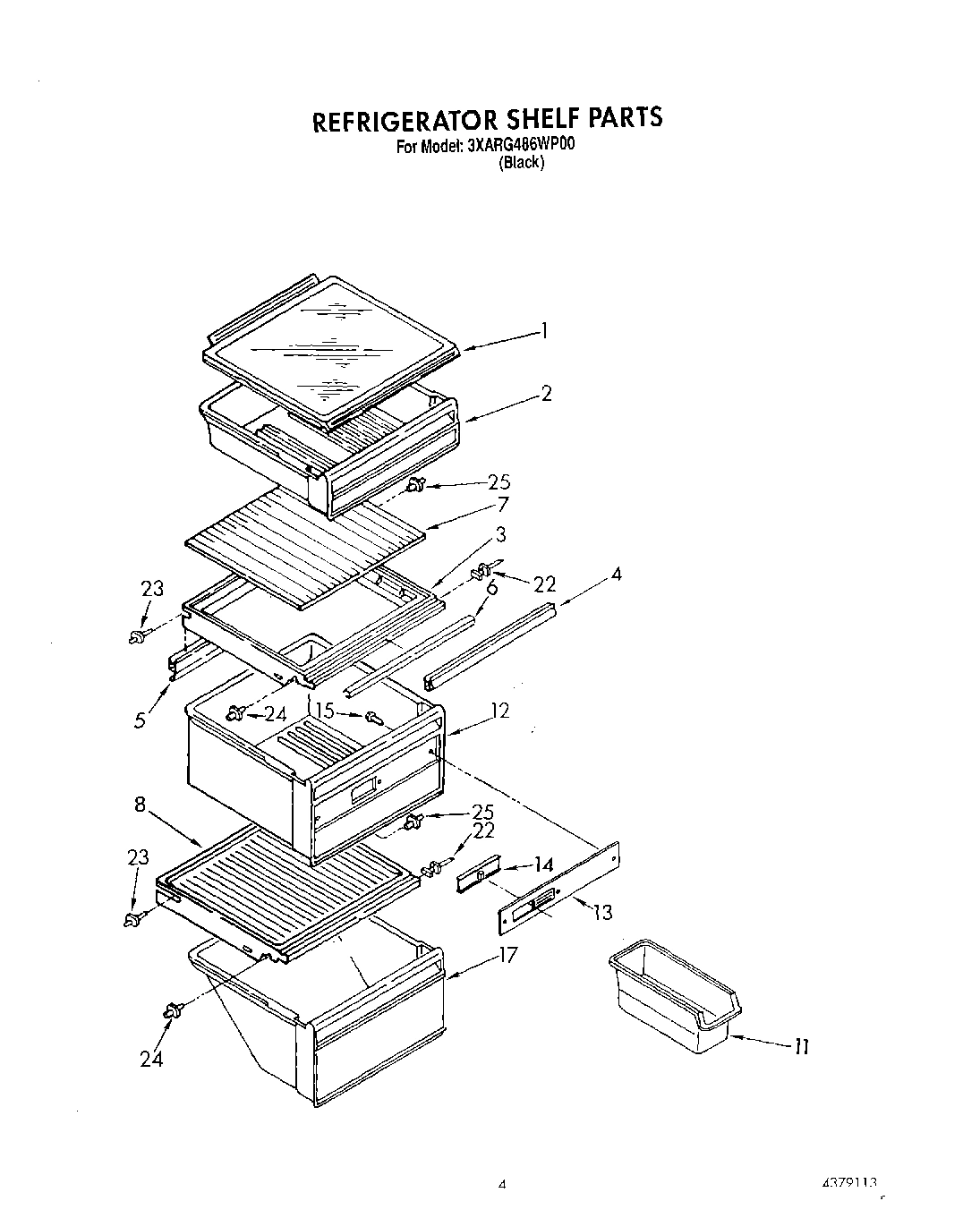

03 - REFRIGERATOR SHELF

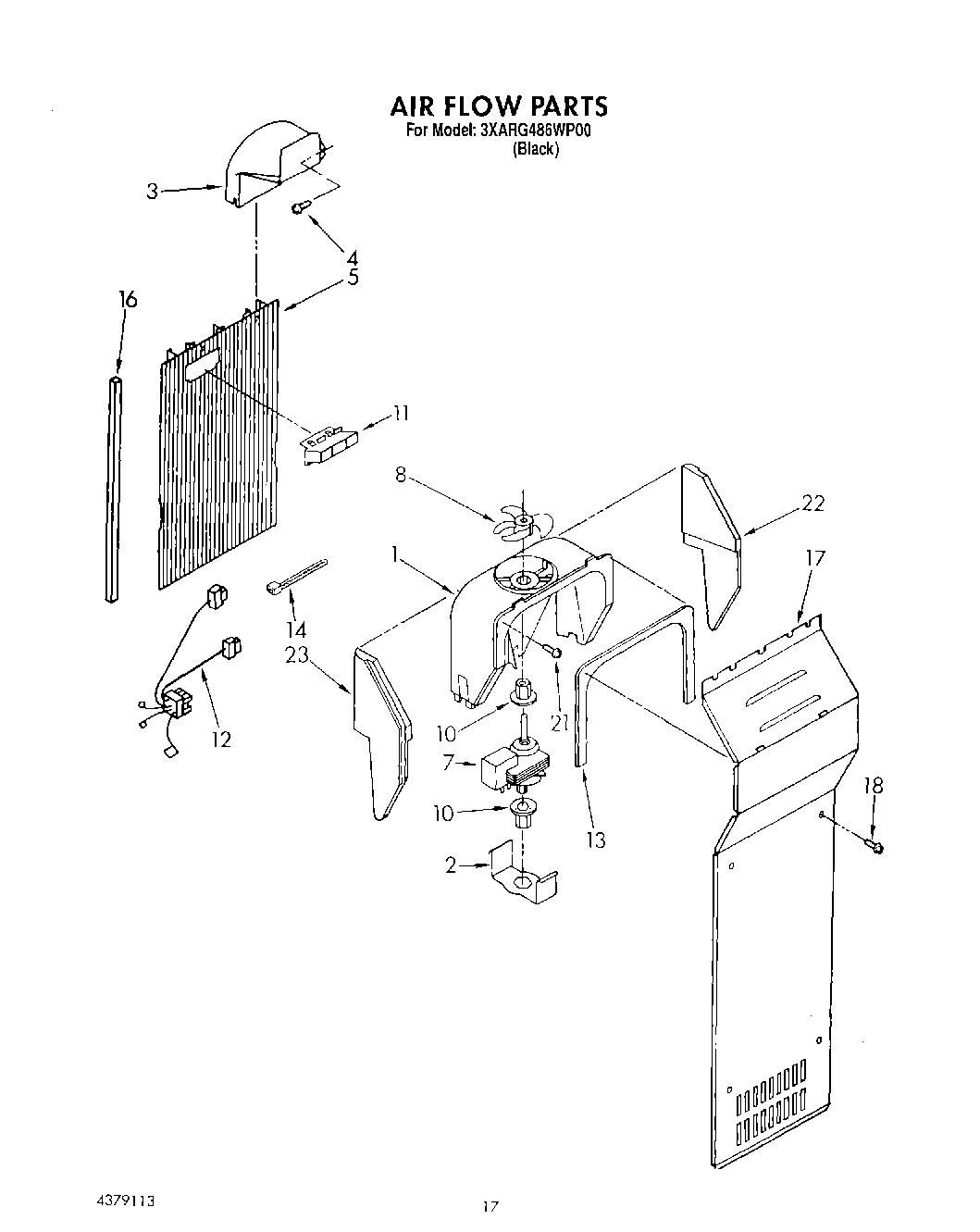

10 - AIRFLOW
01 - CABINET
12 - ICEMAKER, LIT/OPTIONAL
06 - REFRIGERATOR DOOR
07 - FREEZER DOOR
05 - MOTOR AND ICE CONTAINER
08 - DISPENSER FRONT
02 - REFRIGERATOR LINER
04 - FREEZER LINER
09 - UNIT
11 - CONTROL
Common parts from model Whirlpool 3XARG486WP00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 38) WPL 2162799 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 11) WPL 2162801 Contact Us For Availability
1
Bracket, Motor WPL 1118386 Contact Us For Availability
1
Heater, Dispenser WPL 2165241 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI140412A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI140413A Contact Us For Availability
1
Control Box WPL 2155518 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Pin Plate (4) WPL 1118048 Contact Us For Availability
2
Tap Plate WPL 1123568 Contact Us For Availability
2
Motor, Dispenser WPL 2165167 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
3
Door, Compartment WPL 2148847 Contact Us For Availability
3
Handle, Center WPL 1118417 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Door, Ice Compartment WPL 1124834 Contact Us For Availability
3
Condenser Assembly WPL 2154011 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
4
Trim, Compartment Door WPL 1118208 Contact Us For Availability
4
Seal, Hinge Pin WPL 939886 Contact Us For Availability
4
Housing, Dispenser WPL 1107943 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
4
Basket (Small) WPL 2155600 Contact Us For Availability
5
End Cap (2) WPL 1119359 Contact Us For Availability
5
Screw (2) WPL 487523 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
6
Shelf Bin (2) WPL 2150134 Contact Us For Availability
7
Glass, Crisper Cover WPL 1114687 Contact Us For Availability
7
Shim, End Cap (2) WPL 935075 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2149192 Contact Us For Availability
7
Frame, Slides WPL 2152716 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1125929 Contact Us For Availability
8
Divider, Shelf WPL 1123293 Contact Us For Availability
8
Slide, Cube/Crush Switch WPL 2152719 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
9
Shelf Bin (4) WPL 2150137 Contact Us For Availability
9
Trim, Basket WPL 1124837 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2147167 Contact Us For Availability
10
Door Gasket, Magnetic WPL 1125928 Contact Us For Availability
10
Basket, Tall WPL 2152088 Contact Us For Availability
11
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
11
Basket, Slope WPL 2152090 Contact Us For Availability
11
Strap WPL 938384 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
12
Screw Anchor (2) WPL 941242 Contact Us For Availability
12
Cover, Motor WPL 1115339 Contact Us For Availability
12
Stud, Rear WPL 1106982 Contact Us For Availability
12
Cover WPL 1108115 Contact Us For Availability
13
Track, Shelf (Right Side (3)) WPL 1114632 Contact Us For Availability
13
Grille, Overflow WPL 983900 Contact Us For Availability
13
Track, Shelf (Left Side (3)) WPL 1114633 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Panel, Interior Door WPL 1121470 Contact Us For Availability
13
Stud, Support WPL 946355 Contact Us For Availability
13
Overload (Includes Relay) WPL 2154758 Contact Us For Availability
14
Track, Shelf (Right Side) WPL 1115264 Contact Us For Availability
14
Trim, Door Shelf WPL 1124851 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Relay (See Overload) WPL ARI140414A Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Heater, Door WPL 2165376 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Wine Rack WPL 1124828 Contact Us For Availability
17
Panel, Interior Door WPL 1121447 Contact Us For Availability
17
Harness, Door (Includes Item 18) WPL 2167055 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Shelf Track (Right Side (4)) WPL 1126354 Contact Us For Availability
17
Shelf Track (Left Side (4)) WPL 1126355 Contact Us For Availability
18
Connector, Plug WPL 936183 Contact Us For Availability
19
Spacer, Switch WPL 625834 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Tube, Door Wiring WPL 1119060 Contact Us For Availability
20
Control Box Harness WPL 2149186 Contact Us For Availability
21
Wire Connector WPL 227991 Contact Us For Availability
21
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
22
Insulation, Dispenser WPL 1119037 Contact Us For Availability
22
Door, Top Compartment WPL 1124833 Contact Us For Availability
22
Evaporator WPL 2155501 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Shelf Stud WPL 1115290 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Chute, Ice WPL 1121473 Contact Us For Availability
23
Shelf, Top Compartment WPL 1115256 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Wiring Protector WPL 939143 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Lever Assembly, Ice Dispenser WPL 1127421 Contact Us For Availability
24
Light Lens WPL 1115389 Contact Us For Availability
25
Tube, Door Wiring WPL 2147080 Contact Us For Availability
25
Guide, Ice WPL 1119035 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Escutcheon, Control Box WPL 2161213 Contact Us For Availability
26
Screw WPL 489197 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
27
Slide, Light Switch WPL 2152724 Contact Us For Availability
27
Stud, Front WPL 946356 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
28
Seal WPL 482672 Contact Us For Availability
28
Compressor (Includes Items 11, 12, 13, 14 & 1 WPL 2154754 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
Bracket, Door Stop WPL 2157609 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
30
Washer WPL 489336 Contact Us For Availability
31
Screw WPL 488361 Contact Us For Availability
31
Unit, Harness WPL 2167065 Contact Us For Availability
32
Retainer, Insert WPL 1119360 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
32
Trim, Shelf WPL 2148844 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
33
Insert, Handle WPL 1118437 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
33
Heater, Defrost WPL 2162214 Contact Us For Availability
34
Insert, Handle WPL 1118435 Contact Us For Availability
34
Bulb, Light WPL 989331 Contact Us For Availability
34
Light Lens WPL 1115330 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
35
Retainer, Insert WPL 1119372 Contact Us For Availability
35
Panel, Black Glass WPL 1124650 Contact Us For Availability
35
Screw WPL 489360 Contact Us For Availability
36
End Cap (2) WPL 2156220 Contact Us For Availability
36
Door Dike (2) WPL 1123622 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
37
Screw WPL 489090 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
38
Panel Upper, Black Glass WPL 1124648 Contact Us For Availability
38
Lever Assembly, Water Dispenser WPL 2159196 Contact Us For Availability
39
Divider (2) WPL 2152335 Contact Us For Availability
39
Panel, Black Glass (Lower) WPL 1124649 Contact Us For Availability
39
Plaque, Front Cover WPL 2150319 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
Door Trim WPL 1119062 Contact Us For Availability
40
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) WPL 2150311 Contact Us For Availability
41
Washer WPL 1129722 Contact Us For Availability
41
Heat Shield, Frame WPL 2147172 Contact Us For Availability
42
Pin Plate (6) WPL 1116986 Contact Us For Availability
42
Housing Filler WPL 2152700 Contact Us For Availability
42
Bracket, Water WPL 987049 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
43
Insert WPL 1129177 Contact Us For Availability
43
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
43
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
43
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
43
WPL 799340 WPL 799340 Contact Us For Availability
43
WPL 799833 WPL 799833 Contact Us For Availability
43
WPL 978883 WPL 978883 Contact Us For Availability
43
Screw WPL 489022 Contact Us For Availability
43
Deflector, Ice Container WPL 1119043 Contact Us For Availability
43
Screw WPL 488316 Contact Us For Availability
43
Unit Cover, Bottom WPL 2161363 Contact Us For Availability
44
Front Cover, Ice Container WPL 1124836 Contact Us For Availability
44
Wiring Harness, Door WPL 2147166 Contact Us For Availability
45
Door Dike (2) WPL 1115378 Contact Us For Availability
46
Gasket Retainer, Top & Bottom WPL 1118306 Contact Us For Availability
46
Light Lens, Dispenser WPL 983359 Contact Us For Availability
47
Gasket Retainer, Side (2) WPL 1118302 Contact Us For Availability
47
Shroud, Bracket WPL 1129333 Contact Us For Availability
48
Door Dike (2) WPL 1123587 Contact Us For Availability
49
Hinge Cover WPL 2155938 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 1110663 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
