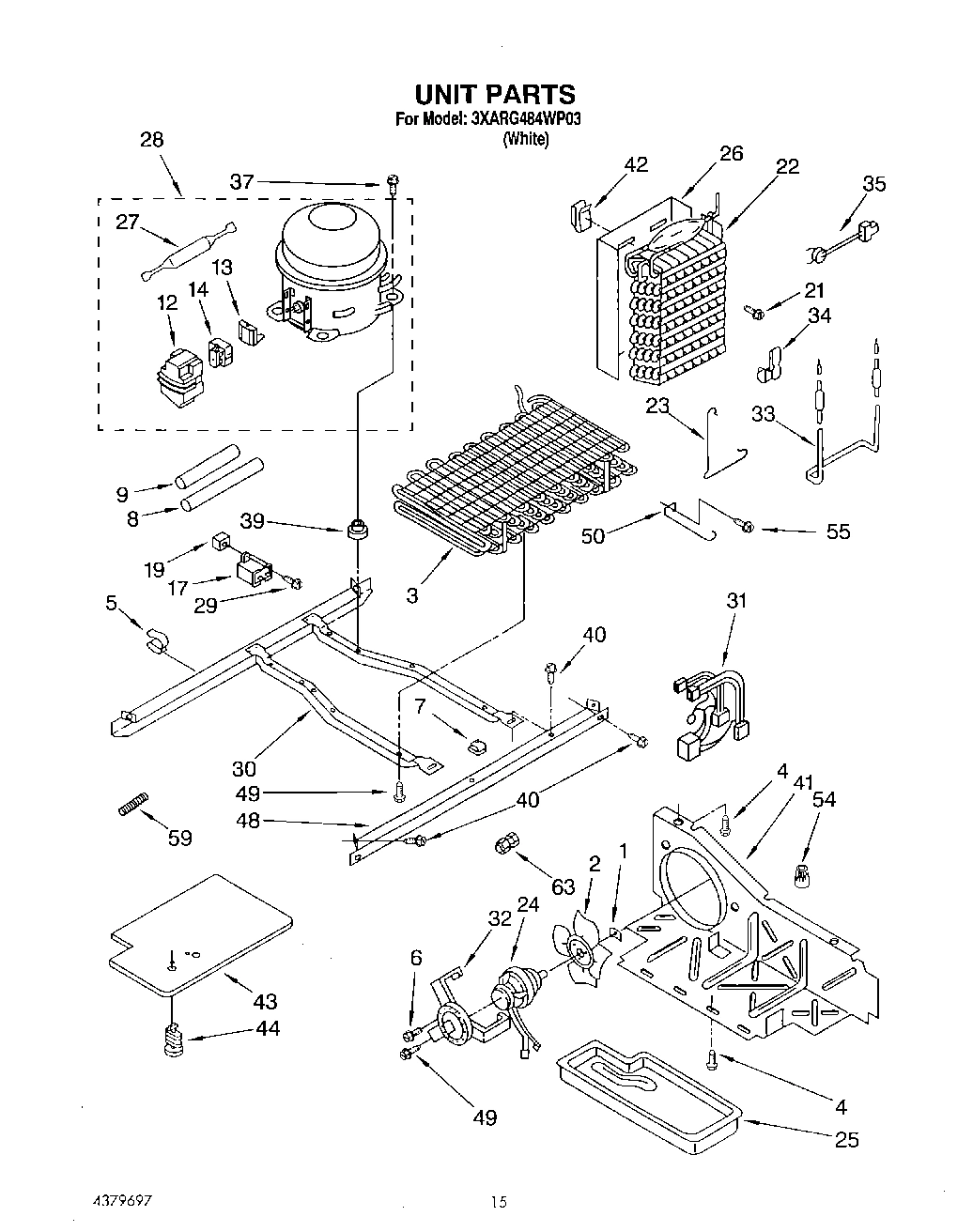

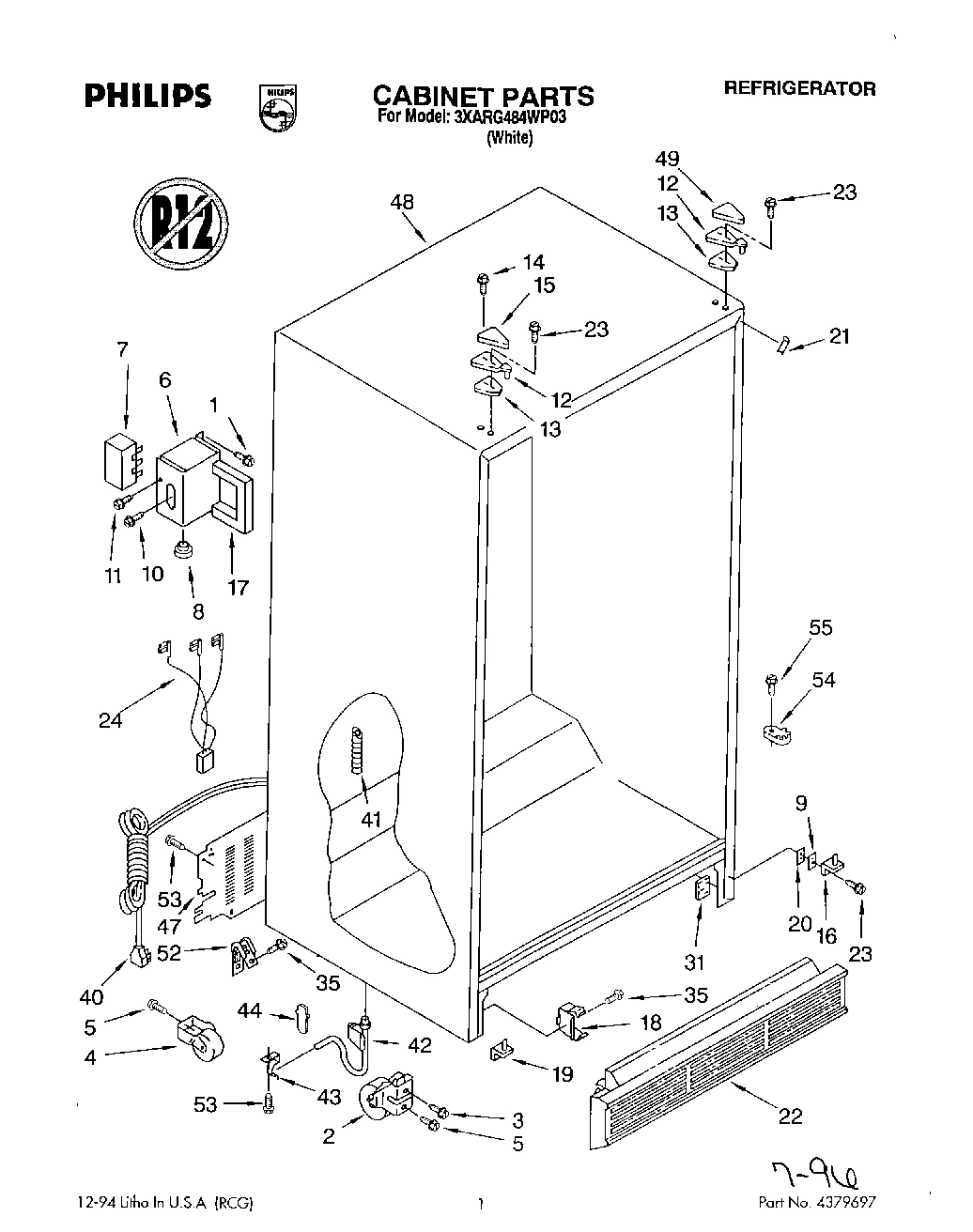

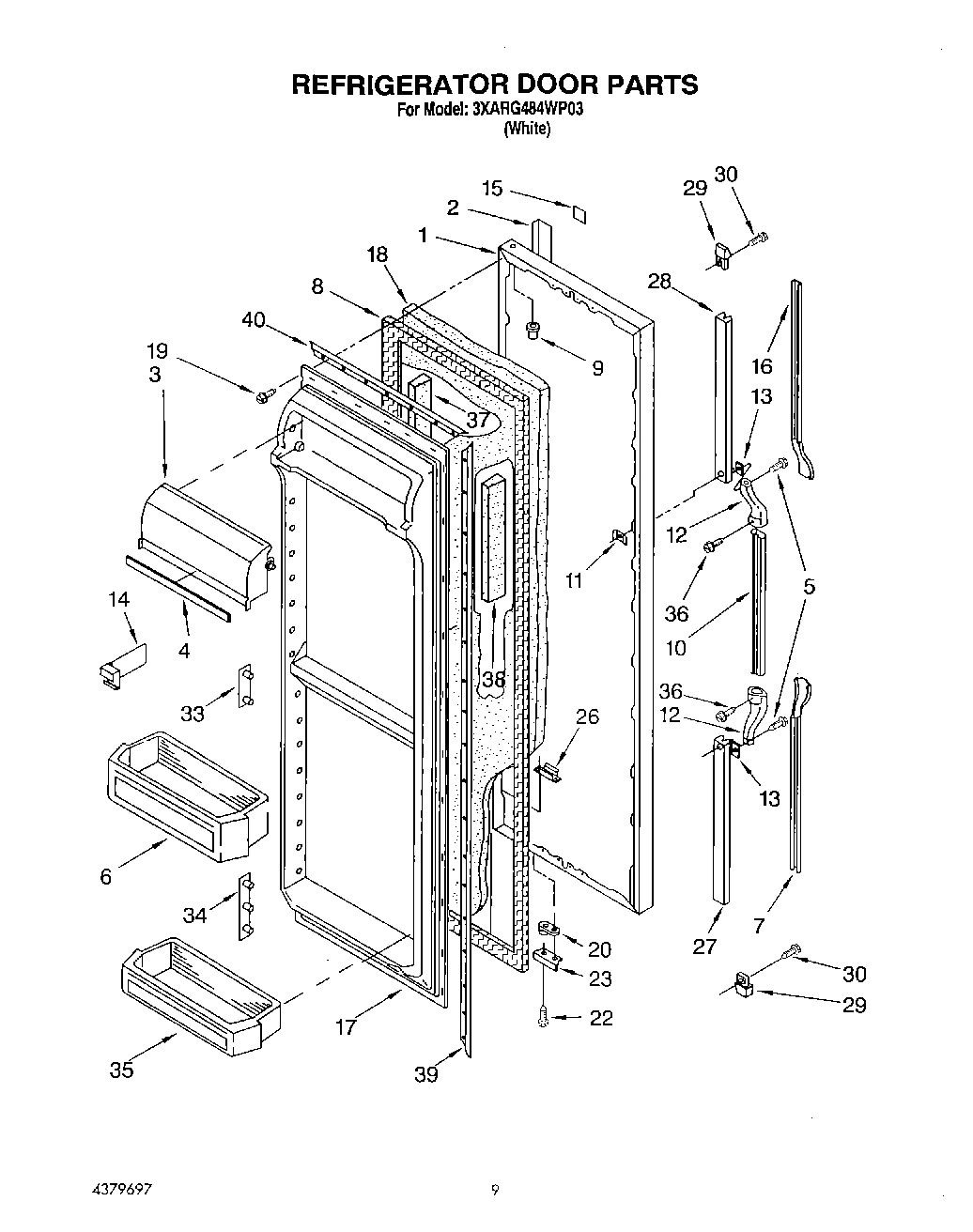

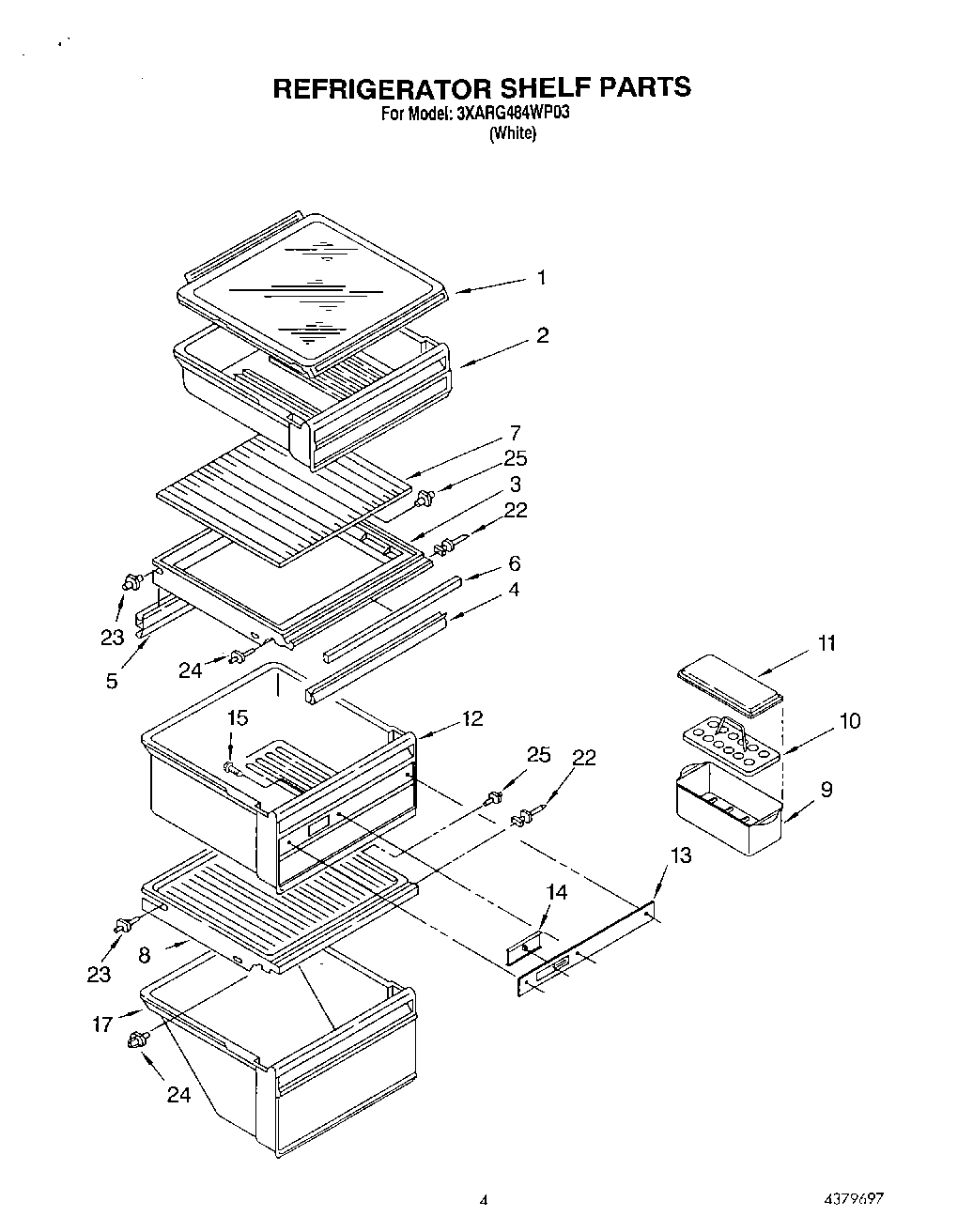

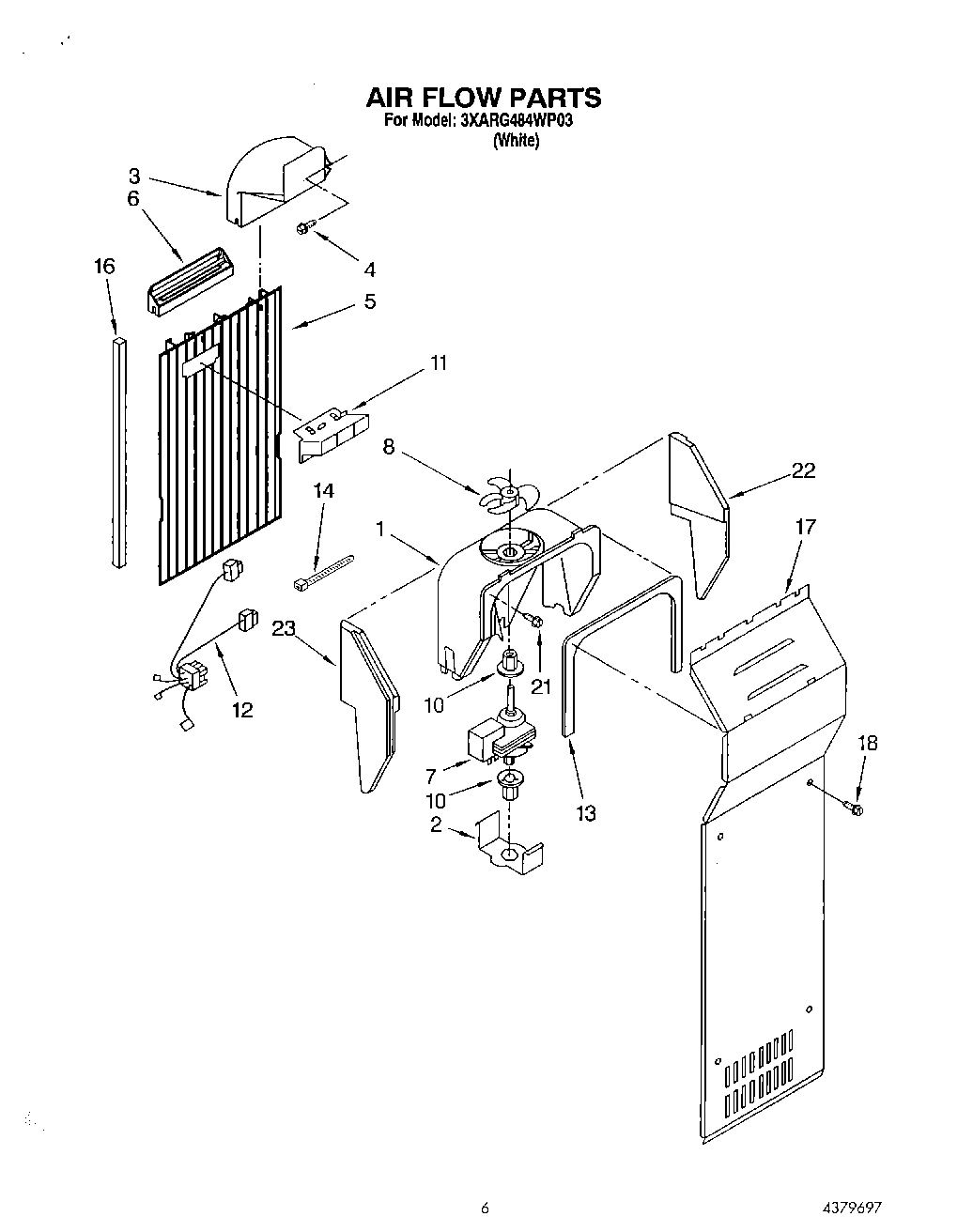

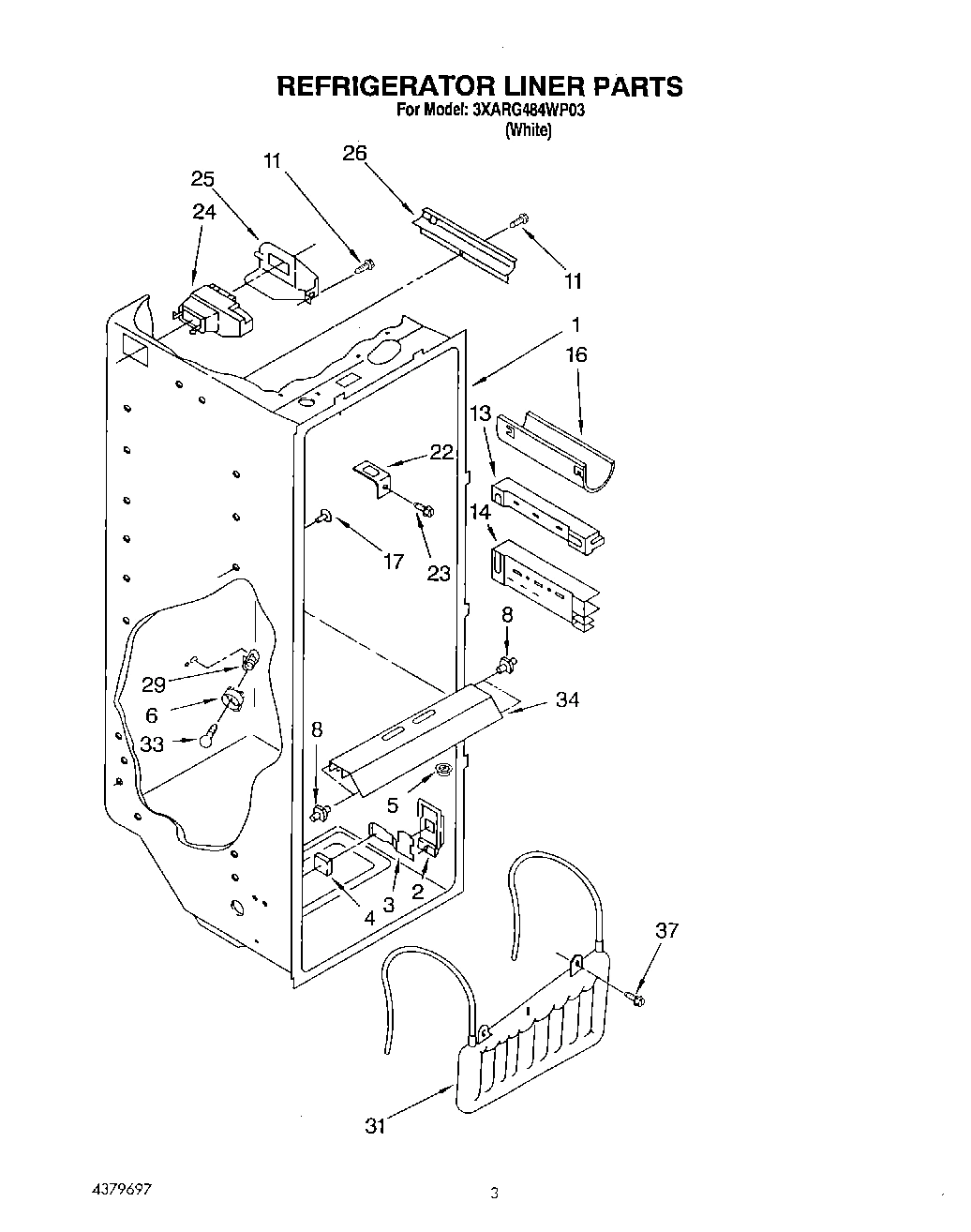

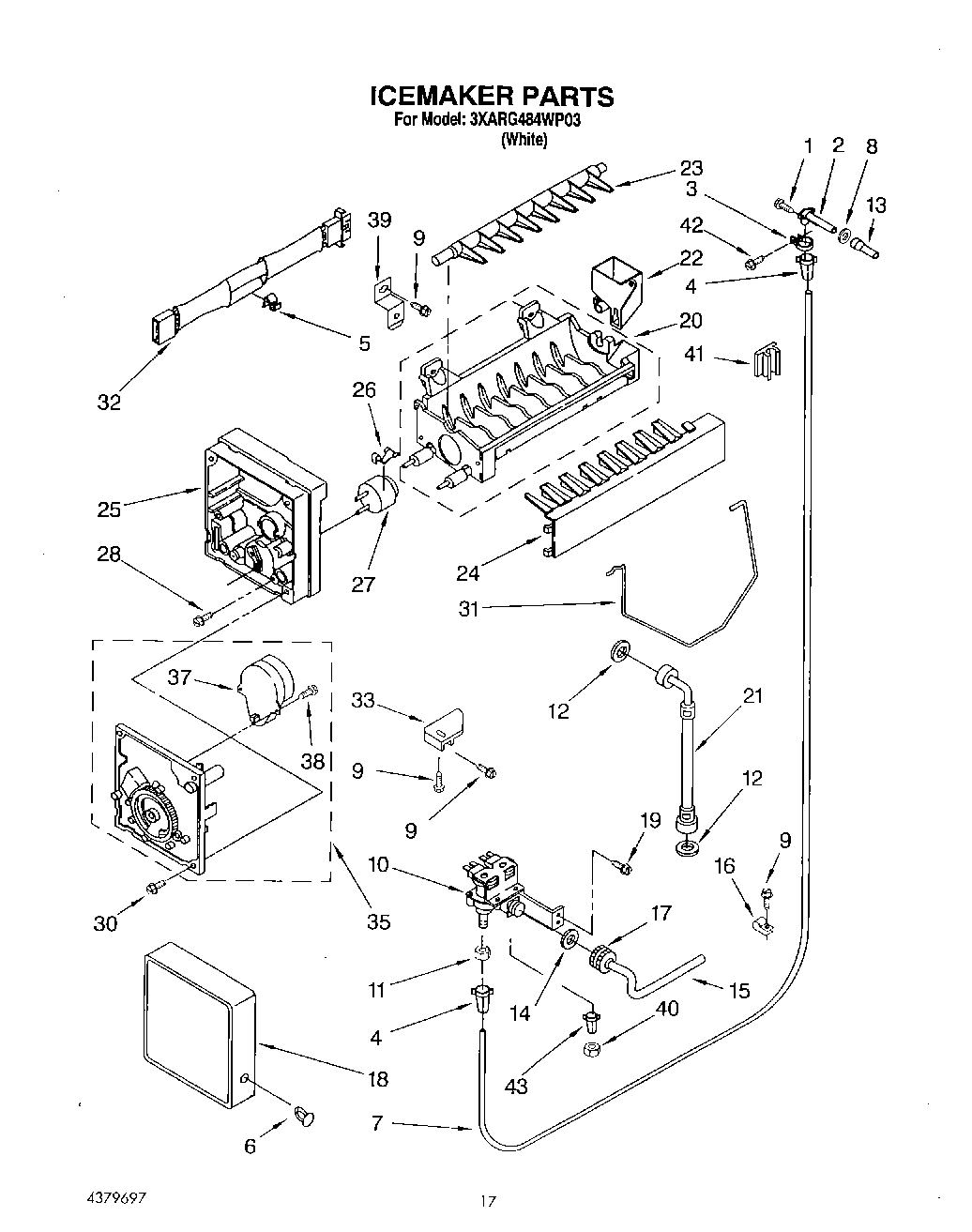

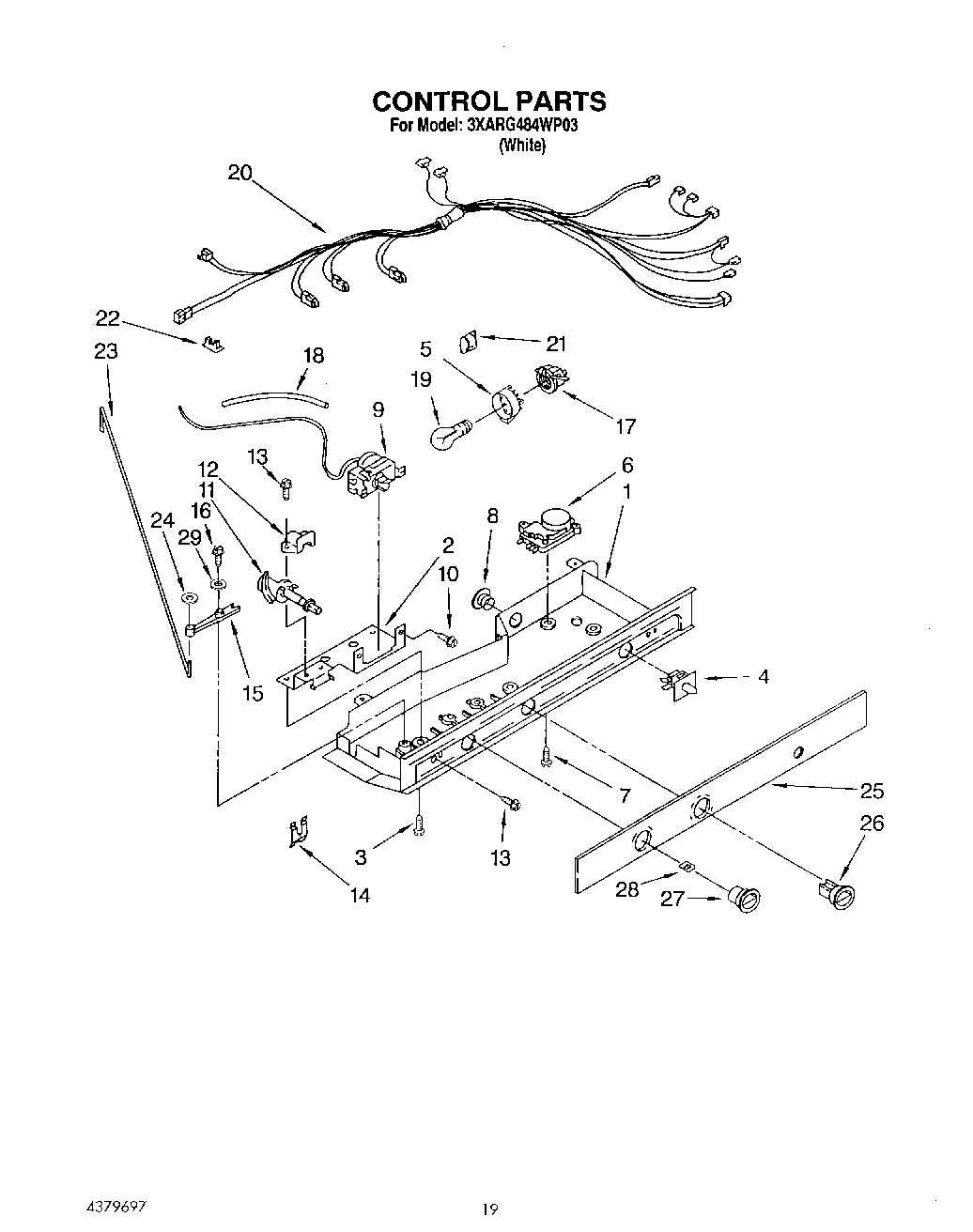

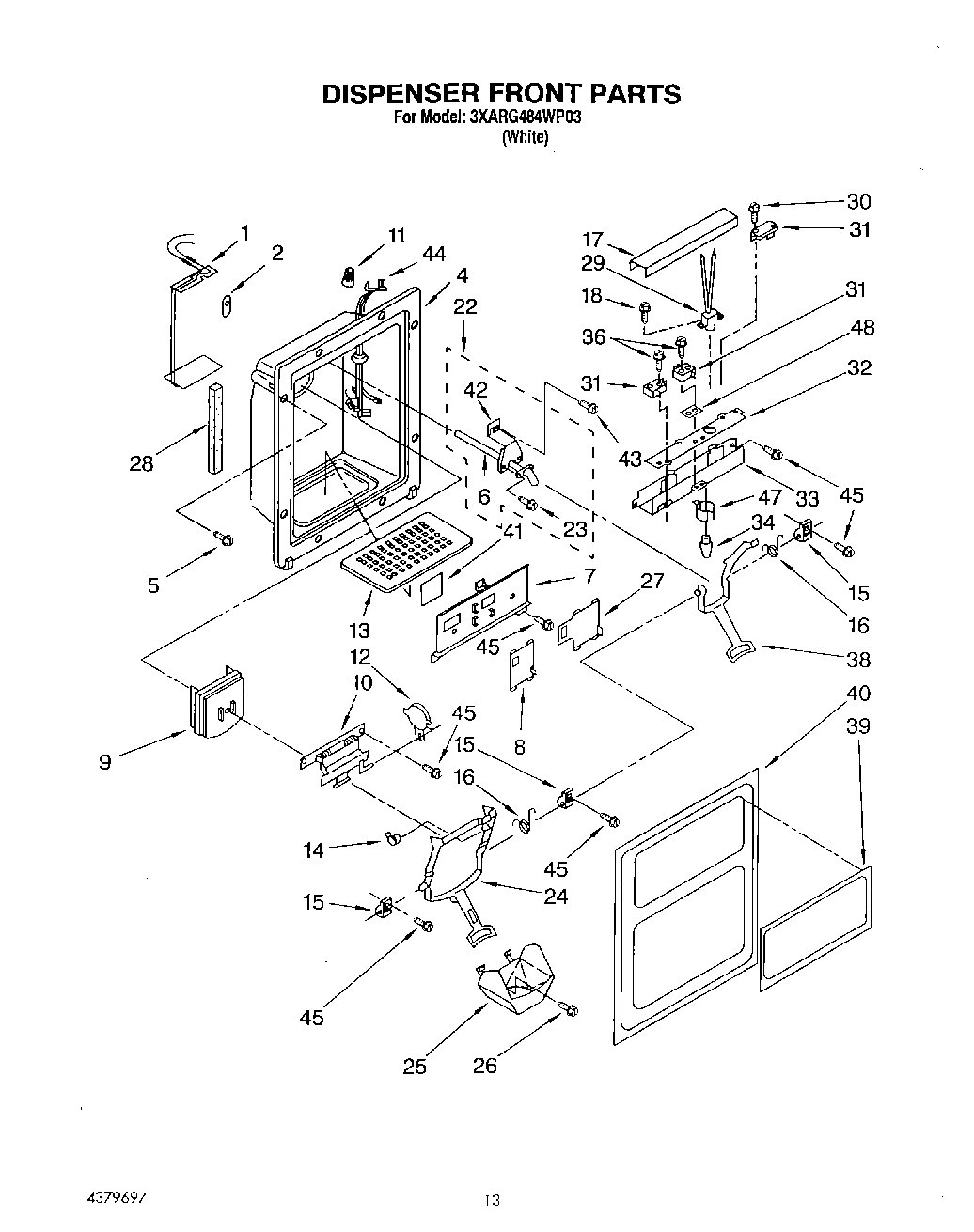

Model Whirlpool 3XARG484WP03 REFRIGERATOR – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL LIT2165260 WPL LIT2165260 Contact Us For Availability

WPL LIT2167370 WPL LIT2167370 Contact Us For Availability

WPL LIT2175017 WPL LIT2175017 Contact Us For Availability

WPL LIT628371 WPL LIT628371 Contact Us For Availability

1

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $2.51

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Heater, Dispenser WPL 2165241 Contact Us For Availability

1

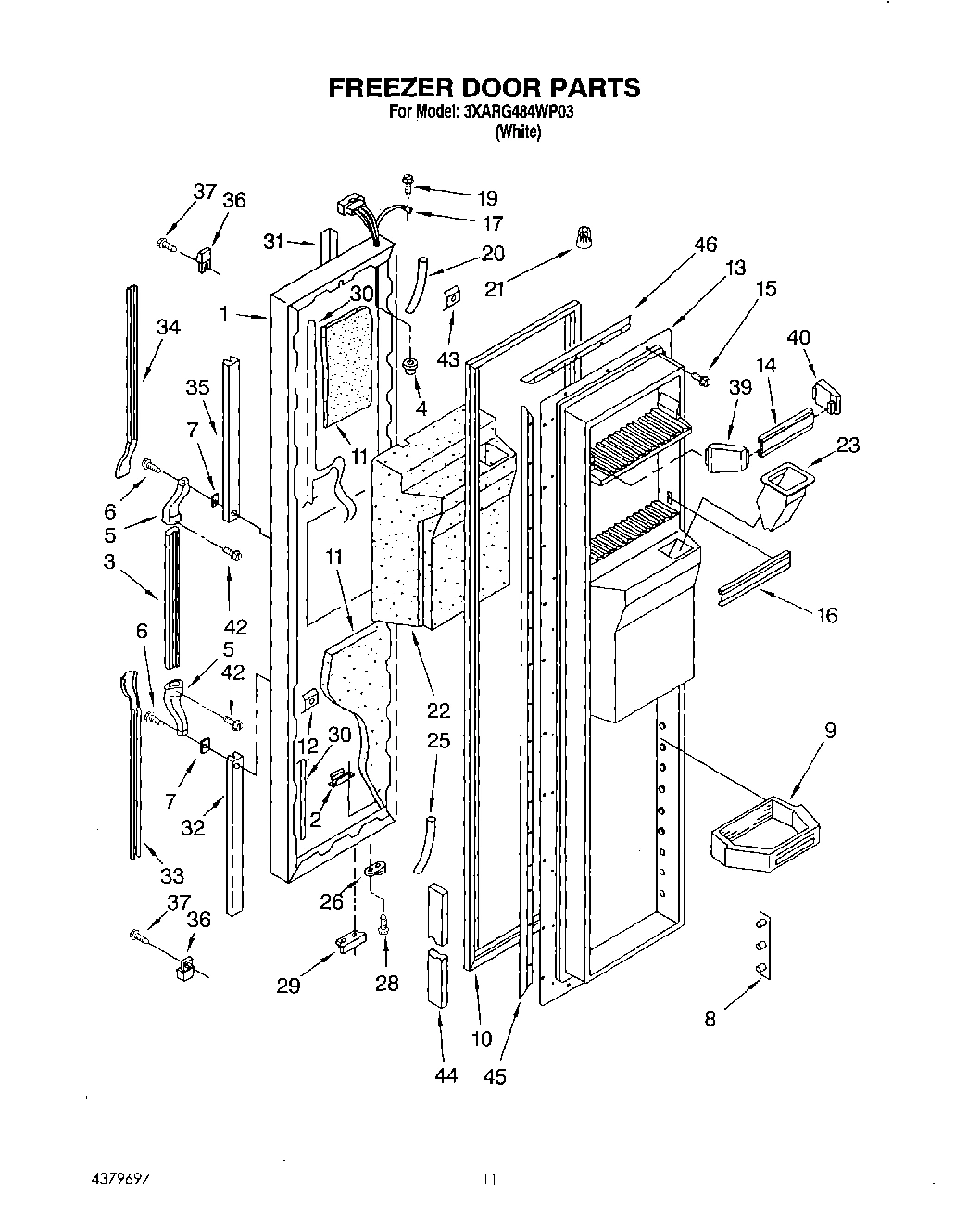

Freezer, Door Panel (Also Order Item 11) WPL 1115235 Contact Us For Availability

1

Control Box WPL 2169147 Contact Us For Availability

1

Shelf Assembly, Glass Sliding (3) WPL 2162564 Contact Us For Availability

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.59

2

Fan, Blade WPL 1108179 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Grommet WPL 987048 Contact Us For Availability

2

Tap, Plate WPL 2155335 Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

2

Snack Bin WPL 1124829 Contact Us For Availability

3

WP1126289 Whirlpool Refrigerator Cover Backorder WPL WP1126289 $68.02

3

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

3

Handle, Center WPL 1124713 Contact Us For Availability

3

Condenser Assembly WPL 2164513 Contact Us For Availability

3

Screw (2) WPL 489397 Contact Us For Availability

3

Screw WPL 489432 Contact Us For Availability

4

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $3.70

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Housing, Dispenser WPL 1124715 Contact Us For Availability

4

Seal, Hinge Pin WPL 939886 Contact Us For Availability

4

Gasket, Crisper (Front) WPL 1115291 Contact Us For Availability

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

5

WP2175210 Whirlpool Refrigerator Shroud Backorder WPL WP2175210 $26.21

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

End Cap (2) WPL 1119359 Contact Us For Availability

5

Clip, Wire WPL 2155658 Contact Us For Availability

5

Gasket, Crisper (Rear) WPL 1121385 Contact Us For Availability

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

6

WP2166867 Whirlpool Refrigerator Defrost Time Backorder WPL WP2166867 $84.73

6

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $3.70

6

Tube, Water (See Item No.22) WPL ARI12765A9 Contact Us For Availability

6

Cover, Terminal Block WPL 2158579 Contact Us For Availability

6

Trim, Crisper Cover WPL 2172714 Contact Us For Availability

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

7

Glass, Crisper Cover WPL 1114687 Contact Us For Availability

7

Frame, Slides WPL 2152717 Contact Us For Availability

7

Shim, End Cap (2) WPL 935075 Contact Us For Availability

7

Clip, Tube (3) WPL 934011 Contact Us For Availability

7

Terminal Block WPL 1129346 Contact Us For Availability

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

8

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

8

WP2148298 Whirlpool Refrigerator Deli Drawer Backorder WPL WP2148298 $93.36

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

Slide, Cube/Crush Switch WPL 2152720 Contact Us For Availability

8

Pin Plate (6) WPL 1116986 Contact Us For Availability

8

Bushing WPL 1129449 Contact Us For Availability

9

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

9

WP2158826 Whirlpool Refrigerator Dampener Backorder WPL WP2158826 $0.90

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

Door, Ice WPL 2147168 Contact Us For Availability

9

Shelf Bin (3) WPL 2167385 Contact Us For Availability

9

Shim WPL 836196 Contact Us For Availability

2188405A Whirlpool Refrigerator Door Gasket Backorder WPL 2188405A $132.43

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2177817 Whirlpool Refrigerator Egg Containe Backorder WPL WP2177817 $7.39

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

Door Mechanism Assembly (Includes Item 9) WPL 2147167 Contact Us For Availability

Valve, Solenoid WPL 2165238 Contact Us For Availability

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability

Cam Assembly WPL 2161250 Contact Us For Availability

Screw WPL 489346 Contact Us For Availability

Cover WPL 2164374 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

WP1120581 Whirlpool Refrigerator Mechanism Backorder WPL WP1120581 $80.45

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $30.03

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $33.95

Screw Anchor (2) WPL 941242 Contact Us For Availability

Washer WPL 1129722 Contact Us For Availability

Pan, Crisper WPL 2162711 Contact Us For Availability

WP2169412 Whirlpool Overload Relay Backorder WPL WP2169412 $50.33

Track, Shelf (Right Side (2)) WPL 1114632 Contact Us For Availability

Grille, Overflow WPL 983900 Contact Us For Availability

Track, Shelf (Left Side (2)) WPL 1114633 Contact Us For Availability

Shim, Hinge Top WPL 1123515 Contact Us For Availability

Panel, Interior Door WPL 2149009 Contact Us For Availability

Tube, Water Inlet WPL 2155247 Contact Us For Availability

Front, Crisper Pan WPL 2162712 Contact Us For Availability

WP1115265 Whirlpool Refrigerator Track Backorder WPL WP1115265 $11.27

WP2262184 Whirlpool Refrigerator Start Relay Backorder WPL WP2262184 $41.23

Track, Shelf (Right Side) WPL 1115264 Contact Us For Availability

Clip, Bearing (2) WPL 987917 Contact Us For Availability

Trim, Door Shelf WPL 2167383 Contact Us For Availability

Retainer, Damper WPL 938439 Contact Us For Availability

Washer WPL 628337 Contact Us For Availability

Screw WPL 489284 Contact Us For Availability

Slide, Humidity Control WPL 2148524 Contact Us For Availability

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $13.85

WP1129262 Whirlpool Refrigerator Cover Backorder WPL WP1129262 $10.38

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

Pivot Arm WPL 1110559 Contact Us For Availability

Bearing, Lever (3) WPL 983697 Contact Us For Availability

Tube, Inlet Valve WPL 627860 Contact Us For Availability

Screw (3) WPL 489162 Contact Us For Availability

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

Spring, Lever (2) WPL 983696 Contact Us For Availability

Wine Rack WPL 1124828 Contact Us For Availability

Trim, Door Shelf WPL 2167384 Contact Us For Availability

Clamp WPL 510716 Contact Us For Availability

Hinge Bottom (R.H.) WPL 2155321 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

WP1114631 Whirlpool Refrigerator Shelf Suppor Backorder WPL WP1114631 $4.32

WP2201147 Whirlpool Refrigerator Capacitor Backorder WPL WP2201147 $48.06

Shield, Wiring WPL 2147165 Contact Us For Availability

Harness, Door WPL 2167055 Contact Us For Availability

Nut, Valve WPL 537588 Contact Us For Availability

Gasket WPL 2167227 Contact Us For Availability

Meat Pan WPL 2162710 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

Cover WPL 628329 Contact Us For Availability

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.09

WP67002552 Whirlpool Refrigerator Light Bulb In Stock WPL WP67002552 $2.56

Screw Grommet WPL 509812 Contact Us For Availability

Hinge Bottom (L.H.) WPL 2155323 Contact Us For Availability

WPW10122523 Whirlpool Refrigerator Ice Mold Backorder WPL WPW10122523 $85.43

Tube, Door Wiring WPL 1119059 Contact Us For Availability

Control Box Harness WPL 2149186 Contact Us For Availability

Spacer, Hinge WPL 1129868 Contact Us For Availability

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

Wire Connector WPL 227991 Contact Us For Availability

European Water Connection Tube WPL 1129682 Contact Us For Availability

Filler, Wrapper WPL 1110708 Contact Us For Availability

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

WP4388152 Whirlpool Refrigerator Fitting In Stock WPL WP4388152 $83.91

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Insulation, Dispenser WPL 2149014 Contact Us For Availability

CLIP, WIRING WPL 1115375 Contact Us For Availability

Grille WPL 2155477 Contact Us For Availability

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

Shelf Stud WPL 1115290 Contact Us For Availability

Clamp WPL 2161324 Contact Us For Availability

Chute, Ice WPL 1119036 Contact Us For Availability

Connecting Rod WPL 1123960 Contact Us For Availability

8201703 Whirlpool Refrigerator Condenser Moto Backorder WPL 8201703 $132.02

WP2149540 Whirlpool Shelf Support In Stock WPL WP2149540 $4.34

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $33.42

Fastener, Push-On WPL 489285 Contact Us For Availability

Lever, Ice Dispenser WPL 1124718 Contact Us For Availability

Wiring Assembly WPL 2165297 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

4388538 Whirlpool Refrigerator Shelf Stud Kit In Stock WPL 4388538 $11.05

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

Guide, Ice WPL 1124730 Contact Us For Availability

Tube, Door Wiring WPL 2147080 Contact Us For Availability

Tray, Evaporator WPL 2154114 Contact Us For Availability

Escutcheon, Control Box WPL 2161213 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $9.53

4318165 Whirlpool Refrigerator Door Closure C In Stock WPL 4318165 $9.42

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

Screw WPL 488892 Contact Us For Availability

Heat Shield WPL 2149293 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

Slide, Light Switch WPL 2152726 Contact Us For Availability

Knob, Air Control WPL 1116853 Contact Us For Availability

Cement Alumilastic) WPL 542369 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

W10183407 Whirlpool Refrigerator Compressor Backorder WPL W10183407 $361.52

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $46.34

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $50.98

Seal WPL 482672 Contact Us For Availability

Knob, Retainer WPL 837444 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Lamp Holder WPL 2147131 Contact Us For Availability

Bracket, Door Stop WPL 2155332 Contact Us For Availability

Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $95.80

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

Screw (2) WPL 488361 Contact Us For Availability

Heater, Door WPL 2165376 Contact Us For Availability

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $25.51

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $77.94

Trim, Door WPL 1119061 Contact Us For Availability

Unit, Harness WPL 2167065 Contact Us For Availability

Tap Plate (2) WPL 2147310 Contact Us For Availability

W11596045 Whirlpool Refrigerator Control Arm Backorder WPL W11596045 $12.11

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $43.83

Insulator, Control Bracket WPL 2147164 Contact Us For Availability

Retainer, Insert WPL 1119360 Contact Us For Availability

Fan, Motor Bracket WPL 548695 Contact Us For Availability

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

Bracket, Control WPL 2147163 Contact Us For Availability

Insert, Handle WPL 1119361 Contact Us For Availability

Heater, Defrost WPL 2162213 Contact Us For Availability

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

Light Lens WPL 2169504 Contact Us For Availability

Bulb, Light WPL 989331 Contact Us For Availability

Insert, Handle WPL 1119367 Contact Us For Availability

Clip WPL 2161330 Contact Us For Availability

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

Shelf Bin (2) WPL 1124846 Contact Us For Availability

Retainer, Insert WPL 1119366 Contact Us For Availability

36

Screw (6) WPL 489155 Contact Us For Availability

36

End Cap (2) WPL 2156220 Contact Us For Availability

37

W10190933 Whirlpool Refrigerator Motor Assemb Backorder WPL W10190933 $191.63

37

Screw (2) WPL 488280 Contact Us For Availability

37

Screw WPL 489075 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

38

Lever, Water Dispenser WPL 2159197 Contact Us For Availability

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

Plaque, Front Cover WPL 2167374 Contact Us For Availability

End Cap, Trim WPL 1115333 Contact Us For Availability

Clip WPL 2155021 Contact Us For Availability

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

Front Cover, Housing (Includes No.39) WPL 2167376 Contact Us For Availability

End Cap, Trim WPL 1115364 Contact Us For Availability

Nut, Compression WPL 1129179 Contact Us For Availability

Service Cord WPL 1129332 Contact Us For Availability

W10896764 Whirlpool Refrigerator Air Baffle Backorder WPL W10896764 $36.11

W11501419 Whirlpool Refrigerator Clip Backorder WPL W11501419 $4.19

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

Heat Shield, Frame WPL 2147172 Contact Us For Availability

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

Bracket, Water WPL 987049 Contact Us For Availability

Screw WPL 489022 Contact Us For Availability

Clip, Heat Shield WPL 2155547 Contact Us For Availability

Tube, Extension WPL 2172932 Contact Us For Availability

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

Screw WPL 488316 Contact Us For Availability

Cover, Unit Bottom WPL 2160505 Contact Us For Availability

Insert WPL 1129177 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

Wiring Harness, Door WPL 2147166 Contact Us For Availability

Door Dike (2) WPL 1115378 Contact Us For Availability

Flappper, Drain Extension WPL 2172957 Contact Us For Availability

45

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

45

Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability

46

Gasket Retainer, Top & Bottom WPL 1117767 Contact Us For Availability

47

Shroud, Bracket WPL 1129333 Contact Us For Availability

47

Cover, Unit WPL 2160521 Contact Us For Availability

48

Spacer WPL 625834 Contact Us For Availability

48

Unit Mounting Rail WPL 2149717 Contact Us For Availability

48

Cabinet (Not A Serviceable Part) WPL ARI12762A5 Contact Us For Availability

49

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

49

Screw WPL 488624 Contact Us For Availability

50

1105612 Whirlpool Fan Guard Backorder WPL 1105612 $24.10

52

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

54

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

54

Wire Connector WPL 850145 Contact Us For Availability

55

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

59

Spring-Tube WPL 983659 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP4211117 Whirlpool Refrigerator Connector In Stock WPL WP4211117 $5.34

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
