Model Whirlpool 3XARG479WP00 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET
08 - CONTROL, LIT/OPTIONAL

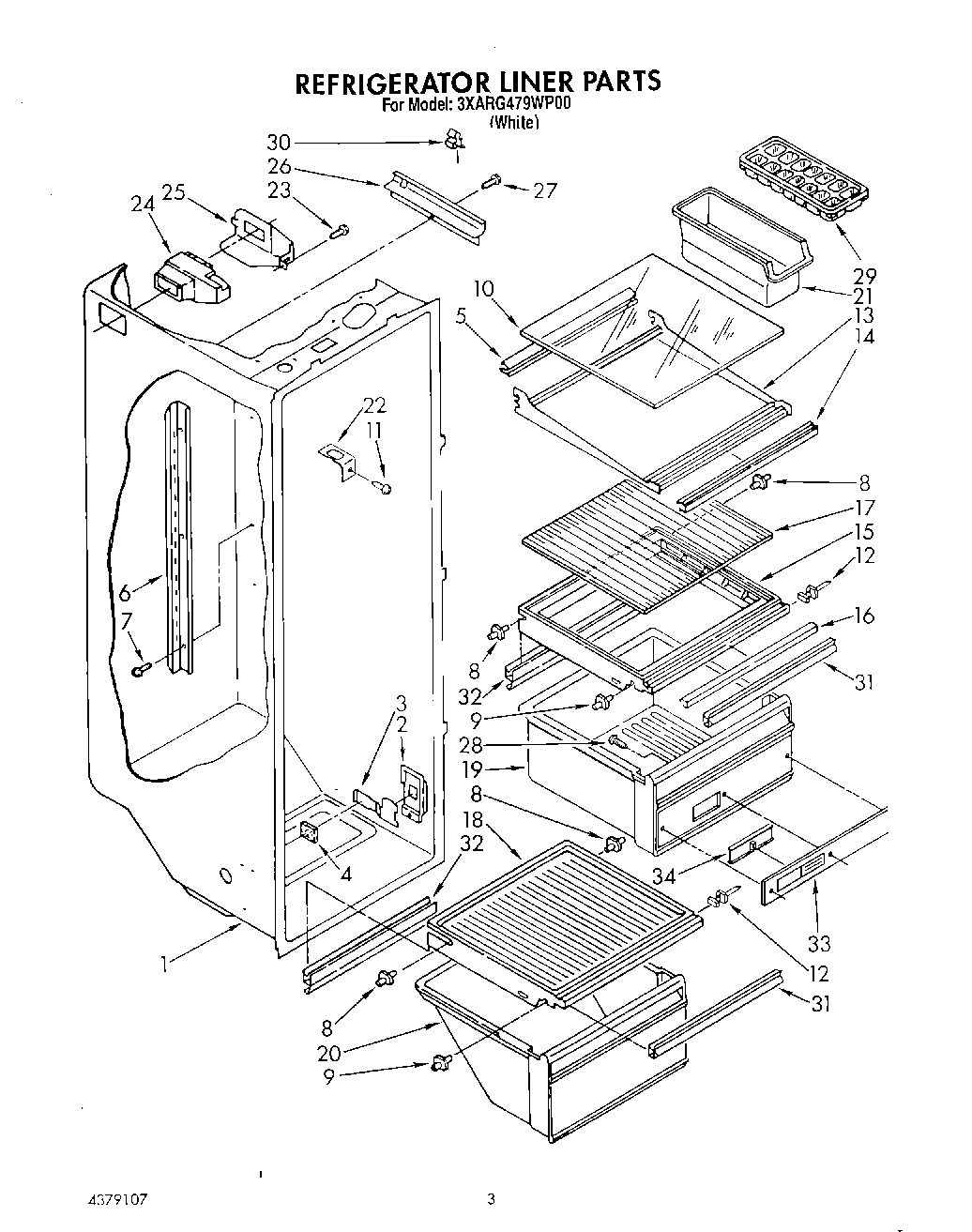

02 - REFRIGERATOR LINER

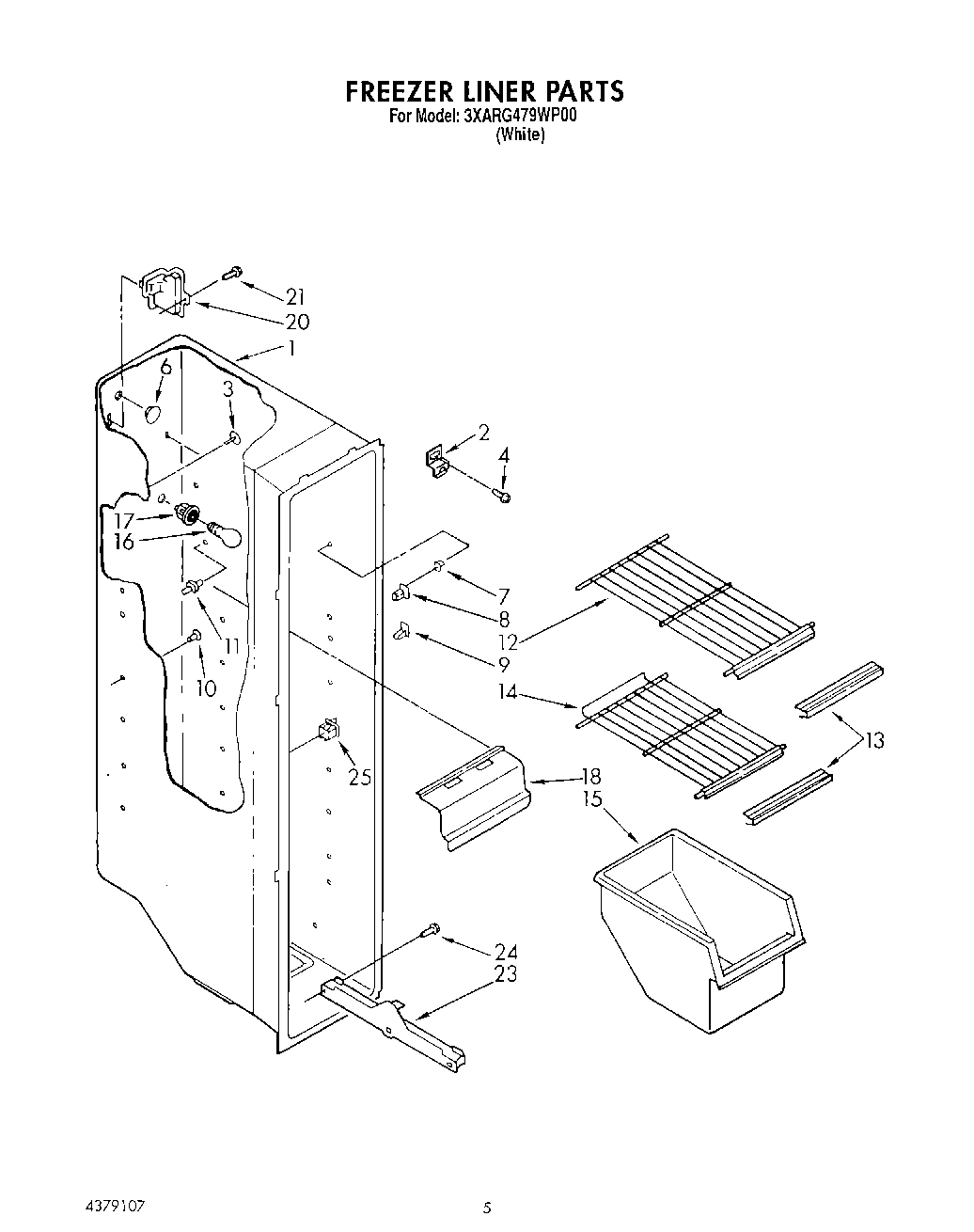

03 - FREEZER LINER

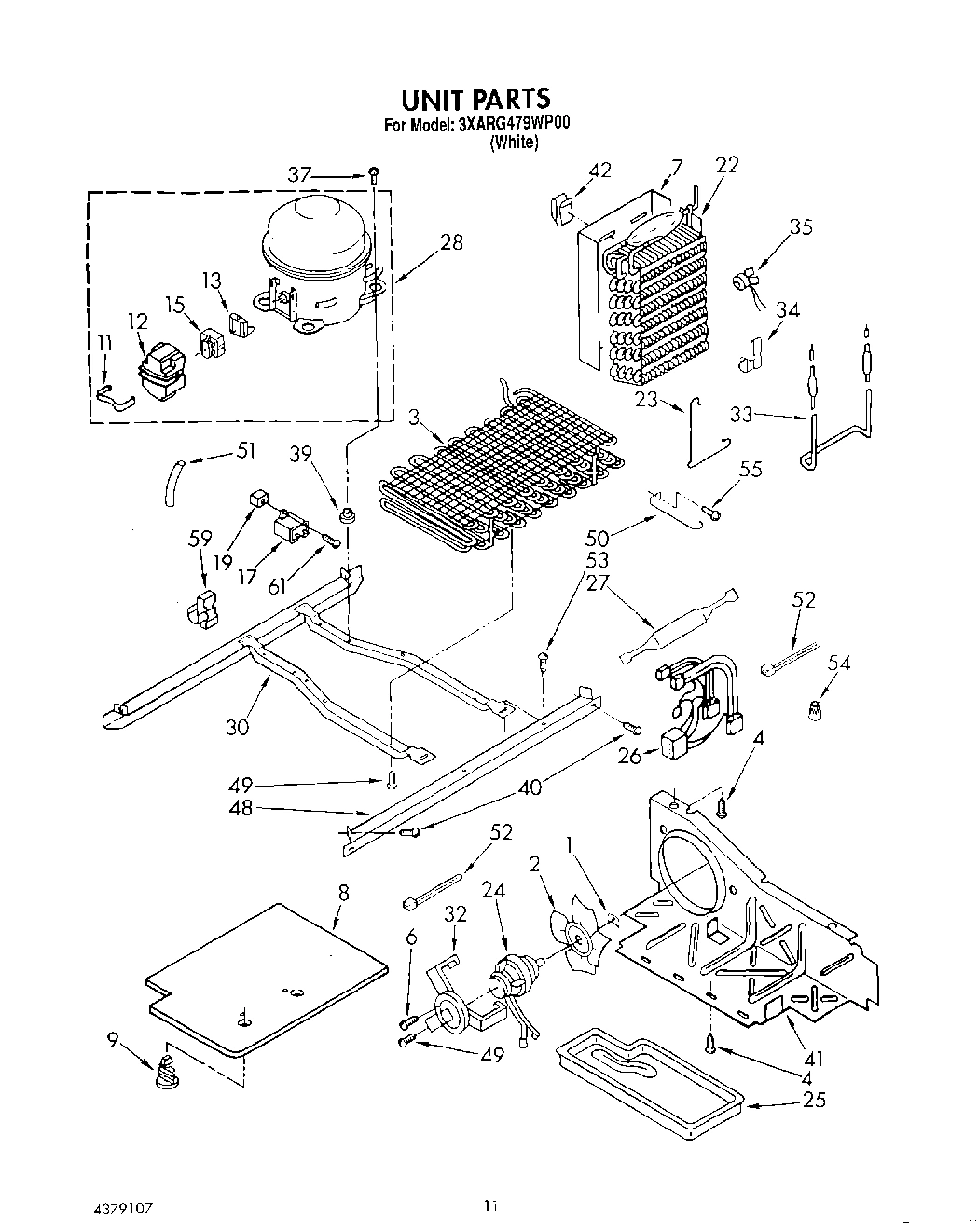

06 - UNIT

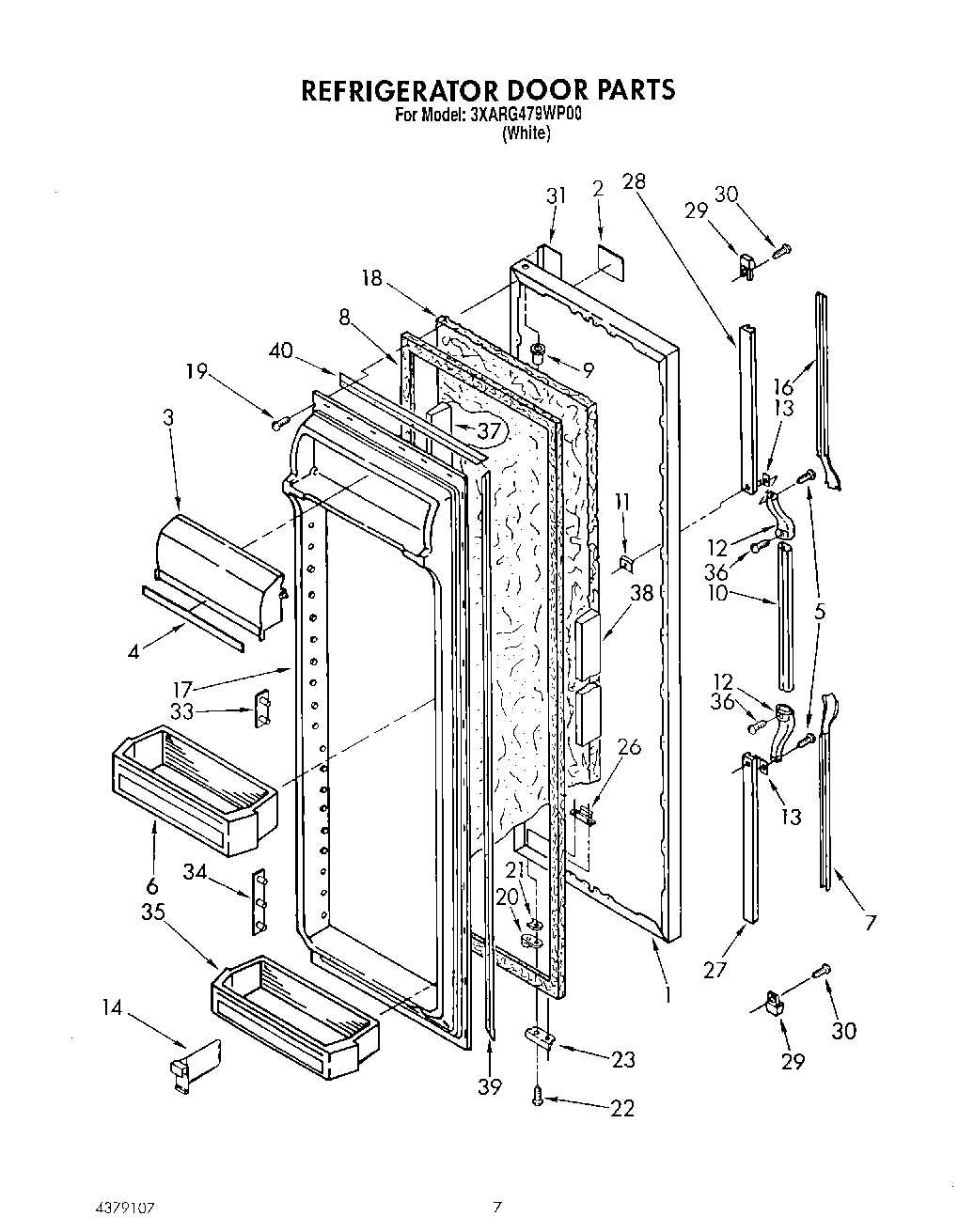

04 - REFRIGERATOR DOOR

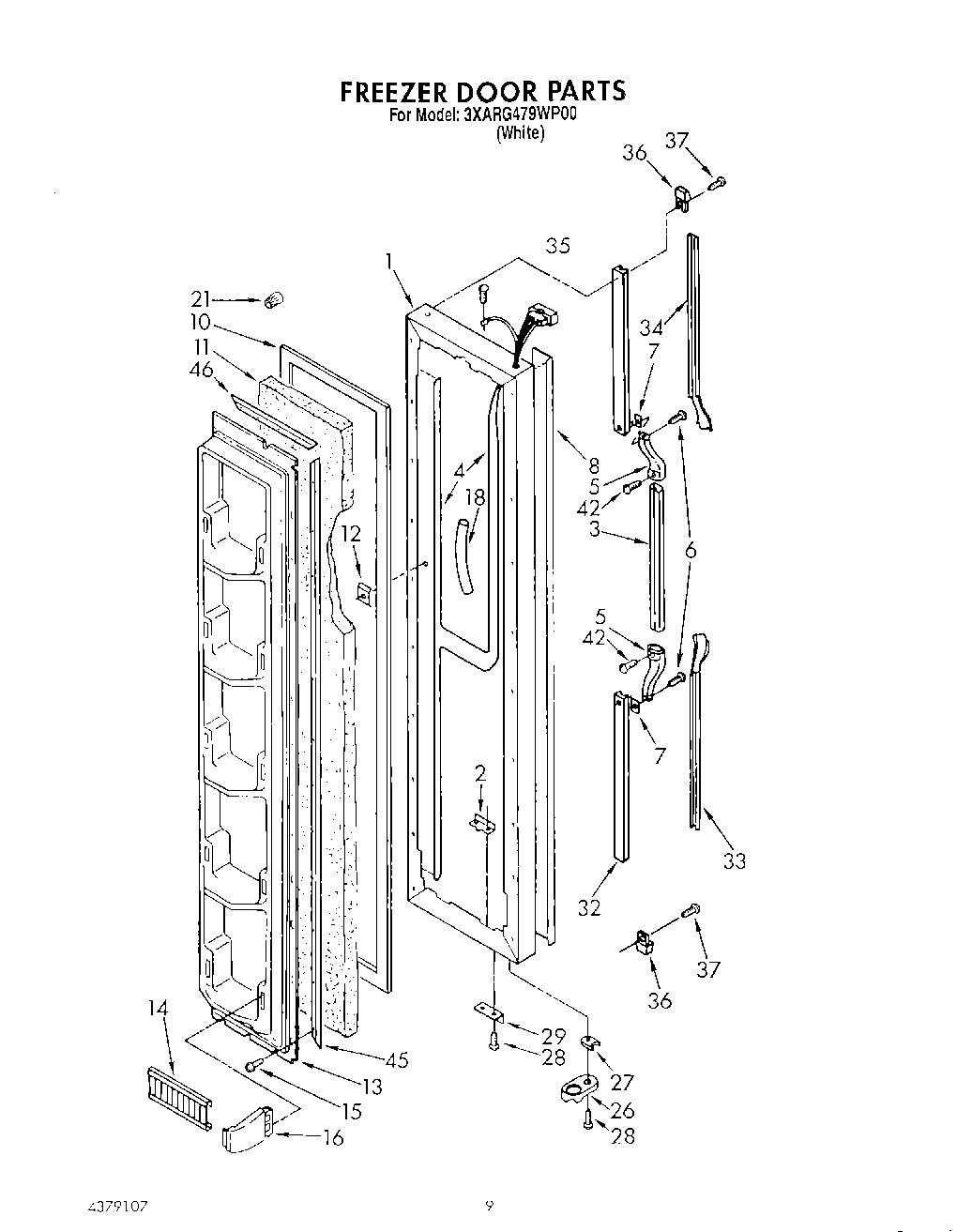

05 - FREEZER DOOR

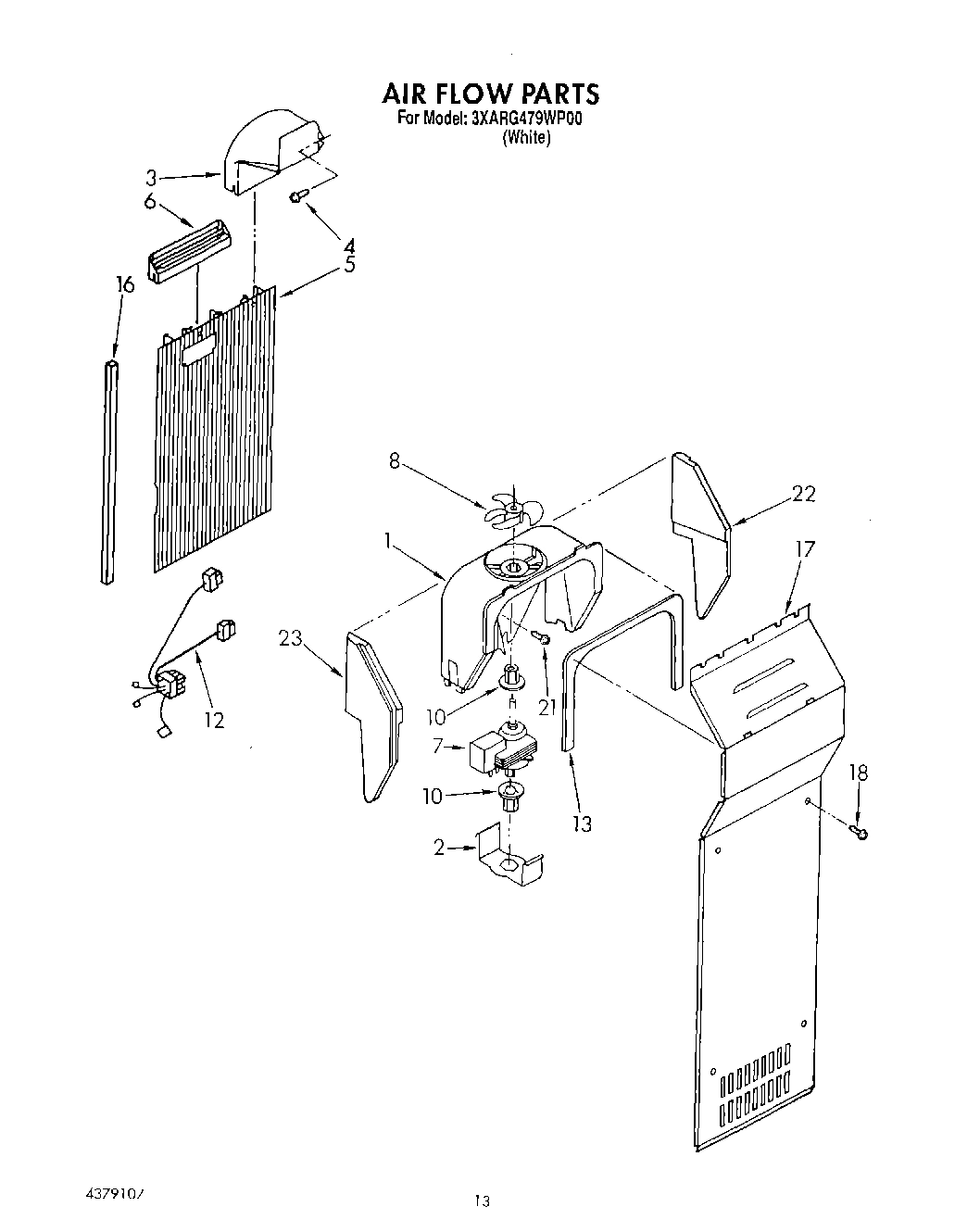

07 - AIRFLOW
Common parts from model Whirlpool 3XARG479WP00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI12747A8 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI12748A7 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 18) WPL 1115273 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 11) WPL 4362021 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Clip, Icemaker WPL 2155021 Contact Us For Availability
2
Nameplate WPL 2148544 Contact Us For Availability
2
Tap Plate WPL 988402 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Condenser Assembly WPL 2154010 Contact Us For Availability
3
Door, Compartment WPL 2148847 Contact Us For Availability
3
Handle, Center WPL 1124713 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
4
Trim, Compartment Door WPL 1118208 Contact Us For Availability
4
Heater, Door WPL 2165272 Contact Us For Availability
5
Reflector WPL 1118276 Contact Us For Availability
5
End Cap (2) WPL 1119359 Contact Us For Availability
6
Ladder, Shelf (2) WPL 1108433 Contact Us For Availability
6
Hole Plug WPL 655411 Contact Us For Availability
6
Shelf Bin (2) WPL 1124847 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
7
Support, Stud (16) WPL 946355 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
7
Shim, End Cap (2) WPL 935075 Contact Us For Availability
8
Stud (5) WPL 946356 Contact Us For Availability
8
Cover, Unit Compartment WPL 2160505 Contact Us For Availability
8
Trim, Door WPL 1119061 Contact Us For Availability
9
Stud (5) WPL 1106982 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
10
Glass, Shelf WPL 2148108 Contact Us For Availability
10
Grommet (14) WPL 1110779 Contact Us For Availability
10
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
11
Strap WPL 2154721 Contact Us For Availability
12
Shelf WPL 1106979 Contact Us For Availability
12
Cover WPL 2154722 Contact Us For Availability
12
Screw Anchor (2) WPL 941242 Contact Us For Availability
12
Harness, Fan, Evaporator, And Heater WPL 2158782 Contact Us For Availability
13
Shim, Hinge (2) WPL 1123515 Contact Us For Availability
13
Shelf, Cantilever WPL 2148087 Contact Us For Availability
13
Trim Shelf WPL 1119123 Contact Us For Availability
13
Overload (Includes Relay) WPL 2158785 Contact Us For Availability
13
Panel, Interior Door WPL 1129241 Contact Us For Availability
14
Trim, Shelf WPL 1119137 Contact Us For Availability
14
Shelf (Large 2) WPL 1106980 Contact Us For Availability
14
Shelf (Small 1) WPL 2155603 Contact Us For Availability
14
Divider, Bin WPL 2152335 Contact Us For Availability
14
Trim, Door Shelf WPL 2157023 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Bin, Freezer WPL 2148194 Contact Us For Availability
15
Relay (See Overload) WPL ARI12749A2 Contact Us For Availability
16
Trim, Cover WPL 1119190 Contact Us For Availability
17
Glass, Shelf WPL 1114687 Contact Us For Availability
17
Capacitor WPL 2154717 Contact Us For Availability
17
Panel, Interior Door WPL 1129278 Contact Us For Availability
18
Tube, Wiring WPL 1119059 Contact Us For Availability
19
Pan, Crisper WPL 2162711 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Meat Pan WPL 2162710 Contact Us For Availability
20
Cover, Wiring WPL 2152644 Contact Us For Availability
21
Wire Connector WPL 227991 Contact Us For Availability
23
Clip WPL 2161324 Contact Us For Availability
23
Slide, Freezer Bin (Left Side) WPL 1115383 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Fan, Motor WPL 2154976 Contact Us For Availability
26
Cover, Conduit WPL 2150330 Contact Us For Availability
26
Harness, Intermediate WPL 2165296 Contact Us For Availability
28
Screw WPL 489268 Contact Us For Availability
28
Compressor (Includes Items 11, 12, 13, 15, & WPL 2154723 Contact Us For Availability
29
WPL 876029 WPL 876029 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
29
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
29
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
29
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
29
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
29
Enamel, B WPL 799340 Contact Us For Availability
29
WPL 799833 WPL 799833 Contact Us For Availability
29
WPL 978883 WPL 978883 Contact Us For Availability
29
Bracket, Door Stop WPL 988420 Contact Us For Availability
30
Unit Mounting Frame WPL 2160498 Contact Us For Availability
31
Gasket (Front) WPL 1115291 Contact Us For Availability
32
Gasket (Rear) WPL 1121385 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
32
Retainer, Insert WPL 1119360 Contact Us For Availability
33
Front, Crisper Pan WPL 2162712 Contact Us For Availability
33
Heater, Defrost WPL 2162213 Contact Us For Availability
33
Insert, Handle WPL 1119361 Contact Us For Availability
33
Pin Plate (6) WPL 1118048 Contact Us For Availability
34
Slide, Crisper WPL 2148524 Contact Us For Availability
34
Clip, Heater WPL 2161330 Contact Us For Availability
34
Insert, Handle WPL 1119367 Contact Us For Availability
34
Pin Plate (8) WPL 1116986 Contact Us For Availability
35
Shelf Bin (2) WPL 1124846 Contact Us For Availability
35
Retainer, Insert WPL 1119366 Contact Us For Availability
36
End Cap (2) WPL 2156220 Contact Us For Availability
37
Screw WPL 489387 Contact Us For Availability
37
Screw WPL 489075 Contact Us For Availability
37
Door Dike, Hinge Side WPL 1115379 Contact Us For Availability
38
Door Dike, Handle Side WPL 1119055 Contact Us For Availability
38
Connector WPL 2154491 Contact Us For Availability
39
Grommet (4) WPL 2162067 Contact Us For Availability
40
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
41
Air, Baffle WPL 1127938 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
42
Screw WPL 489022 Contact Us For Availability
45
Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability
46
Gasket Retainer, Top & Bottom WPL 1117767 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire And Water Tube WPL 2155658 Contact Us For Availability
61
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
61
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
