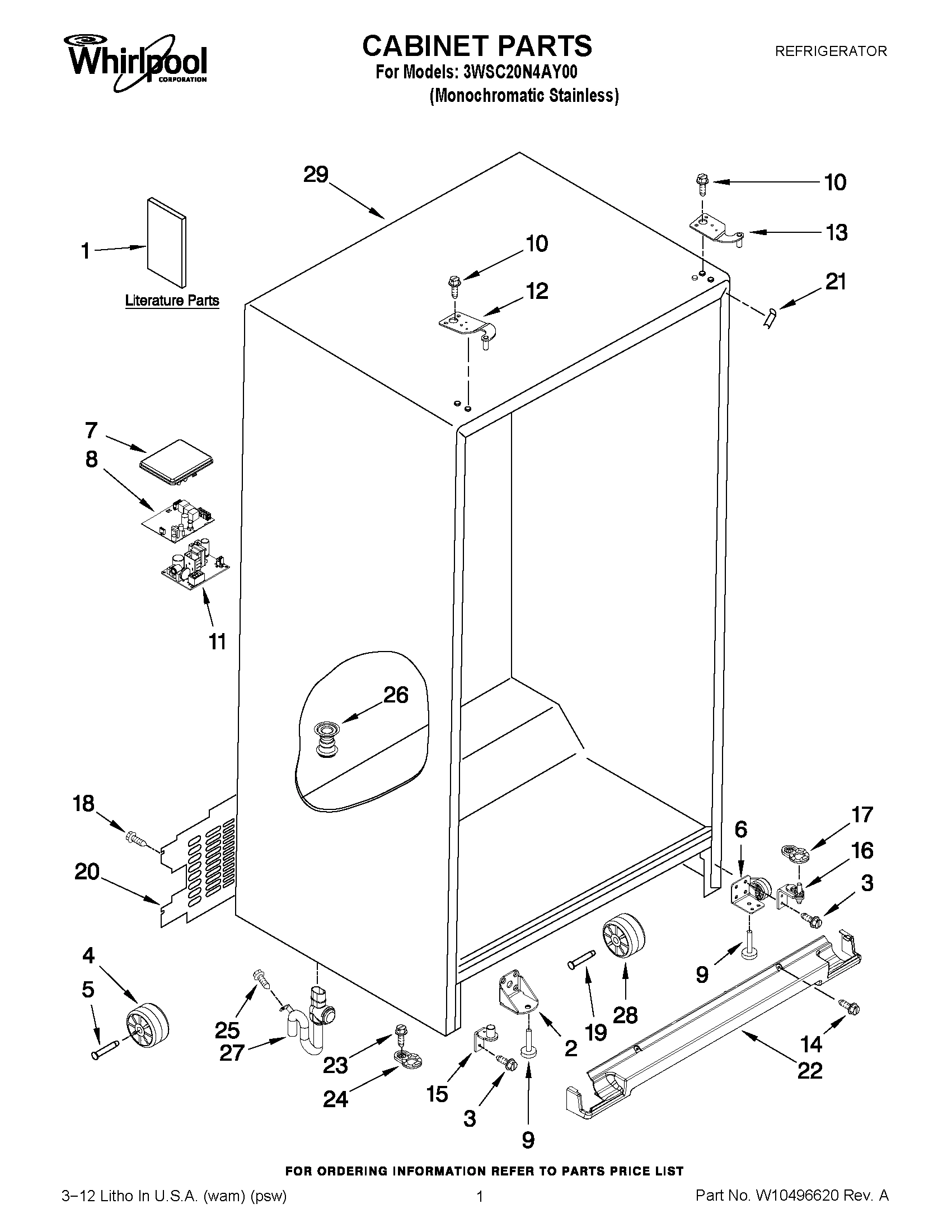

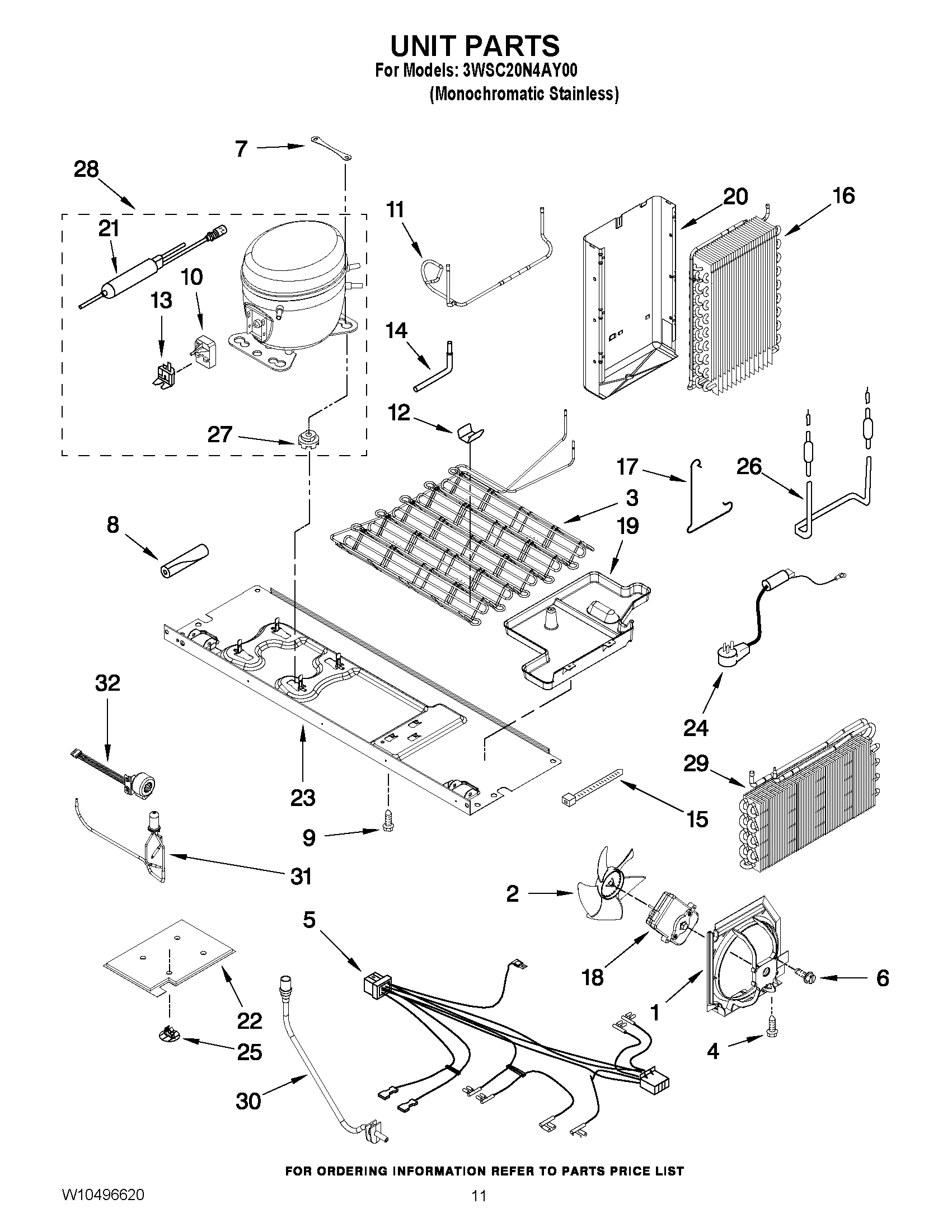

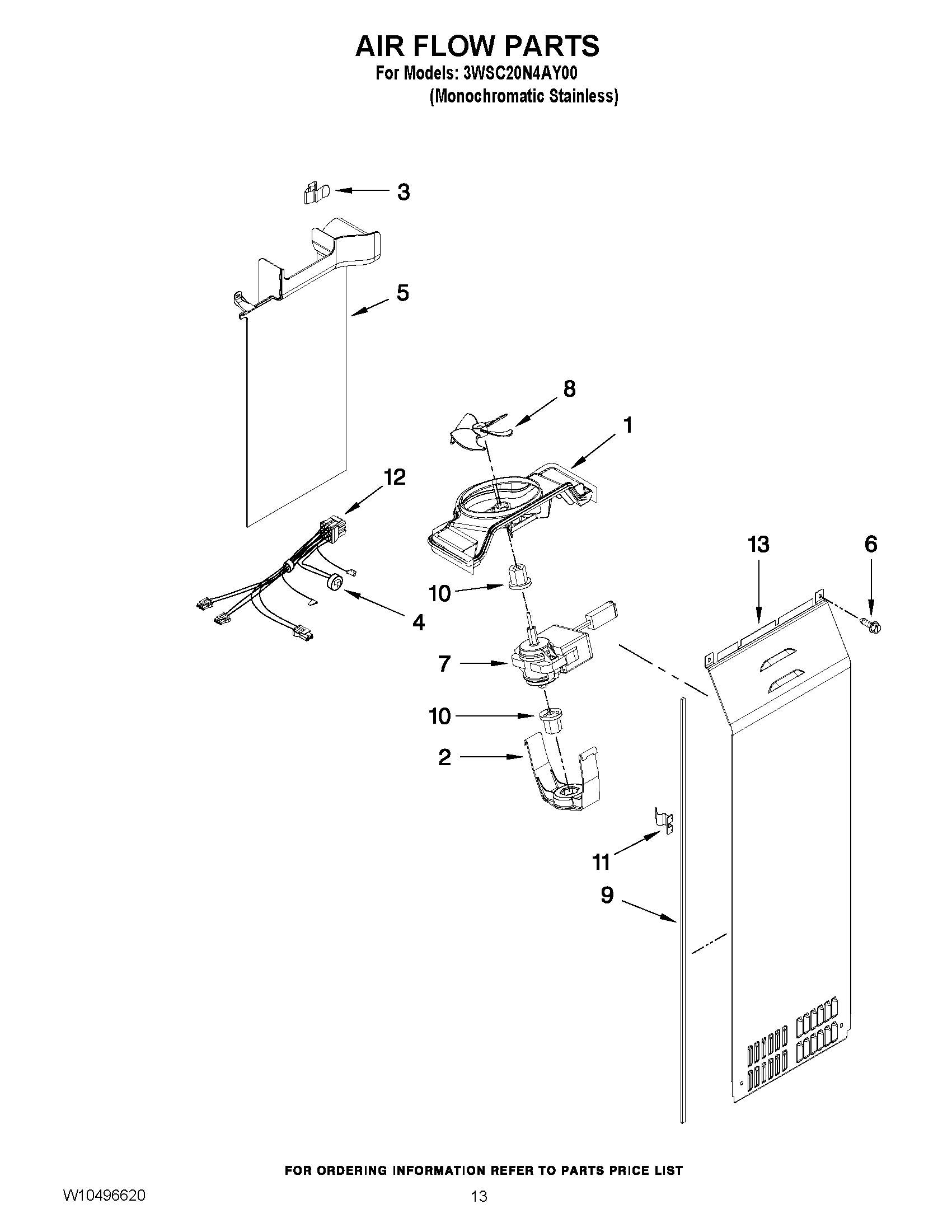

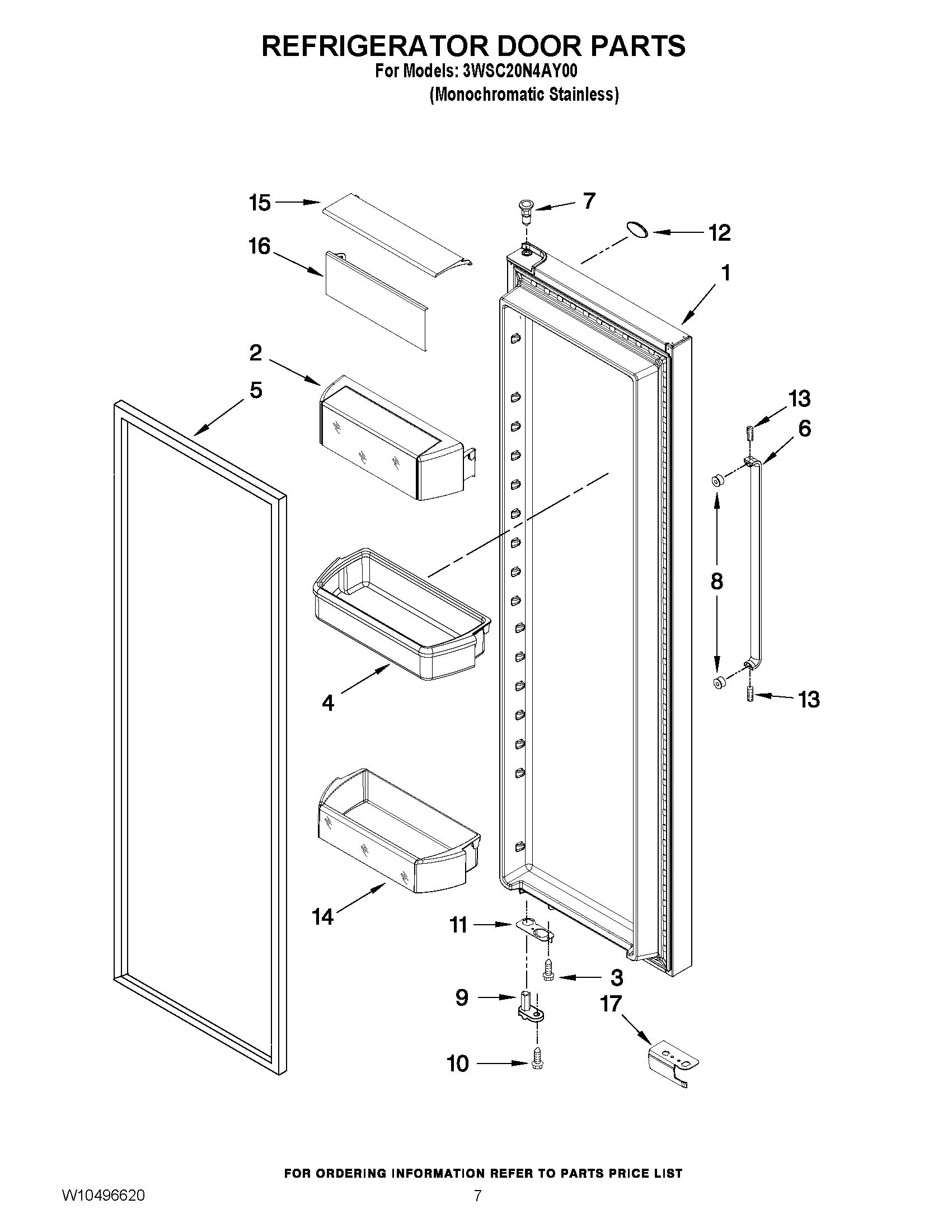

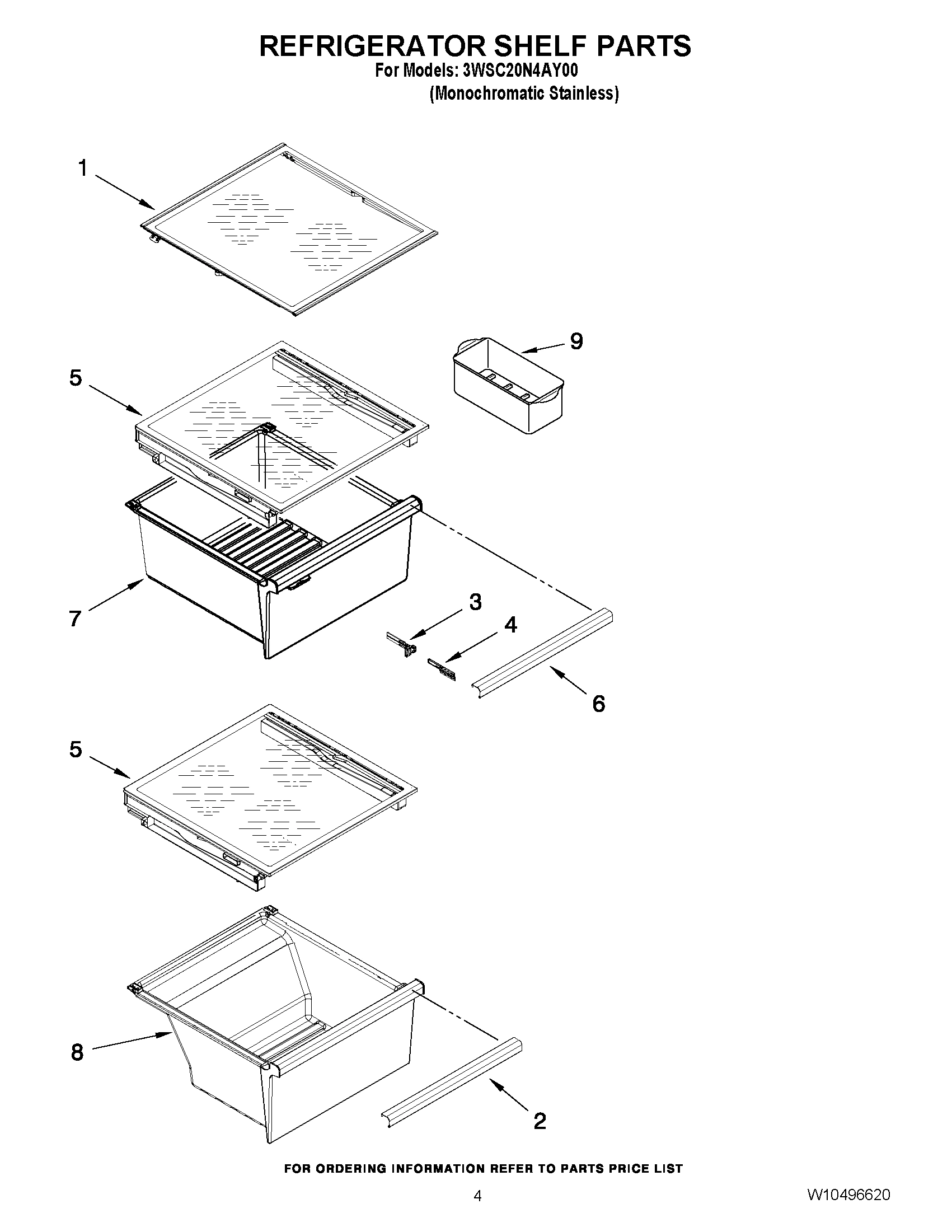

Model Whirlpool 3WSC20N4AY00 REFRIGERATOR – Common Parts &amp; Diagrams

1

W11178072 Whirlpool Glass Shelf Backorder WPL W11178072 $127.18

1

WPW10251467 Whirlpool Refrigerator Air Baffle Backorder WPL WPW10251467 $48.39

1

SERVICE & WIRING SHEET WPL W10329863 Contact Us For Availability

1

USE & CARE GUIDE WPL W10475427 Contact Us For Availability

2

W11671527 Whirlpool Retainer Assembly Backorder WPL W11671527 $9.96

2

WPW10256775 Whirlpool Refrigerator Pan Trim Backorder WPL WPW10256775 $45.66

2

WPW10324760 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10324760 $59.68

3

W11708426 Whirlpool Condenser Assembly Backorder WPL W11708426 $98.26

3

W11746089 Whirlpool Slide Backorder WPL W11746089 $11.38

3

WPW10297485 Whirlpool Refrigerator Screw Backorder WPL WPW10297485 $2.51

4

WP67005149 Whirlpool Roller In Stock WPL WP67005149 $10.76

4

WPW10282880 Whirlpool Refrigerator Control Bo Backorder WPL WPW10282880 $28.62

4

WPW10296855 Whirlpool Refrigerator Door Bin In Stock WPL WPW10296855 $44.18

5

67006434 Whirlpool Axle Pin Backorder WPL 67006434 $3.70

5

COVER, ASSY WPL W10290874 Contact Us For Availability

6

W11266052 Whirlpool Refrigerator Bracket Backorder WPL W11266052 $25.27

6

WPW10296857 Whirlpool Refrigerator Cantilever In Stock WPL WPW10296857 $46.34

6

WPW10309637 Whirlpool Refrigerator Pan Trim Backorder WPL WPW10309637 $61.47

7

W10236396 Whirlpool Refrigerator Strap Backorder WPL W10236396 $7.81

7

W10425253 Whirlpool Refrigerator Cover Backorder WPL W10425253 $30.71

7

WPW10296843 Whirlpool Crisper Pan Backorder WPL WPW10296843 $108.21

7

COVER WPL 12957702 Contact Us For Availability

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

8

WPW10226427 Whirlpool Refrigerator Electronic In Stock WPL WPW10226427 $226.83

8

MEAT PAN (ALSO ORDER 2) WPL W10296845 Contact Us For Availability

9

2223680 Whirlpool Refrigerator Shield Backorder WPL 2223680 $37.22

9

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

9

W10240370 Whirlpool Refrigerator Gasket Backorder WPL W10240370 $14.42

9

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $3.70

9

WPW10257203 Whirlpool Refrigerator Lower Door Backorder WPL WPW10257203 $8.80

9

WPW10257206 Whirlpool Refrigerator Door Cam In Stock WPL WPW10257206 $9.17

10

W11293380 Whirlpool Refrigerator Bracket Backorder WPL W11293380 $24.28

10

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

10

WPW10308751 Whirlpool Screw Backorder WPL WPW10308751 $2.91

11

W11037957 Whirlpool Refrigerator Bracket In Stock WPL W11037957 $27.82

11

WPW10223328 Whirlpool Refrigerator Tube In Stock WPL WPW10223328 $50.51

11

WPW10235472-includeCORE Whirlpool WPW10235472 Backorder WPL WPW10235472-includeCORE $191.51

12

W11590581 Whirlpool Refrigerator Door Hinge Backorder WPL W11590581 $8.55

12

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $37.83

12

WPW10119935 Whirlpool Refrigerator Socket In Stock WPL WPW10119935 $33.80

13

W10280420 Whirlpool Refrigerator Light Lens Backorder WPL W10280420 $40.00

13

W11366418 Whirlpool Screw In Stock WPL W11366418 $9.59

13

W11409290 Whirlpool Top Hinge In Stock WPL W11409290 $24.69

14

WPW10308489 Whirlpool Refrigerator Screw In Stock WPL WPW10308489 $3.92

14

WPW10335220 Whirlpool Refrigerator Cantilever Backorder WPL WPW10335220 $48.82

15

W10500004 Whirlpool Refrigerator Door Hinge In Stock WPL W10500004 $49.83

15

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $4.58

15

WPW10316883 Whirlpool Refrigerator Door Compr Backorder WPL WPW10316883 $37.62

W10260382 Whirlpool Refrigerator Cover Backorder WPL W10260382 $35.43

W11293374 Whirlpool Refrigerator Door Hinge Backorder WPL W11293374 $25.57

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

WPW10316885 Whirlpool Refrigerator Compressor In Stock WPL WPW10316885 $48.70

17

W11661847 Whirlpool Wire Cover Backorder WPL W11661847 $11.51

17

Clamp WPL 2161324 Contact Us For Availability

18

Screw WPL W10141645 Contact Us For Availability

19

W11208384 Whirlpool Refrigerator Rivet Backorder WPL W11208384 $7.03

19

WPW10387382 Whirlpool Refrigerator Evaporator In Stock WPL WPW10387382 $101.98

20

W11105244 Whirlpool Refrigerator Scroll Fan Backorder WPL W11105244 $119.78

20

COVER, UNIT WPL W10257326 Contact Us For Availability

21

W11028224 Whirlpool Refrigerator Support Backorder WPL W11028224 $6.28

21

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $3.70

22

W10837626 Whirlpool Refrigerator Support Backorder WPL W10837626 $26.32

22

WPW10713153 Whirlpool Refrigerator Grille In Stock WPL WPW10713153 $51.61

23

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

23

SUPPORT PLATE, COMPRESSOR WPL W10277704 Contact Us For Availability

24

W10876191 Whirlpool Refrigerator Door Cam In Stock WPL W10876191 $10.69

25

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

26

W10370680 Whirlpool Refrigerator Fitting Backorder WPL W10370680 $13.10

27

W11519143 Whirlpool Refrigerator Extension In Stock WPL W11519143 $13.03

28

WPW10475495 Whirlpool Roller Assembly In Stock WPL WPW10475495 $11.53

29

CABINET (NOT A SERVICEABLE PART) WPL NP Contact Us For Availability

30

W11409190 Whirlpool Refrigerator Drain Tube Backorder WPL W11409190 $22.91

31

W11590197 Whirlpool Refrigerator Valve In Stock WPL W11590197 $68.02

32

WPW10364560 Whirlpool Refrigerator Solenoid In Stock WPL WPW10364560 $96.71

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.20

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $6.86

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

WPW10300794 Whirlpool Refrigerator Hardware P Backorder WPL WPW10300794 $55.40

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

PAINT, BULK (1 QT.) (GRAPHITE`) WPL 8171358 Contact Us For Availability
