Model Whirlpool 3VET20DKFW02 REFRIGERATOR – Common Parts & Diagrams
04 - REFRIGERATOR DOOR
06 - FREEZER DOOR, LIT/OPTIONAL

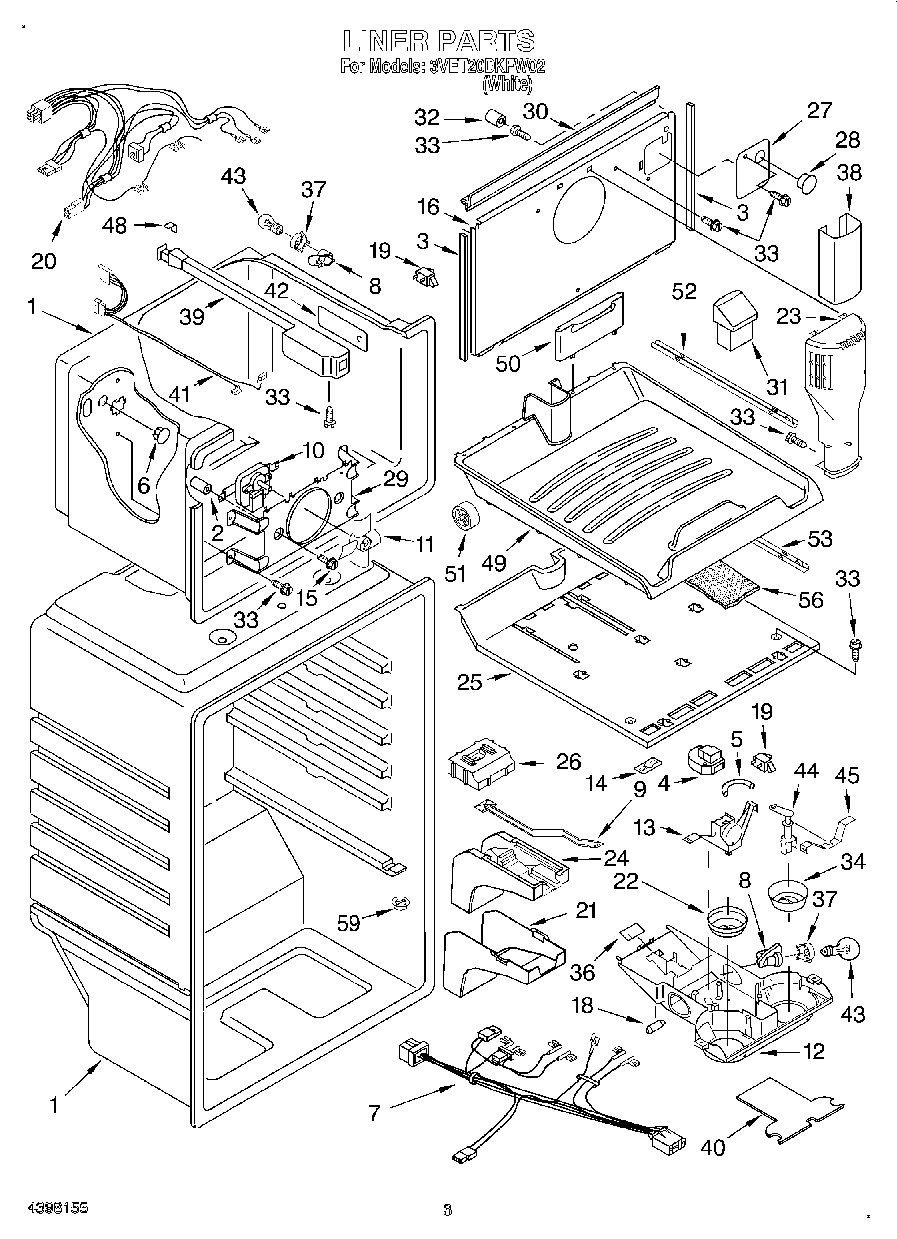

02 - LINER

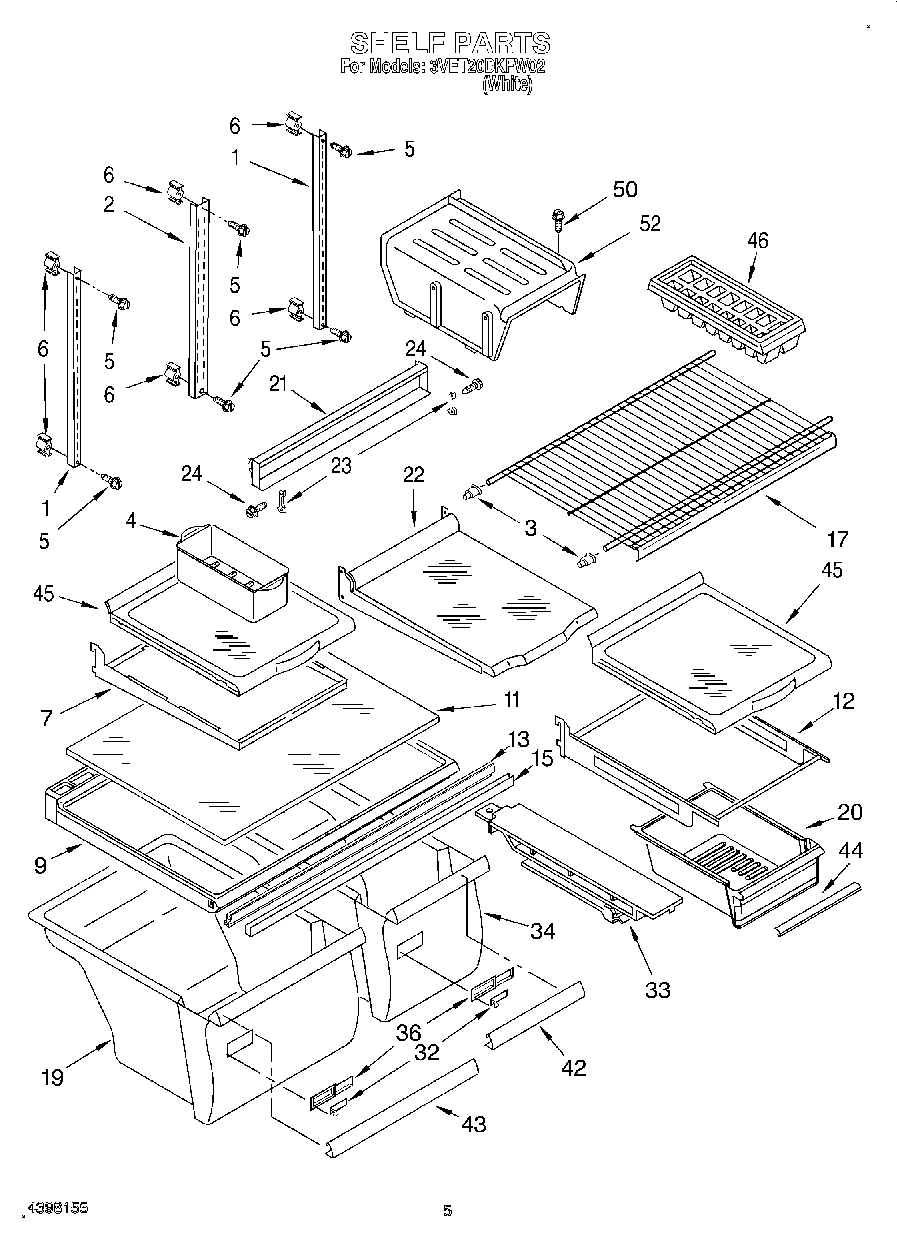

03 - SHELF

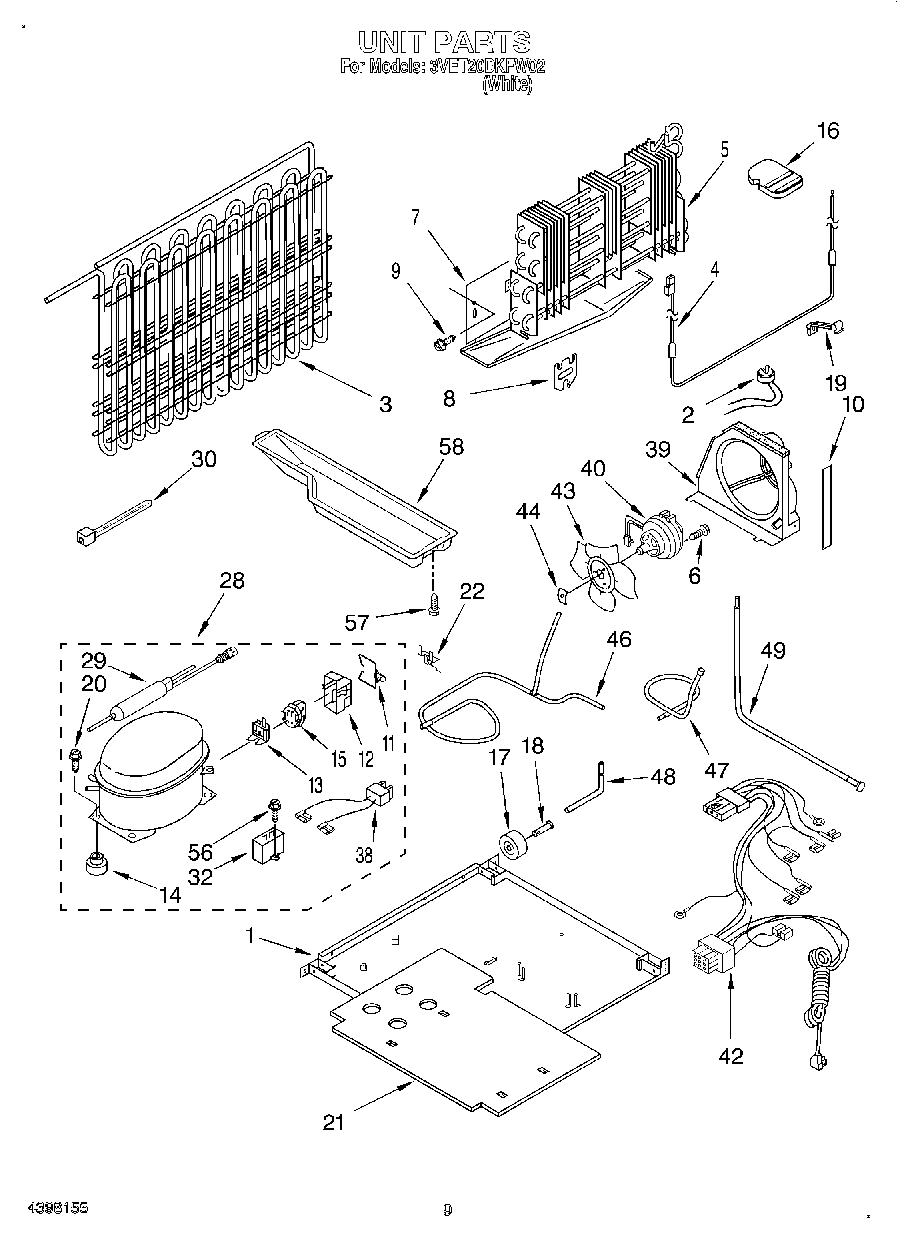

05 - UNIT

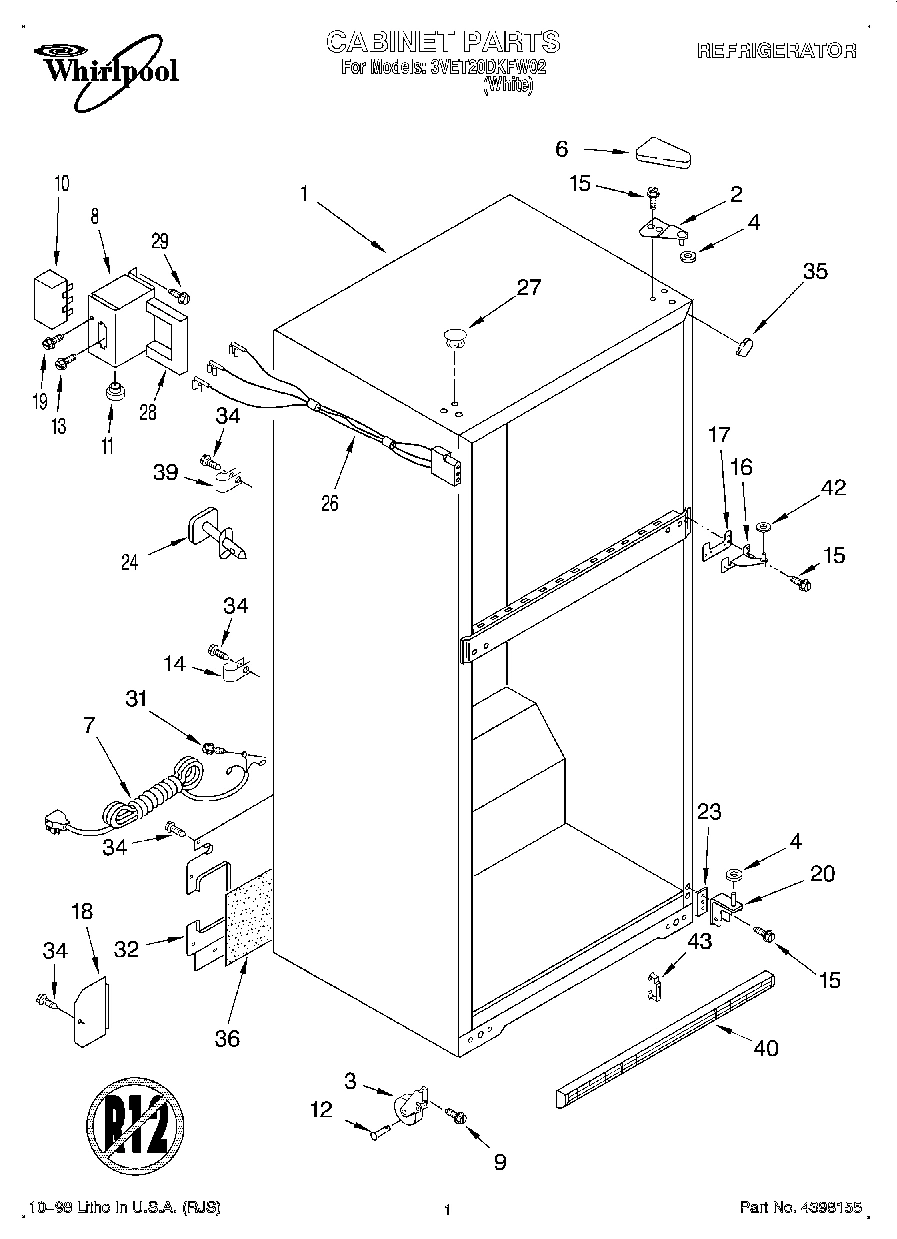

01 - CABINET
Common parts from model Whirlpool 3VET20DKFW02 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Shelf, Ladder (2) WPL 2163756 Contact Us For Availability
1
Plate, Unit Mounting WPL 2188168 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI12621A2 Contact Us For Availability
2
Shelf, Ladder Center WPL 2163826 Contact Us For Availability
3
Condenser WPL 2195400 Contact Us For Availability
4
Heater, Defrost WPL 2166657 Contact Us For Availability
5
Evaporator Assy. WPL 2195391 Contact Us For Availability
7
Frame Assembly, Shelf WPL 2174446 Contact Us For Availability
7
Drain Pan WPL 2172619 Contact Us For Availability
7
Service Cord WPL 1129332 Contact Us For Availability
8
Bracket, Heater WPL 2176301 Contact Us For Availability
8
Enclosure, Terminal Block WPL 2188194 Contact Us For Availability
9
Screw WPL 2174650 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
10
Terminal Block WPL 1129346 Contact Us For Availability
11
Clamp WPL 489435 Contact Us For Availability
11
Bushing WPL 1129449 Contact Us For Availability
12
Frame Assembly, Meat Shelf WPL 2179716 Contact Us For Availability
13
Gasket, Crisper Cover WPL 2172683 Contact Us For Availability
13
Overload (Production) WPL 2169411 Contact Us For Availability
13
Overload (Service) WPL 4387961 Contact Us For Availability
16
Support Block WPL 2176302 Contact Us For Availability
18
Cover, Water Valve WPL 2166251 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Track Assembly, Shelf WPL 2176240 Contact Us For Availability
21
Cover, Unit WPL 2198740 Contact Us For Availability
22
Shelf Assembly, Spillguard L/A WPL 2195349 Contact Us For Availability
22
Clip WPL 2166683 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Hook, Shelf WPL 2169608 Contact Us For Availability
24
Screw WPL 489419 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI12622A6 Contact Us For Availability
26
Air Diffuser, Top (Includes Item 37) WPL 2200793 Contact Us For Availability
26
Wire Assembly WPL 2199068 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Compressor (Includes Items 11, 12, 13, 15, 23 WPL 2183461 Contact Us For Availability
28
Gasket WPL 2167227 Contact Us For Availability
36
Insulation WPL 2200777 Contact Us For Availability
39
Air Baffle WPL 2198921 Contact Us For Availability
42
Trim, Crisper Pan WPL 2195340 Contact Us For Availability
42
Wire Assy. Unit WPL 2200841 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
43
CLIP, GRILLE WPL 2189356 Contact Us For Availability
44
Trim, Meat Pan WPL 2176356 Contact Us For Availability
45
Shelf Assembly, Spillguard WPL 2195500 Contact Us For Availability
46
Tube, Discharge WPL 2179856 Contact Us For Availability
47
Tube, Suction WPL 2179854 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
50
REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability
52
Shelf, Ice Tray WPL 2183995 Contact Us For Availability
57
Screw WPL 489462 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
FeaturePak (Includes 4, 20, 21, 22, 23, 24, 4 WPL 2199043 Contact Us For Availability
× ![]()
