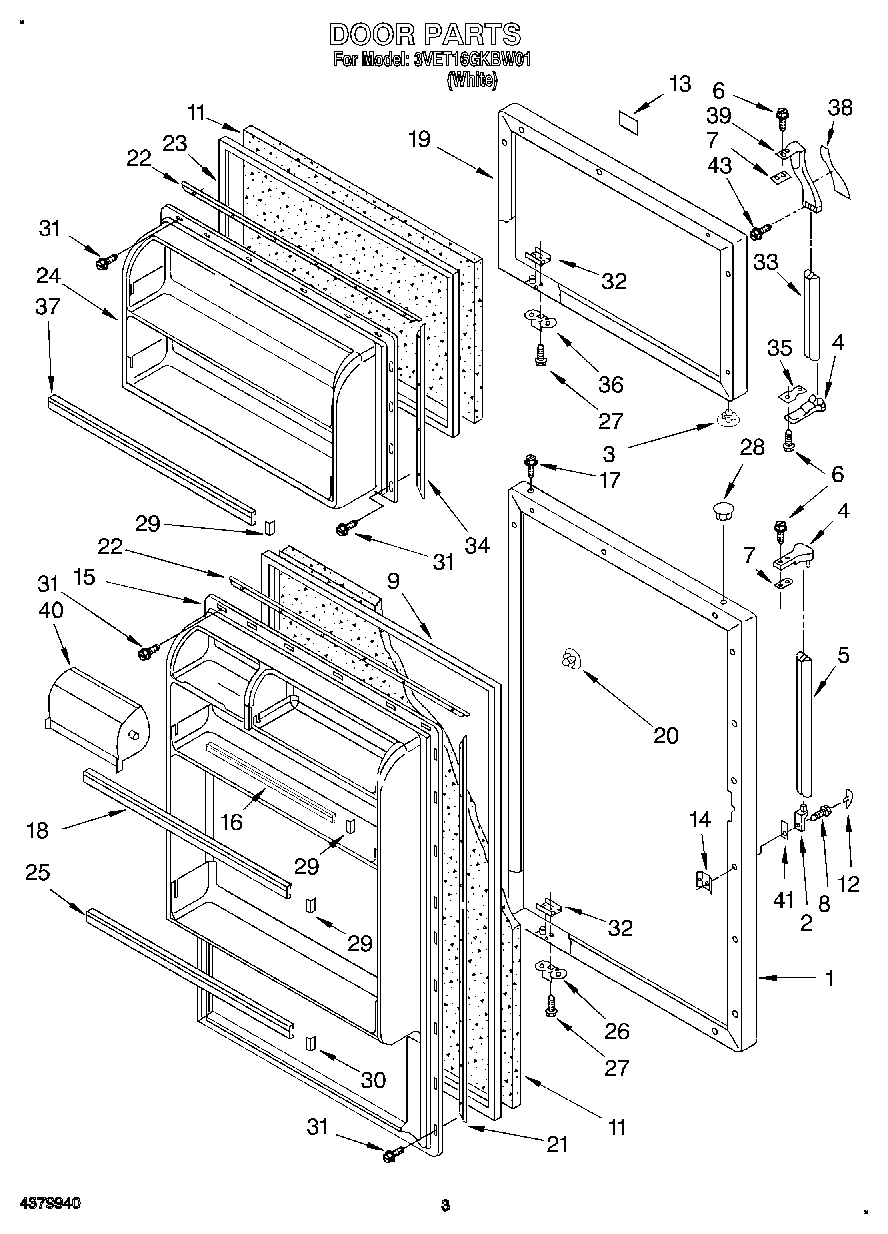

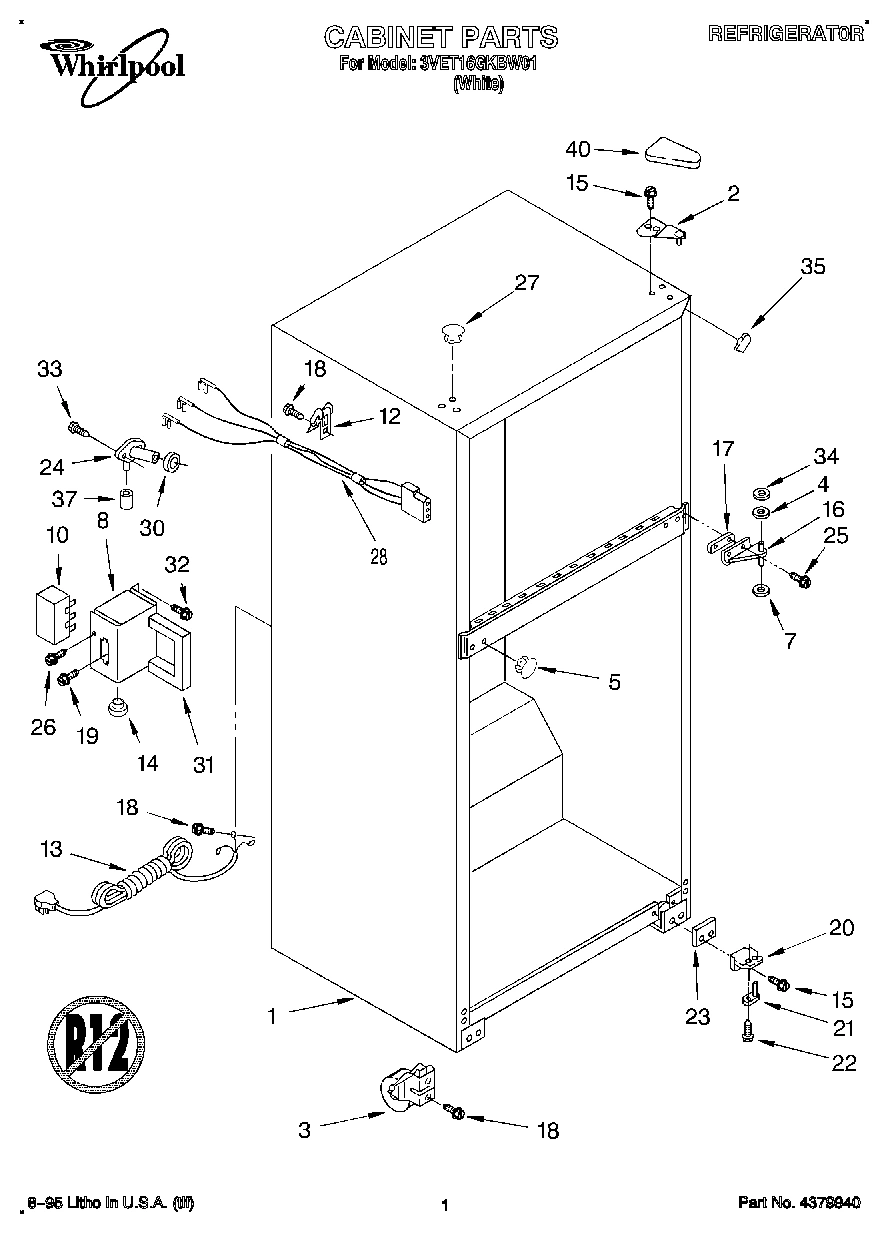

Model Whirlpool 3VET16GKBW01 REFRIGERATOR – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL LIT2174934 WPL LIT2174934 Contact Us For Availability

WPL LIT2176934 WPL LIT2176934 Contact Us For Availability

1

WPW10222451 Whirlpool Refrigerator Support Backorder WPL WPW10222451 $26.75

1

Liner (Not A Serviceable Part) WPL ARI12485A6 Contact Us For Availability

2

939962 Whirlpool Refrigerator Rivet Backorder WPL 939962 $7.21

2

Bumper WPL 944772 Contact Us For Availability

3

Diffuser-Air WPL 2166092 Contact Us For Availability

3

Condenser WPL 9790413 Contact Us For Availability

4

WP2164186 Whirlpool Crisper Pan In Stock WPL WP2164186 $80.02

4

WP2166867 Whirlpool Refrigerator Defrost Time Backorder WPL WP2166867 $84.73

4

WP2167357 Whirlpool Refrigerator Heater Backorder WPL WP2167357 $63.93

4

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

5

WP489174 Whirlpool Refrigerator Screw Backorder WPL WP489174 $3.70

5

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

5

Thimble WPL 9791835 Contact Us For Availability

6

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

6

Support, Crisper WPL 9791824 Contact Us For Availability

7

2176927 Whirlpool Refrigerator Wire Harness Backorder WPL 2176927 $51.02

7

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

7

Post, Crisper WPL 836410 Contact Us For Availability

7

Heat Shield WPL 2166097 Contact Us For Availability

8

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

8

WP2192514 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2192514 $63.64

8

Spacer WPL 2176882 Contact Us For Availability

9

WP2174706 Whirlpool Refrigerator Pin Hitch Backorder WPL WP2174706 $4.63

9

WP982704 Whirlpool Refrigerator Container Backorder WPL WP982704 $13.05

9

Grommet WPL 531933 Contact Us For Availability

10

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

10

Cover, Meat Pan WPL 9790379 Contact Us For Availability

10

Fan Motor & Bracket Assy. WPL 2167354 Contact Us For Availability

11

Meat Pan WPL 2170928 Contact Us For Availability

11

Fan Blade WPL 2169141 Contact Us For Availability

11

Evacuation Tube Assembly WPL 2174791 Contact Us For Availability

12

2215213 Whirlpool Refrigerator Control Box Backorder WPL 2215213 $38.78

12

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

12

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $30.03

13

2169410 Whirlpool Refrigerator Overload Backorder WPL 2169410 $34.81

13

WPW10567140 Whirlpool Refrigerator Thermostat In Stock WPL WPW10567140 $58.66

14

WP2163786 Whirlpool Refrigerator Grommet Backorder WPL WP2163786 $3.70

15

WP2262184 Whirlpool Refrigerator Start Relay Backorder WPL WP2262184 $41.23

16

W10812038 Whirlpool Refrigerator Clip Backorder WPL W10812038 $4.08

16

WP2166037 Whirlpool Refrigerator Door Hinge In Stock WPL WP2166037 $49.36

16

Cover-Evaporator WPL 9790382 Contact Us For Availability

17

2166043 Whirlpool Refrigerator Shim Backorder WPL 2166043 $23.81

17

4388239 Whirlpool Refrigerator Primary Cabine In Stock WPL 4388239 $39.33

17

WP67002552 Whirlpool Refrigerator Light Bulb In Stock WPL WP67002552 $2.56

18

W11034434 Whirlpool Refrigerator Light Lens Backorder WPL W11034434 $41.52

18

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

19

8201619 Whirlpool Refrigerator Support Assemb Backorder WPL 8201619 $57.45

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

19

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

20

WP2263919 Whirlpool Refrigerator Evaporator Backorder WPL WP2263919 $130.97

20

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

21

9791833 Whirlpool Refrigerator Clip Backorder WPL 9791833 $4.37

21

Hinge-Pin Bott. WPL 9791682 Contact Us For Availability

21

Wiring, Freezer WPL 2183090 Contact Us For Availability

22

WP2202885 Whirlpool Refrigerator Thermal Knob Backorder WPL WP2202885 $8.88

22

Screw WPL 488714 Contact Us For Availability

23

Air Tower WPL 2174502 Contact Us For Availability

24

285002 Whirlpool Nut Backorder WPL 285002 $7.58

24

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

25

4386951 Whirlpool Refrigerator Clip In Stock WPL 4386951 $3.51

25

Floor, Freezer WPL 2174799 Contact Us For Availability

26

Air Diffuser WPL 9790402 Contact Us For Availability

26

Bracket, Condenser WPL 944791 Contact Us For Availability

WP2151652 Whirlpool Refrigerator Button Plug Backorder WPL WP2151652 $8.20

WP2217784 Whirlpool Refrigerator Cover Backorder WPL WP2217784 $15.98

WP4387490 Whirlpool Refrigerator Bi-Metal Def In Stock WPL WP4387490 $16.40

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

28

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

28

Installation Kit WPL 482801 Contact Us For Availability

28

Compressor (Includes Items 12, 13, 14, 15, 29 WPL 2169447 Contact Us For Availability

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

29

WP2156007 Whirlpool Refrigerator Endcap Trim In Stock WPL WP2156007 $3.70

29

WP2175210 Whirlpool Refrigerator Shroud Backorder WPL WP2175210 $26.21

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Sleeve WPL 2166010 Contact Us For Availability

31

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $3.70

32

WP2201147 Whirlpool Refrigerator Capacitor Backorder WPL WP2201147 $48.06

32

Hood & Foil Assembly WPL 2166082 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.75

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL 9791757 WPL 9791757 Contact Us For Availability

34

WP489200 Whirlpool Refrigerator Washer Backorder WPL WP489200 $4.61

34

Retainer, Gasket WPL 1122553 Contact Us For Availability

35

Spacer WPL 943188 Contact Us For Availability

35

Clip, Tube WPL 1105406 Contact Us For Availability

37

Clip, Compressor WPL 24364001 Contact Us For Availability

38

Wire Assembly, (Capacitor) WPL 2174998 Contact Us For Availability

39

Handle End, WPL 944163 Contact Us For Availability

42

Wire Assy. Unit WPL 2167479 Contact Us For Availability

43

Evaporator Tray WPL 1101002 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Start Kit WPL 482278 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
