Model Whirlpool 3ET21DKXDN02 REFRIGERATOR – Common Parts & Diagrams

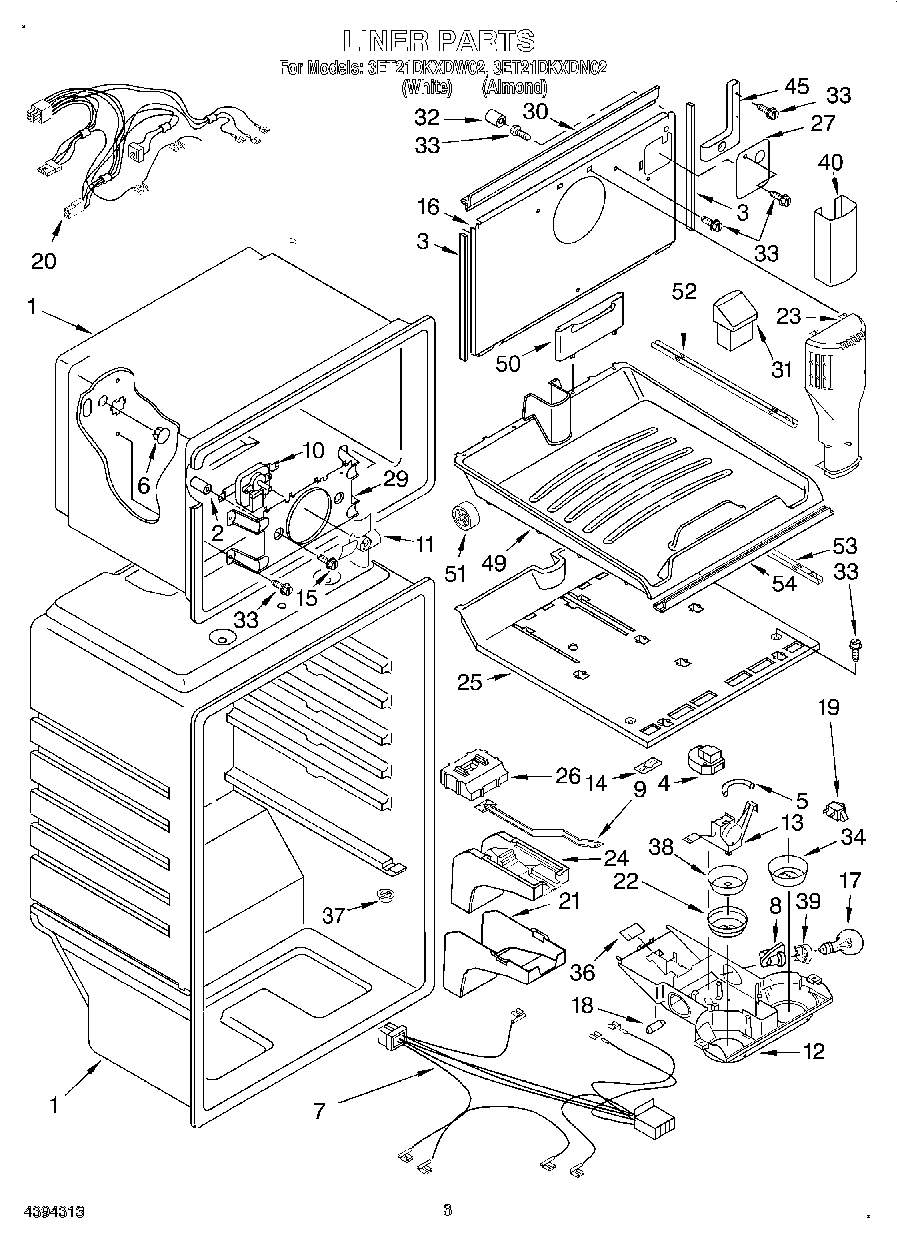

02 - LINER

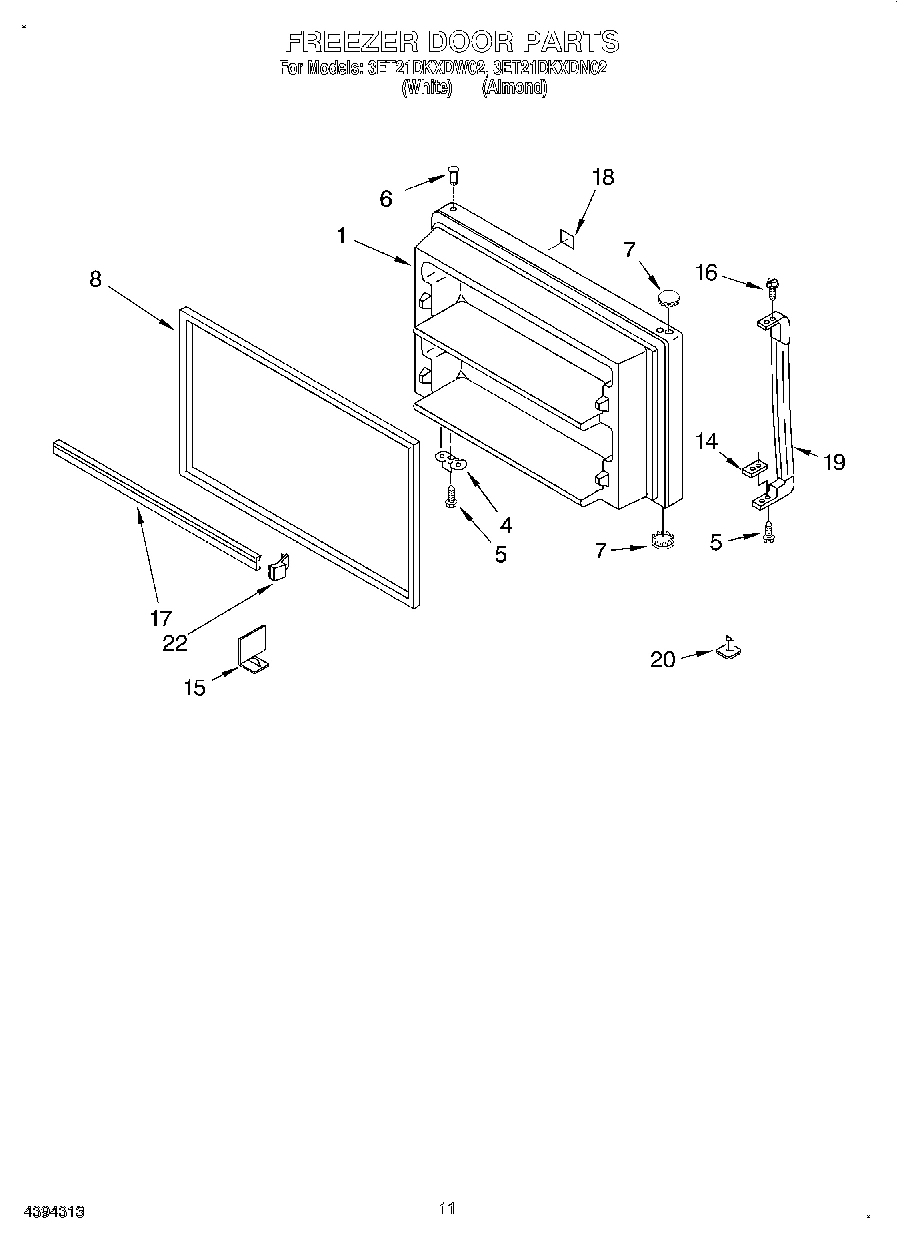

06 - FREEZER DOOR, LIT/OPTIONAL

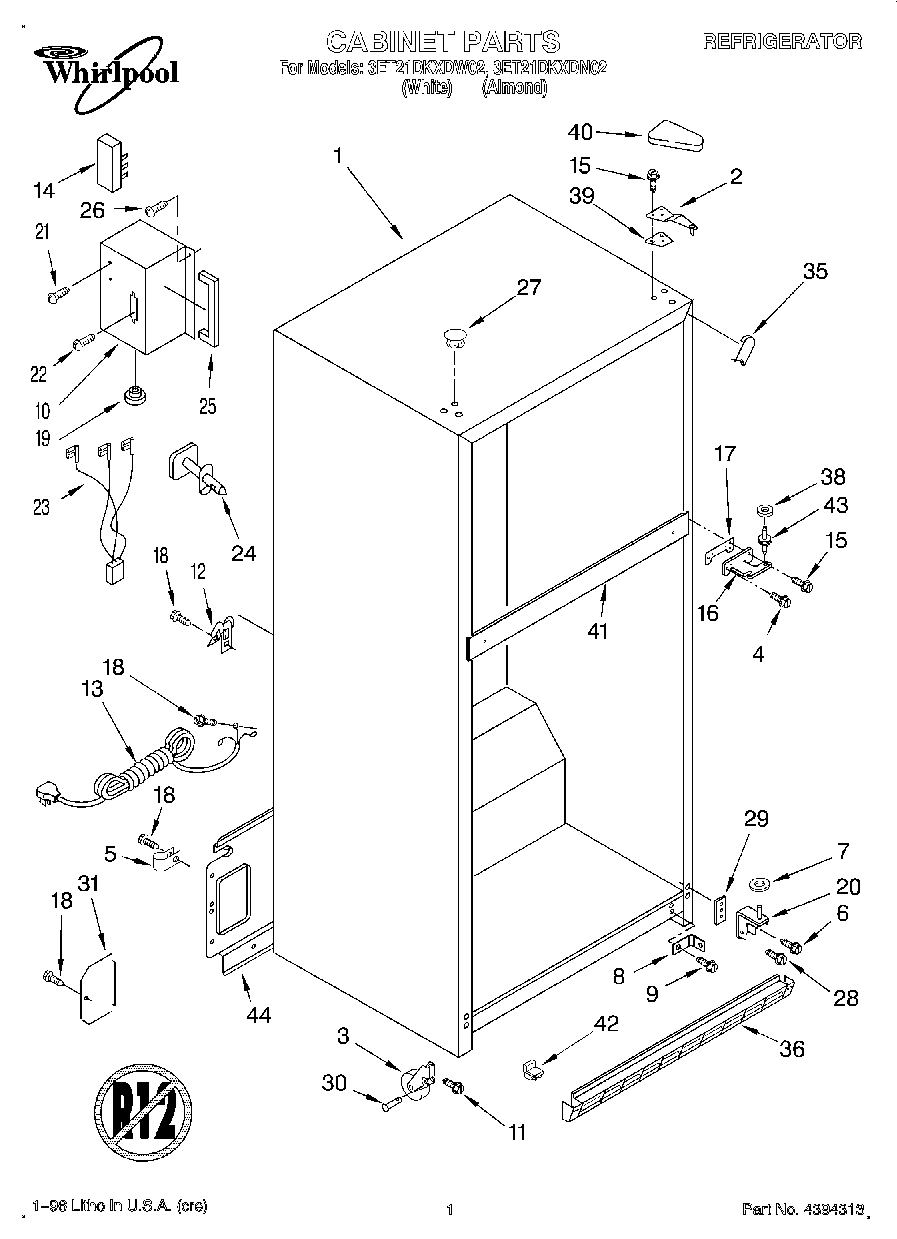

01 - CABINET

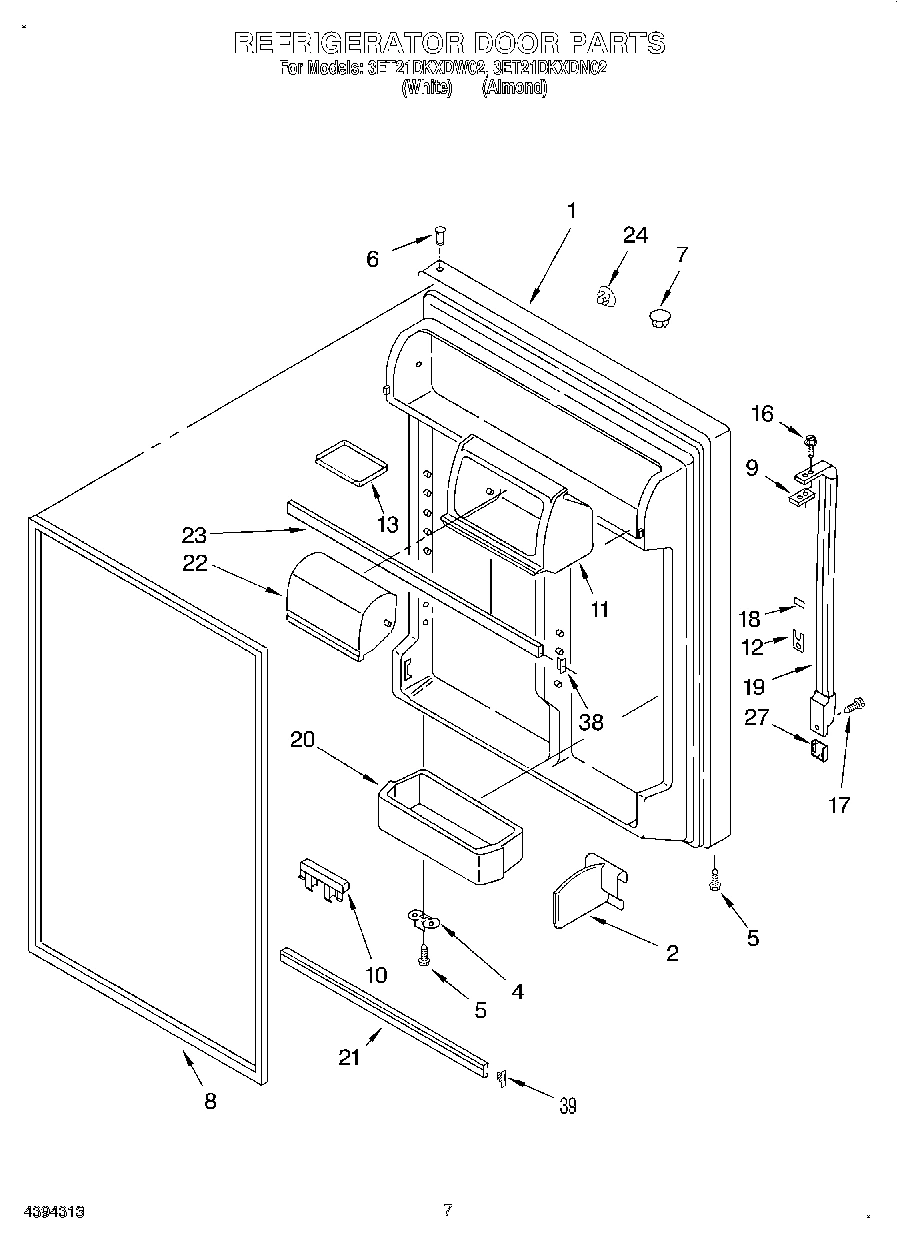

04 - REFRIGERATOR DOOR

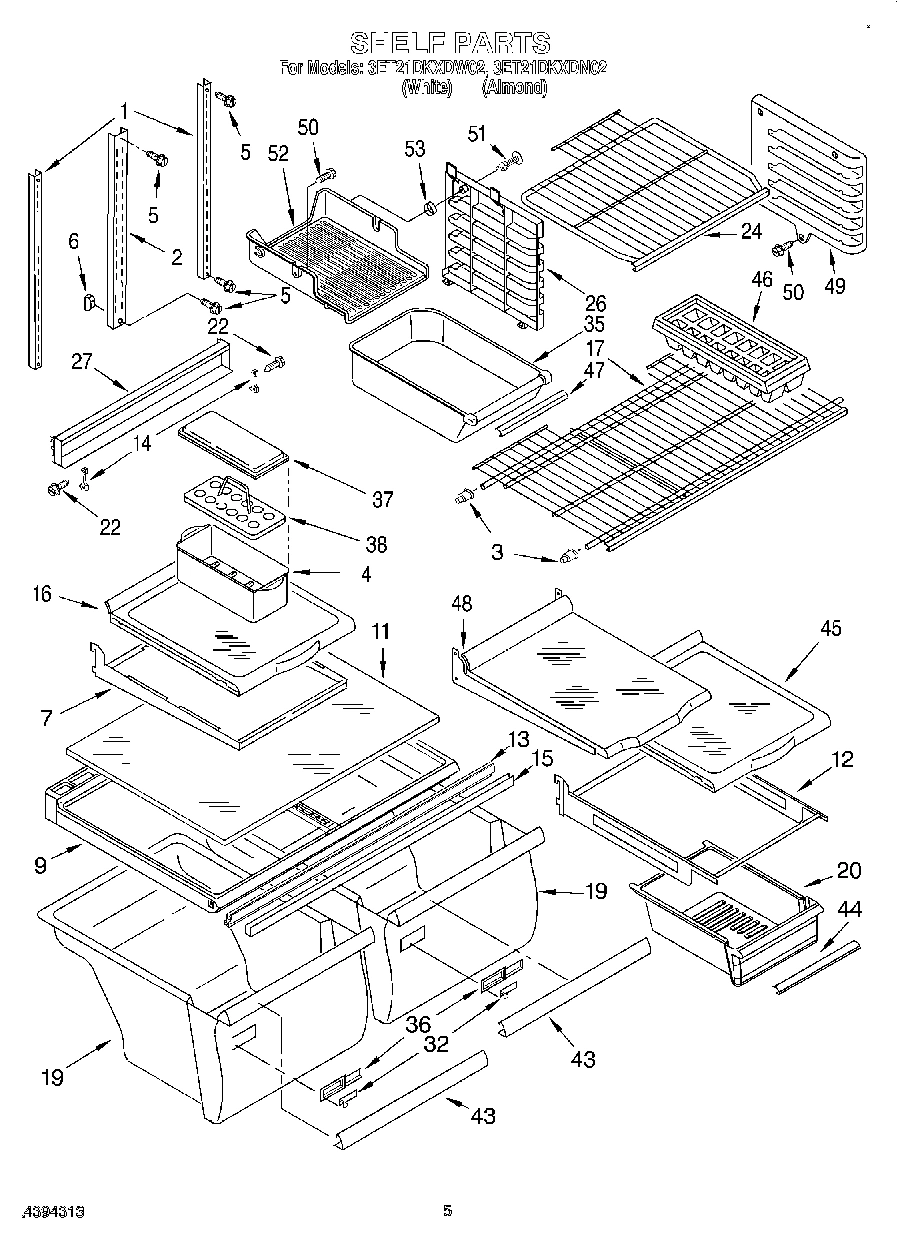

03 - SHELF

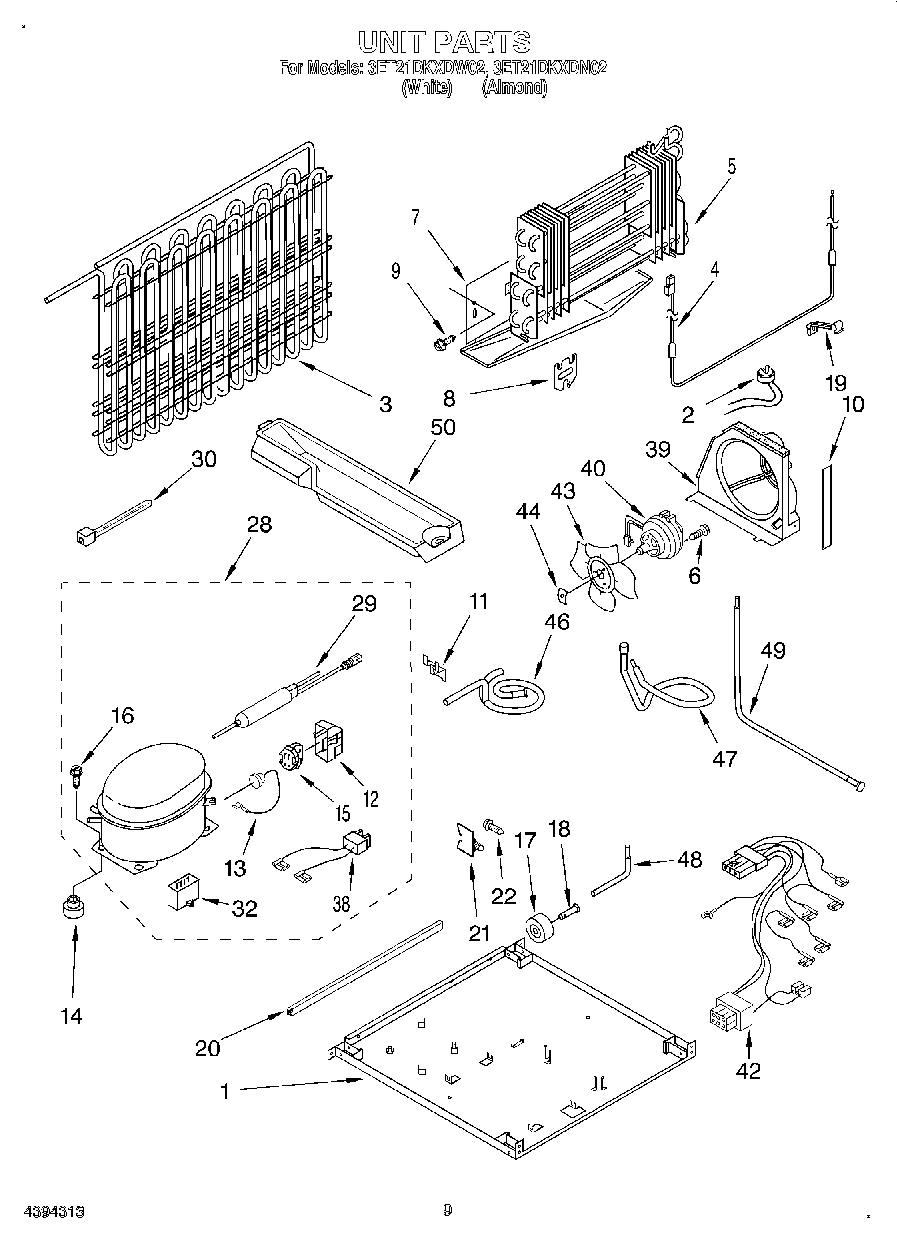

05 - UNIT
Common parts from model Whirlpool 3ET21DKXDN02 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI12087A8 Contact Us For Availability
1
Refrigerator Door (Includes No.8) (White) WPL 2171202 Contact Us For Availability
1
Refrigerator Door (Includes No.8) (Almond) WPL 2171239 Contact Us For Availability
1
Shelf, Ladder (2) WPL 2163756 Contact Us For Availability
1
Plate, Unit Mounting WPL 2182403 Contact Us For Availability
2
Hinge (Top) WPL 2174690 Contact Us For Availability
2
Divider, Door Bin WPL 2171284 Contact Us For Availability
2
Shelf, Ladder Center WPL 2163826 Contact Us For Availability
3
Condenser WPL 2179882 Contact Us For Availability
4
Screw WPL 489426 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Heater, Defrost WPL 2166872 Contact Us For Availability
5
Evaporator Assy. WPL 2166209 Contact Us For Availability
6
Screw WPL 489459 Contact Us For Availability
6
Screw WPL 489414 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Frame Assembly, Shelf (2) WPL 2174447 Contact Us For Availability
7
Drain Pan WPL 2172620 Contact Us For Availability
8
Bracket, Bottom Hinge WPL 2174899 Contact Us For Availability
8
Bracket, Heater WPL 2176301 Contact Us For Availability
9
Screw WPL 489462 Contact Us For Availability
9
Shim, Handle WPL 2151813 Contact Us For Availability
10
Enclosure, Terminal Block WPL 2158579 Contact Us For Availability
10
Tall Bottle Retainer WPL 2173643 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Screw WPL 2174650 Contact Us For Availability
11
Housing Compartment WPL 2156064 Contact Us For Availability
11
Clamp WPL 2166683 Contact Us For Availability
12
Shim, Handle WPL 2183124 Contact Us For Availability
12
Frame Assembly, Meat Shelf WPL 2179717 Contact Us For Availability
13
Tray, Door WPL 2159302 Contact Us For Availability
13
Service Cord WPL 1129332 Contact Us For Availability
13
Gasket, Crisper Cover WPL 2172684 Contact Us For Availability
13
Overload WPL 2169411 Contact Us For Availability
14
Terminal Block WPL 1129346 Contact Us For Availability
14
Hook, Shelf WPL 2169608 Contact Us For Availability
16
Hinge, Center WPL 2183066 Contact Us For Availability
16
Screw WPL 489473 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
17
Shelf, Freezer WPL 2166223 Contact Us For Availability
17
Roller (2) WPL 2163782 Contact Us For Availability
18
Shim, Handle WPL 2179398 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Bushing WPL 1129449 Contact Us For Availability
19
Handle (White) WPL 2174003 Contact Us For Availability
19
Handle (Almond) WPL 2174004 Contact Us For Availability
20
Hinge Butt WPL 2179810 Contact Us For Availability
20
Protector WPL 2183183 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Clip, Wire WPL 489435 Contact Us For Availability
22
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
22
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
22
Door Reversal Instructions WPL 2179845 Contact Us For Availability
22
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
22
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
22
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
22
WPL 978883 WPL 978883 Contact Us For Availability
22
Screw WPL 489346 Contact Us For Availability
22
Door Compartment WPL 2182402 Contact Us For Availability
22
Screw WPL 489419 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Trim, Door Shelf WPL 2159306 Contact Us For Availability
23
Wiring Assembly, Terminal Block WPL 2166651 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI12088A1 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Shelf, Freezer (Top) WPL 2166112 Contact Us For Availability
25
Gasket WPL 2167227 Contact Us For Availability
26
Bracket, Shelf Mounting (L.S.) WPL 2184459 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
27
Cover, Endcap (White) WPL 2174006 Contact Us For Availability
27
Cover, End Cap (Almond) WPL 2174007 Contact Us For Availability
27
Track Assembly, Shelf WPL 2176241 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Screw WPL 489436 Contact Us For Availability
29
Shim WPL 2172745 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
35
Ice Bucket WPL 2174616 Contact Us For Availability
36
Grille (White) WPL 2182432 Contact Us For Availability
36
Grille (Almond) WPL 2182433 Contact Us For Availability
37
Cover WPL 2169935 Contact Us For Availability
38
Endcap, Door Trim WPL 2177340 Contact Us For Availability
39
Plug-Trim WPL 2159300 Contact Us For Availability
39
Shim WPL 2176201 Contact Us For Availability
39
Baffle, Air WPL 2179849 Contact Us For Availability
40
Cover-Hinge (White) WPL 2172613 Contact Us For Availability
40
Cover-Hinge (Almond) WPL 2176204 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI12089A5 Contact Us For Availability
42
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
42
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
42
Wire Assy. Unit WPL 2179885 Contact Us For Availability
43
Trim, Crisper Pan WPL 2190552 Contact Us For Availability
43
Fan, Blade WPL 851732 Contact Us For Availability
44
Cover, Unit WPL 2183159 Contact Us For Availability
44
Trim, Meat Pan WPL 2190556 Contact Us For Availability
46
Tube, Discharge WPL 2179856 Contact Us For Availability
47
Trim, Ice Bucket WPL 2176360 Contact Us For Availability
47
Tube, Suction WPL 2179854 Contact Us For Availability
48
Shelf Assembly, Spillguard WPL 2174469 Contact Us For Availability
49
Bracket, Shelf Mounting (R.S.) WPL 2172625 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
50
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
50
Evaporator Tray WPL 2176276 Contact Us For Availability
50
Start Kit WPL 482278 Contact Us For Availability
50
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
51
Fastener WPL 2176270 Contact Us For Availability
52
Shelf, Ice Tray WPL 2172626 Contact Us For Availability
53
Support, Ice Tray Shelf WPL 2176292 Contact Us For Availability
× ![]()
