Model Whirlpool 3ET19DKXEW00 REFRIGERATOR – Common Parts & Diagrams
03 - SHELF
04 - REFRIGERATOR DOOR

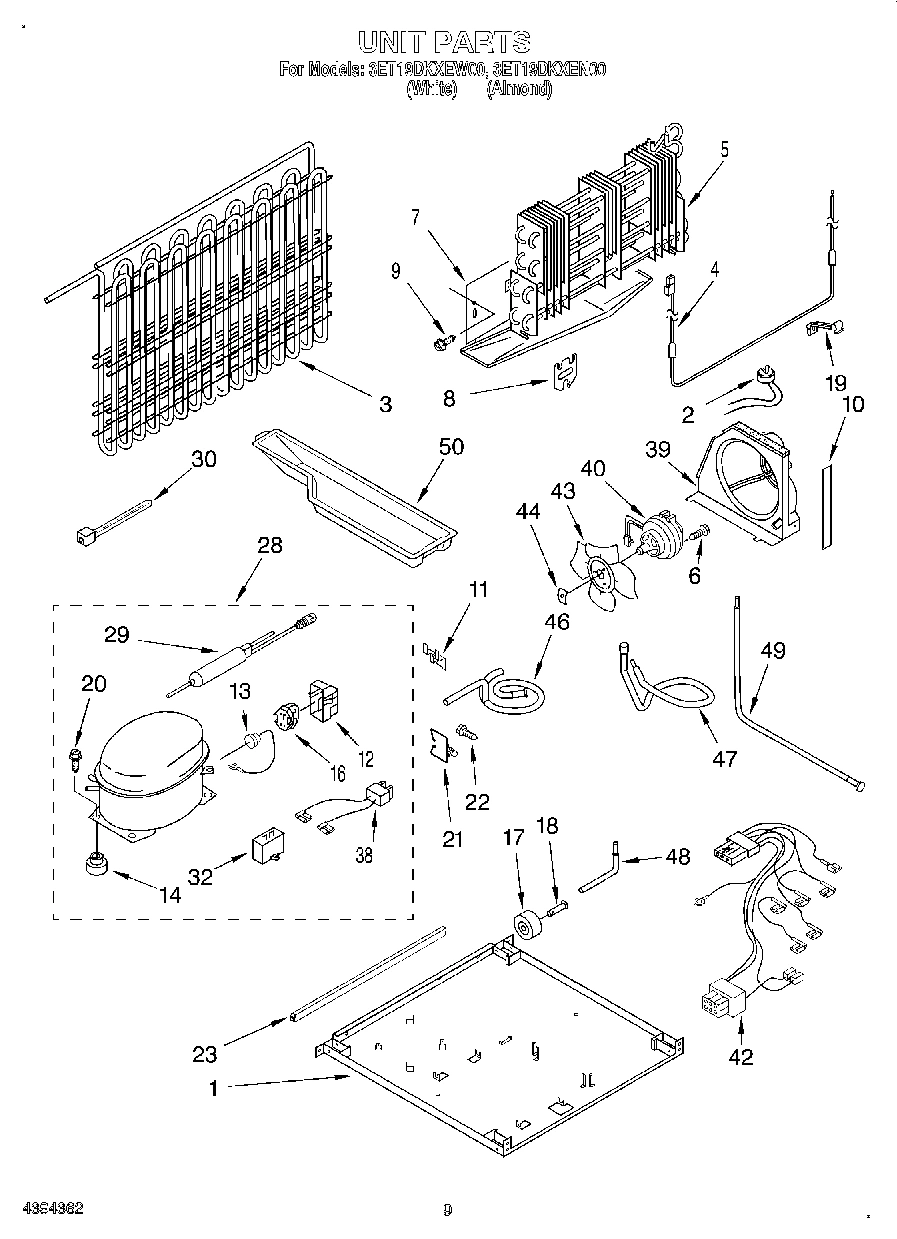

05 - UNIT

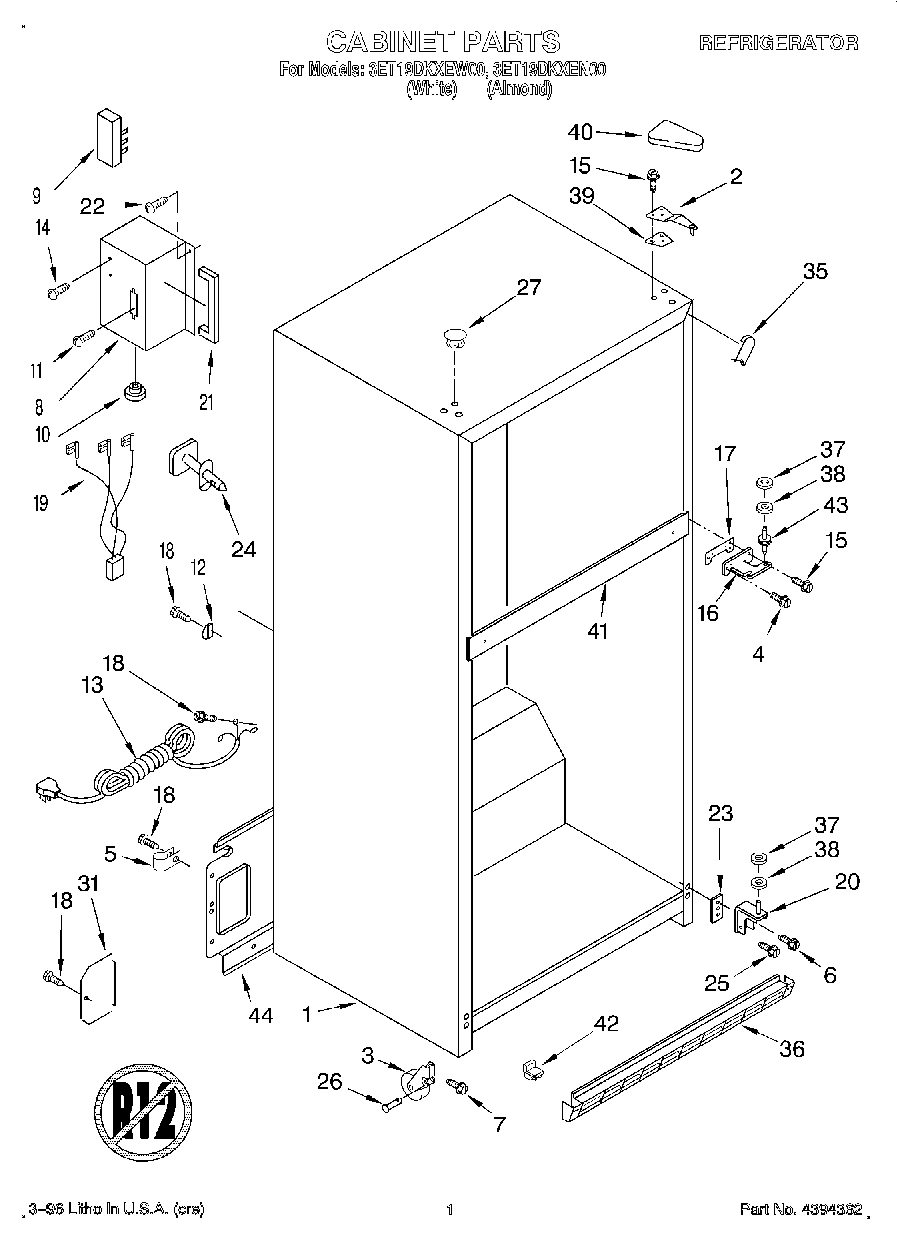

01 - CABINET

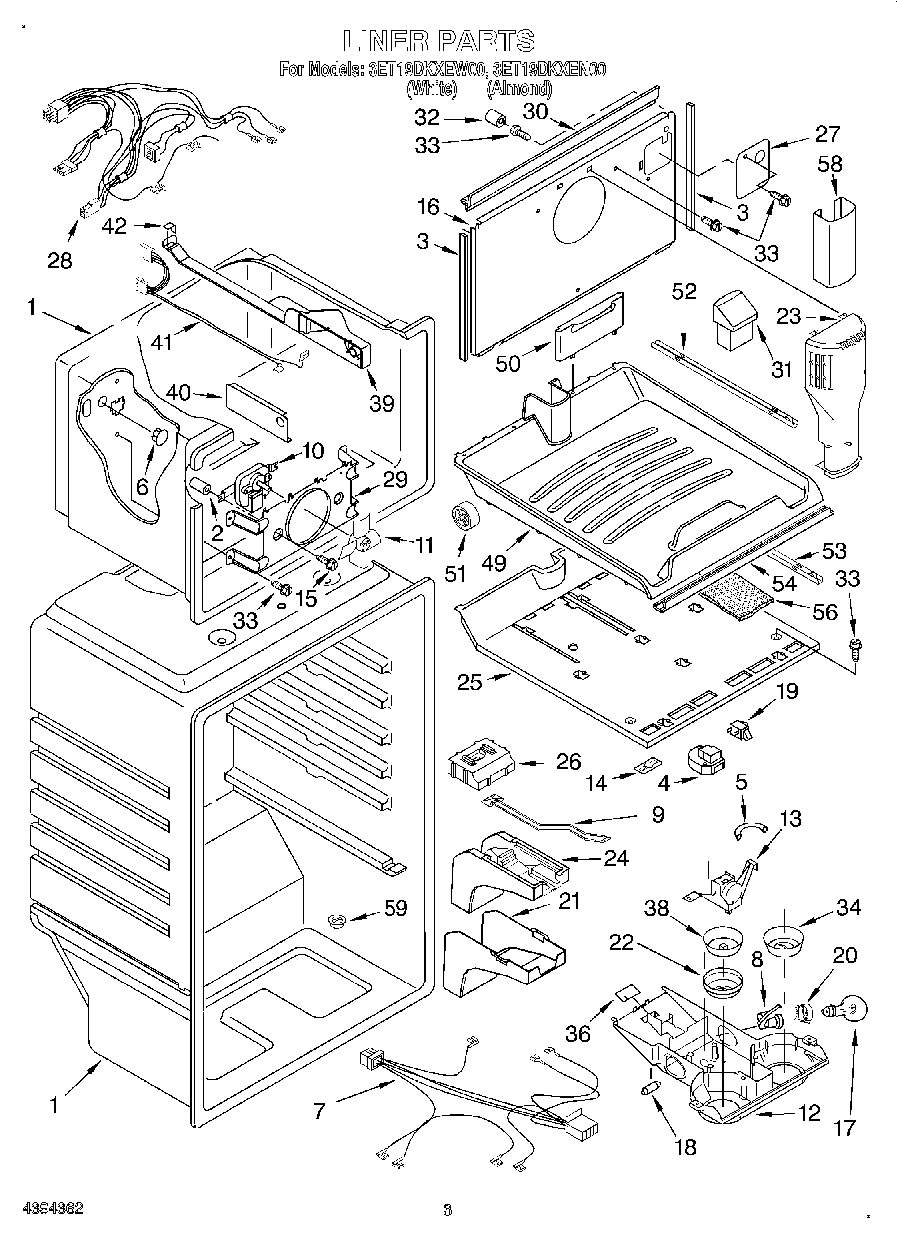

02 - LINER

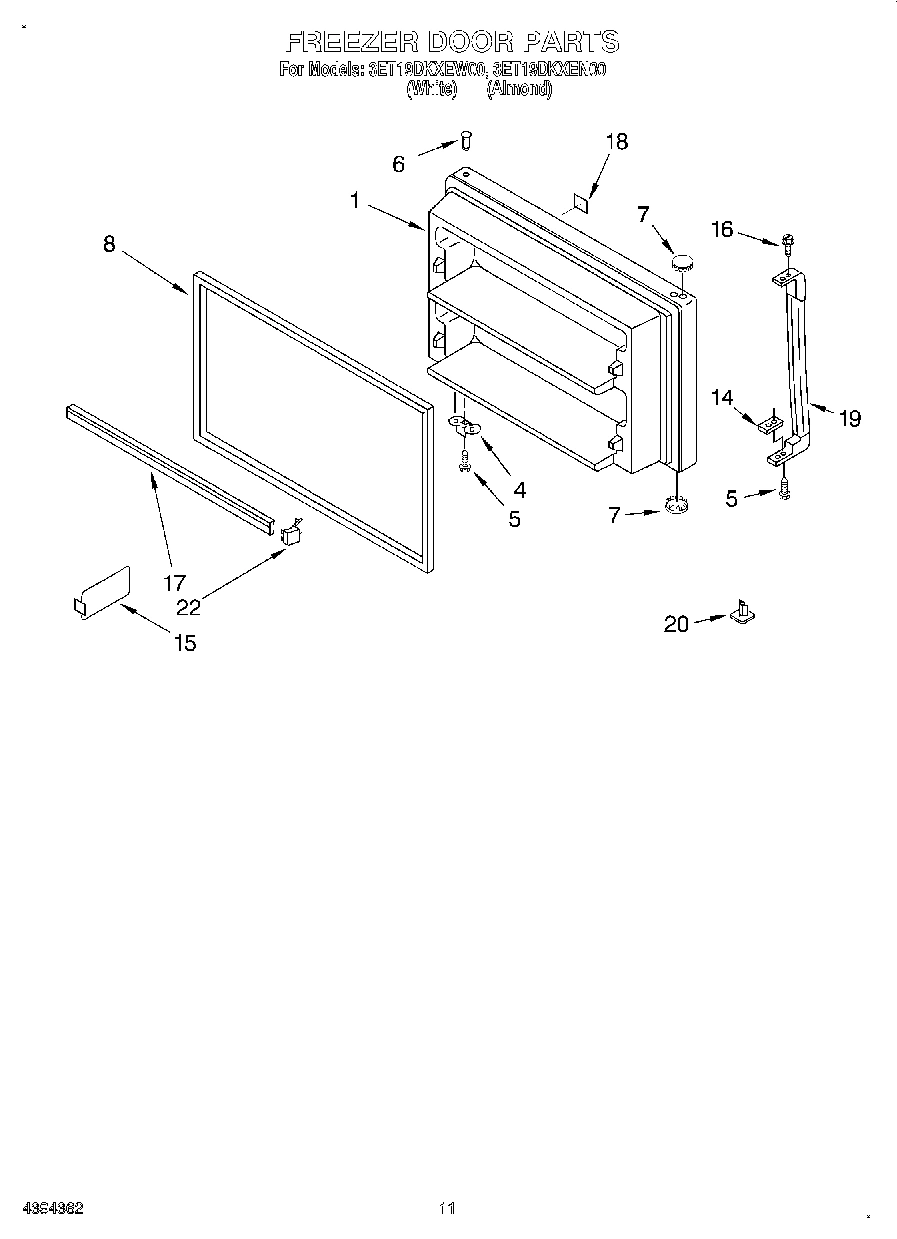

06 - FREEZER DOOR, LIT/OPTIONAL
Common parts from model Whirlpool 3ET19DKXEW00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2170417 WPL LIT2170417 Contact Us For Availability
WPL LIT2193089 WPL LIT2193089 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI12079A9 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI12082A2 Contact Us For Availability
1
Freezer Door (Includes No.6 & No.8) (White) WPL 2182488 Contact Us For Availability
1
Freezer Door (Includes No.6 & No.8) (Almond) WPL 2182495 Contact Us For Availability
2
Hinge (Top) WPL 2174690 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
4
Screw WPL 489426 Contact Us For Availability
4
Timer, Defrost WPL 2193095 Contact Us For Availability
6
Screw WPL 489459 Contact Us For Availability
7
Screw WPL 2174650 Contact Us For Availability
7
Wire Assy. Control Box WPL 2193074 Contact Us For Availability
8
Bracket, Heater WPL 2176301 Contact Us For Availability
8
Enclosure, Terminal Block WPL 2158579 Contact Us For Availability
9
Terminal Block WPL 1129346 Contact Us For Availability
9
Damper, Air WPL 2179853 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
10
Bushing WPL 1129449 Contact Us For Availability
10
Fan Motor WPL 2166609 Contact Us For Availability
11
Clip, Capacitor WPL 2166683 Contact Us For Availability
12
Control Box WPL 2179869 Contact Us For Availability
13
Tray, Door WPL 2159302 Contact Us For Availability
13
Overload WPL 2169411 Contact Us For Availability
13
Service Cord WPL 1129332 Contact Us For Availability
14
Screw WPL 489346 Contact Us For Availability
14
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
14
Shim, Handle WPL 2151813 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
15
Divider, Door Shelf WPL 1123293 Contact Us For Availability
16
Hinge, Center WPL 2183066 Contact Us For Availability
16
Cover, Evaporator WPL 2183152 Contact Us For Availability
17
Roller (2) WPL 2163782 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2171282 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
18
Nameplate (White) WPL 2180544 Contact Us For Availability
18
Nameplate (Almond) WPL 2180546 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Wire Assembly, Terminal Box WPL 2166651 Contact Us For Availability
19
Handle (White) WPL 2174000 Contact Us For Availability
19
Handle (Almond) WPL 2174001 Contact Us For Availability
20
Screw WPL 489473 Contact Us For Availability
20
Hinge Butt WPL 2179810 Contact Us For Availability
20
Hole Plug (White) WPL 2174433 Contact Us For Availability
20
Hole Plug (Almond) WPL 2174434 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Clip, Wire WPL 489435 Contact Us For Availability
21
Gasket WPL 2167227 Contact Us For Availability
22
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
22
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
22
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
22
Knob, Thermostat WPL 2184573 Contact Us For Availability
22
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
22
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
22
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
22
WPL 978883 WPL 978883 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
TRIM, DOOR SHELF WPL 2159312 Contact Us For Availability
23
Protector WPL 2183183 Contact Us For Availability
23
Spacer, Hinge WPL 2172745 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI12080A8 Contact Us For Availability
25
Screw WPL 489436 Contact Us For Availability
25
Freezer Floor WPL 2190590 Contact Us For Availability
26
Air Diffuser, Top (Includes Item 37) WPL 2179877 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Wire Assembly, Freezer Comp. WPL 2179824 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
32
Slide, Crisper WPL 2176222 Contact Us For Availability
34
Knob, Damper WPL 2182479 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
36
Grille (White) WPL 2182429 Contact Us For Availability
36
Grille (Almond) WPL 2182430 Contact Us For Availability
39
Plug-Trim WPL 2159300 Contact Us For Availability
39
Baffle, Air WPL 2179849 Contact Us For Availability
39
Shim WPL 2176201 Contact Us For Availability
39
Housing Base WPL 2182382 Contact Us For Availability
40
Cover-Hinge (White) WPL 2172613 Contact Us For Availability
40
Cover-Hinge (Almond) WPL 2176204 Contact Us For Availability
40
Shield, Electrical Heat WPL 2182384 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI12081A5 Contact Us For Availability
41
Wiring Harness, Freezer Light WPL 2193096 Contact Us For Availability
42
Wire Assy. Unit WPL 2193218 Contact Us For Availability
42
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
42
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
42
Gasket, Rear WPL 2166284 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
44
Cover, Unit WPL 2183158 Contact Us For Availability
46
Tube, Discharge WPL 2179856 Contact Us For Availability
47
Tube, Suction WPL 2179854 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
49
Pullout, Freezer Floor (Includes Item 56) WPL 2179774 Contact Us For Availability
50
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
50
Evaporator Tray WPL 2163795 Contact Us For Availability
50
Start Kit WPL 482278 Contact Us For Availability
50
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
50
Rear Fence, Pull- Out Freezer Floor WPL 2176242 Contact Us For Availability
51
Roller, Slide WPL 2176246 Contact Us For Availability
52
Side Support, Floor Assembly WPL 2179713 Contact Us For Availability
53
Center Support, Floor Assembly WPL 2179714 Contact Us For Availability
54
Trim, Pullout Freezer Floor WPL 2179720 Contact Us For Availability
56
Insulation, Freezer Floor WPL 2179772 Contact Us For Availability
58
Sleeve, Air Tower WPL 2179712 Contact Us For Availability
× ![]()
