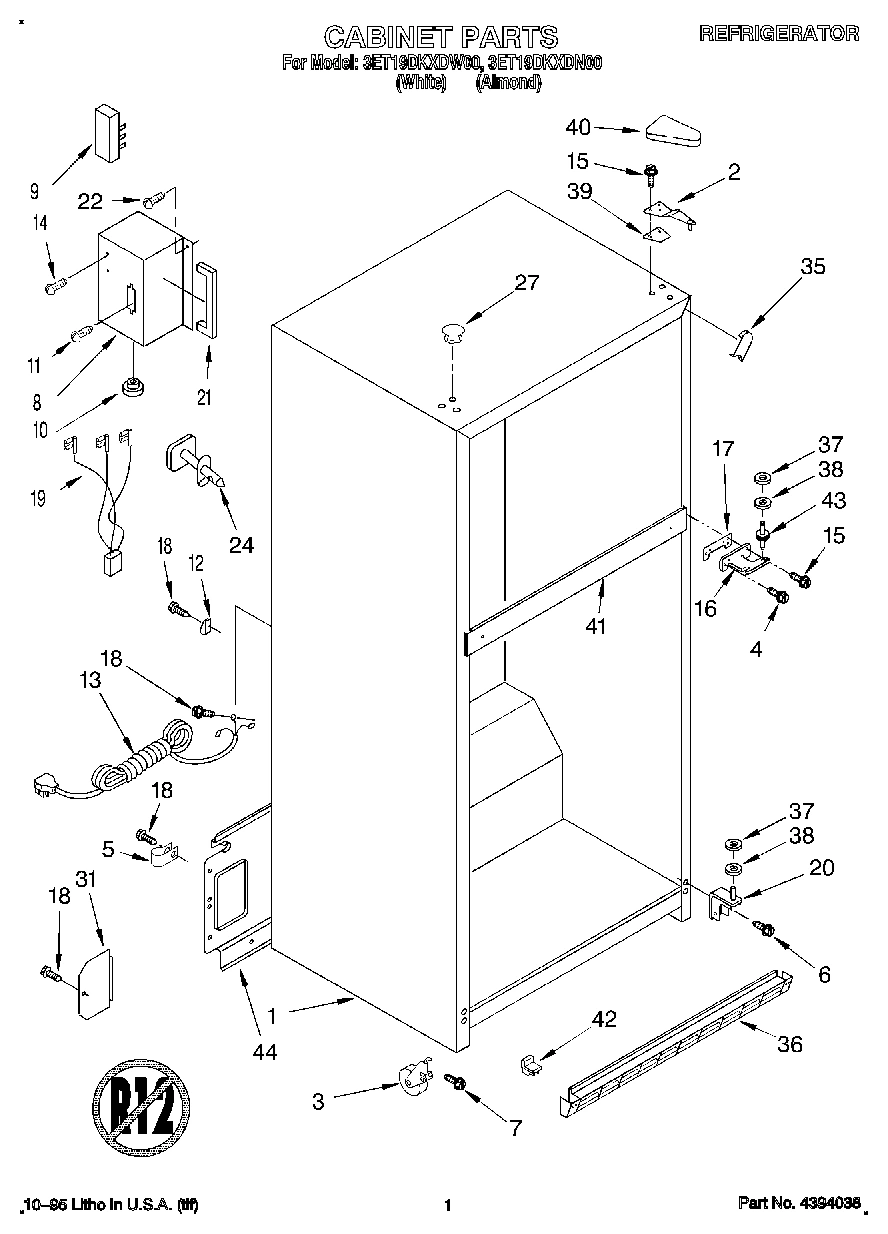

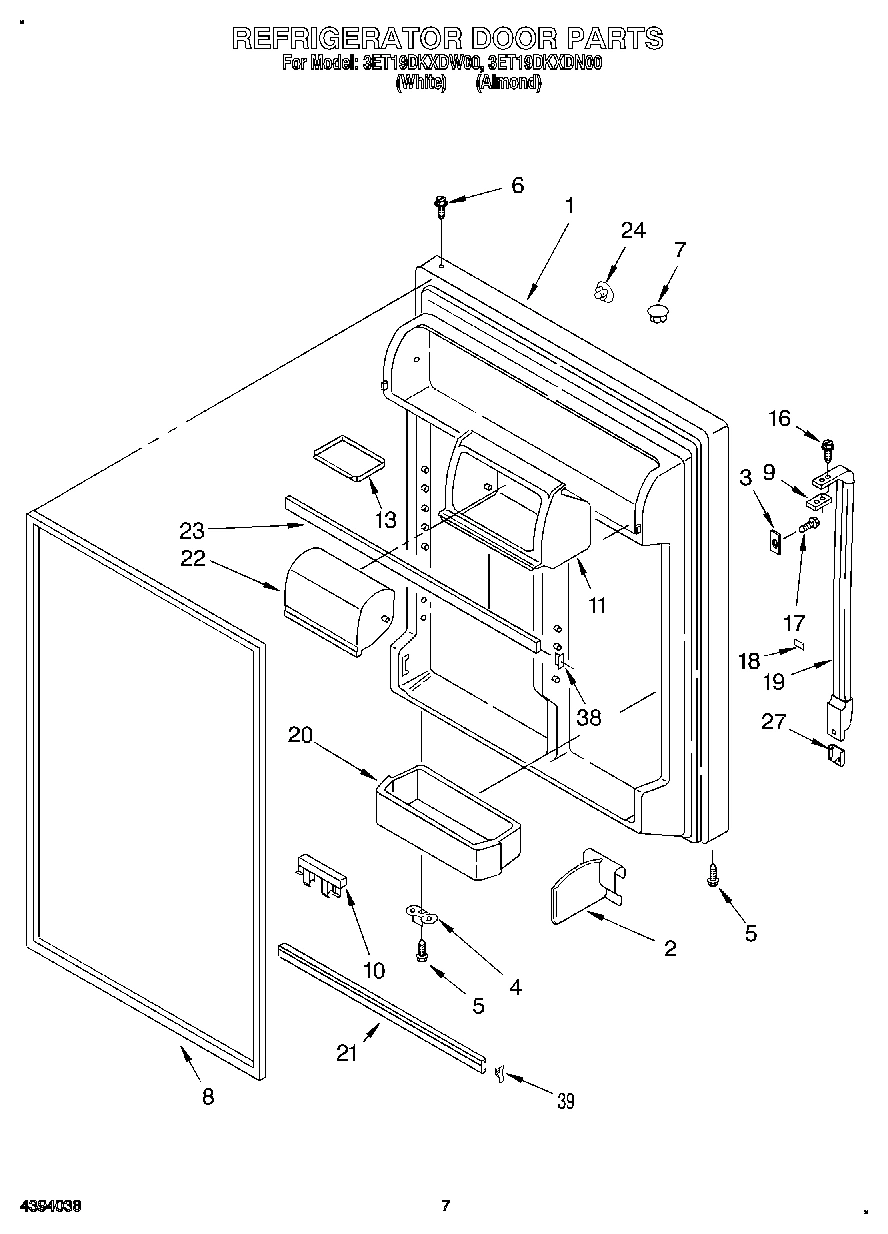

Model Whirlpool 3ET19DKXDW00 REFRIGERATOR – Common Parts & Diagrams

WPL  1117510
WPL 1117510 WPL 1117510 Contact Us For Availability
View on Model
WPL  LIT2166777
WPL LIT2166777 WPL LIT2166777 Contact Us For Availability
View on Model
WPL  LIT2170417
WPL LIT2170417 WPL LIT2170417 Contact Us For Availability
View on Model

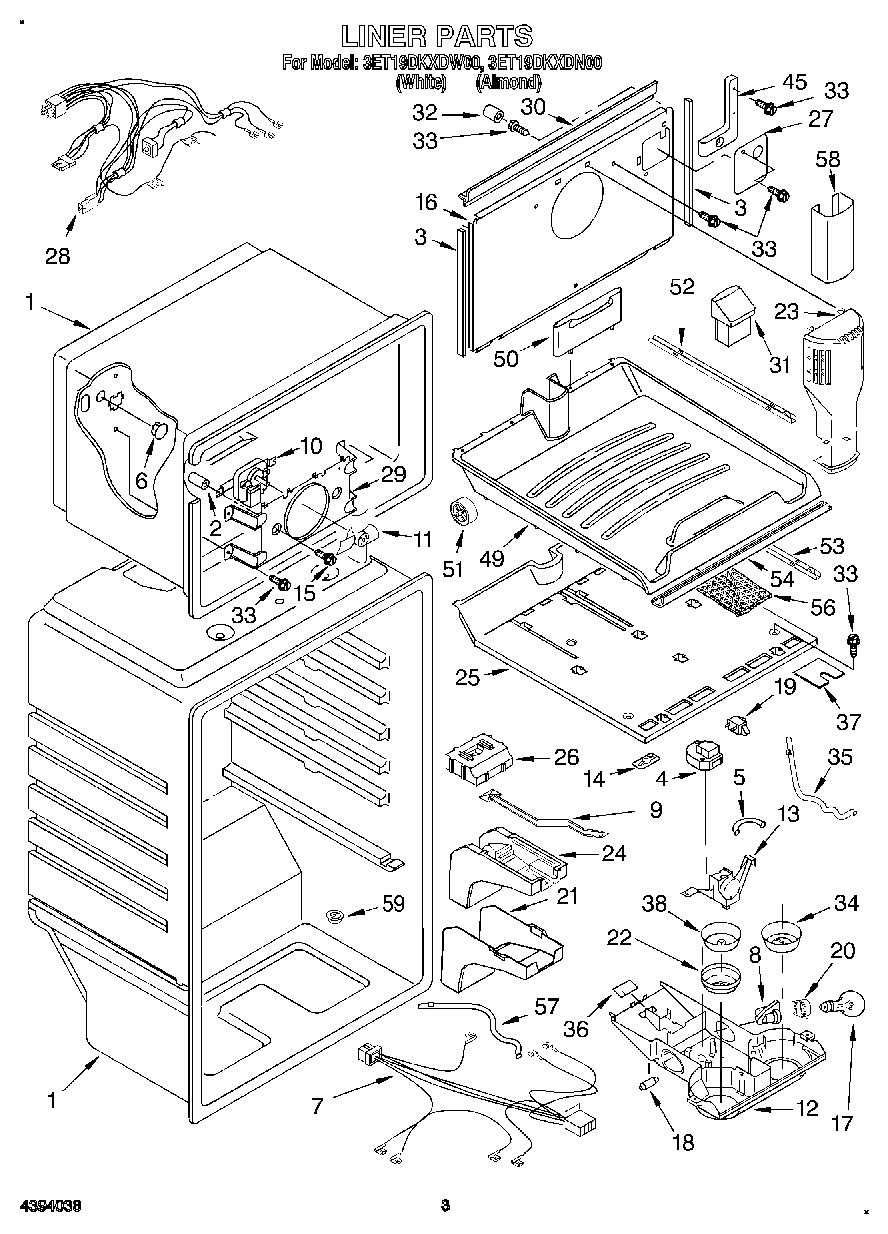

1
Liner (Not A Serviceable Part)
Liner (Not A Serviceable Part) WPL ARI12070A5 Contact Us For Availability
View on Model
1
Plate, Unit Mounting
Plate, Unit Mounting WPL 2174620 Contact Us For Availability
View on Model
1
Cabinet (Not A Serviceable Part)
Cabinet (Not A Serviceable Part) WPL ARI12067A9 Contact Us For Availability
View on Model
1

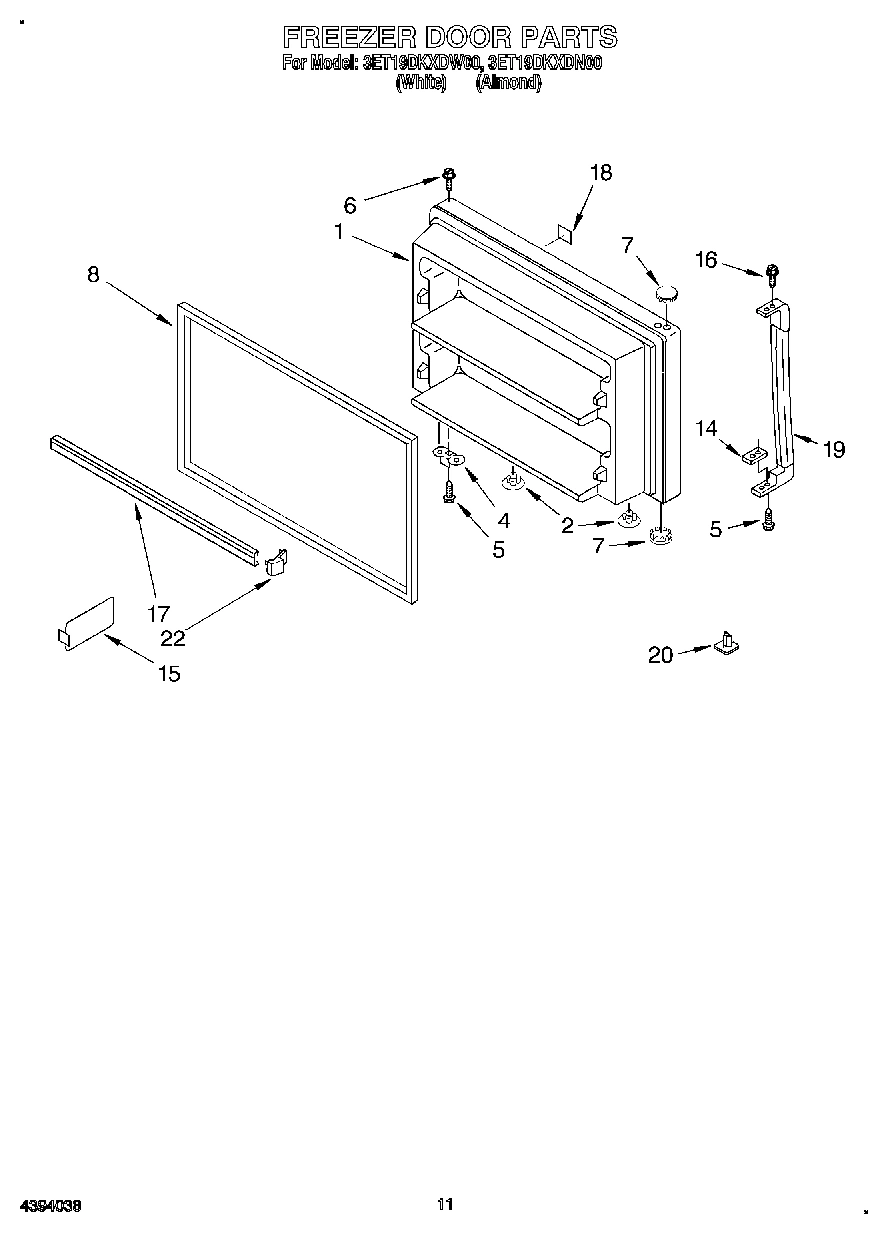

Freezer Door (Includes Item 8) (White)
Freezer Door (Includes Item 8) (White) WPL 2171232 Contact Us For Availability
View on Model
1
Freezer Door (Includes Item 8) (Almond)
Freezer Door (Includes Item 8) (Almond) WPL 2171234 Contact Us For Availability
View on Model
2
Grommet (2)
Grommet (2) WPL 531933 Contact Us For Availability
View on Model
2
Hinge (Top)
Hinge (Top) WPL 2174690 Contact Us For Availability
View on Model
2
Hole Plug (2)
Hole Plug (2) WPL 534927 Contact Us For Availability
View on Model
3
Condenser
Condenser WPL 2179882 Contact Us For Availability
View on Model
4
Heater, Defrost
Heater, Defrost WPL 2166657 Contact Us For Availability
View on Model
4
Screw
Screw WPL 489426 Contact Us For Availability
View on Model
4
Bracket, Door Stop
Bracket, Door Stop WPL 2159367 Contact Us For Availability
View on Model

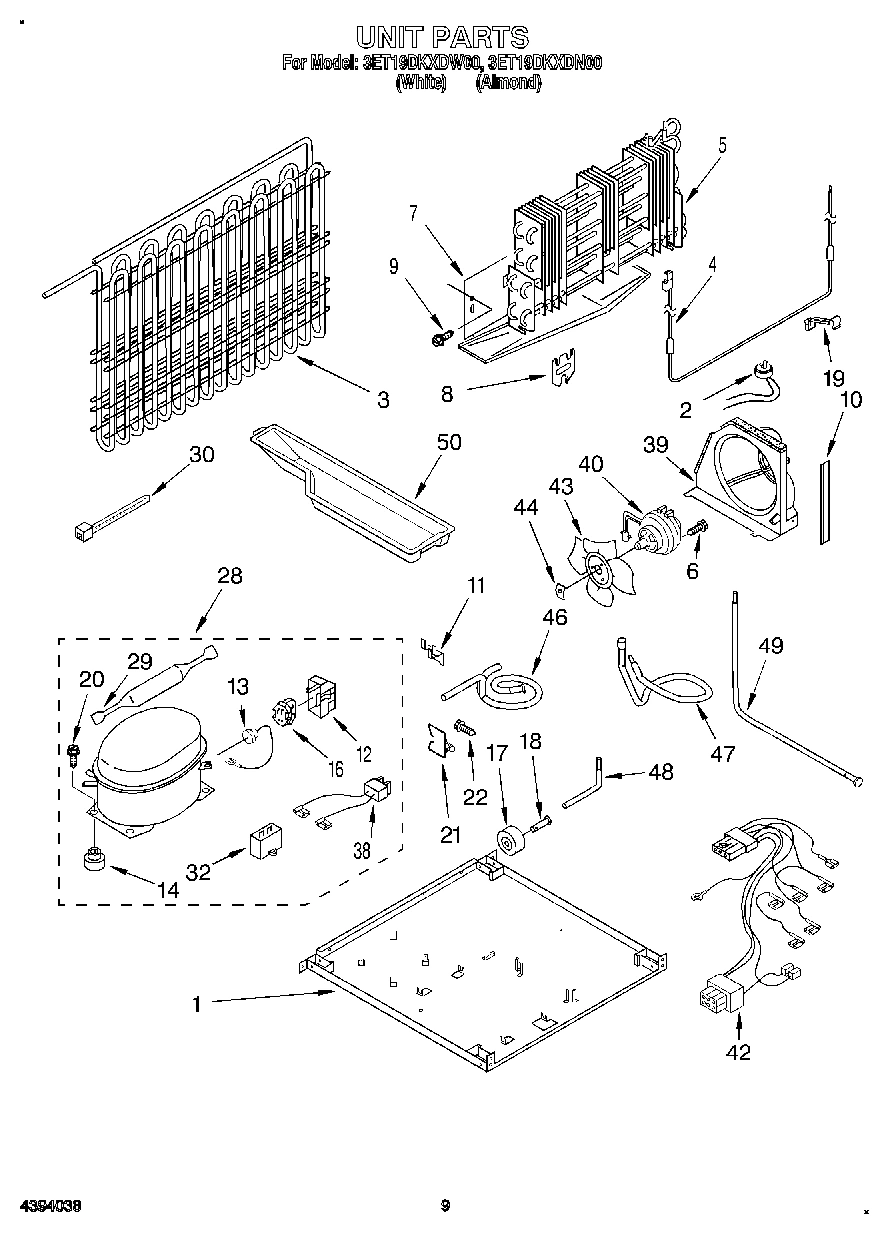

5
Evaporator Assy.
Evaporator Assy. WPL 2176337 Contact Us For Availability
View on Model
6
Screw
Screw WPL 489414 Contact Us For Availability
View on Model
6
Screw
Screw WPL 489459 Contact Us For Availability
View on Model
7
Wire Assy. Control Box
Wire Assy. Control Box WPL 2172542 Contact Us For Availability
View on Model
7
Drain Pan
Drain Pan WPL 2172619 Contact Us For Availability
View on Model
7
Screw
Screw WPL 2174650 Contact Us For Availability
View on Model
8
Bracket, Heater
Bracket, Heater WPL 2176301 Contact Us For Availability
View on Model
8
Enclosure, Terminal Block
Enclosure, Terminal Block WPL 2158579 Contact Us For Availability
View on Model
9
Damper, Air
Damper, Air WPL 2179853 Contact Us For Availability
View on Model
9
Terminal Block
Terminal Block WPL 1129346 Contact Us For Availability
View on Model
10
Fan Motor
Fan Motor WPL 2166609 Contact Us For Availability
View on Model
10
Extension, Air Baffle
Extension, Air Baffle WPL 2163780 Contact Us For Availability
View on Model
10
Bushing
Bushing WPL 1129449 Contact Us For Availability
View on Model
11
Clip, Capacitor
Clip, Capacitor WPL 2166683 Contact Us For Availability
View on Model
12
Control Box
Control Box WPL 2174672 Contact Us For Availability
View on Model
13
Tray, Door
Tray, Door WPL 2159302 Contact Us For Availability
View on Model
13
Overload
Overload WPL 2169411 Contact Us For Availability
View on Model
13
Service Cord
Service Cord WPL 1129332 Contact Us For Availability
View on Model
14
Clip, Defrost Timer
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
View on Model
14
Grommet (4)
Grommet (4) WPL 2174621 Contact Us For Availability
View on Model
14
Screw
Screw WPL 489346 Contact Us For Availability
View on Model
14
Shim, Handle
Shim, Handle WPL 2151813 Contact Us For Availability
View on Model
15
Screw
Screw WPL 489412 Contact Us For Availability
View on Model
15
Divider, Door Shelf
Divider, Door Shelf WPL 1123293 Contact Us For Availability
View on Model
16
Cover, Evaporator
Cover, Evaporator WPL 2183152 Contact Us For Availability
View on Model
16
Hinge, Center
Hinge, Center WPL 2183066 Contact Us For Availability
View on Model
17
Roller (2)
Roller (2) WPL 2163782 Contact Us For Availability
View on Model
17
Shim, Hinge Center
Shim, Hinge Center WPL 2163757 Contact Us For Availability
View on Model
17
Trim, Door Shelf (2)
Trim, Door Shelf (2) WPL 2171282 Contact Us For Availability
View on Model
18
Weight, Thermal
Weight, Thermal WPL 2163802 Contact Us For Availability
View on Model
18
Nameplate (White)
Nameplate (White) WPL 2180544 Contact Us For Availability
View on Model
18
Nameplate (Almond)
Nameplate (Almond) WPL 2180546 Contact Us For Availability
View on Model
19
Clip, Heater
Clip, Heater WPL 2182338 Contact Us For Availability
View on Model
19
Wire Assembly, Terminal Box
Wire Assembly, Terminal Box WPL 2166651 Contact Us For Availability
View on Model
19
Handle (White)
Handle (White) WPL 2174000 Contact Us For Availability
View on Model
19
Handle (Almond)
Handle (Almond) WPL 2174001 Contact Us For Availability
View on Model
20
Screw
Screw WPL 489433 Contact Us For Availability
View on Model
20
Hinge Butt
Hinge Butt WPL 2179810 Contact Us For Availability
View on Model
20
Hole Plug (White)
Hole Plug (White) WPL 2174433 Contact Us For Availability
View on Model
20
Hole Plug (Almond)
Hole Plug (Almond) WPL 2174434 Contact Us For Availability
View on Model
21
Cover, Air Diffuser
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
View on Model
21
Clip, Wire
Clip, Wire WPL 489435 Contact Us For Availability
View on Model
21
Gasket
Gasket WPL 2167227 Contact Us For Availability
View on Model
22
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``)
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
View on Model
22
TAPE, VINYL (3/4 X 108``)
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
View on Model
22
PAINT, BULK (1 QT.) (WHITE (UNCUT))
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
View on Model
22
Knob, Theromstat
Knob, Theromstat WPL 2182422 Contact Us For Availability
View on Model
22
CEMENT, ALUMILASTIC (1 1/4 OZ.)
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
View on Model
22
KIT, PORCELAIN REPAIR (WHITE)
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
View on Model
22
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY)
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
View on Model
22
WPL  978883
WPL 978883 WPL 978883 Contact Us For Availability
View on Model
23
Air Tower
Air Tower WPL 2182340 Contact Us For Availability
View on Model
23
TRIM, DOOR SHELF
TRIM, DOOR SHELF WPL 2159312 Contact Us For Availability
View on Model
24
Hole Plug, Handle (Almond)
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
View on Model
24
Fitting, Water Tube (Not Serviced)
Fitting, Water Tube (Not Serviced) WPL ARI12068A9 Contact Us For Availability
View on Model
25
Freezer Floor
Freezer Floor WPL 2166298 Contact Us For Availability
View on Model
26
Air Diffuser, Top (Includes Item 37)
Air Diffuser, Top (Includes Item 37) WPL 2179877 Contact Us For Availability
View on Model
27
Cover, Endcap (White)
Cover, Endcap (White) WPL 2174006 Contact Us For Availability
View on Model
27
Cover, End Cap (Almond)
Cover, End Cap (Almond) WPL 2174007 Contact Us For Availability
View on Model
27
Hole Plug (6) (Almond)
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
View on Model
28
Installation Kit
Installation Kit WPL 482801 Contact Us For Availability
View on Model
28
Wire Assembly, Freezer Comp.
Wire Assembly, Freezer Comp. WPL 2179824 Contact Us For Availability
View on Model
29
Bracket, Fan Motor
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
View on Model
31
Cover, Water Valve
Cover, Water Valve WPL 2166251 Contact Us For Availability
View on Model
32

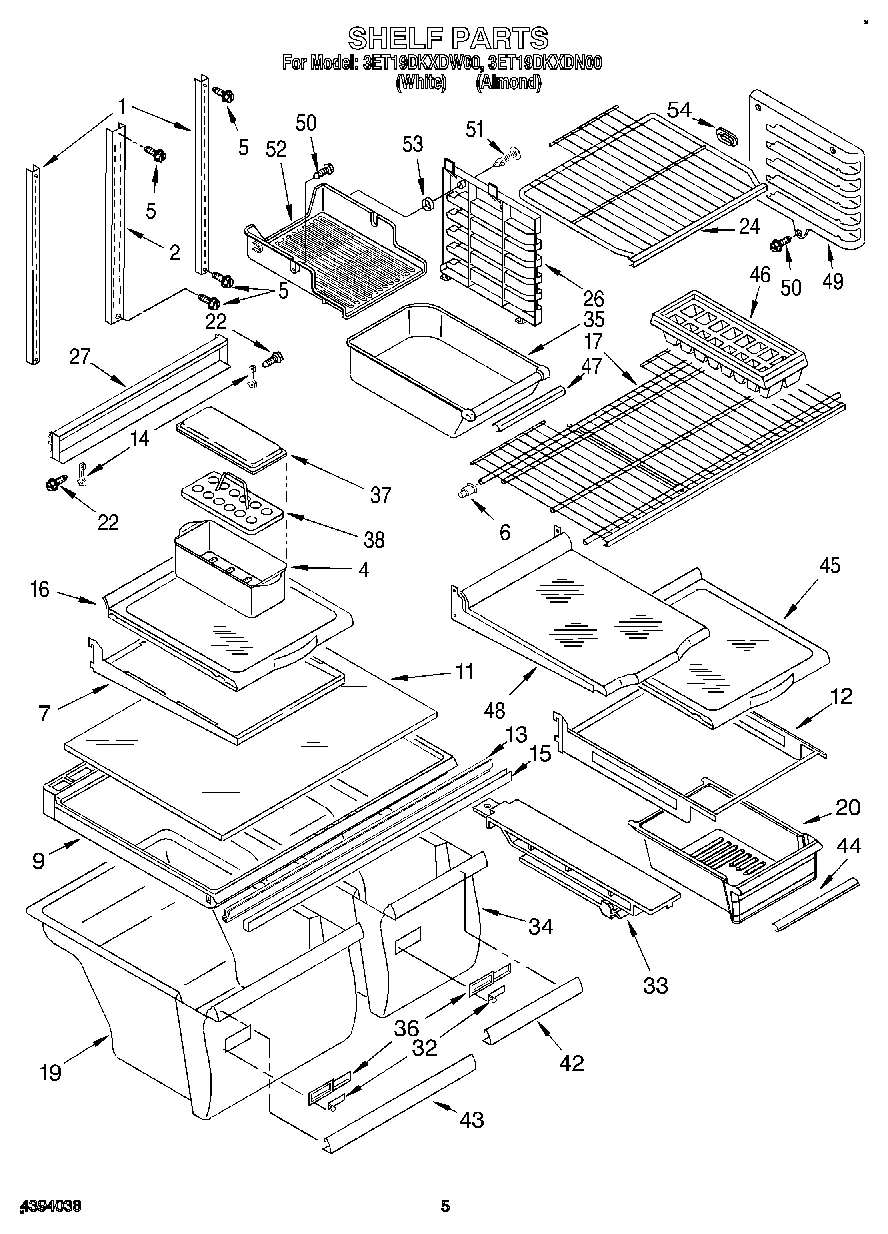

Slide, Crisper
Slide, Crisper WPL 2176222 Contact Us For Availability
View on Model
34
Knob, Damper
Knob, Damper WPL 2182479 Contact Us For Availability
View on Model
35
Light Bar, R.S.
Light Bar, R.S. WPL 2174627 Contact Us For Availability
View on Model
35
Corner Filler (2) (Almond)
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
View on Model
36
Grille (White)
Grille (White) WPL 2182429 Contact Us For Availability
View on Model
36
Grille (Almond)
Grille (Almond) WPL 2182430 Contact Us For Availability
View on Model
37
Foil, Control Box
Foil, Control Box WPL 2179735 Contact Us For Availability
View on Model
38
Endcap, Door Trim
Endcap, Door Trim WPL 2177340 Contact Us For Availability
View on Model
39
Plug-Trim
Plug-Trim WPL 2159300 Contact Us For Availability
View on Model
39
Baffle, Air
Baffle, Air WPL 2179849 Contact Us For Availability
View on Model
39
Shim
Shim WPL 2176201 Contact Us For Availability
View on Model
40
Cover-Hinge (White)
Cover-Hinge (White) WPL 2172613 Contact Us For Availability
View on Model
40
Cover-Hinge (Almond)
Cover-Hinge (Almond) WPL 2176204 Contact Us For Availability
View on Model
41
Rail Center (Not Serviced)
Rail Center (Not Serviced) WPL ARI12069A1 Contact Us For Availability
View on Model
42
Wire Assy. Unit
Wire Assy. Unit WPL 2179885 Contact Us For Availability
View on Model
42
Corner Filler, Grille (White)
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
View on Model
42
Corner Filler, Grille (Almond)
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
View on Model
43
Fan, Blade
Fan, Blade WPL 851732 Contact Us For Availability
View on Model
44
Cover, Unit
Cover, Unit WPL 2183158 Contact Us For Availability
View on Model
45
Shroud, Icemaker
Shroud, Icemaker WPL 2172624 Contact Us For Availability
View on Model
46
Tube, Discharge
Tube, Discharge WPL 2179856 Contact Us For Availability
View on Model
47
Tube, Suction
Tube, Suction WPL 2179854 Contact Us For Availability
View on Model
49
Pullout, Freezer Floor (Includes Item 56)
Pullout, Freezer Floor (Includes Item 56) WPL 2179774 Contact Us For Availability
View on Model
49
Tube, Condenser To Heat Loop
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
View on Model
50
VALVE, ACCESS (5/8``)
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
View on Model
50
Rear Fence, Pull- Out Freezer Floor
Rear Fence, Pull- Out Freezer Floor WPL 2176242 Contact Us For Availability
View on Model
50
Evaporator Tray
Evaporator Tray WPL 2163795 Contact Us For Availability
View on Model
50
Start Kit
Start Kit WPL 482278 Contact Us For Availability
View on Model
50
VALVE, ACCESS (1/2``)
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
View on Model
51
Roller, Slide
Roller, Slide WPL 2176246 Contact Us For Availability
View on Model
52
Side Support, Floor Assembly
Side Support, Floor Assembly WPL 2179713 Contact Us For Availability
View on Model
53
Center Support, Floor Assembly
Center Support, Floor Assembly WPL 2179714 Contact Us For Availability
View on Model
54
Trim, Pullout Freezer Floor
Trim, Pullout Freezer Floor WPL 2179720 Contact Us For Availability
View on Model
56
Insulation, Freezer Floor
Insulation, Freezer Floor WPL 2179772 Contact Us For Availability
View on Model
57
Light Bar, L.S.
Light Bar, L.S. WPL 2174628 Contact Us For Availability
View on Model
58
Sleeve, Air Tower
Sleeve, Air Tower WPL 2179712 Contact Us For Availability
View on Model
