Model Whirlpool 3ET16NKXDN01 REFRIGERATOR – Common Parts & Diagrams
02 - DOOR
05 - SHELF, LIT/OPTIONAL

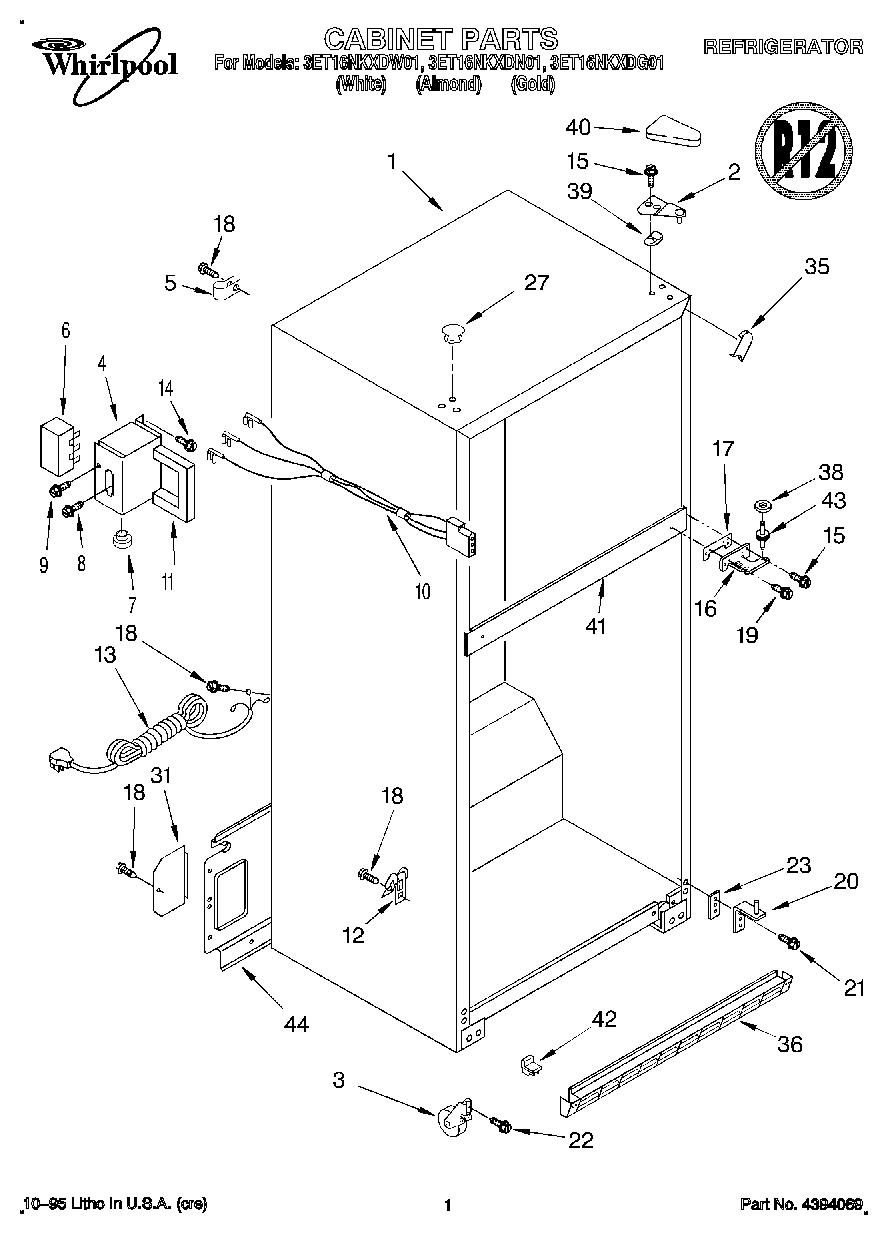

01 - CABINET

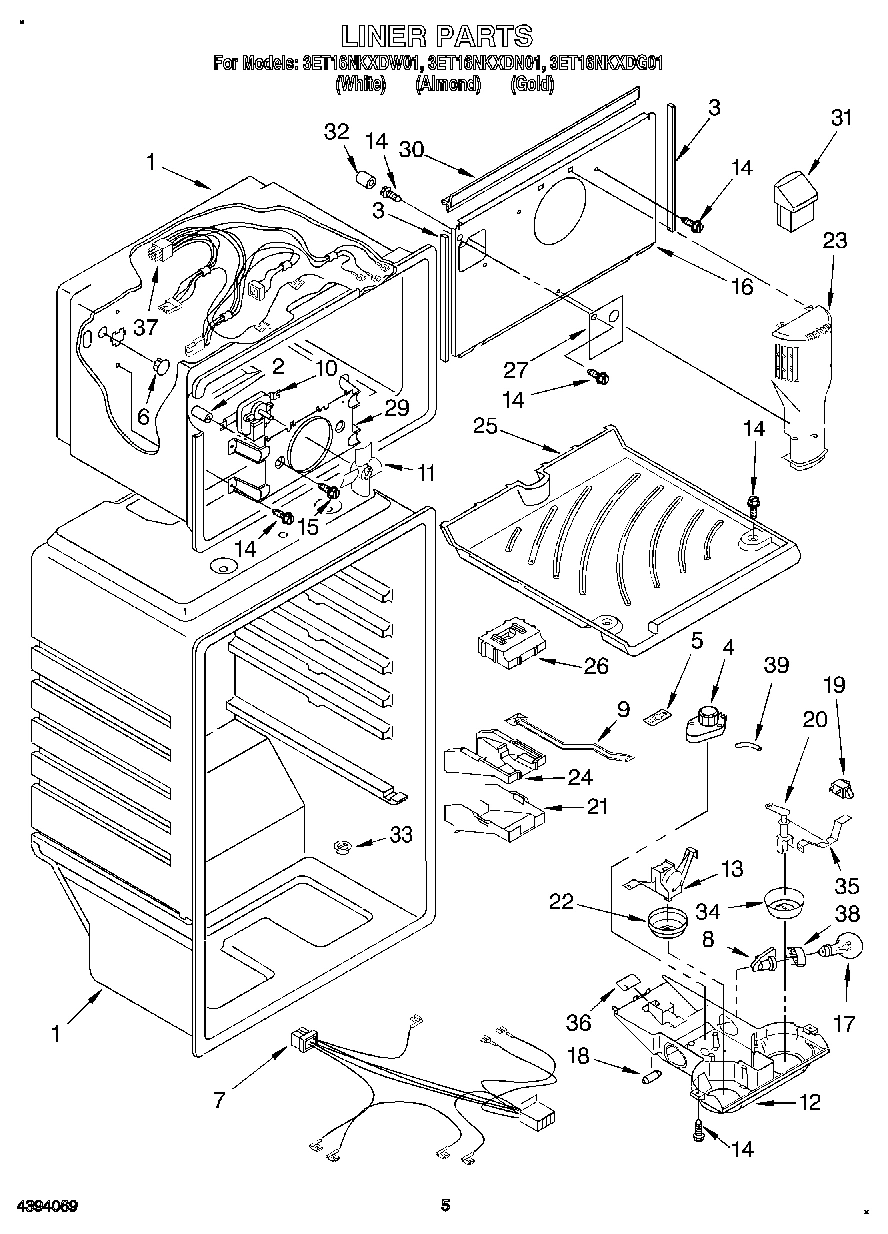

03 - LINER

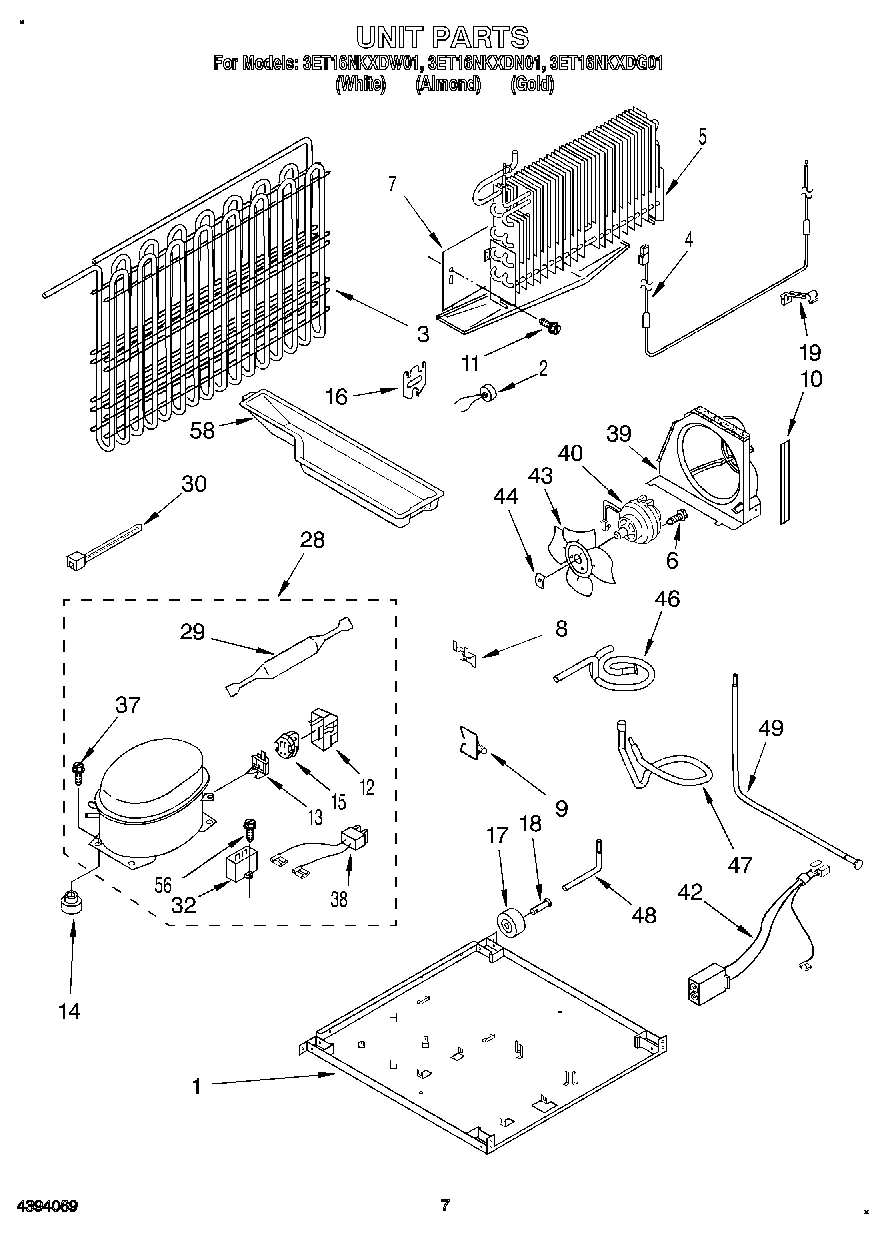

04 - UNIT
Common parts from model Whirlpool 3ET16NKXDN01 REFRIGERATOR
1
Cabinet (Not A Serviceable Part) WPL ARI140087A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI140089A Contact Us For Availability
1
Support Plate, Compressor WPL 2182437 Contact Us For Availability
2
Handle End, Side WPL 1109189 Contact Us For Availability
2
Shelf (2) WPL 2182443 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
3
Condenser WPL 2179882 Contact Us For Availability
4
Enclosure, Term. WPL 2158579 Contact Us For Availability
4
Heater, Defrost WPL 2166871 Contact Us For Availability
5
Clip, Timer WPL 2176341 Contact Us For Availability
5
Evaporator Assy. WPL 2166206 Contact Us For Availability
6
Terminal Block WPL 1129346 Contact Us For Availability
6
Screw WPL 489414 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
7
Bushing WPL 1129449 Contact Us For Availability
7
Wire Assy. Control Box WPL 2172542 Contact Us For Availability
7
Heat Shield and Drain Pan WPL 2172619 Contact Us For Availability
8
Retaining Clip, Capacitor WPL 2166683 Contact Us For Availability
9
Screw WPL 489346 Contact Us For Availability
9
Damper, Air WPL 2179858 Contact Us For Availability
9
Clip, Wire WPL 489435 Contact Us For Availability
10
Wiring Assy. WPL 2166651 Contact Us For Availability
10
Fan Motor WPL 2166609 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Gasket WPL 2167227 Contact Us For Availability
12
Control Box WPL 2179790 Contact Us For Availability
13
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
13
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
13
Torx Key WPL 1117510 Contact Us For Availability
13
Cover, Meat Pan WPL 2163848 Contact Us For Availability
13
Door Reversal Instructions WPL 2172516 Contact Us For Availability
13
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
13
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
13
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
13
Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability
13
Service Cord WPL 1129332 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Cover-Evaporator WPL 2183151 Contact Us For Availability
16
Bracket, Heater WPL 2176301 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
17
Roller (2) WPL 2163782 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Screw WPL 489426 Contact Us For Availability
20
Hinge, Butt WPL 2179829 Contact Us For Availability
20
Post, Damper WPL 2179859 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Screw WPL 489459 Contact Us For Availability
22
Screw WPL 2174650 Contact Us For Availability
22
Control Knob WPL 2182421 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172745 Contact Us For Availability
23
Air Tower WPL 2182339 Contact Us For Availability
25
Freezer Floor WPL 2172565 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
27
Hole Plug (6) (Gold) WPL 2151654 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Compressor (Includes Items 12, 13, 15, 29, 32 WPL 2169447 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
30
Gasket, Evaporator Cover (Top) WPL 2166192 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
35
Corner Filler (2) (Gold) WPL 2166188 Contact Us For Availability
35
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
36
Grille (White) WPL 2182429 Contact Us For Availability
36
Grille (Almond) WPL 2182430 Contact Us For Availability
36
Grille (Black) WPL 2182431 Contact Us For Availability
37
Wire Assembly, Freezer WPL 2179824 Contact Us For Availability
37
Screw WPL 489473 Contact Us For Availability
38
WPL 943187 WPL 943187 Contact Us For Availability
39
WPL 944163 WPL 944163 Contact Us For Availability
39
Shim WPL 1123517 Contact Us For Availability
39
Baffle, Air WPL 2179849 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI140088A Contact Us For Availability
42
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
42
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
42
Corner Filler, Grille (Black) WPL 2166205 Contact Us For Availability
42
Wire Assy. Unit WPL 2179885 Contact Us For Availability
43
Fan, Blade WPL 851732 Contact Us For Availability
44
Cover, Unit WPL 2183158 Contact Us For Availability
46
Tube, Discharge WPL 2179856 Contact Us For Availability
47
Tube, Suction WPL 2179854 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
