Model Whirlpool 38FN-2CXW ELECTRIC RANGE – Common Parts & Diagrams

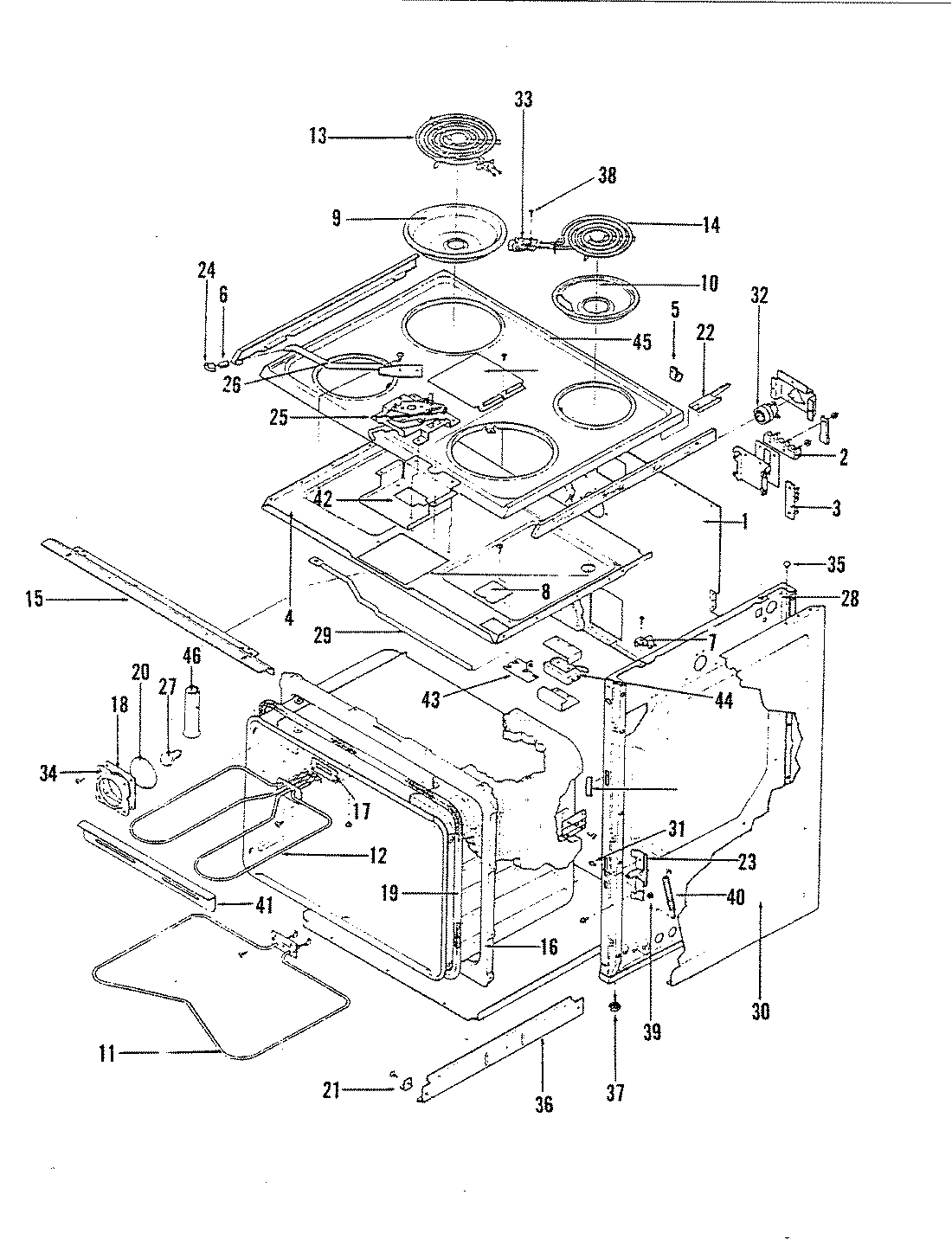

01 - BODY

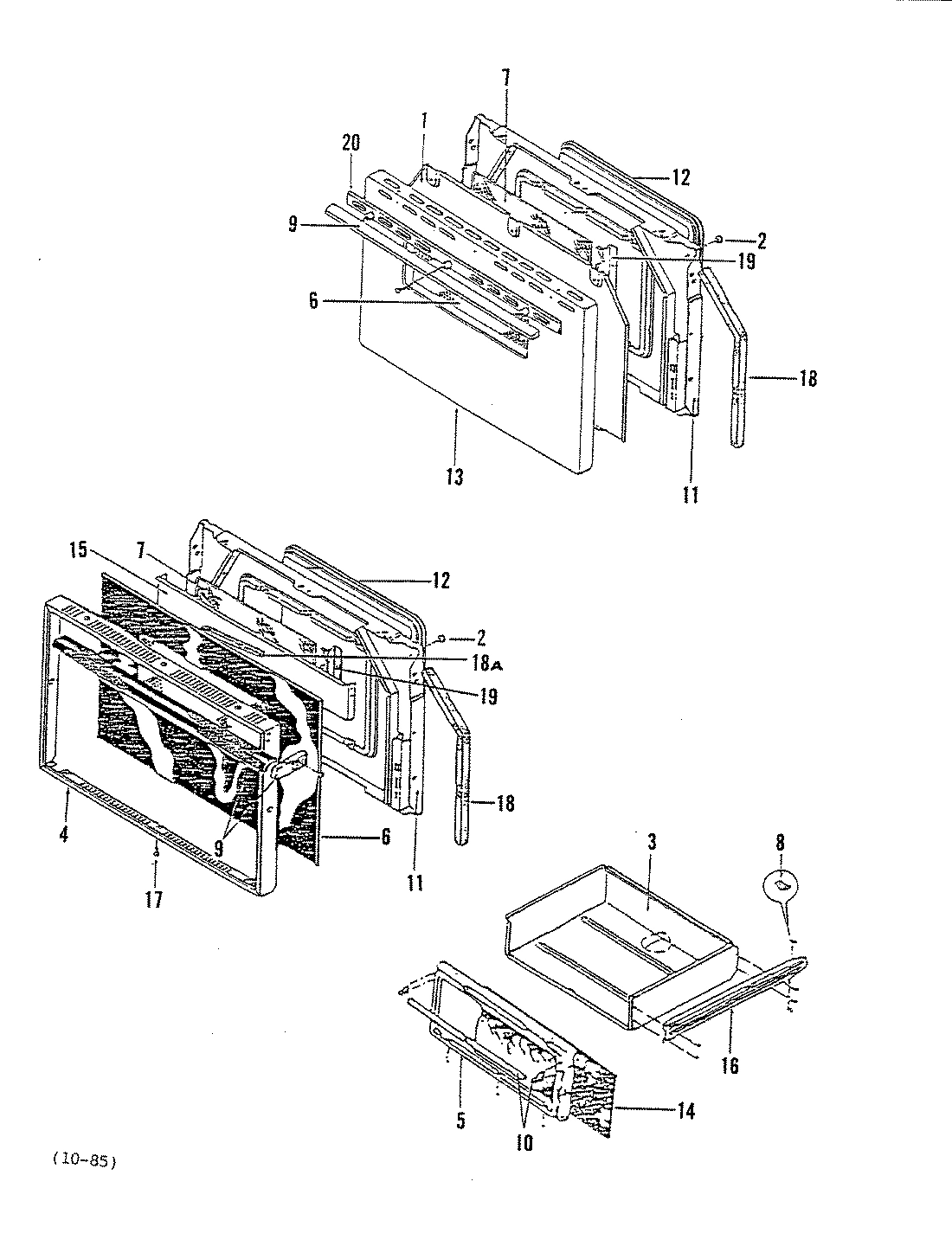

03 - DOOR

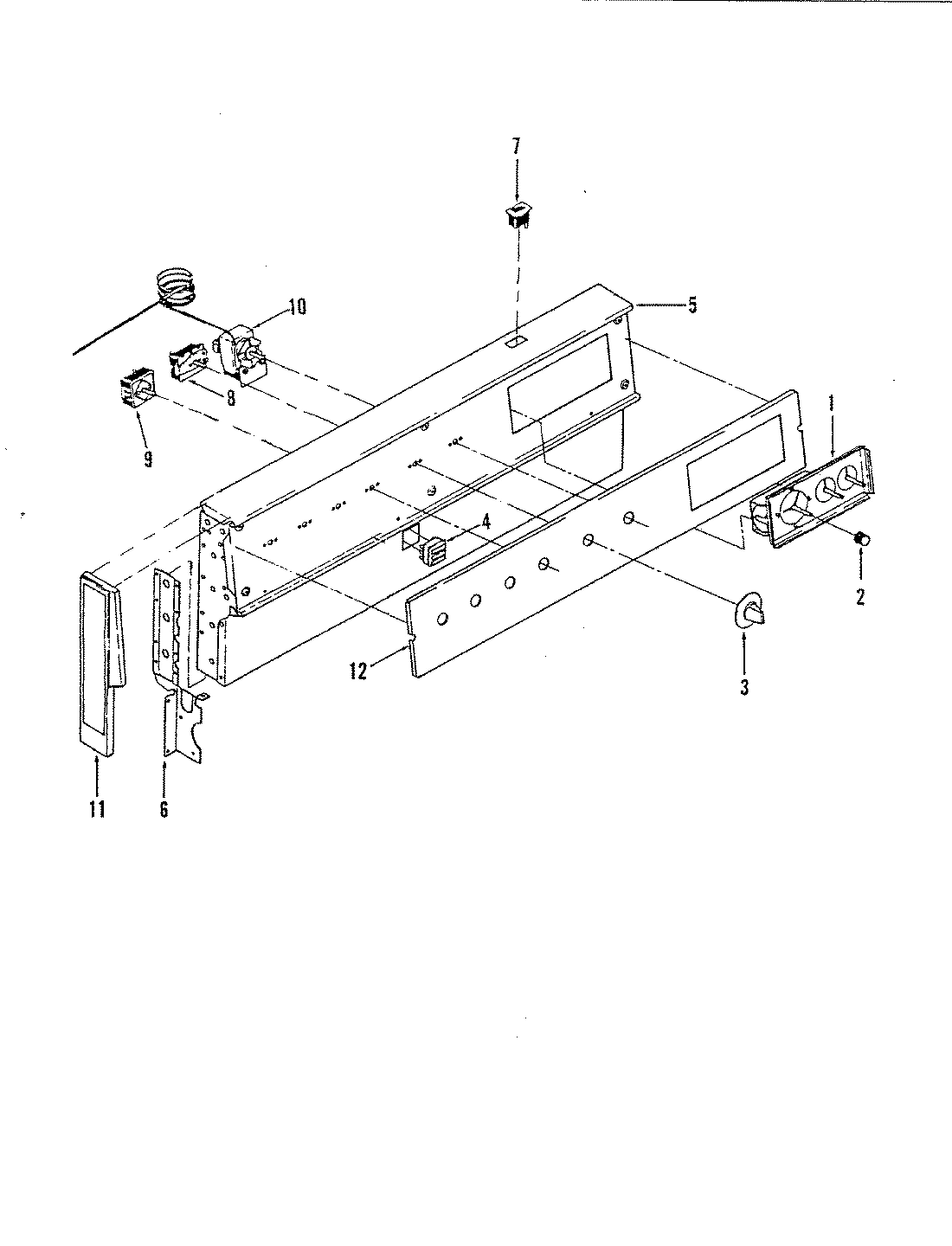

02 - CONTROL PANEL
Common parts from model Whirlpool 38FN-2CXW ELECTRIC RANGE
1
BACK, MAIN WPL 0903114 Contact Us For Availability
1
BAFFLE WPL 3601F058 Contact Us For Availability
1
BRACKET WPL 0284324 Contact Us For Availability
1
BRACE, DRAWER WPL 3802F04451 Contact Us For Availability
1
+ CLOCK, EXPORT WPL 1895523 Contact Us For Availability
1
+ CLOCK, EXPORT WPL 1895524 Contact Us For Availability
1
+ CLOCK, EXPORT WPL 1895525 Contact Us For Availability
1
+ CLOCK WPL 7601P04460 Contact Us For Availability
1
GLASS, CLOCK WPL 7902P10960 Contact Us For Availability
2
BUMPER WPL 1784200 Contact Us For Availability
2
KNOB, CLOCK WPL 7711P12660 Contact Us For Availability
2
KNOB, THERMOSTAT WPL 7711P13860 Contact Us For Availability
3
BLOCK WPL 1867271 Contact Us For Availability
3
BOLT, DOOR LOCK WPL 7116P00260 Contact Us For Availability
3
DRAWER ASSY. WPL 0384227 Contact Us For Availability
3
KNOB, SWITCH WPL 7711E018 Contact Us For Availability
3
KNOB, SWITCH WPL 7711P13960 Contact Us For Availability
4
BRACE WPL 0277238 Contact Us For Availability
4
+ BRACKET WPL 0284307 Contact Us For Availability
4
CATALYST WPL 1566294 Contact Us For Availability
4
BRACKET WPL 3801F09351 Contact Us For Availability
4
BRACE WPL 3802F00380 Contact Us For Availability
4
BOTTOM, BURNER BOX WPL 4001F07823 Contact Us For Availability
4
SCREW WPL 7101P06160 Contact Us For Availability
4
BUMPER, MAIN TOP WPL 8010E012 Contact Us For Availability
4
FRAME, OVEN DOOR WPL 7706P00760 Contact Us For Availability
4
FRAME, OVEN DOOR WPL 7706P22260 Contact Us For Availability
4
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
4
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
4
LIGHT, INDICATOR WPL 7407E019 Contact Us For Availability
5
CLAMP, WIRE 3/4 WPL 7111P00260 Contact Us For Availability
5
SUPPORT, MAIN TOP WPL 7105P00260 Contact Us For Availability
5
GASKET WPL 1313269 Contact Us For Availability
5
FRAME, SERV DOOR WPL 7706P00160 Contact Us For Availability
5
FRAME, SVC DOOR WPL 7706P18160 Contact Us For Availability
5
RETAINER, GLASS WPL 3804F05180 Contact Us For Availability
5
SHIELD WPL 0787389 Contact Us For Availability
5
SPACER WPL 1783233 Contact Us For Availability
5
BACKGUARD ASSY - N WPL 2601W05681 Contact Us For Availability
5
+ BACKGUARD PANEL WPL 2601W14681 Contact Us For Availability
6
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
6
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
6
GLASS, DOOR WHITE WPL 7902P16260 Contact Us For Availability
6
SUPPORT WPL 0862417 Contact Us For Availability
6
SUPPORT WPL 0862418 Contact Us For Availability
7
CLIP, TOP RETAINER WPL 7112P03060 Contact Us For Availability
7
GLASS, INNER WPL 7902P09760 Contact Us For Availability
7
SWITCH, ROCKER (BLK) WPL 7403P10260 Contact Us For Availability
8
COVER, SWITCH WPL 4005F13951 Contact Us For Availability
8
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
8
GLIDE WPL 1329101 Contact Us For Availability
8
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
8
GLIDE, DRAWER WPL 8016P00960 Contact Us For Availability
8
SWITCH, SELECTOR WPL 7403P08160 Contact Us For Availability
9
BOWL, DRIP (8``) WPL 7725P00160 Contact Us For Availability
9
BOWL, DRIP (8``) WPL 7725P01460 Contact Us For Availability
9
HANDLE, DOOR WHITE WPL 7701P03160 Contact Us For Availability
9
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
9
SWITCH, INF. CONTROL WPL 7403P08460 Contact Us For Availability
9
SWITCH, INF. CONTROL WPL 7403P08560 Contact Us For Availability
9
SWITCH, INFINITE (1400W) WPL 7403P26860 Contact Us For Availability
9
SWITCH, INFINITE (2600W) WPL 7403P26960 Contact Us For Availability
10
BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability
10
BOWL, DRIP (6``) (BLK) WPL 7725P02260 Contact Us For Availability
10
HANDLE, DOOR WPL 7701P01960 Contact Us For Availability
10
INSERT, OVEN DOOR HANDLE WPL 7728P01260 Contact Us For Availability
10
THERMOSTAT WPL 7404P03160 Contact Us For Availability
11
ELEMENT,BAKE WPL 7406P01060 Contact Us For Availability
11
ELEMENT, BAKE WPL 7406P06760 Contact Us For Availability
11
LINING ASSY, OV DR WPL 2402W12512 Contact Us For Availability
11
LINING WPL 2402W12815 Contact Us For Availability
11
LINING, OVN DOOR WPL 2422H082 Contact Us For Availability
11
TRIM WPL 1916211 Contact Us For Availability
11
TRIM WPL 1916212 Contact Us For Availability
12
ELEMENT,BROIL WPL 7406P00360 Contact Us For Availability
12
ELEMENT, BROIL WPL 7406P07660 Contact Us For Availability
12
PAD, INNER OV DR WPL 2410F01251 Contact Us For Availability
12
PAD, INNER OVEN DOOR WPL 2410F01551 Contact Us For Availability
12
PAD ASSY, OVEN DOOR WPL 2410W02112 Contact Us For Availability
12
PAD ASSY, OV. DR. WPL 2410W02912 Contact Us For Availability
12
PAD, OVEN DOOR WPL 2430H019 Contact Us For Availability
12
+ KIT, TRIM DECOR WPL 1430287 Contact Us For Availability
12
TRIM, BKGD-MC WPL 7703P09060 Contact Us For Availability
12
TRIM, BKGD-MC WPL 7703P11560 Contact Us For Availability
13
ELEMENT (8``) WPL 7406P01560 Contact Us For Availability
13
ELEMENT (8``) WPL 7406P05960 Contact Us For Availability
13
ELEMENT (8``) WPL 7406P06360 Contact Us For Availability
14
THERMOSTAT, OVEN WPL 7404P06260 Contact Us For Availability
14
ELEMENT (6``) WPL 7406P01860 Contact Us For Availability
14
ELEMENT (6``) WPL 7406P06060 Contact Us For Availability
15
FRAME, BURNER BOX WPL 4012J015 Contact Us For Availability
16
RUNNER, INNER WPL 3406F02680 Contact Us For Availability
16
RUNNER WPL Y0766215 Contact Us For Availability
17
GASKET, ELEMENT WPL 7201P00360 Contact Us For Availability
17
GASKET, HOUSING WPL 7201P01460 Contact Us For Availability
17
SCREW, SPECIAL WPL 1986258 Contact Us For Availability
17
SCREW, OVEN DOOR WPL 7101P08360 Contact Us For Availability
17
SCREW WPL 7101P12360 Contact Us For Availability
18
GASKET, LAMP RETAINER WPL 7201P01560 Contact Us For Availability
18
SEAL WPL 1726250 Contact Us For Availability
18
SEAL WPL 1726252 Contact Us For Availability
18
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
18
STOP, DOOR WPL Y0112241 Contact Us For Availability
19
GASKET, OVEN WPL 7201P03660 Contact Us For Availability
19
SUPPORT WPL 0862426 Contact Us For Availability
19
SUPPORT, GLASS WPL 3804J038 Contact Us For Availability
20
GLASS, LAMP GUARD WPL 7902P05760 Contact Us For Availability
20
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
21
+ WINDOW, OV DR ASSY WPL 5700A08160 Contact Us For Availability
21
+ WINDOW, PKG WPL 5700A08460 Contact Us For Availability
21
WINDOW PAK ASSY. WPL 5700A09160 Contact Us For Availability
23
HINGE ASSY. (LT) WPL 3418A02934 Contact Us For Availability
23
HINGE, OVEN DOOR (RT) WPL 3418F03034 Contact Us For Availability
23
HOUSING WPL 4001F02015 Contact Us For Availability
24
INSERT, BROIL PAN WPL 3413F00223 Contact Us For Availability
24
HANDLE, LATCH (BLK) WPL 7701P06860 Contact Us For Availability
24
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
25
CATCH WPL 8002E002 Contact Us For Availability
25
CATCH WPL 8002P01460 Contact Us For Availability
26
SCREW WPL 7101P11260 Contact Us For Availability
26
LEVER, DOOR LOCK WPL 8009E001 Contact Us For Availability
26
LEVER, DOOR LOCK WPL 8009P00660 Contact Us For Availability
26
LEVER, DOOR LOCK WPL 8009P01860 Contact Us For Availability
27
ELEMENT WPL 7406P02660 Contact Us For Availability
28
LINING ASSY, INNER SIDE WPL 4009W02980 Contact Us For Availability
28
LINING, INNER SIDE WPL 4009W05380 Contact Us For Availability
29
PAN, BROIL WPL 3401F00423 Contact Us For Availability
29
LINK, SWITCH WPL 7807P00460 Contact Us For Availability
29
LINK, DOOR LOCK WPL 7807P01260 Contact Us For Availability
29
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
30
PANEL, SIDE (WHT) WPL 2618F05271 Contact Us For Availability
30
PANEL, SIDE (WHT)----NA WPL 2618F07371 Contact Us For Availability
31
PLATE, CONDUIT WPL 3605F14880 Contact Us For Availability
31
PLATE, CONDUIT WPL 3605F15380 Contact Us For Availability
31
PIN, HINGE WPL 7113P00260 Contact Us For Availability
31
RACK, OVEN WPL 7801P03060 Contact Us For Availability
32
RECEPTACLE, OVEN LIGHT WPL 1657202 Contact Us For Availability
33
WPL 3605F14651 WPL 3605F14651 Contact Us For Availability
34
WPL 3804F01245 WPL 3804F01245 Contact Us For Availability
35
WPL 8003P01060 WPL 8003P01060 Contact Us For Availability
35
WPL 8010P04860 WPL 8010P04860 Contact Us For Availability
36
WPL 3406F02080 WPL 3406F02080 Contact Us For Availability
37
WPL 1986204 WPL 1986204 Contact Us For Availability
37
WPL 1986339 WPL 1986339 Contact Us For Availability
38
WPL 3604F00780 WPL 3604F00780 Contact Us For Availability
38
WPL 4005F01380 WPL 4005F01380 Contact Us For Availability
38
WPL 7101P04260 WPL 7101P04260 Contact Us For Availability
38
WPL 7402P03060 WPL 7402P03060 Contact Us For Availability
38
WPL 7402P03660 WPL 7402P03660 Contact Us For Availability
39
WPL 7112P01960 WPL 7112P01960 Contact Us For Availability
40
WPL 1808238 WPL 1808238 Contact Us For Availability
40
WPL 7803P00260 WPL 7803P00260 Contact Us For Availability
41
WPL 3807F17613 WPL 3807F17613 Contact Us For Availability
42
WPL 3807F195 WPL 3807F195 Contact Us For Availability
43
WPL 3807F19345 WPL 3807F19345 Contact Us For Availability
43
WPL 3807F42245 WPL 3807F42245 Contact Us For Availability
44
WPL 7403P04560 WPL 7403P04560 Contact Us For Availability
45
WPL 2002W02801 WPL 2002W02801 Contact Us For Availability
46
WPL 1930358 WPL 1930358 Contact Us For Availability
× ![]()
