Model Maytag 3862XRA ELECTRIC RANGE – Common Parts & Diagrams

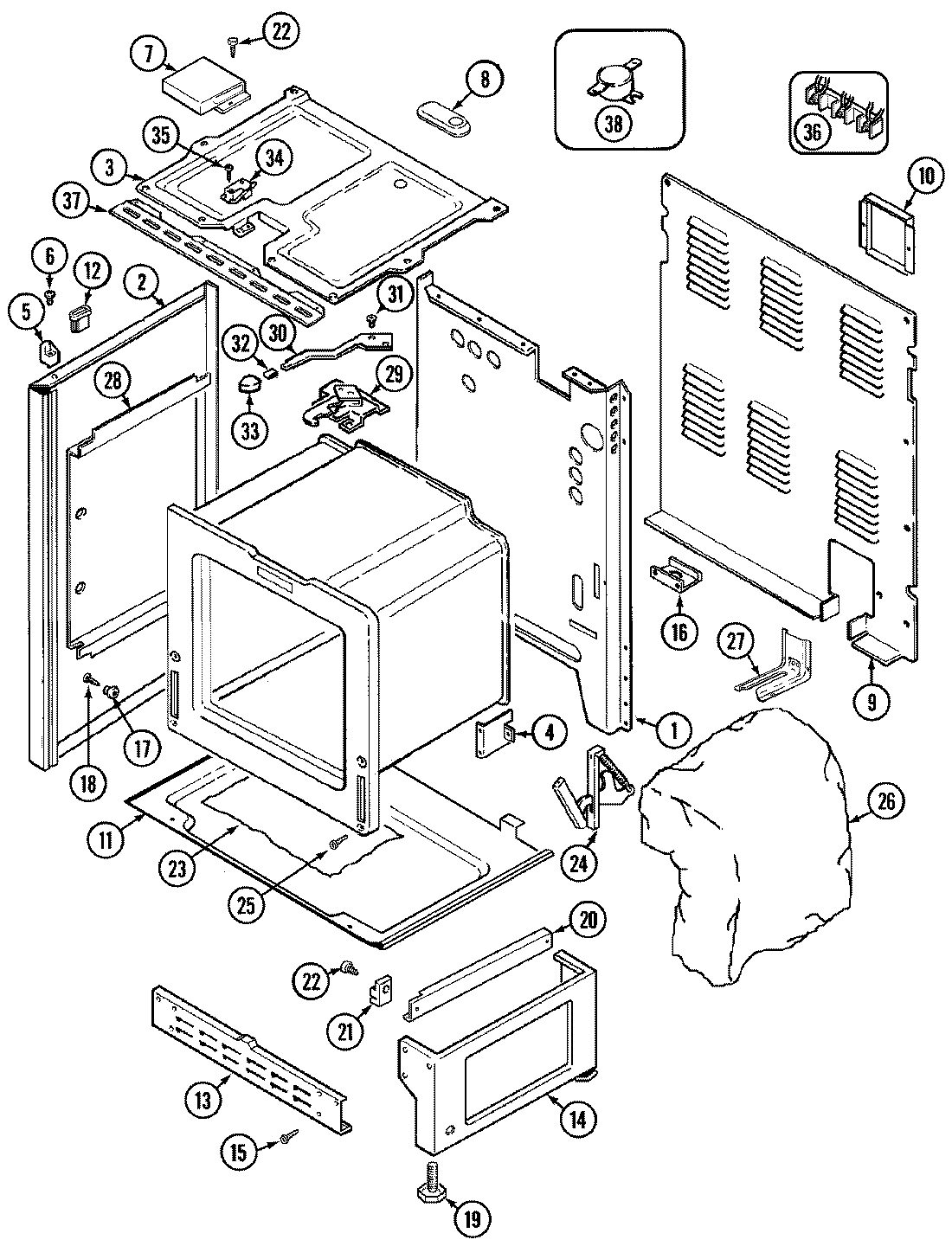

01 - BODY

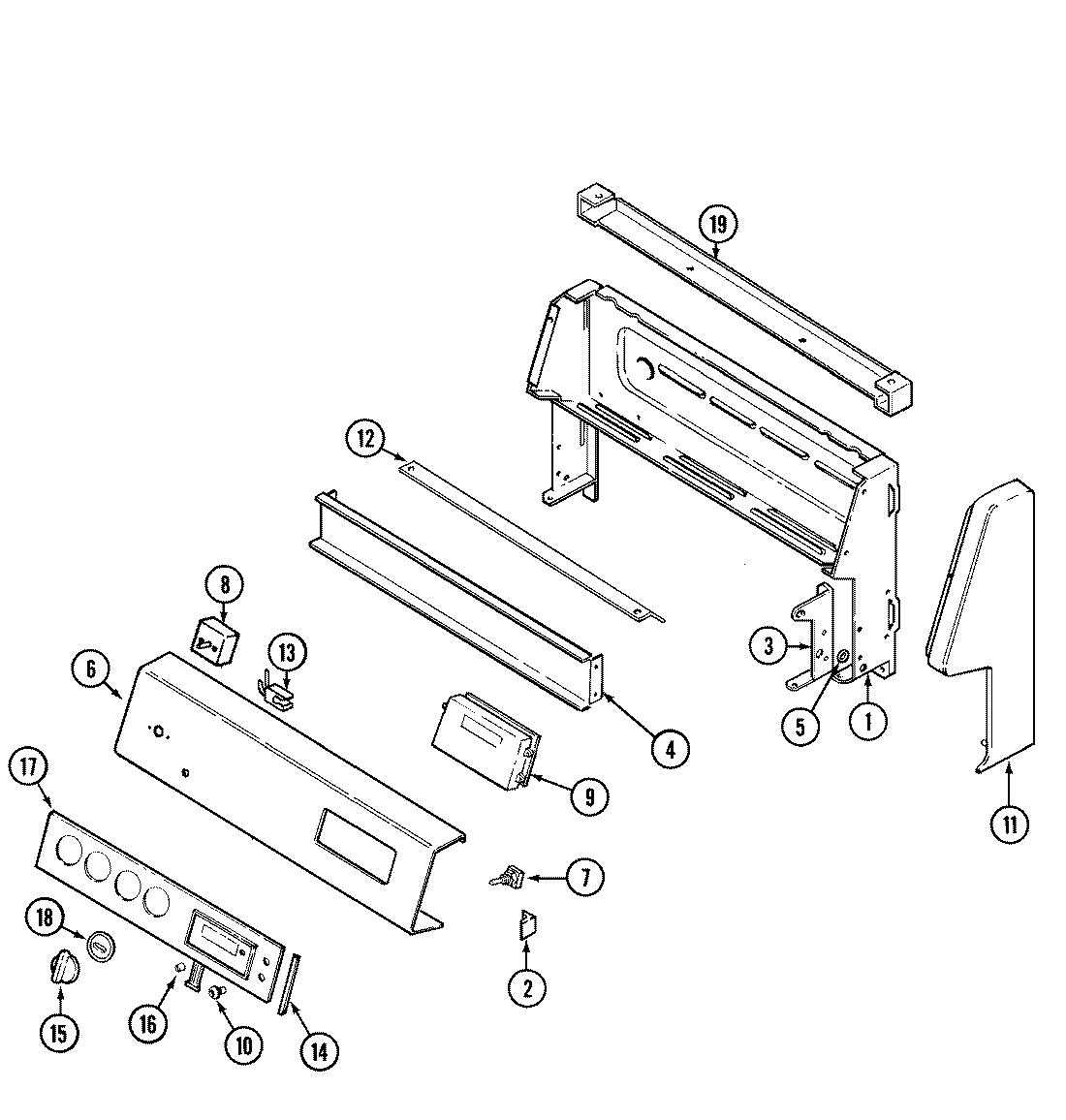

02 - CONTROL PANEL

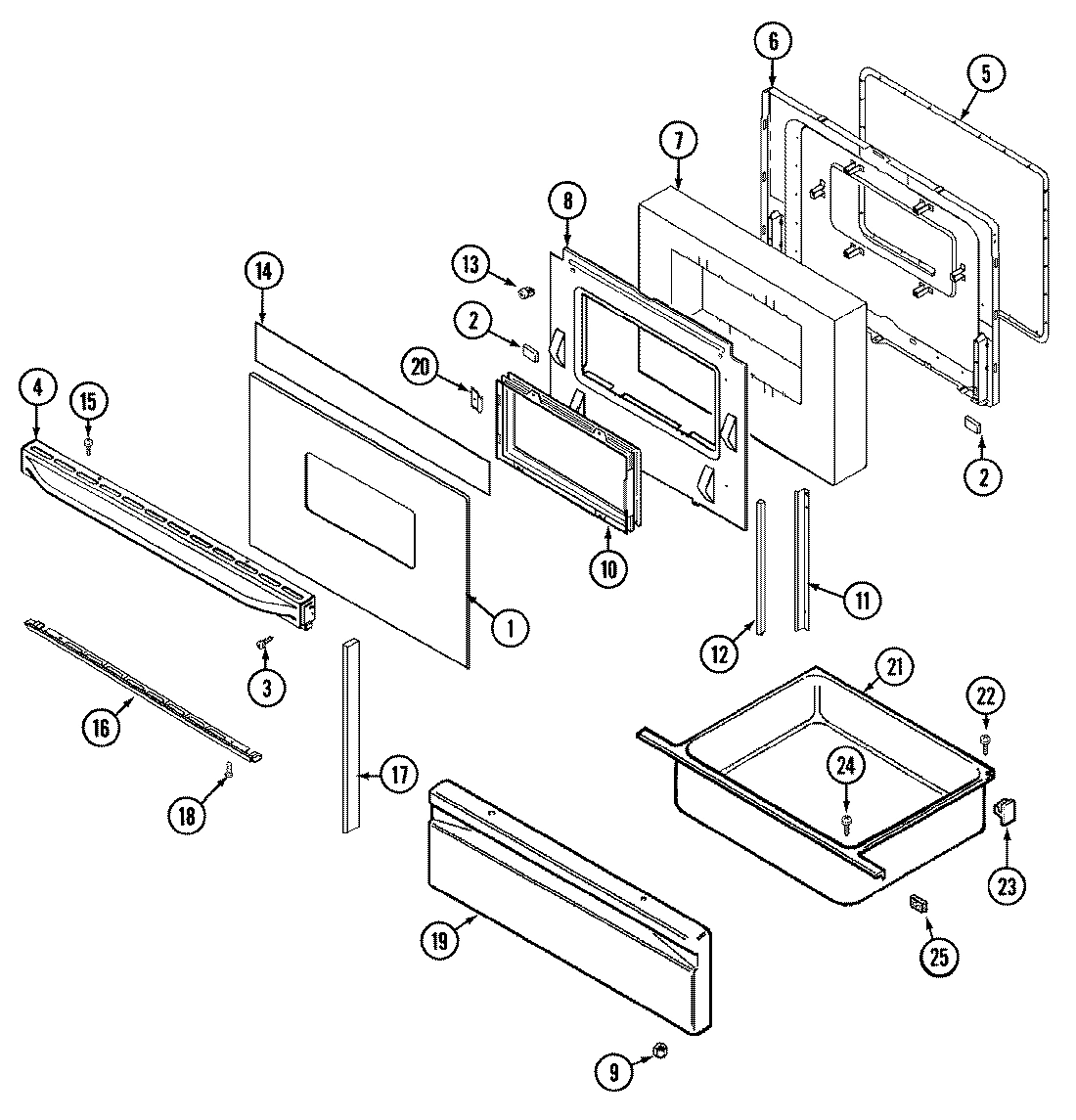

03 - DOOR/DRAWER

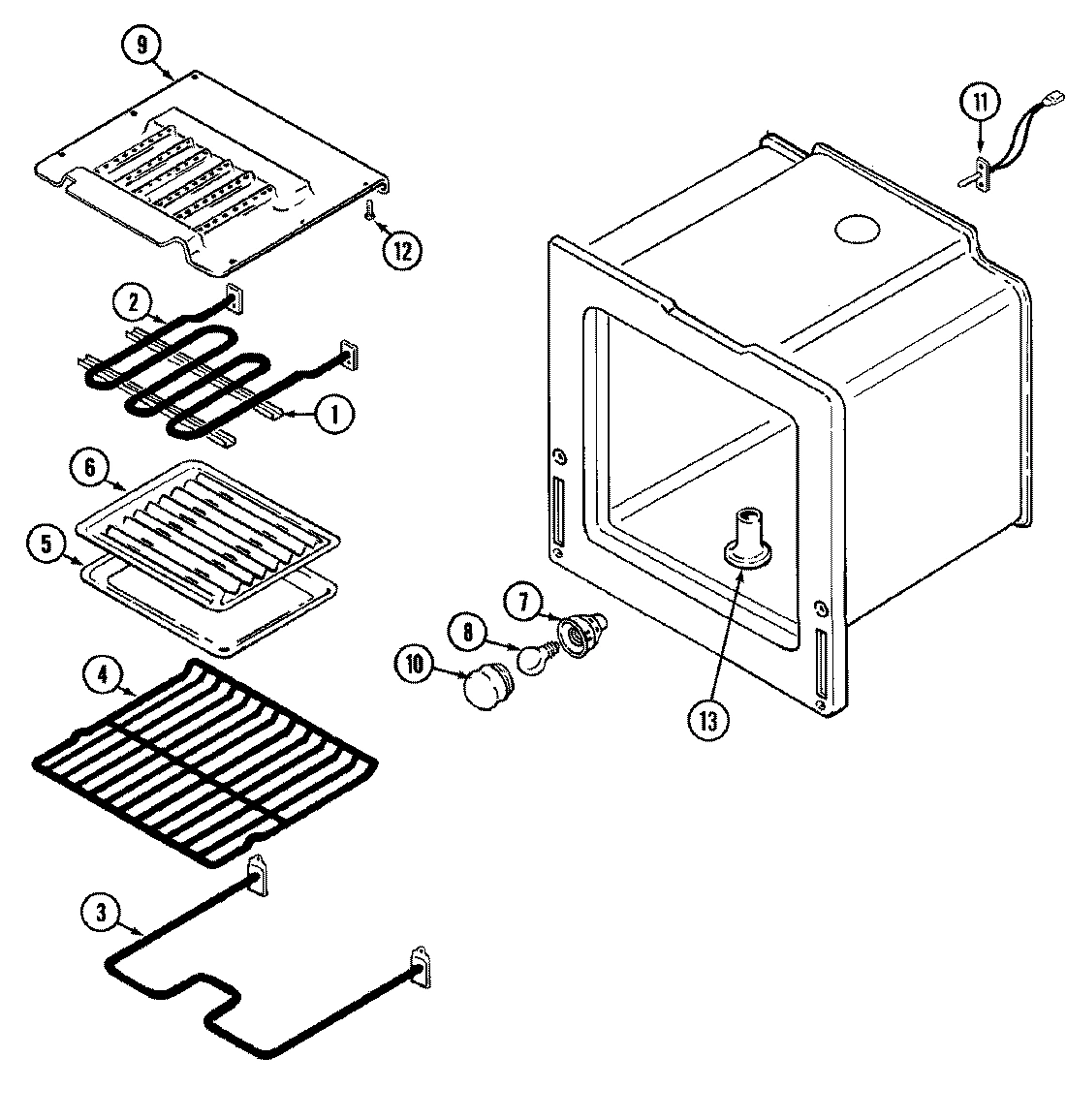

04 - OVEN
05 - TOP ASSEMBLY

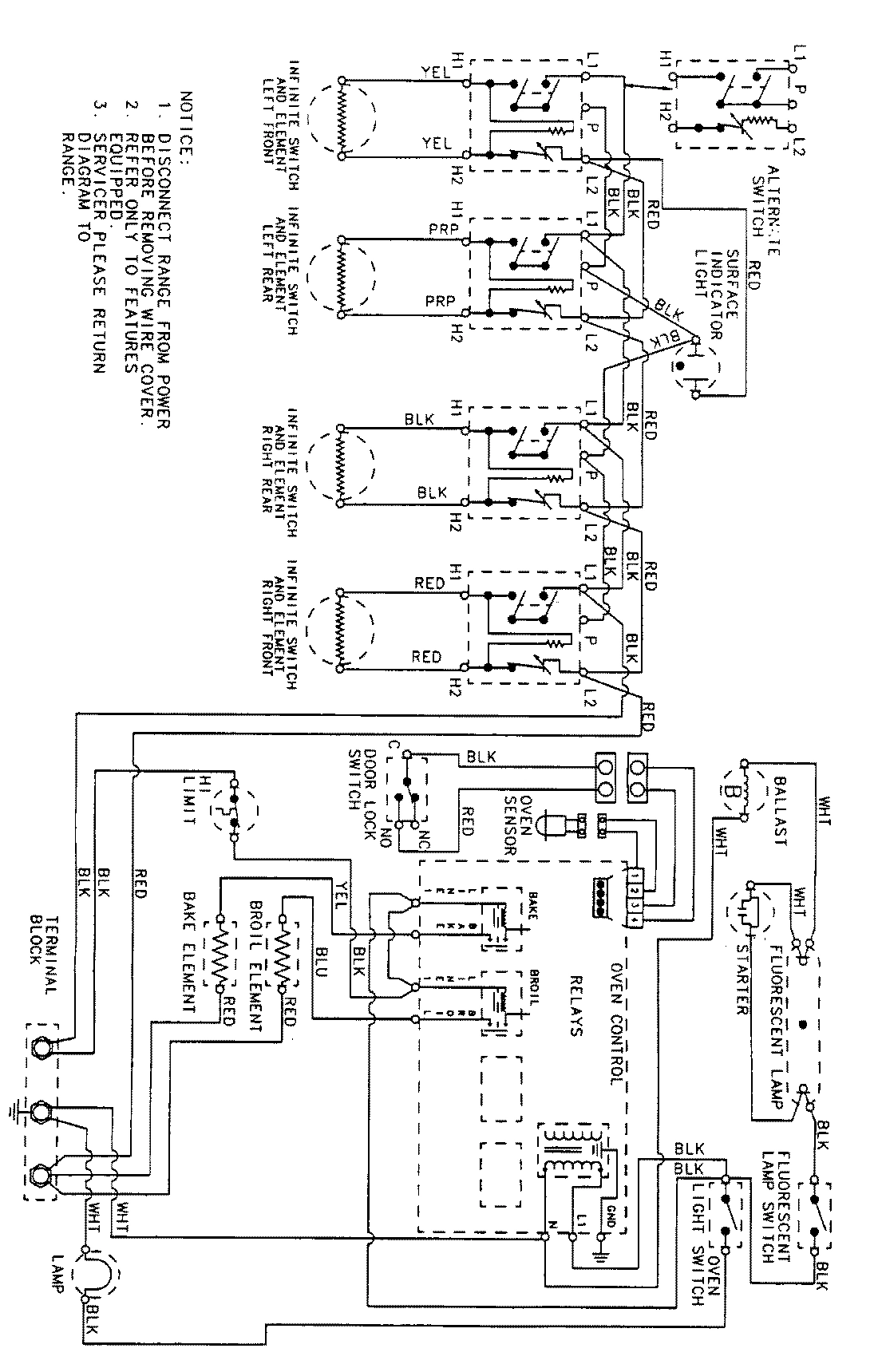

06 - WIRING INFORMATION
Common parts from model Maytag 3862XRA ELECTRIC RANGE
1
MAY 7101P300-60 MAY 7101P300-60 Contact Us For Availability
1
MAY 4001F094-51 MAY 4001F094-51 Contact Us For Availability
1
MAY 7902P321-60 MAY 7902P321-60 Contact Us For Availability
1
MAY 3807F387-45 MAY 3807F387-45 Contact Us For Availability
1
MAY 7725P009-60 MAY 7725P009-60 Contact Us For Availability
1
MAY 7725P023-60 MAY 7725P023-60 Contact Us For Availability
2
MAY 8010P083-60 MAY 8010P083-60 Contact Us For Availability
2
MAY 8010P085-60 MAY 8010P085-60 Contact Us For Availability
2
MAY 7406P065-60 MAY 7406P065-60 Contact Us For Availability
2
MAY 7725P008-60 MAY 7725P008-60 Contact Us For Availability
2
MAY 7725P022-60 MAY 7725P022-60 Contact Us For Availability
2
MAY 7725P040-60 MAY 7725P040-60 Contact Us For Availability
3
MAY 7118P013-60 MAY 7118P013-60 Contact Us For Availability
3
MAY 3418A087-34 MAY 3418A087-34 Contact Us For Availability
3
MAY 3418A088-34 MAY 3418A088-34 Contact Us For Availability
3
MAY 7118P015-60 MAY 7118P015-60 Contact Us For Availability
3
MAY 7406P064-60 MAY 7406P064-60 Contact Us For Availability
4
MAY 3802F087-51 MAY 3802F087-51 Contact Us For Availability
4
MAY 7701P096-60 MAY 7701P096-60 Contact Us For Availability
4
MAY 7801P047-60 MAY 7801P047-60 Contact Us For Availability
4
MAY 7406P039-60 MAY 7406P039-60 Contact Us For Availability
4
MAY 7406P080-60 MAY 7406P080-60 Contact Us For Availability
4
MAY 7406P088-60 MAY 7406P088-60 Contact Us For Availability
5
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
5
MAY 7406P037-60 MAY 7406P037-60 Contact Us For Availability
5
MAY 7406P087-60 MAY 7406P087-60 Contact Us For Availability
6
MAY 7118P019-60 MAY 7118P019-60 Contact Us For Availability
6
MAY 7703P310-60 MAY 7703P310-60 Contact Us For Availability
6
MAY 7703P501-60 MAY 7703P501-60 Contact Us For Availability
6
MAY 7703P502-60 MAY 7703P502-60 Contact Us For Availability
6
MAY 2402W194-19 MAY 2402W194-19 Contact Us For Availability
6
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
6
MAY 1430306K MAY 1430306K Contact Us For Availability
7
MAY 4005F398-80 MAY 4005F398-80 Contact Us For Availability
7
MAY 7403P109-60 MAY 7403P109-60 Contact Us For Availability
7
MAY 4804F012-60 MAY 4804F012-60 Contact Us For Availability
7
MAY 2002W078-84 MAY 2002W078-84 Contact Us For Availability
8
MAY 4005F350-45 MAY 4005F350-45 Contact Us For Availability
8
MAY 7103P129-60 MAY 7103P129-60 Contact Us For Availability
8
MAY 3601F219-45 MAY 3601F219-45 Contact Us For Availability
8
MAY 7407P095-60 MAY 7407P095-60 Contact Us For Availability
8
MAY 7746P030-60 MAY 7746P030-60 Contact Us For Availability
8
MAY 7746P031-60 MAY 7746P031-60 Contact Us For Availability
9
MAY 4005F348-51 MAY 4005F348-51 Contact Us For Availability
9
MAY 7101P148-60 MAY 7101P148-60 Contact Us For Availability
9
MAY 7428P013-60 MAY 7428P013-60 Contact Us For Availability
9
MAY 7601P171-60 MAY 7601P171-60 Contact Us For Availability
9
MAY 7601P209-60 MAY 7601P209-60 Contact Us For Availability
9
MAY 8004P020-60 MAY 8004P020-60 Contact Us For Availability
9
MAY 3601F202-45 MAY 3601F202-45 Contact Us For Availability
9
MAY 7809P014-60 MAY 7809P014-60 Contact Us For Availability
10
MAY 7214P007-60 MAY 7214P007-60 Contact Us For Availability
10
MAY 4005F376-51 MAY 4005F376-51 Contact Us For Availability
10
MAY 7907P021-60 MAY 7907P021-60 Contact Us For Availability
10
MAY 7101P141-60 MAY 7101P141-60 Contact Us For Availability
11
MAY 3804F109-51 MAY 3804F109-51 Contact Us For Availability
11
MAY 7726P046-60 MAY 7726P046-60 Contact Us For Availability
11
MAY 7726P050-60 MAY 7726P050-60 Contact Us For Availability
11
MAY 3818F052-80 MAY 3818F052-80 Contact Us For Availability
11
MAY 7430P010-60 MAY 7430P010-60 Contact Us For Availability
11
MAY 8016P013-60 MAY 8016P013-60 Contact Us For Availability
12
MAY 8007P023-60 MAY 8007P023-60 Contact Us For Availability
12
MAY 3604F201-80 MAY 3604F201-80 Contact Us For Availability
12
MAY 7208P002-60 MAY 7208P002-60 Contact Us For Availability
13
MAY 8026P019-60 MAY 8026P019-60 Contact Us For Availability
13
MAY 4020F001-80 MAY 4020F001-80 Contact Us For Availability
13
MAY 7101P290-60 MAY 7101P290-60 Contact Us For Availability
13
MAY 7407P090-60 MAY 7407P090-60 Contact Us For Availability
13
MAY 7103P045-60 MAY 7103P045-60 Contact Us For Availability
14
MAY 4020W007-80 MAY 4020W007-80 Contact Us For Availability
14
MAY 7720P156-60 MAY 7720P156-60 Contact Us For Availability
14
TAPE, FOIL (3`` WIDE) MAY 8270P090-60 Contact Us For Availability
15
MAY 7731P082-60 MAY 7731P082-60 Contact Us For Availability
16
MAY 3605F174-51 MAY 3605F174-51 Contact Us For Availability
16
MAY 7711P431-60 MAY 7711P431-60 Contact Us For Availability
16
MAY 7744P078-60 MAY 7744P078-60 Contact Us For Availability
17
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
17
MAY 4876S023-59 MAY 4876S023-59 Contact Us For Availability
17
MAY 4876S024-59 MAY 4876S024-59 Contact Us For Availability
17
MAY 7744P055-60 MAY 7744P055-60 Contact Us For Availability
18
MAY 7740P018-60 MAY 7740P018-60 Contact Us For Availability
19
MAY 7101P306-60 MAY 7101P306-60 Contact Us For Availability
19
MAY 4001F064-51 MAY 4001F064-51 Contact Us For Availability
19
MAY 2416F039-64 MAY 2416F039-64 Contact Us For Availability
20
MAY 3406F028-51 MAY 3406F028-51 Contact Us For Availability
20
MAY 5125A323-60 MAY 5125A323-60 Contact Us For Availability
20
MAY 5125A352-60 MAY 5125A352-60 Contact Us For Availability
20
MAY 5170P123-60 MAY 5170P123-60 Contact Us For Availability
20
MAY 5170P124-60 MAY 5170P124-60 Contact Us For Availability
20
MAY 5170P162-60 MAY 5170P162-60 Contact Us For Availability
20
MAY 5175D049-60 MAY 5175D049-60 Contact Us For Availability
20
MAY 3805F002-34 MAY 3805F002-34 Contact Us For Availability
21
MAY 8004P025-60 MAY 8004P025-60 Contact Us For Availability
21
MAY 8113P007-60 MAY 8113P007-60 Contact Us For Availability
21
MAY 8113P026-60 MAY 8113P026-60 Contact Us For Availability
21
MAY 3405F019-80 MAY 3405F019-80 Contact Us For Availability
22
MAY 74001449 MAY 74001449 Contact Us For Availability
22
MAY 16000329 MAY 16000329 Contact Us For Availability
23
MAY 8312P058-60 MAY 8312P058-60 Contact Us For Availability
24
MAY 7106P033-60 MAY 7106P033-60 Contact Us For Availability
24
MAY 7106P049-60 MAY 7106P049-60 Contact Us For Availability
25
SCREW, HINGE MAY 7101P017-60 Contact Us For Availability
25
MAY 7208P011-60 MAY 7208P011-60 Contact Us For Availability
26
MAY 4804F015-60 MAY 4804F015-60 Contact Us For Availability
26
MAY 4804F016-60 MAY 4804F016-60 Contact Us For Availability
27
MAY 3801F218-51 MAY 3801F218-51 Contact Us For Availability
28
MAY 3804F103-51 MAY 3804F103-51 Contact Us For Availability
29
MAY 7101P280-60 MAY 7101P280-60 Contact Us For Availability
29
MAY 8002P025-60 MAY 8002P025-60 Contact Us For Availability
30
MAY 8009P016-60 MAY 8009P016-60 Contact Us For Availability
31
SCREW, LEVER MAY 7101P230-60 Contact Us For Availability
31
MAY 7109P015-60 MAY 7109P015-60 Contact Us For Availability
32
MAY 7112P003-60 MAY 7112P003-60 Contact Us For Availability
33
MAY 7701P088-60 MAY 7701P088-60 Contact Us For Availability
34
MAY 7403P228-60 MAY 7403P228-60 Contact Us For Availability
36
MAY 7401P041-60 MAY 7401P041-60 Contact Us For Availability
37
MAY 3801F305-80 MAY 3801F305-80 Contact Us For Availability
38
MAY 7403P160-60 MAY 7403P160-60 Contact Us For Availability
NI
MAY 15001817 MAY 15001817 Contact Us For Availability
× ![]()
