Model Whirlpool 3862VVV ELECTRIC RANGE – Common Parts & Diagrams

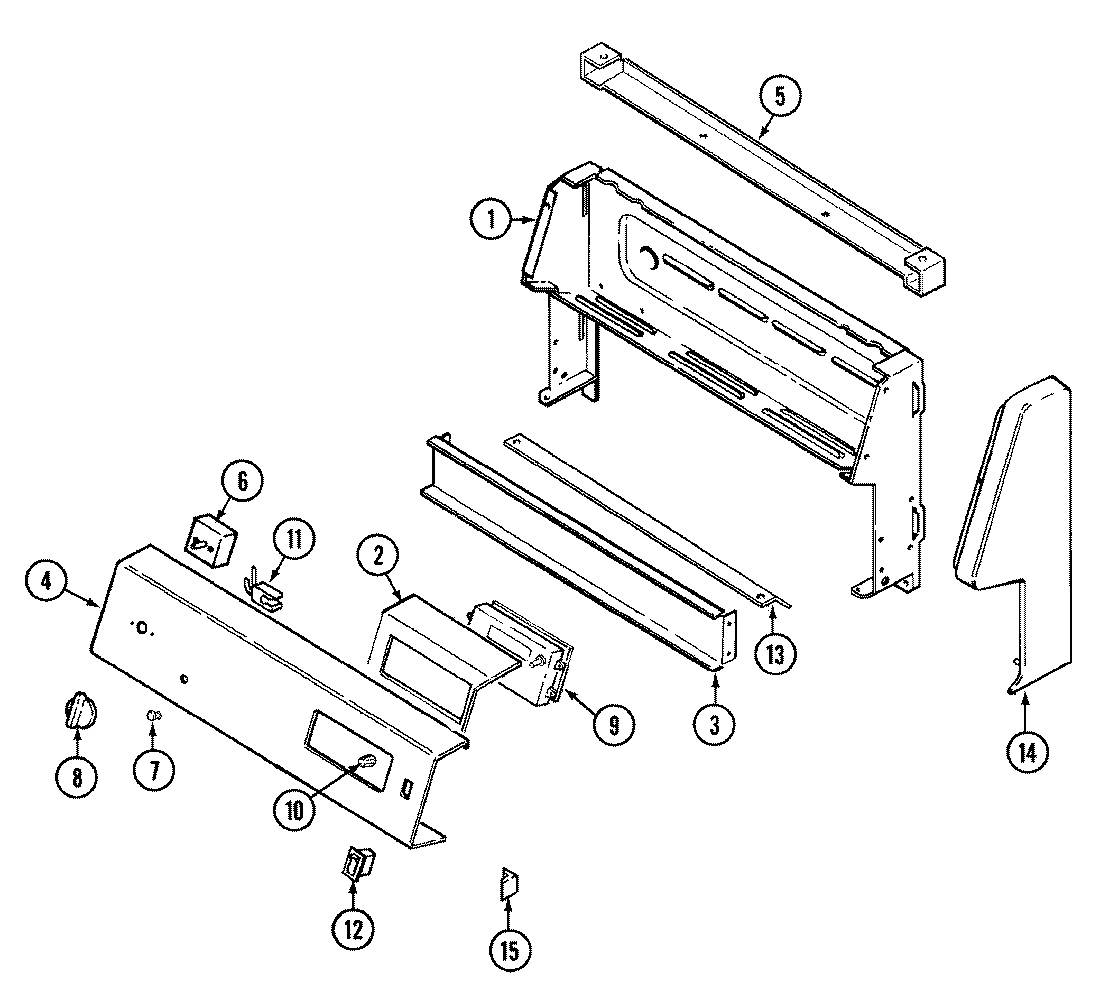

02 - CONTROL PANEL

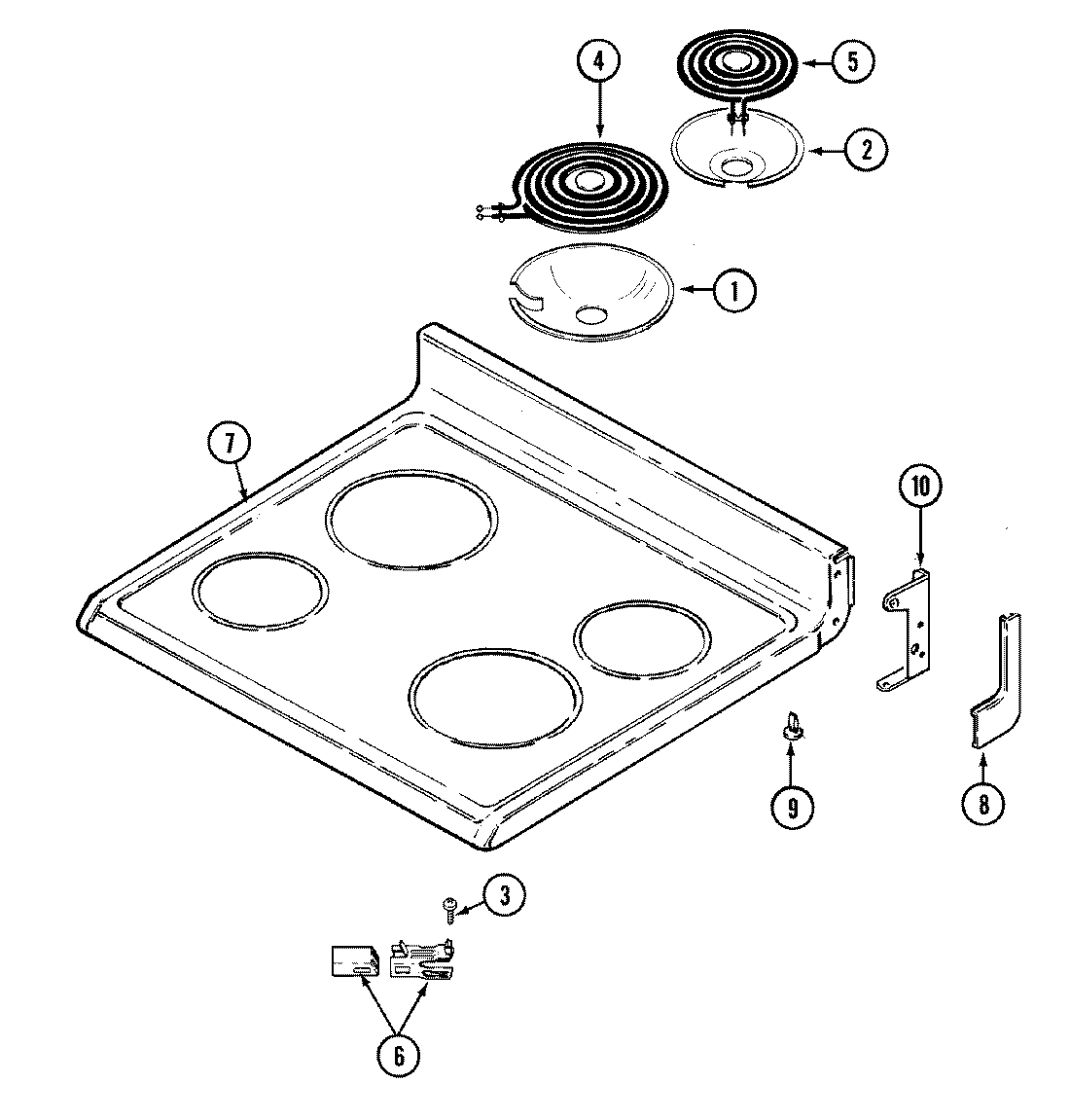

05 - TOP ASSEMBLY

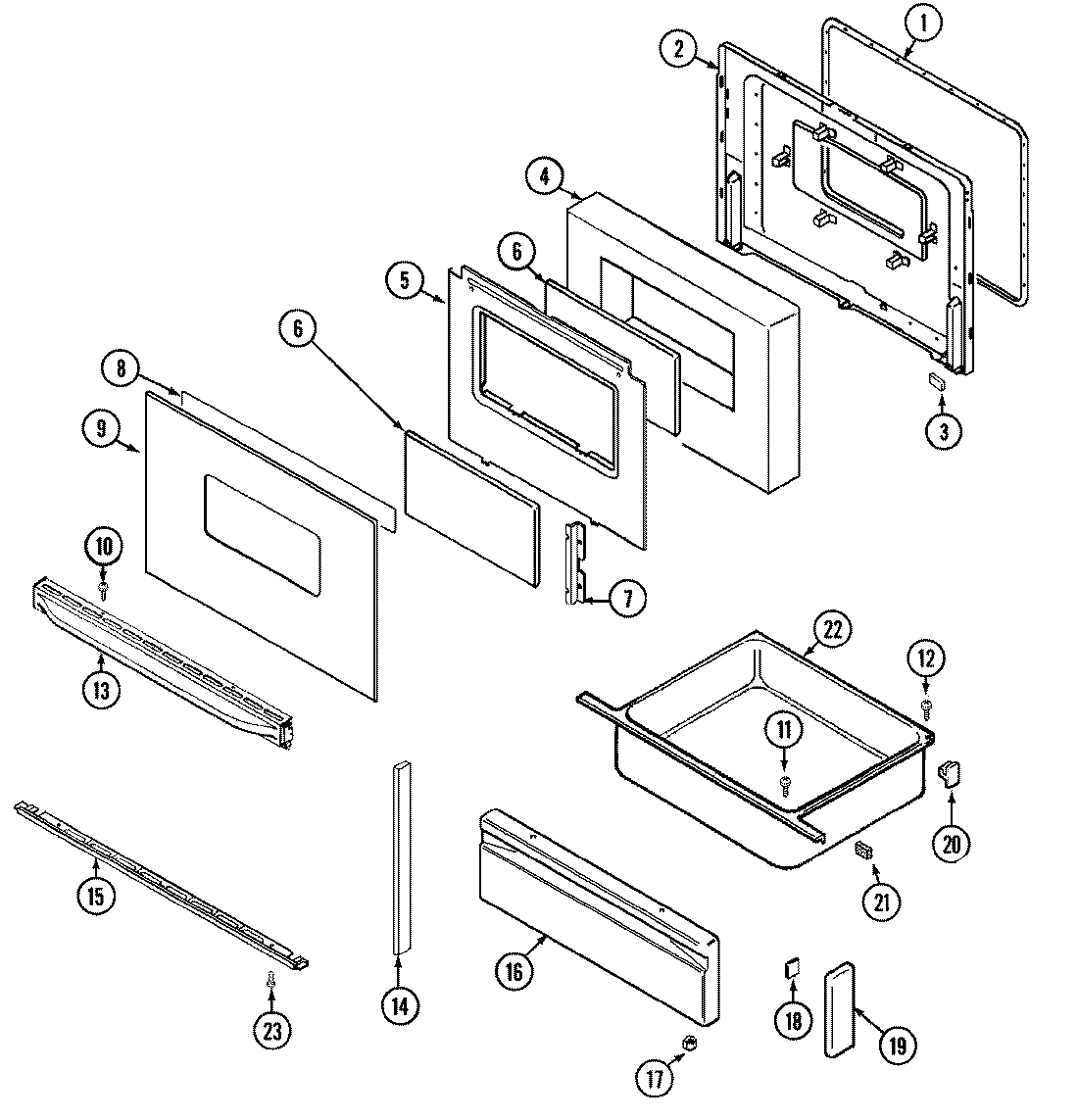

03 - DOOR/DRAWER (SER. PRE. 21)

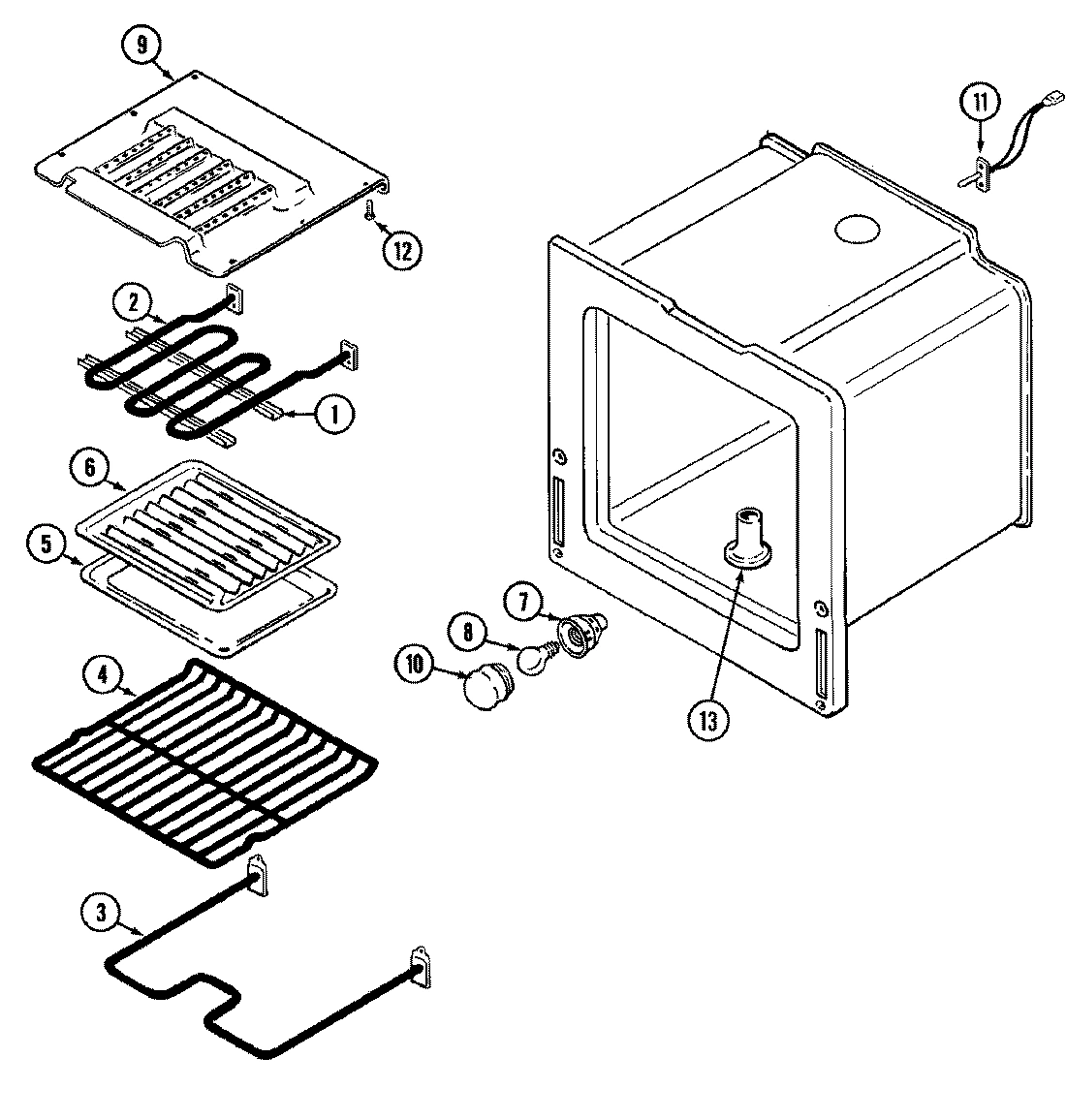

04 - OVEN

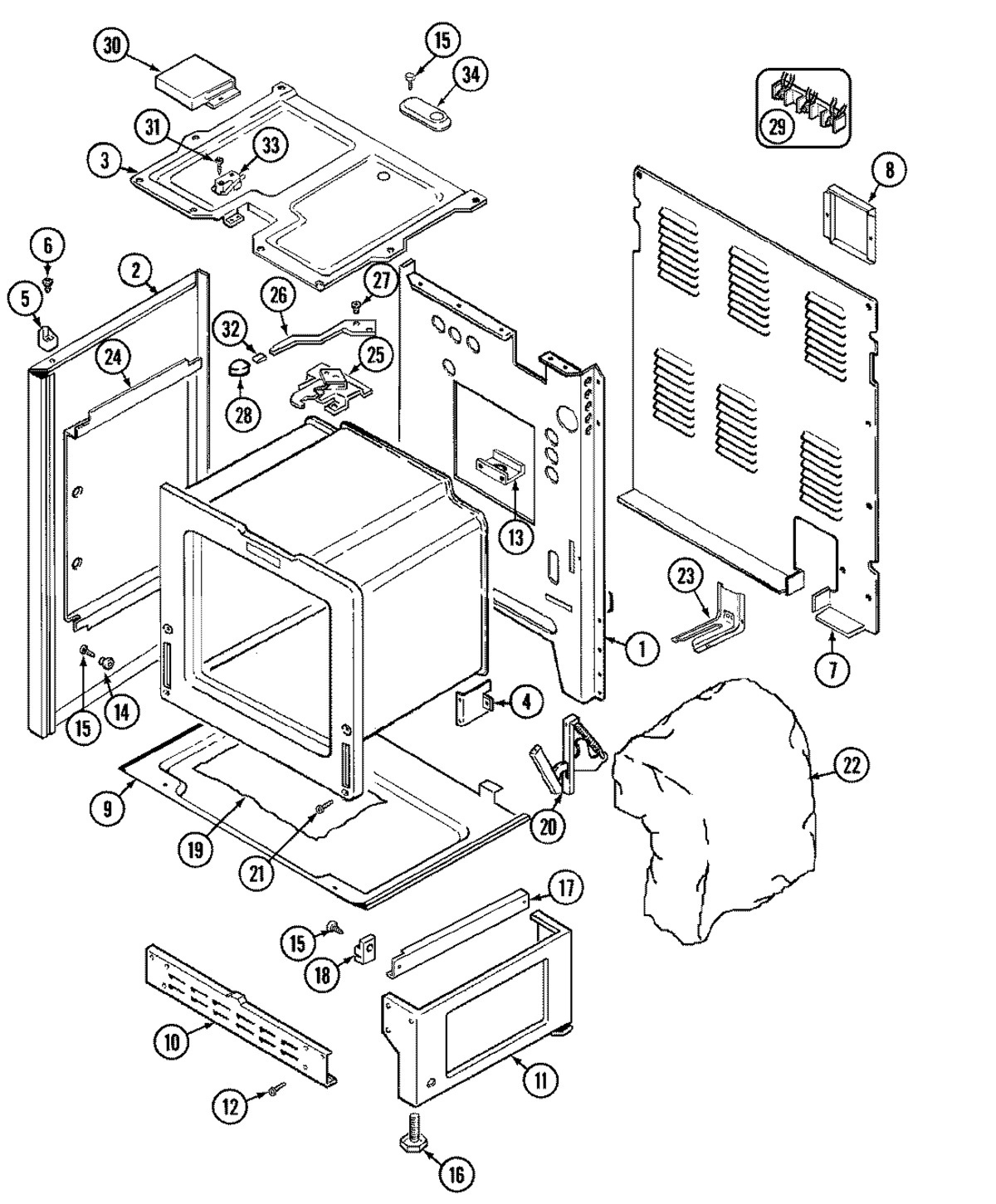

01 - BODY

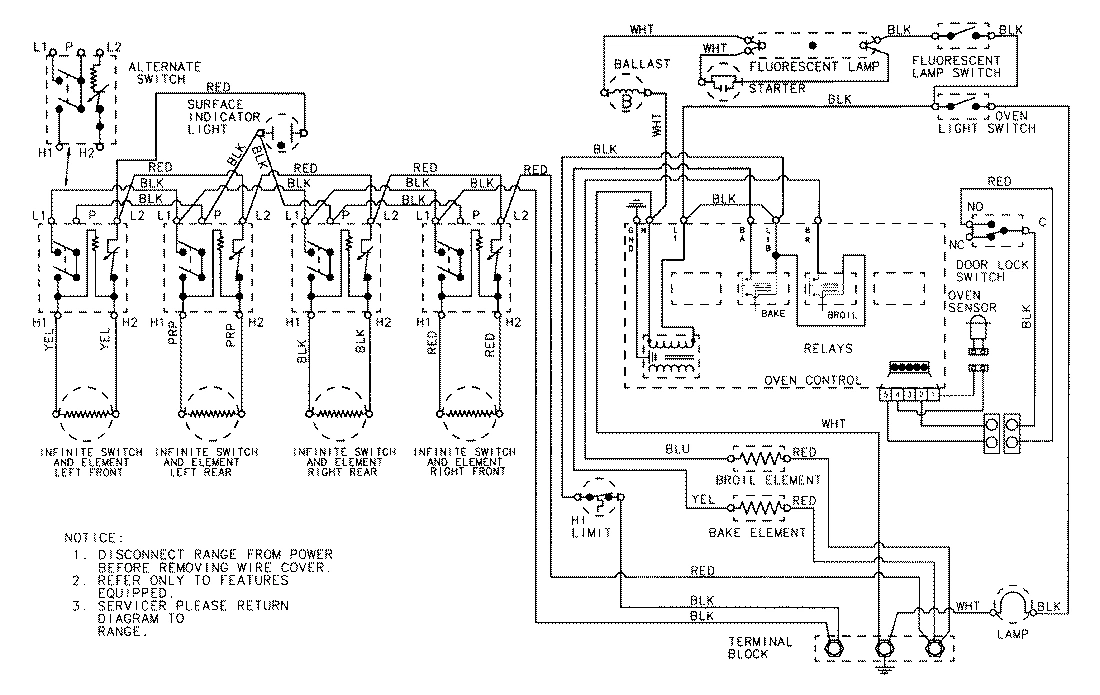

06 - WIRING INFORMATION
Common parts from model Whirlpool 3862VVV ELECTRIC RANGE
1
HOUSING, CONTROL PANEL WPL 4001F09151 Contact Us For Availability
1
BOWL, DRIP (8``-CHR) WPL 7725P04760 Contact Us For Availability
1
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
1
SCREW WPL 7101P34560 Contact Us For Availability
1
BACK, MAIN WPL 4002F18980 Contact Us For Availability
1
SWITCH, HI-LIMIT WPL 7403P16060 Contact Us For Availability
2
BRACKET, CLOCK WPL 3801F33645 Contact Us For Availability
2
BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability
2
BOWL, DRIP (6``-CHR) WPL 7725P04860 Contact Us For Availability
2
LINING, DOOR WPL 2402W20919 Contact Us For Availability
2
LINING, DOOR WPL 74003244 Contact Us For Availability
2
ELEMENT, BROIL WPL 7406P06560 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F11071 Contact Us For Availability
3
BRACE, CONTROL PANEL WPL 3802F08851 Contact Us For Availability
3
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
3
ELEMENT, BAKE WPL 7406P06460 Contact Us For Availability
3
BOX, BURNER WPL 4011F23819 Contact Us For Availability
3
BOX, BURNER----NA WPL 74001753 Contact Us For Availability
4
SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability
4
PANEL, CONTROL (WHT) WPL 7703P68860 Contact Us For Availability
4
ELEMENT (8``) WPL 7406P08060 Contact Us For Availability
4
ELEMENT (8``) WPL 7406P08860 Contact Us For Availability
4
INSULATION, DOOR WPL 74001842 Contact Us For Availability
4
RACK, OVEN WPL 7801P04760 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
5
EXTENSION, CONTROL PANEL WPL 4001F06451 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
ELEMENT (6``) WPL 7406P08160 Contact Us For Availability
5
ELEMENT (6``) WPL 7406P08760 Contact Us For Availability
5
BAFFLE, DOOR WPL 74001843 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
6
SCREW WPL 7101P30960 Contact Us For Availability
6
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
6
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
6
SCREW WPL 7118P01360 Contact Us For Availability
6
GLASS, INNER WPL 74001841 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
7
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
7
TOP, MAIN (WHT) WPL 2002W09981 Contact Us For Availability
7
RETAINER, GLASS WPL 74001844 Contact Us For Availability
7
RECEPTACLE, BULB WPL 74003125 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
7
COVER, MAIN BACK WIRE WPL 4005F34851 Contact Us For Availability
8
KNOB, SWITCH (WHT) WPL 7731P08160 Contact Us For Availability
8
NUT, SPEED WPL 7103P04460 Contact Us For Availability
8
END CAP, TOP (RT-WHT) WPL 7746P03260 Contact Us For Availability
8
END CAP, TOP (LT-WHT) WPL 7746P03360 Contact Us For Availability
8
TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability
8
BULB-OVEN WPL 7407P10360 Contact Us For Availability
8
COVER, TERMINAL BLOCK ACCES WPL 4005F37651 Contact Us For Availability
9
SCREW, SWITCH WPL 7101P14860 Contact Us For Availability
9
CLOCK (WHT) WPL 74002220 Contact Us For Availability
9
CLOCK (WHT) WPL 7601P23460 Contact Us For Availability
9
GLIDE WPL 8016P01560 Contact Us For Availability
9
GLASS, OUTER (WHT) WPL 74003395 Contact Us For Availability
9
GLASS, DOOR (WHT) WPL 7902P32860 Contact Us For Availability
9
BAFFLE, BROIL WPL 3601F23747 Contact Us For Availability
9
RETAINER, BOTTOM INSULATION WPL 3804F10951 Contact Us For Availability
10
KNOB, CLOCK (WHT) WPL 7711P49360 Contact Us For Availability
10
HINGE, MAIN TOP (LT) WPL 3418D09760 Contact Us For Availability
10
HINGE, MAIN TOP (RT) WPL 3418D09860 Contact Us For Availability
10
SCREW (WHT) WPL 7101P30860 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
10
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
11
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
11
SUPPORT, TOP WPL 74001170 Contact Us For Availability
11
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
11
PEDESTAL (SIDES) WPL 4020W01380 Contact Us For Availability
11
PEDESTAL, SIDE WPL 74003016 Contact Us For Availability
12
SWITCH, ROCKER (WHT) WPL 7403P20060 Contact Us For Availability
12
SCREW WPL 7101P29060 Contact Us For Availability
13
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
13
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
13
HANDLE, DOOR (WHT) WPL 74003396 Contact Us For Availability
13
HANDLE, DOOR (WHT) WPL 7701P14560 Contact Us For Availability
13
TUBE, VENT WPL 8026P01960 Contact Us For Availability
13
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
14
END CAP, PANEL (RT-WHT) WPL 74002338 Contact Us For Availability
14
END CAP, PANEL (LT-WHT) WPL 74002339 Contact Us For Availability
14
END CAP, CTRL PANEL (RT-WHT) WPL 7726P07560 Contact Us For Availability
14
END CAP (LT-WHT) WPL 7726P07660 Contact Us For Availability
14
END CAP, DOOR (WHT) WPL 74002342 Contact Us For Availability
14
END CAP, DOOR (WHT) WPL 74003398 Contact Us For Availability
14
END CAP, DOOR (WHT) WPL 7744P06560 Contact Us For Availability
14
TAPE, END CAP WPL 8270P09360 Contact Us For Availability
14
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
15
TRIM, DOOR (BTM-WHT)----NA WPL 74003397 Contact Us For Availability
15
TRIM, BOTTOM (WHT) WPL 7744P10360 Contact Us For Availability
15
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
16
PANEL, DRAWER (WHT) WPL 2416F03962 Contact Us For Availability
16
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
17
HARNESS, CONTROL PANEL WPL 5170D19960 Contact Us For Availability
17
HARNESS, SENSOR/LOCK WPL 5170P20560 Contact Us For Availability
17
HARNESS, PANEL TO TOP WPL 5175D04960 Contact Us For Availability
17
HARNESS, DOOR LATCH WPL 5195D08260 Contact Us For Availability
17
NUT, LOCK WPL 7103P13960 Contact Us For Availability
17
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
17
RUNNER, DRAWER WPL 74003565 Contact Us For Availability
18
MANUAL, USE & CARE WPL 16007454 Contact Us For Availability
18
MANUAL, USE & CARE WPL 8113P06860 Contact Us For Availability
18
TAPE WPL 8270P09860 Contact Us For Availability
18
NUT WPL 7103P08260 Contact Us For Availability
18
ROLLER, DRAWER WPL 74003566 Contact Us For Availability
18
SUPPORT, DRAWER WPL 8004P03360 Contact Us For Availability
19
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
19
END CAP, DRAWER (WHT) WPL 74002740 Contact Us For Availability
19
END CAP, DRAWER (WHT) WPL 7744P06960 Contact Us For Availability
19
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
20
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
20
HINGE WPL 7106P05660 Contact Us For Availability
21
SEAL, DOOR PANEL WPL 7208P00960 Contact Us For Availability
21
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
22
DRAWER, STORAGE WPL 3405F01980 Contact Us For Availability
22
DRAWER, STORAGE WPL 74003618 Contact Us For Availability
22
INSULATION, WRAP WPL 4804F03660 Contact Us For Availability
22
INSULATION, BACK WPL 4804F03860 Contact Us For Availability
23
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
23
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
24
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
25
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
25
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
26
LEVER, DOOR LATCH WPL 74001725 Contact Us For Availability
26
LEVER, LATCH (GRY) WPL 74002973 Contact Us For Availability
26
LEVER, DOOR LATCH WPL 8009P02460 Contact Us For Availability
27
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
27
WASHER WPL 7109P01560 Contact Us For Availability
28
HANDLE, DOOR LATCH (WHT) WPL 7701P13360 Contact Us For Availability
29
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
30
COVER, LATCH ASSY. WPL 4005F39880 Contact Us For Availability
31
SCREW WPL 7101P10360 Contact Us For Availability
31
SCREW, LATCH SWITCH WPL 7101P13060 Contact Us For Availability
32
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
32
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
33
SWITCH, DOOR LATCH WPL 74001708 Contact Us For Availability
33
INSULATOR, DOOR LOCK SWITCH WPL 74001823 Contact Us For Availability
33
SWITCH, DOOR LATCH WPL 7403P22860 Contact Us For Availability
34
COVER, VENT WPL 4005F43245 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001304 Contact Us For Availability
× ![]()
