Model Electrolux 37-2957-00-01 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - COOKTOP PARTS

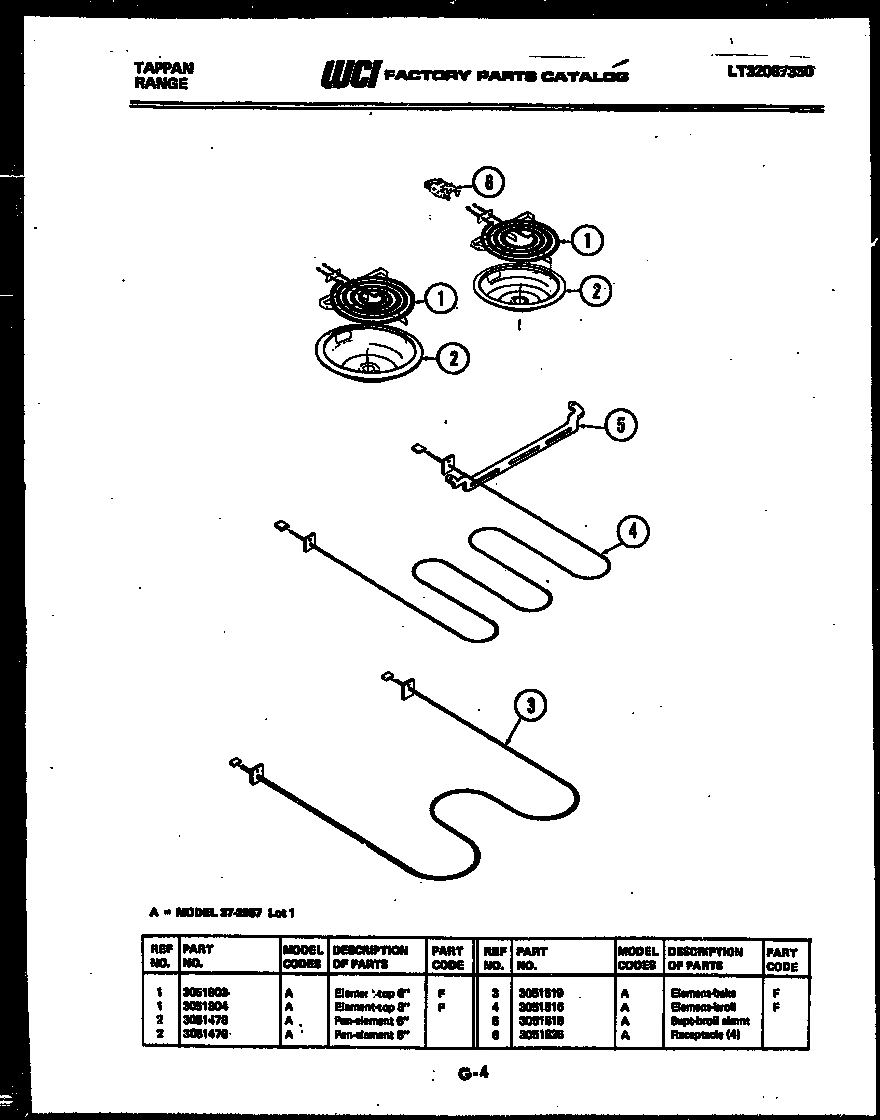

04 - BROILER PARTS

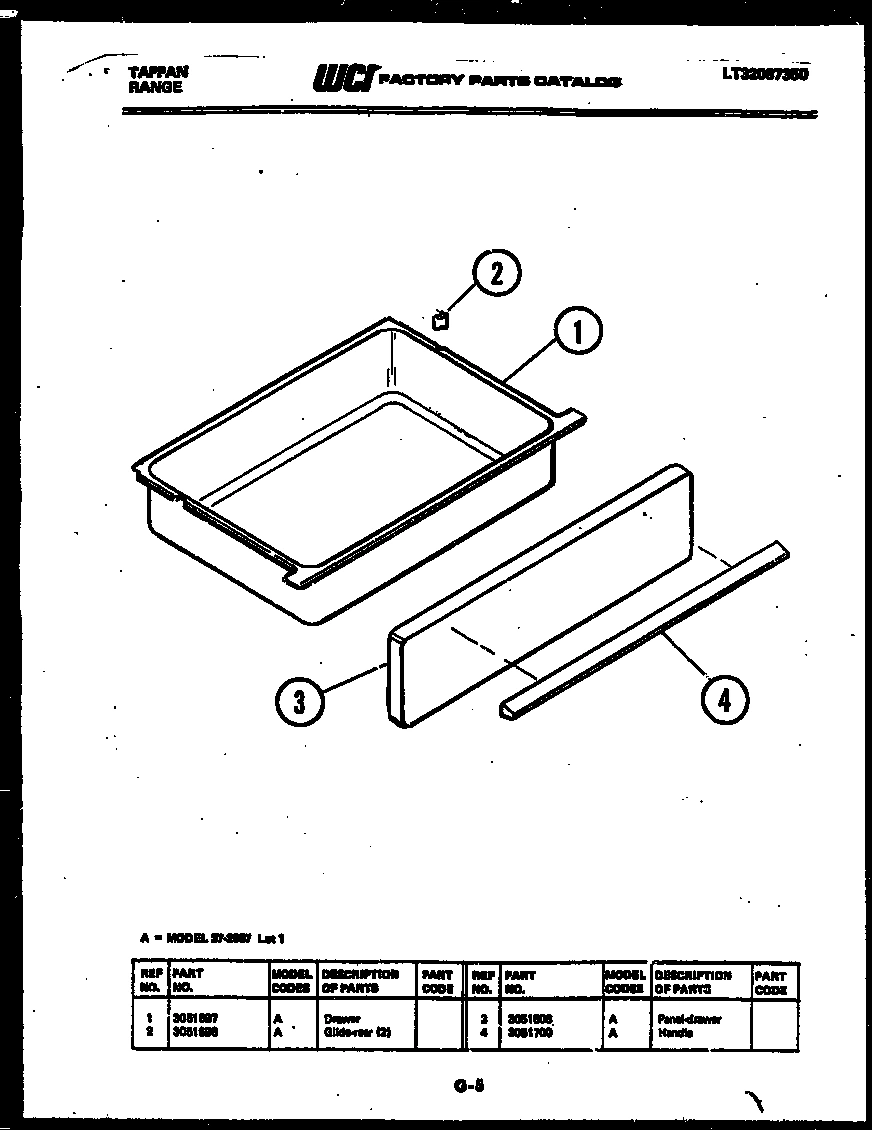

05 - DRAWER PARTS

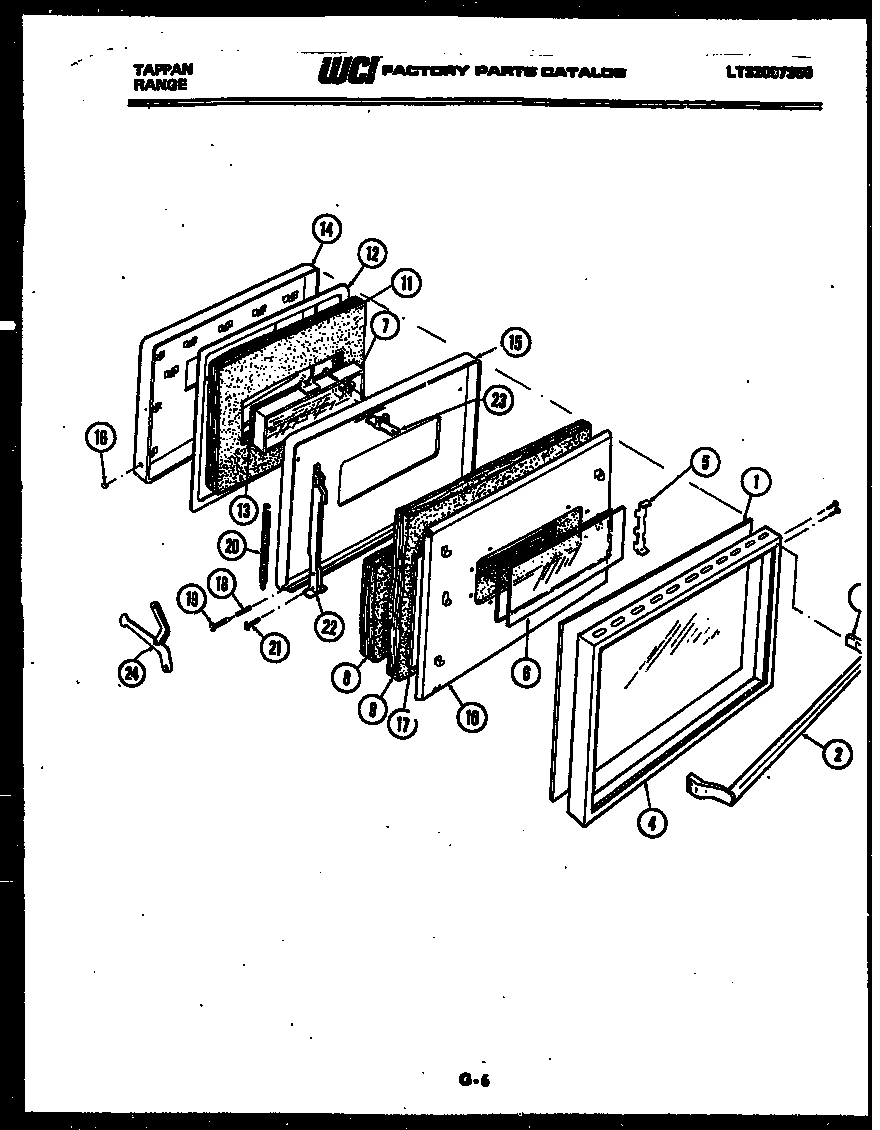

06 - DOOR PARTS

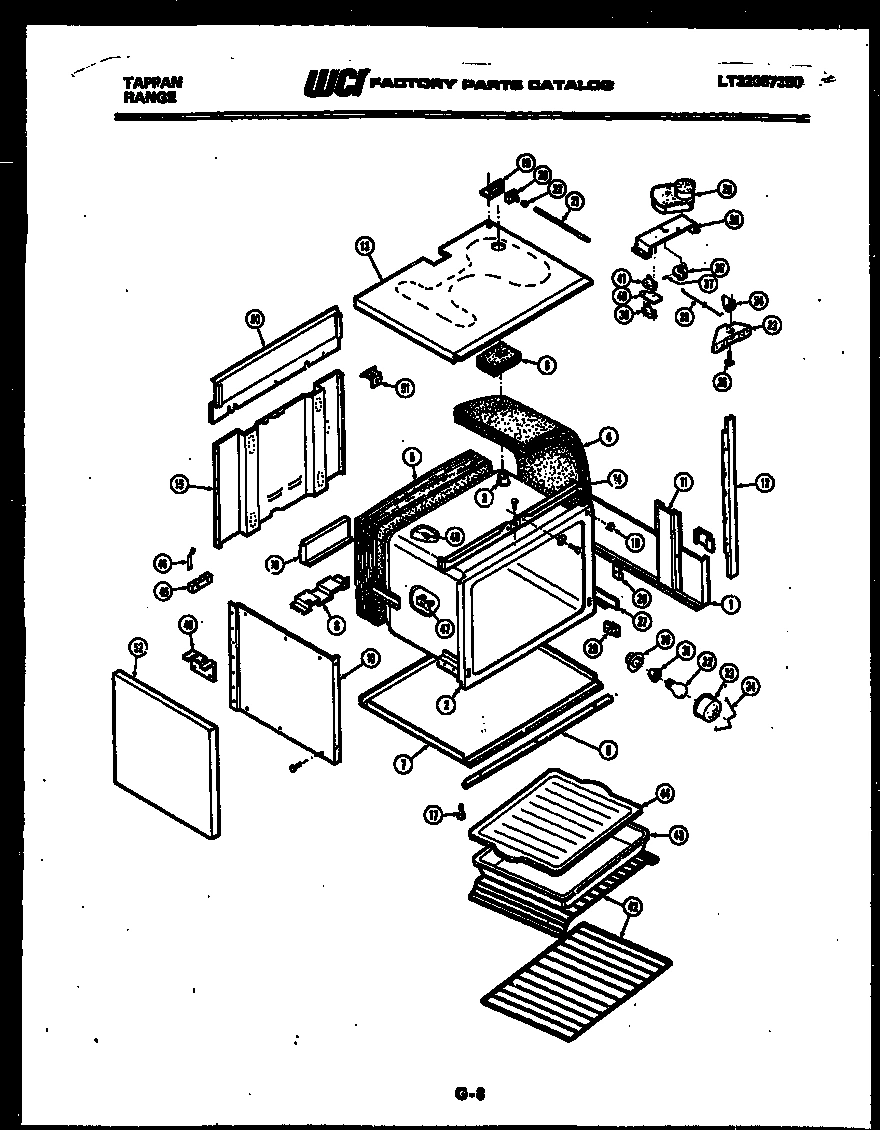

07 - BODY PARTS

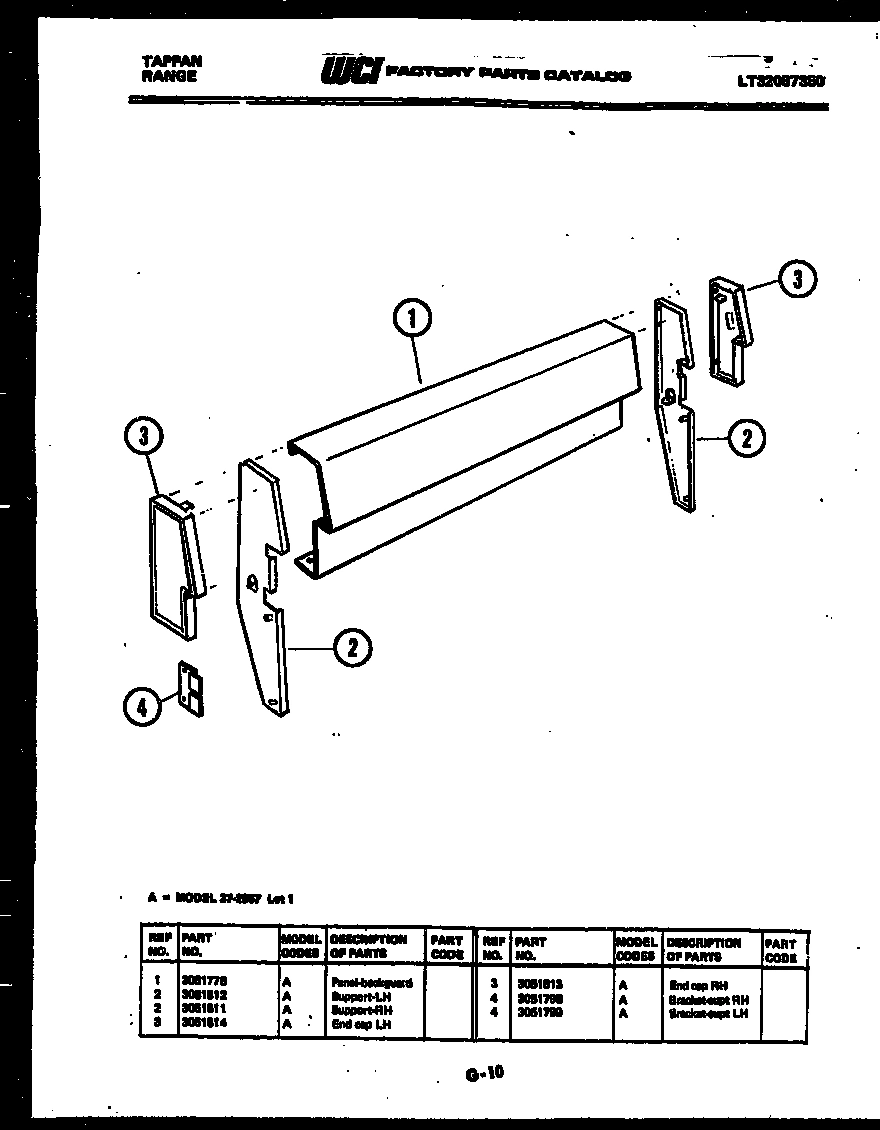

08 - BACKGUARD
Common parts from model Electrolux 37-2957-00-01 RANGE
1
WCI 3051802 WCI 3051802 Contact Us For Availability
1
DRAWER WCI 3051697 Contact Us For Availability
1
WCI 3051491 WCI 3051491 Contact Us For Availability
1
WCI 3051780 WCI 3051780 Contact Us For Availability
1
WCI 3051781 WCI 3051781 Contact Us For Availability
1
WCI 3051778 WCI 3051778 Contact Us For Availability
2
WCI 3051482 WCI 3051482 Contact Us For Availability
2
HINGE ASSY WCI 3051557 Contact Us For Availability
2
GLIDE-REAR (2) WCI 3051698 Contact Us For Availability
2
WCI 3051809 WCI 3051809 Contact Us For Availability
2
BODY WCI 3051510 Contact Us For Availability
2
WCI 3051811 WCI 3051811 Contact Us For Availability
2
WCI 3051812 WCI 3051812 Contact Us For Availability
3
WCI 3051534 WCI 3051534 Contact Us For Availability
3
WCI 3051554 WCI 3051554 Contact Us For Availability
3
WCI 3051806 WCI 3051806 Contact Us For Availability
3
WCI 3051808 WCI 3051808 Contact Us For Availability
3
VENT TUBE WCI 3051773 Contact Us For Availability
3
WCI 3051813 WCI 3051813 Contact Us For Availability
3
WCI 3051814 WCI 3051814 Contact Us For Availability
4
WCI 3051537 WCI 3051537 Contact Us For Availability
4
HANDLE WCI 3051700 Contact Us For Availability
4
TRIM-FRAME WCI 3051715 Contact Us For Availability
4
WCI 3051628 WCI 3051628 Contact Us For Availability
4
WCI 3051798 WCI 3051798 Contact Us For Availability
4
WCI 3051799 WCI 3051799 Contact Us For Availability
5
WCI 3051532 WCI 3051532 Contact Us For Availability
5
SUPT-BROIL ELMNT WCI 3051518 Contact Us For Availability
5
WCI 3051714 WCI 3051714 Contact Us For Availability
5
INSULATION-BACK WCI 3051630 Contact Us For Availability
6
END CAP (RH) WCI 3051443 Contact Us For Availability
6
END CAP (LH) WCI 3051444 Contact Us For Availability
6
WCI 3051713 WCI 3051713 Contact Us For Availability
6
INSUL.-VENT TUBE WCI 3051523 Contact Us For Availability
7
LIGHT SGNL (SRFCE. UNIT) WCI 3051533 Contact Us For Availability
7
WCI 3051790 WCI 3051790 Contact Us For Availability
7
GLASS-PACKAGE WCI 3051705 Contact Us For Availability
7
WCI 3051774 WCI 3051774 Contact Us For Availability
8
REFLECTOR-IND, IT. (3) WCI 3051538 Contact Us For Availability
8
INSUL.-DOOR LINER WCI 3051710 Contact Us For Availability
8
PLATE-MOUNTING WCI 3051525 Contact Us For Availability
9
INSUL.-HEAT SHIELD WCI 3051711 Contact Us For Availability
9
WCI 3051775 WCI 3051775 Contact Us For Availability
10
SHIELD-HEAT WCI 3051712 Contact Us For Availability
10
SHIELD-INSUL. (2) WCI 3051526 Contact Us For Availability
11
WCI 3051791 WCI 3051791 Contact Us For Availability
11
INSUL.-DOOR SHIELD WCI 3051703 Contact Us For Availability
11
WCI 3051776 WCI 3051776 Contact Us For Availability
12
BRKT-THERM MTG. WCI 3051792 Contact Us For Availability
12
SEAL-DOOR WCI 3051704 Contact Us For Availability
12
WCI 3051777 WCI 3051777 Contact Us For Availability
13
SWITCH-SELECTOR WCI 3051684 Contact Us For Availability
13
SEAL WINDOW WCI 3051706 Contact Us For Availability
13
SHIELD-INSUL. TOP WCI 3051782 Contact Us For Availability
14
LINER-SHIELD WCI 3051702 Contact Us For Availability
14
WCI 3051783 WCI 3051783 Contact Us For Availability
15
KNOB, CLOCK (3) WCI 358T201P01 Contact Us For Availability
15
LINER-DOOR WCI 3051701 Contact Us For Availability
15
WCI 3051530 WCI 3051530 Contact Us For Availability
16
KNOB-CONTROL WCI 3051546 Contact Us For Availability
16
WCI 3051690 WCI 3051690 Contact Us For Availability
16
WCI 3051794 WCI 3051794 Contact Us For Availability
16
BUTTON PLUG WCI 3051807 Contact Us For Availability
16
SHIELD-HEAT WCI 3051634 Contact Us For Availability
17
SWITCH-OVEN LITE WCI 3051687 Contact Us For Availability
17
WCI 3051862 WCI 3051862 Contact Us For Availability
17
SCREW-LEVELING (4) WCI 3051639 Contact Us For Availability
18
WCI 3051566 WCI 3051566 Contact Us For Availability
18
WCI 3051784 WCI 3051784 Contact Us For Availability
19
RIVET (2) WCI 3051567 Contact Us For Availability
19
BRACKET-DOOR SW WCI 3051643 Contact Us For Availability
20
SPRING (2) WCI 3051709 Contact Us For Availability
20
WCI 3051644 WCI 3051644 Contact Us For Availability
21
ROD-SWITCH WCI 3051645 Contact Us For Availability
22
CHANNEL-HNG ASSY WCI 3051822 Contact Us For Availability
22
CAP-END SWITCH WCI 3051646 Contact Us For Availability
23
STRIKE WCI 3051707 Contact Us For Availability
23
WCI 3051647 WCI 3051647 Contact Us For Availability
24
DR HNGE ARM (2) WCI 3051568 Contact Us For Availability
24
LATCH-DOOR WCI 3051648 Contact Us For Availability
25
AXLE WCI 3051572 Contact Us For Availability
26
WCI 3051650 WCI 3051650 Contact Us For Availability
27
GLIDE-DRAWER-RH WCI 3051651 Contact Us For Availability
27
GLIDE-DRAWER LH WCI 3051652 Contact Us For Availability
28
SPACER-DRWR GLIDE (2) WCI 3051653 Contact Us For Availability
29
GLIDE, FRONT (2) WCI 3051654 Contact Us For Availability
30
HOUSING-OV. LITE WCI 3051511 Contact Us For Availability
34
RETAINR-WIRE-LENS WCI 3051515 Contact Us For Availability
35
WCI 3051878 WCI 3051878 Contact Us For Availability
36
WCI 3051879 WCI 3051879 Contact Us For Availability
37
WCI 3051880 WCI 3051880 Contact Us For Availability
38
WCI 3051649 WCI 3051649 Contact Us For Availability
39
WCI 3051740 WCI 3051740 Contact Us For Availability
41
WCI 3051741 WCI 3051741 Contact Us For Availability
42
RACK-OVEN WCI 3051474 Contact Us For Availability
42
WCI 3051493 WCI 3051493 Contact Us For Availability
44
INSERT-BROILER PAN WCI 3051562 Contact Us For Availability
46
WCI 3051805 WCI 3051805 Contact Us For Availability
47
BRACKET THERM BLB WCI 3051552 Contact Us For Availability
48
BUTTON-PLUG WCI 3051796 Contact Us For Availability
49
WCI 3051801 WCI 3051801 Contact Us For Availability
50
WCI 3051555 WCI 3051555 Contact Us For Availability
51
BRACKT-HNG SUPT WCI 3051800 Contact Us For Availability
52
WCI 3051498 WCI 3051498 Contact Us For Availability
52
WCI 3051499 WCI 3051499 Contact Us For Availability
× ![]()
