Model Electrolux 37-2539-00-01 RANGE – Common Parts & Diagrams
02 - COOKTOP AND BROILER PARTS
03 - BACKGUARD

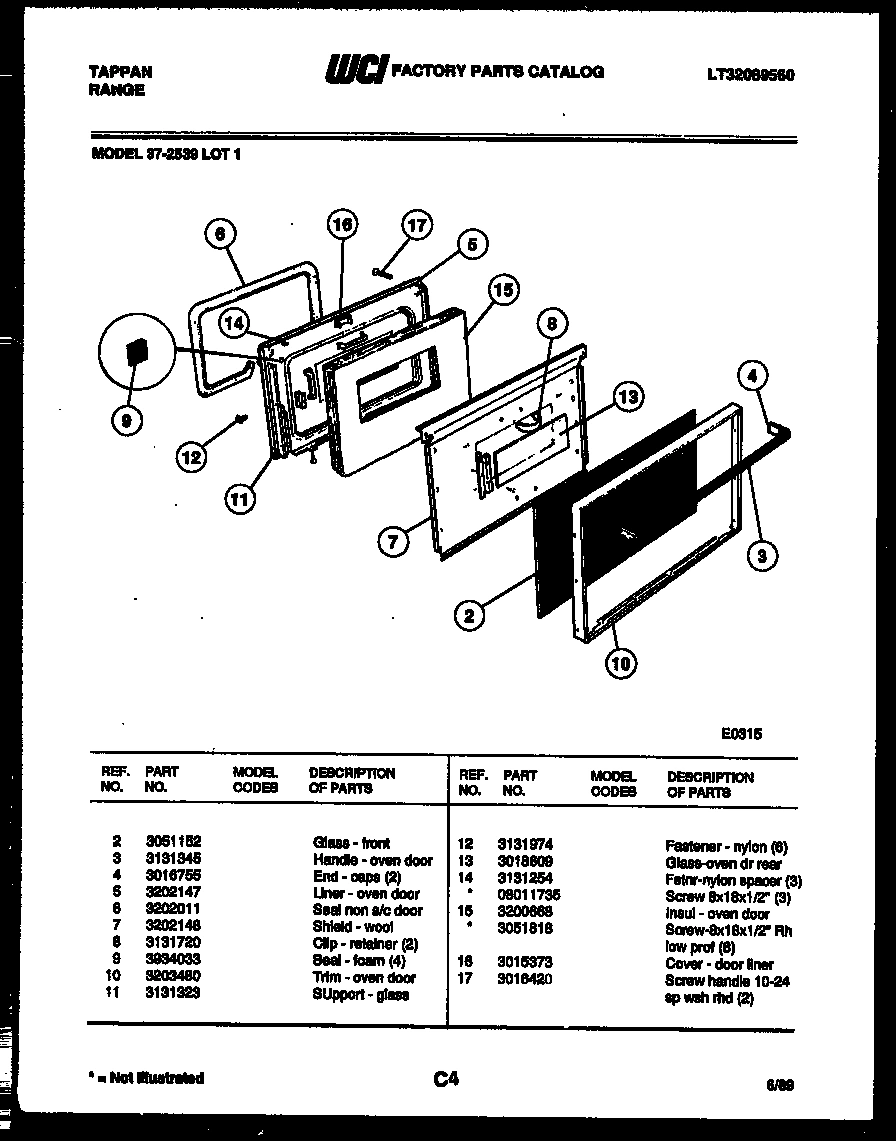

04 - DOOR PARTS

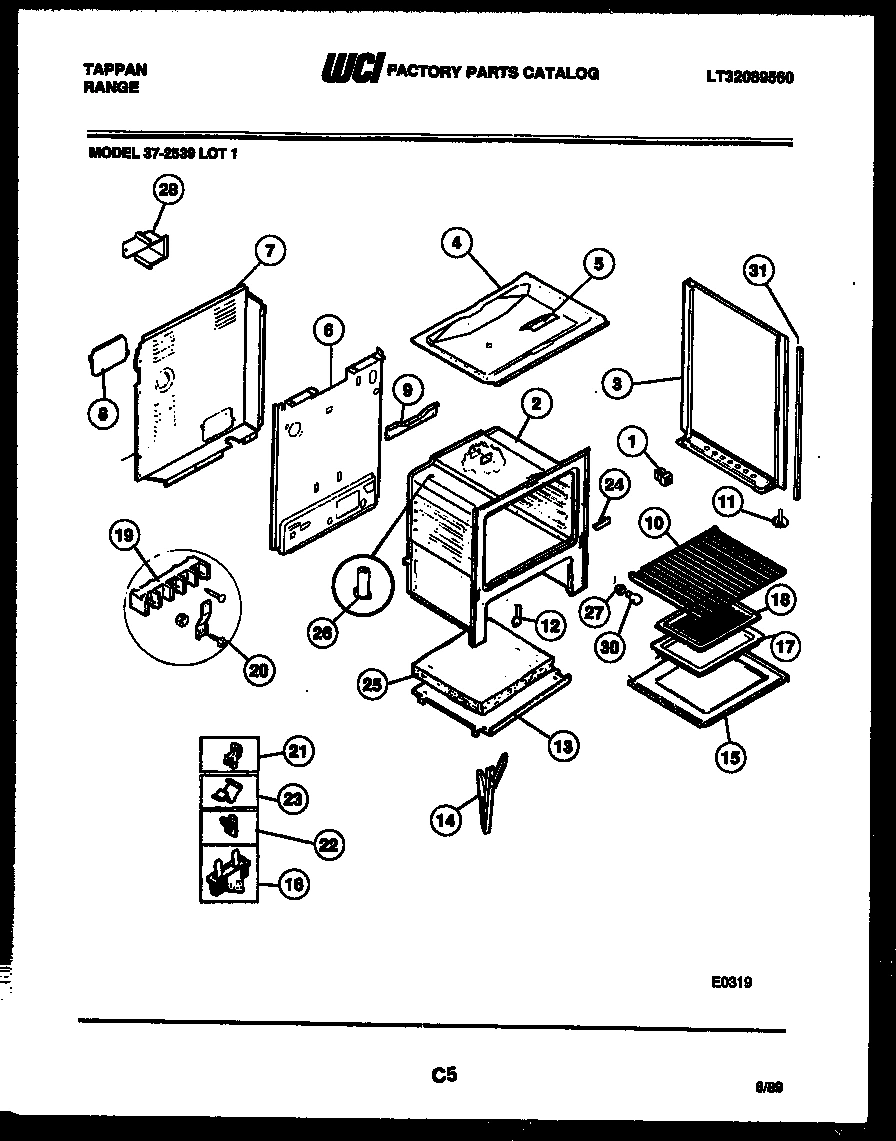

05 - BODY PARTS

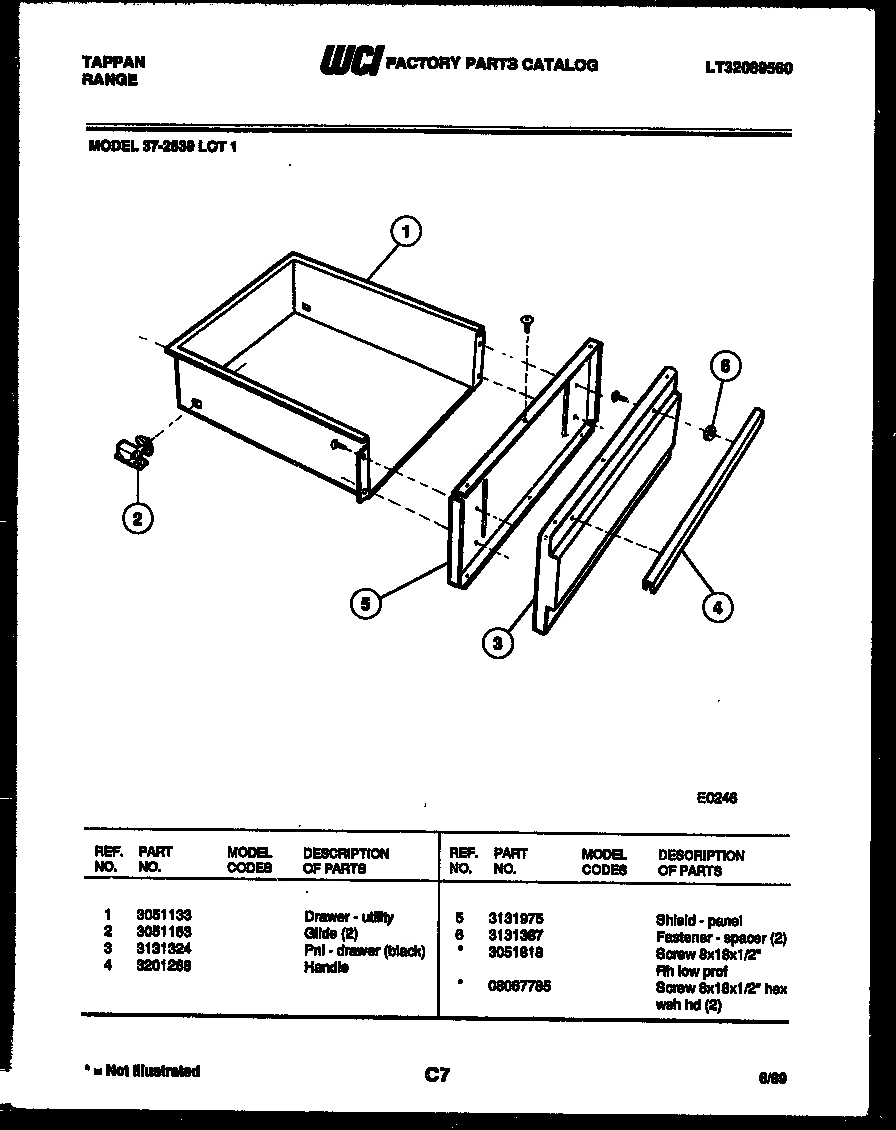

06 - DRAWER PARTS
Common parts from model Electrolux 37-2539-00-01 RANGE
*25722
FASTENER-TWIST NT (2) WCI 3131215 Contact Us For Availability
*25727
FSTNR - EDGE MTG (4) WCI 3200846 Contact Us For Availability
*25727
BRACKET-CABLE MTG WCI 3204525 Contact Us For Availability
*25727
ANTI-TIP KIT WCI 3934056 Contact Us For Availability
*25728
SCREW 8 X 18 X 1/2`` HEX WSH HD (2) WCI 08067785 Contact Us For Availability
1
SPACER, B/S (8) WCI 3014099 Contact Us For Availability
1
WCI 3051113 WCI 3051113 Contact Us For Availability
1
DRAWER, UTILITY WCI 3051133 Contact Us For Availability
2
CAP-END LH WCI 3202801 Contact Us For Availability
2
WCI 3051152 WCI 3051152 Contact Us For Availability
3
CAP-END RH WCI 3202802 Contact Us For Availability
3
HANDLE, OVEN DOOR WCI 3131345 Contact Us For Availability
3
WCI 3200793 WCI 3200793 Contact Us For Availability
3
PNL DRAWER (BLACK) WCI 3131324 Contact Us For Availability
3A
WCI 3200790 WCI 3200790 Contact Us For Availability
4
WCI 3051193 WCI 3051193 Contact Us For Availability
4
WCI 3051109 WCI 3051109 Contact Us For Availability
4
WCI 3201268 WCI 3201268 Contact Us For Availability
5
PANEL-BACKGUARD WCI 3051198 Contact Us For Availability
5
WCI 3202147 WCI 3202147 Contact Us For Availability
5
WCI 3131101 WCI 3131101 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
6
WCI 3203082 WCI 3203082 Contact Us For Availability
6
FASTENER-SPACER (2) WCI 3131387 Contact Us For Availability
7
TOP SUPPORT ROD (2) WCI 3013818 Contact Us For Availability
7
WCI 3202148 WCI 3202148 Contact Us For Availability
7
SHIELD-LOWER WALL WCI 3203549 Contact Us For Availability
8
WCI 3205002 WCI 3205002 Contact Us For Availability
8
CLIP, RETAINER (2) WCI 3131720 Contact Us For Availability
8
WCI 3203405 WCI 3203405 Contact Us For Availability
9
WCI 3205003 WCI 3205003 Contact Us For Availability
9
SEAL, FOAM (4) WCI 3934033 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
10
EXTRUSION-HEAT SHIELD WCI 3204623 Contact Us For Availability
10
WCI 3203480 WCI 3203480 Contact Us For Availability
11
WCI 08010418 WCI 08010418 Contact Us For Availability
11
SUPPORT, GLASS WCI 3131323 Contact Us For Availability
11
SCREW, LEVEL (4) WCI 3203397 Contact Us For Availability
12
COVER HNG. CUTOUT (2) WCI 3131570 Contact Us For Availability
12
WCI 3202785 WCI 3202785 Contact Us For Availability
12
FASTENER, NYLON (6) WCI 3131974 Contact Us For Availability
13
WCI 3016812 WCI 3016812 Contact Us For Availability
13
GLASS - OVEN DR (REAR) WCI 3018609 Contact Us For Availability
13
WCI 3200825 WCI 3200825 Contact Us For Availability
14
WCI 3204681 WCI 3204681 Contact Us For Availability
14
FSTNR-NYLON SPACER (3) WCI 3131254 Contact Us For Availability
14
CHANNEL DR HNG (2) WCI 3131569 Contact Us For Availability
14A
KNOB - THERMOSTAT WCI 3204682 Contact Us For Availability
14A
WCI 08011735 WCI 08011735 Contact Us For Availability
14B
KNOB - SELECTOR - SW WCI 3204680 Contact Us For Availability
15
LIGHT - IND 125 V (2) WCI 08037896 Contact Us For Availability
15
INSUL - OVEN DOOR WCI 3200668 Contact Us For Availability
15
WCI 3203540 WCI 3203540 Contact Us For Availability
15A
LIGHT-IND 250V WCI 3091462 Contact Us For Availability
16
WCI 08037703 WCI 08037703 Contact Us For Availability
16
WCI 3015373 WCI 3015373 Contact Us For Availability
16
FUSE-THERMO CUTOUT WCI 3051147 Contact Us For Availability
17
SCREW-HANDLE 10-24 SP WSH RHD (2) WCI 3016420 Contact Us For Availability
17
BROILER PAN WCI 3013568 Contact Us For Availability
18
WCI 3131356 WCI 3131356 Contact Us For Availability
19A
RETAINER LENS (3) (NON-ILLUSTRATED) WCI 3051224 Contact Us For Availability
20
WCI 08011708 WCI 08011708 Contact Us For Availability
21
CLOCK WCI 3204876 Contact Us For Availability
23
KNOB-CLOCK WCI 3131472 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
24
WCI 3015372 WCI 3015372 Contact Us For Availability
26
WCI 3051344 WCI 3051344 Contact Us For Availability
27A
INSULATION, WRAP (NON-ILLUSTRATED) WCI 3017142 Contact Us For Availability
27B
WCI 3203541 WCI 3203541 Contact Us For Availability
27D
SCREW - HNG MTG (6) (NON-ILLUSTRATED) WCI 3131143 Contact Us For Availability
27E
WCI 08067783 WCI 08067783 Contact Us For Availability
28
WCI 3203582 WCI 3203582 Contact Us For Availability
× ![]()
