Model Electrolux 37-2538-23-01 RANGE – Common Parts & Diagrams
02 - COOKTOP AND BROILER PARTS
03 - BODY PARTS

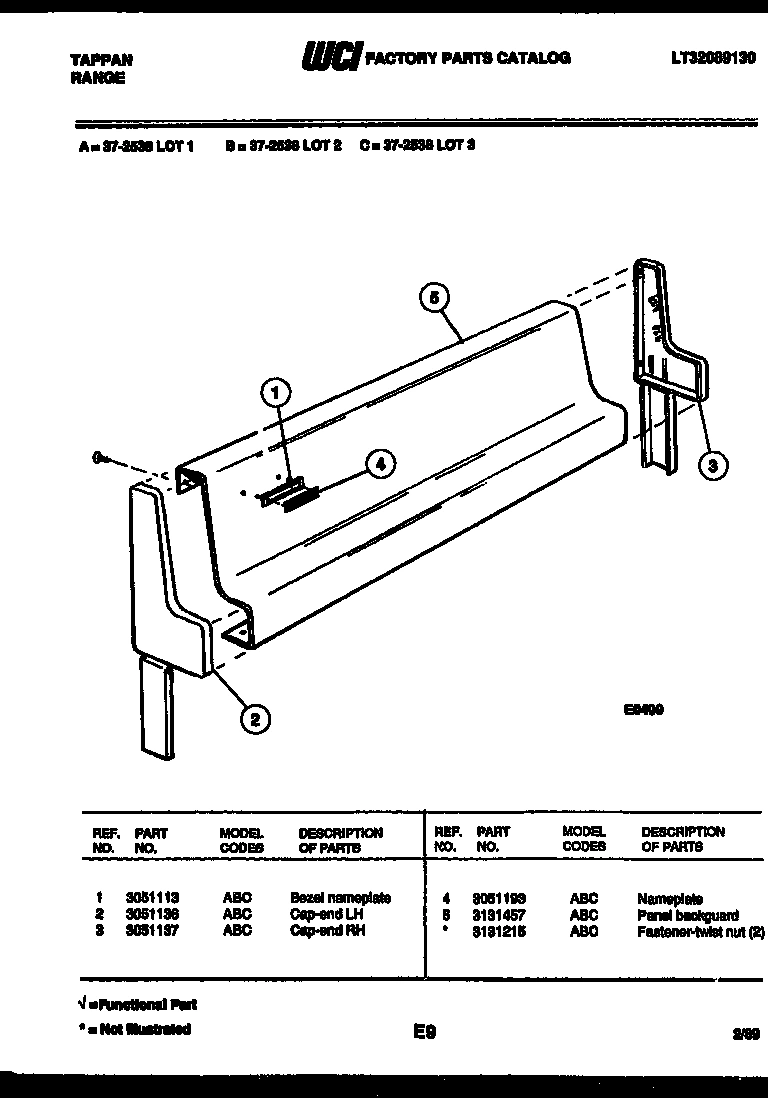

04 - BACKGUARD

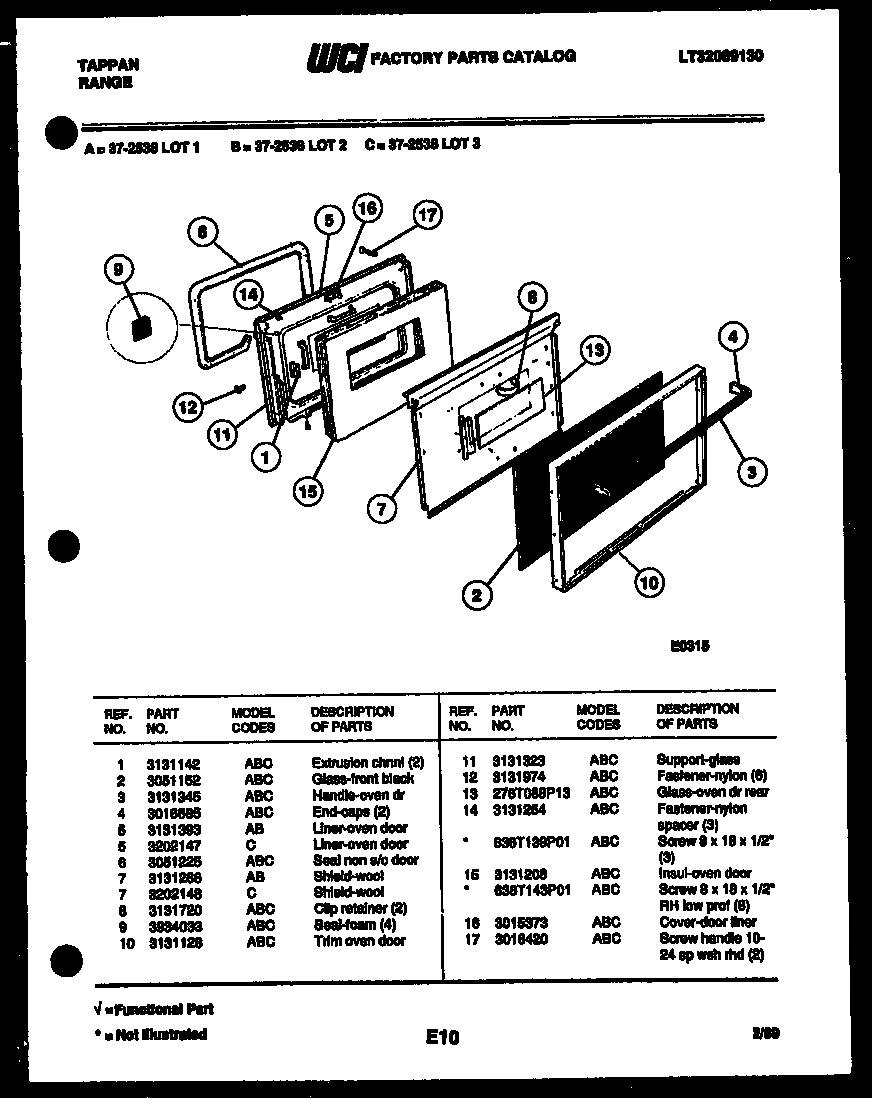

05 - DOOR PARTS

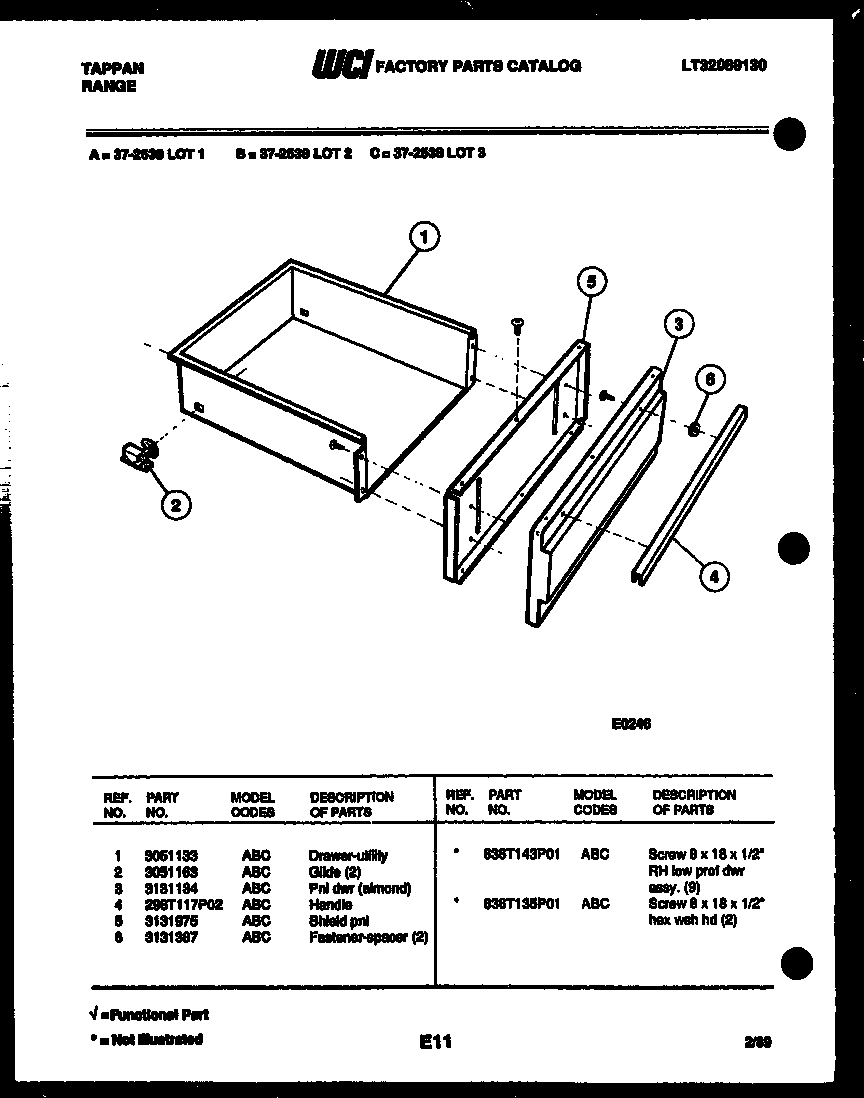

06 - DRAWER PARTS
Common parts from model Electrolux 37-2538-23-01 RANGE
*21715
COVER-REAR WALL WCI 3051387 Contact Us For Availability
*21716
FASTENER, TWIST NUT (2) WCI 3131215 Contact Us For Availability
*21718
SCREW 8 X 18 X 1/2`` HEX WSH HD (2) WCI 636T135P01 Contact Us For Availability
1
SPACER, BODYSIDE (8) WCI 665T188P02 Contact Us For Availability
1
WCI 3051113 WCI 3051113 Contact Us For Availability
1
EXTRUSION CHNNL (2) WCI 3131142 Contact Us For Availability
1
DRAWER, UTILITY WCI 3051133 Contact Us For Availability
2
CAP-END (LH) WCI 3051136 Contact Us For Availability
2
GLASS-FRONT, BLACK WCI 3051152 Contact Us For Availability
3
PNL BODYSIDE LH (ALMOND) WCI 3131453 Contact Us For Availability
3
CAP-END (RH) WCI 3051137 Contact Us For Availability
3
HANDLE OVEN DR WCI 3131345 Contact Us For Availability
3
PNL DWR-ALMOND WCI 3131134 Contact Us For Availability
3A
PNL-BODYSIDE RH-ALMOND WCI 3131454 Contact Us For Availability
4
WCI 445T006P01 WCI 445T006P01 Contact Us For Availability
4
WCI 3051109 WCI 3051109 Contact Us For Availability
4
WCI 3051193 WCI 3051193 Contact Us For Availability
4
WCI 296T117P02 WCI 296T117P02 Contact Us For Availability
5
WCI 3131101 WCI 3131101 Contact Us For Availability
5
PANEL BACKGUARD WCI 3131457 Contact Us For Availability
5
WCI 3131393 WCI 3131393 Contact Us For Availability
5
SHIELD-PNL WCI 3131975 Contact Us For Availability
6
WCI 3011558 WCI 3011558 Contact Us For Availability
6
WCI 3131567 WCI 3131567 Contact Us For Availability
6
FASTENER-SPACER (2) WCI 3131387 Contact Us For Availability
6A
WCI 3011559 WCI 3011559 Contact Us For Availability
7
TOP SUPT ROD (2) WCI 3013818 Contact Us For Availability
7
SHIELD-LWR WALL WCI 3051400 Contact Us For Availability
7
WCI 3131266 WCI 3131266 Contact Us For Availability
8
PNL-MANIFOLD WCI 3016750 Contact Us For Availability
8
COVER-LWR ACCESS WCI 3051501 Contact Us For Availability
8
CLIP, RETAINER (2) WCI 3131720 Contact Us For Availability
9
WCI 3051508 WCI 3051508 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
9
SEAL, FOAM (4) WCI 3934033 Contact Us For Availability
10
WCI 3051145 WCI 3051145 Contact Us For Availability
10
WCI 3131128 WCI 3131128 Contact Us For Availability
11
WCI 699T015P02 WCI 699T015P02 Contact Us For Availability
11
SCREW, LEVEL (4) WCI 636M004P01 Contact Us For Availability
11
SUPPORT, GLASS WCI 3131323 Contact Us For Availability
12
CVR. HNG. CUTOUT (2) WCI 3131570 Contact Us For Availability
12
WCI 3051321 WCI 3051321 Contact Us For Availability
12
FASTENER, NYLON (6) WCI 3131974 Contact Us For Availability
13
WCI 3016751 WCI 3016751 Contact Us For Availability
13
SHIELD-WOOL LWR WCI 3051398 Contact Us For Availability
13
GLASS-OVEN DR REAR WCI 276T088P13 Contact Us For Availability
14
KNOB-CONTROL (4) WCI 3016752 Contact Us For Availability
14
CHANNEL DR HNG (2) WCI 3131569 Contact Us For Availability
14
WCI 3131254 WCI 3131254 Contact Us For Availability
14A
WCI 3016753 WCI 3016753 Contact Us For Availability
14A
SCREW 8 X 18 X 1/2`` (3) (NON-ILLUSTRATED) WCI 636T139P01 Contact Us For Availability
14B
KNOB SEL SWITCH WCI 3016754 Contact Us For Availability
15
LIGHT-IND 125V (2) WCI 3091461 Contact Us For Availability
15
WCI 3051104 WCI 3051104 Contact Us For Availability
15
WCI 3131208 WCI 3131208 Contact Us For Availability
15A
LIGHT-IND 250V WCI 3091462 Contact Us For Availability
16
JEWEL-IND. (3) WCI 342T014P01 Contact Us For Availability
16
FUSE-THERM. CUTOUT WCI 3051147 Contact Us For Availability
16
WCI 3015373 WCI 3015373 Contact Us For Availability
17
ELEMENT-OVEN BAKE WCI 3051141 Contact Us For Availability
17
BROILER PAN WCI 3013568 Contact Us For Availability
17
SCREW-HANDLE 10-24 SP WSH RHD (2) WCI 3016420 Contact Us For Availability
18
WCI 3131356 WCI 3131356 Contact Us For Availability
19A
RETAINER LENS (3) (NON-ILLUSTRATED) WCI 3051224 Contact Us For Availability
20
WCI 3051314 WCI 3051314 Contact Us For Availability
20
WCI 711T048P01 WCI 711T048P01 Contact Us For Availability
21
CLOCK WCI 3131655 Contact Us For Availability
22
WCI 3131336 WCI 3131336 Contact Us For Availability
23
KNOB-CLOCK WCI 3131472 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
24
WCI 3015372 WCI 3015372 Contact Us For Availability
26
WCI 3051344 WCI 3051344 Contact Us For Availability
27A
INSUL-WRAP (NON-ILLUSTRATED) WCI 3131201 Contact Us For Availability
27B
INSUL-BACK (NON-ILLUSTRATED) WCI 3131200 Contact Us For Availability
27D
SCREW-HNG MTG (6) (NON-ILLUSTRATED) WCI 636T163P01 Contact Us For Availability
27E
NUT-HEX BRASS (6) (NON-ILLUSTRATED) WCI 479T069P41 Contact Us For Availability
28
BOTTOM-OVEN REMOVABLE WCI 3051190 Contact Us For Availability
29
TUBE-OVEN LIGHT WCI 3051343 Contact Us For Availability
× ![]()
