Model Electrolux 37-2227-23-02 RANGE – Common Parts & Diagrams

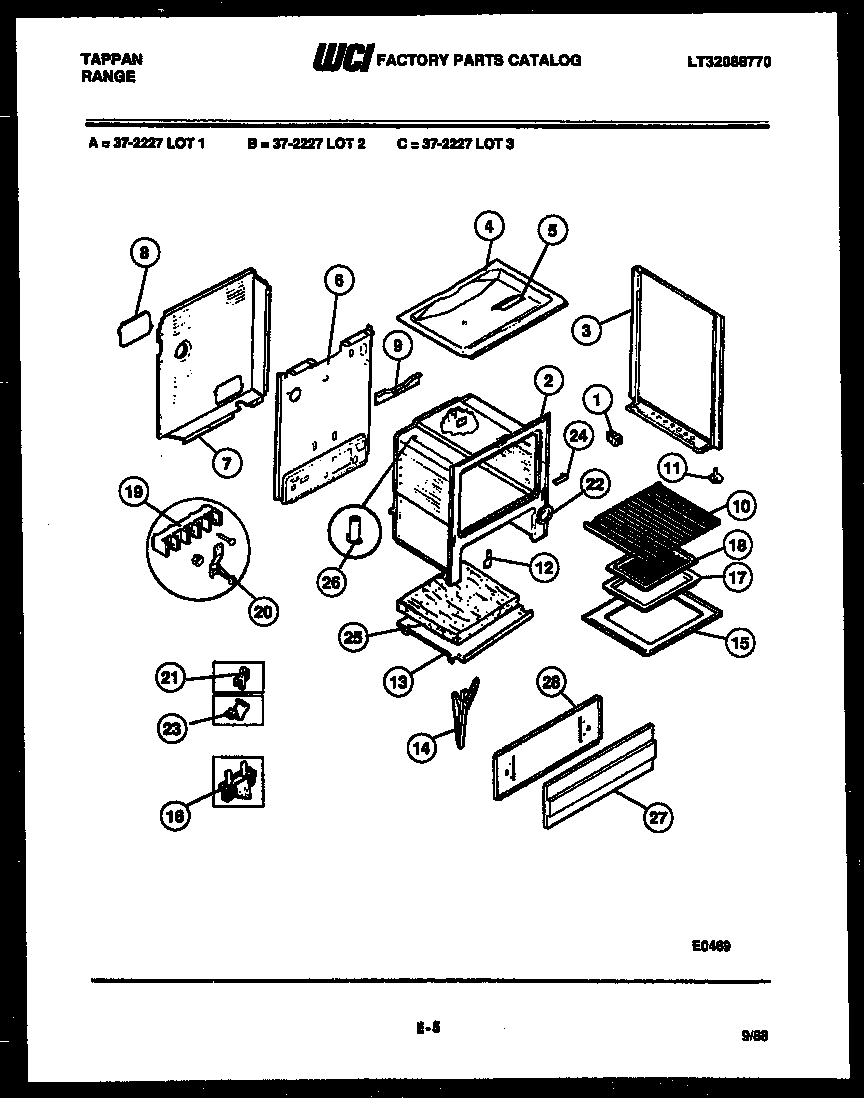

02 - BODY PARTS

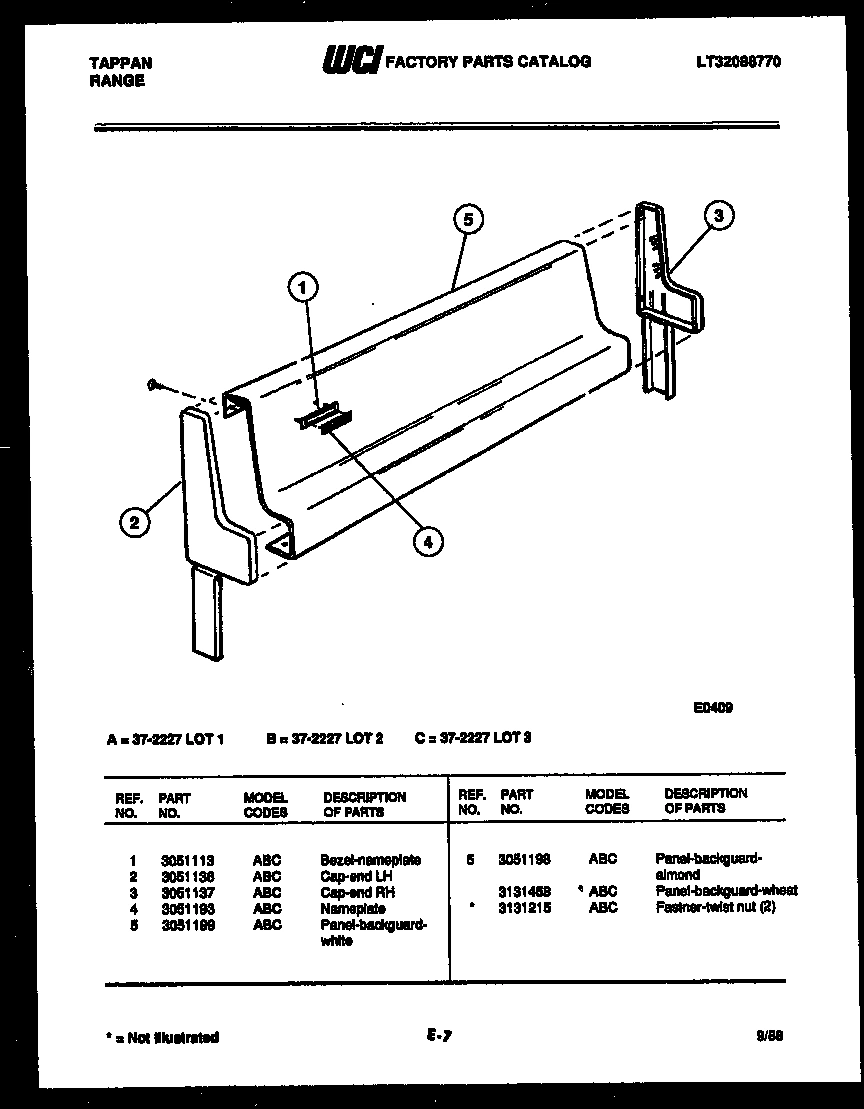

03 - BACKGUARD

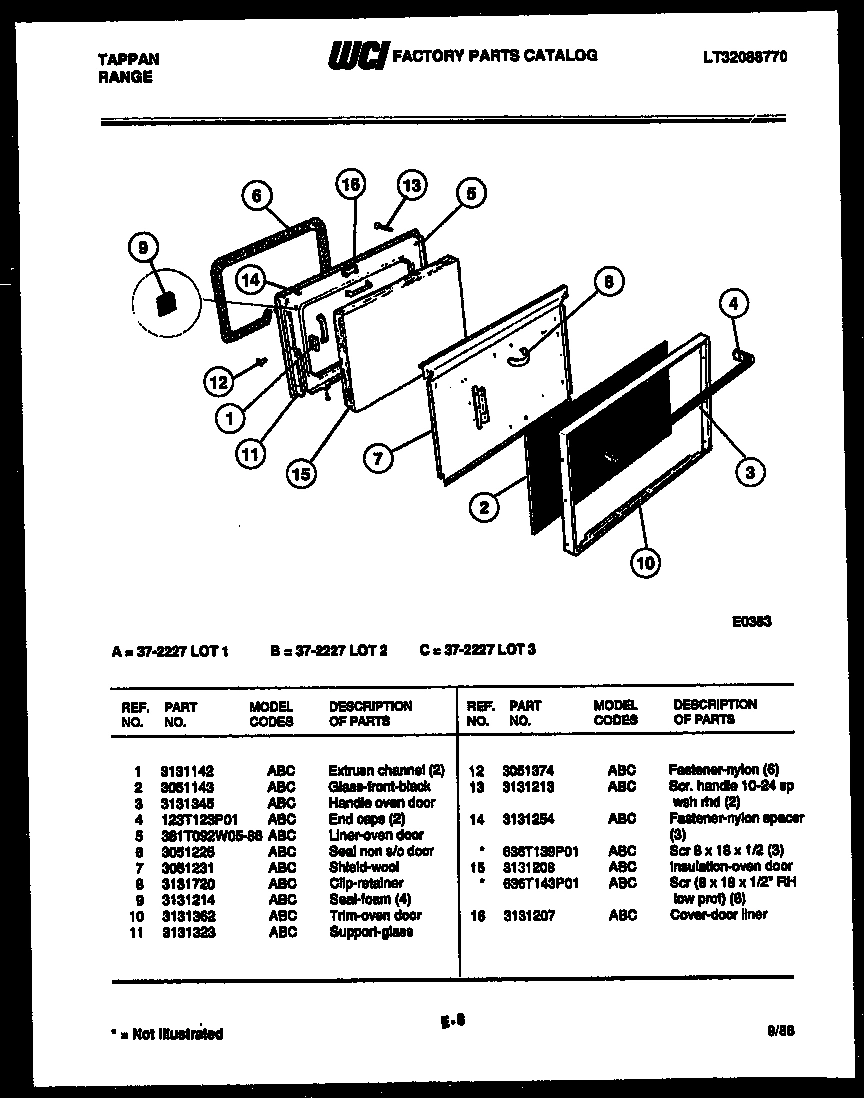

04 - DOOR PARTS

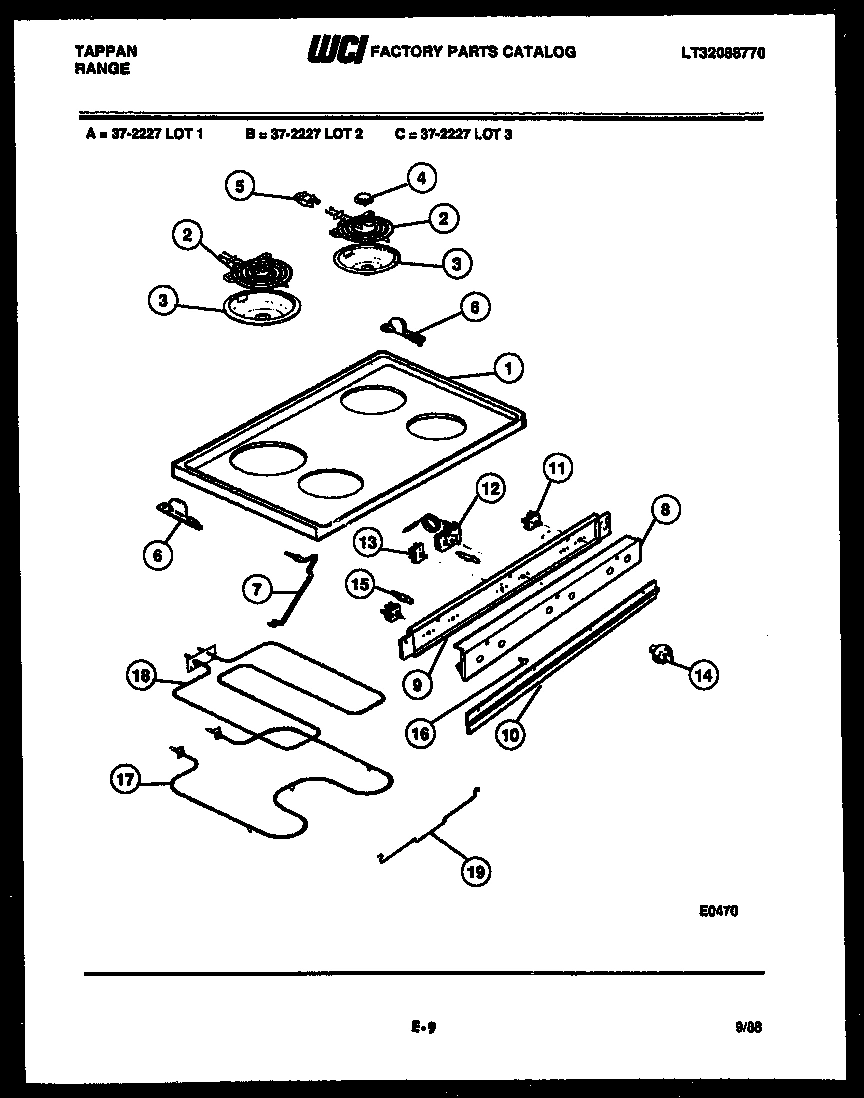

05 - COOKTOP, BROILER AND BACKGUARD
Common parts from model Electrolux 37-2227-23-02 RANGE
*65380
FASTNER-TWIST NUT (2) WCI 3131215 Contact Us For Availability
*65408
RETAINER-LENS (3) WCI 3051224 Contact Us For Availability
1
SPACER, BODYSIDE (8) WCI 665T188P02 Contact Us For Availability
1
WCI 3051113 WCI 3051113 Contact Us For Availability
1
EXTRUSN-CHANNEL (2) WCI 3131142 Contact Us For Availability
1
MAIN TOP, ALMOND WCI 3051285 Contact Us For Availability
2
CAP-END (LH) WCI 3051136 Contact Us For Availability
2
GLASS-FRONT-BLACK WCI 3051143 Contact Us For Availability
3
PANEL-BODYSIDE LH (ALMOND) WCI 3131453 Contact Us For Availability
3
CAP-END (RH) WCI 3051137 Contact Us For Availability
3
HANDLE, OVEN DOOR WCI 3131345 Contact Us For Availability
3A
PANEL-BODYSIDE RH (ALMOND) WCI 3131454 Contact Us For Availability
4
WCI 3051109 WCI 3051109 Contact Us For Availability
4
WCI 3051193 WCI 3051193 Contact Us For Availability
4
WCI 445T006P01 WCI 445T006P01 Contact Us For Availability
5
WCI 3131101 WCI 3131101 Contact Us For Availability
5
LINER, OVEN DOOR WCI 381T092W05-86 Contact Us For Availability
6
WCI 3131567 WCI 3131567 Contact Us For Availability
6
BRKT-HNGE - LH WCI 3131286 Contact Us For Availability
6A
BRKT-HNGE RH WCI 3131287 Contact Us For Availability
7
WCI 3051400 WCI 3051400 Contact Us For Availability
7
WCI 3051231 WCI 3051231 Contact Us For Availability
7
TOP SUPT ROD (2) WCI 618T038P05 Contact Us For Availability
8
COVER, LOWER ACCESS WCI 3051501 Contact Us For Availability
8
WCI 3131720 WCI 3131720 Contact Us For Availability
8
WCI 3051207 WCI 3051207 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
9
SEAL, FOAM (4) WCI 3131214 Contact Us For Availability
9
PLATE-INST. MTG. WCI 3051454 Contact Us For Availability
10
WCI 3131362 WCI 3131362 Contact Us For Availability
10
EXTRUSN.-HEAT SHLD. WCI 3051145 Contact Us For Availability
11
SCREW, LEVEL (4) WCI 636M004P01 Contact Us For Availability
11
SUPPORT, GLASS WCI 3131323 Contact Us For Availability
11
WCI 699T015P02 WCI 699T015P02 Contact Us For Availability
12
COVER HNG. CUTOUT (2) WCI 3131570 Contact Us For Availability
12
FASTENER-NYLON (6) WCI 3051374 Contact Us For Availability
12
WCI 3051321 WCI 3051321 Contact Us For Availability
13
WCI 3051398 WCI 3051398 Contact Us For Availability
13
SCR HANDLE 10-24 SP WSH RHD (2) WCI 3131213 Contact Us For Availability
14
CHANNEL, DOOR HINGE (2) WCI 3131569 Contact Us For Availability
14
WCI 3131254 WCI 3131254 Contact Us For Availability
14
WCI 3051173 WCI 3051173 Contact Us For Availability
14A
SCR 8 X 18 X 1/2 (3) (NON-ILLUSTRATED) WCI 636T139P01 Contact Us For Availability
14A
KNOB-THERMOS. WCI 3051506 Contact Us For Availability
14B
KNOB-SEL. SW. WCI 3051505 Contact Us For Availability
15
WCI 3051104 WCI 3051104 Contact Us For Availability
15
INSULATION, OVEN DOOR WCI 3131208 Contact Us For Availability
15
LIGHT-INDICATOR 125V (2) WCI 318T023P11 Contact Us For Availability
15A
LIGHT-INDIC. (250V) WCI 318T023P12 Contact Us For Availability
16
FUSE-THERMAL CUT OUT WCI 3051147 Contact Us For Availability
16
COVER, DOOR LINER WCI 3131207 Contact Us For Availability
16
JEWEL-IND. (3) WCI 342T014P01 Contact Us For Availability
17
WCI 539T010F01-86 WCI 539T010F01-86 Contact Us For Availability
17
ELEMENT, OVEN BAKE WCI 3051388 Contact Us For Availability
18
WCI 3131356 WCI 3131356 Contact Us For Availability
20
WCI 711T048P01 WCI 711T048P01 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
24
COVER-FRONT MAIN WCI 3131548 Contact Us For Availability
26
WCI 3051344 WCI 3051344 Contact Us For Availability
26A
INSULATION-WRAP (NON-ILLUSTRATED) WCI 3131201 Contact Us For Availability
26B
INSULATION-BACK (NON-ILLUSTRATED) WCI 3131200 Contact Us For Availability
26D
SCREW-HINGE MTG (6) (NON-ILLUSTRATED) WCI 636T163P01 Contact Us For Availability
26E
NUT-HEX BRASS (6) (NON-ILLUSTRATED) WCI 479T069P41 Contact Us For Availability
27
PANEL-DRAWER-ALMOND WCI 3051202 Contact Us For Availability
28
WCI 3131383 WCI 3131383 Contact Us For Availability
× ![]()
