Model Electrolux 37-1272-23-01 RANGE – Common Parts & Diagrams

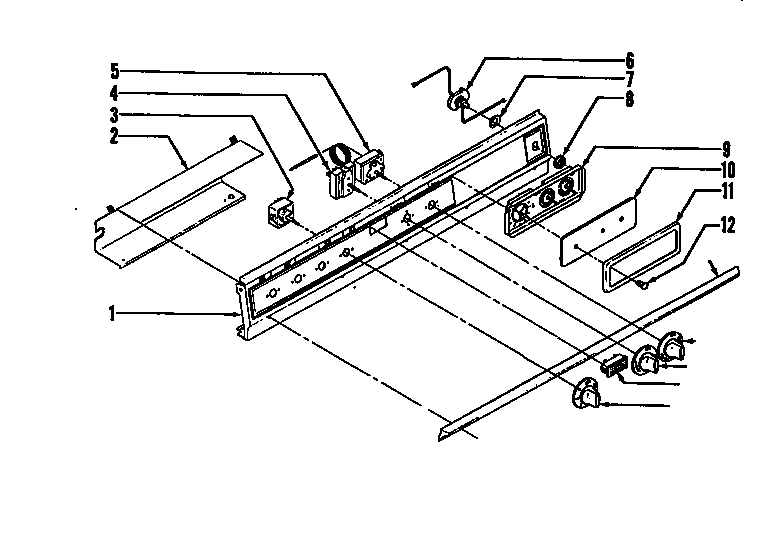

02 - CONTROL PANEL

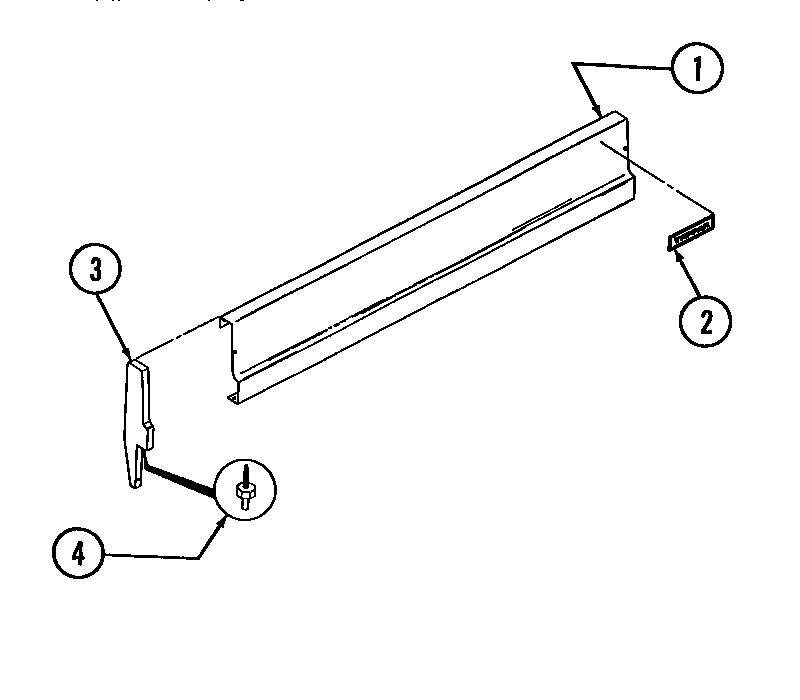

03 - BACKGUARD

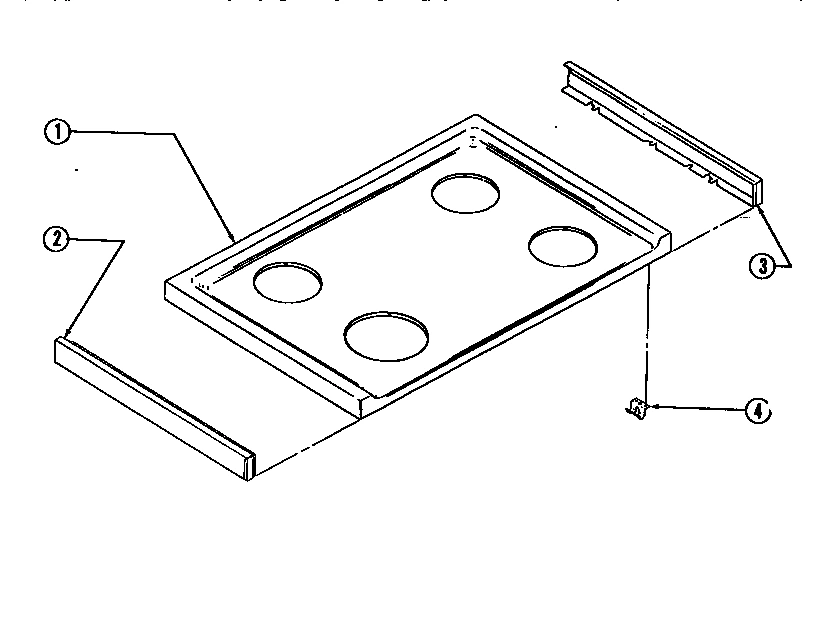

04 - COOKTOP PARTS

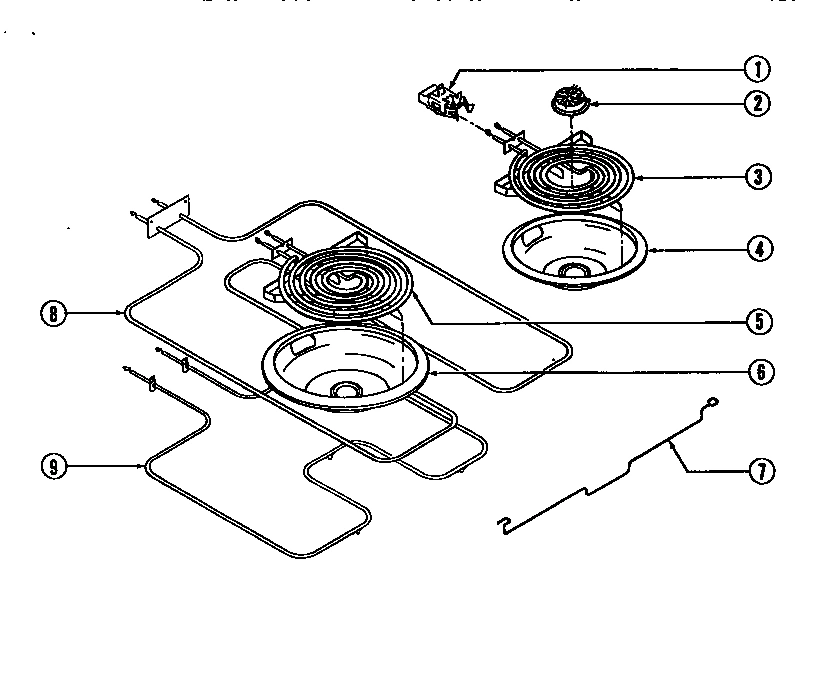

05 - BROILER PARTS

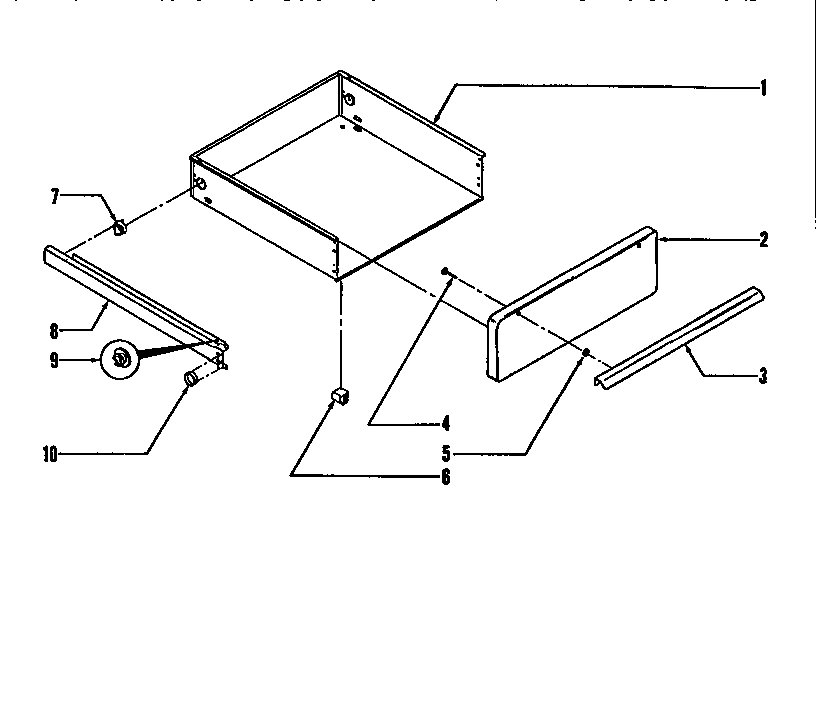

06 - DRAWER PARTS

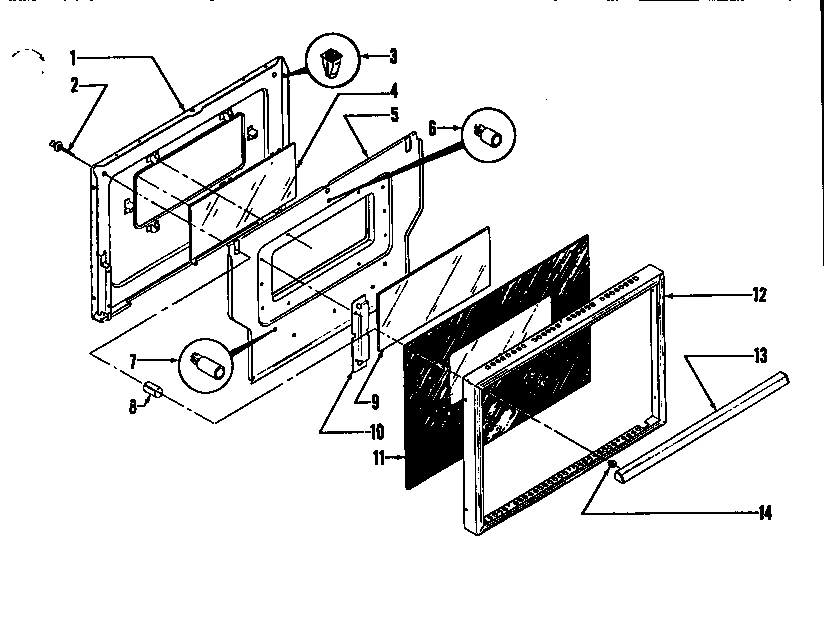

07 - DOOR PARTS

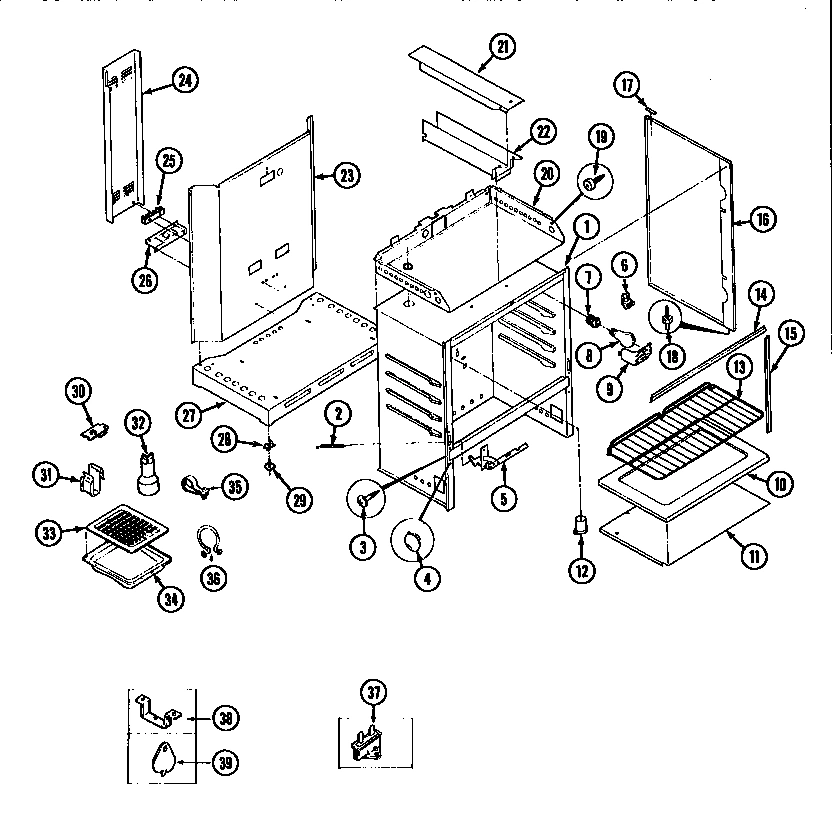

08 - BODY PARTS
Common parts from model Electrolux 37-1272-23-01 RANGE
*48279
WIRE HARNESS SWITCH FEED WCI 299T179P02 Contact Us For Availability
*48346
INSUL 2 1/2 X 18 X 24`` WOOL (OVEN BTM) WCI 328T015P100 Contact Us For Availability
*48347
INSUL 2 1/2 X 21 X 24`` WOOL (OVEN BACK) WCI 328T015P101 Contact Us For Availability
*48348
INSUL. 2 1/2 X 19 X 62`` WOOL (TOP & SIDES) WCI 328T015P102 Contact Us For Availability
*48348
TRIM-COUNTERTOP LH (OPTIONAL) WCI 740T365P02 Contact Us For Availability
*48348
TRIM-VERTICAL (L & R) OPTION WCI 740T431F01 Contact Us For Availability
*48349
TRIM-COUNTERTOP RH (OPTIONAL) WCI 740T365P01 Contact Us For Availability
*48350
CORD-SUPPLY (OPT) WCI 171T013P02 Contact Us For Availability
*48350
WCI 508T026P02 WCI 508T026P02 Contact Us For Availability
1
WCI 521T073P21 WCI 521T073P21 Contact Us For Availability
1
PNL-BACKGUARD (LUSTERLOY) WCI 513T059F01 Contact Us For Availability
1
WCI 529T092F08-23 WCI 529T092F08-23 Contact Us For Availability
1
WCI 529T092F10-08 WCI 529T092F10-08 Contact Us For Availability
1
WCI 709T034501 WCI 709T034501 Contact Us For Availability
1
WCI 205T007W01-18 WCI 205T007W01-18 Contact Us For Availability
1
LINER (CHAR GRAY PORC W/ FLECK) WCI 381T086W02-89 Contact Us For Availability
1A
SCREW TERMINAL BLOCK MTG (4) WCI 636T089P05 Contact Us For Availability
2
SHIELD-SWITCH COVER (2) WCI 655T128F03 Contact Us For Availability
2
NAME PLATE (TAPPEN) WCI 473T066P01 Contact Us For Availability
2
TRIM-TOP L.H. (OPTIONAL) WCI 740T430W01 Contact Us For Availability
2
WCI 3051360 WCI 3051360 Contact Us For Availability
2
WCI 517T003W34-18 WCI 517T003W34-18 Contact Us For Availability
2
SCREW HANDLE MTG (2) WCI 636T002D18 Contact Us For Availability
2
SPRING-OVEN DOOR (L & R) (2) WCI 675T041P01 Contact Us For Availability
3
SWITCH-TOP ELEMENTS (4) WCI 699T015P02 Contact Us For Availability
3
CAP - END LH WCI 123T037F02 Contact Us For Availability
3
TRIM-TOP R.H. (OPTIONAL) WCI 740T430W02 Contact Us For Availability
3
HANDLE WCI 296T081P02 Contact Us For Availability
3
FASTENER-NUT NYLON 1/16 (5) WCI 241T017P174 Contact Us For Availability
3
SCREW BODY PNL MTG WCI 636T066P06 Contact Us For Availability
4
SWITCH-SELEC (5 POS) WCI 697T029P06 Contact Us For Availability
4
CLIP-TOP RETAINER WCI 145T069F01 Contact Us For Availability
4
WCI 106T027P02 WCI 106T027P02 Contact Us For Availability
4
GLASS-INNER WCI 276T088P01 Contact Us For Availability
5
THERMOSTAT OVEN WCI 720T031P01 Contact Us For Availability
5
SPACER HANDLE WCI 789T053P12 Contact Us For Availability
5
SHIELD, WOOL WCI 655T303F03 Contact Us For Availability
5
CAM-OVEN DOOR (L.H.) WCI 117T013S07 Contact Us For Availability
5
CAM-OVEN DOOR (R.H.) WCI 117T013S08 Contact Us For Availability
6
SWITCH-OVEN LIGHT WCI 695T164P04 Contact Us For Availability
6
WCI 280T047P01 WCI 280T047P01 Contact Us For Availability
6
FASTENER-SPACER (NYLON 9/16``) WCI 241T017P221 Contact Us For Availability
6A
INSUL. WOOL 2 X 16 1/4 X 28``) (NON-ILLUSTRAT WCI 328T049P29 Contact Us For Availability
7
WASHER, SPRING (LIGHT SWITCH) WCI 789T053P39 Contact Us For Availability
7
SUPPORT-BROILER ELEMENT WCI 694T060P01 Contact Us For Availability
7
GLIDE-DR. (REAR) (2) WCI 280T031P02 Contact Us For Availability
7
FASTENER-SPACER (NYLON 11/16) (3) WCI 241T017P220 Contact Us For Availability
7
SOCKET-OVEN LIGHT WCI 662T012P03 Contact Us For Availability
8
WCI 045T046P03 WCI 045T046P03 Contact Us For Availability
8
CHANNEL-DR. GL. (2) WCI 136T172F02 Contact Us For Availability
8
SPACER-HANDLE (TUBE) (2) WCI 665T131P03 Contact Us For Availability
9
WCI 148T180P02 WCI 148T180P02 Contact Us For Availability
9
WCI 221T011P10 WCI 221T011P10 Contact Us For Availability
9
GLASS-INNER (HEAT BARRIER) WCI 276T088P05 Contact Us For Availability
9
SHIELD-LIGHT WCI 655T327F01 Contact Us For Availability
10
WCI 177T011P02 WCI 177T011P02 Contact Us For Availability
10
SLEEVE-BUMPER WCI 660T015P02 Contact Us For Availability
10
WCI 072T684F01 WCI 072T684F01 Contact Us For Availability
10
WCI 058T035F02-89 WCI 058T035F02-89 Contact Us For Availability
10A
SCREW BKRT MTG (4) (NON-ILLUSTRATED) WCI 636T090P47 Contact Us For Availability
11
WCI 045T051P01 WCI 045T051P01 Contact Us For Availability
11
GLASS-FULL BLACK WCI 276T098P02 Contact Us For Availability
11
SHIELD-WOOL (LOWER) WCI 655T119F03-18 Contact Us For Availability
12
WCI 358T038P01 WCI 358T038P01 Contact Us For Availability
12
TRIM-FRAME WCI 740T483P02 Contact Us For Availability
12
WCI 750T208W06 WCI 750T208W06 Contact Us For Availability
13
TRIM, SPACER WCI 740T414P01 Contact Us For Availability
13
HANDLE WCI 296T026P05 Contact Us For Availability
13
RACK, OVEN (2) WCI 591T073P01 Contact Us For Availability
13A
SCREW TRIM MTG (5) (NON-ILLUSTRATED) WCI 636T100P03 Contact Us For Availability
14
KNOB-THERMOSTAT WCI 358T141P05 Contact Us For Availability
14
WCI 665T140P02 WCI 665T140P02 Contact Us For Availability
14
SEAL-OVEN DOOR (TOP BTM.) (2) WCI 647T081P02 Contact Us For Availability
15
WCI 358T141P06 WCI 358T141P06 Contact Us For Availability
15
SEAL-OVEN DOOR (SIDES) WCI 647T081P01 Contact Us For Availability
16
INDICATOR LIGHT OVEN & SWITCH WCI 318T015P01 Contact Us For Availability
16
PNL. BODY (L&R) (ALMOND) (2) WCI 515T032F06-23 Contact Us For Availability
17
KNOB-TOP ELEMENT SWITCH WCI 358T141P04 Contact Us For Availability
17
GLIDE, MAIN TOP (2) WCI 280T028P02 Contact Us For Availability
18
SCREW-GUIDE (BODY PNL. TO MAIN BASE) (2) WCI 636T071P01 Contact Us For Availability
19
SCREW MAIN TOP CLIP WCI 636T083P01 Contact Us For Availability
20
BURNER BOX (CHARC GRAY PROC W/F) WCI 095T029W02-89 Contact Us For Availability
21
CHANNEL-COVER WCI 136T143F03 Contact Us For Availability
22
CHANNEL, WIRE WCI 136T142F01-18 Contact Us For Availability
23
WCI 021T020F02 WCI 021T020F02 Contact Us For Availability
23A
SCREW BACK TO BASE (6) WCI 636T135P01 Contact Us For Availability
24
SHIELD-WIRE REAR WCI 655T129F01 Contact Us For Availability
24A
SCREW SHIELD MTG (2) (NON-ILLUSTRATED) WCI 636T069P07 Contact Us For Availability
25A
SCREW TERMINAL BLOCK MTG (27) (NON-ILLUSTRATE WCI 636T069P02 Contact Us For Availability
25B
NUT BRASS WIRES TO TERMINAL BOX (6) (NON-ILLU WCI 479T069P34 Contact Us For Availability
25D
GRND. STRAP (TERM. BLOCK) (NON-ILLUSTRATED) WCI 711T048P01 Contact Us For Availability
25E
WCI 636T098P19 WCI 636T098P19 Contact Us For Availability
26
WCI 008T230W03-18 WCI 008T230W03-18 Contact Us For Availability
27
WCI 036T050W01-18 WCI 036T050W01-18 Contact Us For Availability
28
FASTENER-LEVELING WCI 241T017P10 Contact Us For Availability
29
WCI 636M004P01 WCI 636M004P01 Contact Us For Availability
30
WCI 241T017P02 WCI 241T017P02 Contact Us For Availability
31
WCI 241T003P01 WCI 241T003P01 Contact Us For Availability
32
WCI 711T047P03 WCI 711T047P03 Contact Us For Availability
33
WCI 319T011F02-89 WCI 319T011F02-89 Contact Us For Availability
34
WCI 539T010F01-89 WCI 539T010F01-89 Contact Us For Availability
× ![]()
