Model Electrolux 37-1118-00-04 RANGE – Common Parts & Diagrams
02 - COOKTOP, BROILER AND BACKGUARD
03 - BACKGUARD

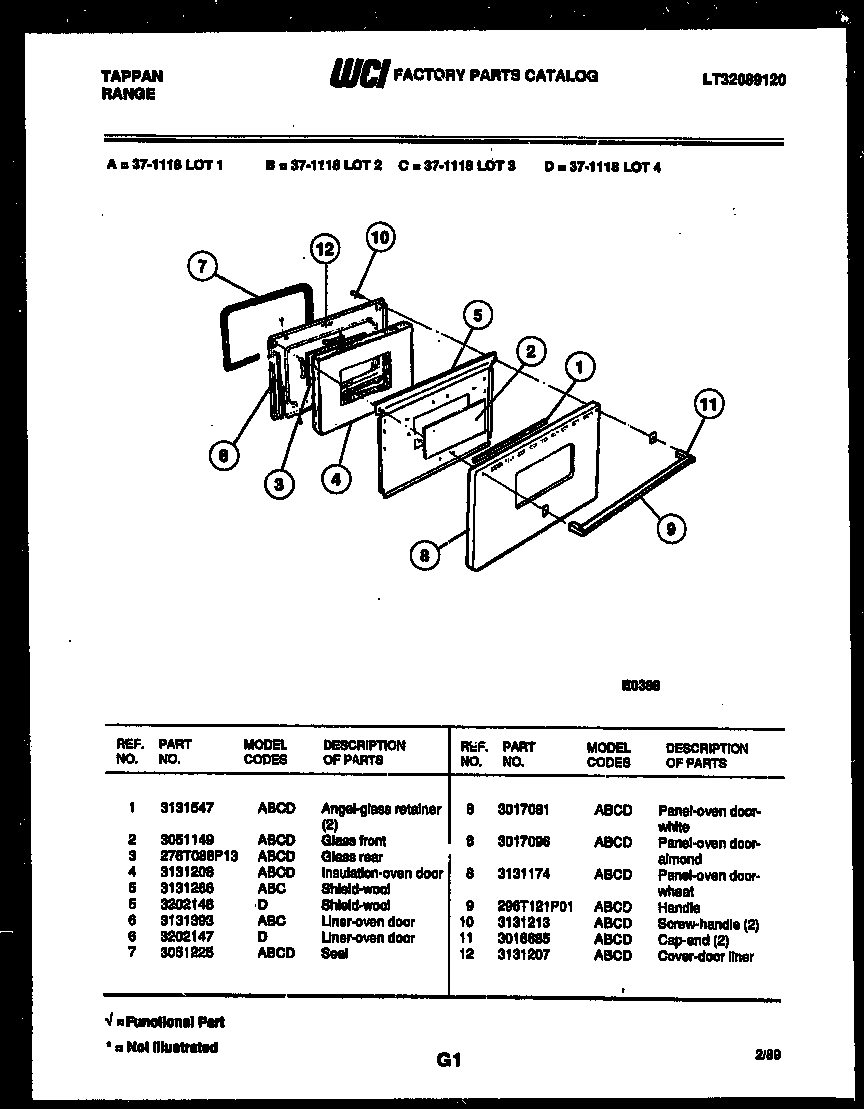

04 - DOOR PARTS

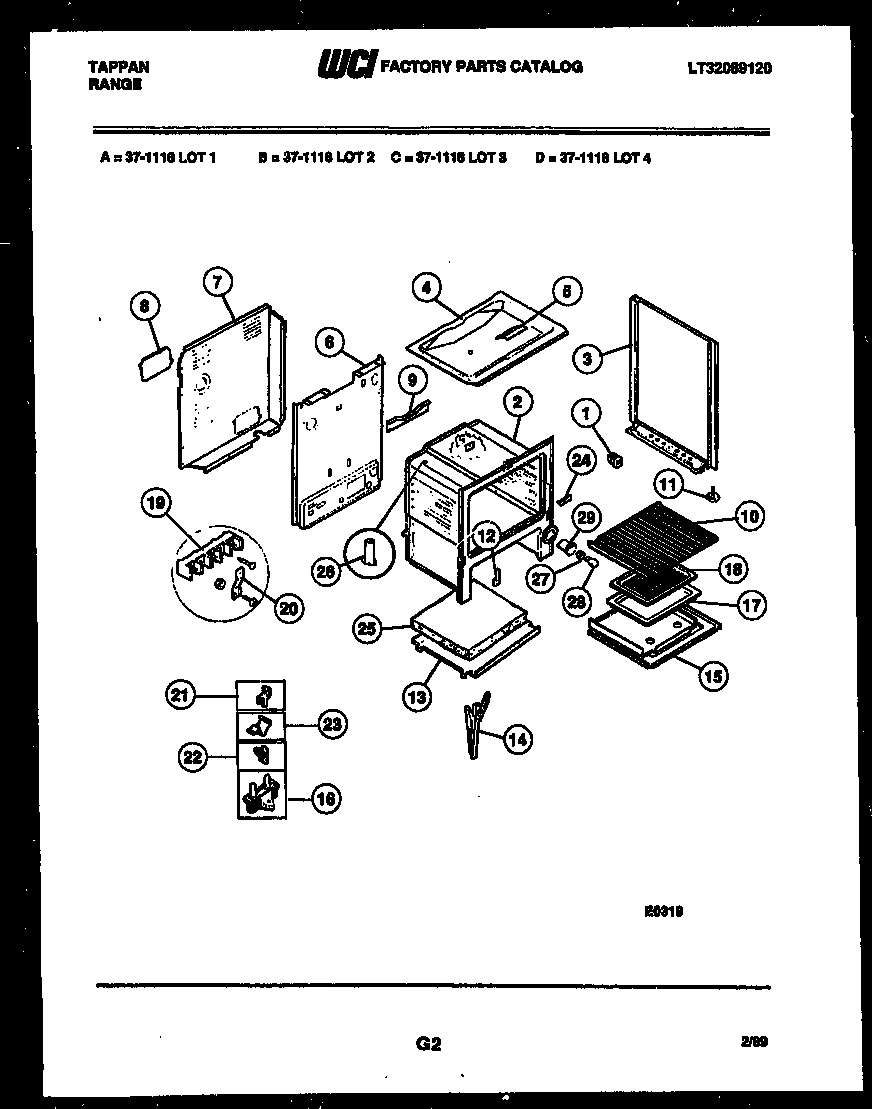

05 - BODY PARTS

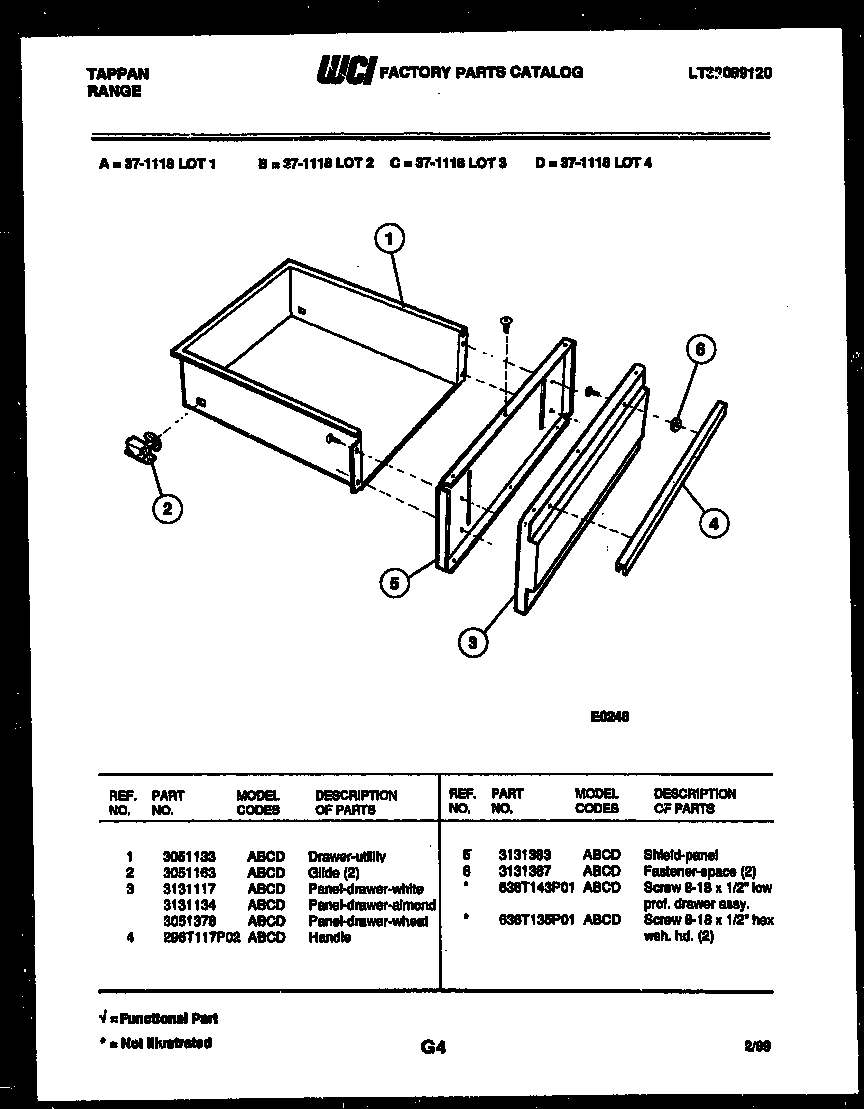

06 - DRAWER PARTS
Common parts from model Electrolux 37-1118-00-04 RANGE
*67180
FASTENER-TWIST NUT (2) WCI 241T017P243 Contact Us For Availability
*67229
WCI 636T135P01 WCI 636T135P01 Contact Us For Availability
1
WCI 3051113 WCI 3051113 Contact Us For Availability
1
ANGEL-GLASS RETAINER (2) WCI 3131547 Contact Us For Availability
1
SPACER, BODYSIDE (8) WCI 665T188P02 Contact Us For Availability
1
DRAWER, UTILITY WCI 3051133 Contact Us For Availability
2
WCI 3051149 WCI 3051149 Contact Us For Availability
3
CAP-END (RH) WCI 3051137 Contact Us For Availability
3
WCI 276T088P13 WCI 276T088P13 Contact Us For Availability
3
PANEL, BODYSIDE (LH) WHITE WCI 3200792 Contact Us For Availability
3
WCI 3131117 WCI 3131117 Contact Us For Availability
3A
PANEL, BODYSIDE (RH) WHITE WCI 3200789 Contact Us For Availability
4
WCI 445T006P01 WCI 445T006P01 Contact Us For Availability
4
WCI 3051193 WCI 3051193 Contact Us For Availability
4
INSULATION, OVEN DOOR WCI 3131208 Contact Us For Availability
4
WCI 3051109 WCI 3051109 Contact Us For Availability
4
WCI 296T117P02 WCI 296T117P02 Contact Us For Availability
5
WCI 3017080 WCI 3017080 Contact Us For Availability
5
WCI 3202148 WCI 3202148 Contact Us For Availability
5
WCI 3131101 WCI 3131101 Contact Us For Availability
5
WCI 3131383 WCI 3131383 Contact Us For Availability
6
BRACKET, HINGE, LH WCI 3131286 Contact Us For Availability
6
WCI 3202147 WCI 3202147 Contact Us For Availability
6
WCI 3131567 WCI 3131567 Contact Us For Availability
6
FASTENER-SPACE (2) WCI 3131387 Contact Us For Availability
6A
BRACKET, HINGE, RH WCI 3131287 Contact Us For Availability
7
TOP SUPPORT ROD (2) WCI 618T038P05 Contact Us For Availability
7
WCI 3051400 WCI 3051400 Contact Us For Availability
8
WCI 3016750 WCI 3016750 Contact Us For Availability
8
PANEL, OVEN DOOR, WHITE WCI 3017081 Contact Us For Availability
8
WCI 3051369 WCI 3051369 Contact Us For Availability
9
PLATE-INST MOUNTING WCI 3051508 Contact Us For Availability
9
WCI 296T121P01 WCI 296T121P01 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
10
EXTRUSS-HEAT SHIELD WCI 3051145 Contact Us For Availability
10
WCI 3131213 WCI 3131213 Contact Us For Availability
11
WCI 699T015P02 WCI 699T015P02 Contact Us For Availability
11
SCREW, LEVEL (4) WCI 636M004P01 Contact Us For Availability
12
COVER-HINGE CUTOUT (2) WCI 3131570 Contact Us For Availability
12
WCI 3051321 WCI 3051321 Contact Us For Availability
12
COVER, DOOR LINER WCI 3131207 Contact Us For Availability
13
WCI 3016812 WCI 3016812 Contact Us For Availability
13
WCI 3200825 WCI 3200825 Contact Us For Availability
14
KNOB-CONTROL WCI 3016752 Contact Us For Availability
14
CHANNEL, DOOR HINGE (2) WCI 3131569 Contact Us For Availability
14A
WCI 3016753 WCI 3016753 Contact Us For Availability
14B
KNOB-SELECTOR-SWITCH WCI 3016754 Contact Us For Availability
15
LIGHT-INDICATOR 125V (2) WCI 318T023P11 Contact Us For Availability
15
WCI 3051104 WCI 3051104 Contact Us For Availability
15A
LIGHT-INDICATOR 250V WCI 318T023P12 Contact Us For Availability
16
JEWEL-INDICATOR (3) WCI 342T014P01 Contact Us For Availability
16
FUSE-THERM. CUTOUT WCI 3051147 Contact Us For Availability
17
ELEMENT, OVEN BAKE WCI 3051388 Contact Us For Availability
17
WCI 539T010F01-86 WCI 539T010F01-86 Contact Us For Availability
18
WCI 3131356 WCI 3131356 Contact Us For Availability
19A
RETAINER LENS (3) (NON-ILLUSTRATED) WCI 3051224 Contact Us For Availability
20
CLOCK WCI 3131655 Contact Us For Availability
20
WCI 711T048P01 WCI 711T048P01 Contact Us For Availability
21
WCI 3051314 WCI 3051314 Contact Us For Availability
22
WCI 3131336 WCI 3131336 Contact Us For Availability
23
KNOB-CLOCK WCI 3131472 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
24
COVER-FRONT MAIN WCI 3131548 Contact Us For Availability
26
WCI 3051344 WCI 3051344 Contact Us For Availability
27A
INSULATION-WRAP (NON-ILLUSTRATED) WCI 3131201 Contact Us For Availability
27B
INSULATION-BACK (NON-ILLUSTRATED) WCI 3131200 Contact Us For Availability
27D
SCREW-HINGE MTG (6) (NON-ILLUSTRATED) WCI 636T163P01 Contact Us For Availability
27E
NUT-HEX BRASS (6) (NON-ILLUSTRATED) WCI 479T069P41 Contact Us For Availability
29
TUBE-OVEN LIGHT WCI 3051343 Contact Us For Availability
× ![]()
