Model Electrolux 37-1117-00-01 RANGE – Common Parts & Diagrams

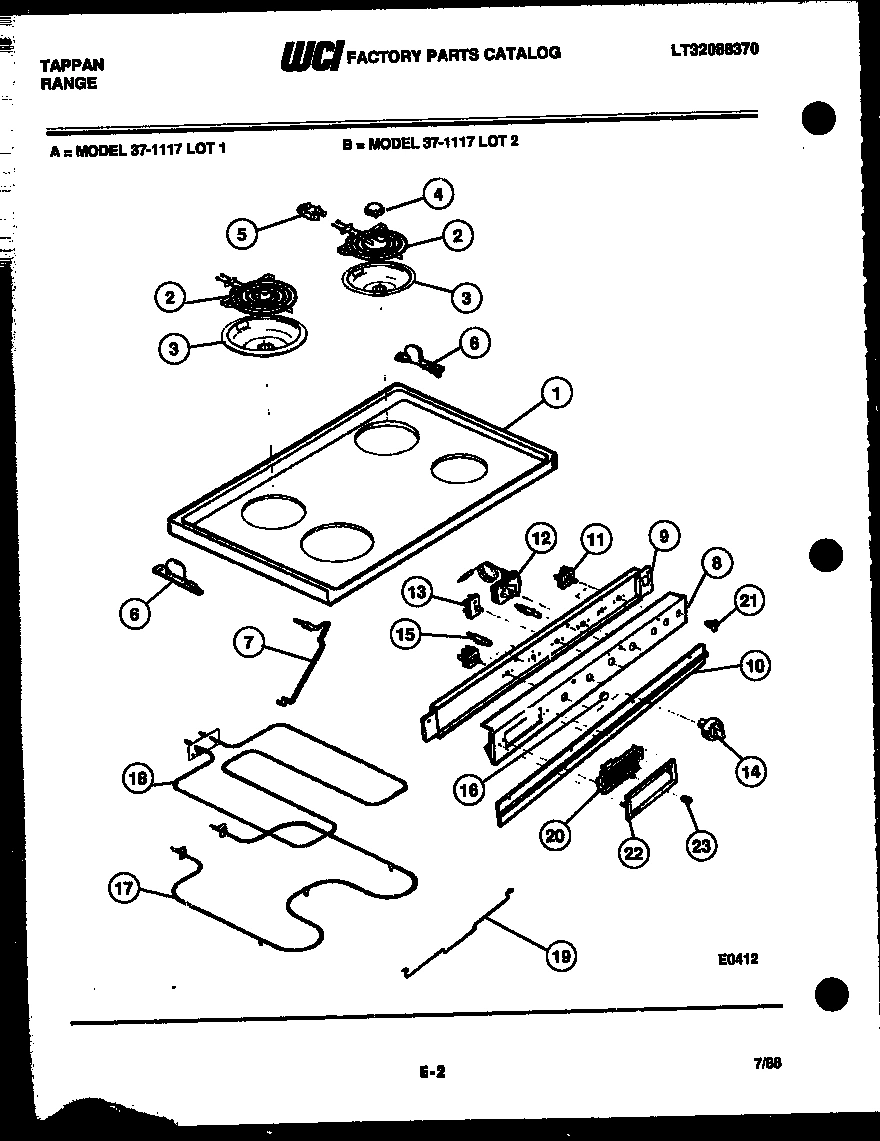

02 - COOKTOP, BROILER AND BACKGUARD

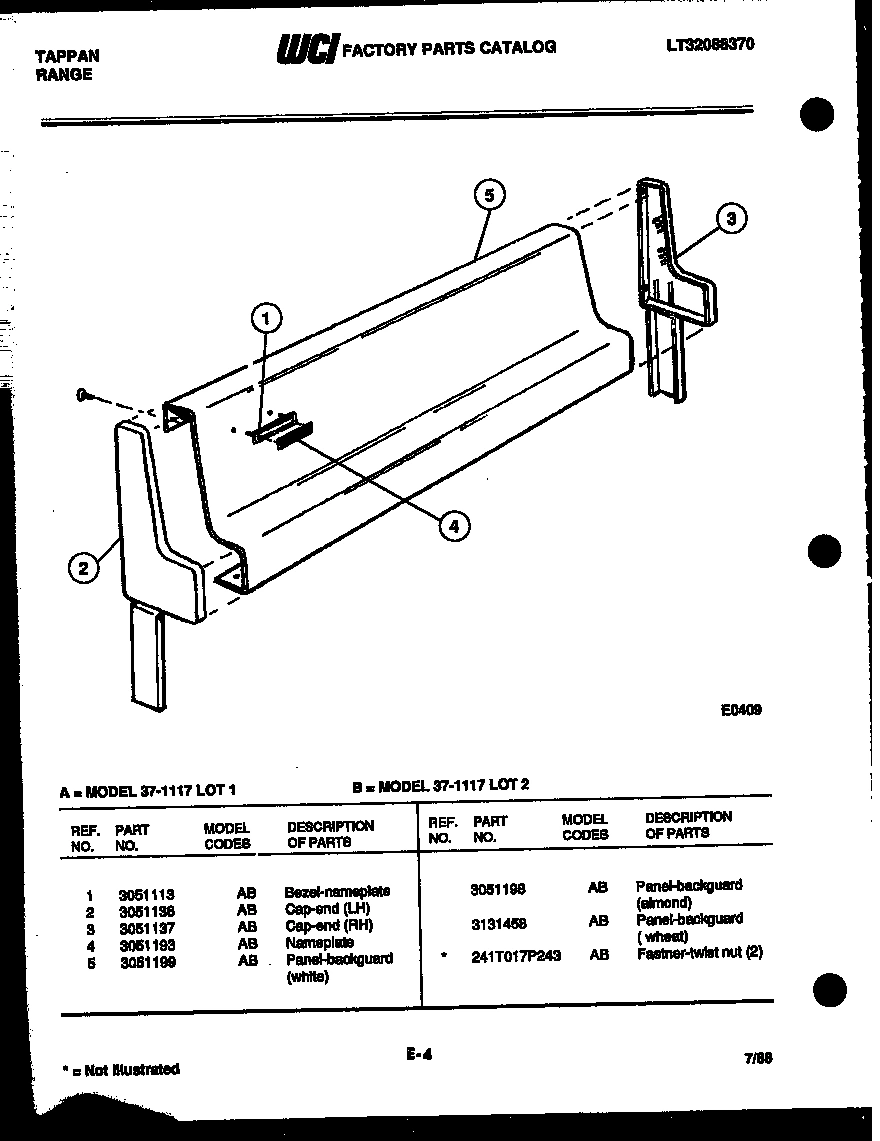

03 - BACKGUARD

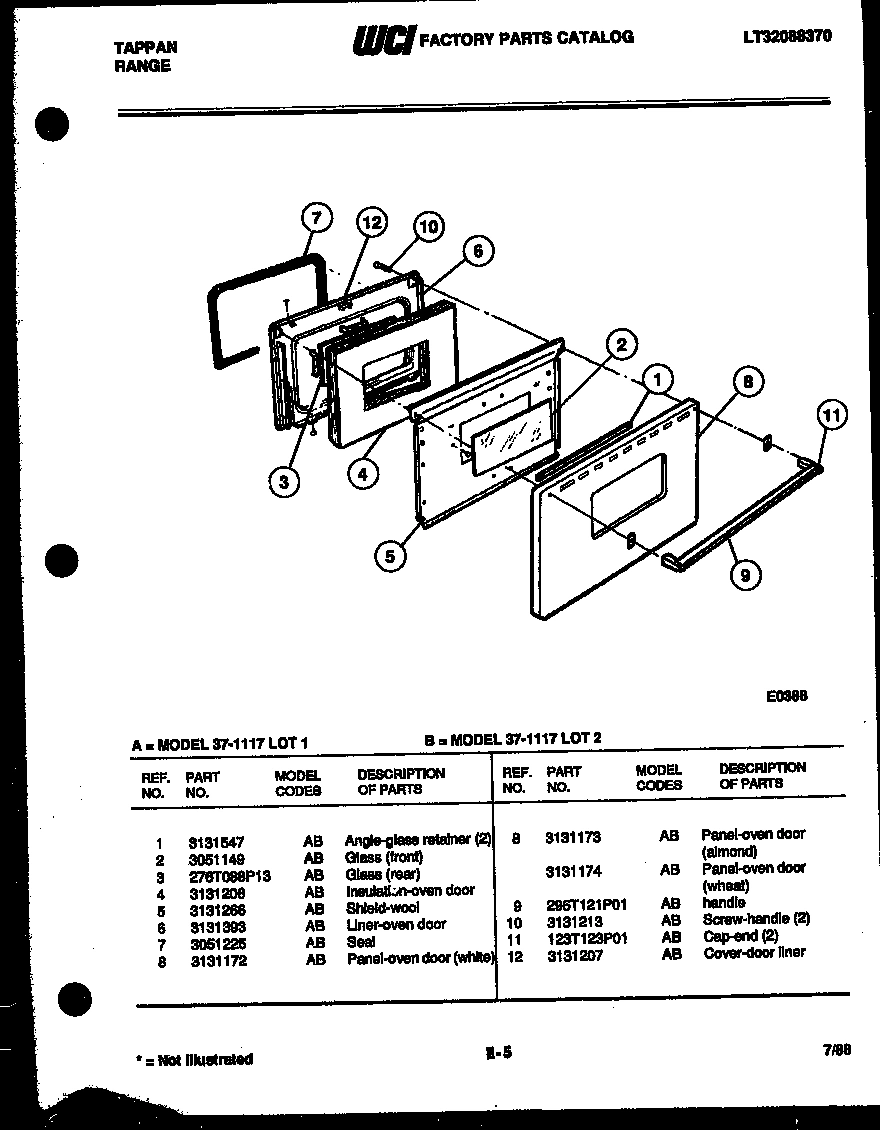

04 - DOOR PARTS

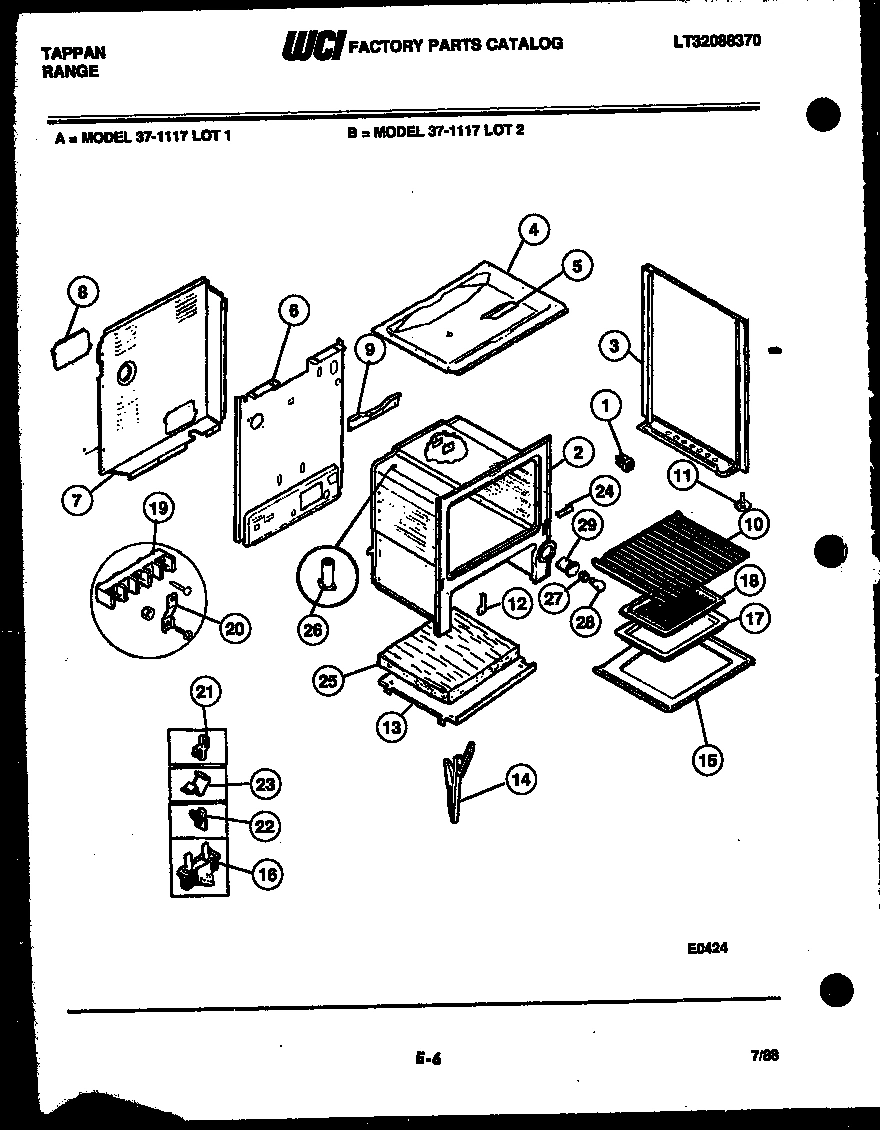

05 - BODY PARTS

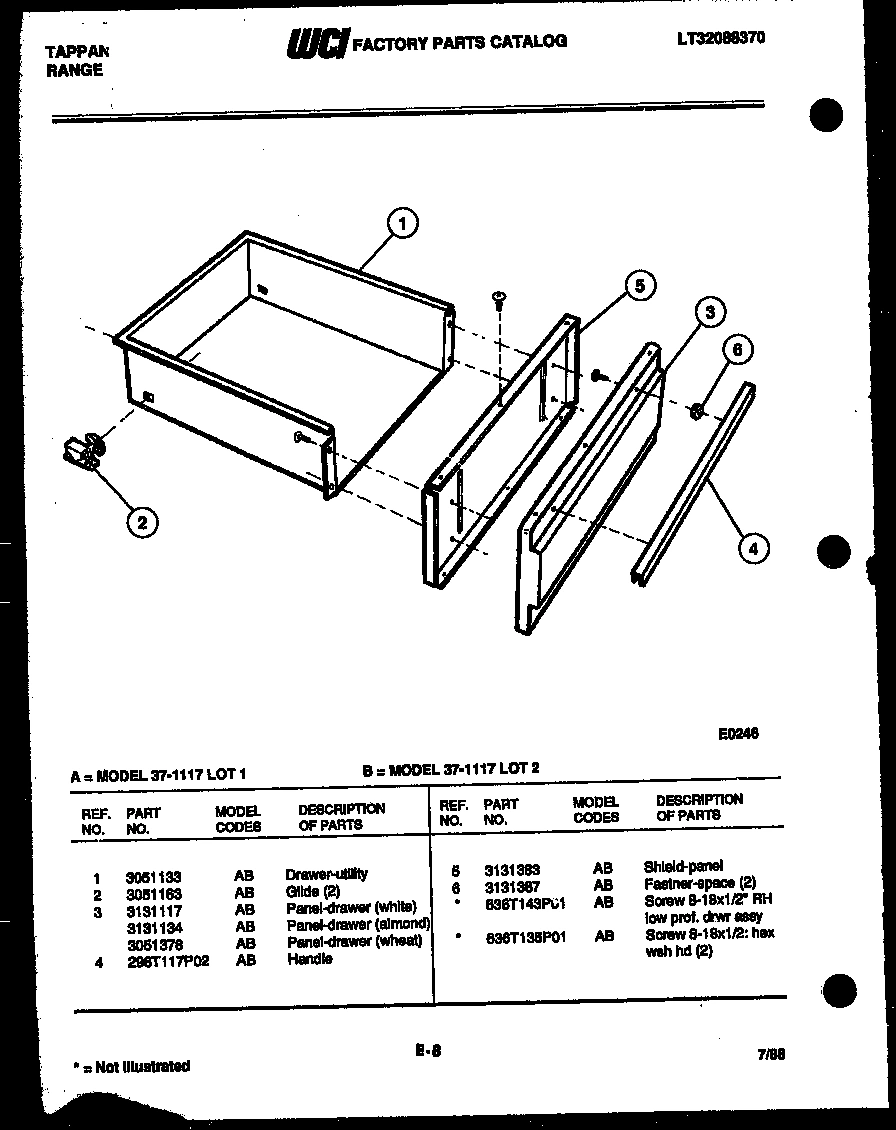

06 - DRAWER PARTS
Common parts from model Electrolux 37-1117-00-01 RANGE
*56966
WCI 241T017P243 WCI 241T017P243 Contact Us For Availability
*57007
WCI 636T135P01 WCI 636T135P01 Contact Us For Availability
1
WCI 3051113 WCI 3051113 Contact Us For Availability
1
ANGLE-GLASS RETAINER (2) WCI 3131547 Contact Us For Availability
1
SPACER, BODYSIDE (8) WCI 665T188P02 Contact Us For Availability
1
DRAWER, UTILITY WCI 3051133 Contact Us For Availability
2
CAP-END (LH) WCI 3051136 Contact Us For Availability
2
WCI 3051149 WCI 3051149 Contact Us For Availability
3
WCI 276T088P13 WCI 276T088P13 Contact Us For Availability
3
PANEL-BODYSIDE LH (WHITE) WCI 3131257 Contact Us For Availability
3
WCI 3131117 WCI 3131117 Contact Us For Availability
3A
CAP-END (RH) WCI 3051137 Contact Us For Availability
3A
PANEL-BODYSIDE RH (WHITE) WCI 3131227 Contact Us For Availability
4
WCI 445T006P01 WCI 445T006P01 Contact Us For Availability
4
WCI 3051193 WCI 3051193 Contact Us For Availability
4
INSULATION, OVEN DOOR WCI 3131208 Contact Us For Availability
4
WCI 3051109 WCI 3051109 Contact Us For Availability
4
WCI 296T117P02 WCI 296T117P02 Contact Us For Availability
5
PANEL-BACKGUARD, WHITE WCI 3051199 Contact Us For Availability
5
WCI 3131266 WCI 3131266 Contact Us For Availability
5
WCI 3131101 WCI 3131101 Contact Us For Availability
5
WCI 3131383 WCI 3131383 Contact Us For Availability
6
BRKT-HNGE - LH WCI 3131286 Contact Us For Availability
6
WCI 3131393 WCI 3131393 Contact Us For Availability
6
WCI 3131567 WCI 3131567 Contact Us For Availability
6
FASTNER-SPACE (2) WCI 3131387 Contact Us For Availability
6A
BRKT-HNGE RH WCI 3131287 Contact Us For Availability
7
WCI 618T03P05 WCI 618T03P05 Contact Us For Availability
7
WCI 3051400 WCI 3051400 Contact Us For Availability
8
WCI 3051208 WCI 3051208 Contact Us For Availability
8
PANEL-OVEN DOOR (WHITE) WCI 3131172 Contact Us For Availability
8
WCI 3051369 WCI 3051369 Contact Us For Availability
9
WCI 3051508 WCI 3051508 Contact Us For Availability
9
WCI 296T121P01 WCI 296T121P01 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
10
EXTRUS.-HEAT SHIELD WCI 3051145 Contact Us For Availability
10
WCI 3131213 WCI 3131213 Contact Us For Availability
11
WCI 699T015P02 WCI 699T015P02 Contact Us For Availability
11
SCREW, LEVEL (4) WCI 636M004P01 Contact Us For Availability
12
COVER HNG. CUTOUT (2) WCI 3131570 Contact Us For Availability
12
WCI 3051321 WCI 3051321 Contact Us For Availability
12
COVER, DOOR LINER WCI 3131207 Contact Us For Availability
13
WCI 3051317 WCI 3051317 Contact Us For Availability
13
WCI 3051398 WCI 3051398 Contact Us For Availability
14
WCI 3051173 WCI 3051173 Contact Us For Availability
14
CHANNEL, DOOR HINGE (2) WCI 3131569 Contact Us For Availability
14A
KNOB-THERMO. WCI 3051506 Contact Us For Availability
14B
KNOB-SEL. SW. WCI 3051505 Contact Us For Availability
15
LIGHT-INDIC. (125V) (2) WCI 318T023P11 Contact Us For Availability
15
WCI 3051104 WCI 3051104 Contact Us For Availability
15A
LIGHT-INDIC. (250V) WCI 318T023P12 Contact Us For Availability
16
JEWEL-IND. (3) WCI 342T014P01 Contact Us For Availability
16
FUSE-THERM. CUTOUT WCI 3051147 Contact Us For Availability
17
ELEMNT-OVEN BAKE WCI 3051388 Contact Us For Availability
17
WCI 539T010F01-86 WCI 539T010F01-86 Contact Us For Availability
18
WCI 3131356 WCI 3131356 Contact Us For Availability
19A
RETAINER LENS (3) (NON-ILLUSTRATED) WCI 3051224 Contact Us For Availability
20
CLOCK WCI 3131655 Contact Us For Availability
20
WCI 711T048P01 WCI 711T048P01 Contact Us For Availability
21
WCI 3051314 WCI 3051314 Contact Us For Availability
22
WCI 3051114 WCI 3051114 Contact Us For Availability
23
WCI 358T201P01 WCI 358T201P01 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
24
COVER-FRONT MAIN WCI 3131548 Contact Us For Availability
26
WCI 3051344 WCI 3051344 Contact Us For Availability
27A
INSULATION-WRAP (NON-ILLUSTRATED) WCI 3131201 Contact Us For Availability
27B
INSULATION-BACK (NON-ILLUSTRATED) WCI 3131200 Contact Us For Availability
27D
SCREW (HNG MTG) (6) WCI 636T163P01 Contact Us For Availability
27E
NUT-HEX BRASS (6) (NON-ILLUSTRATED) WCI 479T069P41 Contact Us For Availability
29
TUBE-OVEN LIGHT WCI 3051343 Contact Us For Availability
× ![]()
