Model Electrolux 37-1042-23-05 RANGE – Common Parts & Diagrams
02 - BODY

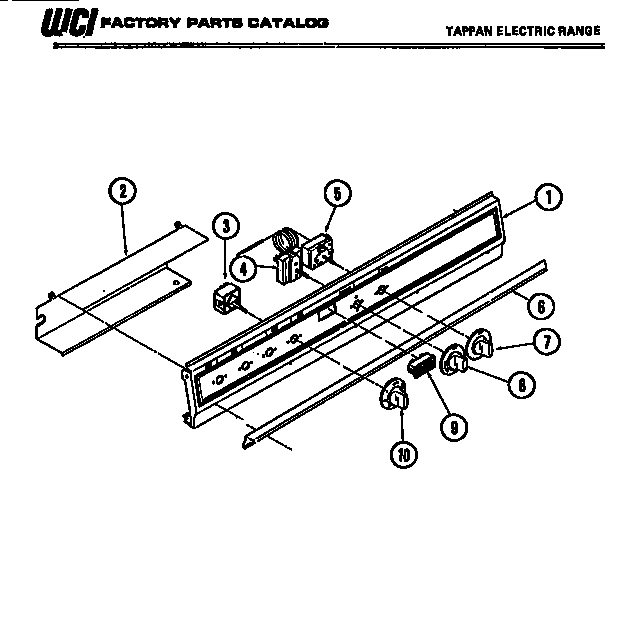

03 - CONTROL PANEL

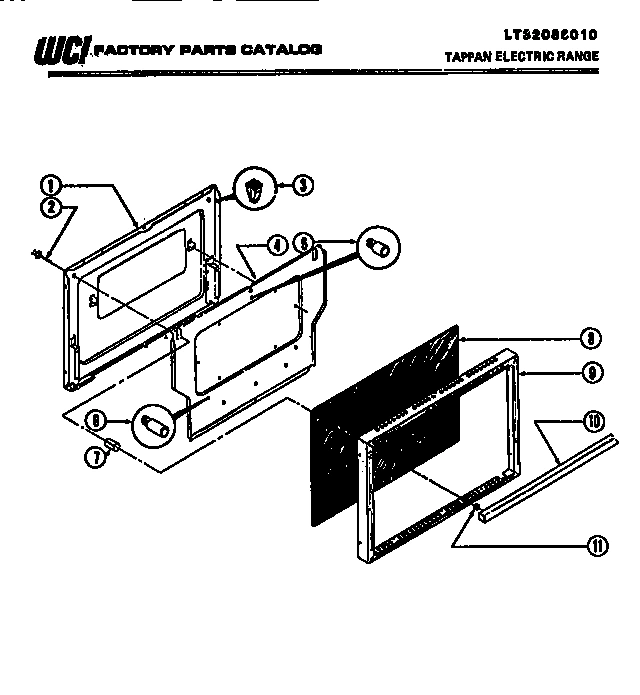

04 - DOOR

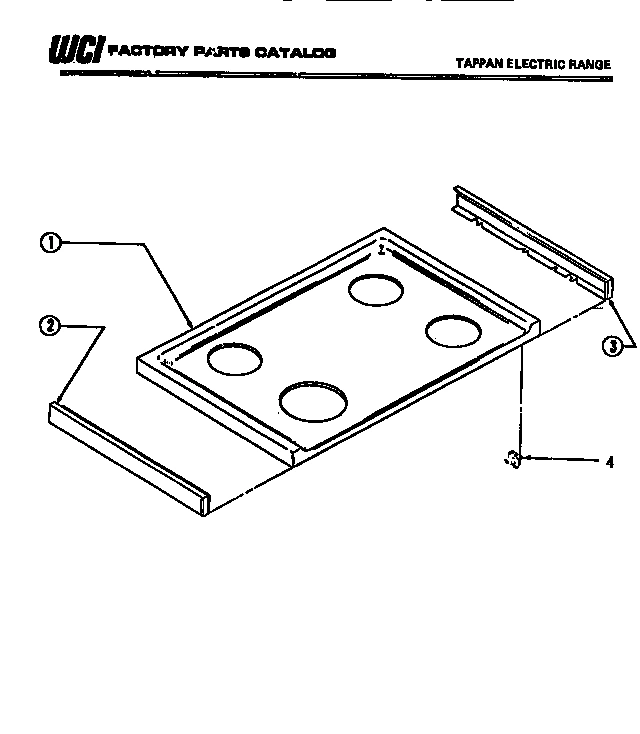

05 - TOP

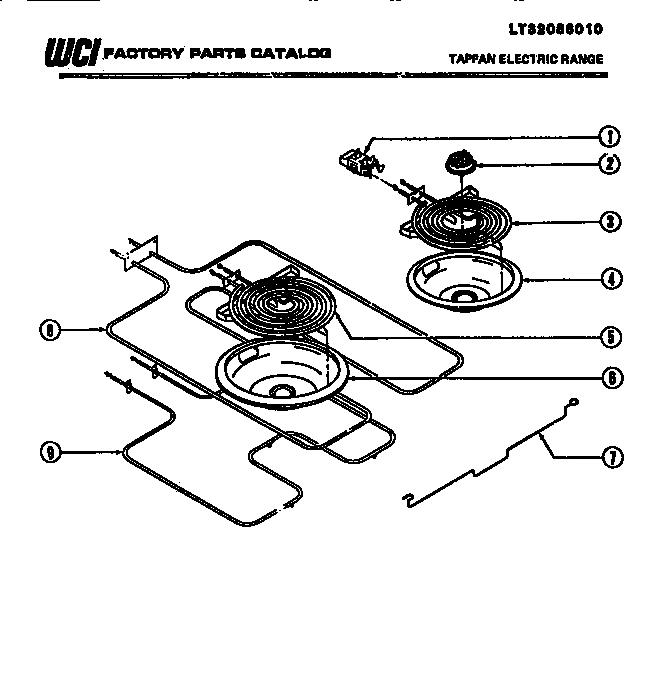

06 - BURNERS, DRIP PANS, ELEMENTS

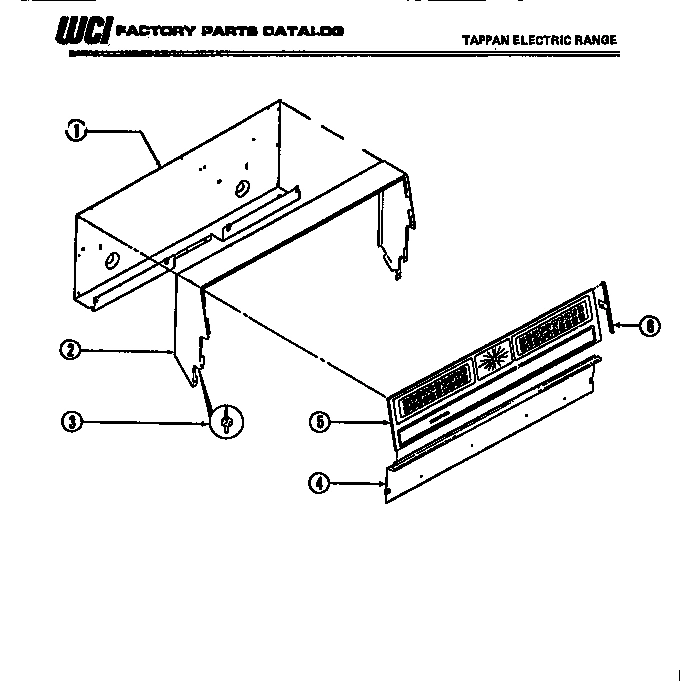

07 - BACKGUARD
Common parts from model Electrolux 37-1042-23-05 RANGE
1
PANEL CONT. WCI 521T073P20 Contact Us For Availability
1
LINER (DRK BLUE) WCI 381T086W01-86 Contact Us For Availability
1
PNL TOP, WHITE WCI 529T092F07-00 Contact Us For Availability
1
PNL TOP, ALMD WCI 529T092F07-23 Contact Us For Availability
1
WCI 511T040F10-18 WCI 511T040F10-18 Contact Us For Availability
1A
SCREW, LINER TO SHIELD (2) (NON-ILLUSTRATED) WCI 636T090P47 Contact Us For Availability
1A
SCREW (4) (NON-ILLUSTRATED) WCI 636T089P05 Contact Us For Availability
1B
SCREW PNL MTG (7) (NON-ILLUSTRATED) WCI 636T140P01 Contact Us For Availability
2
SPRING, WVN DR (2) WCI 675T041P01 Contact Us For Availability
2
WCI 655T128F03 WCI 655T128F03 Contact Us For Availability
2
SCREW HNDL MTG (2) WCI 636T138P05 Contact Us For Availability
2
TRIM, TOP LH (OPT.) WCI 740T430W01 Contact Us For Availability
2
WCI 3051358 WCI 3051358 Contact Us For Availability
2
TRIM, BKGRD FRAME WCI 740T234F08 Contact Us For Availability
2A
SCREW SHIELD MTG. (4) (NON-ILLUSTRATED) WCI 636T069P07 Contact Us For Availability
2A
WASH. HNDL SCREW (2) WCI 789T053P42 Contact Us For Availability
3
SCREW, BDY MTG (2) WCI 636T066P06 Contact Us For Availability
3
SCREW, GUIDE WCI 636T071P01 Contact Us For Availability
3
SWITCH TOP ELEM. (4) WCI 699T015P02 Contact Us For Availability
3
FASTEN. NUT (5) WCI 241T017P240 Contact Us For Availability
3
TRIM, TOP RH (OPT.) WCI 740T430W02 Contact Us For Availability
4
SW. SEL. (4 POS.) WCI 697T030P03 Contact Us For Availability
4
WCI 655T303F04 WCI 655T303F04 Contact Us For Availability
4
WCI 145T089F01 WCI 145T089F01 Contact Us For Availability
4
WCI 3051356 WCI 3051356 Contact Us For Availability
4A
CAM, OVN DR, LH WCI 117T013S13 Contact Us For Availability
4A
CAM, OVN DR, RH WCI 117T013S14 Contact Us For Availability
4A
INSUL. WOOL (NON-ILLUSTRATED) WCI 328T049P29 Contact Us For Availability
4A
SCREW (2) (NON-ILLUSTRATED) WCI 636T090P23 Contact Us For Availability
5
WCI 517T003W35-00 WCI 517T003W35-00 Contact Us For Availability
5
THERMO. OVEN WCI 720T031P01 Contact Us For Availability
5
FASTEN. SPACER WCI 241T017P221 Contact Us For Availability
5
BKGRD (GLASS) WCI 277T131P72 Contact Us For Availability
5A
WCI 517T003W35-23 WCI 517T003W35-23 Contact Us For Availability
6
TRIM, SPACER WCI 740T414P01 Contact Us For Availability
6
FASTEN., SPACER (3) WCI 241T017P220 Contact Us For Availability
6
TRIM, RETAINER GLASS END (2) WCI 740T239F01 Contact Us For Availability
6A
SCREW TRIM MTG (5) (NON-ILLUSTRATED) WCI 636T100P03 Contact Us For Availability
7
PLUG BUTTON WCI 557T021P12 Contact Us For Availability
7
WCI 350T141P05 WCI 350T141P05 Contact Us For Availability
7
SPCR, TUBE HNDL (2) WCI 665T131P02 Contact Us For Availability
7
SUPT BROIL. ELEMNT WCI 694T060P01 Contact Us For Availability
8
WCI 058T035F02-86 WCI 058T035F02-86 Contact Us For Availability
8
KNOB, SELEC. SW. WCI 358T141P08 Contact Us For Availability
8
GLASS, FULL BLOCK WCI 276T098P03 Contact Us For Availability
9
WCI 655T119F03-18 WCI 655T119F03-18 Contact Us For Availability
9
INDICATOR LIGHT WCI 318T015P01 Contact Us For Availability
9
TRIM, DOOR WCI 740T483P08 Contact Us For Availability
9
WCI 221T017P01 WCI 221T017P01 Contact Us For Availability
9A
SCREW, ELEM. MTG (NON-ILLUSTRATED) WCI 636T135P01 Contact Us For Availability
9B
SCREW TR. MTG (3) (NON-ILLUSTRATED) WCI 636T139P01 Contact Us For Availability
9B
WIRE HARN. SW. WCI 299T179P02 Contact Us For Availability
9C
KIT BAKE & BROIL EL. WIRE REPAIR WCI 355T558S01 Contact Us For Availability
10
WCI 750T217P03 WCI 750T217P03 Contact Us For Availability
10
KNOB, TOP ELMNT. SW. (4) WCI 358T141P04 Contact Us For Availability
10
HANDLE WCI 296T026P05 Contact Us For Availability
11
RACK, OVEN (2) WCI 591T073P02 Contact Us For Availability
11
SPACER, HNDL (2) WCI 665T140P02 Contact Us For Availability
13
SEAL OVEN DOOR SIDES (2) WCI 115T647P03 Contact Us For Availability
14
PNL, BODY, WHITE (2) WCI 515T032F08-00 Contact Us For Availability
14A
PNL, BODY, ALMD (2) WCI 515T032F08-23 Contact Us For Availability
15
GUIDE, MAIN TOP (2) WCI 280T028P02 Contact Us For Availability
17
SCREW, GUIDE WCI 636T083P01 Contact Us For Availability
18
BURNER BOX (DARK BLUE) WCI 095T029W20-86 Contact Us For Availability
19
CHANNEL, CVR WCI 136T143F03 Contact Us For Availability
20
CHANNEL, WIRE WCI 136T142F01-18 Contact Us For Availability
21
WCI 021T020F02 WCI 021T020F02 Contact Us For Availability
22
WCI 655T129F01 WCI 655T129F01 Contact Us For Availability
23A
SCREW TERM (2) (NON-ILLUSTRATED) WCI 636T069P02 Contact Us For Availability
23C
NUT, WIRE TO TERM, BLK (6) (NON-ILLUSTRATED) WCI 479T069P41 Contact Us For Availability
23D
GRND STRAP WCI 711T048P01 Contact Us For Availability
23E
SCREW BRND STRAP WCI 636T098P19 Contact Us For Availability
24
WCI 008T230W03-18 WCI 008T230W03-18 Contact Us For Availability
25
WCI 036T050W02-18 WCI 036T050W02-18 Contact Us For Availability
27
FASTEN, CLAMP (4) WCI 241T003P01 Contact Us For Availability
28
INSERT, BROIL. PAN, DARK BLUE WCI 319T011F03-86 Contact Us For Availability
29
PAN, BROIL. (DARK BLUE) WCI 539T010F01-86 Contact Us For Availability
30
FASTEN., LOCK WCI 241T017P238 Contact Us For Availability
31
CLAMP, CABLE (2) WCI 142T035P01 Contact Us For Availability
32
WCI 072T835F01 WCI 072T835F01 Contact Us For Availability
33
CVR. THERM. FUSE WCI 174T328F01 Contact Us For Availability
34
WCI 262T021P01 WCI 262T021P01 Contact Us For Availability
34A
INSUL. (2 1/2 X 18 X 24) OVEN BOTTOM (NON-IL WCI 328T015P100 Contact Us For Availability
34B
INSUL. (2 1/2 X 21 X 24) OVEN BOTTOM WCI 328T015P101 Contact Us For Availability
34C
INSUL. (2 1/2 X 19 X 62) TOP & SIDE (NON-ILL WCI 328T015P102 Contact Us For Availability
34D
TRIM, VERT.(OPT.) (NON-ILLUSTRATED) WCI 740T431F01 Contact Us For Availability
34E
TRIM, CNTR TOP LH (NON-ILLUSTRATED) WCI 740T365P02 Contact Us For Availability
34F
TRIM, CNTR TOP RH (NON-ILLUSTRATED) WCI 740T365P01 Contact Us For Availability
34G
CORD, SUPPLY (NON-ILLUSTRATED) WCI 171T013P02 Contact Us For Availability
34I
WCI 508T026P02 WCI 508T026P02 Contact Us For Availability
34J
WCI 560T691P131 WCI 560T691P131 Contact Us For Availability
× ![]()
