Model Electrolux 37-1039-00-04 RANGE – Common Parts & Diagrams

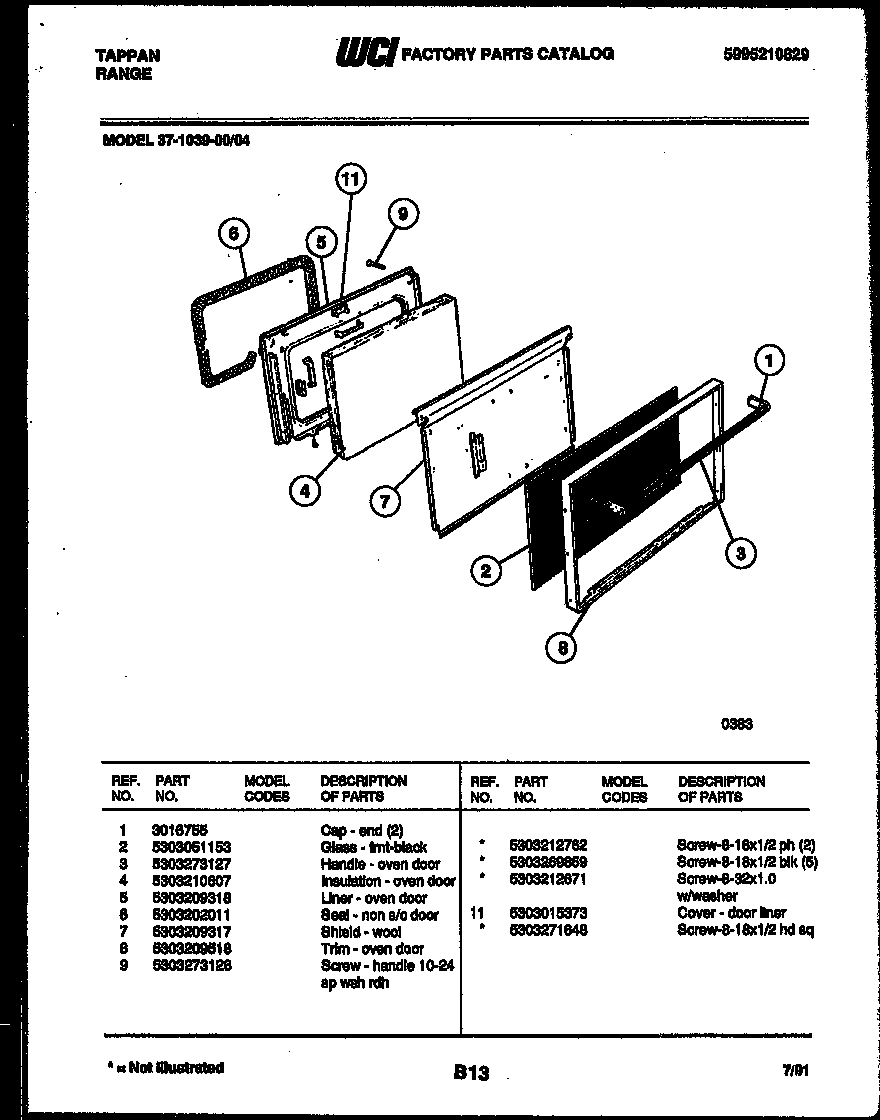

02 - DOOR PARTS

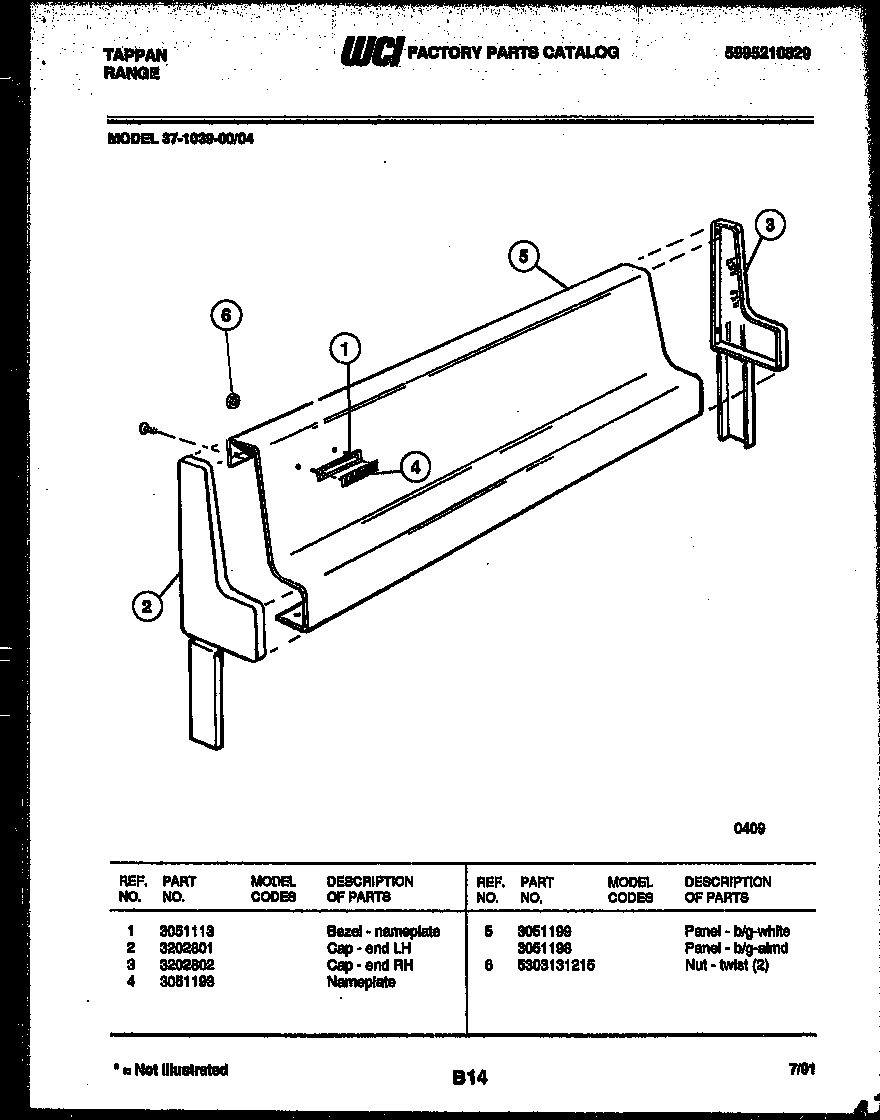

03 - BACKGUARD

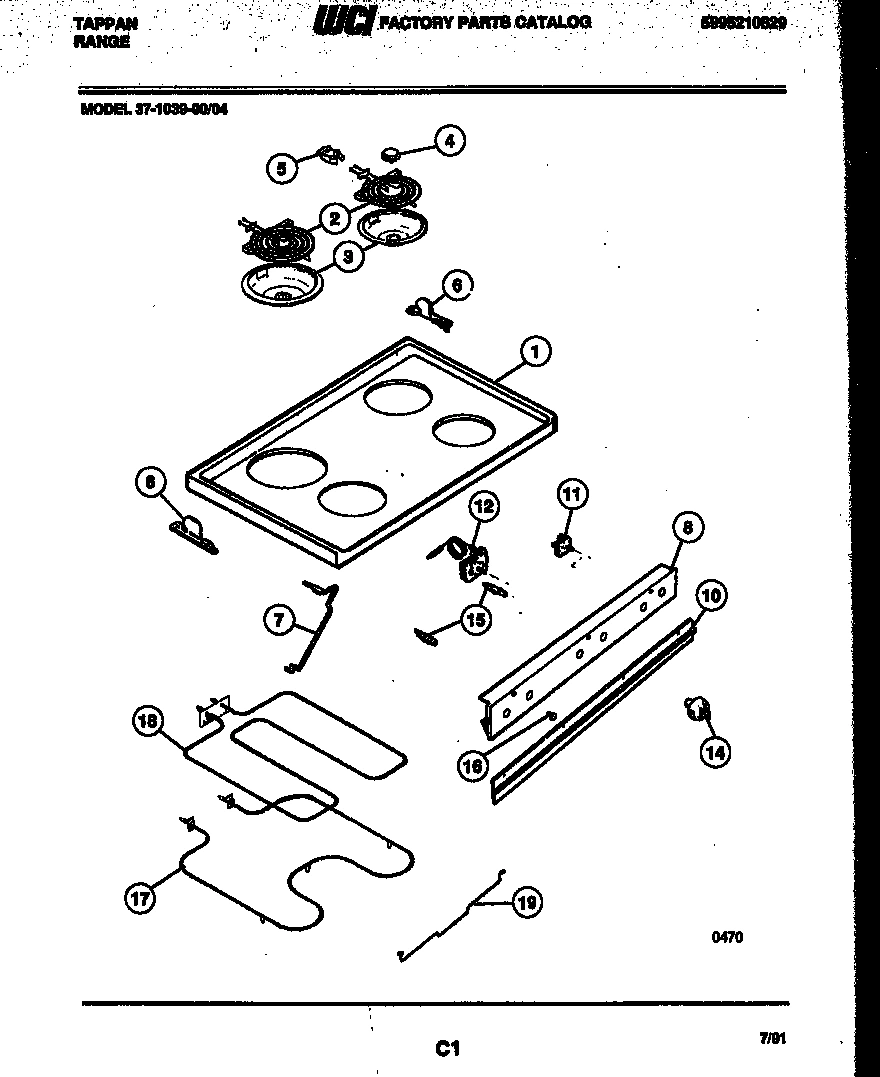

04 - COOKTOP AND BROILER PARTS

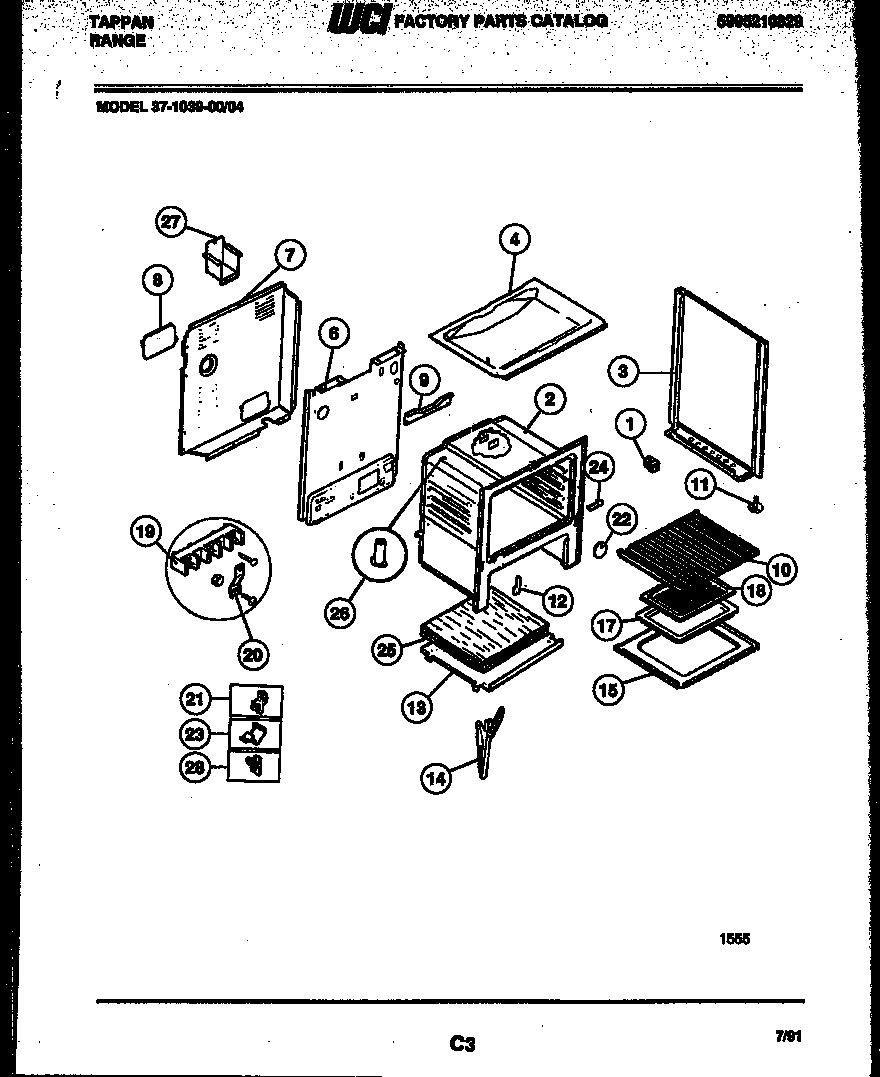

05 - BODY PARTS

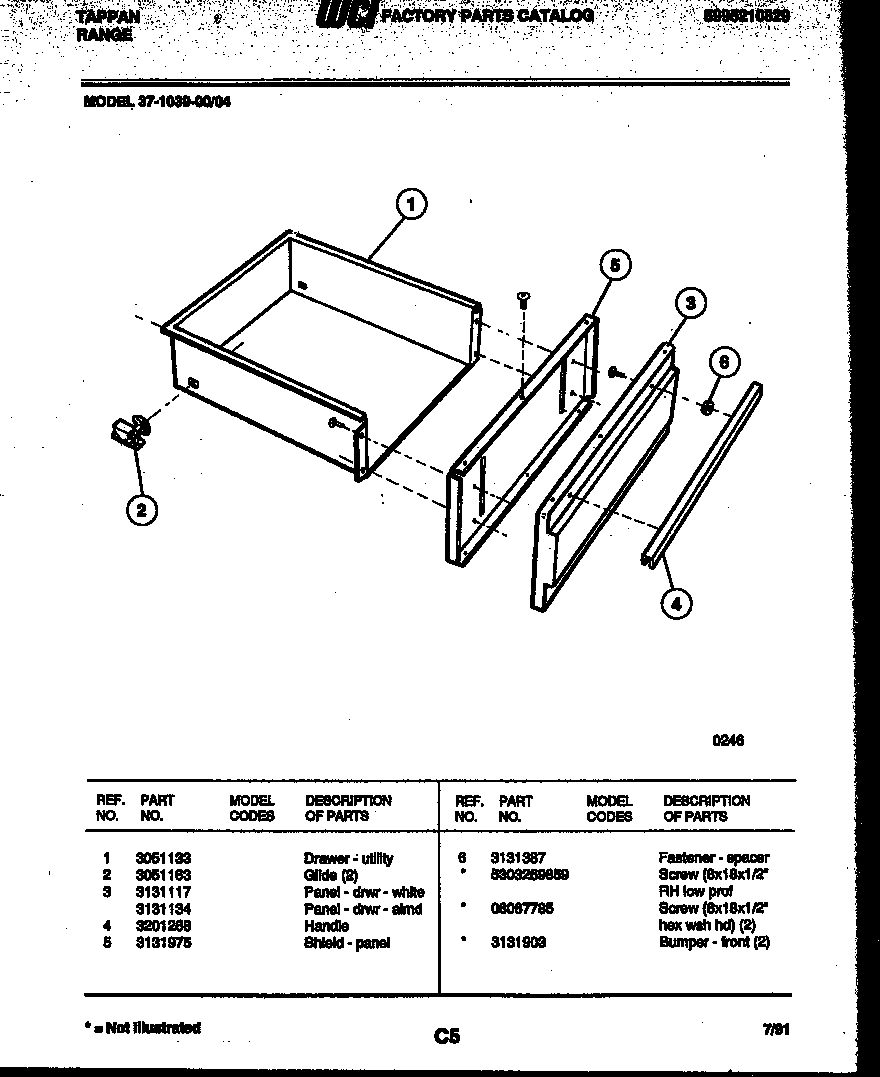

06 - DRAWER PARTS
Common parts from model Electrolux 37-1039-00-04 RANGE
*54924
WCI 19100210058 WCI 19100210058 Contact Us For Availability
*54924
ANTI-TIP KIT WCI 3934056 Contact Us For Availability
*54925
SCREW 8 X 18 X 1/2`` HEX WSH HD (2) WCI 08067785 Contact Us For Availability
*54925
SCREW (8 X 18 X 1/2`` RH LOW PROF WCI 5303269859 Contact Us For Availability
1
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
1
WCI 3051379 WCI 3051379 Contact Us For Availability
1
MAIN - TOP (ALMD) WCI 3051380 Contact Us For Availability
1
DRAWER, UTILITY WCI 3051133 Contact Us For Availability
2
CAP-END LH WCI 3202801 Contact Us For Availability
3
CAP-END RH WCI 3202802 Contact Us For Availability
3
PANEL-B/S-LH-WHITE WCI 5303269519 Contact Us For Availability
3
WCI 5303269545 WCI 5303269545 Contact Us For Availability
3
PANEL DRWR WHITE WCI 3131117 Contact Us For Availability
3
PANEL - DRWR (ALMD) WCI 3131134 Contact Us For Availability
3A
PANEL-B/S-RH-WHITE WCI 5303269518 Contact Us For Availability
3A
WCI 5303269543 WCI 5303269543 Contact Us For Availability
4
WCI 3017801 WCI 3017801 Contact Us For Availability
4
WCI 5303271756 WCI 5303271756 Contact Us For Availability
4
WCI 3201268 WCI 3201268 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
6
BRACKET - HG LH WCI 08067746 Contact Us For Availability
6
NUT-TWIST (2) WCI 5303131215 Contact Us For Availability
6
WCI 3203082 WCI 3203082 Contact Us For Availability
6
FASTENER, SPACER WCI 3131387 Contact Us For Availability
6A
BRACKET - HG RH WCI 08067747 Contact Us For Availability
7
ROD - TOP SPPT (2) WCI 5303271609 Contact Us For Availability
7
COVER - REAR WALL WCI 3203549 Contact Us For Availability
8
WCI 5303211419 WCI 5303211419 Contact Us For Availability
8
WCI 3203405 WCI 3203405 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
10
EXTRUSION - HT SHIELD WCI 3204623 Contact Us For Availability
11
SCREW-LEVEL (4) WCI 5303203397 Contact Us For Availability
12
COVER HNG. CUTOUT (2) WCI 3131570 Contact Us For Availability
12
WCI 5303210266 WCI 5303210266 Contact Us For Availability
13
WCI 3200825 WCI 3200825 Contact Us For Availability
14
WCI 5303210271 WCI 5303210271 Contact Us For Availability
14
CHANNEL-DR HNG (2) WCI 5303131569 Contact Us For Availability
14A
KNOB - THERMOSTAT WCI 5303210272 No Longer Available
15
LIGHT-IND 250 V (2) WCI 5303210270 Contact Us For Availability
15
WCI 3203540 WCI 3203540 Contact Us For Availability
16
JEWEL - INDICATOR WCI 3016821 Contact Us For Availability
17
WCI 5303013568 WCI 5303013568 Contact Us For Availability
18
WCI 5303131356 WCI 5303131356 Contact Us For Availability
20
WCI 5303212739 WCI 5303212739 Contact Us For Availability
22
WCI 3051218 WCI 3051218 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
24
WCI 5303015372 WCI 5303015372 Contact Us For Availability
26
WCI 3051344 WCI 3051344 Contact Us For Availability
26A
INSULATION, WRAP (NON-ILLUSTRATED) WCI 3017142 Contact Us For Availability
26B
WCI 3203541 WCI 3203541 Contact Us For Availability
26D
SCREW-10-32 X 5/16 BLK (NON-ILLUSTRATED) WCI 5303212740 Contact Us For Availability
27
WCI 3203582 WCI 3203582 Contact Us For Availability
27A
COVER-REAR WALL WCI 3051387 Contact Us For Availability
27B
BRKT-RANGE CABLE MTG (NON-ILLUSTRATED) WCI 5303206618 Contact Us For Availability
× ![]()
