Model Electrolux 37-1022-66-01 RANGE – Common Parts & Diagrams

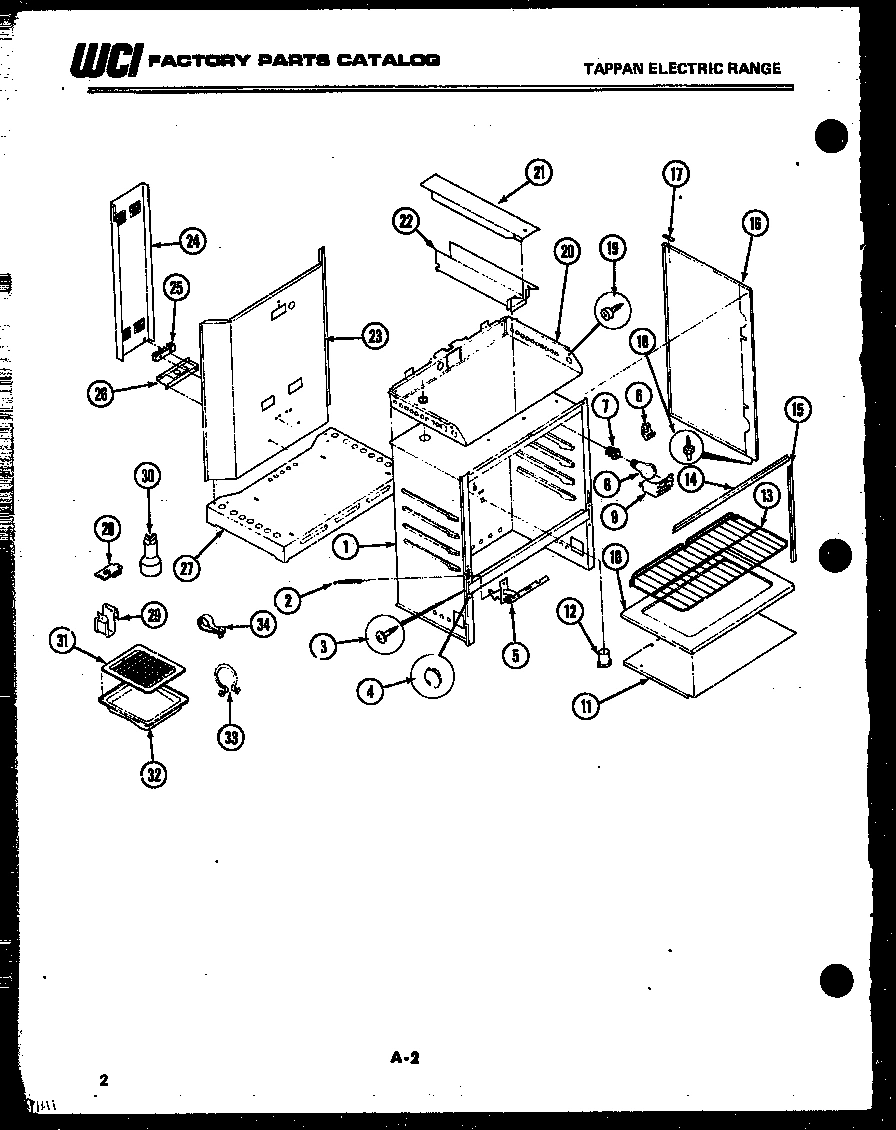

02 - BODY PARTS

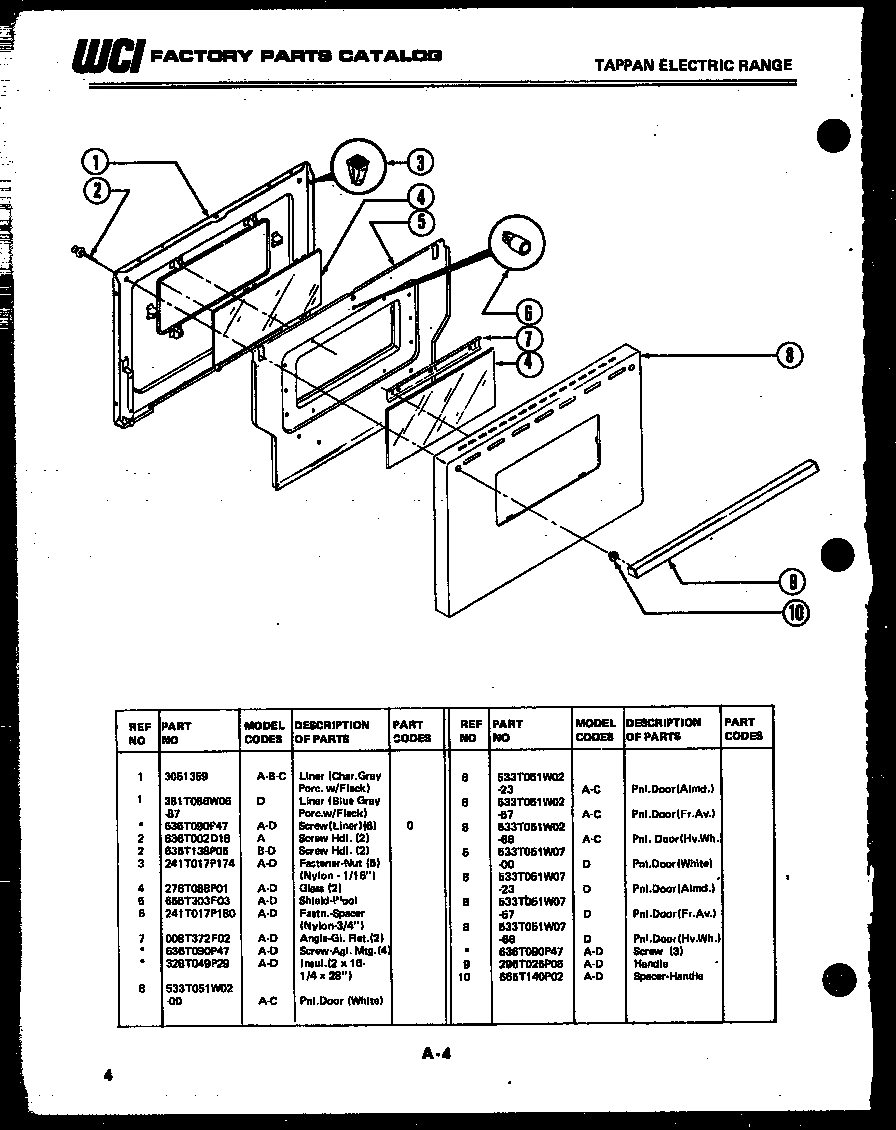

03 - DOOR PARTS

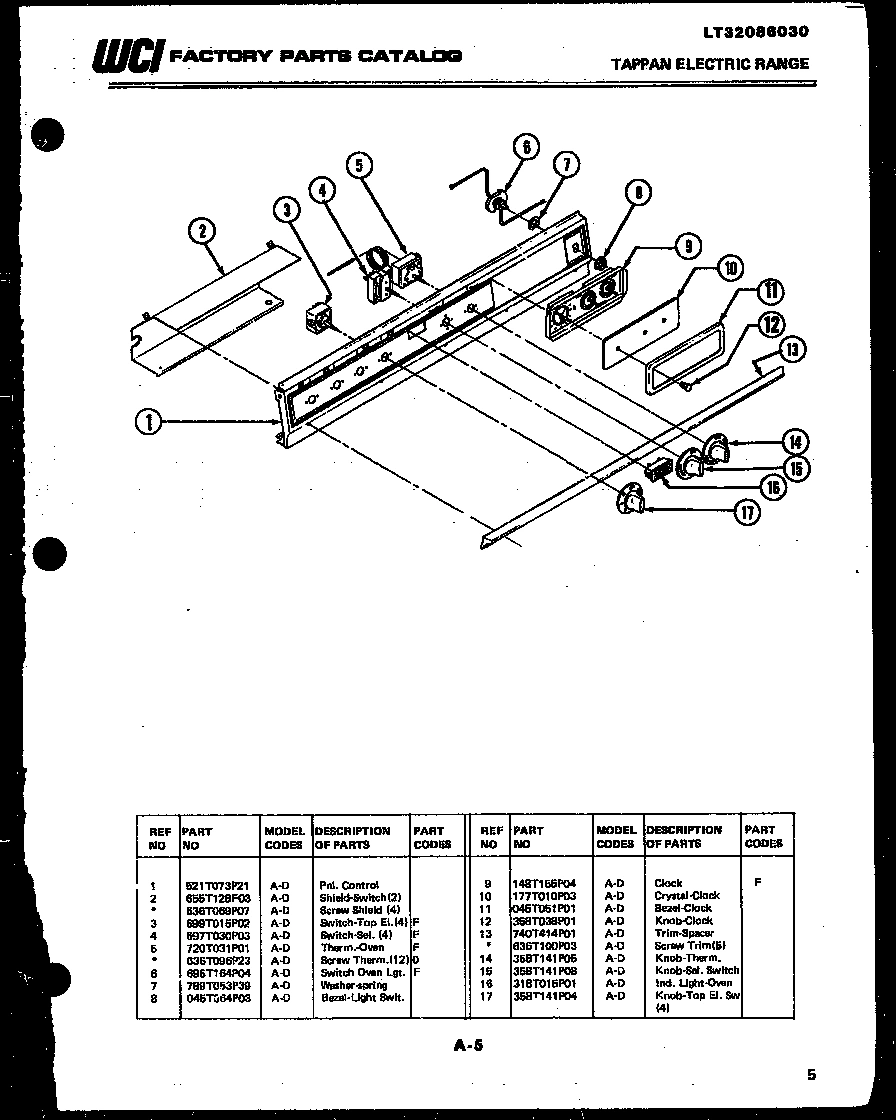

04 - CONSOLE AND CONTROL PARTS

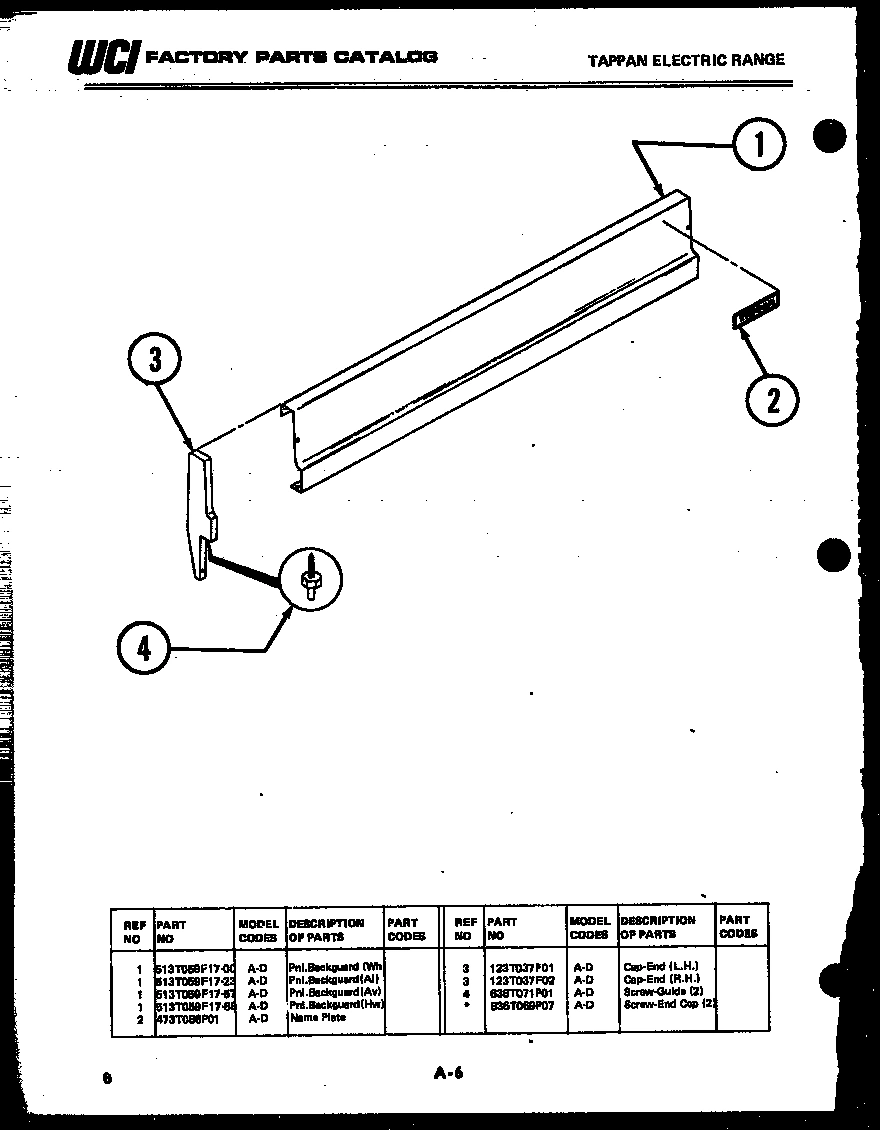

05 - BACKGUARD

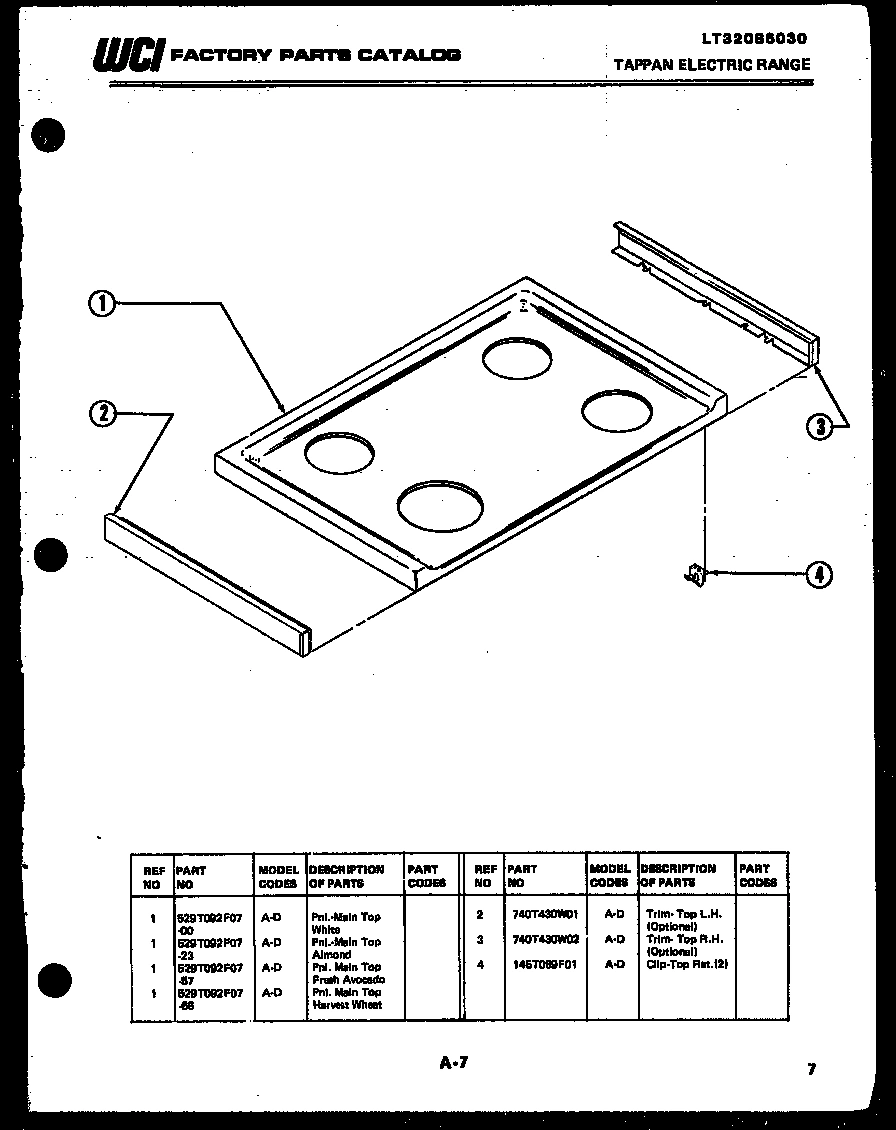

06 - COOKTOP PARTS

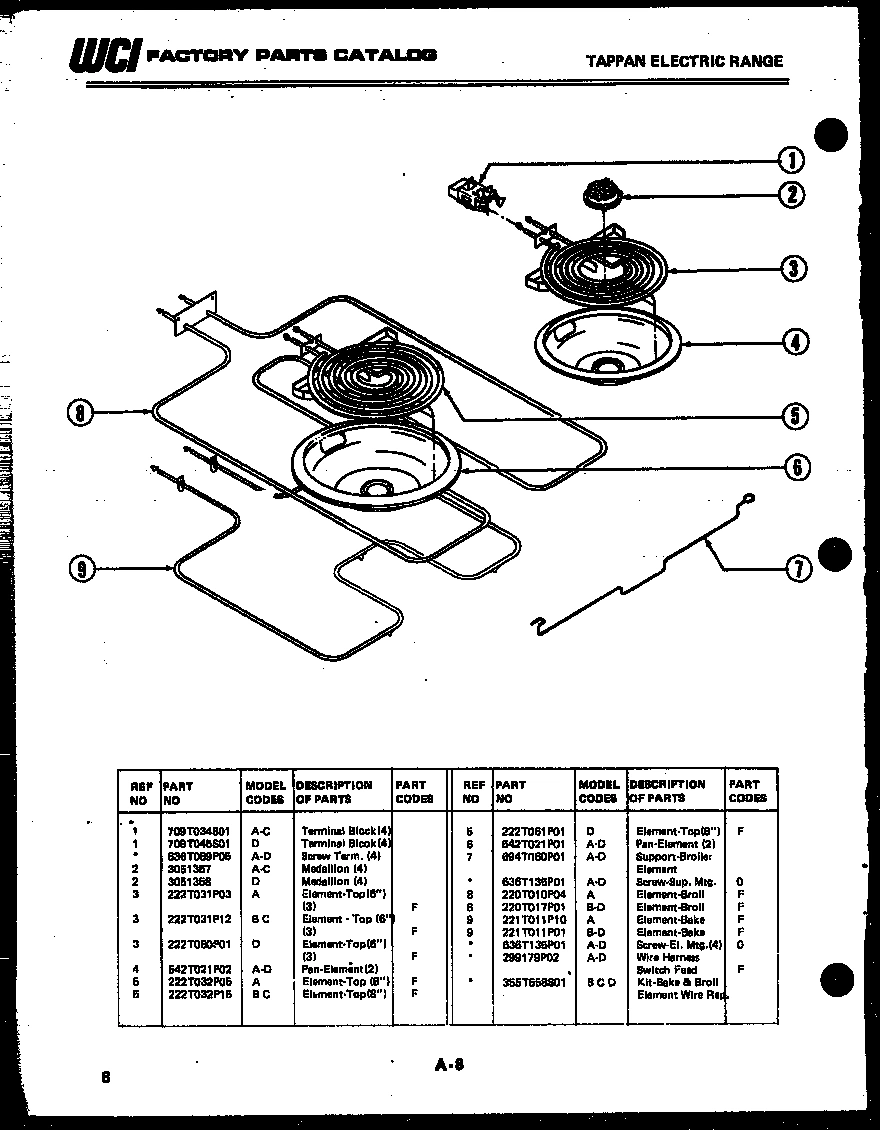

07 - BROILER PARTS

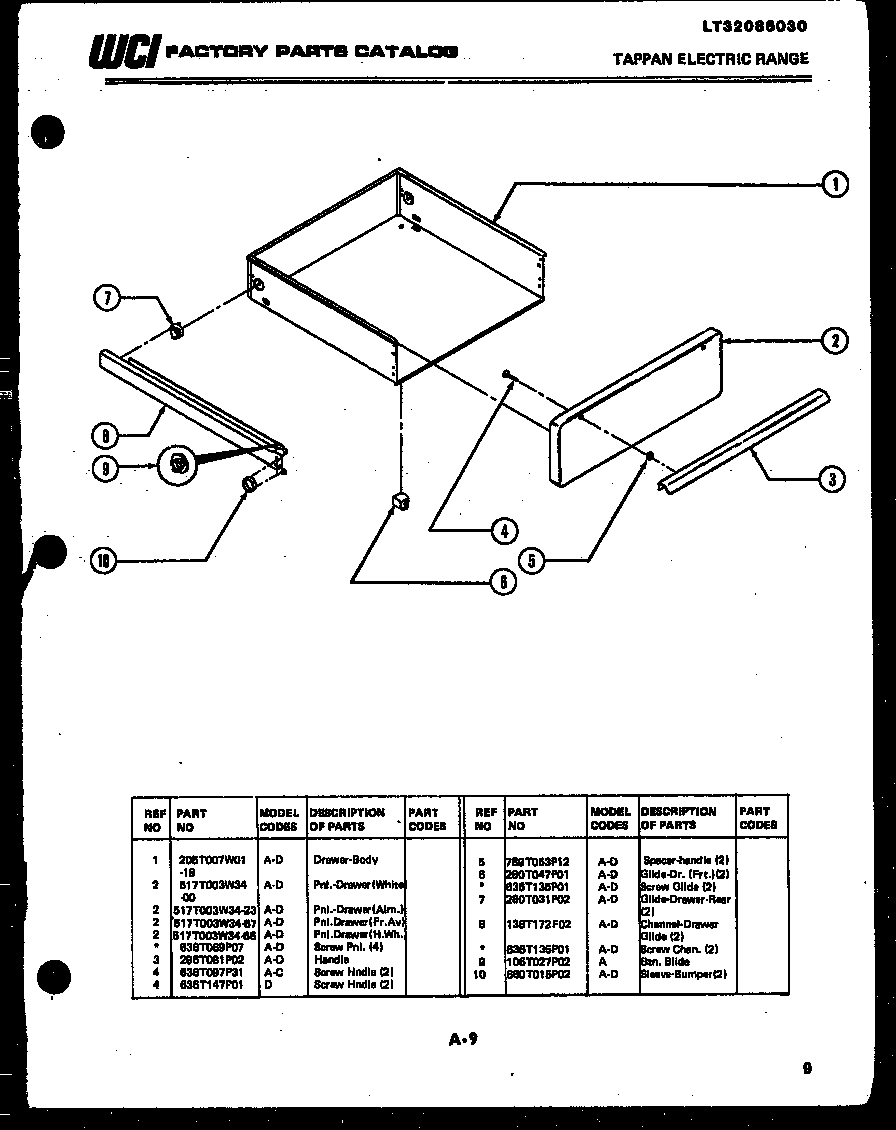

08 - DRAWER PARTS
Common parts from model Electrolux 37-1022-66-01 RANGE
*30581
INSUL. WOOL (BTM.) WCI 328T015P100 Contact Us For Availability
*30600
INSUL. WOOL (BCK) WCI 328T015P101 Contact Us For Availability
*30604
INSUL. WOOL (TOP & SIDE) WCI 328T015P102 Contact Us For Availability
*30609
TRIM-VERT. (L&R) WCI 740T431F01 Contact Us For Availability
*30613
TRIM-COUNTERTOP (L.H.) (OPT.) WCI 740T365P02 Contact Us For Availability
*30618
TRIM-COUNTERTOP (R.H.) (OPT.) WCI 740T365P01 Contact Us For Availability
*30625
CORD-SUPPLY (OPT) WCI 171T013P02 Contact Us For Availability
*30646
PAINT-TCH-UP HARVEST WHEAT WCI 508T026P03 Contact Us For Availability
*31069
WCI 299179P02 WCI 299179P02 Contact Us For Availability
1
WCI 3051359 WCI 3051359 Contact Us For Availability
1
WCI 521T073P21 WCI 521T073P21 Contact Us For Availability
1
PNL. BACKGUARD (HW) WCI 513T059F17-66 Contact Us For Availability
1
PNL. MAIN TOP HARVEST WHEAT WCI 529T092F07-66 Contact Us For Availability
1
WCI 205T007W01-18 WCI 205T007W01-18 Contact Us For Availability
1A
SCREW TERM. (4) (NON-ILLUSTRATED) WCI 636T089P05 Contact Us For Availability
2
SPRING-OVEN DOOR (L & R) (2) WCI 675T041P01 Contact Us For Availability
2
SCREW HDL. (2) WCI 636T002D18 Contact Us For Availability
2
SHIELD-SWITCH (2) WCI 655T128F03 Contact Us For Availability
2
NAME PLATE WCI 473T066P01 Contact Us For Availability
2
TRIM-TOP L.H. (OPTIONAL) WCI 740T430W01 Contact Us For Availability
2
WCI 3051357 WCI 3051357 Contact Us For Availability
2
WCI 517T003W34-66 WCI 517T003W34-66 Contact Us For Availability
2A
SCREW PNL. (4) (NON-ILLUSTRATED) WCI 636T069P07 Contact Us For Availability
3
SCREW BODY PNL. MTG. (2) WCI 636T066P06 Contact Us For Availability
3
FASTENER-NUT (5) (NYLON - 1/16``) WCI 241T017P174 Contact Us For Availability
3
SWITCH-TOP EL. (4) WCI 699T015P02 Contact Us For Availability
3
WCI 123T037F01 WCI 123T037F01 Contact Us For Availability
3
WCI 123T037F02 WCI 123T037F02 Contact Us For Availability
3
TRIM-TOP R.H. (OPTIONAL) WCI 740T430W02 Contact Us For Availability
3
HANDLE WCI 296T081P02 Contact Us For Availability
4
SCREW, GUIDE (2) WCI 636T071P01 Contact Us For Availability
4
GLASS (2) WCI 276T088P01 Contact Us For Availability
4
SWITCH-SEL. (4) WCI 697T030P03 Contact Us For Availability
4
CLIP-TOP RET. (2) WCI 145T069F01 Contact Us For Availability
5
CAM-OVEN DOOR L WCI 117T013S07 Contact Us For Availability
5
CAM-OVEN DOOR R WCI 117T013S08 Contact Us For Availability
5
SHIELD, WOOL WCI 655T303F03 Contact Us For Availability
5
THERM. -OVEN WCI 720T031P01 Contact Us For Availability
5
SPACER-HANDLE (2) WCI 789T053P12 Contact Us For Availability
6
FASTN.-SPACER (NYLON-3/4``) WCI 241T017P180 Contact Us For Availability
6
WCI 695T164P04 WCI 695T164P04 Contact Us For Availability
6
WCI 280T047P01 WCI 280T047P01 Contact Us For Availability
7
WCI 662T012P03 WCI 662T012P03 Contact Us For Availability
7
WCI 008T372F02 WCI 008T372F02 Contact Us For Availability
7
WASHER SPRING WCI 789T053P39 Contact Us For Availability
7
SUPPORT-BROILER ELEMENT WCI 694T060P01 Contact Us For Availability
7
WCI 280T031P02 WCI 280T031P02 Contact Us For Availability
7B
INSUL. (2 X 16-1/4 X 28``) (NON-ILLUSTRATED) WCI 328T049P29 Contact Us For Availability
8
PNL. DOOR (HV.WH.) WCI 533T051W02-66 Contact Us For Availability
8
WCI 045T064P03 WCI 045T064P03 Contact Us For Availability
8
WCI 136T172F02 WCI 136T172F02 Contact Us For Availability
8A
SCREW CHAN. (2) (NON-ILLUSTRATED) WCI 636T135P01 Contact Us For Availability
8A
SCREW (3) (NON-ILLUSTRATED) WCI 636T090P47 Contact Us For Availability
9
BTN. BLIDE WCI 106T027P02 Contact Us For Availability
9
WCI 655T327F01 WCI 655T327F01 Contact Us For Availability
9
HANDLE WCI 296T026P05 Contact Us For Availability
9
WCI 148T155P04 WCI 148T155P04 Contact Us For Availability
9
WCI 221T011P10 WCI 221T011P10 Contact Us For Availability
10
WCI 058T035F02-89 WCI 058T035F02-89 Contact Us For Availability
10
SPACER-HANDLE WCI 665T140P02 Contact Us For Availability
10
WCI 177T010P03 WCI 177T010P03 Contact Us For Availability
10
WCI 660T015P02 WCI 660T015P02 Contact Us For Availability
11
WCI 655T119F03-18 WCI 655T119F03-18 Contact Us For Availability
11
WCI 045T051P01 WCI 045T051P01 Contact Us For Availability
12
WCI 750T208W06 WCI 750T208W06 Contact Us For Availability
12
WCI 358T038P01 WCI 358T038P01 Contact Us For Availability
13
RACK, OVEN (2) WCI 591T073P01 Contact Us For Availability
13
TRIM, SPACER WCI 740T414P01 Contact Us For Availability
13A
SCREW TRIM (5) (NON-ILLUSTRATED) WCI 636T100P03 Contact Us For Availability
14
SEAL-OVEN DOOR (TOP BTM.) (2) WCI 647T081P02 Contact Us For Availability
14
KNOB-THERM. WCI 358T141P05 Contact Us For Availability
15
SEAL-OVEN DOOR (SIDE) WCI 647T081P01 Contact Us For Availability
15
KNOB-SEL. SWITCH WCI 358T141P08 Contact Us For Availability
16
PNL. BODY (L & R) (HARV. WHEAT) (2) WCI 515T032F06-66 Contact Us For Availability
16
IND. LIGHT-OVEN WCI 318T015P01 Contact Us For Availability
17
WCI 280T028P02 WCI 280T028P02 Contact Us For Availability
17
KNOB-TOP EL. SW (4) WCI 358T141P04 Contact Us For Availability
19
SCREW-MAIN TOP CLIP (2) WCI 636T083P01 Contact Us For Availability
20
BURNER BOX (CHAR. GRAY PORC W/ FR.) WCI 095T029W02-89 Contact Us For Availability
21
CHANNEL-COVER WCI 136T143F03 Contact Us For Availability
22
CHANNEL, WIRE WCI 136T142F01-18 Contact Us For Availability
23
WCI 021T020F02 WCI 021T020F02 Contact Us For Availability
24
SHIELD-WIRE REAR WCI 655T129F01 Contact Us For Availability
25A
SCREW-TERMINAL BLOCK MTG. (2) (NON-ILLUSTRATE WCI 636T069P02 Contact Us For Availability
25B
(NUT BRASS) WIRES TO TERM. BLK. (6) (NON-ILLU WCI 479T069P34 Contact Us For Availability
25D
GRND. STRAP (TERM. BLOCK) (NON-ILLUSTRATED) WCI 711T048P01 Contact Us For Availability
25E
SCREW GRND. STR. (NON-ILLUSTRATED) WCI 636T098P19 Contact Us For Availability
26
WCI 008T230W03-18 WCI 008T230W03-18 Contact Us For Availability
27
WCI 036T050W01-18 WCI 036T050W01-18 Contact Us For Availability
28
FASTENER-8AJ (2) WCI 241T017P02 Contact Us For Availability
29
FA WCI 241T003P01 Contact Us For Availability
31
WCI 319T011F02-89 WCI 319T011F02-89 Contact Us For Availability
32
WCI 539T010F01-89 WCI 539T010F01-89 Contact Us For Availability
× ![]()
