Model Electrolux 37-1012-23-02 RANGE – Common Parts & Diagrams

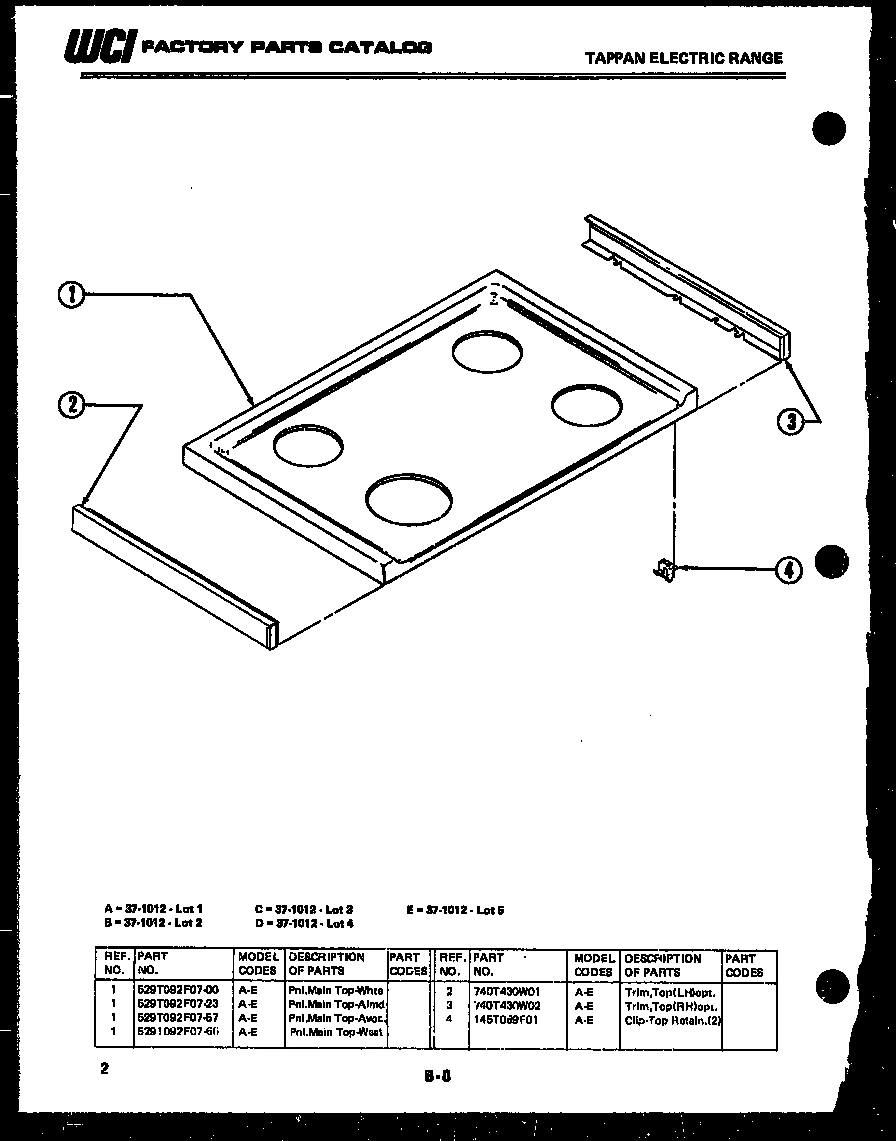

02 - COOKTOP PARTS

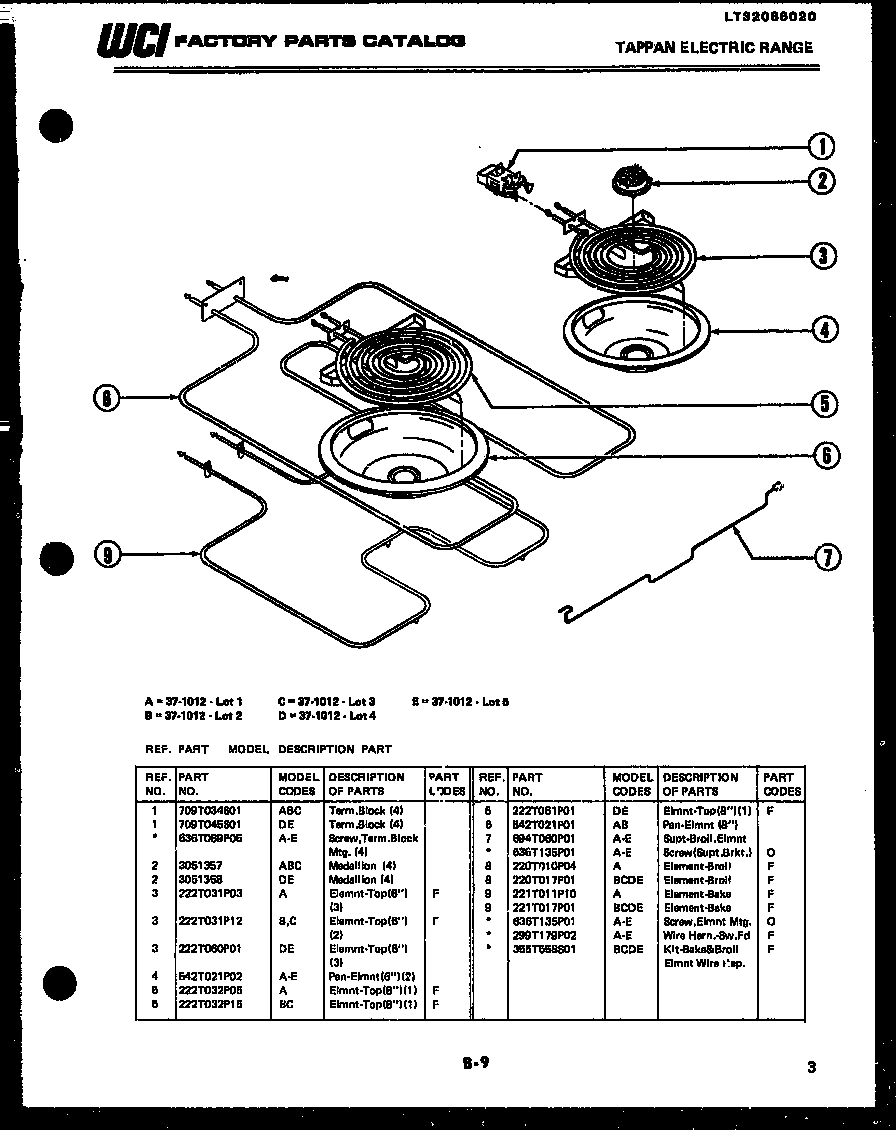

03 - BROILER PARTS

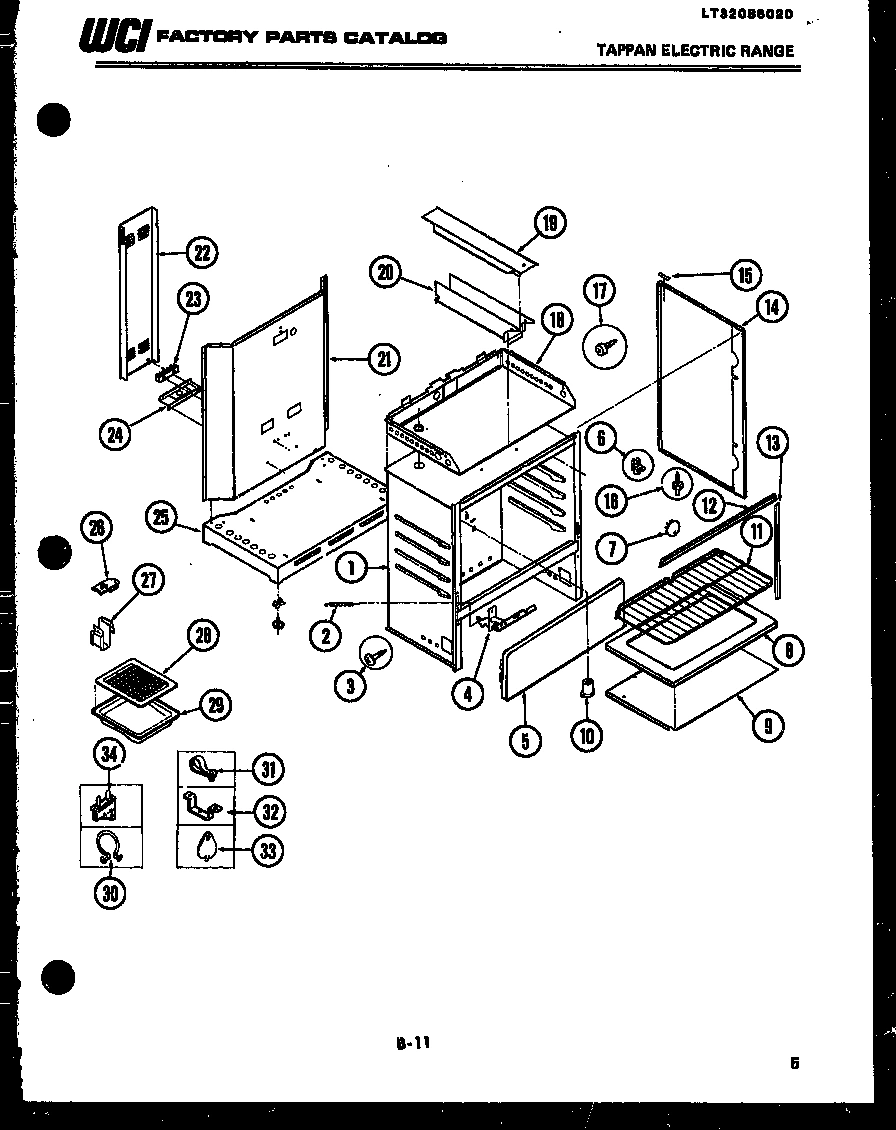

04 - BODY PARTS

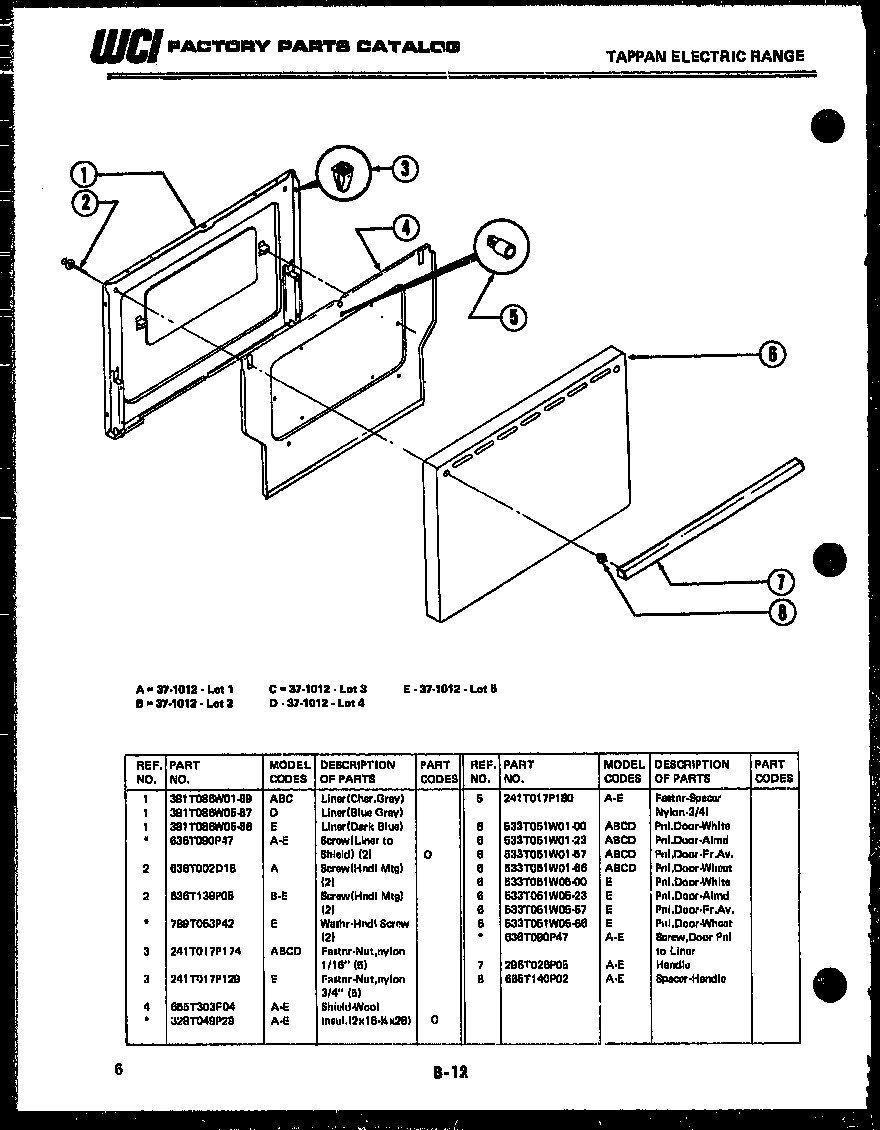

05 - DOOR PARTS

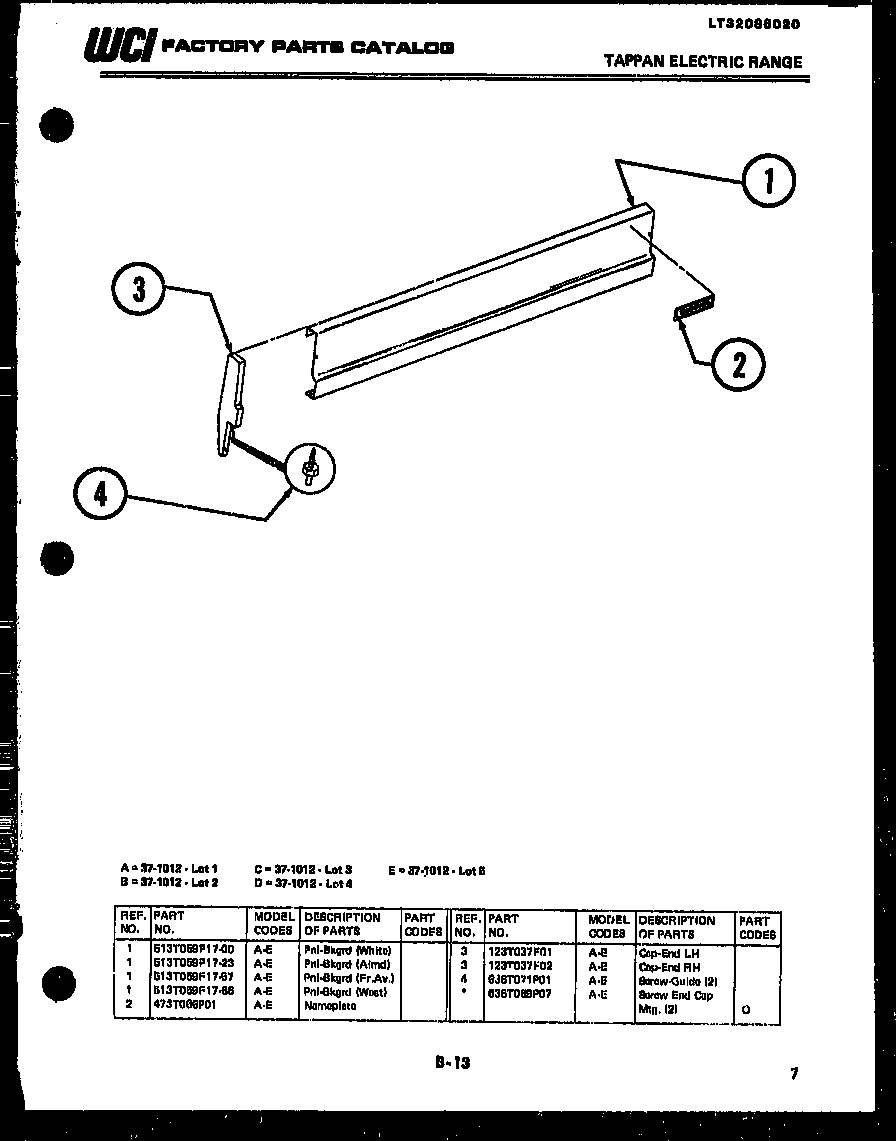

06 - BACKGUARD

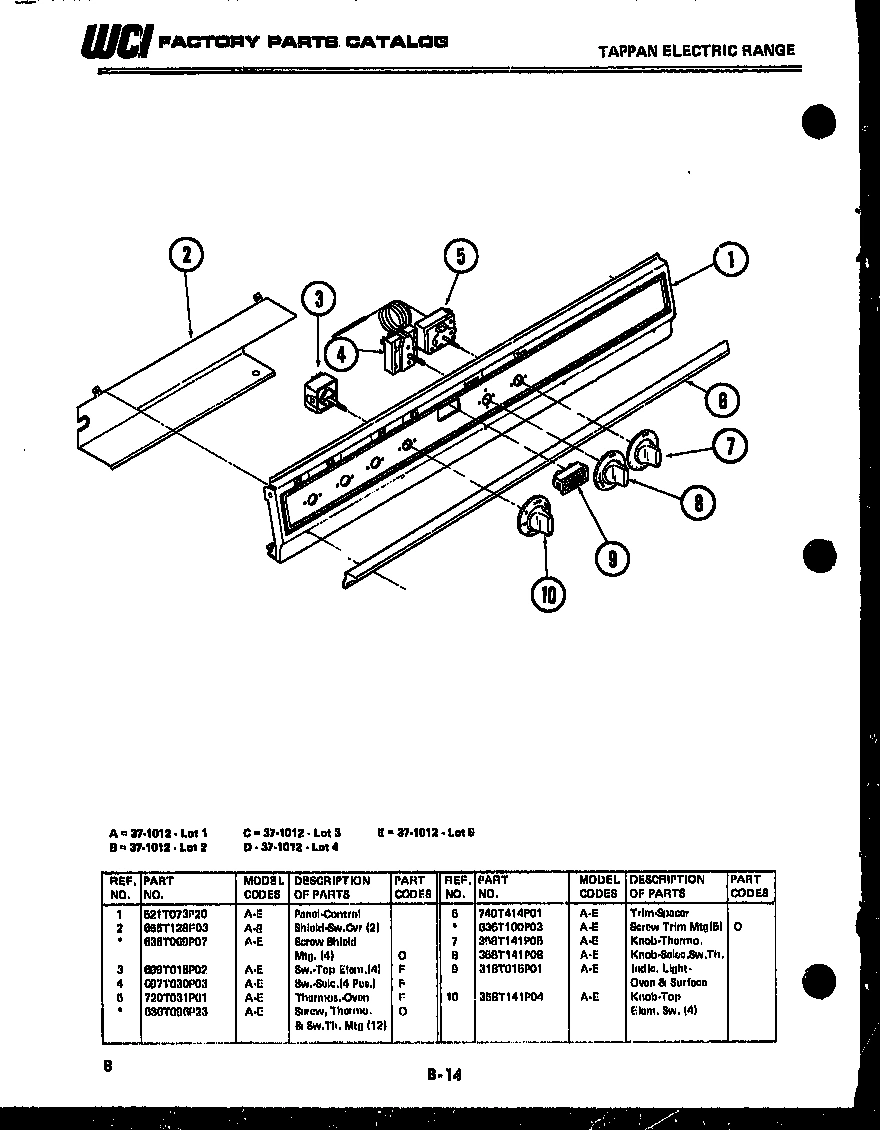

07 - BACKGUARD
Common parts from model Electrolux 37-1012-23-02 RANGE
*77916
WCI 299T179P02 WCI 299T179P02 Contact Us For Availability
*77920
KIT-BAKE & BROIL ELMNT WIRE REP. WCI 355T558S01 Contact Us For Availability
*78302
WCI 328T015P100 WCI 328T015P100 Contact Us For Availability
*78306
WCI 328T015P101 WCI 328T015P101 Contact Us For Availability
*78311
INSUL.-2 1/2 X 19 X 26) TOP & SIDE WCI 328T015P102 Contact Us For Availability
*78315
TRIM-VERT.-OPT. WCI 740T431F01 Contact Us For Availability
*78319
TRIM-CNTRTOP LH WCI 740T365P02 Contact Us For Availability
*78323
TRIM-CNTRTOP RH WCI 740T365P01 Contact Us For Availability
*78328
WCI 171T013P02 WCI 171T013P02 Contact Us For Availability
*78338
WCI 508T026P02 WCI 508T026P02 Contact Us For Availability
*78351
WCI 560T691P131 WCI 560T691P131 Contact Us For Availability
1
WCI 529T092F07-23 WCI 529T092F07-23 Contact Us For Availability
1
LINER (CHAR. GRAY) WCI 381T086W01-89 Contact Us For Availability
1
PNL-BKGRD (ALMD) WCI 513T059F17-23 Contact Us For Availability
1
WCI 521T073P20 WCI 521T073P20 Contact Us For Availability
1A
WCI 636T089P05 WCI 636T089P05 Contact Us For Availability
2
TRIM, TOP LH (OPT.) WCI 740T430W01 Contact Us For Availability
2
WCI 3051357 WCI 3051357 Contact Us For Availability
2
SPRG-OVN DR (2) WCI 675T041P01 Contact Us For Availability
2
SCREW HNDL MTG (2) WCI 636T138P05 Contact Us For Availability
2
NAME PLATE WCI 473T066P01 Contact Us For Availability
2
WCI 655T128F03 WCI 655T128F03 Contact Us For Availability
2A
SCREW SHIELD MTG. (4) (NON-ILLUSTRATED) WCI 636T069P07 Contact Us For Availability
3
TRIM, TOP RH (OPT.) WCI 740T430W02 Contact Us For Availability
3
SCREW-BDY PNL (2) (NON-ILLUSTRATED) WCI 636T066P06 Contact Us For Availability
3
FASTNR-NUT, NYLON 1/16`` (5) WCI 241T017P174 Contact Us For Availability
3
WCI 123T037F01 WCI 123T037F01 Contact Us For Availability
3
WCI 123T037F02 WCI 123T037F02 Contact Us For Availability
3
SW.-TOP ELEM. (4) WCI 699T015P02 Contact Us For Availability
4
CLIP-TOP RETAIN. (2) WCI 145T069F01 Contact Us For Availability
4
CAM, OVN DR, LH WCI 117T013S07 Contact Us For Availability
4
SCREW, GUIDE (2) WCI 636T071P01 Contact Us For Availability
4
WCI 655T303F04 WCI 655T303F04 Contact Us For Availability
4
WCI 697T030P03 WCI 697T030P03 Contact Us For Availability
4A
INSUL. (2 X 16-1/4 X 28``) (NON-ILLUSTRATED) WCI 328T049P29 Contact Us For Availability
5
WCI 517T003W35-23 WCI 517T003W35-23 Contact Us For Availability
5
FASTNR-SPACER NYLON-3/4) WCI 241T017P180 Contact Us For Availability
5
WCI 720T031P01 WCI 720T031P01 Contact Us For Availability
6
PNL. DOOR-ALMD WCI 533T051W01-23 Contact Us For Availability
6
WCI 533T051W05-23 WCI 533T051W05-23 Contact Us For Availability
6
TRIM, SPACER WCI 740T414P01 Contact Us For Availability
6A
SCREW, DOOR PNL TO LINER (NON-ILLUSTRATED) WCI 636T090P47 Contact Us For Availability
6A
SCREW TRIM MTG (5) (NON-ILLUSTRATED) WCI 636T100P03 Contact Us For Availability
7
SUPT-BROIL. ELMNT WCI 694T060P01 Contact Us For Availability
7
PLUG BUTTON WCI 557T021P12 Contact Us For Availability
7
HANDLE WCI 296T026P05 Contact Us For Availability
7
WCI 358T141P05 WCI 358T141P05 Contact Us For Availability
8
WCI 058T035F02-89 WCI 058T035F02-89 Contact Us For Availability
8
SPACER-HANDLE WCI 665T140P02 Contact Us For Availability
8
WCI 358T141P08 WCI 358T141P08 Contact Us For Availability
9
WCI 221T017P01 WCI 221T017P01 Contact Us For Availability
9
WCI 665T119F03-18 WCI 665T119F03-18 Contact Us For Availability
9
WCI 318T015P01 WCI 318T015P01 Contact Us For Availability
10
WCI 750T208W06 WCI 750T208W06 Contact Us For Availability
10
WCI 358T141P04 WCI 358T141P04 Contact Us For Availability
11
RACK, OVN (2) WCI 591T073P01 Contact Us For Availability
12
SEAL-OVN DR (TOP & BTM) (2) WCI 647T081P02 Contact Us For Availability
13
SEAL-OVN DR (SIDES) (2) WCI 115T647P03 Contact Us For Availability
14
PNL, BODY, ALMD (2) WCI 515T032F06-23 Contact Us For Availability
14
PNL, BODY, ALMD (2) WCI 515T032F07-23 Contact Us For Availability
14
PNL-BDY-ALMD (2) WCI 515T032F08-23 Contact Us For Availability
15
GLIDE-MAIN TP (2) WCI 280T028P02 Contact Us For Availability
17
SCREW-MAIN TOP CLP WCI 636T083P01 Contact Us For Availability
18
WCI 095T029W02-89 WCI 095T029W02-89 Contact Us For Availability
19
WCI 136T143F03 WCI 136T143F03 Contact Us For Availability
20
WCI 136T142F01-18 WCI 136T142F01-18 Contact Us For Availability
21
WCI 021T020F02 WCI 021T020F02 Contact Us For Availability
21A
SCREW-BK TO BS (6) (NON-ILLUSTRATED) WCI 636T135P01 Contact Us For Availability
22
WCI 655T129F01 WCI 655T129F01 Contact Us For Availability
23A
WCI 636T069P02 WCI 636T069P02 Contact Us For Availability
23B
WCI 479T069P34 WCI 479T069P34 Contact Us For Availability
23D
GRND STRAP (TERM.) (NON-ILLUSTRATED) WCI 711T048P01 Contact Us For Availability
23E
WCI 636T098P19 WCI 636T098P19 Contact Us For Availability
24
WCI 008T230W03-18 WCI 008T230W03-18 Contact Us For Availability
25
WCI 036T050W01-18 WCI 036T050W01-18 Contact Us For Availability
27
FASTNR-CABLE (4) WCI 241T003P01 Contact Us For Availability
28
INSERT-BROILR PAN (CHAR. GRAY PORC) WCI 319T011F03-89 Contact Us For Availability
29
PAN-BROILER (CHAR. GRAY PORC) WCI 539T010F01-89 Contact Us For Availability
× ![]()
