Model Electrolux 37-1009-00-05 RANGE – Common Parts & Diagrams

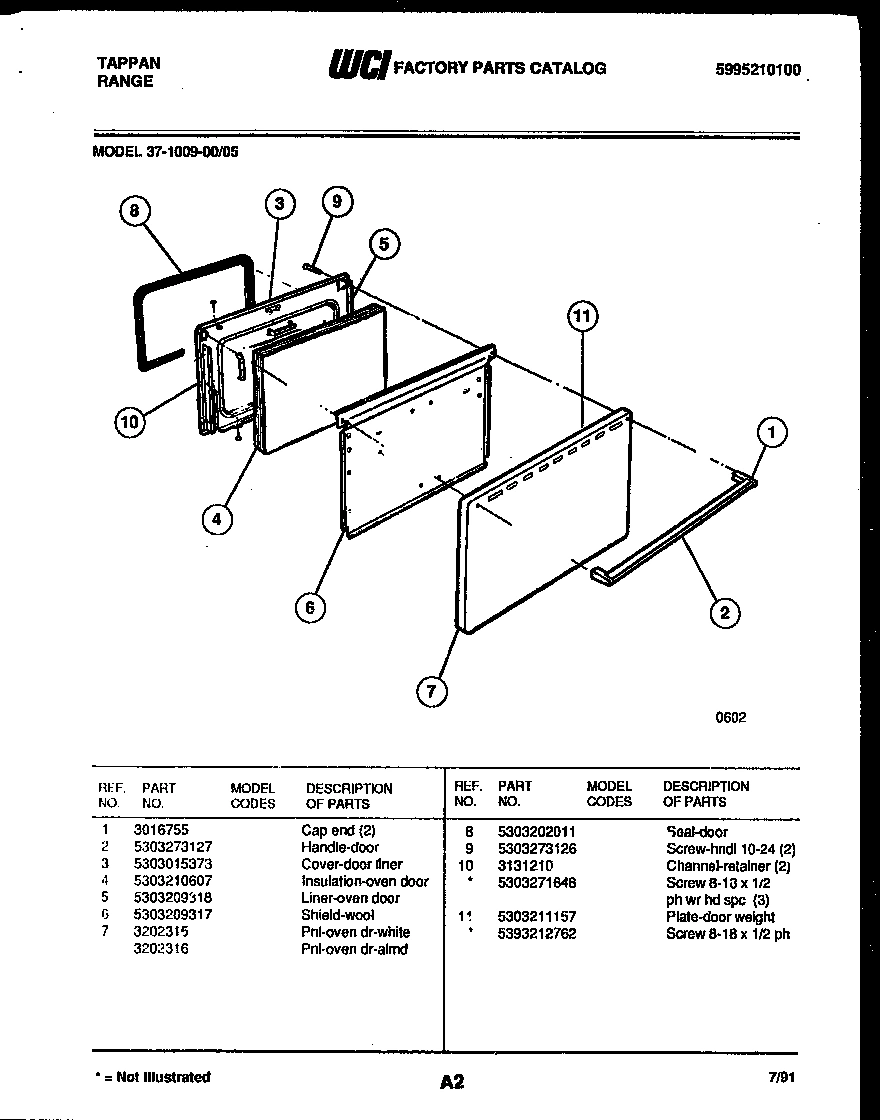

02 - DOOR PARTS

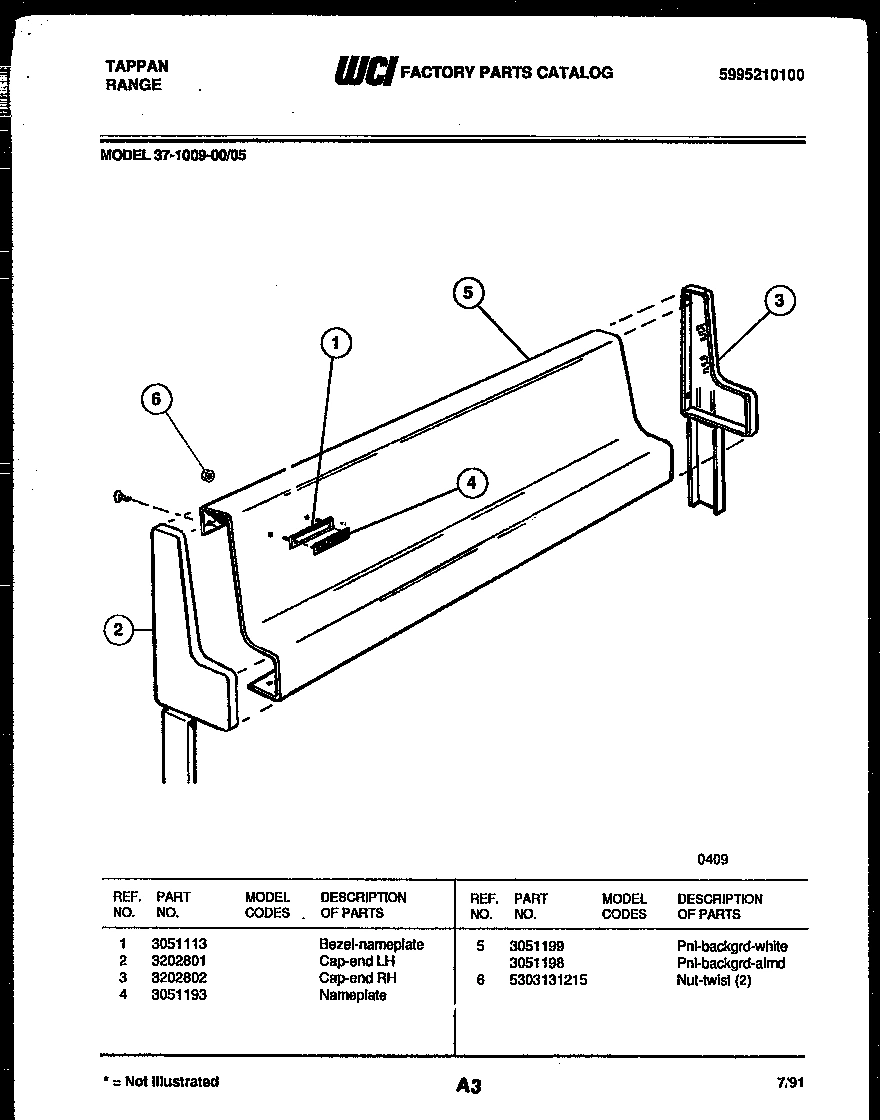

03 - BACKGUARD

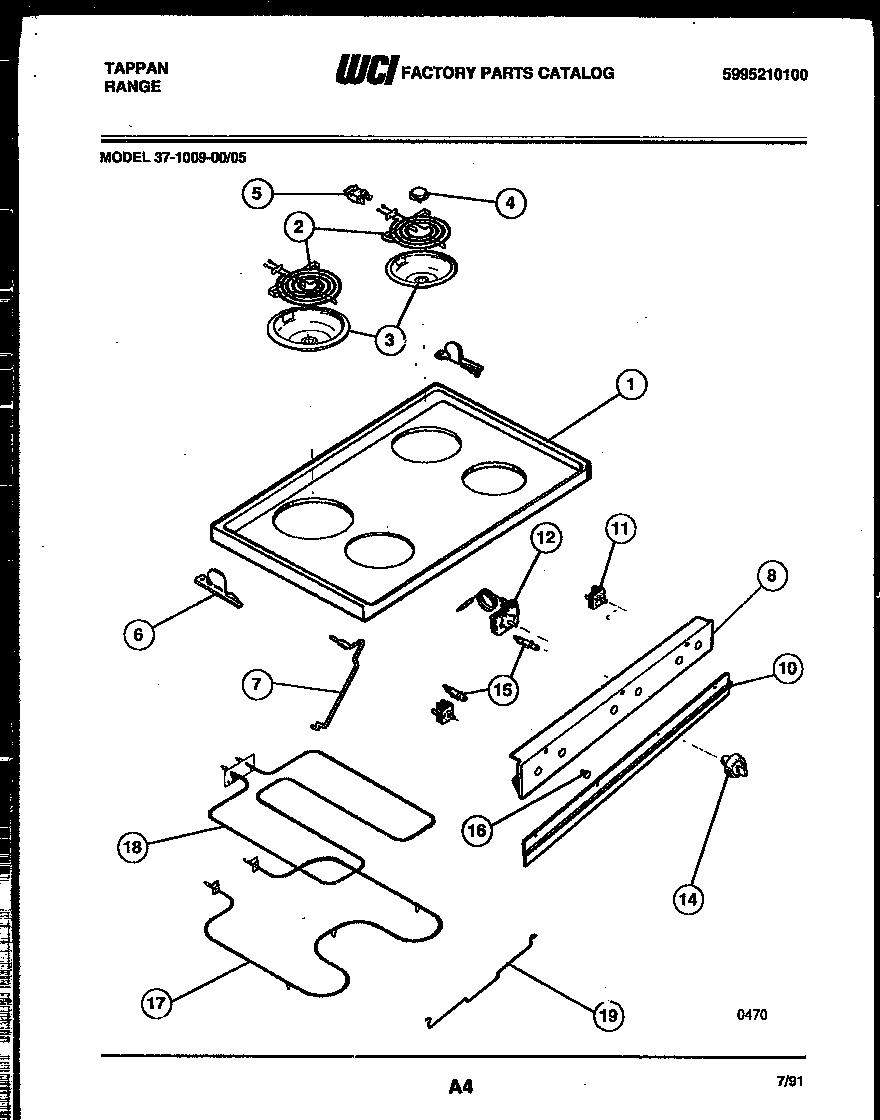

04 - COOKTOP AND BROILER PARTS

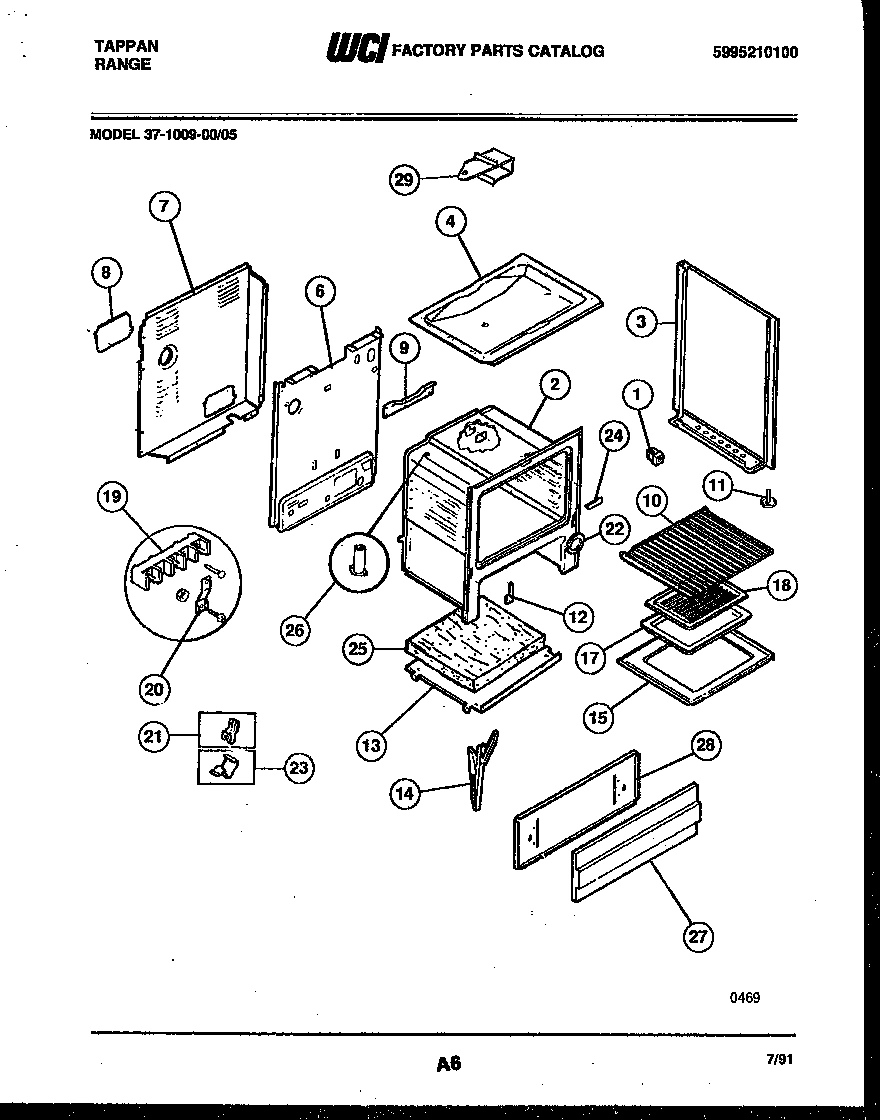

05 - BODY PARTS
Common parts from model Electrolux 37-1009-00-05 RANGE
*53884
COVER-REAR WALL WCI 3051387 Contact Us For Availability
*53884
BRKT-RANGE CABLE MTG WCI 5303206618 Contact Us For Availability
*53885
WCI 19100210058 WCI 19100210058 Contact Us For Availability
1
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
1
WCI 3051113 WCI 3051113 Contact Us For Availability
1
WCI 3051379 WCI 3051379 Contact Us For Availability
1
WCI 3051380 WCI 3051380 Contact Us For Availability
2
CAP-END LH WCI 3202801 Contact Us For Availability
3
CAP-END RH WCI 3202802 Contact Us For Availability
3
PNL-B/S-LH-WHITE WCI 5303269519 Contact Us For Availability
3
WCI 5303269545 WCI 5303269545 Contact Us For Availability
3A
PNL-B/S-RH-WHITE WCI 5303269518 Contact Us For Availability
3A
WCI 5303269543 WCI 5303269543 Contact Us For Availability
4
WCI 3051193 WCI 3051193 Contact Us For Availability
4
WCI 3017801 WCI 3017801 Contact Us For Availability
4
WCI 5303271756 WCI 5303271756 Contact Us For Availability
5
PNL-BACKGRD-ALMD WCI 3051198 Contact Us For Availability
5
PNL-BACKGRD-WHITE WCI 3051199 Contact Us For Availability
6
WCI 08067746 WCI 08067746 Contact Us For Availability
6
NUT-TWIST (2) WCI 5303131215 Contact Us For Availability
6
WCI 3203082 WCI 3203082 Contact Us For Availability
6A
WCI 08067747 WCI 08067747 Contact Us For Availability
7
ROD-TOP SUPPORT (2) WCI 5303271609 Contact Us For Availability
7
COVER - REAR WALL WCI 3203549 Contact Us For Availability
8
WCI 5303211419 WCI 5303211419 Contact Us For Availability
8
WCI 3203405 WCI 3203405 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
10
WCI 3131210 WCI 3131210 Contact Us For Availability
10
EXTRUSION-HEAT SHIELD WCI 3204623 Contact Us For Availability
11
WCI 5303211157 WCI 5303211157 Contact Us For Availability
11
SCREW-LEVEL (4) WCI 3206285 Contact Us For Availability
12
COVER HNG. CUTOUT (2) WCI 3131570 Contact Us For Availability
12
WCI 5303210266 WCI 5303210266 Contact Us For Availability
13
WCI 3200825 WCI 3200825 Contact Us For Availability
14
WCI 5303210271 WCI 5303210271 Contact Us For Availability
14
CHANNEL - DOOR HNG WCI 5303131569 Contact Us For Availability
14A
KNOB - THERMOSTAT WCI 5303210272 No Longer Available
15
LIGHT-IND 250 V (2) WCI 5303210270 Contact Us For Availability
15
WCI 3203540 WCI 3203540 Contact Us For Availability
16
JEWEL-INDICATOR (2) WCI 3016821 Contact Us For Availability
17
WCI 5303013568 WCI 5303013568 Contact Us For Availability
18
WCI 5303131356 WCI 5303131356 Contact Us For Availability
20
PLATE-GROUND STRAP WCI 5303212739 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
24
WCI 5303015372 WCI 5303015372 Contact Us For Availability
26
WCI 3051344 WCI 3051344 Contact Us For Availability
26A
INSULATION, WRAP (NON-ILLUSTRATED) WCI 3017142 Contact Us For Availability
26B
WCI 3203541 WCI 3203541 Contact Us For Availability
27
PNL - DRAWER (WHITE) WCI 3051201 Contact Us For Availability
27
PNL - DRAWER (ALMD) WCI 3051202 Contact Us For Availability
28
WCI 3131975 WCI 3131975 Contact Us For Availability
28A
ANTI-TIP KIT (NON-ILLUSTRATED) WCI 3934056 Contact Us For Availability
29
WCI 3203582 WCI 3203582 Contact Us For Availability
× ![]()
