Model Electrolux 37-1009-00-01 RANGE – Common Parts & Diagrams

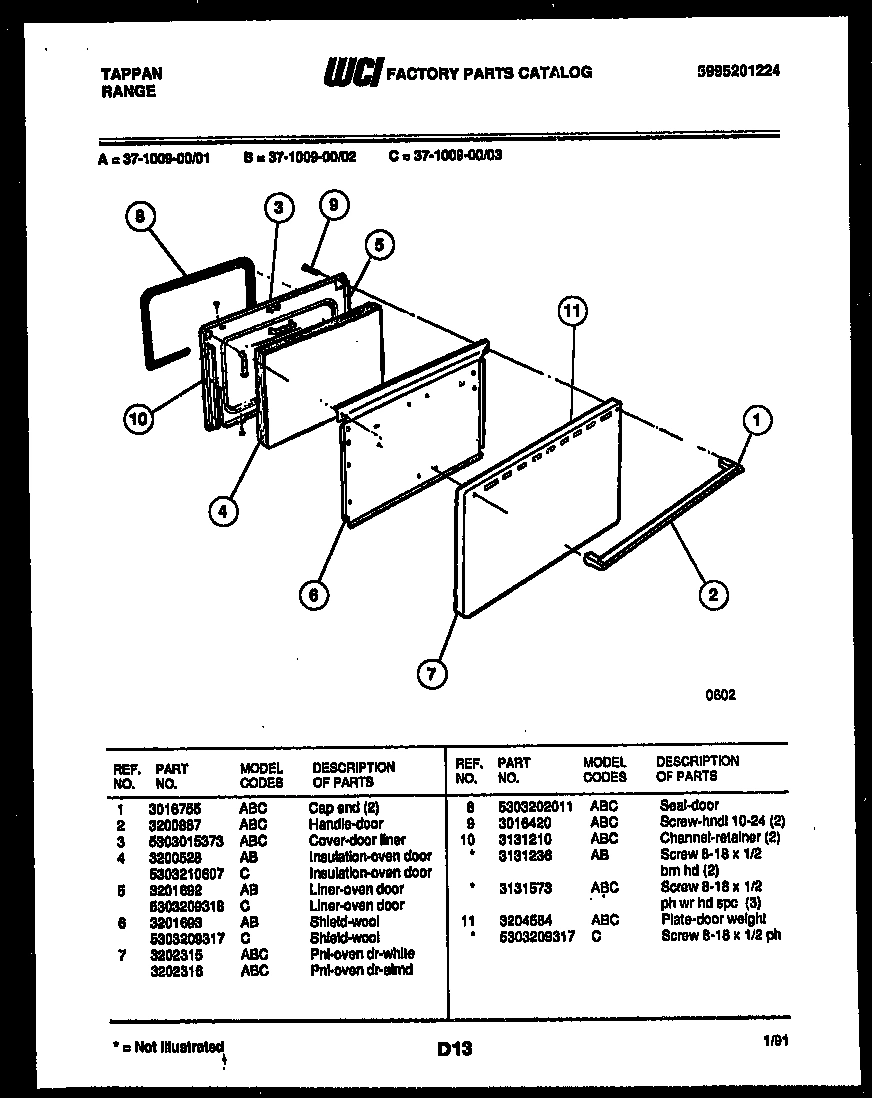

02 - DOOR PARTS

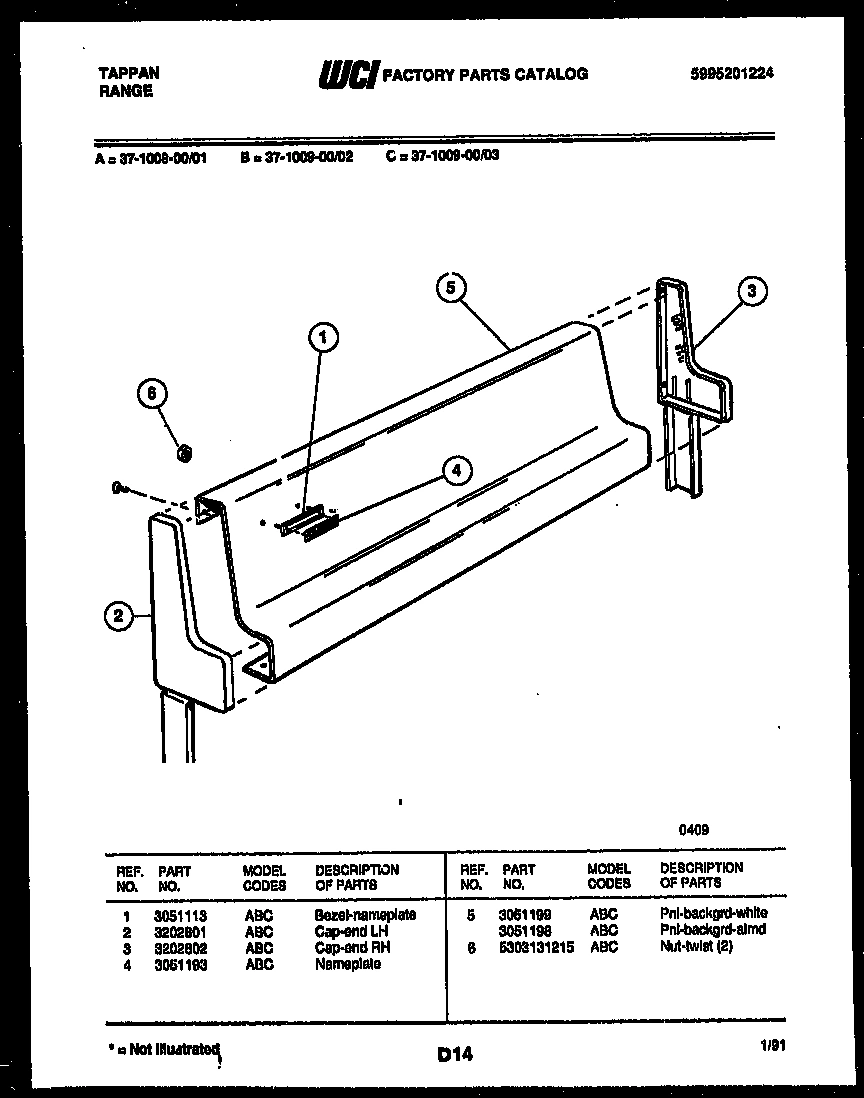

03 - BACKGUARD
04 - COOKTOP AND BROILER PARTS
05 - BODY PARTS
Common parts from model Electrolux 37-1009-00-01 RANGE
*25115
RETAINER-LENS (3) WCI 3051224 Contact Us For Availability
*25119
COVER-REAR WALL WCI 3051387 Contact Us For Availability
*25120
BRKT-RANGE CABLE MTG WCI 3204525 Contact Us For Availability
1
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
1
WCI 3051113 WCI 3051113 Contact Us For Availability
1
WCI 3051379 WCI 3051379 Contact Us For Availability
1
WCI 3051380 WCI 3051380 Contact Us For Availability
2
CAP-END LH WCI 3202801 Contact Us For Availability
3
CAP-END RH WCI 3202802 Contact Us For Availability
3
PNL, B/S LH (WHITE) WCI 3205620 Contact Us For Availability
3
PNL, B/S LH (ALMD) WCI 3205621 Contact Us For Availability
3A
PNL, B/S RH (WHITE) WCI 3205623 Contact Us For Availability
3A
PNL-B/S (RH ALMD) WCI 3205624 Contact Us For Availability
4
WCI 3051193 WCI 3051193 Contact Us For Availability
4
WCI 3017801 WCI 3017801 Contact Us For Availability
4
WCI 08067749 WCI 08067749 Contact Us For Availability
5
PNL-BACKGRD-ALMD WCI 3051198 Contact Us For Availability
5
PNL-BACKGRD-WHITE WCI 3051199 Contact Us For Availability
5
WCI 3131101 WCI 3131101 Contact Us For Availability
6
WCI 08067746 WCI 08067746 Contact Us For Availability
6
NUT-TWIST (2) WCI 5303131215 Contact Us For Availability
6
WCI 3203082 WCI 3203082 Contact Us For Availability
6A
WCI 08067747 WCI 08067747 Contact Us For Availability
7
ROD-TOP SUPPORT (2) WCI 3013818 Contact Us For Availability
7
COVER - REAR WALL WCI 3203549 Contact Us For Availability
8
WCI 3204683 WCI 3204683 Contact Us For Availability
8
WCI 3203405 WCI 3203405 Contact Us For Availability
9
WCI 3051454 WCI 3051454 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
10
EXTRUSION-HEAT SHIELD WCI 3204623 Contact Us For Availability
10A
SCREW 8-18 X 1/2 BRN HD (2) (NON-ILLUSTRATED) WCI 3131236 Contact Us For Availability
10B
SCREW 8-18 X 1/2 PH WR HD SPC (3) (NON-ILLUST WCI 3131573 Contact Us For Availability
11
SCREW-LEVEL (4) WCI 5303203397 Contact Us For Availability
11
WCI 3204584 WCI 3204584 Contact Us For Availability
12
COVER HNG. CUTOUT (2) WCI 3131570 Contact Us For Availability
12
WCI 3202785 WCI 3202785 Contact Us For Availability
13
WCI 3016812 WCI 3016812 Contact Us For Availability
13
WCI 3200825 WCI 3200825 Contact Us For Availability
14
WCI 3204681 WCI 3204681 Contact Us For Availability
14
CHANNEL - DOOR HNG WCI 5303131569 Contact Us For Availability
14A
KNOB - THERMOSTAT WCI 3204682 Contact Us For Availability
14B
KNOB-SWITCH SELECTOR WCI 3204680 Contact Us For Availability
15
WCI 5308037896 WCI 5308037896 Contact Us For Availability
15
WCI 3203540 WCI 3203540 Contact Us For Availability
15B
LIGHT-IND 250 V-OV WCI 5303091462 Contact Us For Availability
16
JEWEL - INDICATOR (3) WCI 5308037703 Contact Us For Availability
16
WCI 5303203651 WCI 5303203651 Contact Us For Availability
17
WCI 5303013568 WCI 5303013568 Contact Us For Availability
18
WCI 5303131356 WCI 5303131356 Contact Us For Availability
20
WCI 08011708 WCI 08011708 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
24
WCI 5303015372 WCI 5303015372 Contact Us For Availability
26
WCI 3051344 WCI 3051344 Contact Us For Availability
26A
INSULATION, WRAP (NON-ILLUSTRATED) WCI 3017142 Contact Us For Availability
26B
WCI 3203541 WCI 3203541 Contact Us For Availability
26D
WCI 3131143 WCI 3131143 Contact Us For Availability
26E
WCI 08067783 WCI 08067783 Contact Us For Availability
27
PNL - DRAWER (WHITE) WCI 3051201 Contact Us For Availability
27
PNL - DRAWER (ALMD) WCI 3051202 Contact Us For Availability
28
WCI 3131975 WCI 3131975 Contact Us For Availability
28A
ANTI-TIP KIT (NON-ILLUSTRATED) WCI 3934056 Contact Us For Availability
29
WCI 3203582 WCI 3203582 Contact Us For Availability
× ![]()
