Model Electrolux 37-1007-23-05 RANGE – Common Parts & Diagrams

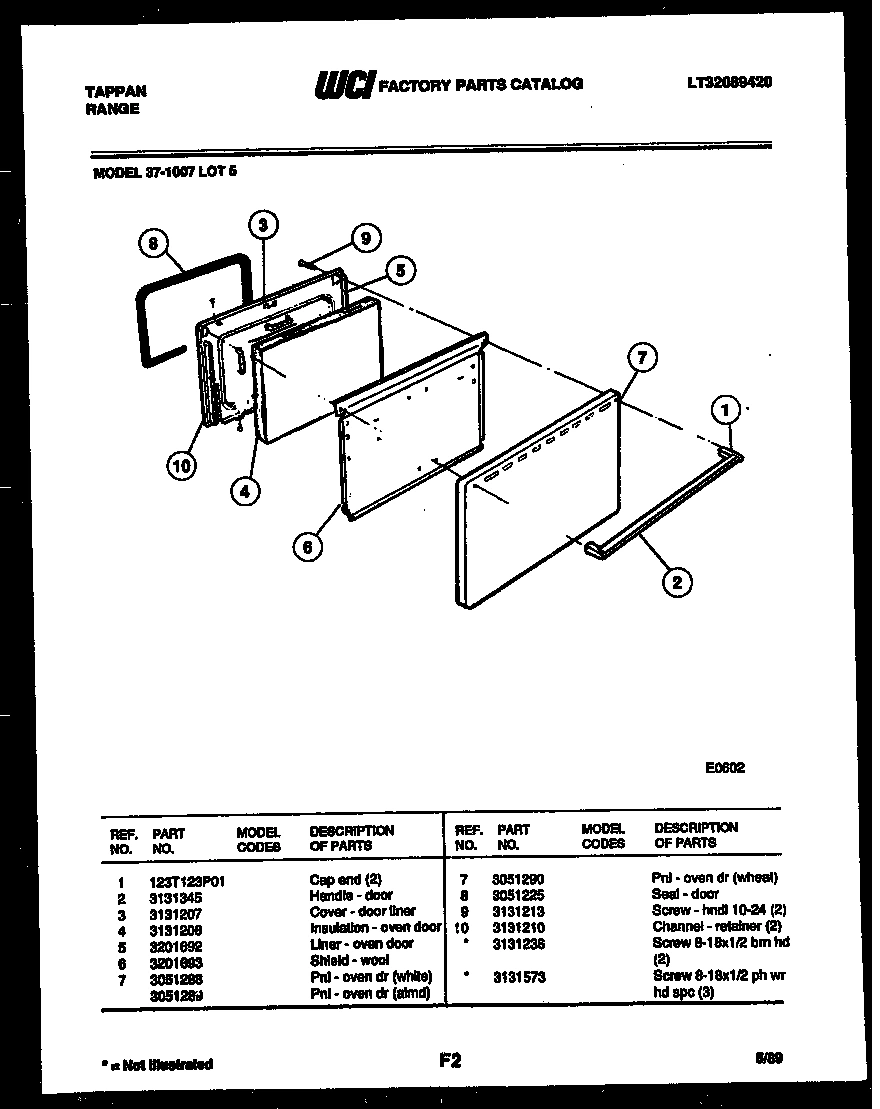

02 - DOOR PARTS

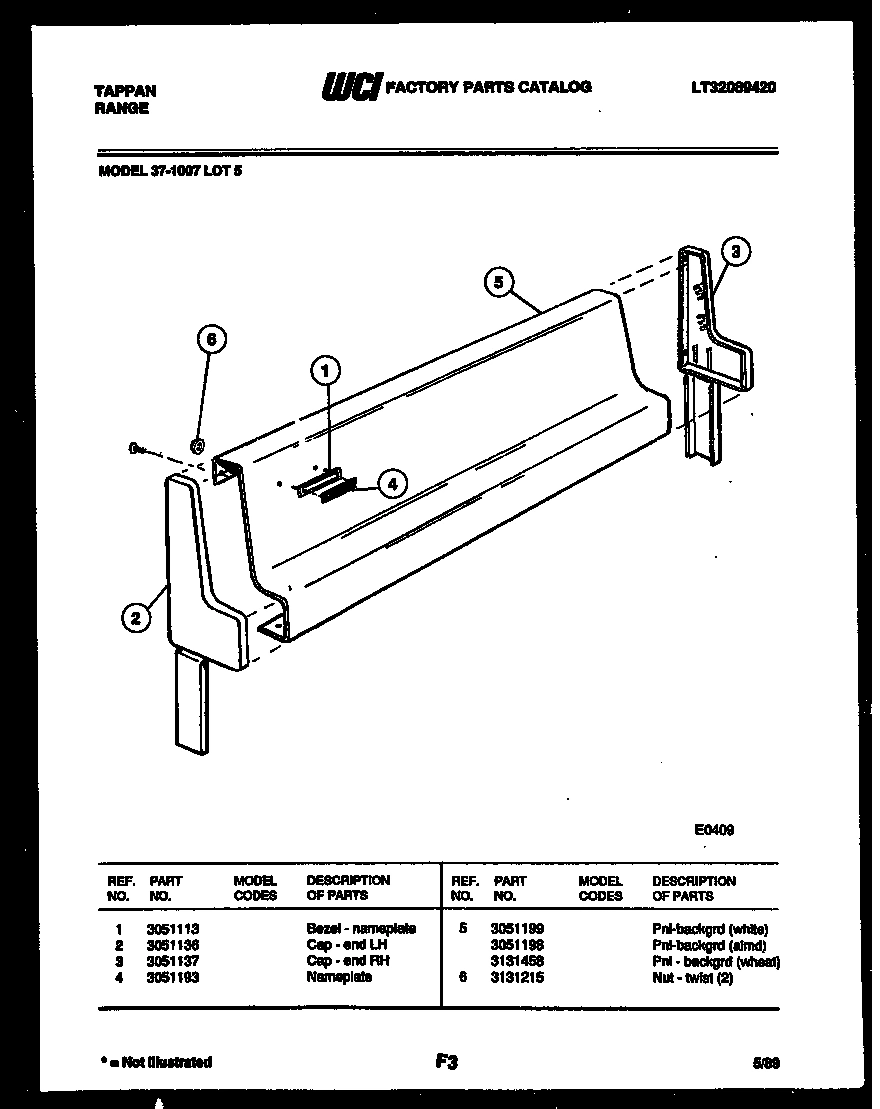

03 - BACKGUARD

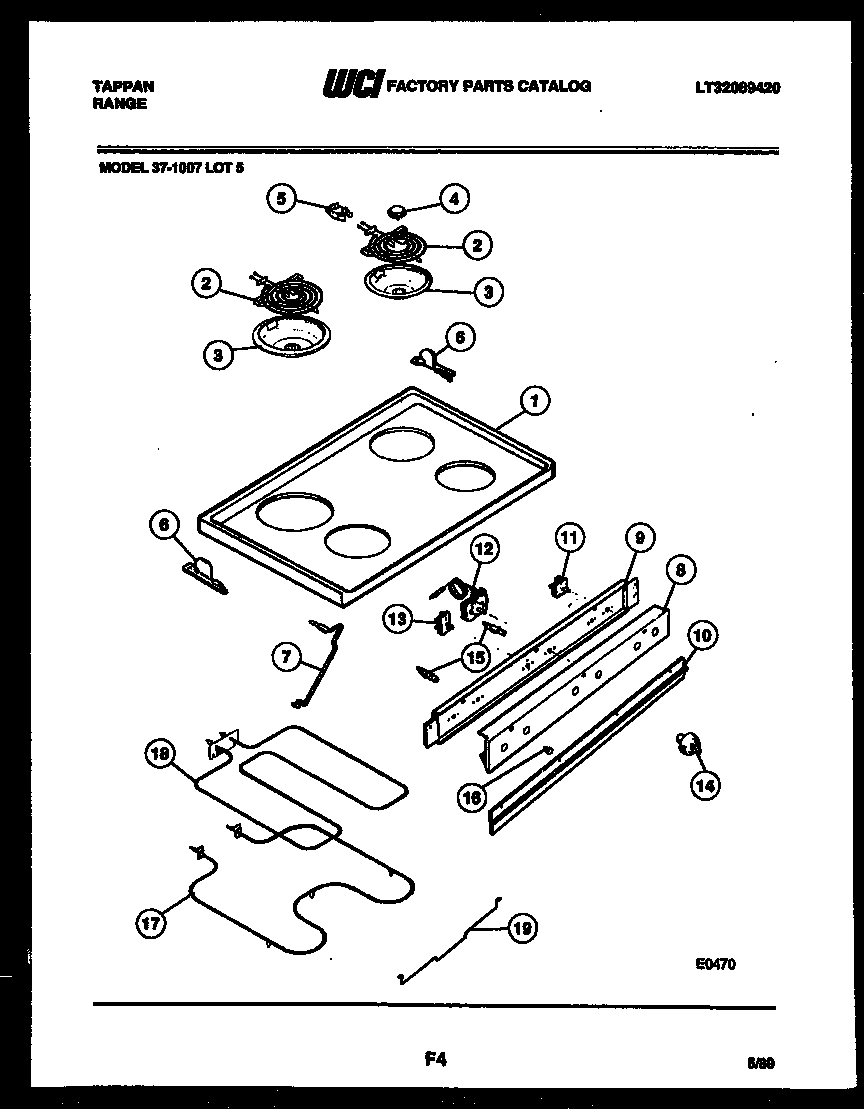

04 - COOKTOP AND BROILER PARTS

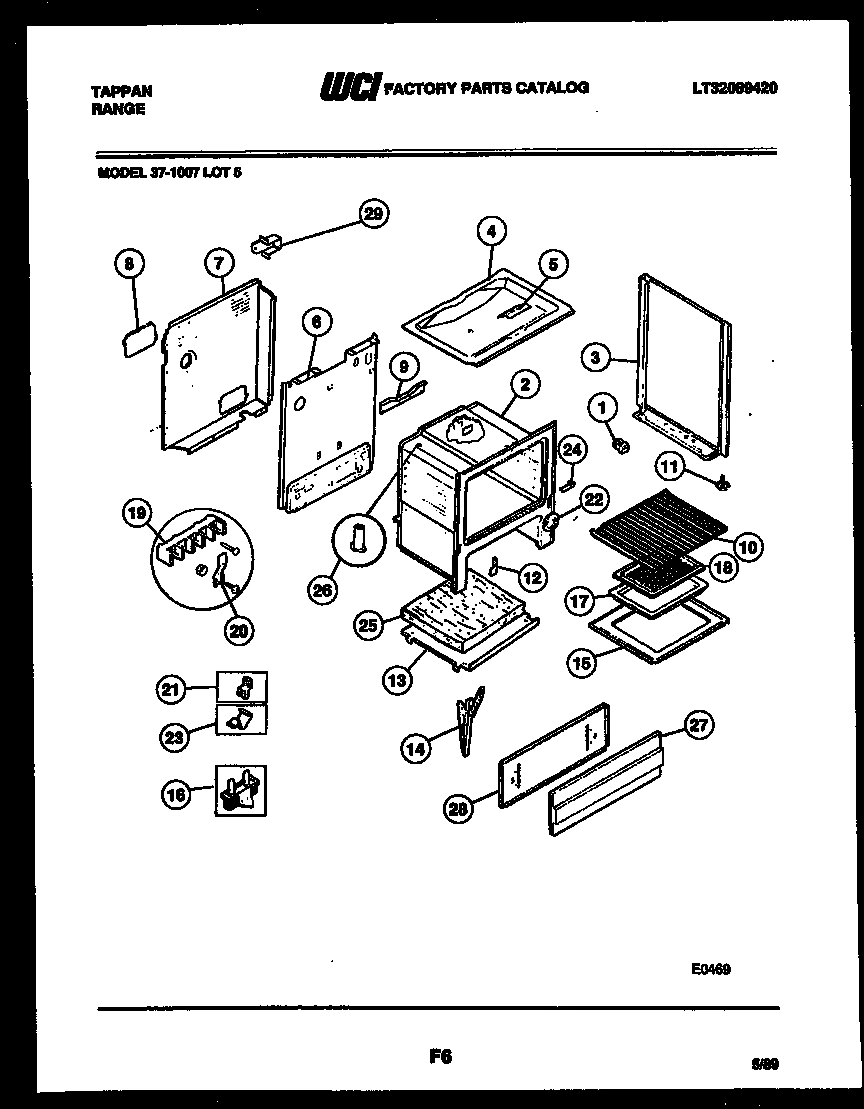

05 - BODY PARTS
Common parts from model Electrolux 37-1007-23-05 RANGE
*25261
SCREW 8-18 X 1/2 PH WR HD SPC (3) WCI 3131573 Contact Us For Availability
*25265
RETAINER-LENS (3) WCI 3051224 Contact Us For Availability
1
WCI 3051113 WCI 3051113 Contact Us For Availability
1
MAIN - TOP (ALMD) WCI 3051380 Contact Us For Availability
1
SPACER, BODYSIDE (8) WCI 665T188P02 Contact Us For Availability
2
HANDLE-DOOR WCI 3131345 Contact Us For Availability
2
CAP-END (LH) WCI 3051136 Contact Us For Availability
3
COVER, DOOR LINER WCI 3131207 Contact Us For Availability
3
CAP-END (RH) WCI 3051137 Contact Us For Availability
3
WCI 3200793 WCI 3200793 Contact Us For Availability
3A
WCI 3200790 WCI 3200790 Contact Us For Availability
4
INSULATION, OVEN DOOR WCI 3131208 Contact Us For Availability
4
WCI 3051193 WCI 3051193 Contact Us For Availability
4
WCI 445T006P01 WCI 445T006P01 Contact Us For Availability
4
WCI 3051109 WCI 3051109 Contact Us For Availability
5
WCI 3201692 WCI 3201692 Contact Us For Availability
5
PNL-BACKGRD-ALMD WCI 3051198 Contact Us For Availability
5
WCI 3131101 WCI 3131101 Contact Us For Availability
6
WCI 3201693 WCI 3201693 Contact Us For Availability
6
NUT - TWIST (2) WCI 3131215 Contact Us For Availability
6
BRACKET - HG LH WCI 3131286 Contact Us For Availability
6
WCI 3203082 WCI 3203082 Contact Us For Availability
6A
BRACKET - HG RH WCI 3131287 Contact Us For Availability
7
PNL-OVEN DR (ALMD) WCI 3051289 Contact Us For Availability
7
ROD - TOP SPPT (2) WCI 618T038P05 Contact Us For Availability
7
SHIELD-LOWER WALL WCI 3203549 Contact Us For Availability
8
PNL - MANIFOLD WCI 3051207 Contact Us For Availability
8
WCI 3203405 WCI 3203405 Contact Us For Availability
9
SCREW - HNDL 10-24 (2) WCI 3131213 Contact Us For Availability
9
WCI 3051454 WCI 3051454 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
10
WCI 3131210 WCI 3131210 Contact Us For Availability
10
EXTRUSION - HT SHIELD WCI 3051145 Contact Us For Availability
11
WCI 699T015P02 WCI 699T015P02 Contact Us For Availability
11
SCREW, LEVEL (4) WCI 3203397 Contact Us For Availability
12
COVER HNG. CUTOUT (2) WCI 3131570 Contact Us For Availability
12
WCI 3051321 WCI 3051321 Contact Us For Availability
13
WCI 3016812 WCI 3016812 Contact Us For Availability
13
WCI 3051398 WCI 3051398 Contact Us For Availability
14
WCI 3051173 WCI 3051173 Contact Us For Availability
14
CHANNEL DR HNG (2) WCI 3131569 Contact Us For Availability
14A
WCI 3051506 WCI 3051506 Contact Us For Availability
14B
KNOB - SW SELECTOR WCI 3051505 Contact Us For Availability
15
LIGHT - IND 125 V (2) WCI 318T023P11 Contact Us For Availability
15
WCI 3203540 WCI 3203540 Contact Us For Availability
15A
LIGHT - IND 250 V WCI 318T023P12 Contact Us For Availability
16
JEWEL - INDICATOR WCI 342T014P01 Contact Us For Availability
16
FUSE-THERMAL CUT OUT WCI 3051147 Contact Us For Availability
17
WCI 539T010F01-86 WCI 539T010F01-86 Contact Us For Availability
18
WCI 3131356 WCI 3131356 Contact Us For Availability
20
WCI 711T048P01 WCI 711T048P01 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
24
COVER-FRONT MAIN WCI 3131548 Contact Us For Availability
26
WCI 3051344 WCI 3051344 Contact Us For Availability
26A
INSULATION-WRAP (NON-ILLUSTRATED) WCI 3131201 Contact Us For Availability
26B
WCI 3203541 WCI 3203541 Contact Us For Availability
26D
SCREW-HNG MTG (6) (NON-ILLUSTRATED) WCI 636T163P01 Contact Us For Availability
26E
NUT-HEX BRASS (6) (NON-ILLUSTRATED) WCI 479T069P41 Contact Us For Availability
27
PNL - DRAWER (ALMD) WCI 3051202 Contact Us For Availability
28
WCI 3131383 WCI 3131383 Contact Us For Availability
28A
WCI 3051387 WCI 3051387 Contact Us For Availability
28B
ANTI-TIP KIT (NON-ILLUSTRATED) WCI 3934056 Contact Us For Availability
29
WCI 3203582 WCI 3203582 Contact Us For Availability
× ![]()
