Model GE 363JBS26GJ3 Electric Range (Kenmore 363JBS26GJ3) – Common Parts & Diagrams
All Parts

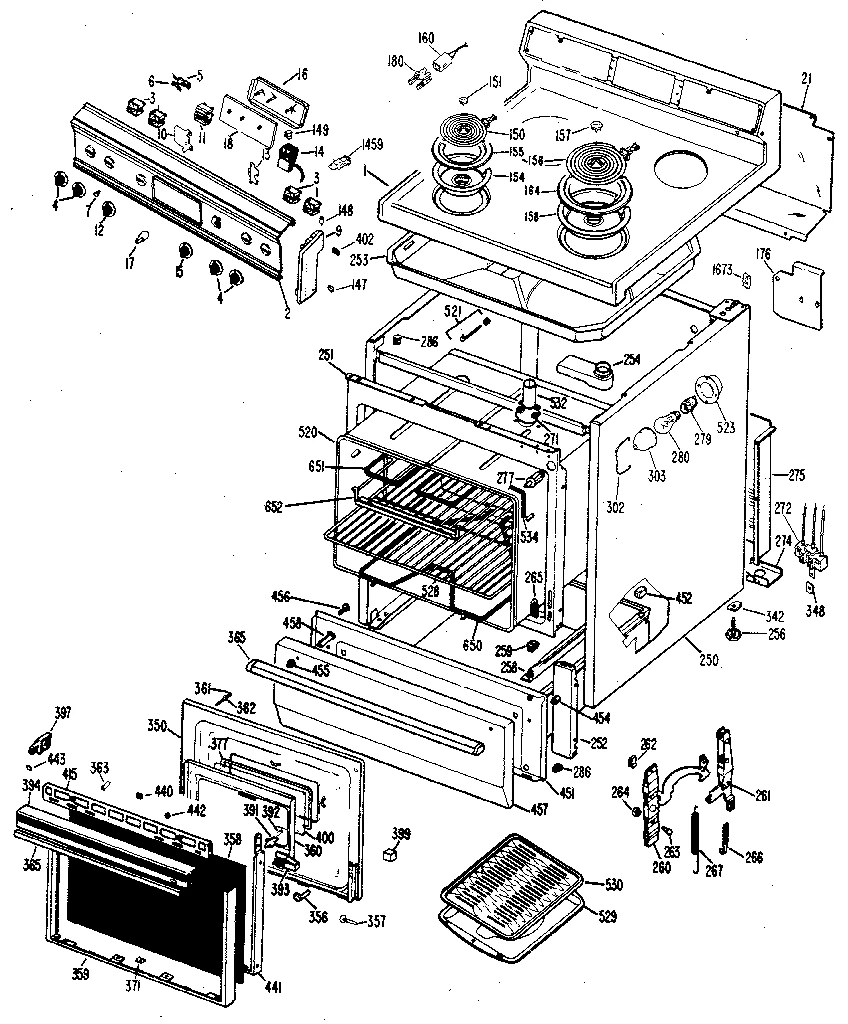

BODY SECTION
Common parts from model GE 363JBS26GJ3 Electric Range (Kenmore 363JBS26GJ3)
6
Clip GEN WB02X1185 Contact Us For Availability
9
End Cap, Right GEN WB07X6831 Contact Us For Availability
9A
End Cap, Left GEN WB07X6832 Contact Us For Availability
10
Bracket Lh GEN WB02X7305 Contact Us For Availability
11
Oven Switch GEN WB22X0031 Contact Us For Availability
12
Oven Knob GEN WB03X5678 Contact Us For Availability
13
Braclet Rh GEN WB02X7306 Contact Us For Availability
14
Sleeve GEN WB02X1394 Contact Us For Availability
14A
Oven Thermostat GEN WB21X5208 Contact Us For Availability
15
Thermostat Knob GEN WB03X5679 Contact Us For Availability
16
Timer GEN WB19X5286 Contact Us For Availability
18
Crystal GEN WB36X5574 Contact Us For Availability
21
Cover GEN WB49X0390 Contact Us For Availability
147
Speed Nut GEN WB01X0578 Contact Us For Availability
148
Screw GEN WB01X5682 Contact Us For Availability
149
Clip GEN WB02X7702 Contact Us For Availability
151
Trim GEN WB32X0052 Contact Us For Availability
154
Unit Pan 6" GEN WB32X5051 Contact Us For Availability
157
Trim GEN WB32X0051 Contact Us For Availability
164
Trim Ring-8" GEN WB31X5014 Contact Us For Availability
176
Light Cover GEN WB49X0391 Contact Us For Availability
250
"F" LAMP F20T12 C/W GEN N/P Contact Us For Availability
250A
Conterweight GEN WB02X3470 Contact Us For Availability
251
Frame GEN WB56X6050 Contact Us For Availability
252
Filler Panel GEN WB49X5399 Contact Us For Availability
252A
Filler Panel GEN WB49X5400 Contact Us For Availability
252B
Filler Panel GEN WB49X5401 Contact Us For Availability
253
Cooktop Box GEN WB49X5384 Contact Us For Availability
254
Body Vent GEN WB38X0050 Contact Us For Availability
256
Leveling Leg GEN WB02X7701 Contact Us For Availability
258
Guide GEN WB39X0051 Contact Us For Availability
259
Guide Block GEN WB02X0831 Contact Us For Availability
260
Hinge Lever GEN WB10X5148 Contact Us For Availability
261
Hinge Spt Rh GEN WB10X0148 Contact Us For Availability
261A
Hinge Spt Lh GEN WB10X0149 Contact Us For Availability
262
Shim Clip GEN WB02X3193 Contact Us For Availability
263
Hinge Pin GEN WB02X6195 Contact Us For Availability
264
Retainer GEN WB02X1082 Contact Us For Availability
265
Guide GEN WB02X6342 Contact Us For Availability
266
Hook GEN WB02X2506 Contact Us For Availability
267
Door Spring GEN WB09X0144 Contact Us For Availability
271
Baffle GEN WB02X1626 Contact Us For Availability
274
Plate GEN WB02X1908 Contact Us For Availability
277
Switch GEN WB24X0105 Contact Us For Availability
286
Button GEN WB02X3394 Contact Us For Availability
302
Bail GEN WB02X7694 Contact Us For Availability
342
Retainer GEN WB02X7700 Contact Us For Availability
348
Ground Plate GEN WB02X0646 Contact Us For Availability
350
Door Liner GEN WB55X5290 Contact Us For Availability
356
Trim Clip GEN WB02X6574 Contact Us For Availability
358
Insulation GEN WB02X3140 Contact Us For Availability
358A
Glass GEN WB36X5560 Contact Us For Availability
359
Door Trim GEN WB07X6886 Contact Us For Availability
360
Guard Insulation GEN WB49X0384 Contact Us For Availability
363
Spacer GEN WB02X3030 Contact Us For Availability
371
Speed Nut GEN WB01X5732 Contact Us For Availability
377
Crystal Trim GEN WB07X1031 Contact Us For Availability
391
Toggle GEN WB02X3052 Contact Us For Availability
392
Toggle Ling GEN WB02X5217 Contact Us For Availability
393
Cam Spring GEN WB09X5083 Contact Us For Availability
394
Trim GEN WB07X6889 Contact Us For Availability
397
Screw GEN WB01X5754 Contact Us For Availability
397A
Endcap Rh GEN WB07X6887 Contact Us For Availability
397B
Endcap Lh GEN WB07X6888 Contact Us For Availability
397C
Screw GEN WZ04X0384 Contact Us For Availability
399
Pad GEN WB02X3285 Contact Us For Availability
400
Window GEN WB36X0526 Contact Us For Availability
402
Clip GEN WB01X0591 Contact Us For Availability
415
Brace GEN WB02X7608 Contact Us For Availability
441
Braceside Lh GEN WB02X7609 Contact Us For Availability
441A
Braceside Rh GEN WB02X7610 Contact Us For Availability
442
Speed Nut GEN WB01X5743 Contact Us For Availability
443
Clip GEN WB01X5734 Contact Us For Availability
451
Drawer Body GEN WB58X0050 Contact Us For Availability
452
Slide GEN WB02X0840 Contact Us For Availability
454
Bumper GEN WB02X0584 Contact Us For Availability
455
Grommet GEN WB02X3135 Contact Us For Availability
456
Screw GEN WZ04X0395 Contact Us For Availability
457
Panel GEN WB56X1396 Contact Us For Availability
457A
Panel GEN WB56X1399 Contact Us For Availability
457B
Panel GEN WB56X1400 Contact Us For Availability
458
Spacer GEN WB02X3387 Contact Us For Availability
520
Insulation GEN WB02X3141 Contact Us For Availability
520A
Cup Tube Support GEN WB02X3471 Contact Us For Availability
520B
Oven Liner GEN WB53X5115 Contact Us For Availability
521
Oven Hook GEN WB09X0088 Contact Us For Availability
523
Housing GEN WB02X7693 Contact Us For Availability
528
Oven Rack GEN WB48X5044 Contact Us For Availability
532
Vent Tube GEN WB38X0072 Contact Us For Availability
652
Broil Support GEN WB02X1452 Contact Us For Availability
740
Wire Clip GEN WB02X7226 Contact Us For Availability
782
Block GEN WB17X5060 Contact Us For Availability
790
Speed Nut GEN WB01X0365 Contact Us For Availability
× ![]()
