Model GE 363.79287991 Refrigerator (Kenmore 36379287991) – Common Parts & Diagrams
CABINET
COMPARTMENT SEPARATOR PARTS

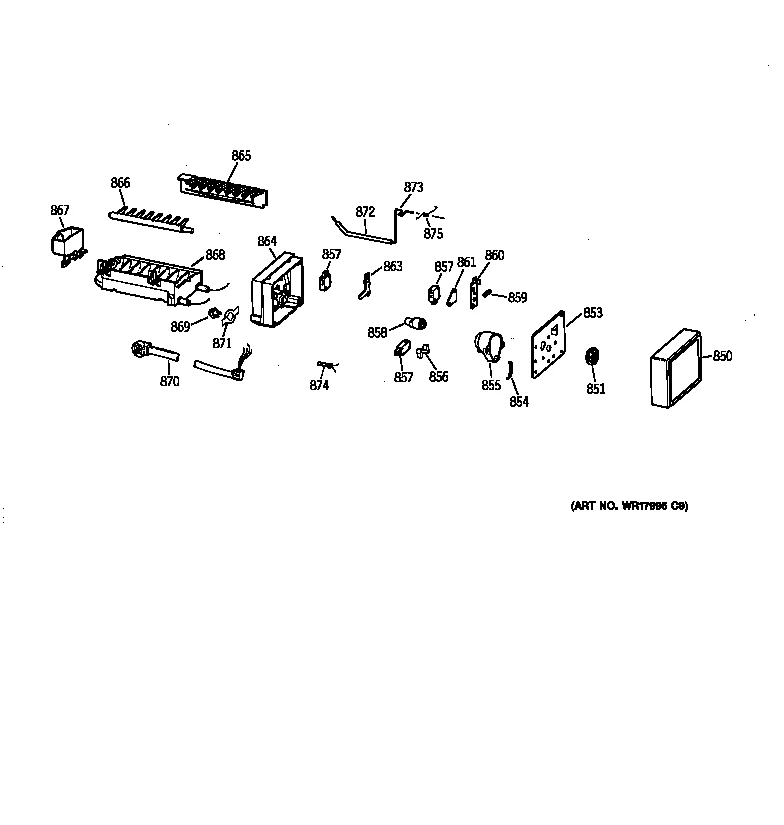

ICEMAKER WR30X0327

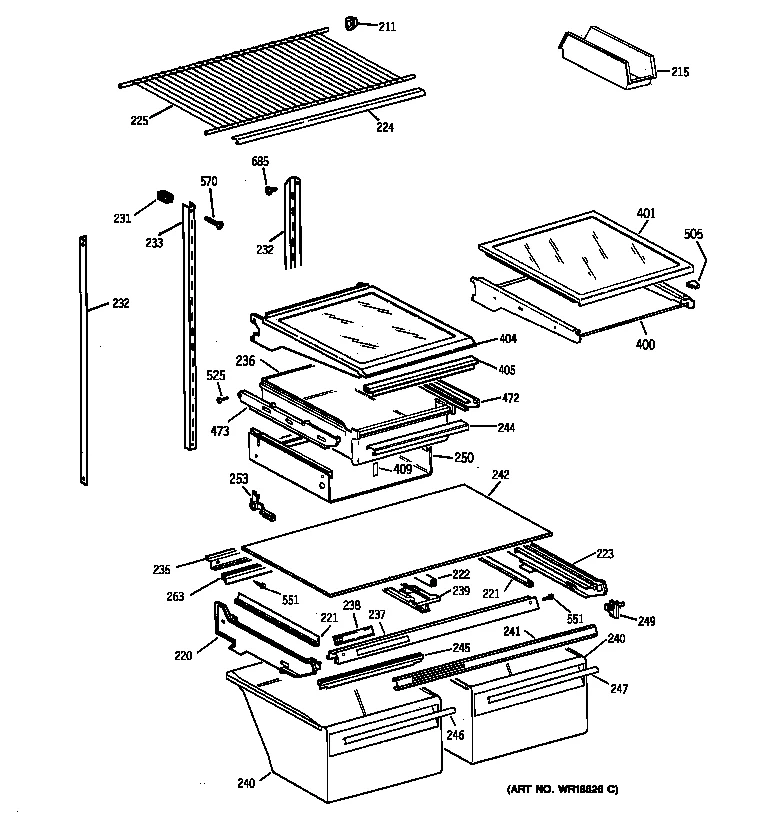

SHELF PARTS

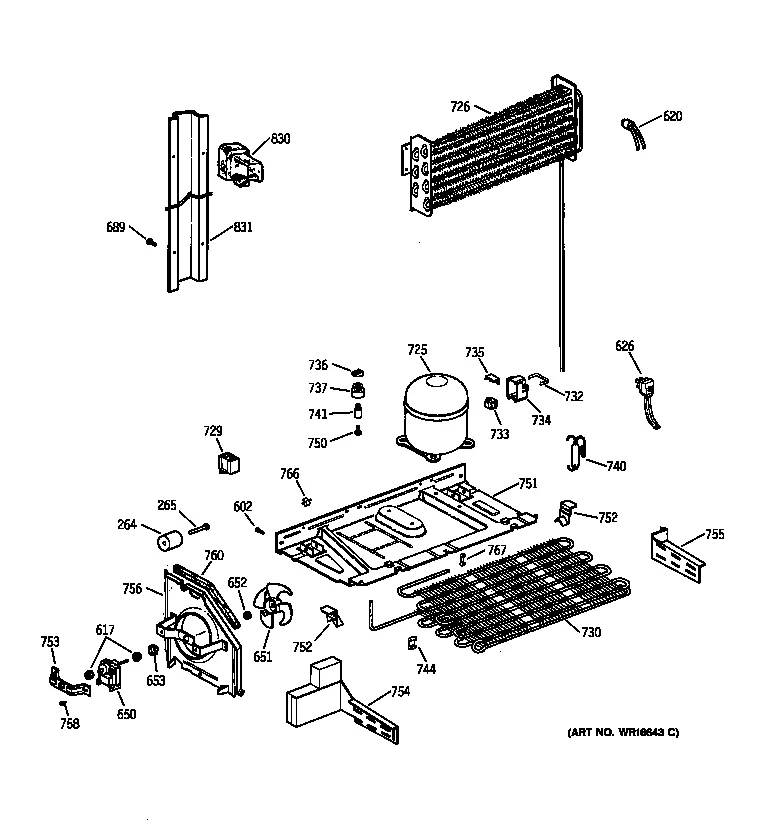

UNIT PARTS

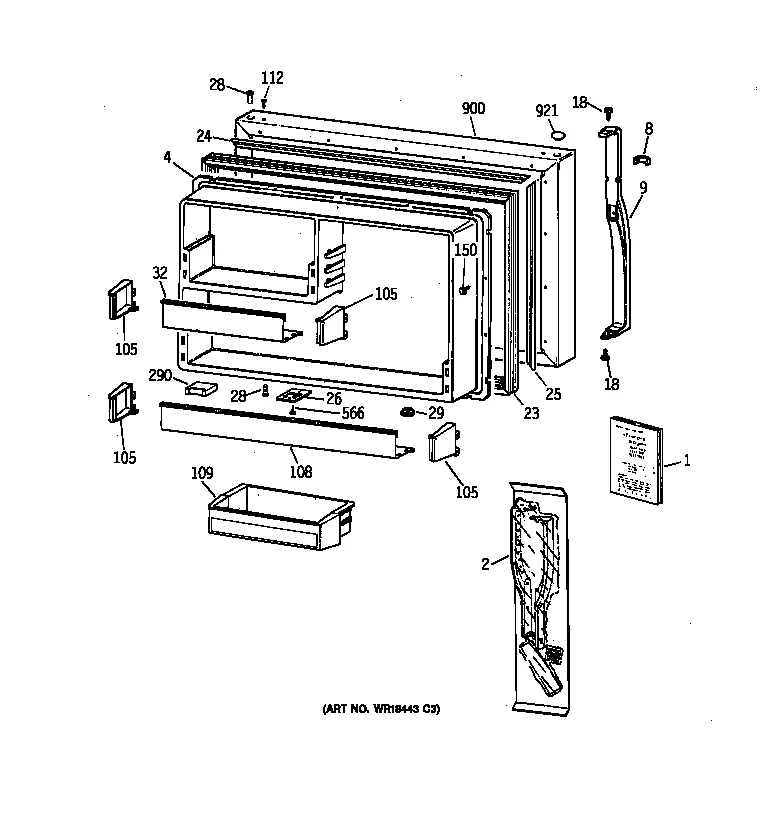

FREEZER DOOR

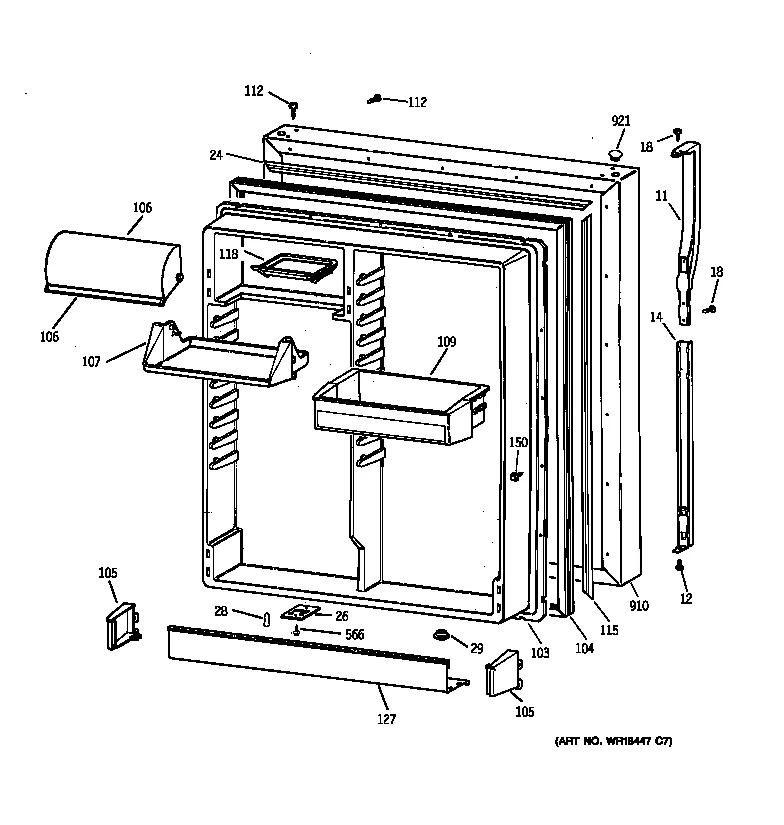

FRESH FOOD DOOR
Common parts from model GE 363.79287991 Refrigerator (Kenmore 36379287991)
1A
Refrigerator Parts List GEN 31-5065 Contact Us For Availability
1B
Refrigerator Owner's Guide GEN 31-51230 Contact Us For Availability
2
Handle Pk A GEN WR12X10283 Contact Us For Availability
2
Handle Pk A GEN WR12X10284 Contact Us For Availability
2
Handle Pk A GEN WR12X10285 Contact Us For Availability
4
Refrigerator Freezer Inner Door Panel GEN WR77X612 Contact Us For Availability
8
Name Clip GEN WR4X10010 Contact Us For Availability
8
Name Clip GEN WR4X10011 Contact Us For Availability
8
Name Clip GEN WR4X10012 Contact Us For Availability
8
CLIP NAMEPLATE WH GEN WR4X110 Contact Us For Availability
9
Refrigerator Door Handle GEN WR12X10019 Contact Us For Availability
9
Refrigerator Door Handle GEN WR12X10021 Contact Us For Availability
9
Refrigerator Door Handle GEN WR12X10026 Contact Us For Availability
11
Refrigerator Door Handle GEN WR12X10018 Contact Us For Availability
11
Refrigerator Door Handle GEN WR12X10022 Contact Us For Availability
11
Refrigerator Door Handle GEN WR12X10027 Contact Us For Availability
12
Scr 10-14 GEN WR1X10036 Contact Us For Availability
12
SCR 10-14 PL PNP 3/4 SZN GEN WR1X136 Contact Us For Availability
14
Trim Asm Ff GEN WR12X10020 Contact Us For Availability
14
Refrigerator Door Handle Trim GEN WR12X10023 Contact Us For Availability
14
Trim Asm Ff GEN WR12X10028 Contact Us For Availability
23
Gask Dr Fz B GEN WR24X533 Contact Us For Availability
24
Refrigerator Freezer Door Gasket Retainer GEN WR17X2237 Contact Us For Availability
25
Refrigerator Retainer Strip GEN WR17X2239 Contact Us For Availability
28
Thimble D GEN WR2X10111 Contact Us For Availability
29
Refrigerator Door Inner Liner Button Plug (Wh GEN WR2X8087 Contact Us For Availability
29
Refrigerator Freezer Door Liner Plug Button ( GEN WR2X8088 Contact Us For Availability
29
Plug Insert GEN WR2X8542 Contact Us For Availability
32
Shelf Front GEN WR71X10031 Contact Us For Availability
103
I.d.panel Ff GEN WR77X611 Contact Us For Availability
104
Refrigerator Door Gasket (Black) GEN WR24X534 Contact Us For Availability
105A
Refrigerator Door Shelf Rail End Cap, Right GEN WR2X8700 Contact Us For Availability
105B
Refrigerator Door Shelf Rail End Cap, Left GEN WR2X8699 Contact Us For Availability
106A
Refrigerator Dairy Bin Cover GEN WR22X512 Contact Us For Availability
106B
Bright Trim GEN WR38X10022 Contact Us For Availability
107
Refrigerator Dairy Extension GEN WR22X472 Contact Us For Availability
108
Shelf Front GEN WR71X10030 Contact Us For Availability
109
Refrigerator Shelf Module GEN WR71X10032 Contact Us For Availability
112
Refrigerator Door Reversal Plug GEN WR2X8697 Contact Us For Availability
115
Refrigerator Door Gasket Retainer GEN WR17X2238 Contact Us For Availability
118
Butter Dish GEN WR19X5003 Contact Us For Availability
127
Shelf Front GEN WR71X10029 Contact Us For Availability
202
Grille I/ GEN WR2X8629 Contact Us For Availability
211
Refrigerator Shelf Support GEN WR2X7973 Contact Us For Availability
215
Bucket Utili GEN WR32X897 Contact Us For Availability
220
Refrigerator Crisper Drawer Slide Rail GEN WR17X2770 Contact Us For Availability
221
Gasket GEN WR14X384 Contact Us For Availability
222
Refrigerator Crisper Shelf Seal GEN WR14X366 Contact Us For Availability
223
Refrigerator Drawer Slide Rail GEN WR17X2769 Contact Us For Availability
224
Refrigerator Shelf Trim GEN WR38X10018 Contact Us For Availability
225
Refrigerator Freezer Door Wire Shelf GEN WR71X2312 Contact Us For Availability
231
Spacer Track GEN WR2X7018 Contact Us For Availability
232
Shelf Track GEN WR72X96 Contact Us For Availability
233
Shelf Track GEN WR72X97 Contact Us For Availability
235
Refrigerator Crisper Drawer Shelf Rail GEN WR17X3161 Contact Us For Availability
236
Refrigerator Meat Pan GEN WR32X1022 Contact Us For Availability
237
Refrigerator Crisper Drawer Frame Trim GEN WR17X3288 Contact Us For Availability
238
Refrigerator Slide GEN WR17X4011 Contact Us For Availability
239
Refrigerator Crisper Drawer Slide Rail, Cente GEN WR17X2768 Contact Us For Availability
240
Refrigerator Crisper Drawer GEN WR32X1141 Contact Us For Availability
241
Refrigerator Vegetable Pan Frame Trim GEN WR38X10017 Contact Us For Availability
242
Refrigerator Cantilever Shelf GEN WR32X10014 Contact Us For Availability
244
Refrigerator Pan Handle GEN WR38X10015 Contact Us For Availability
245
Refrigerator Drawer Gasket GEN WR14X358 Contact Us For Availability
246
Vegetable Pan Handle GEN WR38X10019 Contact Us For Availability
247
Vegetable Pan Handle GEN WR38X10020 Contact Us For Availability
249
Refrigerator Vegetable Pan Cover Support GEN WR2X8695 Contact Us For Availability
250
Refrigerator Shroud GEN WR17X2843 Contact Us For Availability
253
Lever GEN WR2X8446 Contact Us For Availability
256
Refrigerator Power Saver Switch GEN WR23X309 Contact Us For Availability
263
Refrigerator Cover Gasket GEN WR14X398 Contact Us For Availability
264
Mobility Wheel GEN WR2X10137 Contact Us For Availability
265
Refrigerator Wheel Axle GEN WR1X10039 Contact Us For Availability
276
Refrigerator Hinge GEN WR13X712 Contact Us For Availability
279
Hinge Pin GEN WR13X587 Contact Us For Availability
282
Bottom Hinge GEN WR13X651 Contact Us For Availability
289
Grille Clip GEN WR2X7646 Contact Us For Availability
290
Refrigerator Magnet GEN WR2X10095 Contact Us For Availability
300A
Refrigerator Temperature Control GEN WR9X559 Contact Us For Availability
301
Refrigerator Temperature Knob GEN WR2X8692 Contact Us For Availability
304
Foam Nozzle GEN WR2X8363 Contact Us For Availability
305
Shaft/kno GEN WR2X9303 Contact Us For Availability
306
Hsg C &l Asm GEN WR17X2783 Contact Us For Availability
308
Control Bracket GEN WR2X7768 Contact Us For Availability
309
Refrigerator Control Panel Plug Button GEN WR2X7652 Contact Us For Availability
314
Refrigerator Drain Clip GEN WR2X8503 Contact Us For Availability
315
Tube Drai GEN WR2X10134 Contact Us For Availability
323
Refrigerator Control Bracket GEN WR2X7767 Contact Us For Availability
324B
Refrigerator Discharge Baffle Plug Button GEN WR2X7051 Contact Us For Availability
400
Refrigerator Cantilever Shelf GEN WR32X1581 Contact Us For Availability
401
Shelf End Cap GEN WR32X10015 Contact Us For Availability
404
Refrigerator Glass Shelf GEN WR32X10013 Contact Us For Availability
405
Refrigerator Meat Pan Gasket GEN WR14X471 Contact Us For Availability
409
Refrigerator Meat Pan Decal GEN WR2X9440 Contact Us For Availability
472
Refrigerator Deli Drawer Slide Rail GEN WR72X273 Contact Us For Availability
473
Slide, Left GEN WR72X275 Contact Us For Availability
505
Shelf Stop GEN WR1X2080 Contact Us For Availability
525
Refrigerator Screw GEN WR1X1763 Contact Us For Availability
551
SCR 8-18 AB RNDW 5/8 SS GEN WZ4X244 Contact Us For Availability
602
Screw GEN WR1X1591 Contact Us For Availability
603
L Bottom Frz GEN WR17X2234 Contact Us For Availability
604
Divider Insulation GEN WR17X3495 Contact Us For Availability
606
Freezer Front Liner GEN WR17X2401 Contact Us For Availability
608
Liner Top Ff GEN WR17X10029 Contact Us For Availability
610
Refrigerator Evaporator Fan Motor GEN WR60X190 Contact Us For Availability
615
Grommet GEN WR2X7391 Contact Us For Availability
617
Grommet GEN WR2X10098 Contact Us For Availability
623
Gasket Trough GEN WR14X348 Contact Us For Availability
624
Cvr Ff Suply GEN WR17X3910 Contact Us For Availability
651
Condenser Fan Blade GEN WR60X10023 Contact Us For Availability
652
Refrigerator Complete Ring GEN WR2X10323 Contact Us For Availability
653
Refrigerator Dust Cap GEN WR2X10322 Contact Us For Availability
679
Screw&was GEN WZ6X133 Contact Us For Availability
693
Refrigerator Screw GEN WR1X2136 Contact Us For Availability
726
Refrigerator Low Side Assembly GEN WR85X10005 Contact Us For Availability
730
Cond Asm Fin GEN WR84X10010 Contact Us For Availability
732
Cover Clip GEN WR2X7226 Contact Us For Availability
734
Cover Relay GEN WR2X7834 Contact Us For Availability
736
Refrigerator Compressor Mounting Clip GEN WR2X8203 Contact Us For Availability
737
Grommet GEN WR2X7238 Contact Us For Availability
744
Clip Condenser GEN WR2X9209 Contact Us For Availability
751
Baseplate Hi GEN WR17X10318 Contact Us For Availability
752
High Support GEN WR17X10317 Contact Us For Availability
753
Bracket GEN WR2X10321 Contact Us For Availability
754
Baffle Asm L GEN WR17X10316 Contact Us For Availability
755
Air Condenser Baffle GEN WR17X10319 Contact Us For Availability
756
Refrigerator Condenser Fan Housing GEN WR17X10425 Contact Us For Availability
760
Refrigerator Foam Strip GEN WR14X10008 Contact Us For Availability
762
Refrigerator Evaporator Cover Seal GEN WR14X313 Contact Us For Availability
767
Clip Condenser GEN WR2X10135 Contact Us For Availability
804
Refrigerator Water Tube Nut, 1/4-in GEN WR57X57 Contact Us For Availability
830
Refrigerator Foam Plug GEN WR82X360 Contact Us For Availability
831
Refrigerator Cover GEN WR17X3056 Contact Us For Availability
850
Refrigerator Ice Maker Cover GEN WR29X182 Contact Us For Availability
853
Refrigerator Mounting Plate GEN WR29X5111 Contact Us For Availability
856
Spacer GEN WR29X5118 Contact Us For Availability
857
Refrigerator Ice Maker On/Off Switch GEN WR29X5171 Contact Us For Availability
861
Refrigerator Insulator GEN WR29X5117 Contact Us For Availability
867
Inlet Bearing GEN WR29X153 Contact Us For Availability
868
Refrigerator Ice Maker Ice Mold GEN WR29X204 Contact Us For Availability
870
Refrigerator Ice Maker Wire Harness GEN WR29X186 Contact Us For Availability
872
Sleeve GEN WR29X5128 Contact Us For Availability
900
Fz O Dr Ad GEN WR78X8739 Contact Us For Availability
900
Fz O Dr Wh GEN WR78X8741 Contact Us For Availability
900
Fz O Dr Bk GEN WR78X8743 Contact Us For Availability
910
Ff O Dr Ad GEN WR78X8738 Contact Us For Availability
910
Ff O Dr Wh GEN WR78X8740 Contact Us For Availability
910
Ff O Dr Bk GEN WR78X8742 Contact Us For Availability
921
Refrigerator Freezer Door Handle Screw Cover GEN WR2X7624 Contact Us For Availability
921
Refrigerator Freezer Door Handle Screw Cover GEN WR2X7625 Contact Us For Availability
921
Refrigerator Door Handle Hole Plug (Black) GEN WR2X8541 Contact Us For Availability
× ![]()
