Model GE 363.78592896 Refrigerator (Kenmore 36378592896) – Common Parts & Diagrams
ICEMAKER WR30X0327
UNIT PARTS

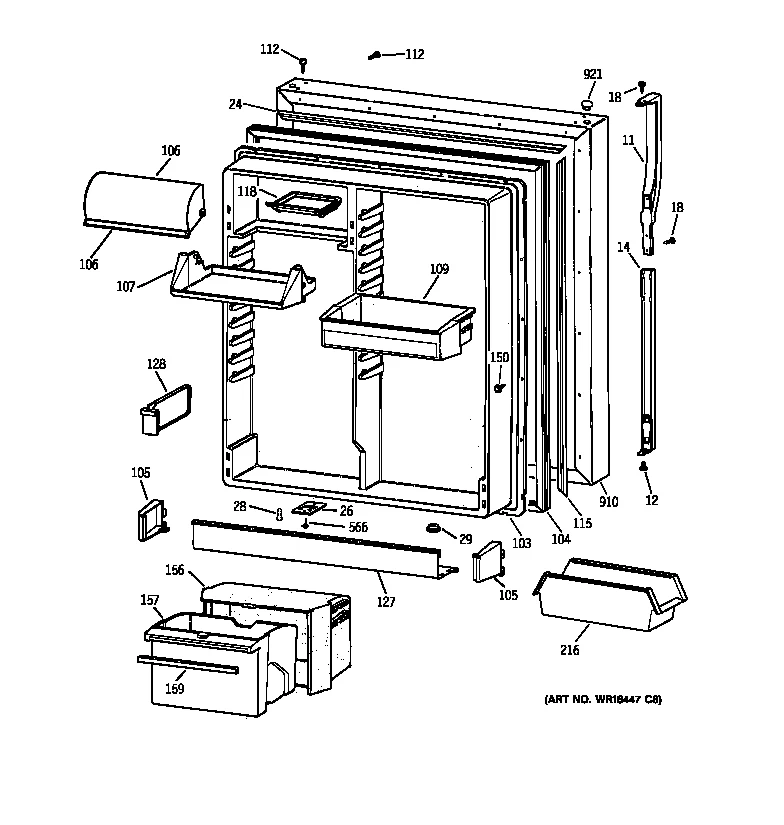

FRESH FOOD DOOR

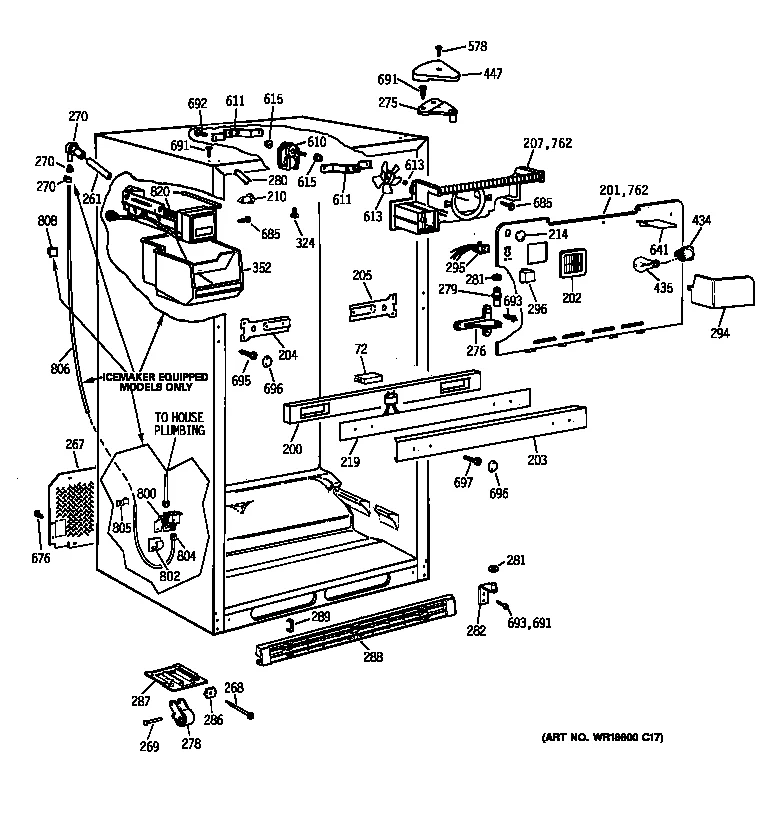

CABINET PARTS

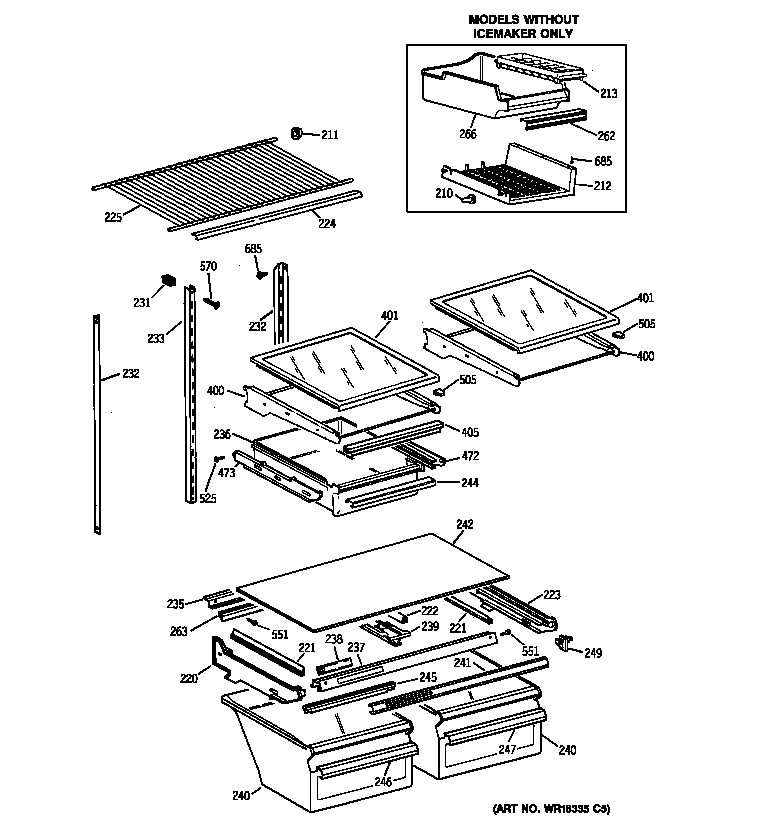

SHELF PARTS

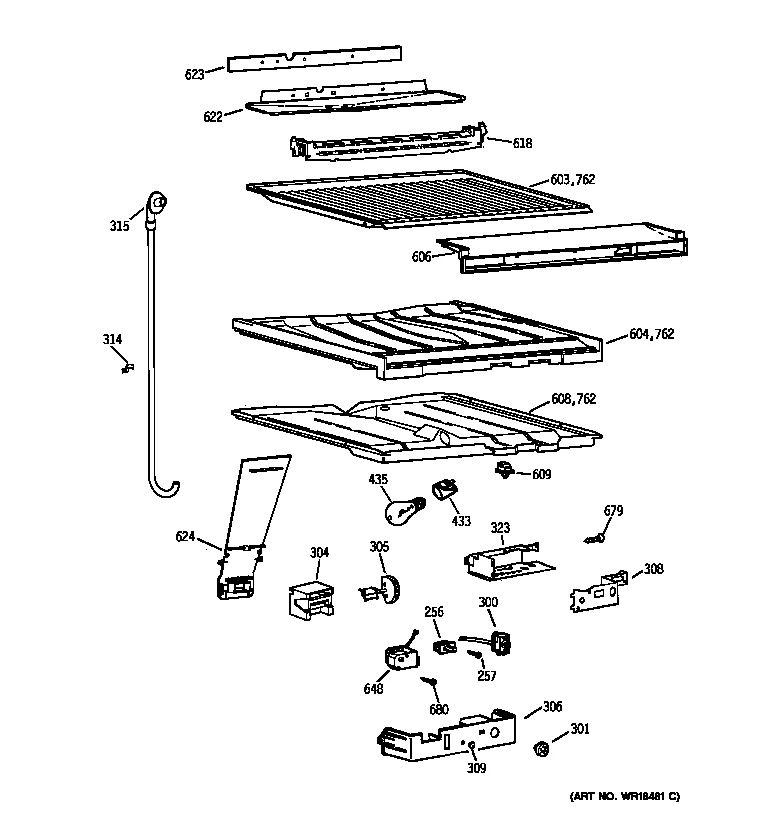

COMPARTMENT SEPARATOR PARTS

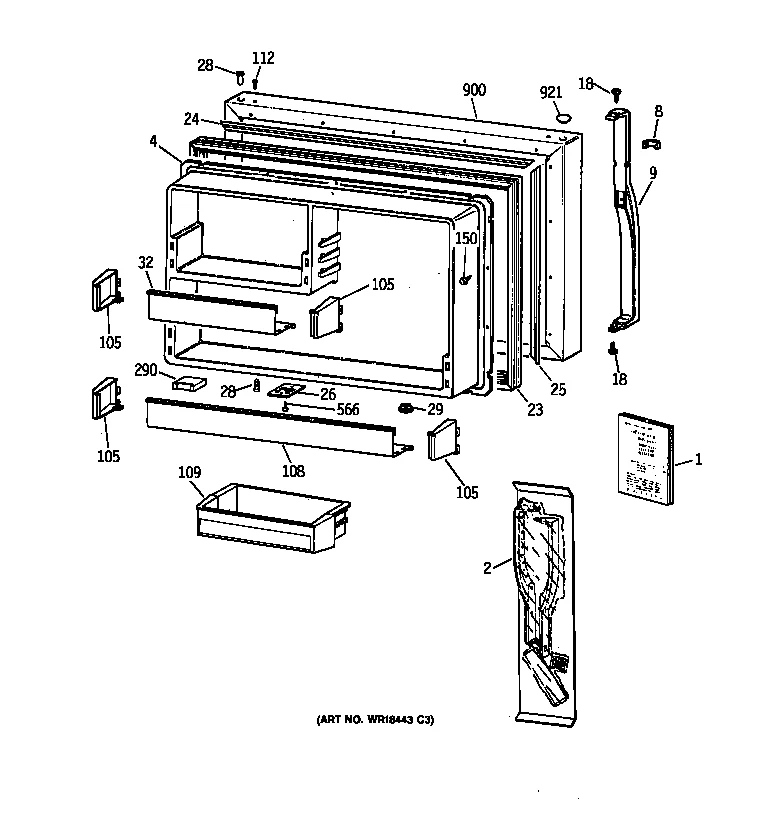

FREEZER DOOR
Common parts from model GE 363.78592896 Refrigerator (Kenmore 36378592896)
1A
Refrigerator Owner's Manual GEN 31-51232 Contact Us For Availability
1F
Refrigerator Parts List GEN 31-5065 Contact Us For Availability
2
Refrigerator Pack Handle GEN WR12X10213 Contact Us For Availability
2
Refrigerator Pack Handle GEN WR12X10214 Contact Us For Availability
2
Refrigerator Pack Handle GEN WR12X10216 Contact Us For Availability
4
Refrigerator Freezer Inner Door Panel GEN WR77X606 Contact Us For Availability
8
Name Clip GEN WR4X10010 Contact Us For Availability
8
Name Clip GEN WR4X10011 Contact Us For Availability
8
Name Clip GEN WR4X10012 Contact Us For Availability
9
Refrigerator Door Handle GEN WR12X10042 Contact Us For Availability
9
Refrigerator Door Handle GEN WR12X10044 Contact Us For Availability
9
Refrigerator Door Handle GEN WR12X10046 Contact Us For Availability
23
Refrigerator Freezer Door Gasket (White) GEN WR24X438 Contact Us For Availability
23
Refrigerator Freezer Door Gasket (Black) GEN WR24X512 Contact Us For Availability
24
Refrigerator Freezer Door Gasket Retainer GEN WR17X2136 Contact Us For Availability
25
Refrigerator Freezer Door Gasket Retainer GEN WR17X2135 Contact Us For Availability
28
Thimble D GEN WR2X10111 Contact Us For Availability
29
Refrigerator Door Inner Liner Button Plug (Wh GEN WR2X8087 Contact Us For Availability
29
Refrigerator Freezer Door Liner Plug Button ( GEN WR2X8088 Contact Us For Availability
29
Plug Insert GEN WR2X8542 Contact Us For Availability
32
Shelf Front GEN WR71X10042 Contact Us For Availability
72
Refrigerator Light Switch GEN WR23X334 Contact Us For Availability
105A
Refrigerator Door Shelf Rail End Cap, Right GEN WR2X8700 Contact Us For Availability
105B
Refrigerator Door Shelf Rail End Cap, Left GEN WR2X8699 Contact Us For Availability
108
Shelf Front GEN WR71X10041 Contact Us For Availability
109
Refrigerator Shelf Module GEN WR71X10043 Contact Us For Availability
112
Refrigerator Door Reversal Plug GEN WR2X8697 Contact Us For Availability
200
Foam Strip GEN WR14X347 Contact Us For Availability
201
Refrigerator Evaporator Cover GEN WR17X2425 Contact Us For Availability
202
Grille I/ GEN WR2X8629 Contact Us For Availability
203
Crosspiece Mullion GEN WR17X4193 Contact Us For Availability
203
Crosspiece Mullion GEN WR17X4196 Contact Us For Availability
203
Crosspiece Mullion GEN WR17X4199 Contact Us For Availability
204
Mullion GEN WR2X7823 Contact Us For Availability
205
Mullion R GEN WR2X7822 Contact Us For Availability
207
Refrigerator Plenum GEN WR17X2990 Contact Us For Availability
210
Refrigerator Grommet GEN WR2X6261 Contact Us For Availability
211
Refrigerator Shelf Support GEN WR2X7973 Contact Us For Availability
212
Refrigerator Ice Tray Shelf GEN WR30X300 Contact Us For Availability
216
Refrigerator Egg Bin GEN WR32X1435 Contact Us For Availability
219
Heater Mullion GEN WR51X357 Contact Us For Availability
220
Refrigerator Crisper Drawer Slide Rail GEN WR17X2770 Contact Us For Availability
221
Gasket GEN WR14X384 Contact Us For Availability
222
Refrigerator Crisper Shelf Seal GEN WR14X366 Contact Us For Availability
223
Refrigerator Drawer Slide Rail GEN WR17X2769 Contact Us For Availability
224
Refrigerator Trim Shelf Wire GEN WR38X10047 Contact Us For Availability
225
Refrigerator Freezer Shelf GEN WR71X1961 Contact Us For Availability
231
Spacer Track GEN WR2X7018 Contact Us For Availability
232
Shelf Track GEN WR72X96 Contact Us For Availability
233
Shelf Track GEN WR72X97 Contact Us For Availability
235
Refrigerator Crisper Drawer Frame Trim GEN WR17X3168 Contact Us For Availability
236
Meat Pan GEN WR32X1019 Contact Us For Availability
237
Refrigerator Crisper Drawer Shelf Rail GEN WR17X2766 Contact Us For Availability
238
Refrigerator Slide GEN WR17X4011 Contact Us For Availability
239
Refrigerator Crisper Drawer Slide Rail, Cente GEN WR17X2768 Contact Us For Availability
240
Refrigerator Vegetable Pan GEN WR32X1578 Contact Us For Availability
241
Refrigerator Vegetable Pan Frame Trim GEN WR38X10044 Contact Us For Availability
242
Refrigerator Cantilever Shelf GEN WR32X10023 Contact Us For Availability
244
Pan Handle GEN WR38X10045 Contact Us For Availability
245
Pan Cover Gasket GEN WR14X354 Contact Us For Availability
246
Vegetable Pan Handle GEN WR38X10043 Contact Us For Availability
247
Vegetable Pan Handle GEN WR38X10042 Contact Us For Availability
249
Refrigerator Vegetable Pan Cover Support GEN WR2X8695 Contact Us For Availability
256
Refrigerator Power Saver Switch GEN WR23X309 Contact Us For Availability
261
Refrigerator Ice Maker Fill Tube GEN WR2X6087 Contact Us For Availability
261
Refrigerator Water Tube GEN WR2X10070 Contact Us For Availability
262
Handle Pan I GEN WR38X10046 Contact Us For Availability
263
Refrigerator Crisper Drawer Seal GEN WR14X397 Contact Us For Availability
267
Refrigerator Access Cover GEN WR82X10048 Contact Us For Availability
267
Refrigerator Access Cover GEN WR82X10049 Contact Us For Availability
268
Refrigerator Wheel Adjusting Screw GEN WR1X1816 Contact Us For Availability
269
Refrigerator Key Pivot GEN WR1X1803 Contact Us For Availability
275
Refrigerator Hinge GEN WR13X626 Contact Us For Availability
276
Refrigerator Hinge GEN WR13X712 Contact Us For Availability
276
Hinge Ctr Wh GEN WR13X714 Contact Us For Availability
276
Hinge Ctr Bk GEN WR13X726 Contact Us For Availability
278
Mobility Foot GEN WR2X8842 Contact Us For Availability
279
Hinge Pin GEN WR13X587 Contact Us For Availability
280
Corner Cap GEN WR2X7656 Contact Us For Availability
280
Refrigerator Corner Cap GEN WR2X7657 Contact Us For Availability
280
Cap Oc Bl GEN WR2X8539 Contact Us For Availability
282
Bottom Hinge GEN WR13X651 Contact Us For Availability
282
Bottom Hinge GEN WR13X648 Contact Us For Availability
282
Hge Btm Asm GEN WR13X649 Contact Us For Availability
286
Leveling GEN WR1X1815 Contact Us For Availability
287
Refrigerator Gusset GEN WR2X9168 Contact Us For Availability
288
Refrigerator Base Grille GEN WR74X271 Contact Us For Availability
288
Refrigerator Kick Plate GEN WR74X272 Contact Us For Availability
288
Refrigerator Base Grille GEN WR74X273 Contact Us For Availability
289
Grille Clip GEN WR2X7646 Contact Us For Availability
290
Refrigerator Magnet GEN WR2X10095 Contact Us For Availability
294
Refrigerator Light Shield GEN WR2X9010 Contact Us For Availability
295
Refrigerator Ice Maker Wire Harness GEN WR23X315 Contact Us For Availability
296
Refrigerator Plug Cover GEN WR2X8444 Contact Us For Availability
300B
Refrigerator Temperature Control GEN WR9X559 Contact Us For Availability
301
Refrigerator Temperature Knob GEN WR2X8692 Contact Us For Availability
304
Foam Nozzle GEN WR2X8363 Contact Us For Availability
305
Shaft/kno GEN WR2X9298 Contact Us For Availability
306
Hsg C &l Asm GEN WR17X2783 Contact Us For Availability
308
Control Bracket GEN WR2X7768 Contact Us For Availability
309
Refrigerator Control Panel Plug Button GEN WR2X7652 Contact Us For Availability
314
Refrigerator Drain Clip GEN WR2X8503 Contact Us For Availability
315
Tube Drai GEN WR2X10134 Contact Us For Availability
323
Refrigerator Control Bracket GEN WR2X7767 Contact Us For Availability
324
Button Plug GEN WR2X7069 Contact Us For Availability
400
Refrigerator Cantilever Shelf GEN WR32X1580 Contact Us For Availability
401
Refrigerator Shelf GEN WR32X10022 Contact Us For Availability
405
Refrigerator Meat Pan Gasket GEN WR14X473 Contact Us For Availability
434
Refrigerator Lamp Socket GEN WR2X8005 Contact Us For Availability
447
Refrigerator Hinge Cover GEN WR2X8478 Contact Us For Availability
447
Refrigerator Hinge Cover GEN WR2X8479 Contact Us For Availability
447
Hinge Bla GEN WR2X8540 Contact Us For Availability
472
Slide Pan GEN WR72X286 Contact Us For Availability
473
Slide, Left GEN WR72X288 Contact Us For Availability
505
Shelf Stop GEN WR1X2080 Contact Us For Availability
525
Refrigerator Screw GEN WR1X1763 Contact Us For Availability
551
SCR 8-18 AB RNDW 5/8 SS GEN WZ4X244 Contact Us For Availability
602
Screw GEN WR1X1591 Contact Us For Availability
603
Bottom Freezer Liner GEN WR17X2138 Contact Us For Availability
604
Divider Insulation GEN WR17X2764 Contact Us For Availability
606
Frt Liner Fz GEN WR17X2380 Contact Us For Availability
608
Liner Top Ff GEN WR17X10030 Contact Us For Availability
610
Refrigerator Evaporator Fan Motor GEN WR60X190 Contact Us For Availability
611
Refrigerator Fan Bracket GEN WR2X7664 Contact Us For Availability
615
Grommet GEN WR2X7391 Contact Us For Availability
622
Refrigerator Evaporator Drip Pan GEN WR17X2160 Contact Us For Availability
623
Gasket Trough GEN WR14X348 Contact Us For Availability
624
Cvr Ff Sply GEN WR17X3934 Contact Us For Availability
641
Heat Shield GEN WR2X8816 Contact Us For Availability
679
Screw&was GEN WZ6X133 Contact Us For Availability
691
Screw (Black) GEN WR1X1821 Contact Us For Availability
691
Screw 12- GEN WR1X2139 Contact Us For Availability
693
Refrigerator Screw GEN WR1X2136 Contact Us For Availability
693
Refrigerator Screw GEN WR1X1822 Contact Us For Availability
693
Screw 12- GEN WR1X2137 Contact Us For Availability
695
Scr 12-24 GEN WR1X10060 Contact Us For Availability
696
Refrigerator Cover Screw GEN WR2X10170 Contact Us For Availability
696
Refrigerator Cover Screw GEN WR2X10171 Contact Us For Availability
696
Refrigerator Cover Screw GEN WR2X10172 Contact Us For Availability
697
Scr 12-24 GEN WR1X10061 Contact Us For Availability
697
Scr 12-24 GEN WR1X10062 Contact Us For Availability
697
Scr 12-24 GEN WR1X10063 Contact Us For Availability
735
Refrigerator Compressor Overload Protector GEN WR8X170 Contact Us For Availability
736
Refrigerator Compressor Mounting Clip GEN WR2X8203 Contact Us For Availability
737
Grommet GEN WR2X7238 Contact Us For Availability
762
Refrigerator Evaporator Cover Seal GEN WR14X313 Contact Us For Availability
802
Refrigerator Water Tubing Clip GEN WR1X1360 Contact Us For Availability
804
Refrigerator Water Tube Nut, 1/4-in GEN WR57X57 Contact Us For Availability
857
Refrigerator Ice Maker On/Off Switch GEN WR29X5171 Contact Us For Availability
868
Refrigerator Ice Maker Ice Mold GEN WR29X204 Contact Us For Availability
900
Fz O Dr Ad GEN WR78X8755 Contact Us For Availability
900
Refrigerator Freezer Door GEN WR78X8757 Contact Us For Availability
900
Fz O Dr Wh GEN WR78X8759 Contact Us For Availability
910
Ff O Dr Bk GEN WR78X8756 Contact Us For Availability
910
Refrigerator Door Outer Panel (White) GEN WR78X8758 Contact Us For Availability
921
Refrigerator Freezer Door Handle Screw Cover GEN WR2X7624 Contact Us For Availability
921
Refrigerator Freezer Door Handle Screw Cover GEN WR2X7625 Contact Us For Availability
921
Refrigerator Door Handle Hole Plug (Black) GEN WR2X8541 Contact Us For Availability
× ![]()
