Model GE 363.78287891 Refrigerator (Kenmore 36378287891) – Common Parts & Diagrams
FREEZER DOOR
All Parts

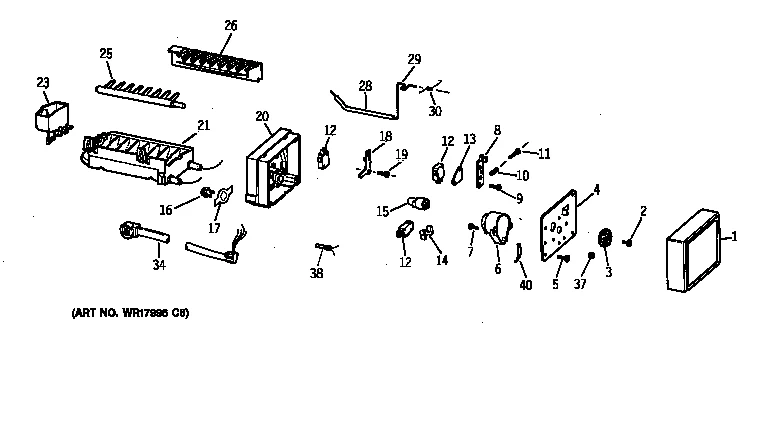

ICEMAKER WR30X0327

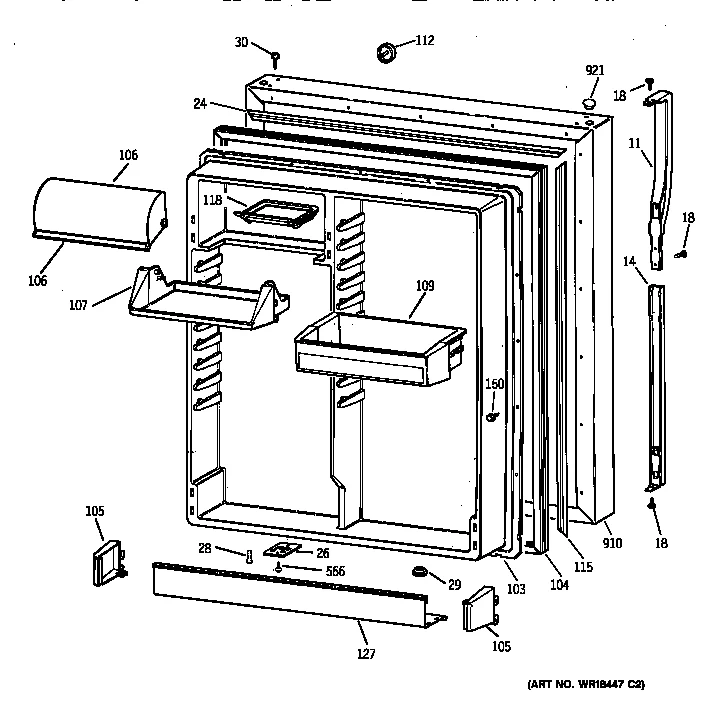

FRESH FOOD DOOR

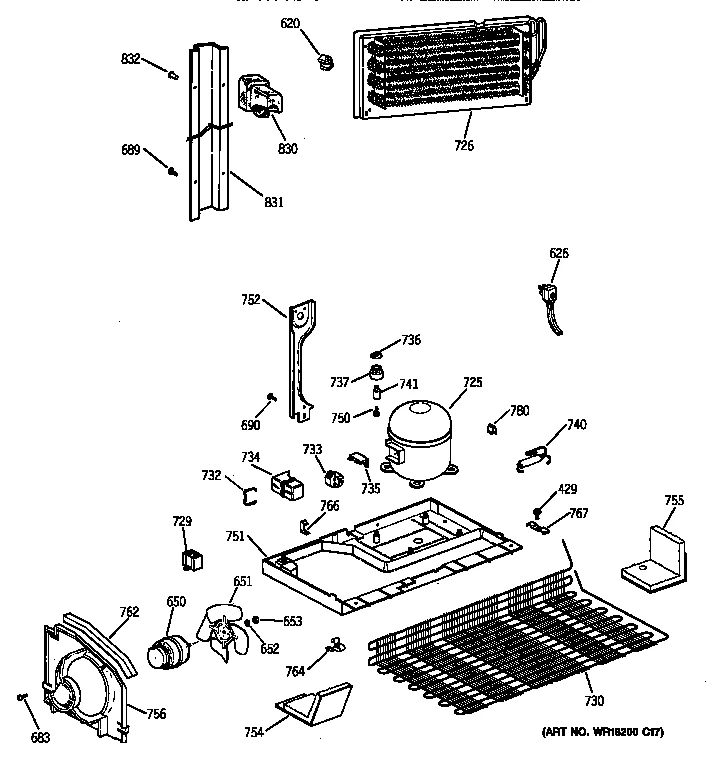

UNIT PARTS

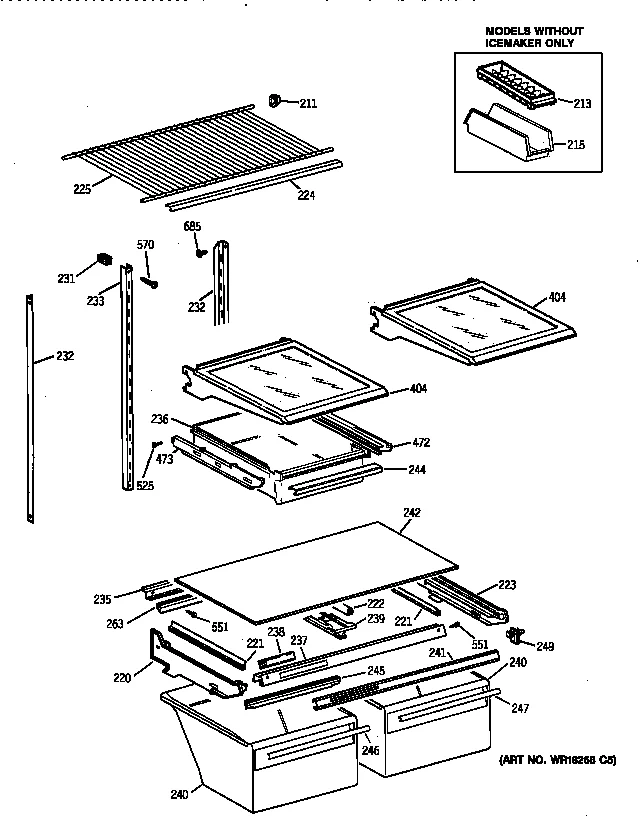

SHELF PARTS

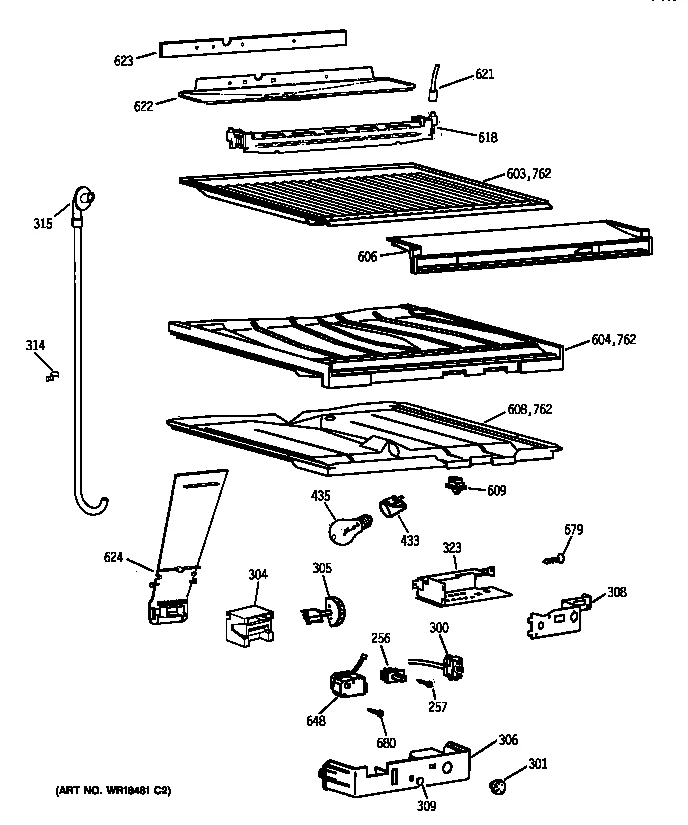

COMPARTMENT SEPARATOR PARTS

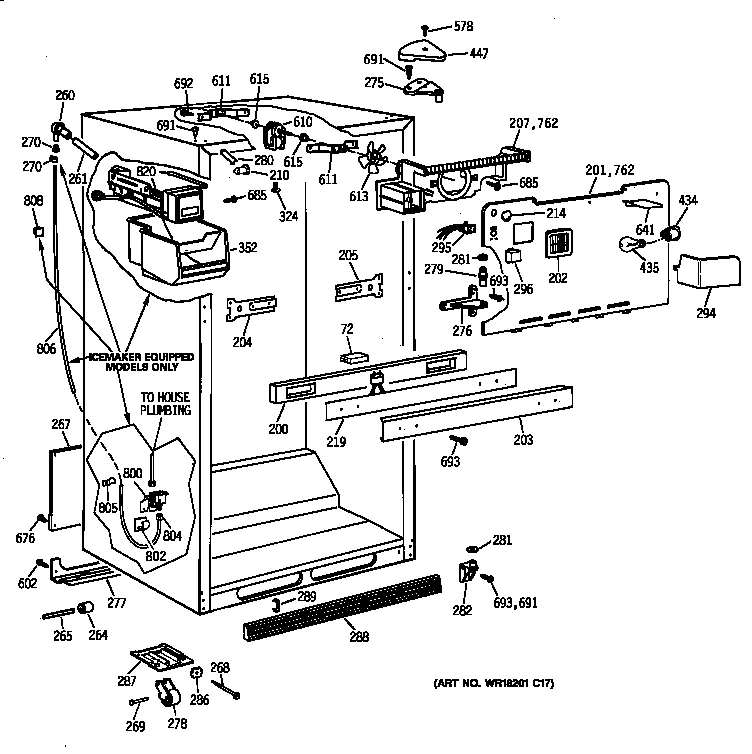

CABINET PARTS
Common parts from model GE 363.78287891 Refrigerator (Kenmore 36378287891)
1
Ice Maker Cover GEN WR29X0182 Contact Us For Availability
2
Refrigerator Screw GEN WR29X5109 Contact Us For Availability
4
Refrigerator Mounting Plate GEN WR29X5163 Contact Us For Availability
5
Refrigerator Screw GEN WR29X5112 Contact Us For Availability
7
Refrigerator Plate Screw GEN WR29X5135 Contact Us For Availability
9
Refrigerator Screw GEN WR29X5140 Contact Us For Availability
11
Refrigerator Screw Spring GEN WR29X5139 Contact Us For Availability
11
Refrigerator Door Handle GEN WR12X10022 Contact Us For Availability
12
Refrigerator Ice Maker On/Off Switch GEN WR29X5171 Contact Us For Availability
13
Insulator GEN WR29X5188 Contact Us For Availability
14
Refrigerator Spacer GEN WR29X5186 Contact Us For Availability
14
Refrigerator Door Handle Trim GEN WR12X10023 Contact Us For Availability
15
Cam GEN WR29X5167 Contact Us For Availability
18
Lever GEN WR29X5183 Contact Us For Availability
19
Refrigerator Screw GEN WR29X5122 Contact Us For Availability
21
Mold Body GEN WR29X0204 Contact Us For Availability
23
Inlet Bearing GEN WR29X0153 Contact Us For Availability
24
Refrigerator Freezer Door Gasket Retainer GEN WR17X2237 Contact Us For Availability
25
Refrigerator Retainer Strip GEN WR17X2239 Contact Us For Availability
25
Ejector GEN WR29X5174 Contact Us For Availability
26
Refrigerator Door Stop GEN WR02X7681 Contact Us For Availability
28
Door Thimble GEN WR02X7627 Contact Us For Availability
28
Refrigerator Sleeve GEN WR29X5178 Contact Us For Availability
29
Refrigerator Plug Button Insert GEN WR02X8088 Contact Us For Availability
29
Refrigerator Feeler Arm GEN WR29X5179 Contact Us For Availability
30
Refrigerator Screw GEN WR01X5475 Contact Us For Availability
32
Shelf Front GEN WR71X10031 Contact Us For Availability
34
Wire Harness GEN WR29X0186 Contact Us For Availability
37
Refrigerator Ice Maker Motor Gear GEN WR29X5153 Contact Us For Availability
72
Refrigerator Switch GEN WR23X0334 Contact Us For Availability
103
I.d.panel Ff GEN WR77X0611 Contact Us For Availability
105A
Refrigerator Shelf Cap GEN WR02X8699 Contact Us For Availability
105B
Refrigerator Shelf Cap GEN WR02X8700 Contact Us For Availability
106A
Refrigerator Dairy Door GEN WR22X0512 Contact Us For Availability
106B
Bright Trim GEN WR38X10022 Contact Us For Availability
107
Extens Dairy GEN WR22X0472 Contact Us For Availability
108
Shelf Front GEN WR71X10030 Contact Us For Availability
109
Refrigerator Shelf Module GEN WR71X10032 Contact Us For Availability
112
Drive Reversible Plug GEN WR02X8697 Contact Us For Availability
115
Refrigerator Door Gasket Retainer GEN WR17X2238 Contact Us For Availability
118
Butter Dish GEN WR19X5003 Contact Us For Availability
127
Shelf Front GEN WR71X10029 Contact Us For Availability
200
F St Mullion GEN WR14X0352 Contact Us For Availability
201
Refrigerator Evaporator Cover GEN WR17X2471 Contact Us For Availability
202
Grille I/s GEN WR02X8629 Contact Us For Availability
203
Crosspiece Mullion GEN WR17X4197 Contact Us For Availability
204
Mullion L H GEN WR02X7823 Contact Us For Availability
205
Mullion Rh GEN WR02X7822 Contact Us For Availability
207
Refrigerator Plenum GEN WR17X2990 Contact Us For Availability
210
Refrigerator Grommet GEN WR02X6261 Contact Us For Availability
211
Refrigerator Shelf Support GEN WR02X7973 Contact Us For Availability
215
Util Bucket GEN WR32X0897 Contact Us For Availability
219
Heater Mullion GEN WR51X0356 Contact Us For Availability
220
Refrigerator Crisper Drawer Slide Rail GEN WR17X2770 Contact Us For Availability
221
Refrigerator Gasket GEN WR14X0384 Contact Us For Availability
222
Refrigerator Slide Gasket GEN WR14X0366 Contact Us For Availability
223
Refrigerator Drawer Slide Rail GEN WR17X2769 Contact Us For Availability
224
Refrigerator Shelf Trim GEN WR38X10018 Contact Us For Availability
225
Refrigerator Freezer Door Wire Shelf GEN WR71X2312 Contact Us For Availability
231
Spac Ct Trac GEN WR02X7018 Contact Us For Availability
232
Refrigerator Shelf Track GEN WR72X0096 Contact Us For Availability
233
Refrigerator Shelf Track GEN WR72X0097 Contact Us For Availability
235
Refrigerator Crisper Drawer Shelf Rail GEN WR17X3161 Contact Us For Availability
236
Refrigerator Meat Pan GEN WR32X1022 Contact Us For Availability
237
Refrigerator Crisper Drawer Frame Trim GEN WR17X3288 Contact Us For Availability
238
Refrigerator Slide GEN WR17X4011 Contact Us For Availability
239
Refrigerator Crisper Drawer Slide Rail, Cente GEN WR17X2768 Contact Us For Availability
240
Refrigerator Crisper Drawer GEN WR32X1141 Contact Us For Availability
241
Refrigerator Vegetable Pan Frame Trim GEN WR38X10017 Contact Us For Availability
242
Refrigerator Cantilever Shelf GEN WR32X10014 Contact Us For Availability
244
Refrigerator Pan Handle GEN WR38X10015 Contact Us For Availability
245
Pan Gasket GEN WR14X0358 Contact Us For Availability
246
Vegetable Pan Handle GEN WR38X10019 Contact Us For Availability
247
Vegetable Pan Handle GEN WR38X10020 Contact Us For Availability
249
Refrigerator Vegetable Pan Cover Support GEN WR02X8695 Contact Us For Availability
256
Refrigerator Power Saver Switch GEN WR23X0309 Contact Us For Availability
260
Refrigerator Grommet GEN WR02X7773 Contact Us For Availability
261
Refrigerator Fill Tube GEN WR02X6087 Contact Us For Availability
263
Refrigerator Gasket GEN WR14X0398 Contact Us For Availability
265
Rear Axle Wheel GEN WR01X1774 Contact Us For Availability
267
Refrigerator Access Cover GEN WR82X0320 Contact Us For Availability
268
Refrigerator Mobility Screw GEN WR01X1816 Contact Us For Availability
269
Refrigerator Key Pivot GEN WR01X1803 Contact Us For Availability
275
Refrigerator Hinge GEN WR13X0626 Contact Us For Availability
276
Refrigerator Hinge GEN WR13X0712 Contact Us For Availability
277
Refrigerator Rear Rail GEN WR17X3744 Contact Us For Availability
278
Mobility Foot GEN WR02X8842 Contact Us For Availability
279
Refrigerator Hinge Pin GEN WR13X0587 Contact Us For Availability
280
Refrigerator Corner Cap GEN WR02X7657 Contact Us For Availability
282
Hge Btm Asm GEN WR13X0649 Contact Us For Availability
286
Leveling Nut GEN WR01X1815 Contact Us For Availability
287
Refrigerator Gusset GEN WR02X9168 Contact Us For Availability
288
Refrigerator Base Grille GEN WR74X0268 Contact Us For Availability
289
Refrigerator Grille Clip GEN WR02X7646 Contact Us For Availability
290
Magnet Pad GEN WR02X8376 Contact Us For Availability
294
Refrigerator Light Shield GEN WR02X9010 Contact Us For Availability
295
Refrigerator Receptacle GEN WR23X0315 Contact Us For Availability
296
Refrigerator Plug Cover GEN WR02X8444 Contact Us For Availability
300A
Refrigerator Temperature Control GEN WR09X0559 Contact Us For Availability
301
Refrigerator Temperature Complete Knob GEN WR02X8692 Contact Us For Availability
305
Shaft Knob GEN WR02X9303 Contact Us For Availability
306
Hsg C &l Asm GEN WR17X2783 Contact Us For Availability
308
Refrigerator Control Bracket GEN WR02X7768 Contact Us For Availability
309
Refrigerator Button Plug GEN WR02X7652 Contact Us For Availability
314
Refrigerator Drain Clip GEN WR02X8503 Contact Us For Availability
315
Tube Drain A GEN WR02X10068 Contact Us For Availability
323
Refrigerator Control Bracket GEN WR02X7767 Contact Us For Availability
324
Refrigerator Button Plug GEN WR02X7069 Contact Us For Availability
404
Refrigerator Glass Shelf GEN WR32X10013 Contact Us For Availability
429
SCR 1/4-14 B HXW3/8 S NS GEN WH02X0795 Contact Us For Availability
434
Refrigerator Lamp Socket GEN WR02X8005 Contact Us For Availability
447
Hinge Cvr Ad GEN WR02X8479 Contact Us For Availability
472
Slide GEN WR72X0273 Contact Us For Availability
473
Slide, Left GEN WR72X0274 Contact Us For Availability
525
Refrigerator Screw GEN WR01X1763 Contact Us For Availability
551
Refrigerator Screw GEN WZ04X0244 Contact Us For Availability
602
Refrigerator Screw GEN WR01X1591 Contact Us For Availability
603
L Bottom Frz GEN WR17X2234 Contact Us For Availability
604
Divider Insulation GEN WR17X3495 Contact Us For Availability
606
Freezer Front Liner GEN WR17X2401 Contact Us For Availability
608
Liner Top Ff GEN WR17X10029 Contact Us For Availability
610
Evaporator Fan Motor GEN WR60X0190 Contact Us For Availability
611
Refrigerator Fan Bracket GEN WR02X7664 Contact Us For Availability
615
Grommet GEN WR02X7391 Contact Us For Availability
621
Spade Conn GEN WR02X4495 Contact Us For Availability
623
Gasket Trough GEN WR14X0348 Contact Us For Availability
624
Cvr Ff Suply GEN WR17X3910 Contact Us For Availability
641
Refrigerator Heat Shield GEN WR02X8816 Contact Us For Availability
651
Refrigerator Fan Blade GEN WR60X0231 Contact Us For Availability
652
Washer GEN WR01X1714 Contact Us For Availability
653
Nut GEN WR01X1715 Contact Us For Availability
679
Washer Screw GEN WZ06X0133 Contact Us For Availability
683
Refrigerator Screw GEN WR01X1825 Contact Us For Availability
691
Screw 12-24 GEN WR01X2139 Contact Us For Availability
692
Refrigerator Screw GEN WZ04X0416 Contact Us For Availability
693
Screw 12-24 GEN WR01X2137 Contact Us For Availability
726
Lo Side Asm GEN WR85X0310 Contact Us For Availability
730
Refrigerator Condenser GEN WR84X0193 Contact Us For Availability
732
Cover Clip GEN WR02X7226 Contact Us For Availability
734
Cover Relay GEN WR02X7834 Contact Us For Availability
736
Clip GEN WR02X8203 Contact Us For Availability
737
Mounting Grommet GEN WR02X7238 Contact Us For Availability
751
Unimount Hs GEN WR17X3759 Contact Us For Availability
752
Rear Brace GEN WR17X3858 Contact Us For Availability
754
Refrigerator Baffle GEN WR17X3770 Contact Us For Availability
755
Refrigerator Baffle GEN WR17X2227 Contact Us For Availability
756
Fan Control Housing GEN WR17X3760 Contact Us For Availability
762
Refrigerator Cover Gasket GEN WR14X0313 Contact Us For Availability
764
Clip Condenser GEN WR02X9208 Contact Us For Availability
766
Drive Pan Clip GEN WR02X9206 Contact Us For Availability
767
Clip Condenser GEN WR02X9207 Contact Us For Availability
780
Refrigerator Tube Clip GEN WR02X9501 Contact Us For Availability
802
Refrigerator Water Tubing Clip GEN WR01X1360 Contact Us For Availability
830
Refrigerator Foam Plug GEN WR82X0360 Contact Us For Availability
831
Refrigerator Cover GEN WR17X3056 Contact Us For Availability
900
Fz O Dr Ad GEN WR78X8739 Contact Us For Availability
910
Ff O Dr Ad GEN WR78X8738 Contact Us For Availability
921
Refrigerator Button Plug GEN WR02X7625 Contact Us For Availability
× ![]()
