Model GE 363.77572791 Refrigerator (Kenmore 36377572791) – Common Parts & Diagrams

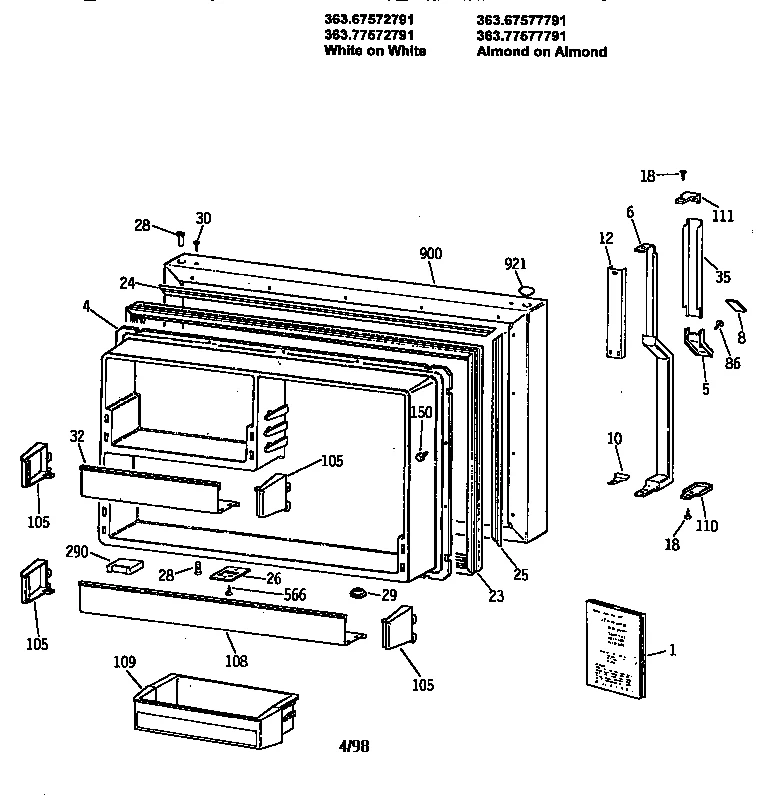

FREEZER DOOR

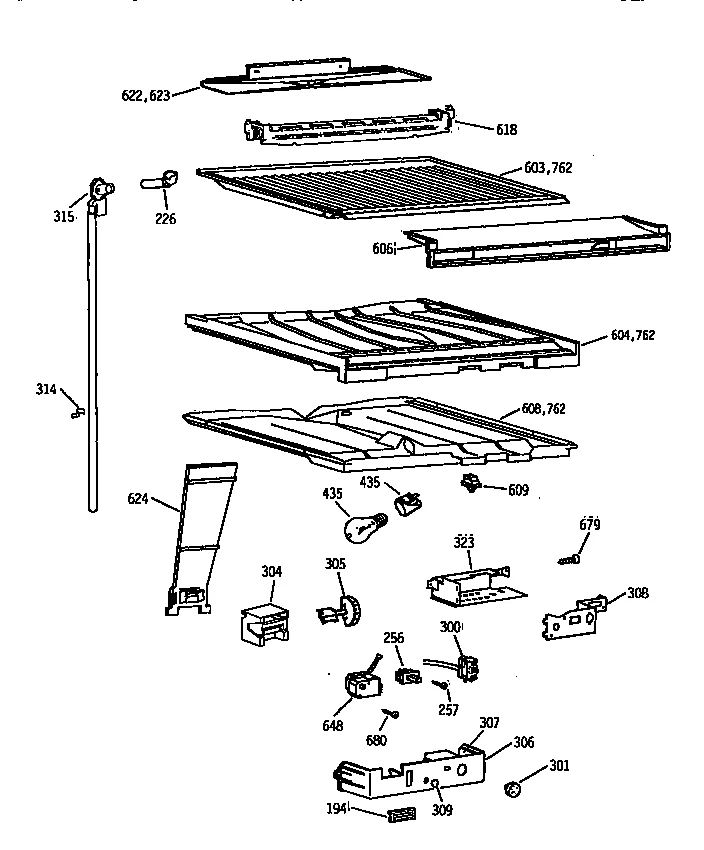

COMPARTMENT SEPARATOR PARTS
FRESH FOOD DOOR

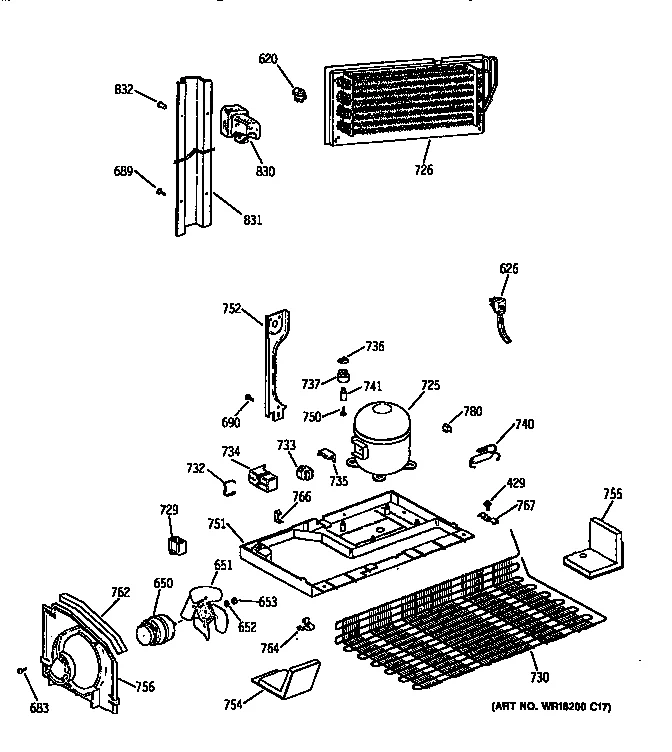

UNIT PARTS

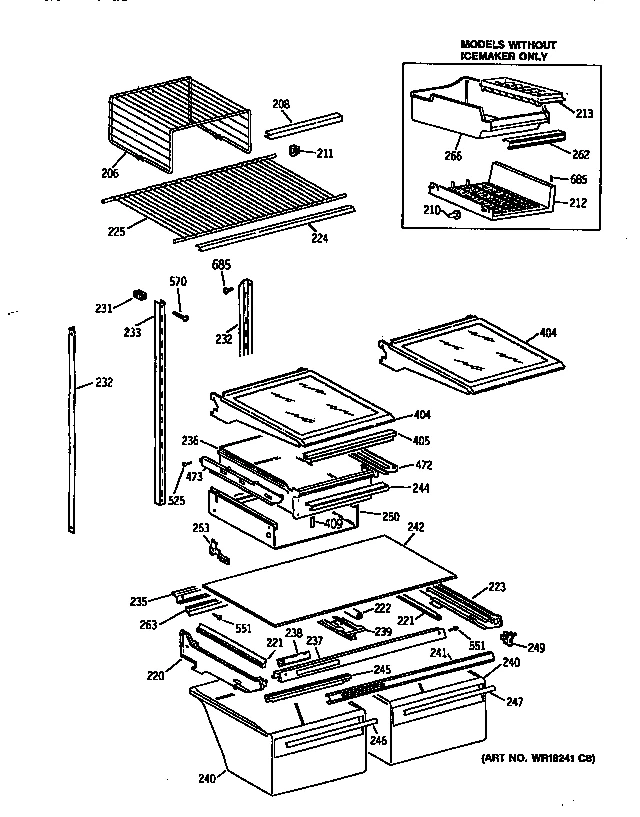

SHELF PARTS

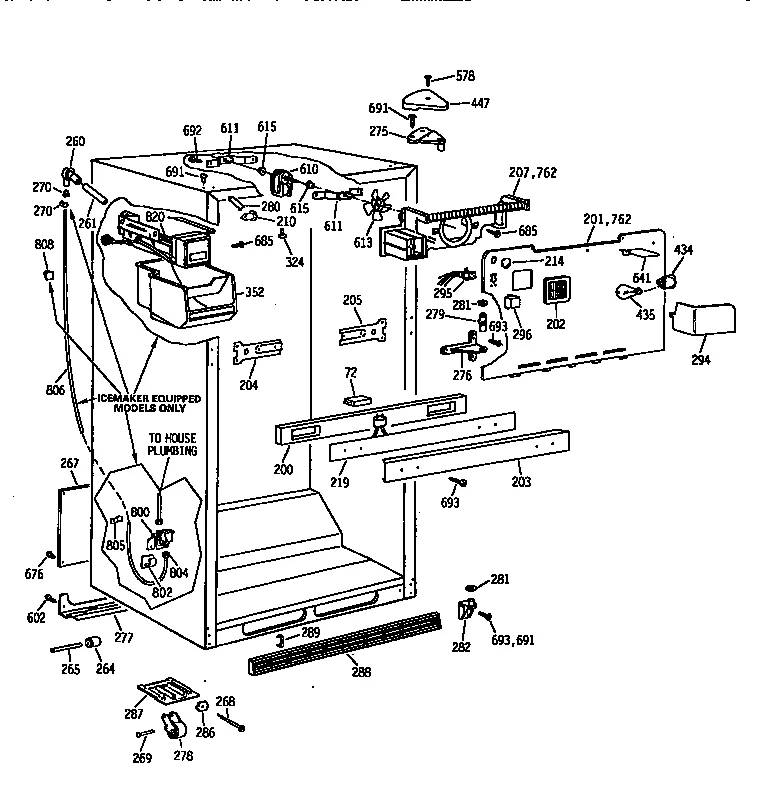

CABINET PARTS

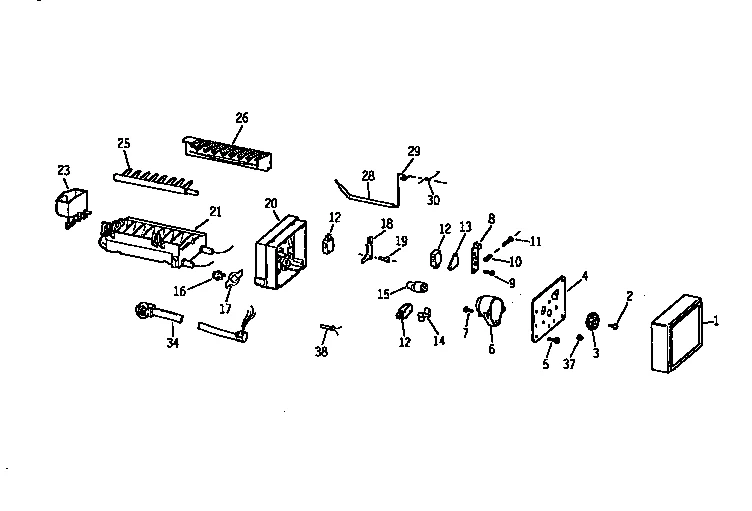

ICEMAKER WR30X0318
Common parts from model GE 363.77572791 Refrigerator (Kenmore 36377572791)
1
Ice Maker Cover GEN WR29X0182 Contact Us For Availability
2
Refrigerator Screw GEN WR29X5109 Contact Us For Availability
4
Refrigerator Mounting Plate GEN WR29X5163 Contact Us For Availability
5
Refrigerator Cap GEN WR02X8209 Contact Us For Availability
5
Refrigerator Screw GEN WR29X5112 Contact Us For Availability
6
Refrigerator Motor GEN WR29X5113 Contact Us For Availability
6A
Refrigerator Stiffener GEN WR12X0837 Contact Us For Availability
7
Stif Asm Ff GEN WR12X0879 Contact Us For Availability
7
Refrigerator Plate Screw GEN WR29X5135 Contact Us For Availability
7A
Refrigerator Stiffener GEN WR12X1066 Contact Us For Availability
8
Lens Np GEN WR04X0232 Contact Us For Availability
8A
Lens N-plate GEN WR04X0207 Contact Us For Availability
9
Refrigerator Screw GEN WR29X5140 Contact Us For Availability
10
Refrigerator Door Handle Shim GEN WR02X8002 Contact Us For Availability
11
Refrigerator Screw Spring GEN WR29X5139 Contact Us For Availability
12
Refrigerator Ice Maker On/Off Switch GEN WR29X5171 Contact Us For Availability
12
Channel Handle GEN WR12X0687 Contact Us For Availability
13
Insulator GEN WR29X5188 Contact Us For Availability
14
Refrigerator Spacer GEN WR29X5186 Contact Us For Availability
15
Cam GEN WR29X5167 Contact Us For Availability
18
Lever GEN WR29X5183 Contact Us For Availability
19
Refrigerator Screw GEN WR29X5122 Contact Us For Availability
21
Mold Body GEN WR29X0204 Contact Us For Availability
23
Refrigerator Door Gasket GEN WR24X0438 Contact Us For Availability
23
Inlet Bearing GEN WR29X0153 Contact Us For Availability
24
Refrigerator Freezer Door Gasket Retainer GEN WR17X2136 Contact Us For Availability
25
Refrigerator Freezer Door Gasket Retainer GEN WR17X2135 Contact Us For Availability
25
Ejector GEN WR29X5174 Contact Us For Availability
26
Refrigerator Door Stop GEN WR02X7681 Contact Us For Availability
28
Door Thimble GEN WR02X7627 Contact Us For Availability
28
Refrigerator Sleeve GEN WR29X5178 Contact Us For Availability
29
Refrigerator Plug Button Insert GEN WR02X8088 Contact Us For Availability
29
Refrigerator Feeler Arm GEN WR29X5179 Contact Us For Availability
29A
Refrigerator Plug Button Insert GEN WR02X8087 Contact Us For Availability
30
Refrigerator Screw GEN WR01X5475 Contact Us For Availability
32
Refrigerator Shelf GEN WR71X2547 Contact Us For Availability
34
Wire Harness GEN WR29X0186 Contact Us For Availability
35
Refrigerator Handle Insert GEN WR12X1069 Contact Us For Availability
35A
Refrigerator Handle Insert GEN WR12X0836 Contact Us For Availability
37
Refrigerator Ice Maker Motor Gear GEN WR29X5153 Contact Us For Availability
72
Refrigerator Switch GEN WR23X0334 Contact Us For Availability
86
Refrigerator Screw GEN WH02X0940 Contact Us For Availability
103
I.d.panel Ff GEN WR77X0605 Contact Us For Availability
105
Refrigerator Shelf Cap GEN WR02X8700 Contact Us For Availability
105A
Refrigerator Shelf Cap GEN WR02X8699 Contact Us For Availability
106
Dairy Drive Trim GEN WR38X2212 Contact Us For Availability
106A
Refrigerator Dairy Door GEN WR22X0514 Contact Us For Availability
107
Extens Dairy GEN WR22X0471 Contact Us For Availability
108
Refrigerator Shelf GEN WR71X2546 Contact Us For Availability
109
Refrigerator Shelf Module GEN WR71X2626 Contact Us For Availability
110
Refrigerator Cap GEN WR02X8210 Contact Us For Availability
111
Refrigerator Trim Cap Handle GEN WR02X7979 Contact Us For Availability
112A
Drive Reversible Plug GEN WR02X8697 Contact Us For Availability
113
Refrigerator Trim Cap Handle GEN WR02X7980 Contact Us For Availability
115
Refrigerator Door Gasket Retainer GEN WR17X2137 Contact Us For Availability
118
Butter Dish GEN WR19X5003 Contact Us For Availability
121
Refrigerator Handle Insert GEN WR12X1068 Contact Us For Availability
121A
Refrigerator Handle Insert GEN WR12X0835 Contact Us For Availability
123
Refrigerator Handle Trim GEN WR02X8009 Contact Us For Availability
124
Refrigerator Plug Button Insert GEN WR12X0721 Contact Us For Availability
124A
Refrigerator Plug Button Insert GEN WR12X0722 Contact Us For Availability
125
Channel Handle GEN WR12X0691 Contact Us For Availability
127
Refrigerator Shelf GEN WR71X2545 Contact Us For Availability
128
Refrigerator Snugger Module GEN WR02X7971 Contact Us For Availability
156
Refrigerator Quick Store Bin Yoke GEN WR32X1321 Contact Us For Availability
157
Refrigerator Quick Store Door Bin GEN WR32X1015 Contact Us For Availability
159
Trim Qk Str GEN WR38X2209 Contact Us For Availability
194
Gril Housing GEN WR02X8380 Contact Us For Availability
200
Refrigerator Foam Strip GEN WR14X0347 Contact Us For Availability
201
Refrigerator Evaporator Cover GEN WR17X2425 Contact Us For Availability
202
Grille I/s GEN WR02X8629 Contact Us For Availability
203
Crosspiece Mullion GEN WR17X4193 Contact Us For Availability
203A
Crosspiece Mullion GEN WR17X4196 Contact Us For Availability
204
Mullion L H GEN WR02X7823 Contact Us For Availability
205
Mullion Rh GEN WR02X7822 Contact Us For Availability
206
Freezer Small Shelf GEN WR71X2317 Contact Us For Availability
207
Refrigerator Plenum GEN WR17X2990 Contact Us For Availability
208
Refrigerator Shelf Trim GEN WR38X2211 Contact Us For Availability
210
Refrigerator Grommet GEN WR02X6261 Contact Us For Availability
211
Refrigerator Shelf Support GEN WR02X7973 Contact Us For Availability
212
Refrigerator Ice Tray Shelf GEN WR30X0300 Contact Us For Availability
216
Refrigerator Egg Bin GEN WR32X1435 Contact Us For Availability
219
Heater Mullion GEN WR51X0357 Contact Us For Availability
220
Refrigerator Crisper Drawer Slide Rail GEN WR17X2770 Contact Us For Availability
221
Refrigerator Gasket GEN WR14X0384 Contact Us For Availability
222
Refrigerator Slide Gasket GEN WR14X0366 Contact Us For Availability
223
Refrigerator Drawer Slide Rail GEN WR17X2769 Contact Us For Availability
224
Refrigerator Trim Shelf Wire GEN WR38X2202 Contact Us For Availability
225
Refrigerator Freezer Shelf GEN WR71X1961 Contact Us For Availability
226
Funnel Drain GEN WR02X7640 Contact Us For Availability
232
Refrigerator Shelf Track GEN WR72X0096 Contact Us For Availability
233
Refrigerator Shelf Track GEN WR72X0097 Contact Us For Availability
235
Refrigerator Crisper Drawer Frame Trim GEN WR17X3168 Contact Us For Availability
236
Meat Pan GEN WR32X1019 Contact Us For Availability
237
Refrigerator Crisper Drawer Shelf Rail GEN WR17X2766 Contact Us For Availability
239
Refrigerator Crisper Drawer Slide Rail, Cente GEN WR17X2768 Contact Us For Availability
240
Pan 1 GEN WR32X1128 Contact Us For Availability
241
Refrigerator Crisper Drawer Trim GEN WR38X2210 Contact Us For Availability
242
Glass Vegetable Pan Shelf GEN WR32X1524 Contact Us For Availability
244
Pan Handle GEN WR38X2204 Contact Us For Availability
245
Refrigerator Gasket GEN WR14X0354 Contact Us For Availability
246
Refrigerator Vegetable Pan Handle GEN WR38X2206 Contact Us For Availability
247
Refrigerator Crisper Drawer Handle GEN WR38X2207 Contact Us For Availability
249
Refrigerator Vegetable Pan Cover Support GEN WR02X8695 Contact Us For Availability
250
Schroud Asm. GEN WR17X2846 Contact Us For Availability
253
Refrigerator Lever GEN WR02X8446 Contact Us For Availability
256
Refrigerator Power Saver Switch GEN WR23X0309 Contact Us For Availability
260
Refrigerator Grommet GEN WR02X7773 Contact Us For Availability
261
Refrigerator Fill Tube GEN WR02X6087 Contact Us For Availability
262
Handle I B GEN WR38X2205 Contact Us For Availability
263
Refrigerator Cover Gasket GEN WR14X0397 Contact Us For Availability
265
Rear Axle Wheel GEN WR01X1774 Contact Us For Availability
267
Refrigerator Access Cover GEN WR82X0319 Contact Us For Availability
268
Refrigerator Mobility Screw GEN WR01X1816 Contact Us For Availability
269
Refrigerator Key Pivot GEN WR01X1803 Contact Us For Availability
275
Refrigerator Hinge GEN WR13X0626 Contact Us For Availability
276
Refrigerator Hinge GEN WR13X0712 Contact Us For Availability
276A
Hinge Ctr Wh GEN WR13X0714 Contact Us For Availability
277
Refrigerator Rear Rail GEN WR17X2165 Contact Us For Availability
278
Mobility Foot GEN WR02X8842 Contact Us For Availability
279
Refrigerator Hinge Pin GEN WR13X0587 Contact Us For Availability
280
Refrigerator Corner Cap GEN WR02X7656 Contact Us For Availability
280A
Refrigerator Corner Cap GEN WR02X7657 Contact Us For Availability
282
Hge Btm Asm GEN WR13X0649 Contact Us For Availability
282A
Hge B/p Asm GEN WR13X0648 Contact Us For Availability
286
Leveling Nut GEN WR01X1815 Contact Us For Availability
287
Refrigerator Gusset GEN WR02X9168 Contact Us For Availability
288
Refrigerator Base Grille GEN WR74X0272 Contact Us For Availability
288A
Refrigerator Base Grille GEN WR74X0271 Contact Us For Availability
289
Refrigerator Grille Clip GEN WR02X7646 Contact Us For Availability
290
Magnet Pad GEN WR02X8376 Contact Us For Availability
294
Refrigerator Light Shield GEN WR02X9010 Contact Us For Availability
295
Refrigerator Receptacle GEN WR23X0315 Contact Us For Availability
296
Refrigerator Plug Cover GEN WR02X8444 Contact Us For Availability
300
Refrigerator Temperature Control GEN WR09X0559 Contact Us For Availability
301
Refrigerator Temperature Complete Knob GEN WR02X8692 Contact Us For Availability
304
Foam Nozzle GEN WR02X8363 Contact Us For Availability
305
Shaft Knob GEN WR02X9298 Contact Us For Availability
306
Hsg C &l Asm GEN WR17X2783 Contact Us For Availability
307
Electronic Insulation GEN WR02X7669 Contact Us For Availability
308
Refrigerator Control Bracket GEN WR02X7768 Contact Us For Availability
309
Refrigerator Button Plug GEN WR02X7652 Contact Us For Availability
314
Refrigerator Drain Clip GEN WR02X8503 Contact Us For Availability
315
Drain Gromet GEN WR02X8504 Contact Us For Availability
323
Refrigerator Control Bracket GEN WR02X7767 Contact Us For Availability
324
Refrigerator Button Plug GEN WR02X7069 Contact Us For Availability
404
Shelf End Cap GEN WR32X1577 Contact Us For Availability
405
Refrigerator Meat Pan Gasket GEN WR14X0473 Contact Us For Availability
409
Decal M Pan GEN WR02X8454 Contact Us For Availability
429
SCR 1/4-14 B HXW3/8 S NS GEN WH02X0795 Contact Us For Availability
434
Refrigerator Lamp Socket GEN WR02X8005 Contact Us For Availability
447
Hinge Cvr Wh GEN WR02X8478 Contact Us For Availability
447A
Hinge Cvr Ad GEN WR02X8479 Contact Us For Availability
472
Slide Pan GEN WR72X0286 Contact Us For Availability
473
Slide Pan GEN WR72X0287 Contact Us For Availability
525
Refrigerator Screw GEN WR01X1763 Contact Us For Availability
551
Refrigerator Screw GEN WZ04X0244 Contact Us For Availability
602
Refrigerator Screw GEN WR01X1591 Contact Us For Availability
603
Bottom Freezer Liner GEN WR17X2138 Contact Us For Availability
604
Divider Insulation GEN WR17X2764 Contact Us For Availability
606
Frt Liner Fz GEN WR17X2380 Contact Us For Availability
608
Liner Top Ff GEN WR17X10030 Contact Us For Availability
610
Evaporator Fan Motor GEN WR60X0190 Contact Us For Availability
611
Refrigerator Fan Bracket GEN WR02X7664 Contact Us For Availability
615
Grommet GEN WR02X7391 Contact Us For Availability
622
Refrigerator Evaporator Drip Pan GEN WR17X2160 Contact Us For Availability
623
Gasket Trough GEN WR14X0348 Contact Us For Availability
624
Cvr Ff Sply GEN WR17X3934 Contact Us For Availability
641
Refrigerator Heat Shield GEN WR02X8816 Contact Us For Availability
651
Condenser Fan Blade GEN WR60X0212 Contact Us For Availability
652
Washer GEN WR01X1714 Contact Us For Availability
653
Nut GEN WR01X1715 Contact Us For Availability
679
Washer Screw GEN WZ06X0133 Contact Us For Availability
683
Refrigerator Screw GEN WR01X1825 Contact Us For Availability
691
Screw 12-24 GEN WR01X2139 Contact Us For Availability
692
Refrigerator Screw GEN WZ04X0416 Contact Us For Availability
693
Screw 12-24 GEN WR01X2137 Contact Us For Availability
693A
Screw 12-24 GEN WR01X2136 Contact Us For Availability
726
Refrigerator Low Side Assembly GEN WR85X0313 Contact Us For Availability
730
Refrigerator Condenser GEN WR84X0203 Contact Us For Availability
732
Cover Clip GEN WR02X7226 Contact Us For Availability
734
Cover Relay GEN WR02X7834 Contact Us For Availability
735
Refrigerator Overload GEN WR08X0170 Contact Us For Availability
736
Clip GEN WR02X8203 Contact Us For Availability
737
Mounting Grommet GEN WR02X7238 Contact Us For Availability
751
Unimount Hs GEN WR17X3759 Contact Us For Availability
752
Rear Brace GEN WR17X3858 Contact Us For Availability
754
Refrigerator Condenser Fan Air Baffle GEN WR17X3769 Contact Us For Availability
755
Refrigerator Baffle GEN WR17X2416 Contact Us For Availability
756
Fan Control Housing GEN WR17X3760 Contact Us For Availability
762
Refrigerator Cover Gasket GEN WR14X0313 Contact Us For Availability
764
Clip Condenser GEN WR02X9208 Contact Us For Availability
766
Drive Pan Clip GEN WR02X9206 Contact Us For Availability
767
Clip Condenser GEN WR02X9207 Contact Us For Availability
780
Refrigerator Tube Clip GEN WR02X9501 Contact Us For Availability
802
Refrigerator Water Tubing Clip GEN WR01X1360 Contact Us For Availability
804
Nut GEN WR57X0057 Contact Us For Availability
830
Refrigerator Foam Plug GEN WR82X0360 Contact Us For Availability
831
Refrigerator Cover GEN WR17X3056 Contact Us For Availability
832
Refrigerator Pop Rivet GEN WR01X1841 Contact Us For Availability
900
Fz O Dr Ad GEN WR78X8755 Contact Us For Availability
900A
Fz O Dr Wh GEN WR78X8759 Contact Us For Availability
910
Ff O Dr Ad GEN WR78X8754 Contact Us For Availability
910A
Refrigerator Door Outer Panel (White) GEN WR78X8758 Contact Us For Availability
921
Refrigerator Button Plug GEN WR02X7624 Contact Us For Availability
921A
Refrigerator Button Plug GEN WR02X7625 Contact Us For Availability
× ![]()
Login and Registration Form
