Model GE 363.70247000 Refrigerator (Kenmore 36370247000) – Common Parts & Diagrams
FREEZER DOOR
SHELF PARTS

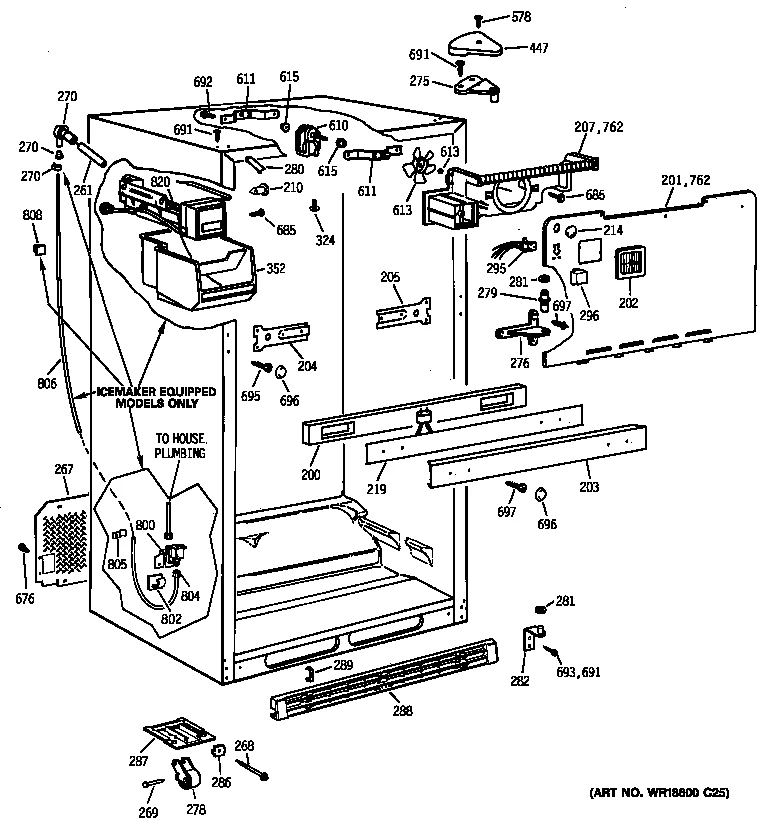

CABINET

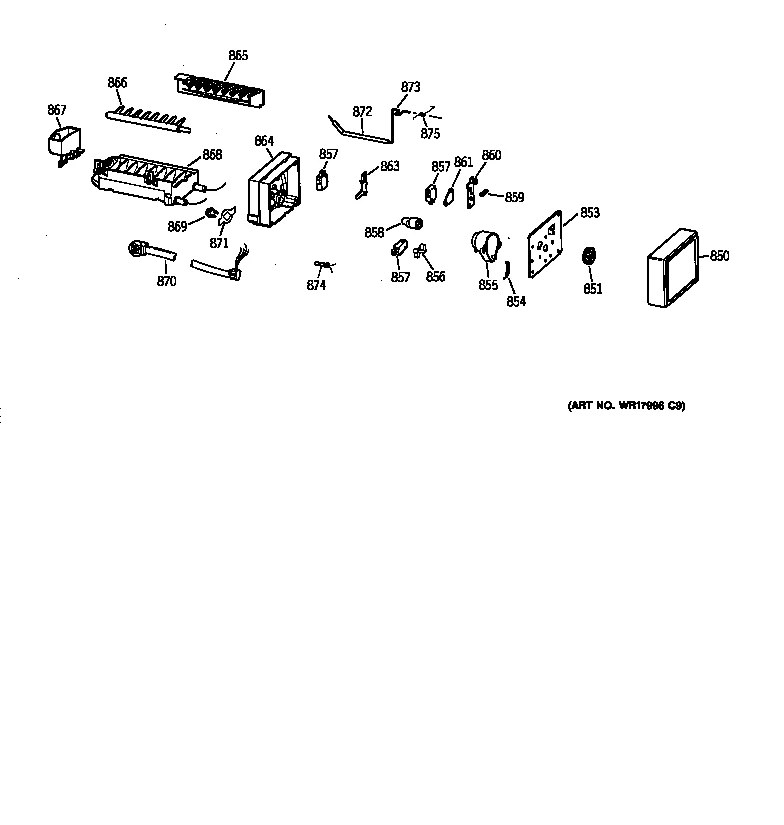

ICEMAKER WR30X0327

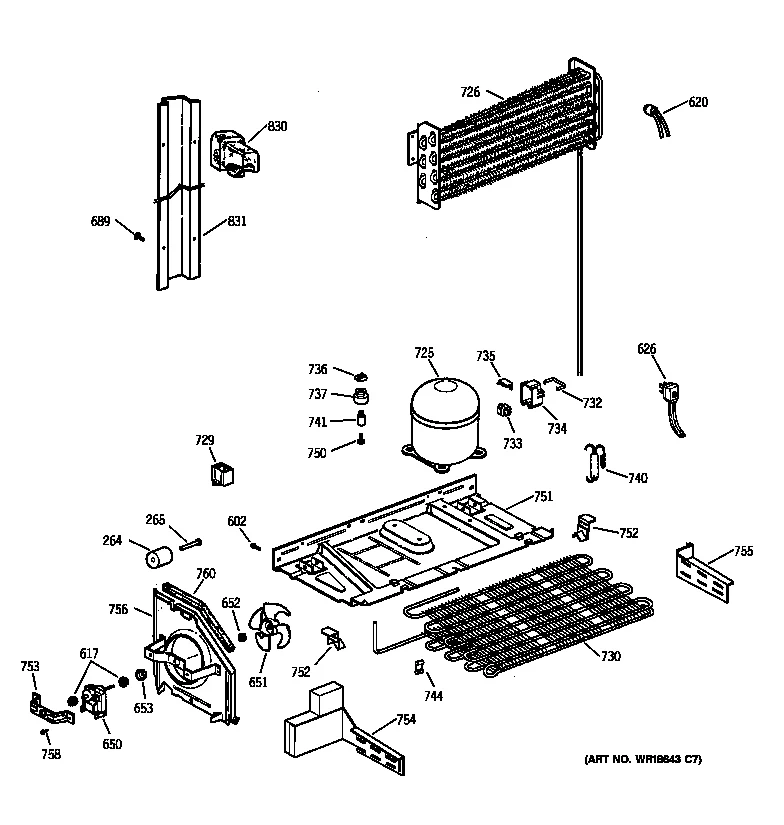

UNIT PARTS

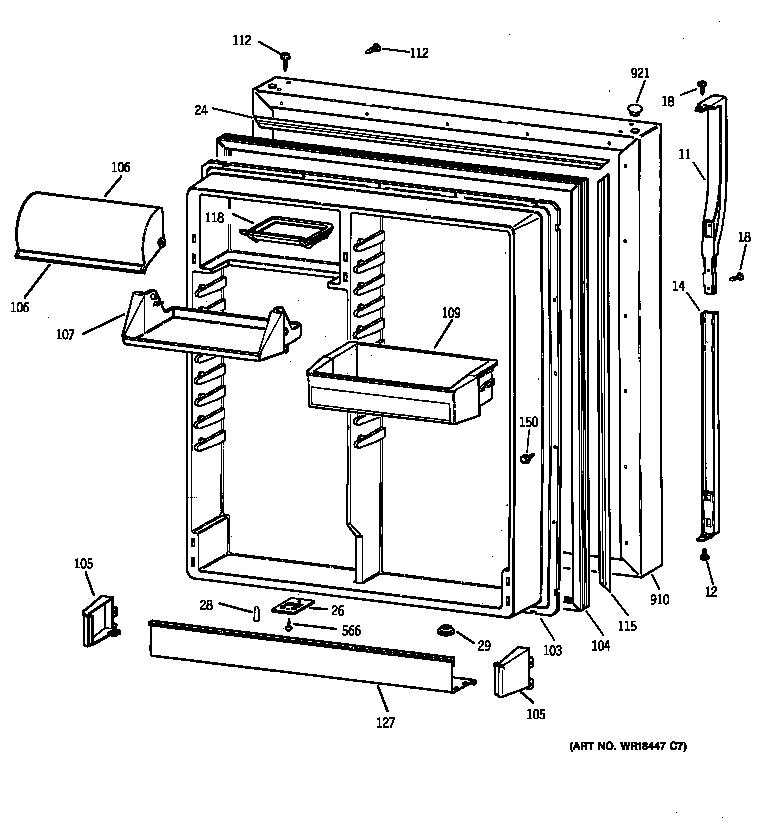

FRESH FOOD DOOR
All Parts

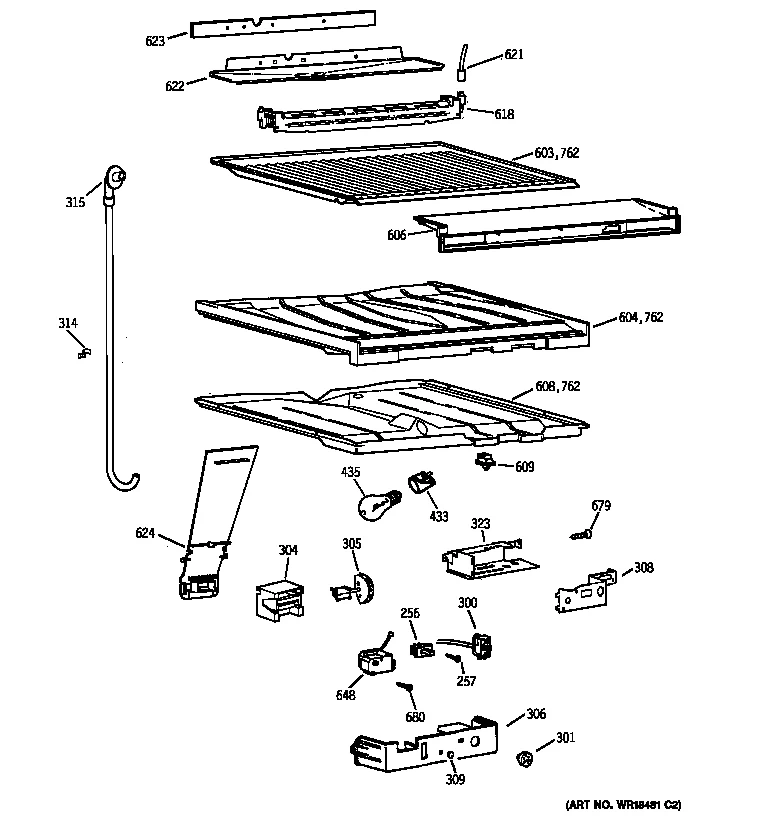

COMPARTMENT SEPARATOR PARTS
Common parts from model GE 363.70247000 Refrigerator (Kenmore 36370247000)
11
Refrigerator Door Handle GEN WR12X10018 Contact Us For Availability
11
Refrigerator Door Handle GEN WR12X10022 Contact Us For Availability
11
Refrigerator Door Handle GEN WR12X10027 Contact Us For Availability
12
Scr 10-14 GEN WR1X10036 Contact Us For Availability
14
Trim Asm Ff GEN WR12X10020 Contact Us For Availability
14
Refrigerator Door Handle Trim GEN WR12X10023 Contact Us For Availability
14
Trim Asm Ff GEN WR12X10028 Contact Us For Availability
24
Refrigerator Freezer Door Gasket Retainer GEN WR17X2237 Contact Us For Availability
28
Thimble D GEN WR2X10111 Contact Us For Availability
29
Refrigerator Door Inner Liner Button Plug (Wh GEN WR2X8087 Contact Us For Availability
29
Refrigerator Freezer Door Liner Plug Button ( GEN WR2X8088 Contact Us For Availability
29
Plug Insert GEN WR2X8542 Contact Us For Availability
103
I.d.panel Ff GEN WR77X611 Contact Us For Availability
104
Refrigerator Door Gasket (Black) GEN WR24X534 Contact Us For Availability
105A
Refrigerator Door Shelf Rail End Cap, Left GEN WR2X8699 Contact Us For Availability
105B
Refrigerator Door Shelf Rail End Cap, Right GEN WR2X8700 Contact Us For Availability
106A
Refrigerator Dairy Bin Cover GEN WR22X512 Contact Us For Availability
106B
Bright Trim GEN WR38X10022 Contact Us For Availability
107
Refrigerator Dairy Extension GEN WR22X472 Contact Us For Availability
109
Refrigerator Shelf Module GEN WR71X10032 Contact Us For Availability
112
Refrigerator Door Reversal Plug GEN WR2X8697 Contact Us For Availability
115
Refrigerator Door Gasket Retainer GEN WR17X2238 Contact Us For Availability
118
Butter Dish GEN WR19X5003 Contact Us For Availability
127
Shelf Front GEN WR71X10029 Contact Us For Availability
202
Grille I/ GEN WR2X8629 Contact Us For Availability
211
Refrigerator Shelf Support GEN WR2X7973 Contact Us For Availability
220
Refrigerator Crisper Drawer Slide Rail GEN WR17X2770 Contact Us For Availability
221
Gasket GEN WR14X384 Contact Us For Availability
222
Refrigerator Crisper Shelf Seal GEN WR14X366 Contact Us For Availability
223
Refrigerator Drawer Slide Rail GEN WR17X2769 Contact Us For Availability
235
Refrigerator Crisper Drawer Shelf Rail GEN WR17X3161 Contact Us For Availability
237
Refrigerator Crisper Drawer Frame Trim GEN WR17X3288 Contact Us For Availability
239
Refrigerator Crisper Drawer Slide Rail, Cente GEN WR17X2768 Contact Us For Availability
240
Refrigerator Crisper Drawer GEN WR32X1141 Contact Us For Availability
256
Refrigerator Power Saver Switch GEN WR23X309 Contact Us For Availability
261
Refrigerator Ice Maker Fill Tube GEN WR2X6087 Contact Us For Availability
264
Mobility Wheel GEN WR2X10137 Contact Us For Availability
265
Refrigerator Wheel Axle GEN WR1X10039 Contact Us For Availability
265
Refrigerator Wheel Axle GEN WR1X139 Contact Us For Availability
269
Refrigerator Key Pivot GEN WR1X1803 Contact Us For Availability
275
Refrigerator Hinge GEN WR13X626 Contact Us For Availability
276
Refrigerator Hinge GEN WR13X712 Contact Us For Availability
276
Hinge Ctr Wh GEN WR13X714 Contact Us For Availability
276
Hinge Ctr Bk GEN WR13X726 Contact Us For Availability
278
Mobility Foot GEN WR2X8842 Contact Us For Availability
279
Hinge Pin GEN WR13X587 Contact Us For Availability
280
Corner Cap GEN WR2X7656 Contact Us For Availability
280
Refrigerator Corner Cap GEN WR2X7657 Contact Us For Availability
280
Cap Oc Bl GEN WR2X8539 Contact Us For Availability
281
Hi Washer GEN WR1X10146 Contact Us For Availability
282
Bottom Hinge GEN WR13X651 Contact Us For Availability
282
Bottom Hinge GEN WR13X648 Contact Us For Availability
282
Hge Btm Asm GEN WR13X649 Contact Us For Availability
286
Leveling GEN WR1X1815 Contact Us For Availability
287
Refrigerator Gusset GEN WR2X9168 Contact Us For Availability
288
Refrigerator Base Grille GEN WR74X268 Contact Us For Availability
288
Refrigerator Kick Plate GEN WR74X269 Contact Us For Availability
288
Refrigerator Base Grille GEN WR74X270 Contact Us For Availability
289
Grille Clip GEN WR2X7646 Contact Us For Availability
295
Refrigerator Ice Maker Wire Harness GEN WR23X315 Contact Us For Availability
296
Refrigerator Plug Cover GEN WR2X8444 Contact Us For Availability
300B
Refrigerator Temperature Control GEN WR9X559 Contact Us For Availability
301
Refrigerator Temperature Knob GEN WR2X8692 Contact Us For Availability
304
Foam Nozzle GEN WR2X8363 Contact Us For Availability
305
Shaft/kno GEN WR2X9303 Contact Us For Availability
306
Hsg C &l Asm GEN WR17X2783 Contact Us For Availability
308
Control Bracket GEN WR2X7768 Contact Us For Availability
309
Refrigerator Control Panel Plug Button GEN WR2X7652 Contact Us For Availability
314
Refrigerator Drain Clip GEN WR2X8503 Contact Us For Availability
315
Tube Drai GEN WR2X10134 Contact Us For Availability
323
Refrigerator Control Bracket GEN WR2X7767 Contact Us For Availability
324A
Button Plug GEN WR2X7069 Contact Us For Availability
324B
Refrigerator Discharge Baffle Plug Button GEN WR2X7051 Contact Us For Availability
447
Refrigerator Hinge Cover GEN WR2X8478 Contact Us For Availability
447
Refrigerator Hinge Cover GEN WR2X8479 Contact Us For Availability
447
Hinge Bla GEN WR2X8540 Contact Us For Availability
472
Refrigerator Deli Drawer Slide Rail GEN WR72X273 Contact Us For Availability
473
Slide, Left GEN WR72X274 Contact Us For Availability
525
Refrigerator Screw GEN WR1X1763 Contact Us For Availability
551
SCR 8-18 AB RNDW 5/8 SS GEN WZ4X244 Contact Us For Availability
602
Screw GEN WR1X1591 Contact Us For Availability
603
L Bottom Frz GEN WR17X2234 Contact Us For Availability
604
Divider Insulation GEN WR17X3495 Contact Us For Availability
606
Freezer Front Liner GEN WR17X2401 Contact Us For Availability
608
Liner Top Ff GEN WR17X10029 Contact Us For Availability
610
Refrigerator Evaporator Fan Motor GEN WR60X190 Contact Us For Availability
611
Refrigerator Fan Bracket GEN WR2X7664 Contact Us For Availability
615
Grommet GEN WR2X7391 Contact Us For Availability
617
Grommet GEN WR2X10098 Contact Us For Availability
621
Spade Con GEN WR2X4495 Contact Us For Availability
623
Gasket Trough GEN WR14X348 Contact Us For Availability
624
Cvr Ff Suply GEN WR17X3910 Contact Us For Availability
650
Refrigerator Condenser Fan Motor GEN WR60X10020 Contact Us For Availability
651
Condenser Fan Blade GEN WR60X10034 Contact Us For Availability
652
Refrigerator Complete Ring GEN WR2X10323 Contact Us For Availability
653
Refrigerator Dust Cap GEN WR2X10322 Contact Us For Availability
679
Screw&was GEN WZ6X133 Contact Us For Availability
680
Scr 6-19 GEN WR1X10123 Contact Us For Availability
691
Screw (Black) GEN WR1X1821 Contact Us For Availability
691
Screw 12- GEN WR1X2139 Contact Us For Availability
693
Refrigerator Screw GEN WR1X2136 Contact Us For Availability
693
Refrigerator Screw GEN WR1X1822 Contact Us For Availability
693
Screw 12- GEN WR1X2137 Contact Us For Availability
695
Scr 12-24 GEN WR1X10060 Contact Us For Availability
696
Refrigerator Cover Screw GEN WR2X10170 Contact Us For Availability
696
Refrigerator Cover Screw GEN WR2X10171 Contact Us For Availability
696
Refrigerator Cover Screw GEN WR2X10172 Contact Us For Availability
697
Scr 12-24 GEN WR1X10061 Contact Us For Availability
697
Scr 12-24 GEN WR1X10062 Contact Us For Availability
697
Scr 12-24 GEN WR1X10063 Contact Us For Availability
726
Refrigerator Low Side Assembly GEN WR85X10005 Contact Us For Availability
730
Cond Asm Fin GEN WR84X10010 Contact Us For Availability
732
Cover Clip GEN WR2X7226 Contact Us For Availability
734
Cover Relay GEN WR2X7834 Contact Us For Availability
736
Refrigerator Compressor Mounting Clip GEN WR2X8203 Contact Us For Availability
737
Grommet GEN WR2X7238 Contact Us For Availability
744
Clip Condenser GEN WR2X9209 Contact Us For Availability
751
Baseplate Hi GEN WR17X10512 Contact Us For Availability
752
High Support GEN WR17X10317 Contact Us For Availability
753
Bracket GEN WR2X10321 Contact Us For Availability
754
Baffle Asm L GEN WR17X10316 Contact Us For Availability
755
Air Condenser Baffle GEN WR17X10319 Contact Us For Availability
756
Refrigerator Condenser Fan Housing GEN WR17X10425 Contact Us For Availability
760
Refrigerator Foam Strip GEN WR14X10008 Contact Us For Availability
762
Refrigerator Evaporator Cover Seal GEN WR14X313 Contact Us For Availability
802
Refrigerator Water Tubing Clip GEN WR1X1360 Contact Us For Availability
804
Refrigerator Water Tube Nut, 1/4-in GEN WR57X57 Contact Us For Availability
830
Refrigerator Foam Plug GEN WR82X360 Contact Us For Availability
831
Suction Cover GEN WR17X10543 Contact Us For Availability
850
Refrigerator Ice Maker Cover GEN WR29X182 Contact Us For Availability
853
Refrigerator Mounting Plate GEN WR29X5111 Contact Us For Availability
856
Spacer GEN WR29X5118 Contact Us For Availability
857
Refrigerator Ice Maker On/Off Switch GEN WR29X5171 Contact Us For Availability
861
Refrigerator Insulator GEN WR29X5117 Contact Us For Availability
867
Inlet Bearing GEN WR29X153 Contact Us For Availability
868
Refrigerator Ice Maker Ice Mold GEN WR29X204 Contact Us For Availability
870
Refrigerator Ice Maker Wire Harness GEN WR29X186 Contact Us For Availability
872
Sleeve GEN WR29X5128 Contact Us For Availability
910
Ff O Dr Ad GEN WR78X8738 Contact Us For Availability
910
Ff O Dr Wh GEN WR78X8740 Contact Us For Availability
910
Ff O Dr Bk GEN WR78X8742 Contact Us For Availability
921
Refrigerator Freezer Door Handle Screw Cover GEN WR2X7624 Contact Us For Availability
921
Refrigerator Freezer Door Handle Screw Cover GEN WR2X7625 Contact Us For Availability
921
Refrigerator Door Handle Hole Plug (Black) GEN WR2X8541 Contact Us For Availability
NI
Refrigerator Light Shield GEN WR2X9010 Contact Us For Availability
× ![]()
