Model GE 363.70242000 Refrigerator (Kenmore 36370242000) – Common Parts & Diagrams
ICEMAKER WR30X0327
SHELF PARTS

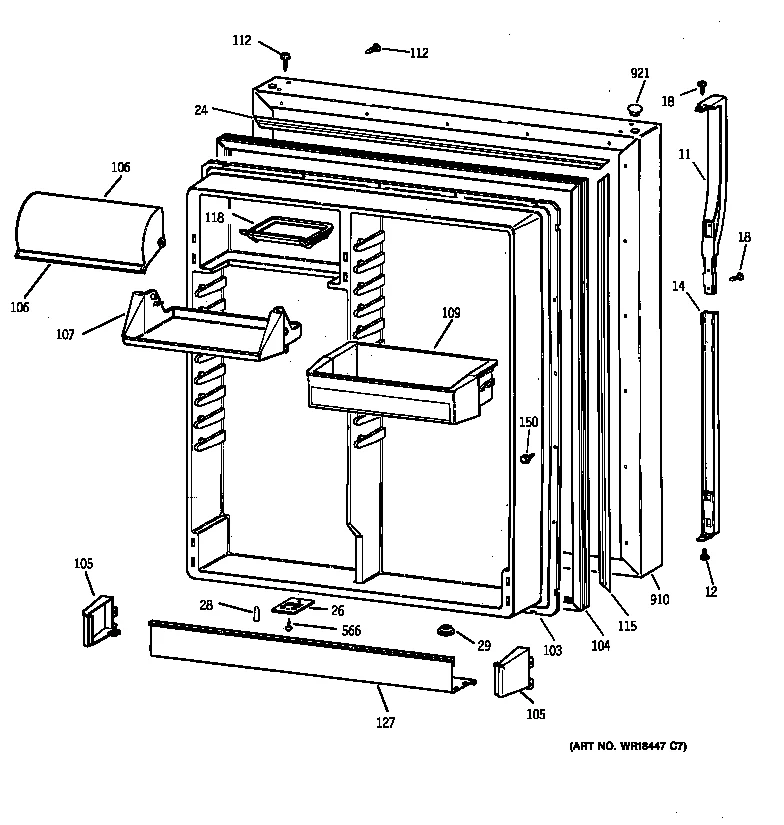

FRESH FOOD DOOR

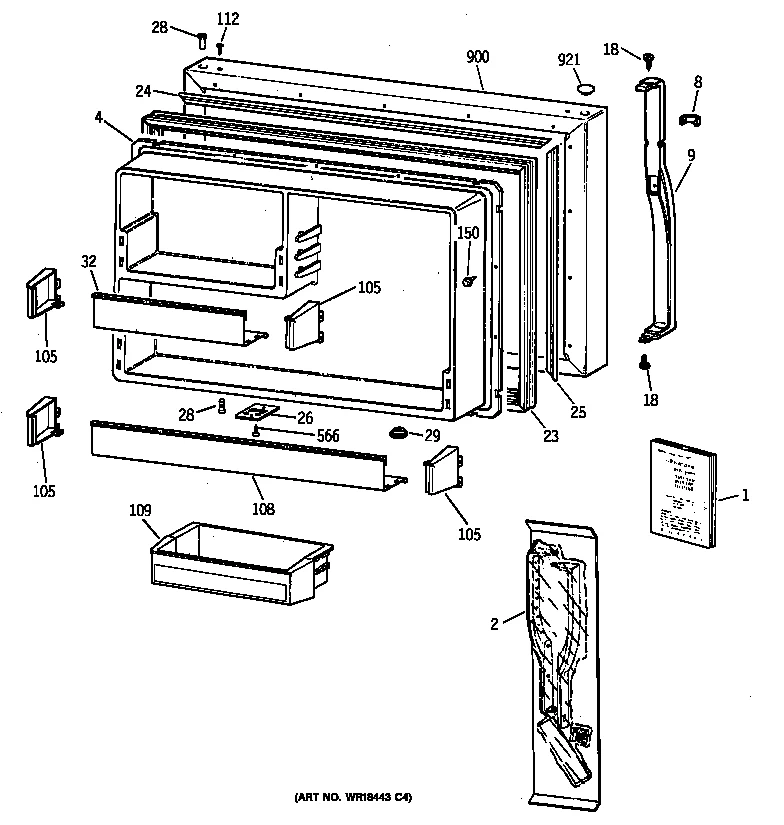

FREEZER DOOR

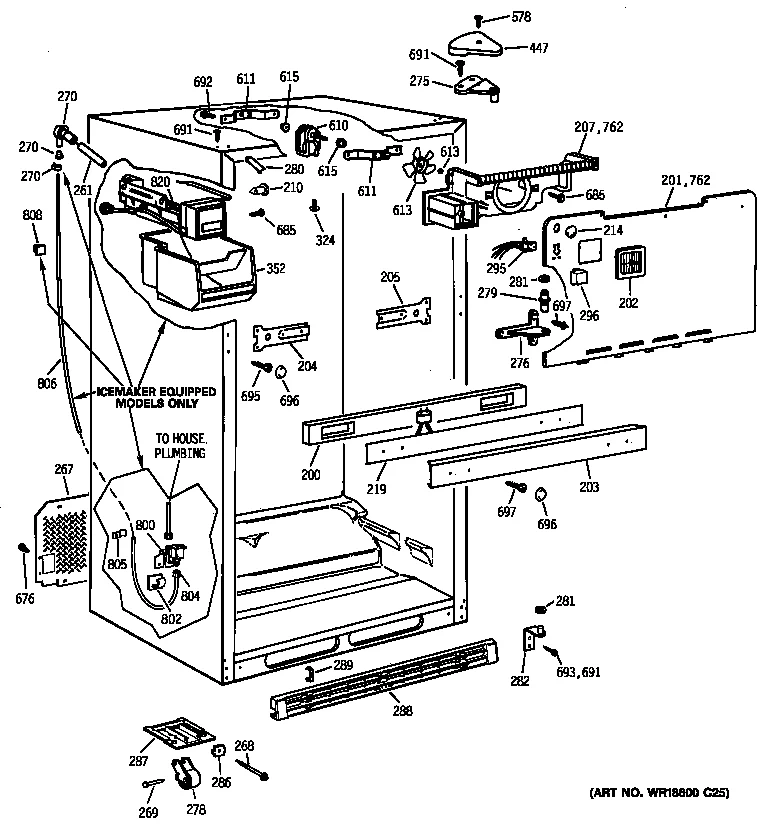

CABINET
All Parts

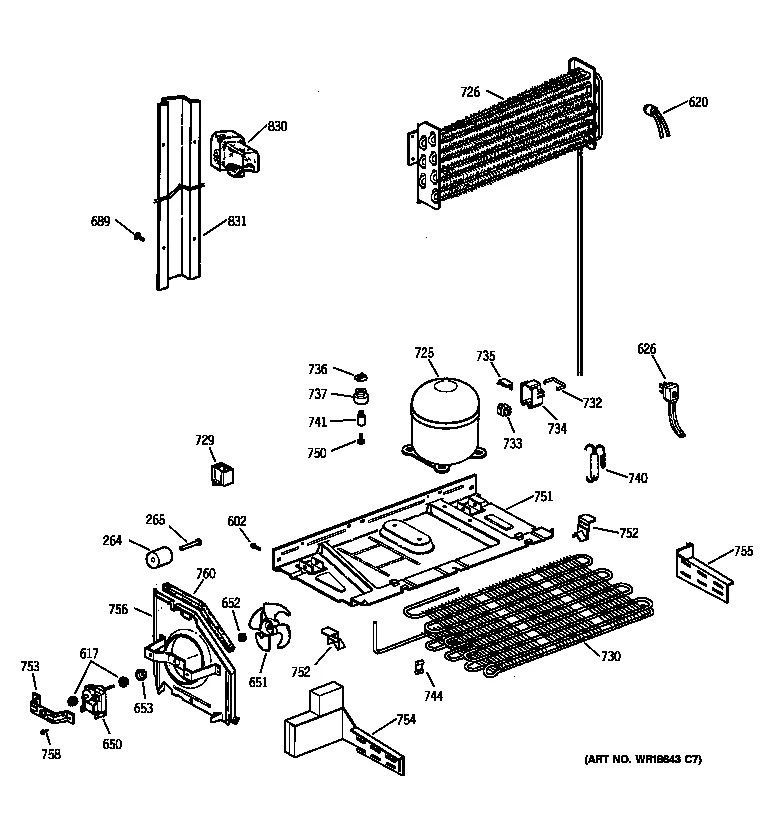

UNIT PARTS

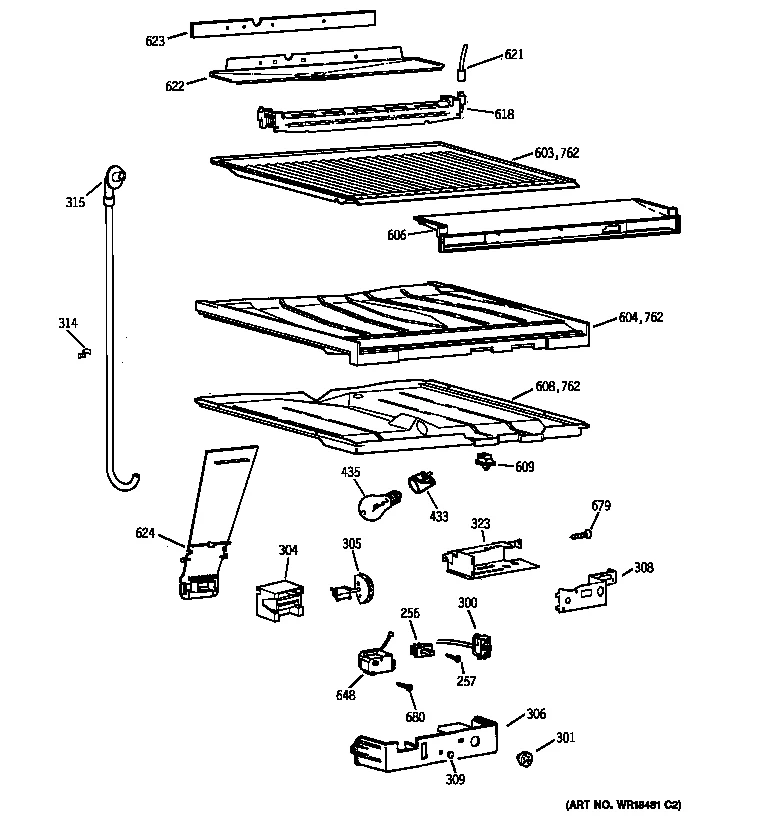

COMPARTMENT SEPARATOR PARTS
Common parts from model GE 363.70242000 Refrigerator (Kenmore 36370242000)
9
Refrigerator Door Handle GEN WR12X10026 Contact Us For Availability
23
Gask Dr Fz B GEN WR24X533 Contact Us For Availability
24
Refrigerator Freezer Door Gasket Retainer GEN WR17X2237 Contact Us For Availability
25
Refrigerator Retainer Strip GEN WR17X2239 Contact Us For Availability
28
Thimble D GEN WR2X10111 Contact Us For Availability
29
Refrigerator Door Inner Liner Button Plug (Wh GEN WR2X8087 Contact Us For Availability
29
Refrigerator Freezer Door Liner Plug Button ( GEN WR2X8088 Contact Us For Availability
29
Plug Insert GEN WR2X8542 Contact Us For Availability
32
Shelf Front GEN WR71X10031 Contact Us For Availability
104
Refrigerator Door Gasket (Black) GEN WR24X534 Contact Us For Availability
105A
Refrigerator Door Shelf Rail End Cap, Left GEN WR2X8699 Contact Us For Availability
105B
Refrigerator Door Shelf Rail End Cap, Right GEN WR2X8700 Contact Us For Availability
107
Refrigerator Dairy Extension GEN WR22X472 Contact Us For Availability
108
Shelf Front GEN WR71X10030 Contact Us For Availability
109
Refrigerator Shelf Module GEN WR71X10032 Contact Us For Availability
112
Refrigerator Door Reversal Plug GEN WR2X8697 Contact Us For Availability
200
Refrigerator Foam Strip GEN WR14X352 Contact Us For Availability
201
Refrigerator Evaporator Cover GEN WR17X2471 Contact Us For Availability
202
Grille I/ GEN WR2X8629 Contact Us For Availability
203
Crosspiece Mullion GEN WR17X4194 Contact Us For Availability
203
Crosspiece Mullion GEN WR17X4197 Contact Us For Availability
203
Crosspiece Mullion GEN WR17X4200 Contact Us For Availability
204
Mullion GEN WR2X7823 Contact Us For Availability
205
Mullion R GEN WR2X7822 Contact Us For Availability
207
Refrigerator Plenum GEN WR17X2990 Contact Us For Availability
210
Refrigerator Grommet GEN WR2X6261 Contact Us For Availability
211
Refrigerator Shelf Support GEN WR2X7973 Contact Us For Availability
219
Heater Mullion GEN WR51X356 Contact Us For Availability
220
Refrigerator Crisper Drawer Slide Rail GEN WR17X2770 Contact Us For Availability
221
Gasket GEN WR14X384 Contact Us For Availability
222
Refrigerator Crisper Shelf Seal GEN WR14X366 Contact Us For Availability
223
Refrigerator Drawer Slide Rail GEN WR17X2769 Contact Us For Availability
235
Refrigerator Crisper Drawer Shelf Rail GEN WR17X3161 Contact Us For Availability
237
Refrigerator Crisper Drawer Frame Trim GEN WR17X3288 Contact Us For Availability
239
Refrigerator Crisper Drawer Slide Rail, Cente GEN WR17X2768 Contact Us For Availability
240
Refrigerator Crisper Drawer GEN WR32X1141 Contact Us For Availability
256
Refrigerator Power Saver Switch GEN WR23X309 Contact Us For Availability
261
Refrigerator Ice Maker Fill Tube GEN WR2X6087 Contact Us For Availability
261
Refrigerator Water Tube GEN WR2X10070 Contact Us For Availability
264
Mobility Wheel GEN WR2X10137 Contact Us For Availability
265
Refrigerator Wheel Axle GEN WR1X10039 Contact Us For Availability
265
Refrigerator Wheel Axle GEN WR1X139 Contact Us For Availability
267
Refrigerator Access Cover GEN WR82X10045 Contact Us For Availability
267
Refrigerator Access Cover GEN WR82X10046 Contact Us For Availability
268
Refrigerator Wheel Adjusting Screw GEN WR1X1816 Contact Us For Availability
269
Refrigerator Key Pivot GEN WR1X1803 Contact Us For Availability
275
Refrigerator Hinge GEN WR13X626 Contact Us For Availability
276
Refrigerator Hinge GEN WR13X712 Contact Us For Availability
276
Hinge Ctr Wh GEN WR13X714 Contact Us For Availability
276
Hinge Ctr Bk GEN WR13X726 Contact Us For Availability
278
Mobility Foot GEN WR2X8842 Contact Us For Availability
279
Hinge Pin GEN WR13X587 Contact Us For Availability
280
Corner Cap GEN WR2X7656 Contact Us For Availability
280
Refrigerator Corner Cap GEN WR2X7657 Contact Us For Availability
280
Cap Oc Bl GEN WR2X8539 Contact Us For Availability
281
Hi Washer GEN WR1X10146 Contact Us For Availability
282
Bottom Hinge GEN WR13X651 Contact Us For Availability
282
Bottom Hinge GEN WR13X648 Contact Us For Availability
282
Hge Btm Asm GEN WR13X649 Contact Us For Availability
286
Leveling GEN WR1X1815 Contact Us For Availability
287
Refrigerator Gusset GEN WR2X9168 Contact Us For Availability
288
Refrigerator Base Grille GEN WR74X268 Contact Us For Availability
288
Refrigerator Kick Plate GEN WR74X269 Contact Us For Availability
288
Refrigerator Base Grille GEN WR74X270 Contact Us For Availability
289
Grille Clip GEN WR2X7646 Contact Us For Availability
295
Refrigerator Ice Maker Wire Harness GEN WR23X315 Contact Us For Availability
296
Refrigerator Plug Cover GEN WR2X8444 Contact Us For Availability
300B
Refrigerator Temperature Control GEN WR9X559 Contact Us For Availability
301
Refrigerator Temperature Knob GEN WR2X8692 Contact Us For Availability
304
Foam Nozzle GEN WR2X8363 Contact Us For Availability
305
Shaft/kno GEN WR2X9303 Contact Us For Availability
306
Hsg C &l Asm GEN WR17X2783 Contact Us For Availability
308
Control Bracket GEN WR2X7768 Contact Us For Availability
309
Refrigerator Control Panel Plug Button GEN WR2X7652 Contact Us For Availability
314
Refrigerator Drain Clip GEN WR2X8503 Contact Us For Availability
315
Tube Drai GEN WR2X10134 Contact Us For Availability
323
Refrigerator Control Bracket GEN WR2X7767 Contact Us For Availability
324A
Button Plug GEN WR2X7069 Contact Us For Availability
324B
Refrigerator Discharge Baffle Plug Button GEN WR2X7051 Contact Us For Availability
447
Refrigerator Hinge Cover GEN WR2X8478 Contact Us For Availability
447
Refrigerator Hinge Cover GEN WR2X8479 Contact Us For Availability
447
Hinge Bla GEN WR2X8540 Contact Us For Availability
472
Refrigerator Deli Drawer Slide Rail GEN WR72X273 Contact Us For Availability
473
Slide, Left GEN WR72X274 Contact Us For Availability
525
Refrigerator Screw GEN WR1X1763 Contact Us For Availability
551
SCR 8-18 AB RNDW 5/8 SS GEN WZ4X244 Contact Us For Availability
602
Screw GEN WR1X1591 Contact Us For Availability
603
L Bottom Frz GEN WR17X2234 Contact Us For Availability
604
Divider Insulation GEN WR17X3495 Contact Us For Availability
606
Freezer Front Liner GEN WR17X2401 Contact Us For Availability
608
Liner Top Ff GEN WR17X10029 Contact Us For Availability
610
Refrigerator Evaporator Fan Motor GEN WR60X190 Contact Us For Availability
611
Refrigerator Fan Bracket GEN WR2X7664 Contact Us For Availability
615
Grommet GEN WR2X7391 Contact Us For Availability
617
Grommet GEN WR2X10098 Contact Us For Availability
621
Spade Con GEN WR2X4495 Contact Us For Availability
623
Gasket Trough GEN WR14X348 Contact Us For Availability
624
Cvr Ff Suply GEN WR17X3910 Contact Us For Availability
650
Refrigerator Condenser Fan Motor GEN WR60X10020 Contact Us For Availability
651
Condenser Fan Blade GEN WR60X10034 Contact Us For Availability
652
Refrigerator Complete Ring GEN WR2X10323 Contact Us For Availability
653
Refrigerator Dust Cap GEN WR2X10322 Contact Us For Availability
679
Screw&was GEN WZ6X133 Contact Us For Availability
680
Scr 6-19 GEN WR1X10123 Contact Us For Availability
691
Screw (Black) GEN WR1X1821 Contact Us For Availability
691
Screw 12- GEN WR1X2139 Contact Us For Availability
693
Refrigerator Screw GEN WR1X2136 Contact Us For Availability
693
Refrigerator Screw GEN WR1X1822 Contact Us For Availability
693
Screw 12- GEN WR1X2137 Contact Us For Availability
695
Scr 12-24 GEN WR1X10060 Contact Us For Availability
696
Refrigerator Cover Screw GEN WR2X10170 Contact Us For Availability
696
Refrigerator Cover Screw GEN WR2X10171 Contact Us For Availability
696
Refrigerator Cover Screw GEN WR2X10172 Contact Us For Availability
697
Scr 12-24 GEN WR1X10061 Contact Us For Availability
697
Scr 12-24 GEN WR1X10062 Contact Us For Availability
697
Scr 12-24 GEN WR1X10063 Contact Us For Availability
726
Refrigerator Low Side Assembly GEN WR85X10005 Contact Us For Availability
730
Cond Asm Fin GEN WR84X10010 Contact Us For Availability
732
Cover Clip GEN WR2X7226 Contact Us For Availability
734
Cover Relay GEN WR2X7834 Contact Us For Availability
736
Refrigerator Compressor Mounting Clip GEN WR2X8203 Contact Us For Availability
737
Grommet GEN WR2X7238 Contact Us For Availability
744
Clip Condenser GEN WR2X9209 Contact Us For Availability
751
Baseplate Hi GEN WR17X10512 Contact Us For Availability
752
High Support GEN WR17X10317 Contact Us For Availability
753
Bracket GEN WR2X10321 Contact Us For Availability
754
Baffle Asm L GEN WR17X10316 Contact Us For Availability
755
Air Condenser Baffle GEN WR17X10319 Contact Us For Availability
756
Refrigerator Condenser Fan Housing GEN WR17X10425 Contact Us For Availability
760
Refrigerator Foam Strip GEN WR14X10008 Contact Us For Availability
762
Refrigerator Evaporator Cover Seal GEN WR14X313 Contact Us For Availability
802
Refrigerator Water Tubing Clip GEN WR1X1360 Contact Us For Availability
804
Refrigerator Water Tube Nut, 1/4-in GEN WR57X57 Contact Us For Availability
830
Refrigerator Foam Plug GEN WR82X360 Contact Us For Availability
831
Suction Cover GEN WR17X10543 Contact Us For Availability
857
Refrigerator Ice Maker On/Off Switch GEN WR29X5171 Contact Us For Availability
868
Refrigerator Ice Maker Ice Mold GEN WR29X204 Contact Us For Availability
900
Fz O Dr Ad GEN WR78X8739 Contact Us For Availability
900
Fz O Dr Wh GEN WR78X8741 Contact Us For Availability
900
Fz O Dr Bk GEN WR78X8743 Contact Us For Availability
921
Refrigerator Freezer Door Handle Screw Cover GEN WR2X7624 Contact Us For Availability
921
Refrigerator Freezer Door Handle Screw Cover GEN WR2X7625 Contact Us For Availability
921
Refrigerator Door Handle Hole Plug (Black) GEN WR2X8541 Contact Us For Availability
NI
Refrigerator Light Shield GEN WR2X9010 Contact Us For Availability
× ![]()
