Model GE 363.68437893 Refrigerator (Kenmore 36368437893) – Common Parts & Diagrams
All Parts
CABINET

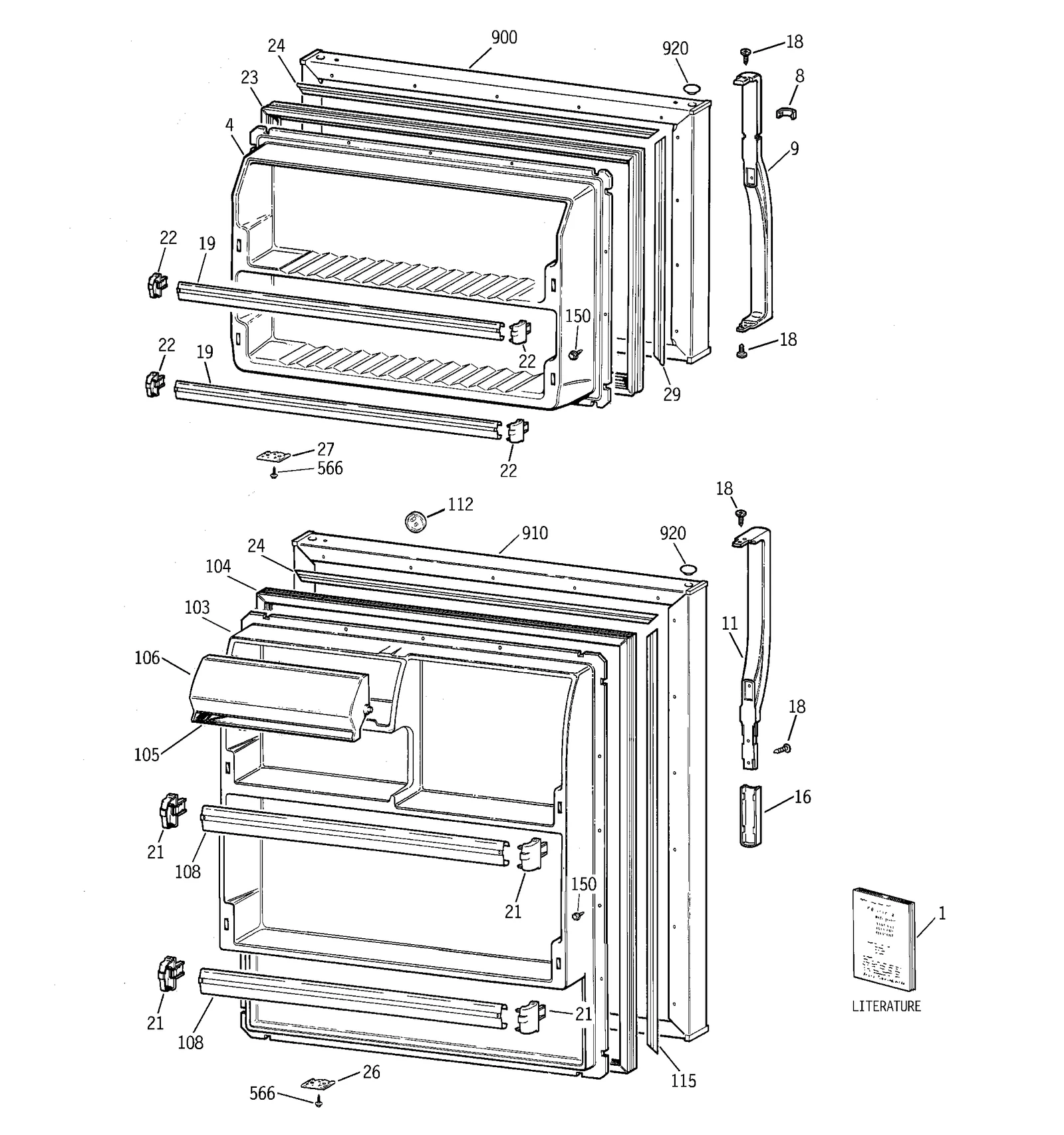

DOORS

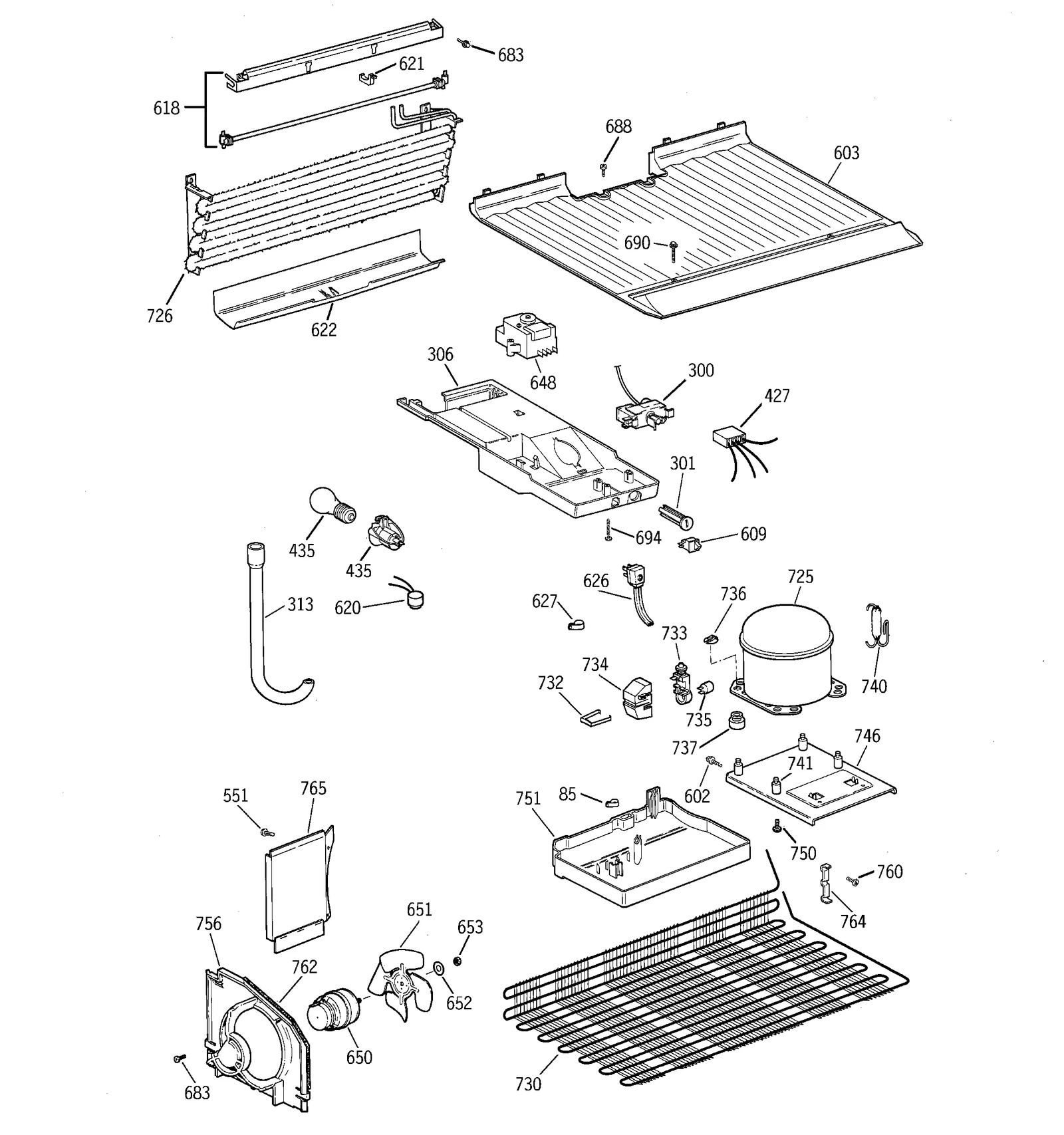

UNIT PARTS
Common parts from model GE 363.68437893 Refrigerator (Kenmore 36368437893)
1
Attn Instal GEN 31-5036 Contact Us For Availability
1
Refrigerator Mini Wiring Manual GEN 31-51219 Contact Us For Availability
1
Refrigerator Use and Care Label GEN SR1084 Contact Us For Availability
1
Refrigerator Energy Label GEN SR1212 Contact Us For Availability
1
Refrigerator Parts List GEN SR3890 Contact Us For Availability
1
Refrigerator User's Manual GEN SR6177 Contact Us For Availability
4
Inner Freezer Door GEN WR77X0550 Contact Us For Availability
8
Clip Nameplate GEN WR04X10010 Contact Us For Availability
8
Clip Nameplate GEN WR04X10011 Contact Us For Availability
9
Refrigerator Door Handle GEN WR12X10049 Contact Us For Availability
9
Refrigerator Door Handle GEN WR12X10050 Contact Us For Availability
11
Refrigerator Door Handle GEN WR12X10018 Contact Us For Availability
11
Refrigerator Door Handle GEN WR12X10022 Contact Us For Availability
16
Refrigerator Handle Trim GEN WR12X10024 Contact Us For Availability
16
Refrigerator Handle Trim GEN WR12X10025 Contact Us For Availability
19
Refrigerator Freezer Door Shelf Rail GEN WR17X10097 Contact Us For Availability
21
Cap Shield GEN WR02X8797 Contact Us For Availability
22
Refrigerator Shelf Cap GEN WR02X8221 Contact Us For Availability
24
Refrigerator Retainer GEN WR02X8235 Contact Us For Availability
26
Refrigerator Door Stop GEN WR02X8241 Contact Us For Availability
27
Freezer Door Stop GEN WR02X8264 Contact Us For Availability
29
Refrigerator Retainer GEN WR02X8236 Contact Us For Availability
85
Refrigerator Wire Clamp GEN WR01X2008 Contact Us For Availability
103
Dr Inner Ff GEN WR77X0645 Contact Us For Availability
105
Bright Trim GEN WR38X10051 Contact Us For Availability
106
Refrigerator Dairy Door GEN WR22X0475 Contact Us For Availability
112
Drive Reversible Plug GEN WR02X8697 Contact Us For Availability
115
Refrigerator Retainer GEN WR02X8237 Contact Us For Availability
239
Refrigerator Crisper Drawer Frame Support GEN WR17X3164 Contact Us For Availability
241
Refrigerator Vegetable Pan Handle GEN WR38X2016 Contact Us For Availability
242
Refrigerator Glass Shelf GEN WR32X10026 Contact Us For Availability
264
Refrigerator Wheel Axle GEN WR02X8214 Contact Us For Availability
265
Refrigerator Rear Wheel GEN WR02X8245 Contact Us For Availability
267
Access Cover Assembly GEN WR82X0322 Contact Us For Availability
269
Refrigerator Wheel Axle GEN WR02X8949 Contact Us For Availability
275
Refrigerator Hinge GEN WR13X0684 Contact Us For Availability
275
Refrigerator Hinge GEN WR13X0685 Contact Us For Availability
276
Refrigerator Hinge GEN WR13X0676 Contact Us For Availability
276
Refrigerator Hinge GEN WR13X0677 Contact Us For Availability
276
Refrigerator Hinge GEN WR13X0680 Contact Us For Availability
277
Refrigerator Rear Cabinet Support Brace GEN WR17X3188 Contact Us For Availability
278
Refrigerator Wheel GEN WR02X8244 Contact Us For Availability
279
Refrigerator Hinge GEN WR02X8232 Contact Us For Availability
280
Refrigerator Corner Cap GEN WR02X8465 Contact Us For Availability
280
Refrigerator Corner Cap GEN WR02X8466 Contact Us For Availability
282
Refrigerator Hinge GEN WR13X0596 Contact Us For Availability
283
Refrigerator Hinge Shim GEN WR02X8240 Contact Us For Availability
287
Gusset Rh GEN WR02X8708 Contact Us For Availability
287
Gusset Lh GEN WR02X8709 Contact Us For Availability
294
Refrigerator Button Plug GEN WR02X9148 Contact Us For Availability
296
Cvr Un Recep GEN WR02X9159 Contact Us For Availability
300
Refrigerator Temperature Control GEN WR09X0545 Contact Us For Availability
301
Refrigerator Control Knob GEN WR02X8231 Contact Us For Availability
304
Air Duct GEN WR17X2629 Contact Us For Availability
305
Refrigerator Air Actuator GEN WR02X9158 Contact Us For Availability
307
Diffuser Ff GEN WR02X8463 Contact Us For Availability
308
Electronic Insulation GEN WR02X8248 Contact Us For Availability
309
Duct Gasket GEN WR02X8246 Contact Us For Availability
313
Drn Tube Kit GEN WR17X2647 Contact Us For Availability
324
Refrigerator Button Plug GEN WR02X7051 Contact Us For Availability
427
Refrigerator Harness Control Module GEN WR23X0358 Contact Us For Availability
447
Refrigerator Hinge Cover GEN WR02X8223 Contact Us For Availability
450
Refrigerator Hinge Shim GEN WR02X8871 Contact Us For Availability
452
Refrigerator Hinge Shim GEN WR02X8870 Contact Us For Availability
551
Refrigerator Screw GEN WZ04X0244 Contact Us For Availability
560
Refrigerator Screw GEN WR01X1249 Contact Us For Availability
602
Refrigerator Screw GEN WR01X1591 Contact Us For Availability
603
Refrigerator Freezer Bottom Panel GEN WR17X2630 Contact Us For Availability
610
Refrigerator Evaporator Fan Motor GEN WR60X203 Contact Us For Availability
611
Refrigerator Bracket Evaporator GEN WR02X8216 Contact Us For Availability
612
Refrigerator Bracket Evaporator GEN WR02X8217 Contact Us For Availability
615
Grommet GEN WR02X7391 Contact Us For Availability
620
Refrigerator Defrost Bi-Metal Thermostat GEN WR50X10005 Contact Us For Availability
621
Element Holder GEN WR02X8536 Contact Us For Availability
622
Refrigerator Drain Trough GEN WR17X2635 Contact Us For Availability
651
Fan Bld Cnds GEN WR60X0275 Contact Us For Availability
652
Washer GEN WR01X1714 Contact Us For Availability
653
Nut GEN WR01X1715 Contact Us For Availability
683
Screw GEN WR01X1716 Contact Us For Availability
687
Refrigerator Screw GEN WZ06X0096 Contact Us For Availability
690
Refrigerator Screw GEN WR01X1790 Contact Us For Availability
691
Refrigerator Screw GEN WR01X1753 Contact Us For Availability
692
Refrigerator Screw GEN WZ04X0416 Contact Us For Availability
694
Refrigerator Screw GEN WR01X1792 Contact Us For Availability
730
Cond Tube Wi GEN WR84X10002 Contact Us For Availability
732
Refrigerator Cover Clip Relay GEN WR02X7928 Contact Us For Availability
733
Refrigerator Compressor Start Relay GEN WR07X10011 Contact Us For Availability
734
Cover Relay GEN WR02X7929 Contact Us For Availability
737
Mounting Grommet GEN WR02X7238 Contact Us For Availability
746
Plate Comp M GEN WR17X10195 Contact Us For Availability
751
Pan Water Diode GEN WR32X10037 Contact Us For Availability
756
Refrigerator Fan Housing GEN WR17X2632 Contact Us For Availability
760
Refrigerator Screw GEN WR01X1717 Contact Us For Availability
762
Refrigerator Cover Gasket GEN WR14X0313 Contact Us For Availability
765
BAFFLE FAN GEN WR17X10112 Contact Us For Availability
900
Frz O Dr Ad GEN WR78X8669 Contact Us For Availability
900
Refrigerator Freezer Outer Door GEN WR78X8680 Contact Us For Availability
910
Ff O Dr (wht GEN WR78X8674 Contact Us For Availability
910
Ff O Dr (ad) GEN WR78X8675 Contact Us For Availability
920
Refrigerator Button Plug GEN WR02X8234 Contact Us For Availability
× ![]()
