Model GE 363.67967790 Top-Mount Refrigerator (Kenmore 36367967790) – Common Parts & Diagrams
ICEMAKER WR30X0318
COMPARTMENT SEPARATOR PARTS

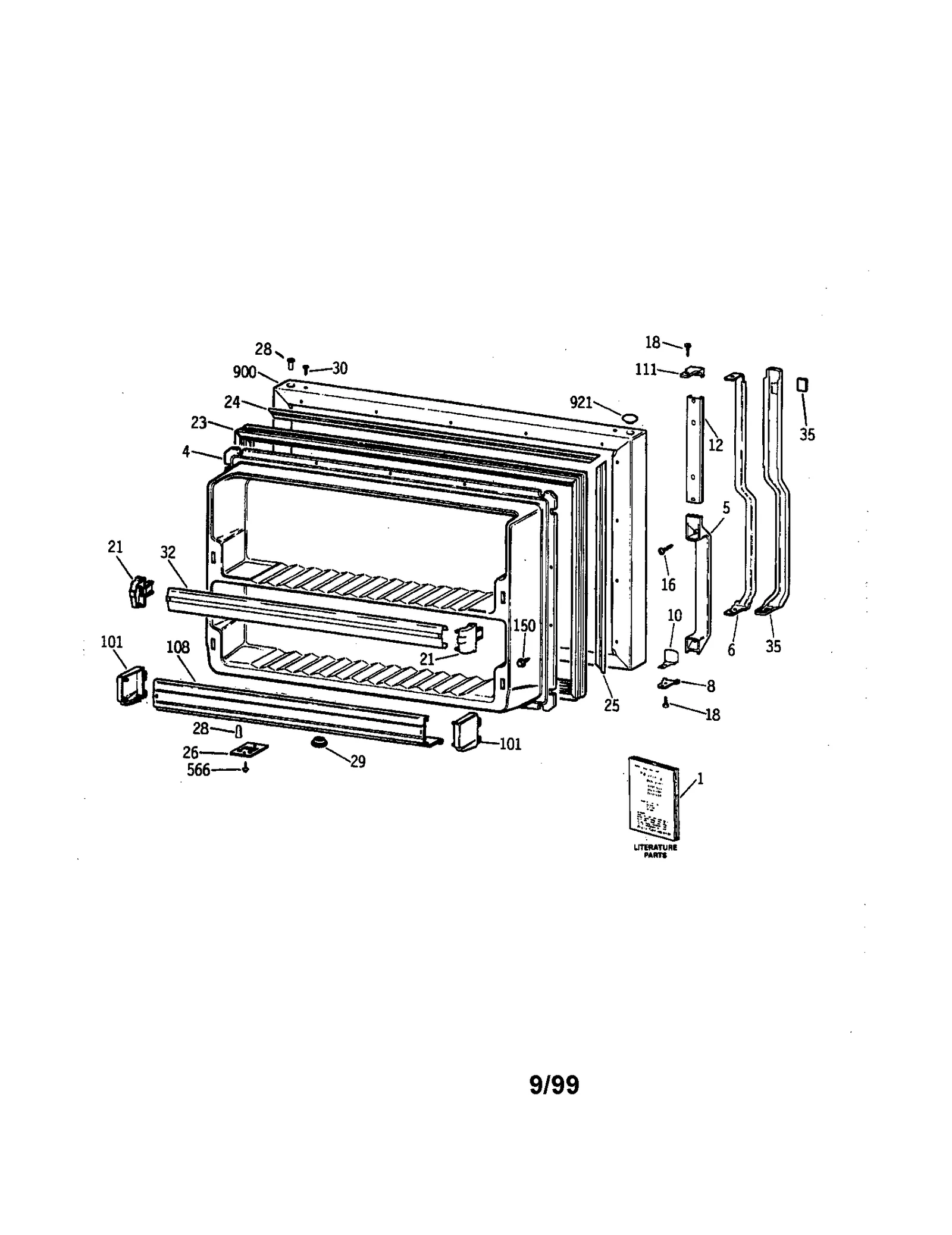

FREEZER DOOR

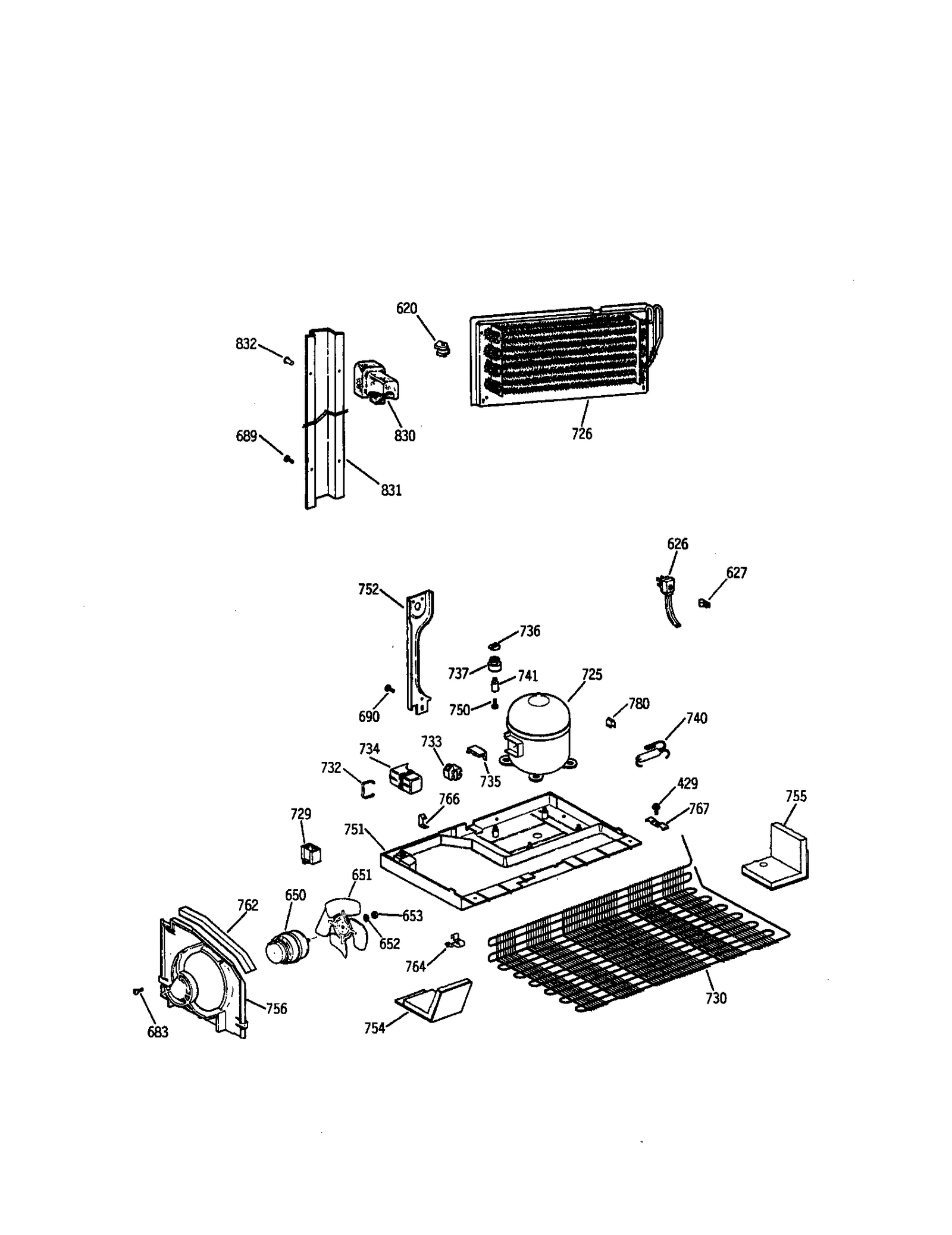

UNIT PARTS

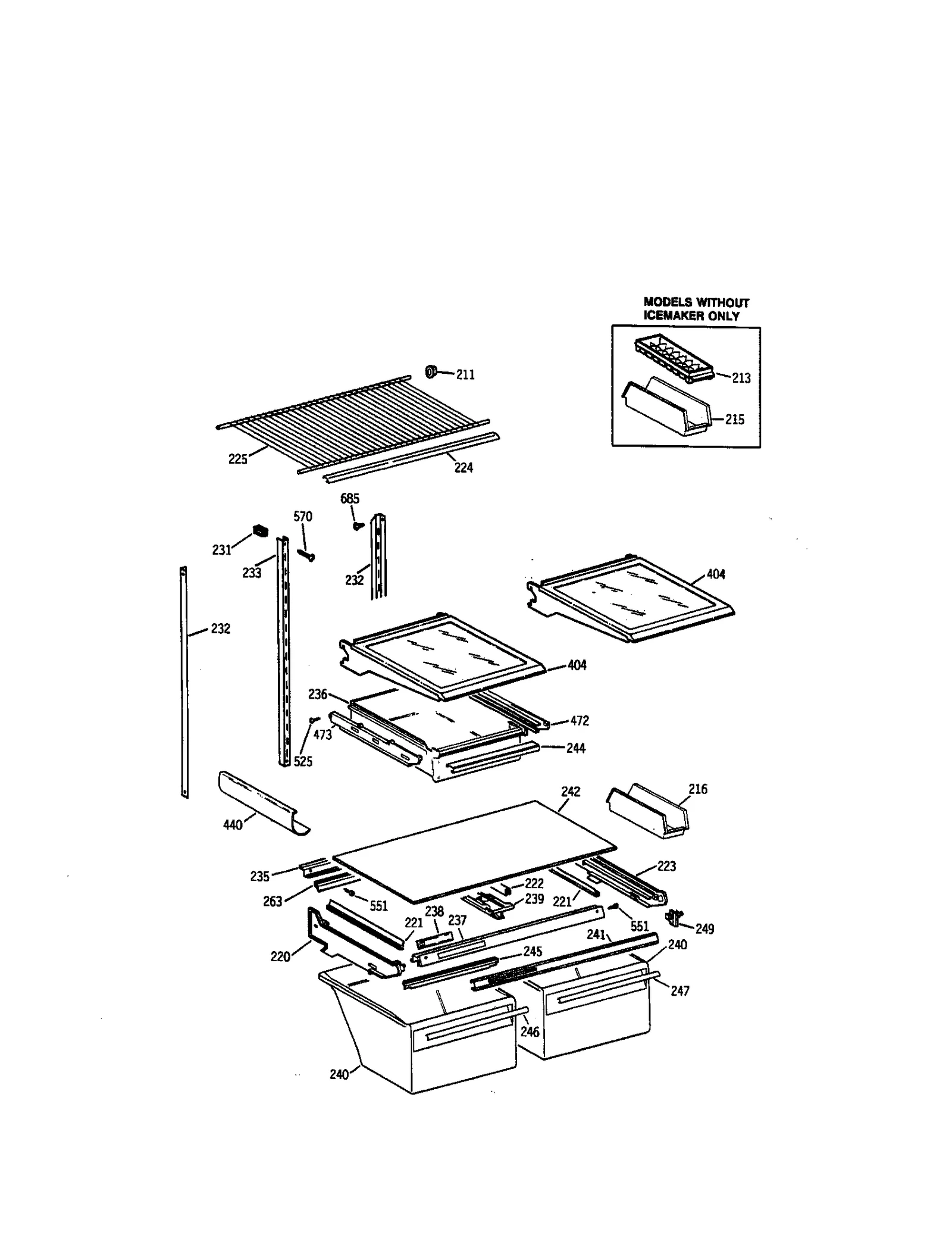

SHELF PARTS

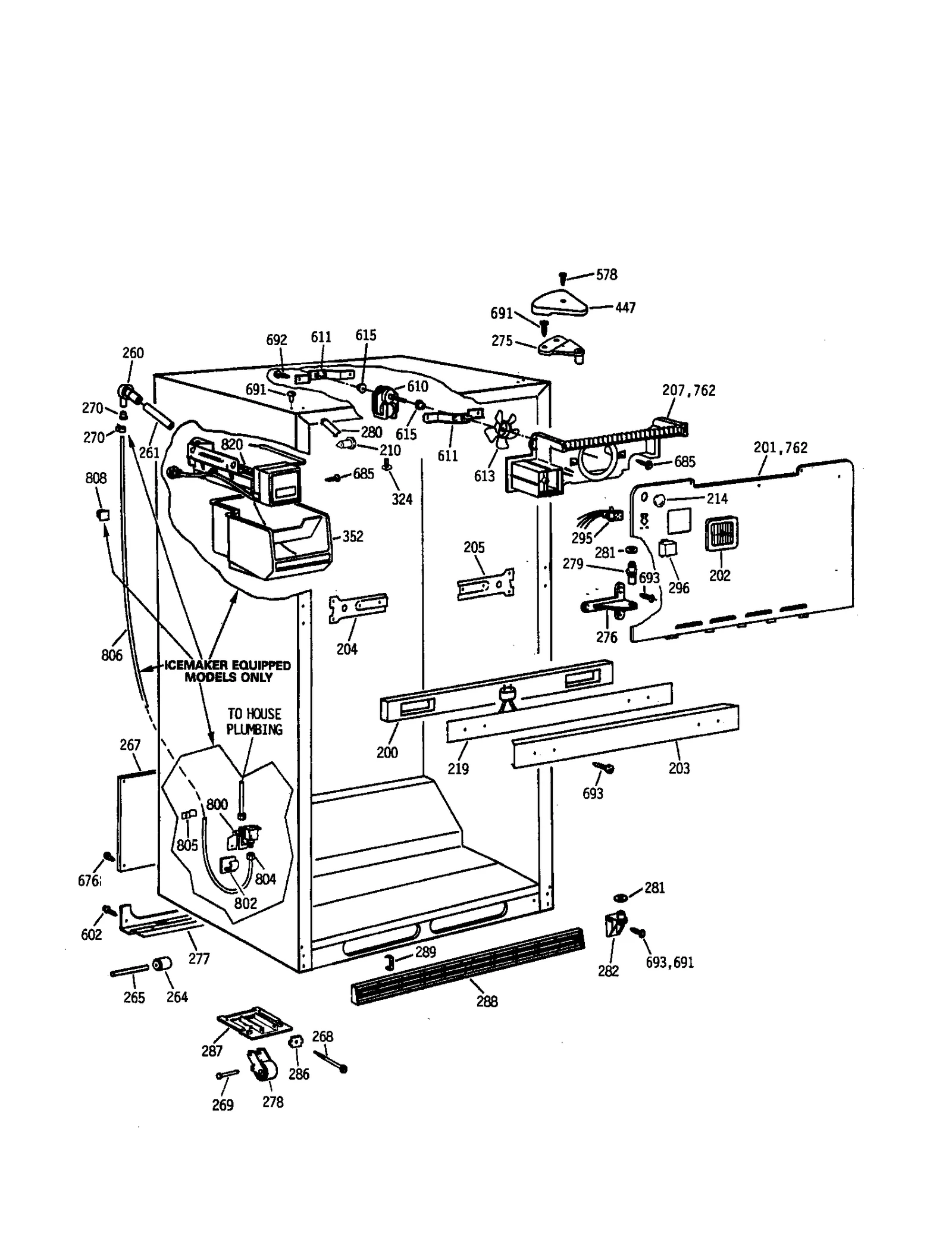

CABINET PARTS
FRESH FOOD DOOR
Common parts from model GE 363.67967790 Top-Mount Refrigerator (Kenmore 36367967790)
1
Refrigerator Owner's Manual GEN SR6160 Contact Us For Availability
1A
Refrigerator Parts List GEN SR3779 Contact Us For Availability
1B
Refrigerator Energy Guide GEN SR1208 Contact Us For Availability
1C
Refrigerator Owner's Manual GEN SR1086 Contact Us For Availability
1D
Refrigerator Mini Manual GEN 31-51086 Contact Us For Availability
1E
Refrigerator Owner's Manual GEN 31-5025 Contact Us For Availability
4
I D Panel Fz GEN WR77X0584 Contact Us For Availability
5
Refrigerator Door Handle GEN WR12X0553 Contact Us For Availability
6
Refrigerator Stiffener GEN WR12X2845 Contact Us For Availability
7
Stiffner GEN WR12X0598 Contact Us For Availability
8
Refrigerator Drive Handle Shim GEN WR02X8089 Contact Us For Availability
8A
Refrigerator Drive Handle Shim GEN WR02X8090 Contact Us For Availability
10
Refrigerator Shim GEN WR02X7613 Contact Us For Availability
12
Refrigerator Ice Maker On/Off Switch GEN WR29X5171 Contact Us For Availability
12
Channel Handle GEN WR12X0587 Contact Us For Availability
16
Refrigerator Screw GEN WR01X1724 Contact Us For Availability
19
Refrigerator Screw GEN WR29X5122 Contact Us For Availability
21
Mold Body GEN WR29X0204 Contact Us For Availability
23
Inlet Bearing GEN WR29X0153 Contact Us For Availability
24
Refrigerator Retainer Strip GEN WR17X2279 Contact Us For Availability
25
Ejector GEN WR29X5174 Contact Us For Availability
25
Refrigerator Freezer Door Gasket Retainer GEN WR17X2281 Contact Us For Availability
26
Refrigerator Door Stop GEN WR02X7681 Contact Us For Availability
28
Refrigerator Sleeve GEN WR29X5178 Contact Us For Availability
28
Door Thimble GEN WR02X7627 Contact Us For Availability
29
Refrigerator Feeler Arm GEN WR29X5179 Contact Us For Availability
29
Refrigerator Plug Button Insert GEN WR02X8087 Contact Us For Availability
29A
Refrigerator Plug Button Insert GEN WR02X8088 Contact Us For Availability
30
Refrigerator Screw GEN WR01X5475 Contact Us For Availability
32
Refrigerator Shelf GEN WR71X2539 Contact Us For Availability
34
Wire Harness GEN WR29X0186 Contact Us For Availability
35
Insrt/np Fz GEN WR12X10008 Contact Us For Availability
35A
Insrt/np Fz GEN WR12X10009 Contact Us For Availability
35B
Refrigerator Lens Nameplate GEN WR04X10001 Contact Us For Availability
35C
Refrigerator Lens Nameplate GEN WR04X10002 Contact Us For Availability
37
Refrigerator Ice Maker Motor Gear GEN WR29X5153 Contact Us For Availability
101
Refrigerator Shelf Cap GEN WR02X8486 Contact Us For Availability
101A
Refrigerator Shelf Cap GEN WR02X8485 Contact Us For Availability
103
I D Panel Ff GEN WR77X0590 Contact Us For Availability
106
Refrigerator Trim GEN WR38X2111 Contact Us For Availability
107
Refrigerator Dairy Door GEN WR22X0511 Contact Us For Availability
108
Refrigerator Shelf GEN WR71X2551 Contact Us For Availability
111
Trim Cap GEN WR02X7610 Contact Us For Availability
112A
Drive Reversible Plug GEN WR02X8697 Contact Us For Availability
113
Cap Trim Btm GEN WR02X7611 Contact Us For Availability
115
Refrigerator Door Gasket Retainer GEN WR17X2280 Contact Us For Availability
121
Drive Handle Insert GEN WR12X0708 Contact Us For Availability
121A
Drive Handle Insert GEN WR12X0709 Contact Us For Availability
124
Refrigerator Plug Button Insert GEN WR12X0722 Contact Us For Availability
124A
Refrigerator Plug Button Insert GEN WR12X0721 Contact Us For Availability
125
Refrigerator Channel GEN WR12X0557 Contact Us For Availability
126
Refrigerator Shelf GEN WR71X2538 Contact Us For Availability
127
Refrigerator Shelf GEN WR71X2550 Contact Us For Availability
128
Divider Shelf GEN WR02X7976 Contact Us For Availability
194
Gril Housing GEN WR02X8380 Contact Us For Availability
200
Refrigerator Mullion GEN WR14X0356 Contact Us For Availability
201
Refrigerator Evaporator Cover GEN WR17X2269 Contact Us For Availability
202
Grille I/s GEN WR02X8629 Contact Us For Availability
203
Crosspiece Mullion GEN WR17X4195 Contact Us For Availability
203A
Crosspiece Mullion GEN WR17X4198 Contact Us For Availability
204
Mullion L H GEN WR02X7823 Contact Us For Availability
205
Mullion Rh GEN WR02X7822 Contact Us For Availability
207
Refrigerator Plenum GEN WR17X2990 Contact Us For Availability
210
Refrigerator Grommet GEN WR02X6261 Contact Us For Availability
211
Refrigerator Shelf Support GEN WR02X7973 Contact Us For Availability
215
Util Bucket GEN WR32X0897 Contact Us For Availability
216
Refrigerator Egg Bin GEN WR32X1435 Contact Us For Availability
219
Heater Mullion GEN WR51X0358 Contact Us For Availability
220
Refrigerator Crisper Drawer Slide Rail GEN WR17X2770 Contact Us For Availability
221
Refrigerator Gasket GEN WR14X0384 Contact Us For Availability
222
Refrigerator Slide Gasket GEN WR14X0366 Contact Us For Availability
223
Refrigerator Drawer Slide Rail GEN WR17X2769 Contact Us For Availability
224
Refrigerator Trim GEN WR38X2114 Contact Us For Availability
225
Refrigerator Freezer Shelf GEN WR71X1955 Contact Us For Availability
226
Funnel Drain GEN WR02X7640 Contact Us For Availability
231
Spac Ct Trac GEN WR02X7018 Contact Us For Availability
232
Refrigerator Shelf Track GEN WR72X0096 Contact Us For Availability
233
Refrigerator Shelf Track GEN WR72X0097 Contact Us For Availability
235
Refrigerator Crisper Drawer Shelf Rail GEN WR17X3182 Contact Us For Availability
236
Refrigerator Deli Drawer, 4-in GEN WR32X1073 Contact Us For Availability
237
Refrigerator Crisper Drawer Shelf Rail GEN WR17X2779 Contact Us For Availability
238
Refrigerator Slide GEN WR17X4011 Contact Us For Availability
239
Refrigerator Crisper Drawer Slide Rail, Cente GEN WR17X2768 Contact Us For Availability
240
Refrigerator Crisper Drawer GEN WR32X1132 Contact Us For Availability
241
Refrigerator Vegetable Pan Frame Trim GEN WR38X2263 Contact Us For Availability
242
Refrigerator Glass Shelf GEN WR32X1485 Contact Us For Availability
244
Refrigerator Pan Handle GEN WR38X2109 Contact Us For Availability
245
Gsk Cvr Pan GEN WR14X0371 Contact Us For Availability
246
Vegetable Handle GEN WR17X4266 Contact Us For Availability
247
Vegetable Handle GEN WR17X4270 Contact Us For Availability
249
Refrigerator Vegetable Pan Cover Support GEN WR02X8695 Contact Us For Availability
256
Refrigerator Power Saver Switch GEN WR23X0309 Contact Us For Availability
260
Refrigerator Grommet GEN WR02X7773 Contact Us For Availability
261
Refrigerator Fill Tube GEN WR02X6087 Contact Us For Availability
263
Refrigerator Gasket GEN WR14X0399 Contact Us For Availability
265
Rear Axle Wheel GEN WR01X1774 Contact Us For Availability
267
Refrigerator Access Cover GEN WR82X0321 Contact Us For Availability
268
Refrigerator Mobility Screw GEN WR01X1816 Contact Us For Availability
269
Refrigerator Key Pivot GEN WR01X1803 Contact Us For Availability
275
Refrigerator Hinge GEN WR13X0626 Contact Us For Availability
276
Hinge Ctr Wh GEN WR13X0714 Contact Us For Availability
276A
Refrigerator Hinge GEN WR13X0712 Contact Us For Availability
277
Refrigerator Rear Rail GEN WR17X3743 Contact Us For Availability
278
Mobility Foot GEN WR02X8842 Contact Us For Availability
279
Refrigerator Hinge Pin GEN WR13X0587 Contact Us For Availability
280
Refrigerator Corner Cap GEN WR02X7657 Contact Us For Availability
280A
Refrigerator Corner Cap GEN WR02X7656 Contact Us For Availability
282
Hge Btm Asm GEN WR13X0649 Contact Us For Availability
282A
Hge B/p Asm GEN WR13X0648 Contact Us For Availability
286
Leveling Nut GEN WR01X1815 Contact Us For Availability
287
Refrigerator Gusset GEN WR02X9168 Contact Us For Availability
288
Gril Base Wh GEN WR74X0220 Contact Us For Availability
288A
Gril Base Ad GEN WR74X0223 Contact Us For Availability
289
Refrigerator Grille Clip GEN WR02X7646 Contact Us For Availability
295
Refrigerator Receptacle GEN WR23X0315 Contact Us For Availability
296
Refrigerator Plug Cover GEN WR02X8444 Contact Us For Availability
300A
Refrigerator Temperature Control GEN WR09X0559 Contact Us For Availability
301
Refrigerator Temperature Complete Knob GEN WR02X8692 Contact Us For Availability
304
Foam Nozzle GEN WR02X8363 Contact Us For Availability
305
Shaft Knob GEN WR02X9298 Contact Us For Availability
306
Hsg C &l Asm GEN WR17X2783 Contact Us For Availability
307
Electronic Insulation GEN WR02X7669 Contact Us For Availability
308
Refrigerator Control Bracket GEN WR02X7768 Contact Us For Availability
309
Refrigerator Button Plug GEN WR02X7652 Contact Us For Availability
314
Refrigerator Drain Clip GEN WR02X8503 Contact Us For Availability
315
Drain Gromet GEN WR02X8504 Contact Us For Availability
323
Refrigerator Control Bracket GEN WR02X7767 Contact Us For Availability
324
Refrigerator Button Plug GEN WR02X7069 Contact Us For Availability
404
Refrigerator Cantilever Shelf GEN WR32X1587 Contact Us For Availability
429
SCR 1/4-14 B HXW3/8 S NS GEN WH02X0795 Contact Us For Availability
433
Refrigerator Socket GEN WR02X8202 Contact Us For Availability
440
Wine Rack Pk GEN WR17X4094 Contact Us For Availability
447
Hinge Cvr Wh GEN WR02X8478 Contact Us For Availability
447A
Hinge Cvr Ad GEN WR02X8479 Contact Us For Availability
472
Slide GEN WR72X0273 Contact Us For Availability
473
Slide, Left GEN WR72X0274 Contact Us For Availability
525
Refrigerator Screw GEN WR01X1763 Contact Us For Availability
551
Refrigerator Screw GEN WZ04X0244 Contact Us For Availability
602
Refrigerator Screw GEN WR01X1591 Contact Us For Availability
603
Refrigerator Freezer Floor Panel GEN WR17X2275 Contact Us For Availability
604
Insul Dividr GEN WR17X3494 Contact Us For Availability
606
Freezer Front Liner GEN WR17X2385 Contact Us For Availability
608
Liner Top Ff GEN WR17X10028 Contact Us For Availability
610
Evaporator Fan Motor GEN WR60X0190 Contact Us For Availability
611
Refrigerator Fan Bracket GEN WR02X7664 Contact Us For Availability
615
Grommet GEN WR02X7391 Contact Us For Availability
622
Refrigerator Drain Trough GEN WR17X2283 Contact Us For Availability
623
Gasket Trough GEN WR14X0357 Contact Us For Availability
624
Cover Ff Sup GEN WR17X3883 Contact Us For Availability
651
Condenser Fan Blade GEN WR60X0212 Contact Us For Availability
652
Washer GEN WR01X1714 Contact Us For Availability
653
Nut GEN WR01X1715 Contact Us For Availability
679
Washer Screw GEN WZ06X0133 Contact Us For Availability
683
Refrigerator Screw GEN WR01X1825 Contact Us For Availability
691
Screw 12-24 GEN WR01X2139 Contact Us For Availability
692
Refrigerator Screw GEN WZ04X0416 Contact Us For Availability
693
Screw 12-24 GEN WR01X2137 Contact Us For Availability
693A
Screw 12-24 GEN WR01X2136 Contact Us For Availability
726
Lo Side Asm GEN WR85X0311 Contact Us For Availability
730
Refrigerator Condenser GEN WR84X0194 Contact Us For Availability
732
Release Cover Clip GEN WR02X8976 Contact Us For Availability
734
Cover Relay GEN WR02X9169 Contact Us For Availability
735
Refrigerator Overload GEN WR08X0163 Contact Us For Availability
736
Clip GEN WR02X8203 Contact Us For Availability
737
Mounting Grommet GEN WR02X7238 Contact Us For Availability
751
Unimount Hs GEN WR17X3759 Contact Us For Availability
752
Rear Brace GEN WR17X3858 Contact Us For Availability
754
Refrigerator Baffle GEN WR17X3771 Contact Us For Availability
755
Bafle Asm Rh GEN WR17X2268 Contact Us For Availability
756
Fan Control Housing GEN WR17X3760 Contact Us For Availability
762
Refrigerator Cover Gasket GEN WR14X0313 Contact Us For Availability
764
Clip Condenser GEN WR02X9208 Contact Us For Availability
766
Drive Pan Clip GEN WR02X9206 Contact Us For Availability
767
Clip Condenser GEN WR02X9207 Contact Us For Availability
780
Refrigerator Tube Clip GEN WR02X9501 Contact Us For Availability
802
Refrigerator Water Tubing Clip GEN WR01X1360 Contact Us For Availability
830
Refrigerator Foam Plug GEN WR82X0360 Contact Us For Availability
831
Refrigerator Cover GEN WR17X3056 Contact Us For Availability
832
Refrigerator Pop Rivet GEN WR01X1841 Contact Us For Availability
900
Fz O Dr Wh GEN WR78X8731 Contact Us For Availability
900A
Fz O Dr Ad GEN WR78X8728 Contact Us For Availability
910
Refrigerator Door Outer Panel (White) GEN WR78X8730 Contact Us For Availability
910A
Ff O Dr Ad GEN WR78X8729 Contact Us For Availability
921
Refrigerator Button Plug GEN WR02X7625 Contact Us For Availability
921A
Refrigerator Button Plug GEN WR02X7624 Contact Us For Availability
× ![]()
Login and Registration Form
