Model GE 363.48042891 Refrigerator (Kenmore 36348042891) – Common Parts & Diagrams
FRESH FOOD DOOR
All Parts

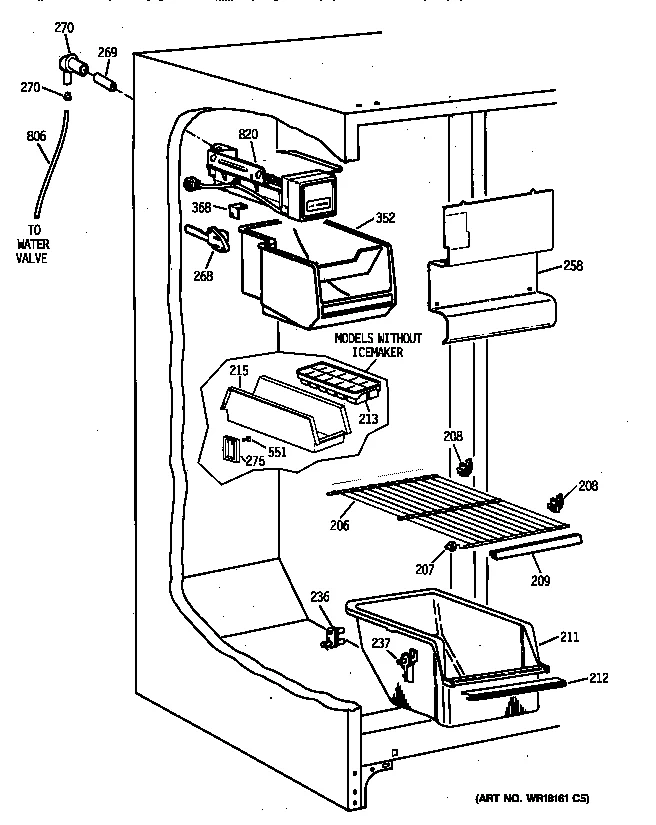

FREEZER SECTION

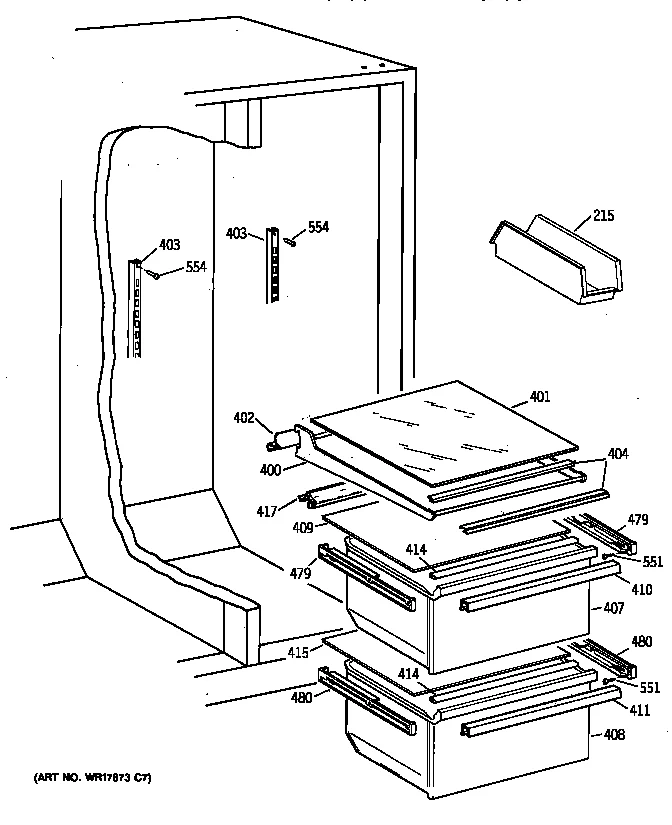

FRESH FOOD SECTION

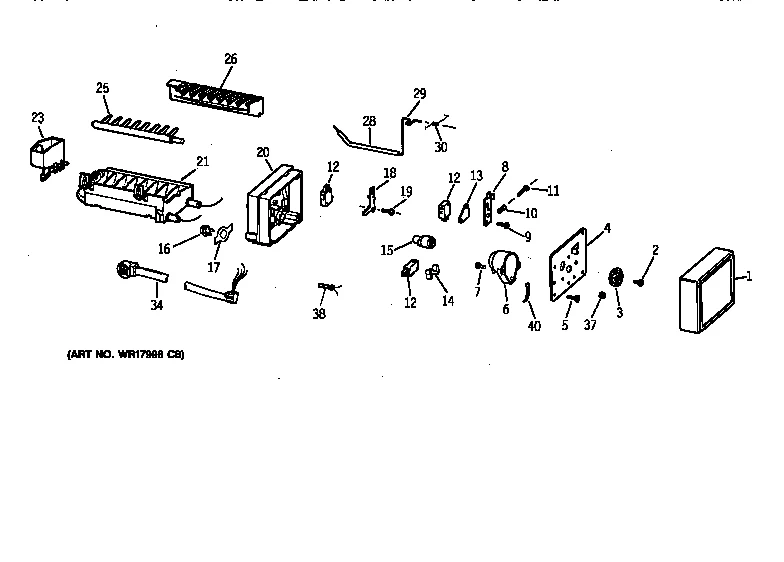

ICEMAKER WR30X0327

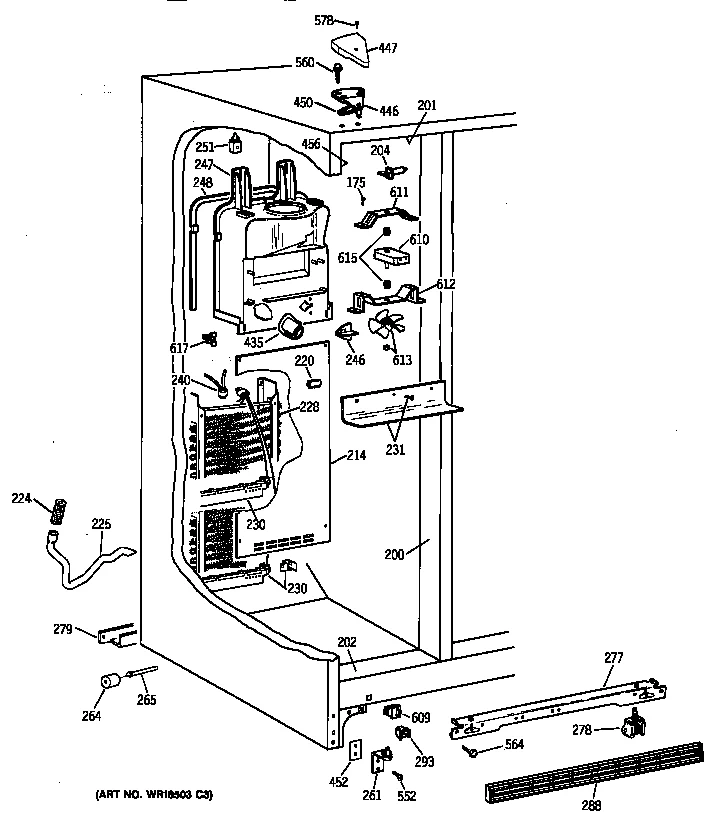

FREEZER SECTION

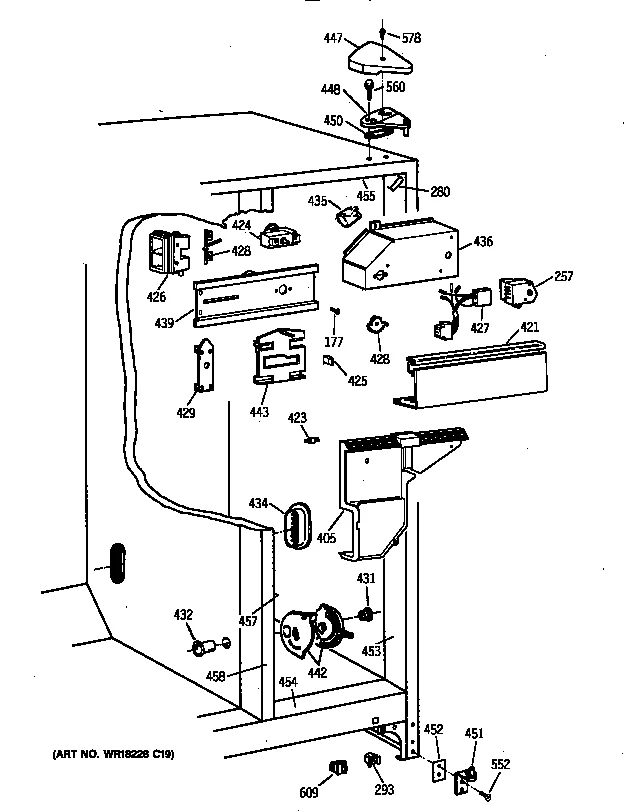

FRESH FOOD SECTION

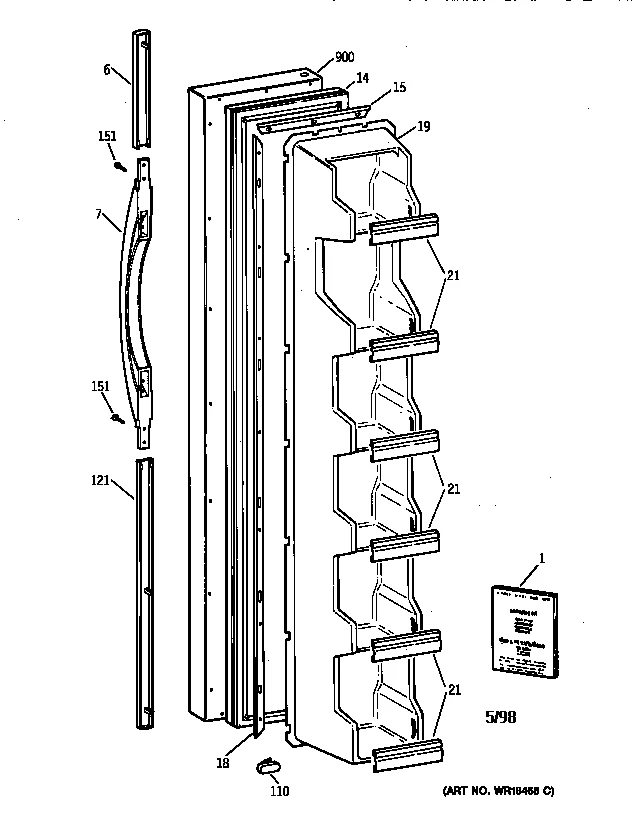

FREEZER DOOR

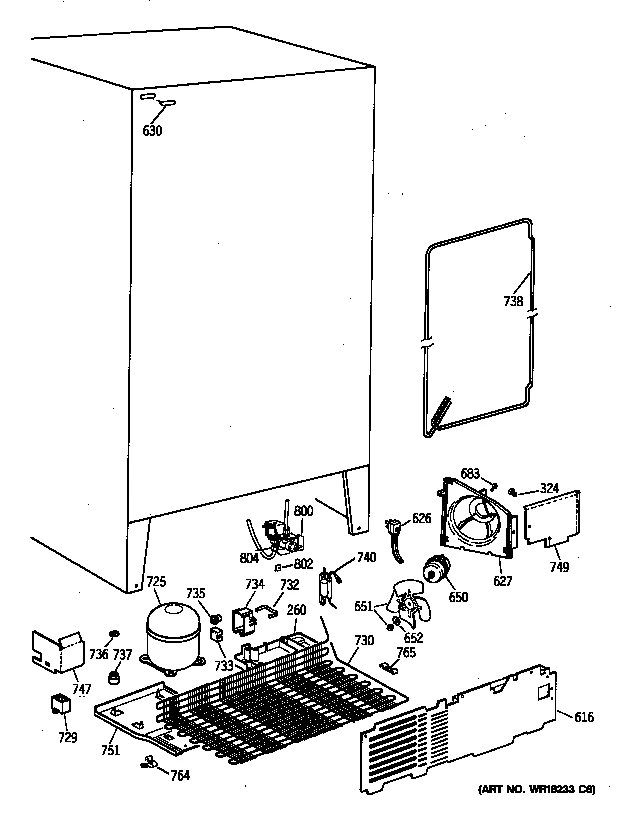

UNIT PARTS
Common parts from model GE 363.48042891 Refrigerator (Kenmore 36348042891)
1
Ice Maker Cover GEN WR29X0182 Contact Us For Availability
1A
Refrigerator Mini Wiring Manual GEN 31-51179 Contact Us For Availability
1B
Refrigerator Owner's Manual GEN SR1087 Contact Us For Availability
1C
Energy Guide Label Tag GEN SR1221 Contact Us For Availability
1D
Refrigerator Parts List GEN SR3842 Contact Us For Availability
1E
Refrigerator User's Manual GEN SR6179 Contact Us For Availability
2
Refrigerator Screw GEN WR29X5109 Contact Us For Availability
4
Refrigerator Mounting Plate GEN WR29X5163 Contact Us For Availability
5
Refrigerator Screw GEN WR29X5112 Contact Us For Availability
6
Refrigerator Handle Trim GEN WR12X10038 Contact Us For Availability
7
Refrigerator Plate Screw GEN WR29X5135 Contact Us For Availability
7
Handle Sxs A GEN WR12X10085 Contact Us For Availability
9
Refrigerator Screw GEN WR29X5140 Contact Us For Availability
11
Refrigerator Screw Spring GEN WR29X5139 Contact Us For Availability
12
Refrigerator Ice Maker On/Off Switch GEN WR29X5171 Contact Us For Availability
13
Insulator GEN WR29X5188 Contact Us For Availability
14
Refrigerator Spacer GEN WR29X5186 Contact Us For Availability
14
Refrigerator Door Gasket GEN WR24X0527 Contact Us For Availability
15
Cam GEN WR29X5167 Contact Us For Availability
15
Refrigerator Retainer Strip GEN WR17X3119 Contact Us For Availability
18
Lever GEN WR29X5183 Contact Us For Availability
18
Refrigerator Retainer Strip GEN WR17X1169 Contact Us For Availability
19
Refrigerator Screw GEN WR29X5122 Contact Us For Availability
19
I.d.panel Fz GEN WR77X0597 Contact Us For Availability
21
Mold Body GEN WR29X0204 Contact Us For Availability
21
Door Front GEN WR17X10090 Contact Us For Availability
23
Inlet Bearing GEN WR29X0153 Contact Us For Availability
25
Ejector GEN WR29X5174 Contact Us For Availability
28
Refrigerator Sleeve GEN WR29X5178 Contact Us For Availability
29
Refrigerator Feeler Arm GEN WR29X5179 Contact Us For Availability
34
Wire Harness GEN WR29X0186 Contact Us For Availability
37
Refrigerator Ice Maker Motor Gear GEN WR29X5153 Contact Us For Availability
110
Support Bumper GEN WR02X8989 Contact Us For Availability
121
Refrigerator Door Handle Trim, Lower GEN WR12X10037 Contact Us For Availability
128
Refrigerator Snugger Module GEN WR02X7971 Contact Us For Availability
175
Refrigerator Screw GEN WR01X2023 Contact Us For Availability
177
Refrigerator Screw GEN WR01X5034 Contact Us For Availability
181
Refrigerator Screw GEN WZ06X0105 Contact Us For Availability
201
Refrigerator Breaker Strip GEN WR40X1742 Contact Us For Availability
202
Refrigerator Breaker Strip GEN WR40X1743 Contact Us For Availability
204
Refrigerator Freezer Shelf Support GEN WR02X9217 Contact Us For Availability
206
Refrigerator Freezer Shelf GEN WR71X1888 Contact Us For Availability
207
Refrigerator Support GEN WR02X4676 Contact Us For Availability
208
Refrigerator Shelf Support GEN WR02X4674 Contact Us For Availability
209
Refrigerator Trim Shelf Wire GEN WR38X10037 Contact Us For Availability
211
Refrigerator Freezer Basket GEN WR21X0183 Contact Us For Availability
214A
Refrigerator Cover Clip Evaporator GEN WR01X2128 Contact Us For Availability
214B
Refrigerator Evaporator Cover GEN WR17X3919 Contact Us For Availability
214C
Refrigerator Evaporator Cover Gasket GEN WR14X0455 Contact Us For Availability
215
Util Bucket GEN WR32X0897 Contact Us For Availability
220
Plug Linerfz GEN WR02X9002 Contact Us For Availability
224
Refrigerator Grommet GEN WR02X8657 Contact Us For Availability
225A
Refrigerator Drain Tube GEN WR02X8293 Contact Us For Availability
225B
Refrigerator Clamp GEN WR01X5042 Contact Us For Availability
230B
Refrigerator Defrost Heater Bracket GEN WR02X8671 Contact Us For Availability
231A
Plug Fastner GEN WR01X2110 Contact Us For Availability
231B
Deflectr Air GEN WR17X3666 Contact Us For Availability
231C
Refrigerator Rivet GEN WR01X1987 Contact Us For Availability
236
Refrigerator Support GEN WR02X4548 Contact Us For Availability
237
Freezer Support Basket GEN WR02X7036 Contact Us For Availability
246
Hole Evaporator Plug GEN WR02X10102 Contact Us For Availability
248
Refrigerator Foam Strip GEN WR14X0493 Contact Us For Availability
251
Refrigerator Support GEN WR02X2880 Contact Us For Availability
258
Refrigerator Fan Cover GEN WR17X10212 Contact Us For Availability
260
Refrigerator Water Dispenser Pan GEN WR32X1427 Contact Us For Availability
265A
Refrigerator Axle GEN WR02X3595 Contact Us For Availability
265B
Refrigerator Cotter Pin GEN WR02X3598 Contact Us For Availability
265C
Axle & Cotte GEN WR02X4742 Contact Us For Availability
268
I M Recept GEN WR23X0312 Contact Us For Availability
269
Refrigerator Fill Tube GEN WR02X6087 Contact Us For Availability
270B
Refrigerator Button Plug GEN WR02X3248 Contact Us For Availability
275
Cover Icemaker Receptacle GEN WR02X9004 Contact Us For Availability
277
Rail Mach Mt GEN WR17X3117 Contact Us For Availability
278
Refrigerator Wheel GEN WR02X4858 Contact Us For Availability
279
Rail Mach Mt GEN WR17X10059 Contact Us For Availability
280
C Cap Oc Wh GEN WR02X8518 Contact Us For Availability
288
Grl Base Wh GEN WR74X0225 Contact Us For Availability
293
Grille Clip GEN WR02X7080 Contact Us For Availability
324
Refrigerator Button Plug GEN WR02X7069 Contact Us For Availability
400
Refrigerator Cantilever Shelf Frame GEN WR71X2290 Contact Us For Availability
401
Refrigerator Cantilever Shelf GEN WR32X10021 Contact Us For Availability
402
Refrigerator Glass Reflector GEN WR38X10038 Contact Us For Availability
403
Refrigerator Cantilever Shelf Track GEN WR72X0255 Contact Us For Availability
404
Glass Shelf Trim GEN WR38X10036 Contact Us For Availability
405A
Refrigerator Foam Tape GEN WR14X0264 Contact Us For Availability
405B
Refrigerator Air Duct Assembly GEN WR17X1382 Contact Us For Availability
407
Refrigerator Crisper Drawer GEN WR32X1178 Contact Us For Availability
408
Refrigerator Crisper Drawer GEN WR32X1177 Contact Us For Availability
409
Refrigerator Glass Shelf GEN WR32X10020 Contact Us For Availability
410
Vegetable Pan Handle GEN WR17X10087 Contact Us For Availability
411
Vegetable Pan Handle GEN WR17X10088 Contact Us For Availability
414
Pan Cover Gasket GEN WR14X0444 Contact Us For Availability
415
Refrigerator Crisper Drawer Cover Insert GEN WR32X1105 Contact Us For Availability
417
Gasket Shield GEN WR14X10007 Contact Us For Availability
421
Refrigerator Light Shield GEN WR17X10089 Contact Us For Availability
423
Grommet Support GEN WR02X10050 Contact Us For Availability
425
Refrigerator Knob GEN WR02X8398 Contact Us For Availability
426A
Housing Nozzle GEN WR02X8514 Contact Us For Availability
426B
Foam Nozzle GEN WR02X8425 Contact Us For Availability
427
Refrigerator Harness GEN WR23X0316 Contact Us For Availability
428A
Refrigerator Gear Control GEN WR02X8513 Contact Us For Availability
428B
Control Damper GEN WR02X8582 Contact Us For Availability
429
Heater Holder GEN WR02X8516 Contact Us For Availability
432
Duct Mullion GEN WR02X8654 Contact Us For Availability
434
Refrigerator Air Duct GEN WR02X9431 Contact Us For Availability
436
Refrigerator Bracket GEN WR02X7736 Contact Us For Availability
439
Channel Control GEN WR17X2922 Contact Us For Availability
442
Ctrl Mt Pan GEN WR17X10060 Contact Us For Availability
443
Refrigerator Rack Control GEN WR02X8570 Contact Us For Availability
446
Hinge Tp Asm GEN WR13X0647 Contact Us For Availability
447
Refrigerator Hinge Cover GEN WR02X8262 Contact Us For Availability
448
Hinge Tp Asm GEN WR13X0646 Contact Us For Availability
450
Refrigerator Shim GEN WR02X4194 Contact Us For Availability
452
Refrigerator Hinge Shim GEN WR02X9442 Contact Us For Availability
453
Refrigerator Breaker Strip GEN WR40X1757 Contact Us For Availability
454
Refrigerator Breaker Strip GEN WR40X1758 Contact Us For Availability
455
Refrigerator Breaker Strip GEN WR40X1759 Contact Us For Availability
456
Refrigerator Breaker Strip GEN WR40X1747 Contact Us For Availability
457
Refrigerator Breaker Strip GEN WR40X1748 Contact Us For Availability
458A
Mullion Wh GEN WR40X1749 Contact Us For Availability
458B
Refrigerator Bracket Mullion GEN WR02X9376 Contact Us For Availability
458C
U Nut GEN WR02X4739 Contact Us For Availability
458D
Breaker Mullion GEN WR02X7033 Contact Us For Availability
479A
Refrigerator Crisper Drawer Slide Rail, Left GEN WR72X10010 Contact Us For Availability
479B
Refrigerator Upper Drawer Slide Rail, Right GEN WR72X10009 Contact Us For Availability
480A
Refrigerator Lower Drawer Slide Rail, Left GEN WR72X10008 Contact Us For Availability
480B
Refrigerator Lower Drawer Slide Rail, Right GEN WR72X10007 Contact Us For Availability
551
Refrigerator Screw GEN WZ04X0244 Contact Us For Availability
560
Refrigerator Screw GEN WR01X2140 Contact Us For Availability
564
Refrigerator Screw GEN WR01X1194 Contact Us For Availability
611
Refrigerator Condenser Fan Motor Bracket GEN WR02X10100 Contact Us For Availability
612
Refrigerator Bracket Evaporator GEN WR02X10101 Contact Us For Availability
613B
Refrigerator Evaporator Fan Blade GEN WR60X10011 Contact Us For Availability
616
Refrigerator Access Cover GEN WR82X10040 Contact Us For Availability
617
Refrigerator Grommet Screw GEN WR02X10097 Contact Us For Availability
627
Hous Con Fan GEN WR17X3811 Contact Us For Availability
651A
Refrigerator Fan Blade GEN WR60X0231 Contact Us For Availability
651B
Refrigerator Nut GEN WR01X1515 Contact Us For Availability
652
Washer GEN WR01X1714 Contact Us For Availability
683
Refrigerator Screw GEN WR01X1825 Contact Us For Availability
730
Refrigerator Condenser GEN WR84X0188 Contact Us For Availability
732
Cover Clip GEN WR02X7226 Contact Us For Availability
734
Cover Relay GEN WR02X7834 Contact Us For Availability
735
Refrigerator Overload GEN WR08X0170 Contact Us For Availability
738B
Refrigerator Condenser GEN WR84X0169 Contact Us For Availability
747
Refrigerator Baffle GEN WR17X3643 Contact Us For Availability
749
Baff Sd Disc GEN WR17X3988 Contact Us For Availability
765
Clip Condenser GEN WR01X1985 Contact Us For Availability
900
Refrigerator Door Foam Assembly GEN WR78X10103 Contact Us For Availability
910
Refrigerator Door Foam Assembly GEN WR78X10122 Contact Us For Availability
NI
Refrigerator Screw GEN WB01K5052 Contact Us For Availability
NI
Refrigerator Block GEN WB17X5059 Contact Us For Availability
NI
Block GEN WB17X5061 Contact Us For Availability
NI
Refrigerator Grommet GEN WR01X1510 Contact Us For Availability
NI
Plug Recess GEN WR02X8659 Contact Us For Availability
NI
Refrigerator Screw GEN WZ06X0136 Contact Us For Availability
× ![]()
