Model GE 363.39457991 Refrigerator (Kenmore 36339457991) – Common Parts & Diagrams
DOORS
CABINET

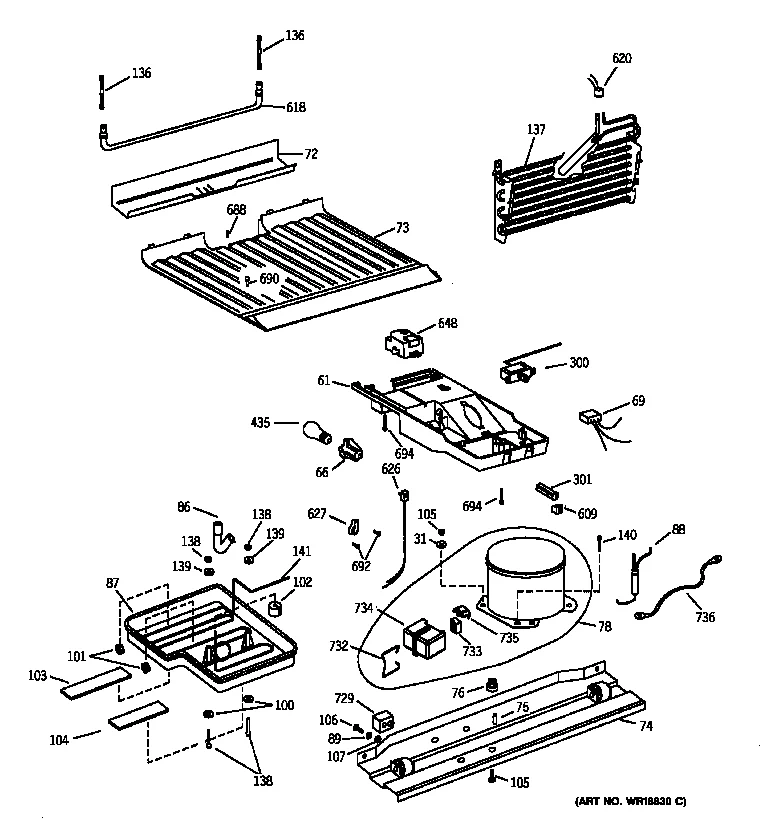

UNIT PARTS
Common parts from model GE 363.39457991 Refrigerator (Kenmore 36339457991)
16
Refrigerator Ice Tray Shelf GEN WR71X2515 Contact Us For Availability
17
KIT REPLACEMENT GASKETFZ GEN WR49K06 Contact Us For Availability
18
Kit Replacem GEN WR49K4 Contact Us For Availability
21
HINGE BTM & PIN ASM GEN WR13K01 Contact Us For Availability
22
Refrigerator Hinge Shim GEN WR2X9199 Contact Us For Availability
24
HINGE CTR (AD) GEN WR13K10004 Contact Us For Availability
24
Refrigerator Hinge GEN WR13K10007 Contact Us For Availability
25
Refrigerator Hinge Shim GEN WR2K10021 Contact Us For Availability
26
Refrigerator Door Stop GEN WR2K60 Contact Us For Availability
27
Refrigerator Door Stop GEN WR2K10022 Contact Us For Availability
28
Refrigerator Hinge Shim GEN WR2X9201 Contact Us For Availability
30A
Refrigerator Mobility GEN WR2X9195 Contact Us For Availability
30B
Refrigerator Mobility GEN WR2X9194 Contact Us For Availability
31
Washer GEN WR1X5753 Contact Us For Availability
37
Refrigerator Bracket Evaporator GEN WR2X9183 Contact Us For Availability
38
Refrigerator Bracket Evaporator GEN WR2X9182 Contact Us For Availability
39
Refrigerator Grommet GEN WR2X9192 Contact Us For Availability
48
Refrigerator Evaporator Cover GEN WR17X3753 Contact Us For Availability
49
Air Duct GEN WR17X3754 Contact Us For Availability
52
Refrigerator Duct Foam GEN WR2K10014 Contact Us For Availability
53
Diff Air Ff GEN WR2X9189 Contact Us For Availability
55
Refrigerator Ice Tray GEN WR30K10002 Contact Us For Availability
60
Insulation Element GEN WR2X9196 Contact Us For Availability
61
Refrigerator Control Housing GEN WR17K10013 Contact Us For Availability
69
Refrigerator Harness Control Module GEN WR23X418 Contact Us For Availability
72
Refrigerator Drain Trough GEN WR17X3758 Contact Us For Availability
73
Refrigerator Freezer Floor GEN WR17X3756 Contact Us For Availability
74
Compressor Support GEN WR17X3752 Contact Us For Availability
75
Bushing C GEN WR2K10012 Contact Us For Availability
76
Condenser Grommet GEN WR2K10006 Contact Us For Availability
78
Refrigerator Compressor GEN WR87K10001 Contact Us For Availability
86
TUBE DRAIN CON. GEN WR2K69 Contact Us For Availability
87
Refrigerator Drain Pan GEN WR17K11 Contact Us For Availability
88
Refrigerator Dryer GEN WR86K02 Contact Us For Availability
89
Striate Wash GEN WR1X2007 Contact Us For Availability
96
Refrigerator Screw Assembly GEN WR1X2009 Contact Us For Availability
98
Screw "t" GEN WR1K13 Contact Us For Availability
100
Foam Washer GEN WR2K10004 Contact Us For Availability
101
Grommet A GEN WR2K10025 Contact Us For Availability
102
Rubber Gr GEN WR2K10003 Contact Us For Availability
103
Refrigerator Foam Pad GEN WR2K10026 Contact Us For Availability
104
Refrigerator Foam Pad GEN WR2K10027 Contact Us For Availability
105
Screw & N GEN WR1K10004 Contact Us For Availability
106
Screw "b" GEN WR1K10017 Contact Us For Availability
107
Refrigerator Nut GEN WR1K09 Contact Us For Availability
113
Door Spacer GEN WR1K10016 Contact Us For Availability
114
Refrigerator Hinge GEN WR13X688 Contact Us For Availability
115
Refrigerator Hinge Cover GEN WR13K10006 Contact Us For Availability
125
Refrigerator Nameplate GEN WR4K10001 Contact Us For Availability
129
Refrigerator Door Handle GEN WR12K10006 Contact Us For Availability
130
Refrigerator Door Handle GEN WR12K10007 Contact Us For Availability
133
SCREW "AB" GEN WR1K10002 Contact Us For Availability
134
Refrigerator Access Cover GEN WR82K10001 Contact Us For Availability
136
HARNESS FUSE ASM GEN WR23K05 Contact Us For Availability
137
LOW SIDE ASM GEN WR85K04 Contact Us For Availability
138
Screw & N GEN WR1K12 Contact Us For Availability
139
Complete Washer GEN WR2K44 Contact Us For Availability
140
Screw "b" GEN WR1K15 Contact Us For Availability
141
Auxiliar Tub GEN WR84K10002 Contact Us For Availability
160
Plug Whit GEN WR2K10028 Contact Us For Availability
161
Plug Almo GEN WR2K10029 Contact Us For Availability
209
Shelf Support GEN WR2X7015 Contact Us For Availability
211
Refrigerator Support GEN WR2X8429 Contact Us For Availability
228
Refrigerator Sliding Shelf GEN WR71K07 Contact Us For Availability
240
Twin Pan GEN WR32K11 Contact Us For Availability
241
Cover Pan Lo GEN WR32K10 Contact Us For Availability
242
COVER ASM HI VEG GEN WR32K09 Contact Us For Availability
280
Refrigerator Corner Cap GEN WR2X8466 Contact Us For Availability
281
Hi Washer GEN WR1K14 Contact Us For Availability
296
Cvr Un Re GEN WR2X9159 Contact Us For Availability
300A
Refrigerator Sleeve GEN WR2K10024 Contact Us For Availability
300B
Refrigerator Temperature Control GEN WR9K10001 Contact Us For Availability
301
Refrigerator Control Knob GEN WR2K10015 Contact Us For Availability
305
Refrigerator Actuator GEN WR2K41 Contact Us For Availability
309
Gasket Du GEN WR2X8246 Contact Us For Availability
551
Refrigerator Screw GEN WR1K10005 Contact Us For Availability
560
Refrigerator Screw GEN WR1K10006 Contact Us For Availability
566
Refrigerator Screw GEN WR1X5773 Contact Us For Availability
573
SCR 8-15 A TR 1 SS GEN WZ4X254 Contact Us For Availability
602
Scr 1/4-2 GEN WR1K10011 Contact Us For Availability
609
Refrigerator Door Switch GEN WR23K10005 Contact Us For Availability
618
UNIT ASM DEFROST GEN WR51K01 Contact Us For Availability
620
Refrigerator Defrost Bi-Metal Thermostat GEN WR50X112 Contact Us For Availability
626
HARNESS MACH MSC GEN WR23K08 Contact Us For Availability
676
Refrigerator Screw GEN WR1K10018 Contact Us For Availability
687
SCR 8-32 D PA 3/8 S GEN WZ5X194 Contact Us For Availability
688
Scr 8-19 GEN WR1K10010 Contact Us For Availability
689
Refrigerator Screw GEN WR1K10019 Contact Us For Availability
690
Scr 8-18 GEN WR1K10009 Contact Us For Availability
692
Refrigerator Screw GEN WR1K02 Contact Us For Availability
694
Scr 8-19 GEN WR1K10008 Contact Us For Availability
732
Clip Relay GEN WR2K42 Contact Us For Availability
733
PTC STARTER GEN WR7K05 Contact Us For Availability
734
Release Cover GEN WR2K45 Contact Us For Availability
735
Refrigerator Overload GEN WR8K04 Contact Us For Availability
736
Elect Connec GEN WR23K10006 Contact Us For Availability
× ![]()
