Model GE 362.72676790 Gas Wall Oven (Kenmore 36272676790) – Common Parts & Diagrams

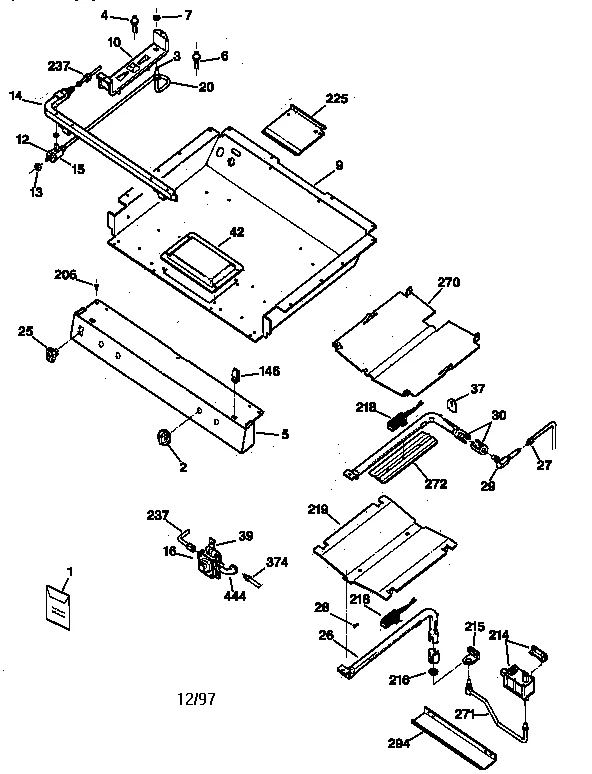

GAS BURNER PARTS
All Parts
DOOR & DRAWER PARTS
BODY PARTS
CONTROL PANEL & COOKTOP
Common parts from model GE 362.72676790 Gas Wall Oven (Kenmore 36272676790)
1A
Uc/install S GEN SR4245 Contact Us For Availability
1B
Range Parts GEN SR4532 Contact Us For Availability
1C
Brkt Asm A-t GEN WB02K0020 Contact Us For Availability
2
Surface Burner Knob GEN WB03K0187 Contact Us For Availability
3A
Orifice Spud GEN WB28K0142 Contact Us For Availability
3B
LP Orifice Spud GEN WB28K0145 Contact Us For Availability
3C
Orif Spud Lg GEN WB28K0144 Contact Us For Availability
3D
Orif Spd Rrc GEN WB28K0141 Contact Us For Availability
3E
Orifice Spud GEN WB28K0143 Contact Us For Availability
3F
Orifice Spud GEN WB28K0146 Contact Us For Availability
4
Air Mix Tube GEN WB16K0013 Contact Us For Availability
5
Manifold Panel GEN WB36K0059 Contact Us For Availability
6
Air Mix Tube GEN WB16K0014 Contact Us For Availability
7
Nut GEN WB01K0004 Contact Us For Availability
9
Burner Speed Box GEN WB63K0023 Contact Us For Availability
10A
Orifice Holder Bracket GEN WB02K0098 Contact Us For Availability
10B
Burner Bracket GEN WB02K0099 Contact Us For Availability
12
Burner Valve Switch GEN WB24K0014 Contact Us For Availability
14
Manifold GEN WB28K0065 Contact Us For Availability
15A
Vlv Burner R GEN WB21K0021 Contact Us For Availability
15B
Vlv Burner L GEN WB21K0020 Contact Us For Availability
16
Reg Pressure GEN WB19K0028 Contact Us For Availability
20A
Tube Orifice GEN WB28K0189 Contact Us For Availability
20B
Tube Orifice GEN WB28K0187 Contact Us For Availability
20C
Tube Orifice GEN WB28K0188 Contact Us For Availability
20D
Tube Orifice GEN WB28K0186 Contact Us For Availability
25
Sw Rocker Al GEN WB24K0020 Contact Us For Availability
27
Tube Burner Support GEN WB28K0055 Contact Us For Availability
29
Hi Broiler Elbow GEN WB28K0030 Contact Us For Availability
30
Broil Burner GEN WB16K0028 Contact Us For Availability
39
Bracket Reg GEN WB02K0088 Contact Us For Availability
42
Cover Burner Box GEN WB63K0022 Contact Us For Availability
100A
End Cover GEN WB07K0335 Contact Us For Availability
100B
End Cvr Lft GEN WB07K0336 Contact Us For Availability
101A
End Plate GEN WB37K0011 Contact Us For Availability
101B
End Plate GEN WB37K0012 Contact Us For Availability
102
Lwr Frt Trim GEN WB07K0005 Contact Us For Availability
103
Timer Bracket GEN WB37K0009 Contact Us For Availability
104
Control Trim GEN WB36K0165 Contact Us For Availability
106
Cover GEN WB36K0017 Contact Us For Availability
107
Lower Cover GEN WB36K0002 Contact Us For Availability
110A
Spark Module GEN WB13K0025 Contact Us For Availability
110B
Wire Harness GEN WB18K0006 Contact Us For Availability
111
Wire Cover GEN WB34K0005 Contact Us For Availability
113
Grate Finger GEN WB31K0081 Contact Us For Availability
114
Cooktop (al) GEN WB62K0065 Contact Us For Availability
115
Support GEN WB02K0091 Contact Us For Availability
117
Locator Pin GEN WB02K0017 Contact Us For Availability
119
Hinge Pin GEN WB14K0005 Contact Us For Availability
124
Pan Unit Lft GEN WB32K0014 Contact Us For Availability
125
Pan Unit GEN WB32K0013 Contact Us For Availability
128
Overlay (al) GEN WB11K0062 Contact Us For Availability
129
Control To8 GEN WB11K0043 Contact Us For Availability
133
Palnut GEN WB01K0022 Contact Us For Availability
135
Brace Backguard GEN WB37K0010 Contact Us For Availability
146
Clip Rngetop GEN WB02K0052 Contact Us For Availability
151
Burner Cap GEN WB29K0043 Contact Us For Availability
152
Burner Cap GEN WB29K0046 Contact Us For Availability
153
Burner Cap GEN WB29K0049 Contact Us For Availability
155
Burner Head GEN WB16K0012 Contact Us For Availability
156
Burner Head GEN WB16K0011 Contact Us For Availability
157
Brnr Head Lg GEN WB16K0010 Contact Us For Availability
168
Electrode Clip GEN WB01K0056 Contact Us For Availability
201
Rack Broil P GEN WB48K0002 Contact Us For Availability
202
Broiler Pan GEN WB49K0002 Contact Us For Availability
205
Cvr Back Pnl GEN WB34K0006 Contact Us For Availability
209
Panel GEN WB63K0051 Contact Us For Availability
210
Oven GEN WB53K0035 Contact Us For Availability
216
Lock Nut GEN WB01K0006 Contact Us For Availability
219
Flame Spread GEN WB49K0044 Contact Us For Availability
220
GROMMET GEN WB02K0008 Contact Us For Availability
222
Hinge Asm Gd GEN WB10K0012 Contact Us For Availability
223
Hinge Pin GEN WB02X6195 Contact Us For Availability
224
Retainer GEN WB02X1082 Contact Us For Availability
225
SHIELD VALVE GEN WB34K0002 Contact Us For Availability
226
Hook Drive Spring GEN WB02K0011 Contact Us For Availability
227
Door Spring GEN WB09K0005 Contact Us For Availability
228
Wire Clip GEN WB02X7066 Contact Us For Availability
229
Hous Receptl GEN WB08K0001 Contact Us For Availability
230
Pushin Receptacle GEN WB08K0002 Contact Us For Availability
231
Anti-Tip Arm GEN WB02K0012 Contact Us For Availability
234
Gd Supt Rgtp GEN WB02K0066 Contact Us For Availability
236
Wire Clip GEN WB02K0022 Contact Us For Availability
237
Tube Valve Support GEN WB28K0148 Contact Us For Availability
239
Pnl Rr Broil GEN WB63K0025 Contact Us For Availability
240B
Pnl Sd Bro R GEN WB63K0002 Contact Us For Availability
243A
Base Supp Lf GEN WB63K0007 Contact Us For Availability
243B
Support Base GEN WB63K0006 Contact Us For Availability
244
Bracket Glide GEN WB02K0001 Contact Us For Availability
245
Leveling Leg GEN WB02X7701 Contact Us For Availability
246
Weld Frame GEN WB63K0036 Contact Us For Availability
247
Oventop GEN WB53K0014 Contact Us For Availability
248
Oven GEN WB53K0002 Contact Us For Availability
249
Oven Side Lf GEN WB53K0003 Contact Us For Availability
250
Oven GEN WB53K0019 Contact Us For Availability
254A
Support Rivet GEN WB10K0013 Contact Us For Availability
254B
Support Rivet GEN WB10K0014 Contact Us For Availability
254C
Hinge Screw GEN WB01K0053 Contact Us For Availability
256
Vent Gasket GEN WB32K0001 Contact Us For Availability
257
Vent GEN WB38K0001 Contact Us For Availability
261
Insul Ov Wrp GEN WB35K0007 Contact Us For Availability
262
Insul Ov Bck GEN WB35K0008 Contact Us For Availability
266A
Screw GEN WB01K0012 Contact Us For Availability
266B
Screw GEN WZ05X0124 Contact Us For Availability
270
Deflector GEN WB34K0033 Contact Us For Availability
271A
Oven Orifice GEN WB28K0202 Contact Us For Availability
271B
Tube Burner Support GEN WB28K0060 Contact Us For Availability
272
Shield Broil GEN WB34K0010 Contact Us For Availability
273A
Guard Insulation GEN WB53K0012 Contact Us For Availability
273B
Guard Ins Rh GEN WB53K0011 Contact Us For Availability
274
Scew Latch GEN WB01K0044 Contact Us For Availability
277
Oven Door Gasket GEN WB32K0005 Contact Us For Availability
278
Grd Top Insu GEN WB53K0018 Contact Us For Availability
279
Latch GEN WB02K0042 Contact Us For Availability
280
Latch Shield GEN WB02K0029 Contact Us For Availability
281
Latch Switch GEN WB24K0015 Contact Us For Availability
282
Retainer GEN WB02K0030 Contact Us For Availability
285
Latch Handle GEN WB15K0028 Contact Us For Availability
286
Latch Knob GEN WB03K0158 Contact Us For Availability
287B
Gusard Radia GEN WB34K0031 Contact Us For Availability
288
Brace GEN WB63K0015 Contact Us For Availability
290
Radiant Shield GEN WB34K0012 Contact Us For Availability
292
Guard Bot In GEN WB63K0017 Contact Us For Availability
293
Guard Bot Md GEN WB63K0018 Contact Us For Availability
294
Guard Valve GEN WB63K0019 Contact Us For Availability
295
Reflector Vent GEN WB38K0005 Contact Us For Availability
296
Cvr B Pnl Sp GEN WB34K0013 Contact Us For Availability
298
Spacer Clip GEN WB02K0037 Contact Us For Availability
299
Wire Clip GEN WB02K0038 Contact Us For Availability
300
Drawer Body GEN WB39K0021 Contact Us For Availability
306
Pnl Drwr Ad GEN WB39K0024 Contact Us For Availability
308
Broiler Handle GEN WB15K0018 Contact Us For Availability
309
Washer GEN WB01X0560 Contact Us For Availability
314A
Pad GEN WB02X1222 Contact Us For Availability
314B
Glass Dr Al GEN WB57K0006 Contact Us For Availability
315
Liner GEN WB55K0007 Contact Us For Availability
316
Oven Door Handle GEN WB15K5115 Contact Us For Availability
317
Drive Trim Vent GEN WB07K0409 Contact Us For Availability
330
Reflector GEN WB35K0022 Contact Us For Availability
332A
Insul Sd Dr GEN WB35K0024 Contact Us For Availability
332B
Insul Bot Dr GEN WB35K0025 Contact Us For Availability
332C
Insulation GEN WB35K0014 Contact Us For Availability
338
Oven Door Glass GEN WB56K0020 Contact Us For Availability
356
Window Clip GEN WB02K0069 Contact Us For Availability
359
Door Trim GEN WB07K0385 Contact Us For Availability
374
Tube Valve Support GEN WB28K0150 Contact Us For Availability
375
Door Bracket GEN WB02K0100 Contact Us For Availability
392
Window Pack Seal GEN WB04K0003 Contact Us For Availability
394
Door Trim Al GEN WB07K0337 Contact Us For Availability
441A
End Cap GEN WB07K0261 Contact Us For Availability
444
Elbow GEN WB28K0061 Contact Us For Availability
700
Clip Vent GEN WB02K0034 Contact Us For Availability
701
Shield Switch GEN WB02K0039 Contact Us For Availability
702
Washer GEN WB01K0024 Contact Us For Availability
703
Oven Bracket GEN WB02K0041 Contact Us For Availability
709
Lamp Retainer Insert GEN WB08K0004 Contact Us For Availability
711
Thermostat Knob GEN WB03K0221 Contact Us For Availability
NI
Screw, #8-18 GEN WB01X5902 Contact Us For Availability
× ![]()
