Model Whirlpool 35JA-13XS-ON ELECTRIC RANGE – Common Parts & Diagrams
03 - DOOR
01 - BODY

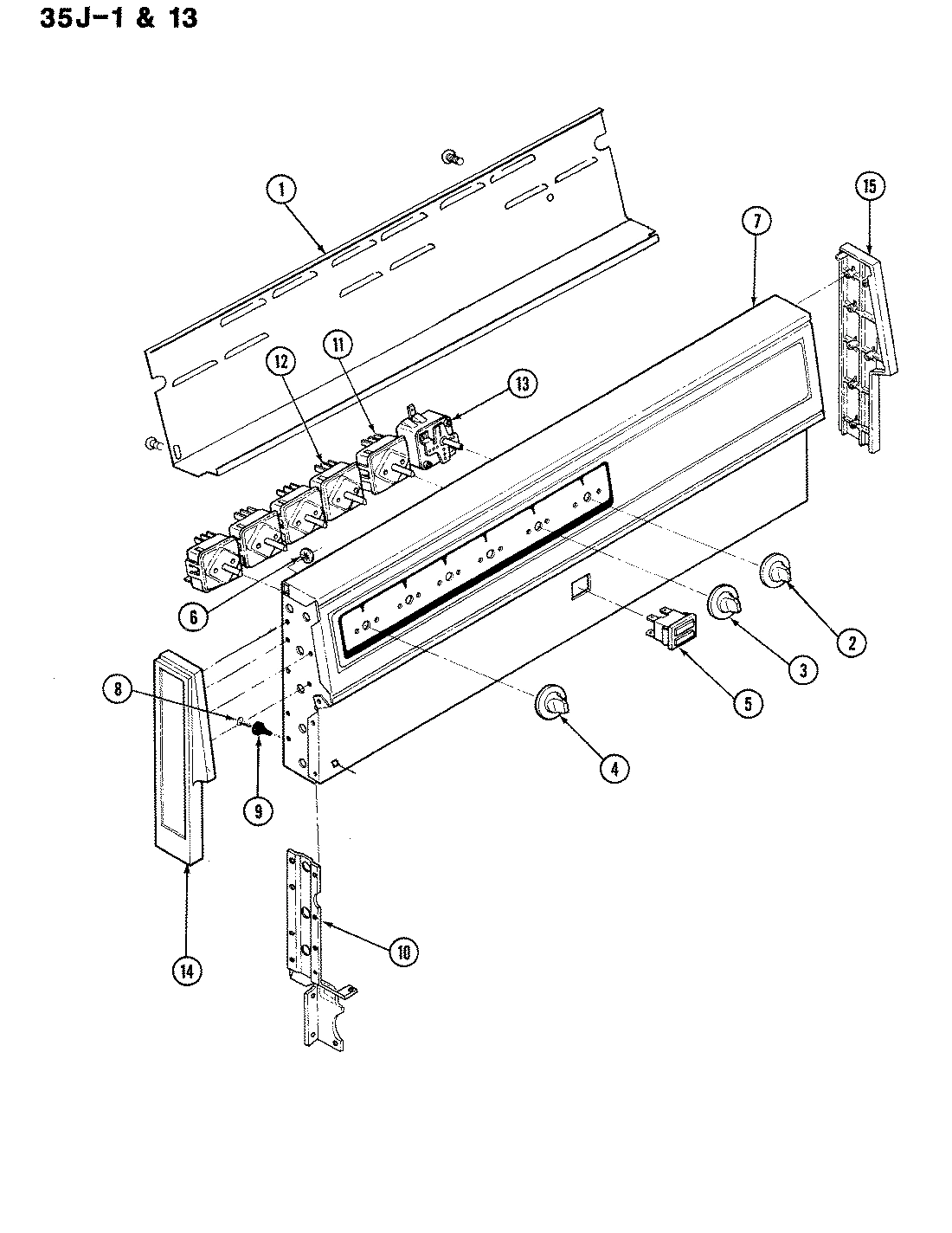

02 - CONTROL PANEL
Common parts from model Whirlpool 35JA-13XS-ON ELECTRIC RANGE
1
BAFFLE WPL 3601F02651 Contact Us For Availability
1
BRACKET WPL 3801F03151 Contact Us For Availability
1
BRACE, DRAWER WPL 3802F04451 Contact Us For Availability
1
BACK, MAIN WPL 4002F10380 Contact Us For Availability
1
COVER, BKGD WIRE WPL 4005F25280 Contact Us For Availability
1
COVER, UPPER FLUE BOX WPL 4005F29551 Contact Us For Availability
1
GASKET, COVER WPL 4005F29651 Contact Us For Availability
2
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
2
BLOCK, TERMINAL WPL 7401P00260 Contact Us For Availability
2
KNOB, THERM WPL 7739P02760 Contact Us For Availability
3
DRAWER, SERVICE WPL 3405F00880 Contact Us For Availability
3
BOTTOM, BURNER BOX WPL 4011F12880 Contact Us For Availability
4
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
4
BOX ASSY, VENT WPL 4006W05645 Contact Us For Availability
4
KNOB WPL 7737P02360 Contact Us For Availability
5
GLASS, DOOR WPL 7902P27560 Contact Us For Availability
5
BRACKET, TIE-DOWN WPL 3801F19851 Contact Us For Availability
5
BRACE, BACK-LEFT WPL 3802F00880 Contact Us For Availability
5
BRACE, BACK-RIGHT WPL 3802F01080 Contact Us For Availability
5
BRACE, MAIN TOP WPL 3802F04680 Contact Us For Availability
5
BRACE,INNER SIDE WPL 3802F07751 Contact Us For Availability
5
LIGHT, INDICATOR WPL 7407P01160 Contact Us For Availability
6
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
6
GLIDE, DRAWER WPL 8016P00960 Contact Us For Availability
6
BRACKET WPL 3801F10051 Contact Us For Availability
6
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
7
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
7
CLAMP, WIRE 3/4 WPL 7111P00260 Contact Us For Availability
7
PANEL, BKGD ALMOND WPL 2601W18884 Contact Us For Availability
8
HANDLE, DRAWER ALMOND WPL 7701P01474 Contact Us For Availability
8
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
8
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
8
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
8
SEAL, COVER WPL 7212P03260 Contact Us For Availability
9
INSERT, OVEN DOOR HANDLE WPL 7728P01260 Contact Us For Availability
9
COVER, BACK BURNER BOX WPL 4005F25780 Contact Us For Availability
9
COVER, FLUE BOX WPL 4005F28251 Contact Us For Availability
9
COVER,ACCESS WPL 4005F28851 Contact Us For Availability
9
CLIP, TOP RETAINER WPL 7112P03060 Contact Us For Availability
9
SPACER, HINGE (MAIN TOP) WPL 8010P06960 Contact Us For Availability
10
LINING ASSY, OV DR WPL 2402W09023 Contact Us For Availability
10
LINING, OVEN DOOR WPL 2402W15519 Contact Us For Availability
10
COVER WPL 4005F00545 Contact Us For Availability
10
SUPPORT, BKGD END LF WPL 3807F34851 Contact Us For Availability
10
SUPPORT, BKGD END RT WPL 3807F34951 Contact Us For Availability
11
PANEL, SERVICE DRAWER ALMOND WPL 2416F00674 Contact Us For Availability
11
SWITCH, SELECTOR WPL 7403P03160 Contact Us For Availability
12
RUNNER, INNER WPL 3406F02080 Contact Us For Availability
12
RUNNER, INNER WPL 3406F02680 Contact Us For Availability
12
SWITCH, INF. 250V WPL 7403P18160 Contact Us For Availability
12
SWITCH, INFINITE (1400W) WPL 7403P26260 Contact Us For Availability
12
SWITCH, INFINITE (2400W) WPL 7403P26360 Contact Us For Availability
13
SCREW WPL 7101P12360 Contact Us For Availability
13
ELEMENT,BAKE WPL 7406P01060 Contact Us For Availability
13
ELEMENT, BAKE WPL 7406P06760 Contact Us For Availability
13
THERMOSTAT WPL 7404P02960 Contact Us For Availability
13
TRIM, BKGD WPL 7703P19260 Contact Us For Availability
13
TRIM, BKGD WPL 7703P25960 Contact Us For Availability
14
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
14
SCREW, SVC DOOR WPL 7101P22560 Contact Us For Availability
14
ELEMENT,BROIL WPL 7406P00360 Contact Us For Availability
14
ELEMENT, BROIL WPL 7406P07660 Contact Us For Availability
14
END CAP, BACKGUARD (LT-BLK) WPL 7726P00960 Contact Us For Availability
15
SCREW WPL 7101P06160 Contact Us For Availability
15
END CAP, BACKGUARD (RT-BLK) WPL 7726P02060 Contact Us For Availability
16
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
16
ELEMENT, SOLID DISC (8``) WPL 7406P02460 Contact Us For Availability
17
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
18
ELEMENT (6``) WPL 7406P02360 Contact Us For Availability
19
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
19
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
20
FRAME, BURNER BOX WPL 4012F00780 Contact Us For Availability
20
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
21
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
22
SCREW WPL 7101P10460 Contact Us For Availability
22
HINGE ASSY. (LT) WPL 3418A02934 Contact Us For Availability
22
HINGE ASSY. (RT) WPL 3418A03034 Contact Us For Availability
22
HOUSING,MAIN WIRE WPL 4001F05151 Contact Us For Availability
23
INSERT, BROIL PAN WPL 3413F00223 Contact Us For Availability
23
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
24
LINING ASSY, INNER SIDE WPL 4009W02980 Contact Us For Availability
24
LINING, INNER SIDE WPL 4009W05380 Contact Us For Availability
25
NUT, SURFACE ELEMENT WPL 7103P07460 Contact Us For Availability
26
PAN, BROIL WPL 3401F00423 Contact Us For Availability
26
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
27
PANEL, SIDE (ALM) WPL 2618F05274 Contact Us For Availability
27
PANEL, SIDE (ALM) WPL 2618F07374 Contact Us For Availability
28
PIN, HINGE WPL 7113P00260 Contact Us For Availability
29
PLATE, CONDUIT REINFORCEMENT WPL 3605F14651 Contact Us For Availability
29
PLATE,CONDUIT WPL 3605F15651 Contact Us For Availability
29
SCREW WPL 7101P05760 Contact Us For Availability
30
RACK, OVEN WPL 7801P03060 Contact Us For Availability
32
RETAINER, BOTTOM INS. WPL 3804F09380 Contact Us For Availability
32
RETAINER, BOTTOM INSULATION WPL 3804F10280 Contact Us For Availability
32
RIVET WPL 7107P01760 Contact Us For Availability
33
RUNNER,OUTER WPL 3406F02551 Contact Us For Availability
33
RUNNER, OUTER WPL 3406F02751 Contact Us For Availability
34
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
35
SCREW WPL 7101P04260 Contact Us For Availability
36
SEAL, OVEN WPL 7212P00260 Contact Us For Availability
37
BUMPER, MAIN T WPL 8003P01060 Contact Us For Availability
37
WPL 8010P04860 WPL 8010P04860 Contact Us For Availability
38
WPL 7803P05560 WPL 7803P05560 Contact Us For Availability
39
WPL 3420A03334 WPL 3420A03334 Contact Us For Availability
40
WPL 3807F17615 WPL 3807F17615 Contact Us For Availability
41
WPL 3807F20545 WPL 3807F20545 Contact Us For Availability
42
WPL 8004P01160 WPL 8004P01160 Contact Us For Availability
43
WPL 8004P01260 WPL 8004P01260 Contact Us For Availability
44
WPL 2002W03284 WPL 2002W03284 Contact Us For Availability
45
WPL 8026P01560 WPL 8026P01560 Contact Us For Availability
× ![]()
