Model Whirlpool 3523XRA ELECTRIC RANGE – Common Parts & Diagrams

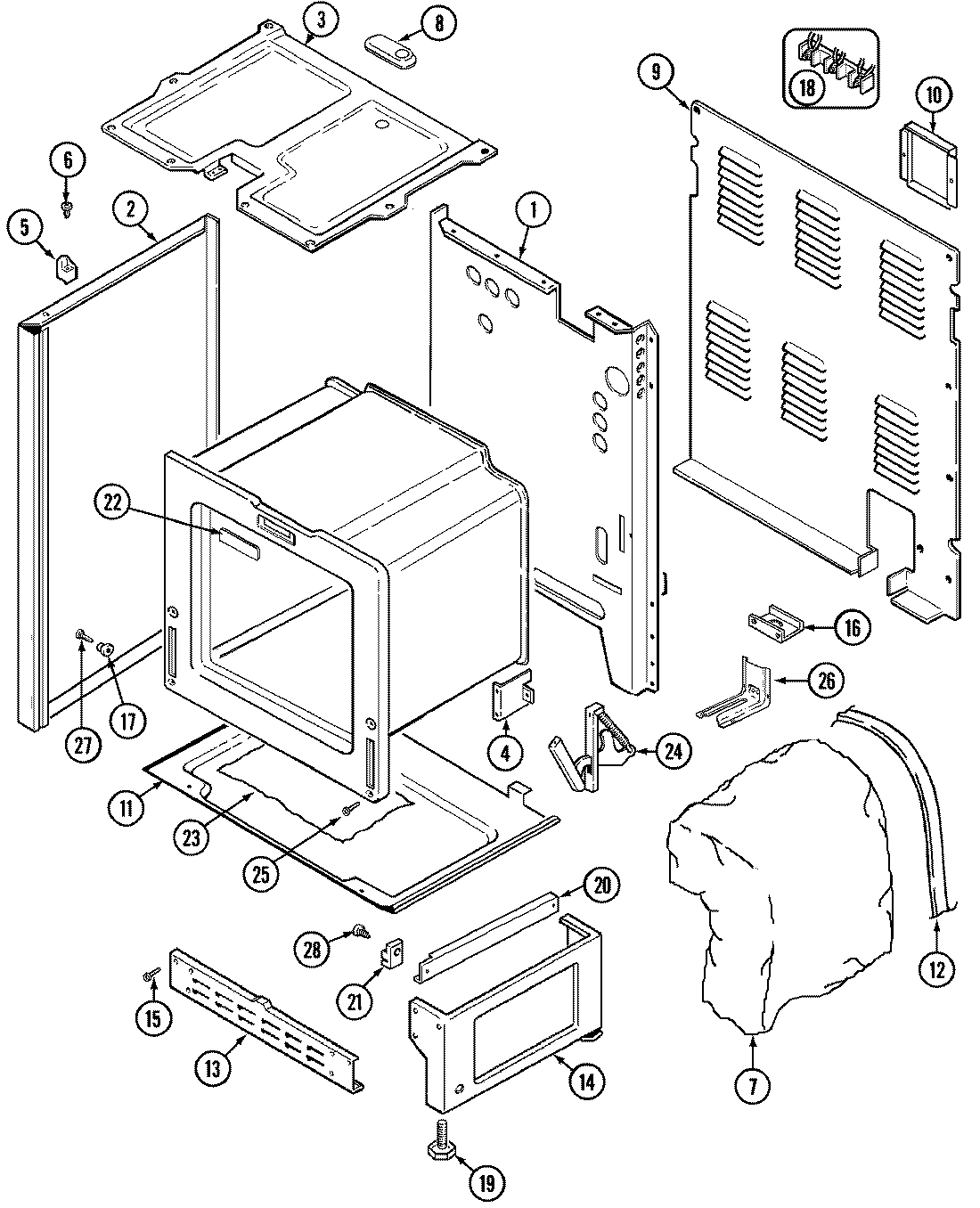

01 - BODY

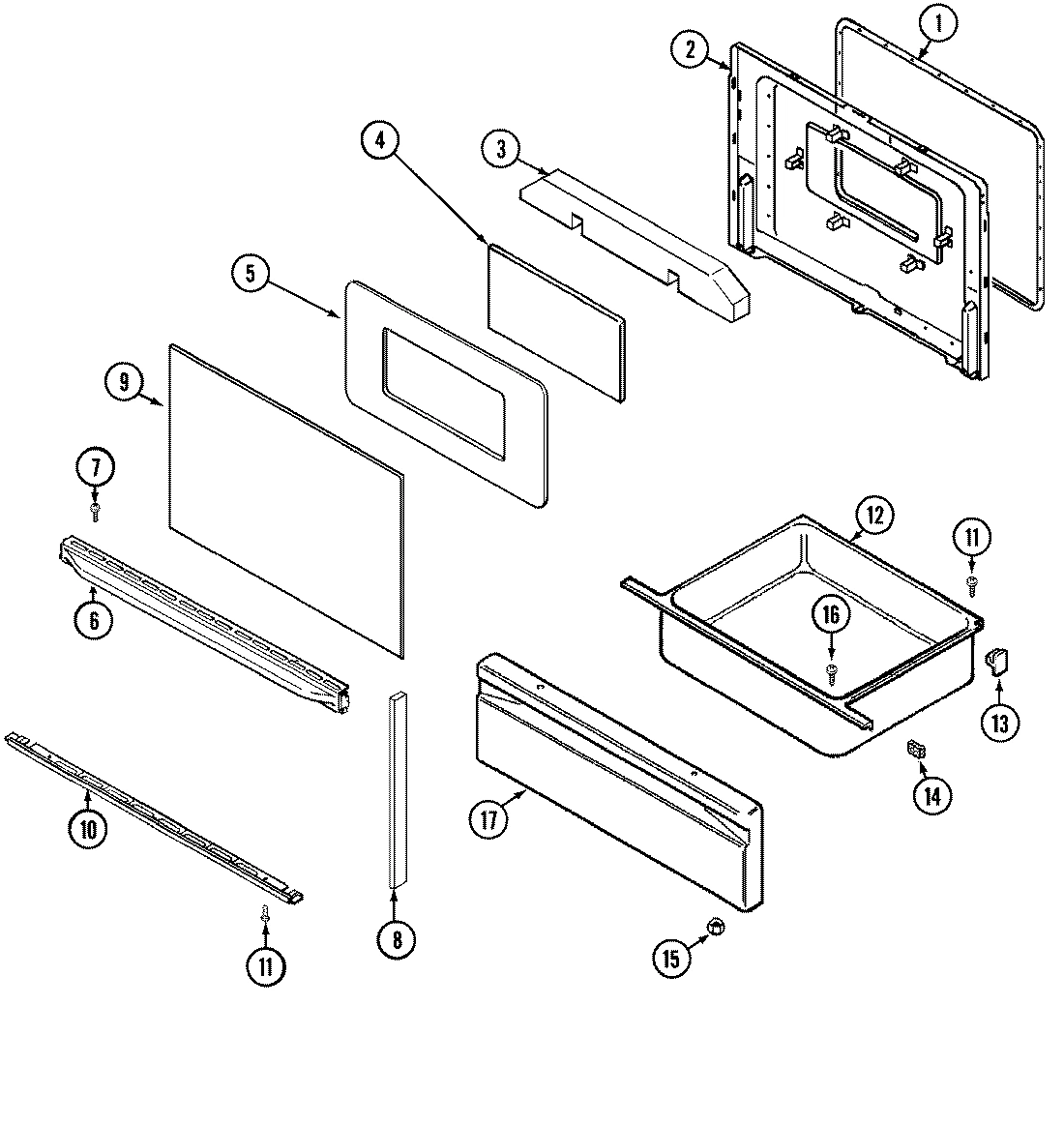

03 - DOOR/DRAWER (SERIES 45 ``X`` DOOR)

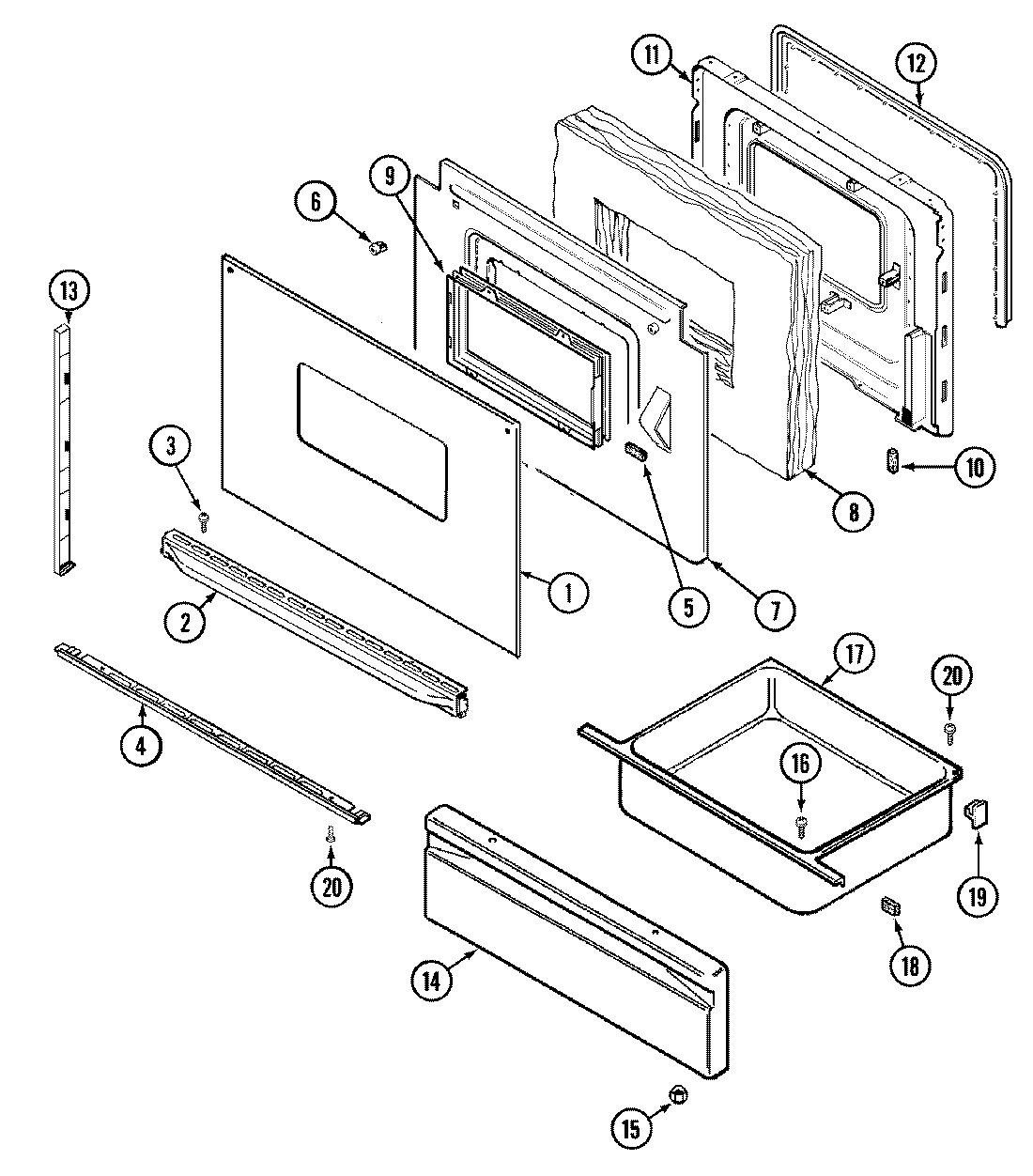

02 - DOOR/DRAWER (3523XR)

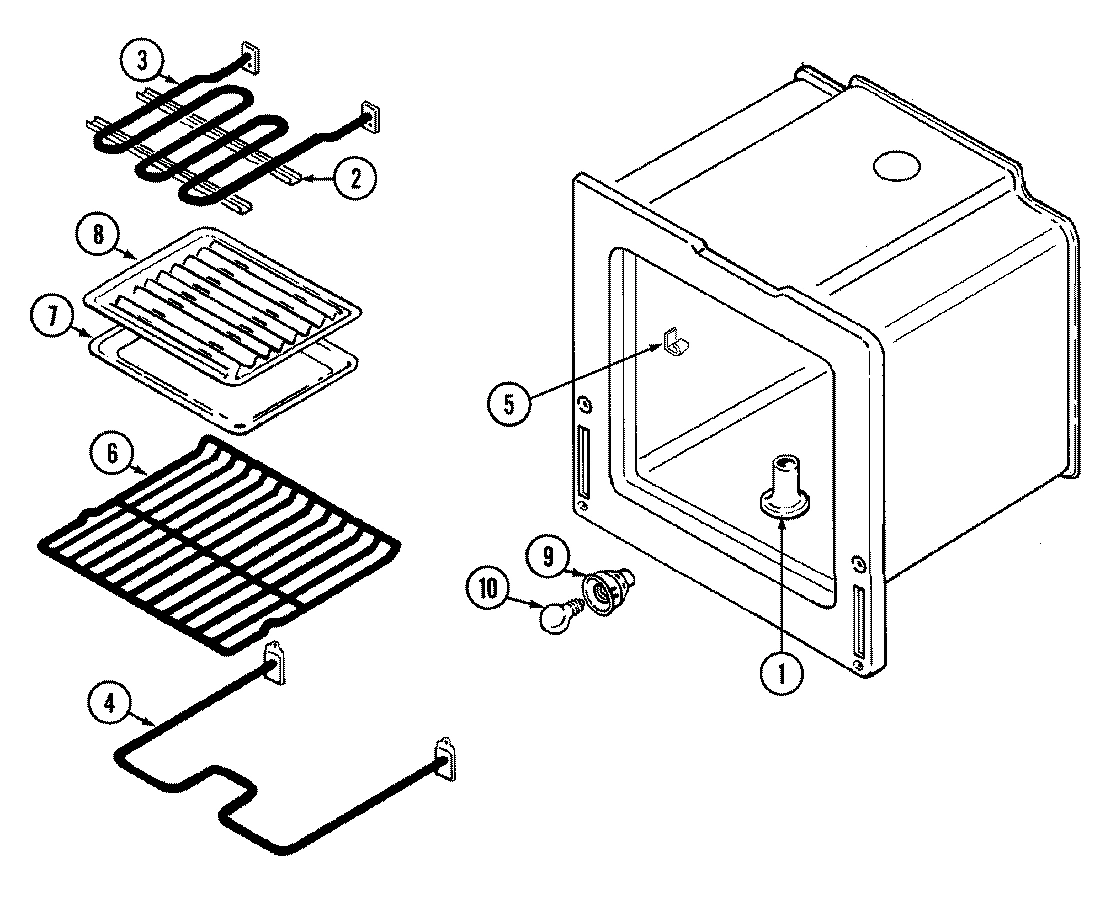

04 - OVEN

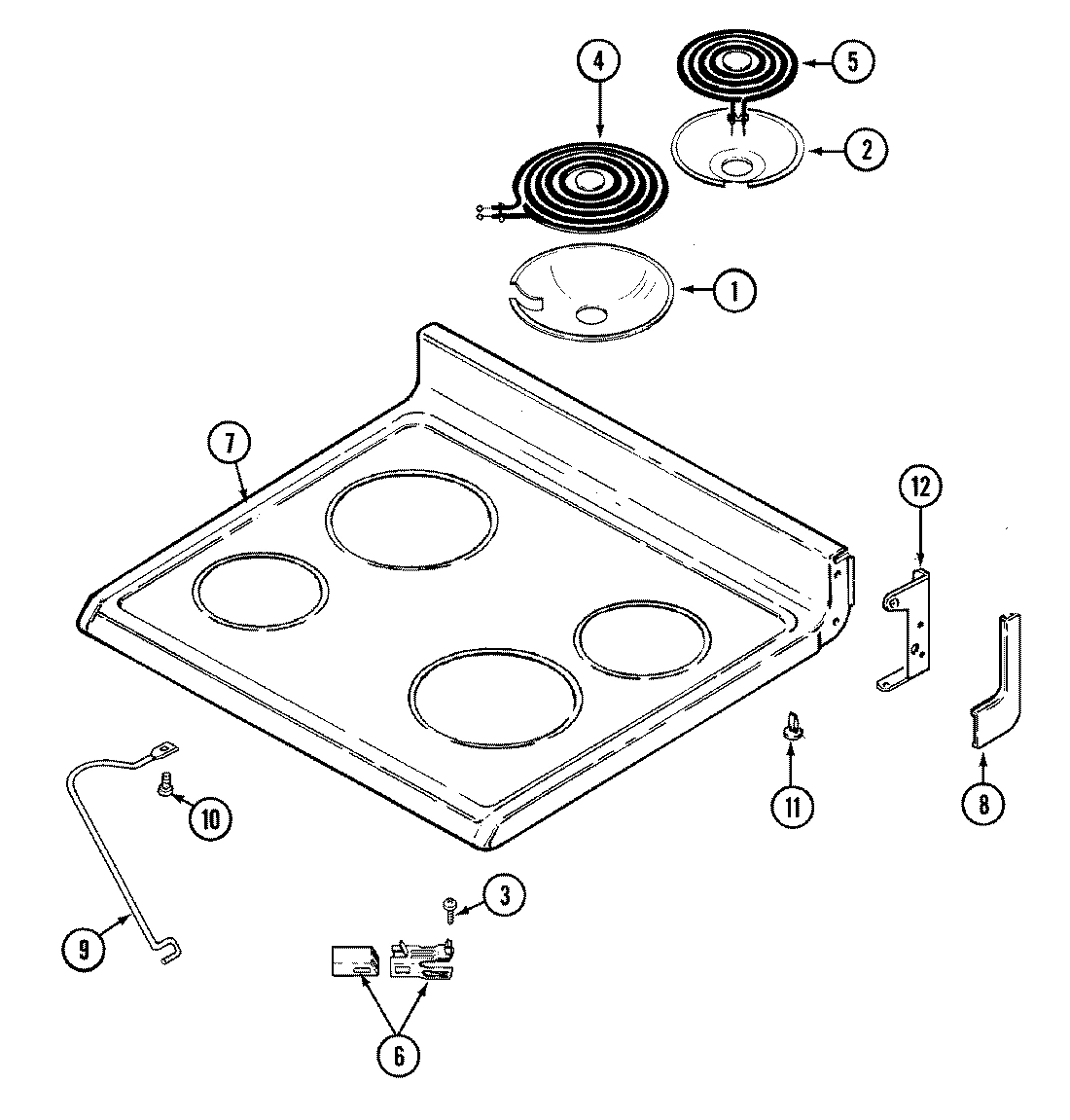

05 - TOP ASSEMBLY

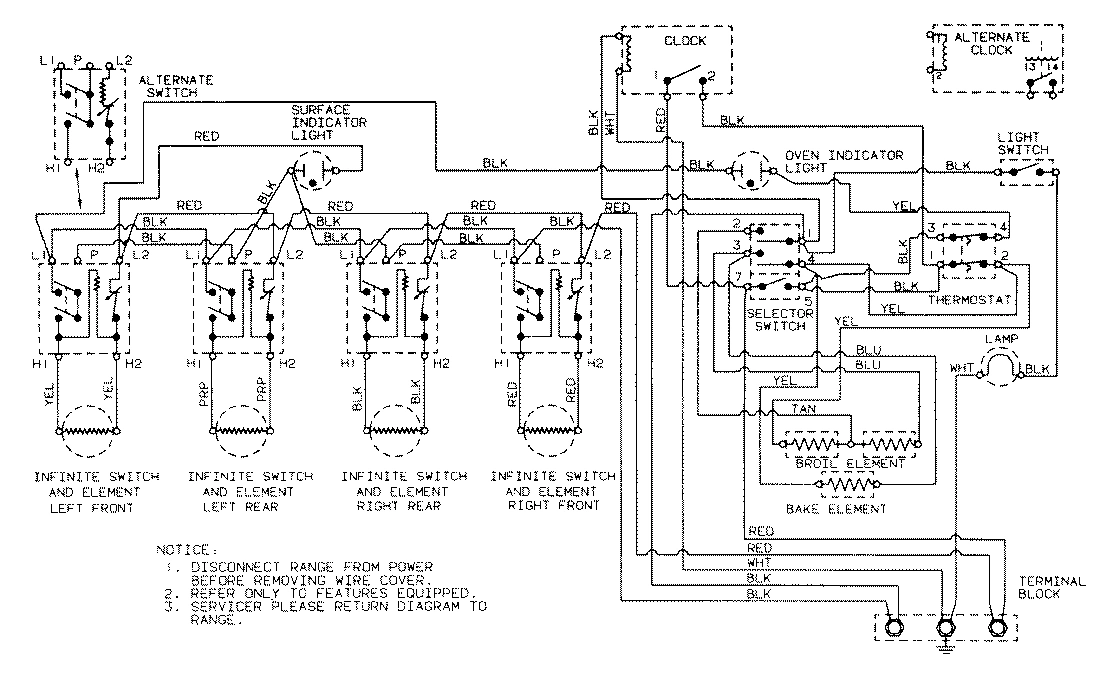

06 - WIRING INFORMATION
Common parts from model Whirlpool 3523XRA ELECTRIC RANGE
1
SCREW WPL 7101P29060 Contact Us For Availability
1
SEAL, DOOR WPL 7212P04360 Contact Us For Availability
1
GLASS, DOOR (BLK) WPL 7902P32160 Contact Us For Availability
1
TUBE, VENT WPL 8026P01960 Contact Us For Availability
1
BOWL, DRIP (8``) (BLK) WPL 7725P02360 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 2618F09974 Contact Us For Availability
2
SCREW WPL 7101P30060 Contact Us For Availability
2
LINING, DOOR WPL 74002785 Contact Us For Availability
2
LINING, DOOR WPL 74003248 Contact Us For Availability
2
SCREW WPL 7101P29160 Contact Us For Availability
2
HANDLE, DOOR (BLK) WPL 7701P09660 Contact Us For Availability
2
SUPPORT, ELEMENT WPL 3807F38945 Contact Us For Availability
2
BOWL, DRIP (6``) (BLK) WPL 7725P02260 Contact Us For Availability
2
BOWL, DRIP (6``W/HOLE-BLK) WPL 7725P04060 Contact Us For Availability
3
BOX, BURNER WPL 4011F20819 Contact Us For Availability
3
SCREW WPL 7118P01360 Contact Us For Availability
3
INSULATION, DOOR WPL 74002458 Contact Us For Availability
3
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
3
ELEMENT, BROIL WPL 7406P07260 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
GLASS, DOOR (INNER) WPL 74002459 Contact Us For Availability
4
TRIM, DOOR (BTM-BLK) WPL 7744P07860 Contact Us For Availability
4
ELEMENT, BAKE WPL 7406P06460 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
BAFFLE, DOOR WPL 74002461 Contact Us For Availability
5
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
5
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
6
HANDLE, DOOR (BLK) WPL 74003429 Contact Us For Availability
6
HANDLE, DOOR (BLK) WPL 7701P14460 Contact Us For Availability
6
NUT, NYLON WPL 7103P04560 Contact Us For Availability
6
RACK, OVEN WPL 7801P03660 Contact Us For Availability
7
INSULATION, BACK WPL 4804F01760 Contact Us For Availability
7
INSULATION, WRAP WPL 4804F01860 Contact Us For Availability
7
BAFFLE, DOOR WPL 3601F23647 Contact Us For Availability
7
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
7
TOP, MAIN (ALM) WPL 2002W07884 Contact Us For Availability
8
COVER VENT WPL 4005F35045 Contact Us For Availability
8
END CAP, DOOR (BLK) WPL 74002084 Contact Us For Availability
8
END CAP, DOOR (BLK) WPL 74003430 Contact Us For Availability
8
INSULATION, DOOR WPL 4804F01160 Contact Us For Availability
8
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
8
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
8
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
9
COVER, MAIN BACK WIRE WPL 4005F34851 Contact Us For Availability
9
GLASS, DOOR (OUTER-BLK) WPL 74003431 Contact Us For Availability
9
WINDOW ASY. WPL 7907P01660 Contact Us For Availability
9
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
9
SUPPORT, PROP WPL 7809P01460 Contact Us For Availability
10
COVER, TERMINAL BLOCK ACCES WPL 4005F37651 Contact Us For Availability
10
TRIM, BOTTOM (BLK) WPL 74003432 Contact Us For Availability
10
TRIM, BOTTOM (BLK)----NA WPL 7744P10560 Contact Us For Availability
10
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
10
BULB, OVEN WPL 7407P09560 Contact Us For Availability
10
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
11
RETAINER, BOTTOM INSULATION WPL 3804F10951 Contact Us For Availability
11
LINING ASSY WPL 2402W19319 Contact Us For Availability
11
GLIDE WPL 8016P01360 Contact Us For Availability
12
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
12
DRAWER, STORAGE WPL 74003618 Contact Us For Availability
12
SEAL, SILICONE WPL 7212P03460 Contact Us For Availability
12
HINGE, MAIN TOP (RT) WPL 3418A08734 Contact Us For Availability
12
HINGE, MAIN TOP (LT) WPL 3418A08834 Contact Us For Availability
12
COVER, HINGE SUPPORT WPL 8114P34860 Contact Us For Availability
13
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
13
NUT WPL 7103P08260 Contact Us For Availability
13
ROLLER, DRAWER WPL 74003566 Contact Us For Availability
13
END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability
14
PEDESTAL, SIDE WPL 4020W00780 Contact Us For Availability
14
PEDESTAL, SIDE WPL 74003016 Contact Us For Availability
14
SEAL, DOOR PANEL WPL 7208P00960 Contact Us For Availability
14
PANEL, DRAWER (ALM) WPL 2416F03964 Contact Us For Availability
15
NUT, LOCK WPL 7103P13960 Contact Us For Availability
16
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
16
SCREW WPL 7101P07260 Contact Us For Availability
17
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
17
DRAWER, STORAGE WPL 3405F01580 Contact Us For Availability
18
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
18
SPACER, RUBBER WPL 8010P08660 Contact Us For Availability
19
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
19
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
20
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
20
RUNNER, DRAWER WPL 74003565 Contact Us For Availability
21
SUPPORT, DRAWER WPL 74002312 Contact Us For Availability
21
SUPPORT, DRAWER WPL 8004P02560 Contact Us For Availability
22
COVER, LOCK SLOT WPL 8114P33560 Contact Us For Availability
23
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
24
HINGE, DOOR WPL 7106P04860 Contact Us For Availability
25
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
26
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
26
SCREW WPL 7101P34460 Contact Us For Availability
27
SCREW WPL 7101P10360 Contact Us For Availability
28
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
28
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001468 Contact Us For Availability
× ![]()
