Model Whirlpool 3500PPW-D ELECTRIC RANGE – Common Parts & Diagrams

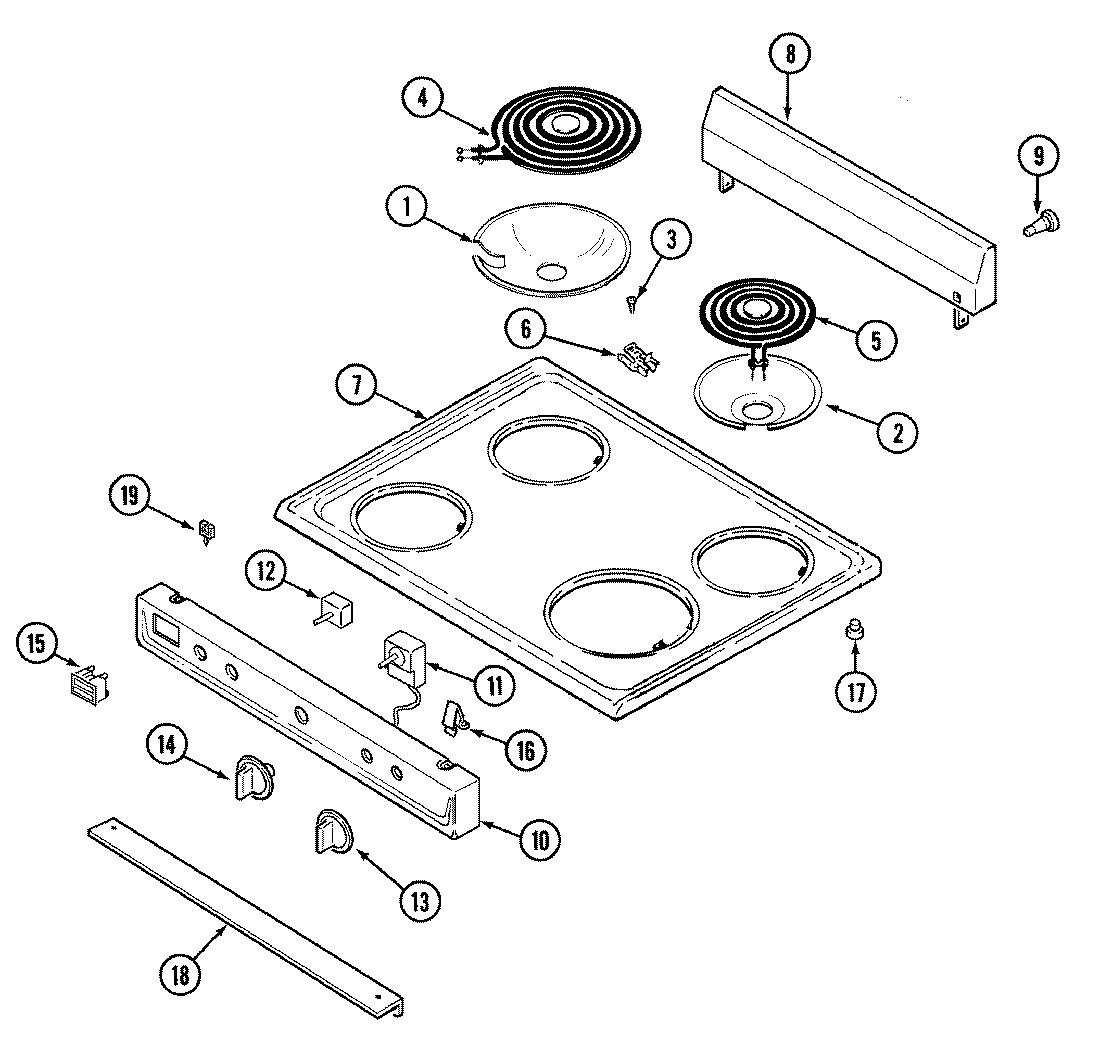

04 - TOP ASSEMBLY
01 - BODY

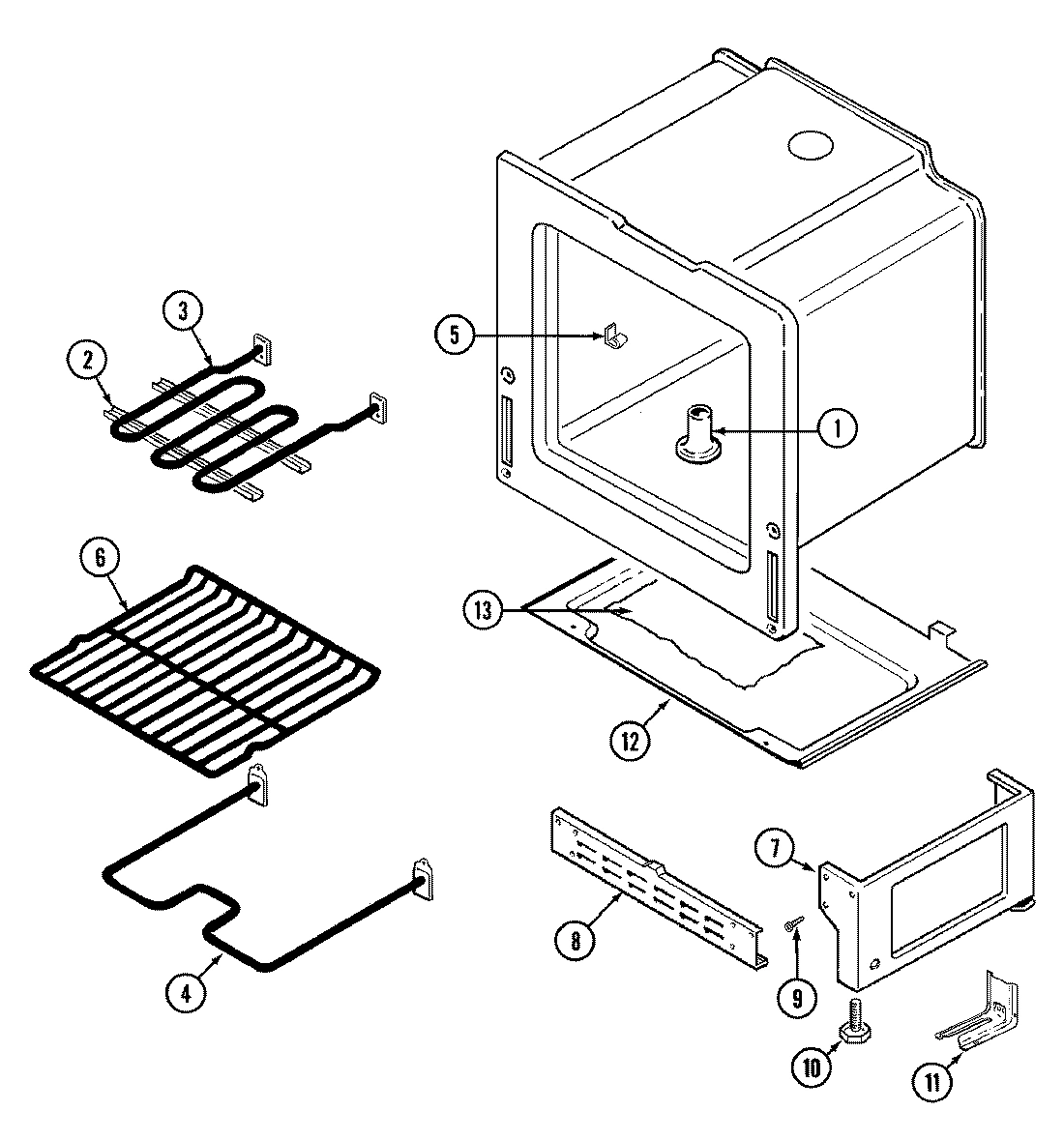

03 - OVEN/BASE

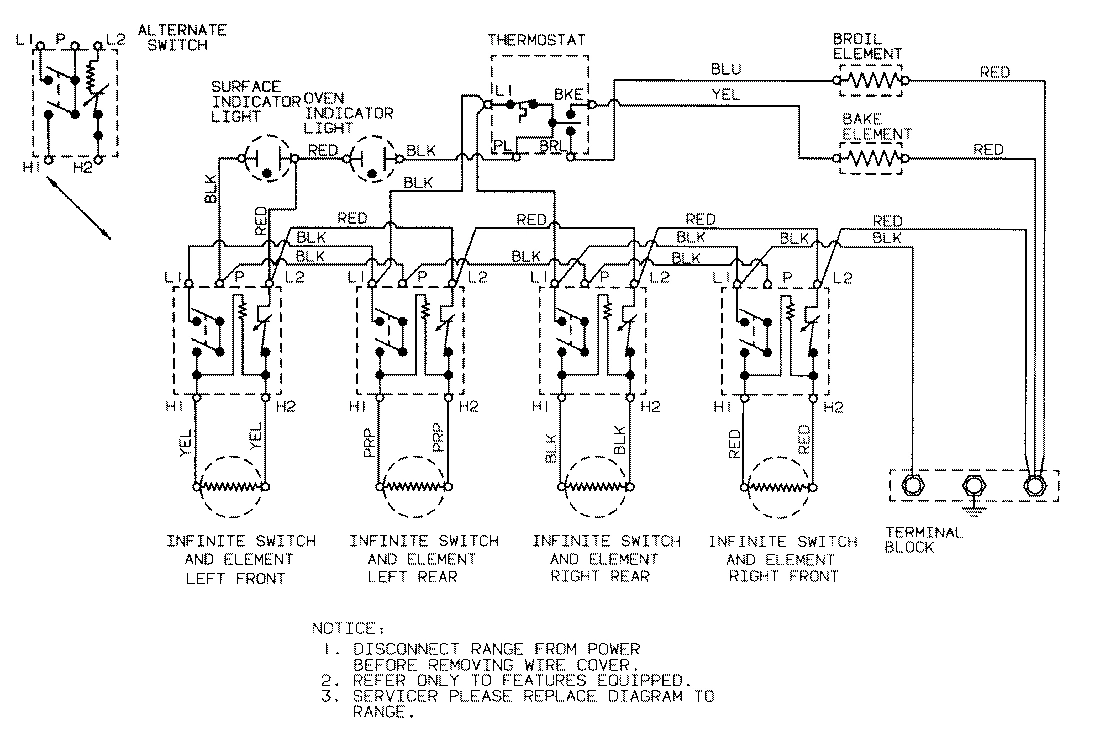

05 - WIRING INFORMATION

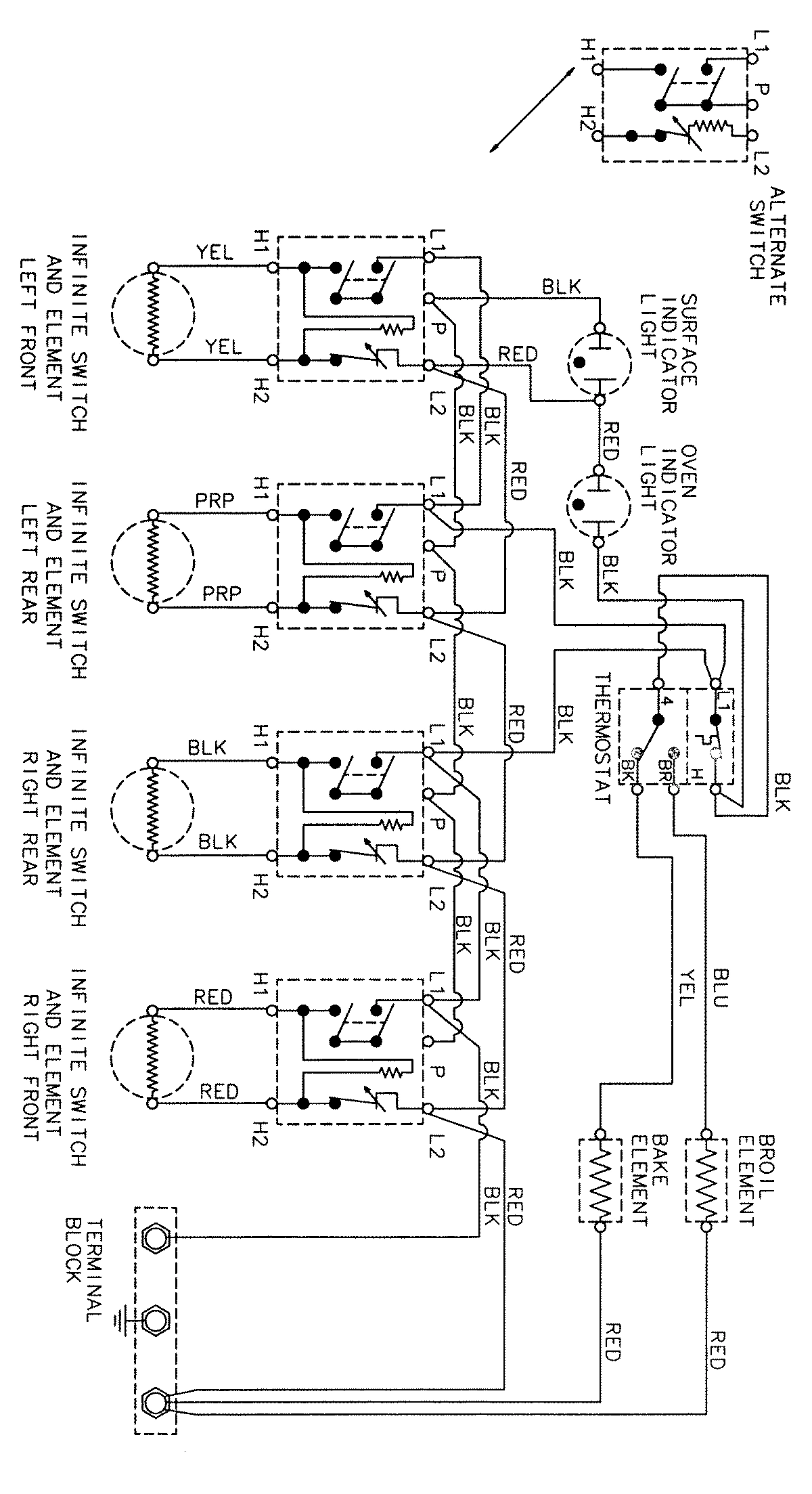

06 - WIRING INFORMATION
02 - DOOR
Common parts from model Whirlpool 3500PPW-D ELECTRIC RANGE
1
BOWL, DRIP (8``-CHR) WPL 7725P04760 Contact Us For Availability
1
SHIELD, WIRE WPL 3604F21851 Contact Us For Availability
1
SCREW WPL 7101P33760 Contact Us For Availability
1
BACK, MAIN WPL 74001772 Contact Us For Availability
1
TUBE, VENT WPL 8026P02060 Contact Us For Availability
1
PANEL, DOOR (WHT) WPL 2401F09671 Contact Us For Availability
2
BOWL, DRIP (W/HOLE) WPL 7725P00760 Contact Us For Availability
2
BOWL, DRIP (6``) WPL 7725P00860 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F11071 Contact Us For Availability
2
SUPPORT, ELEMENT WPL 3807F38945 Contact Us For Availability
2
HANDLE, DOOR (CHR) WPL 7701P03060 Contact Us For Availability
3
CLIP WPL 7112P02960 Contact Us For Availability
3
SCREW----NA WPL 7101P31160 Contact Us For Availability
3
BOX, BURNER----NA WPL 74001753 Contact Us For Availability
3
SPACER, HANDLE (BLK) WPL 8010P08460 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
5
INSULATION, DOOR 2`` WPL 4804F05060 Contact Us For Availability
6
SCREW WPL 7118P01360 Contact Us For Availability
6
RACK WPL 7801P04660 Contact Us For Availability
6
LINING, DOOR WPL 2402W21119 Contact Us For Availability
7
TOP, MAIN (WHT) WPL 2002W10581 Contact Us For Availability
7
BRACE WPL 3802F08580 Contact Us For Availability
7
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
7
COVER WPL 4005F39751 Contact Us For Availability
7
PEDESTAL (SIDES) WPL 74001705 Contact Us For Availability
7
PEDESTAL, SIDE WPL 74003016 Contact Us For Availability
7
SEAL, DOOR WPL 7212P04360 Contact Us For Availability
8
BACKGUARD (WHT) WPL 2601F36071 Contact Us For Availability
8
BRACKET, CONTROL PANEL (RT) WPL 3801F24251 Contact Us For Availability
8
BRACKET, CONTROL PANEL (LT) WPL 3801F24351 Contact Us For Availability
8
COVER, VENT WPL 4005F43245 Contact Us For Availability
8
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
8
PANEL, LOWER (WHT) WPL 2403F03471 Contact Us For Availability
9
SPACER, HINGE (MAIN TOP) WPL 8010P06960 Contact Us For Availability
9
COVER, MAIN WIRE WPL 4005F38751 Contact Us For Availability
9
BRACKET, PANEL WPL 3801F27851 Contact Us For Availability
10
PANEL, CNTL. WPL 2614F03009 Contact Us For Availability
10
BRACKET, CNTL. PANEL WPL 3801F25151 Contact Us For Availability
10
PANEL, CONTROL (BLK) WPL 74003401 Contact Us For Availability
10
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
10
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
10
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
11
THERMOSTAT WPL 74003267 Contact Us For Availability
11
THERMOSTAT WPL 7404P08560 Contact Us For Availability
11
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
11
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
11
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
11
BAFFLE, DOOR WPL 3601F25051 Contact Us For Availability
12
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
12
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
12
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
12
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
12
RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability
13
KNOB, THERMOSTAT WPL WP74003280 No Longer Available
13
KNOB, THERMOSTAT WPL 7735P03360 Contact Us For Availability
13
HINGE WPL 7106P05560 Contact Us For Availability
13
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
14
KNOB, SWITCH WPL 7737P03060 Contact Us For Availability
14
COVER, DOOR LOCK WPL 7718P01360 Contact Us For Availability
15
LIGHT, INDICATOR WPL 7407P01560 Contact Us For Availability
15
INSULATION, OVEN BACK WPL 4804F03960 Contact Us For Availability
15
INSULATION, OVEN WRAP WPL 4804F04460 Contact Us For Availability
16
CLIP, TOP LOCKING WPL 7112P08760 Contact Us For Availability
16
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
16
SCREW, GROUND (GRN) WPL 7101P02760 Contact Us For Availability
17
SPACER, MAIN TOP WPL 8010P04860 Contact Us For Availability
17
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
18
SUPPORT UPPER FRONT PANEL WPL 3807F41980 Contact Us For Availability
18
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
19
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
20
HARNESS, CONTROL PANEL WPL 5170D13060 Contact Us For Availability
20
HARNESS, WIRE CONTROL/TOP WPL 74001587 Contact Us For Availability
21
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
21
MANUAL, USE & CARE WPL 8113P02360 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001148 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002207 Contact Us For Availability
× ![]()
