Model Electrolux 31-6759-23-02 RANGE – Common Parts & Diagrams
02 - DOOR PARTS
03 - COOKTOP PARTS

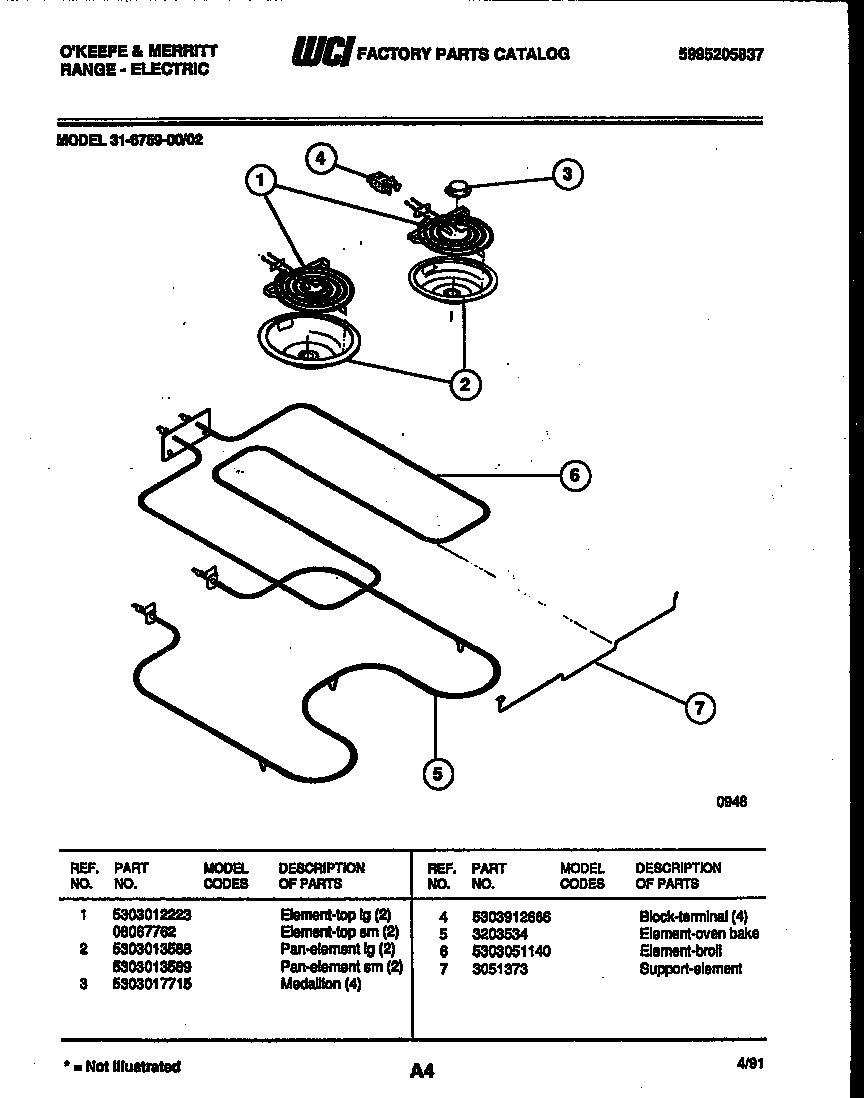

04 - BROILER PARTS

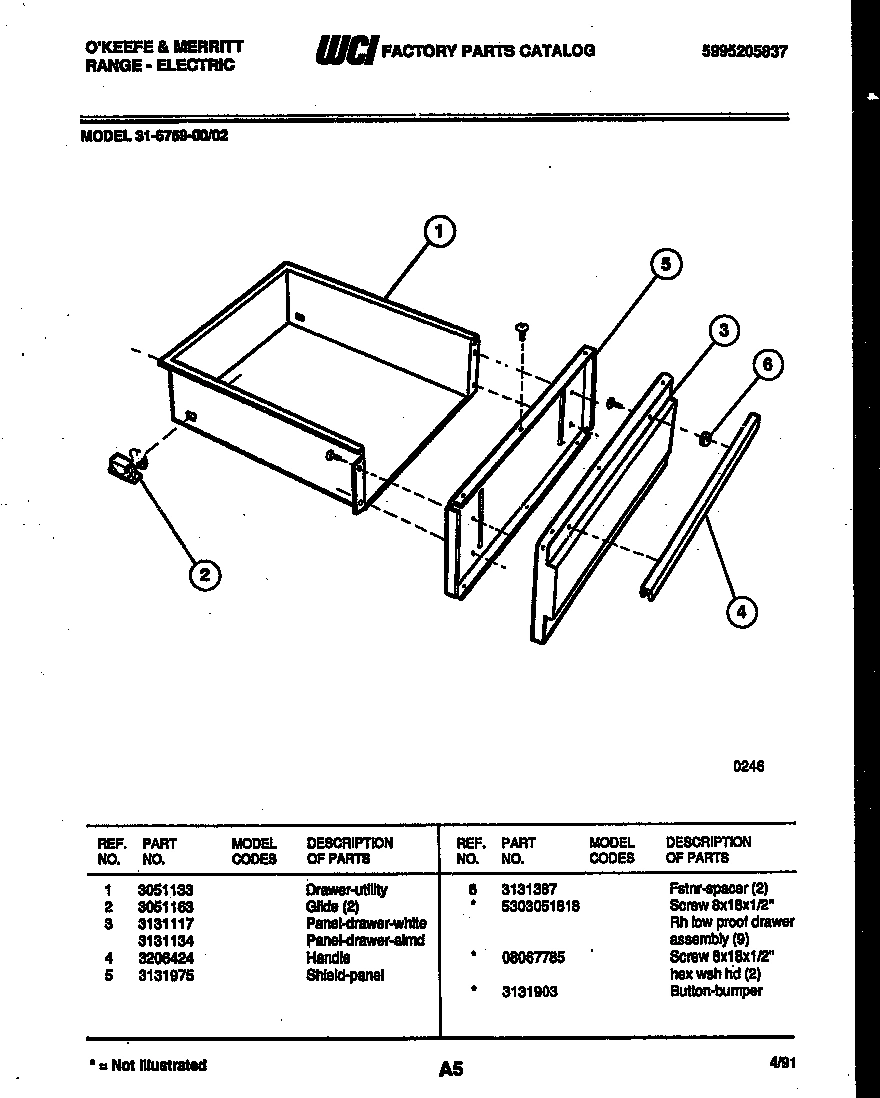

05 - DRAWER PARTS

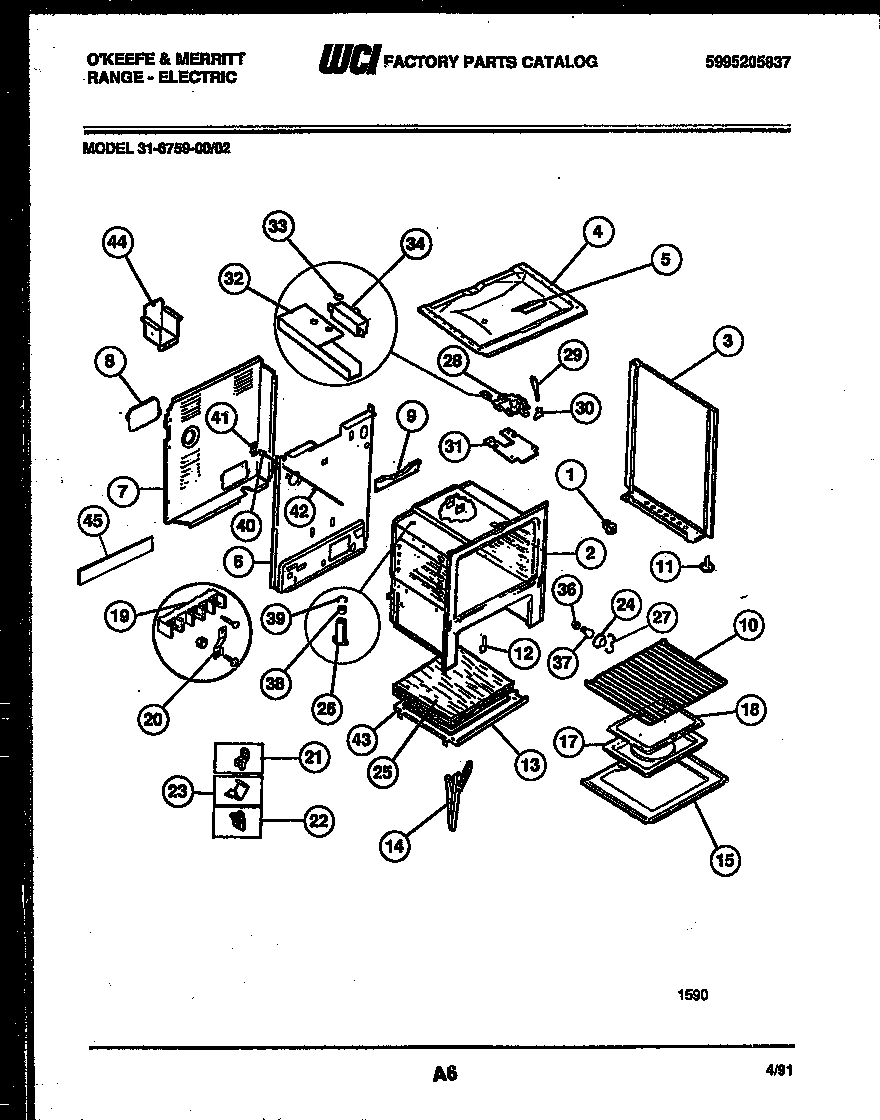

06 - BODY PARTS

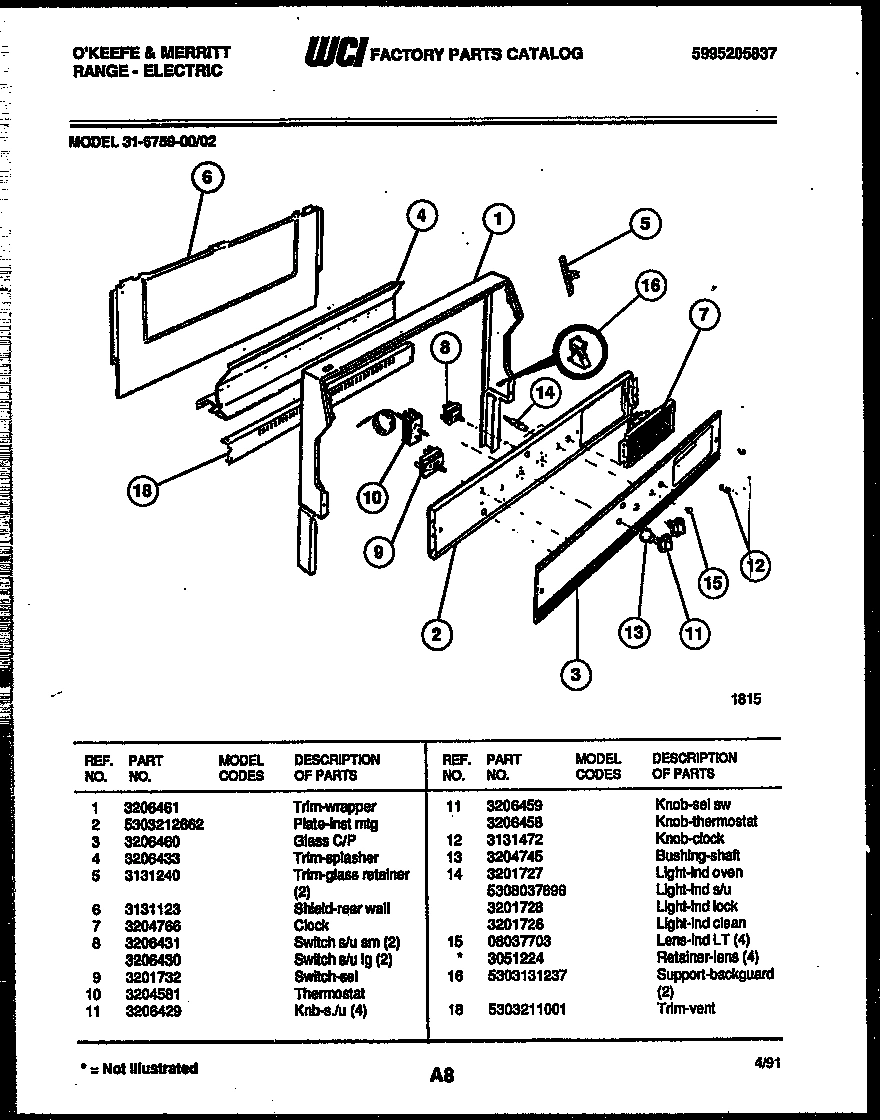

07 - BACKGUARD
Common parts from model Electrolux 31-6759-23-02 RANGE
*46875
SCREW 8 X 18 X 1/2`` HEX WSH HD (2) WCI 08067785 Contact Us For Availability
*46879
WCI 19100210010 WCI 19100210010 Contact Us For Availability
1
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
1
MAIN TOP ALMD WCI 3013512 Contact Us For Availability
1
WCI 5303013511 WCI 5303013511 Contact Us For Availability
1
DRAWER, UTILITY WCI 3051133 Contact Us For Availability
1
WCI 3206461 WCI 3206461 Contact Us For Availability
2
BRKT HINGE-LH WCI 08067746 Contact Us For Availability
2
PLATE - INST MTG WCI 5303212662 Contact Us For Availability
2A
BRKT HINGE-RH WCI 08067747 Contact Us For Availability
3
TOP SUPPORT ROD (2) WCI 5303271609 Contact Us For Availability
3
WCI 3131117 WCI 3131117 Contact Us For Availability
3
PANEL, DRAWER, (ALMD) WCI 3131134 Contact Us For Availability
3
PNL B/S - WHITE LH WCI 5303269519 Contact Us For Availability
3
WCI 5303269545 WCI 5303269545 Contact Us For Availability
3
GLASS C/P WCI 3206460 Contact Us For Availability
3A
PNL B/S - WHITE RH WCI 5303269518 Contact Us For Availability
3A
WCI 5303269543 WCI 5303269543 Contact Us For Availability
4
WCI 5303206607 WCI 5303206607 Contact Us For Availability
4
WCI 3206424 WCI 3206424 Contact Us For Availability
4
WCI 08067749 WCI 08067749 Contact Us For Availability
4
WCI 3206433 WCI 3206433 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
5
WCI 08067757 WCI 08067757 Contact Us For Availability
5
TRIM-GLASS RETAINER, (2) WCI 3131240 Contact Us For Availability
6
FSTNR, SPACER (2) WCI 3131387 Contact Us For Availability
6
WCI 3203082 WCI 3203082 Contact Us For Availability
6
SHIELD, REAR WALL WCI 3131123 Contact Us For Availability
7
SHIELD - LWR ACCESS WCI 3203549 Contact Us For Availability
7
WCI 3204766 WCI 3204766 Contact Us For Availability
8
COVER, LWR. ACCESS WCI 3203405 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
9
SWITCH-SEL. WCI 3201732 Contact Us For Availability
10
WCI 3204581 WCI 3204581 Contact Us For Availability
11
SCREW-LEVEL (4) WCI 5303203397 Contact Us For Availability
11
KNB-S./U (4) WCI 3206429 Contact Us For Availability
11
WCI 3206459 WCI 3206459 Contact Us For Availability
11A
WCI 3206458 WCI 3206458 Contact Us For Availability
12
COVER-HNG CUTOUT WCI 3131570 Contact Us For Availability
12
KNOB-CLOCK WCI 3131472 Contact Us For Availability
13
SHIELD-WOOL LWR WCI 3200825 Contact Us For Availability
13
BUSHING-SHAFT WCI 3204745 Contact Us For Availability
14
CHANNEL-DR HNG (2) WCI 5303131569 Contact Us For Availability
14
LIGHT-IND. OVEN WCI 3201727 Contact Us For Availability
14A
WCI 5308037896 WCI 5308037896 Contact Us For Availability
14B
LIGHT-IND LOCK WCI 3201728 Contact Us For Availability
14C
LIGHT-IND. CLEAN WCI 3201726 Contact Us For Availability
15
WCI 3203540 WCI 3203540 Contact Us For Availability
15
WCI 08037703 WCI 08037703 Contact Us For Availability
15A
RETAINER, LENS (4) (NON-ILLUSTRATED) WCI 3051224 Contact Us For Availability
16
SUPPORT-BACKGUARD,(2) WCI 5303131237 Contact Us For Availability
17
WCI 5303013568 WCI 5303013568 Contact Us For Availability
18
WCI 5303131356 WCI 5303131356 Contact Us For Availability
18
WCI 5303211001 WCI 5303211001 Contact Us For Availability
20
WCI 5303212739 WCI 5303212739 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
26
WCI 3051344 WCI 3051344 Contact Us For Availability
27
WIRE-GLASS RTNR (2) WCI 3204585 Contact Us For Availability
27A
INSULATION-TOP (NON-ILLUSTRATED) WCI 3131304 Contact Us For Availability
27B
WCI 3204582 WCI 3204582 Contact Us For Availability
28
LATCH-DOOR, BIMETAL WCI 5303015361 Contact Us For Availability
29
WCI 5303131357 WCI 5303131357 Contact Us For Availability
30
WCI 3203218 WCI 3203218 Contact Us For Availability
30A
WCI 08013188 WCI 08013188 Contact Us For Availability
31
SHIELD-LATCH WCI 3051413 Contact Us For Availability
32
SHIELD, BI METAL LATCH WCI 3131593 Contact Us For Availability
33
FSTNR., PUSH ON (3) WCI 08067776 Contact Us For Availability
34
WCI 3131672 WCI 3131672 Contact Us For Availability
38
WCI 08067810 WCI 08067810 Contact Us For Availability
39
WCI 08010606 WCI 08010606 Contact Us For Availability
40
SWITCH, DOOR WCI 5303202622 Contact Us For Availability
41
BRACKET-LIGHT SW WCI 5303131289 Contact Us For Availability
42
ROD LIGHT WCI 5303209316 Contact Us For Availability
43
WCI 3200848 WCI 3200848 Contact Us For Availability
43A
INSULATION-WRAP (NON-ILLUSTRATED) WCI 3200833 Contact Us For Availability
43B
SHIELD-HEAT B/S (2) (NON-ILLUSTRATED) WCI 3200834 Contact Us For Availability
43C
FSTNR - EDGE MTG (2) (NON-ILLUSTRATED) WCI 3200846 Contact Us For Availability
44
WCI 3203582 WCI 3203582 Contact Us For Availability
44A
ANTI-TIP KIT (NON-ILLUSTRATED) WCI 3934056 Contact Us For Availability
44B
BRACKET-CABLE MTG (NON-ILLUSTRATED) WCI 5303206618 Contact Us For Availability
45
SHIELD-REAR WALL WCI 3131252 Contact Us For Availability
× ![]()
