Model Electrolux 31-6758-66-02 RANGE – Common Parts & Diagrams
01 - COVER
02 - OVEN DOOR

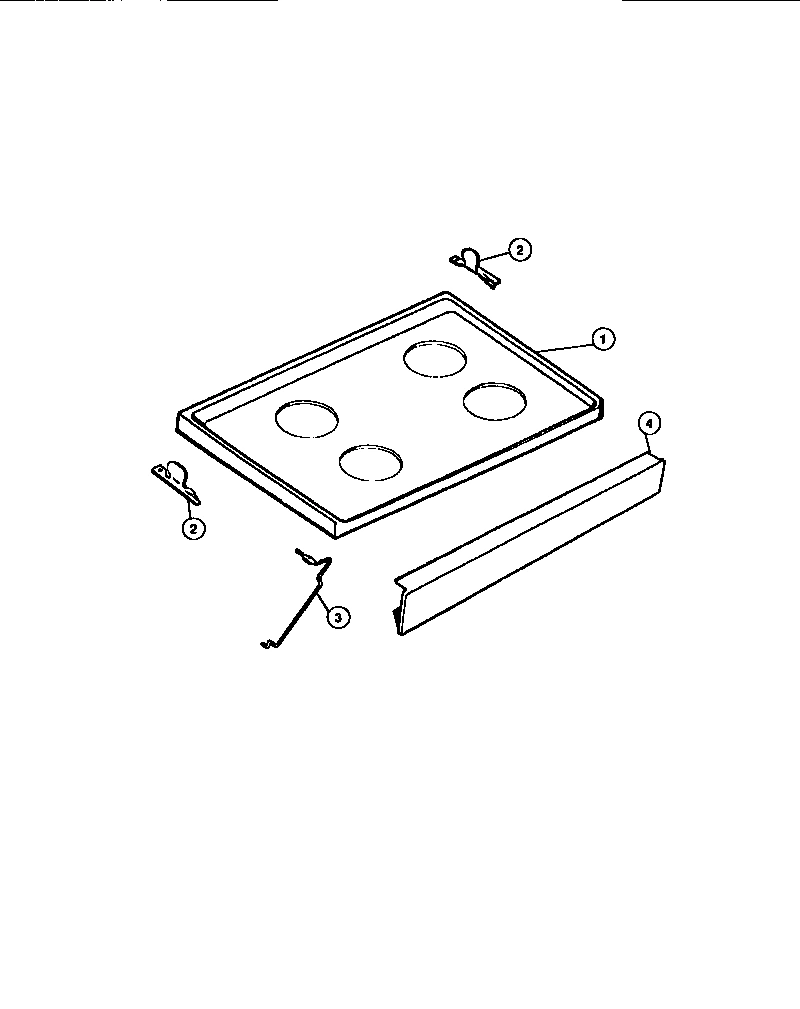

03 - TOP & RELATED PARTS

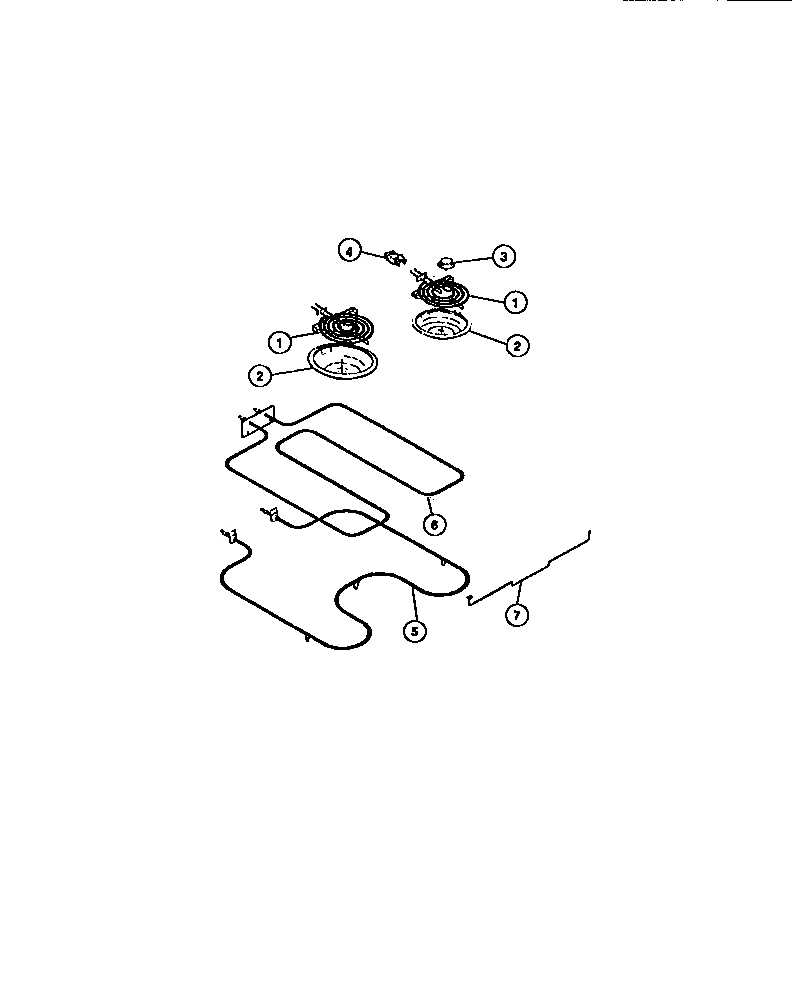

04 - ELEMENT

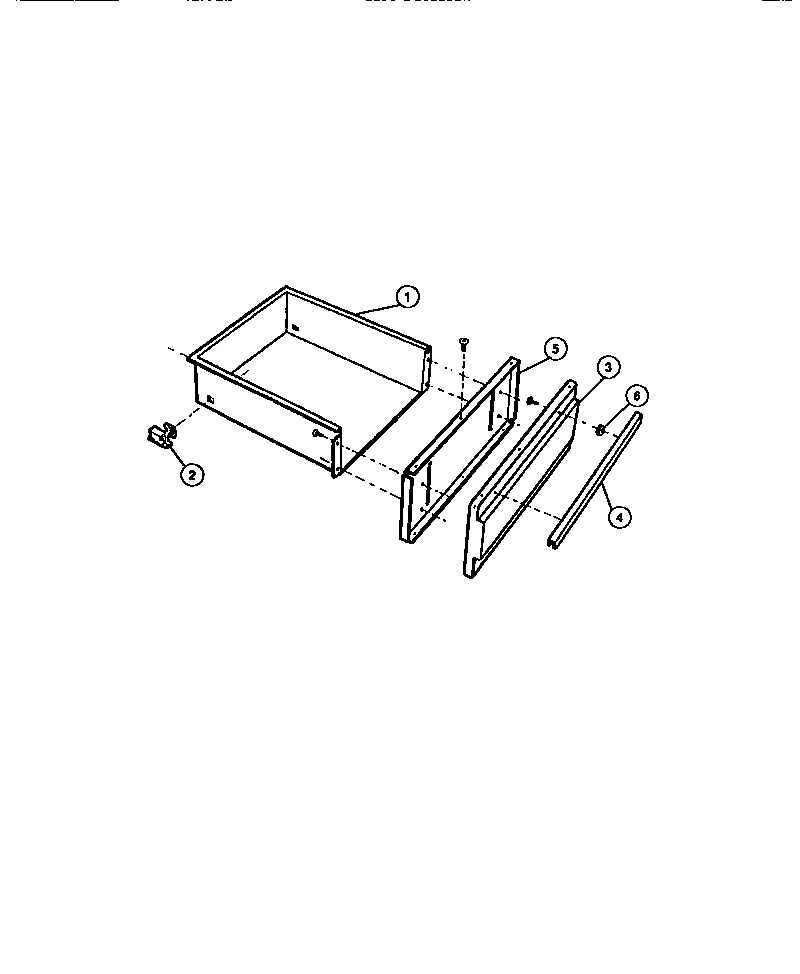

05 - UTILITY DRAWER

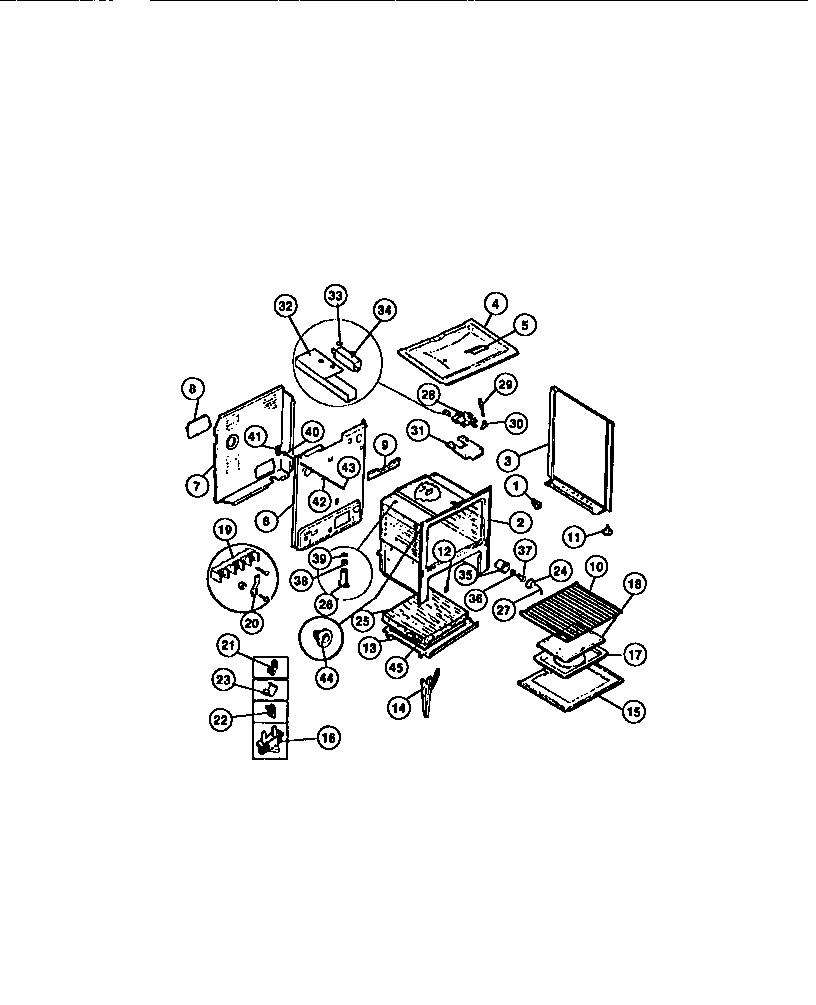

06 - BASIC BODY

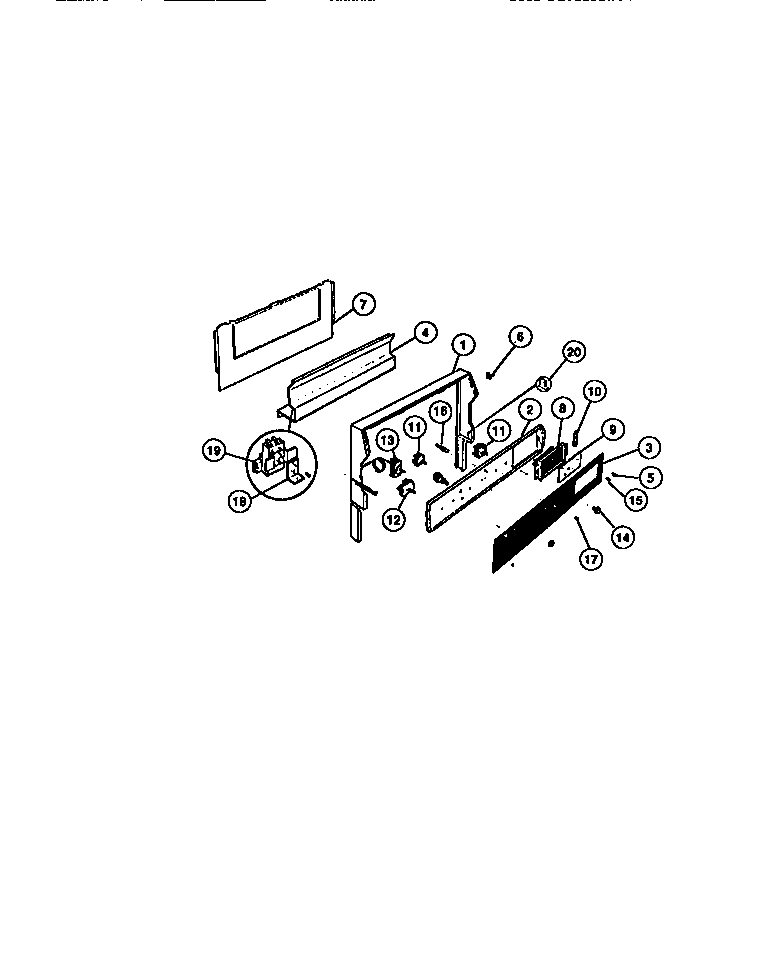

07 - BACKGUARD
Common parts from model Electrolux 31-6758-66-02 RANGE
*81561
SCREW, 8 X 18 X 1/2``, HEX WASHER HEAD (2) WCI 636T135P01 Contact Us For Availability
*81562
SHIELD HEAT BODYSIDE (2) WCI 3200834 Contact Us For Availability
*81563
FASTENER, EDGE MOUNTING (2) WCI 3200846 Contact Us For Availability
*81564
INSULATION, WRAP WCI 3200833 Contact Us For Availability
*81566
INSULATION, TOUCH WCI 3131305 Contact Us For Availability
1
MAIN TOP, WHEAT WCI 3051286 Contact Us For Availability
1
DRAWER, UTILITY WCI 3051133 Contact Us For Availability
1
SPACER, BODYSIDE (8) WCI 3051736 Contact Us For Availability
1
WCI 3131436 WCI 3131436 Contact Us For Availability
2
BRACKET, HINGE, LEFT HAND WCI 3011558 Contact Us For Availability
2
PLATE, INSTRUMENT MOUNTING WCI 3051219 Contact Us For Availability
2A
BRACKET, HINGE, RIGHT HAND WCI 3011559 Contact Us For Availability
3
TOP SUPPORT ROD (2) WCI 618T038P05 Contact Us For Availability
3
WCI 445T006P01 WCI 445T006P01 Contact Us For Availability
3
PANEL, DRAWER, WHEAT WCI 3051378 Contact Us For Availability
3
PANEL, BODYSIDE, LEFT HAND (WHEAT) WCI 3200794 Contact Us For Availability
3
WCI 3016765 WCI 3016765 Contact Us For Availability
3A
PANEL, BODYSIDE, RIGHT HAND (WHEAT) WCI 3200791 Contact Us For Availability
4
WCI 3016766 WCI 3016766 Contact Us For Availability
4
WCI 296T117P02 WCI 296T117P02 Contact Us For Availability
4
WCI 3051109 WCI 3051109 Contact Us For Availability
4
TRIM, LOW SPLASHER WCI 3051874 Contact Us For Availability
5
LINER, OVEN DOOR WCI 381T092W05-86 Contact Us For Availability
5
ELEMENT, OVEN BAKE WCI 3051388 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
5
WCI 3131101 WCI 3131101 Contact Us For Availability
5
NUT, DECORATIVE (2) WCI 3051194 Contact Us For Availability
6
FASTENER, SPACER (2) WCI 241T017P232 Contact Us For Availability
6
WCI 3131567 WCI 3131567 Contact Us For Availability
6
FASTENER, GLASS (2) WCI 3131607 Contact Us For Availability
7
WCI 3051231 WCI 3051231 Contact Us For Availability
7
SHIELD, LOWER ACCESS WCI 3051400 Contact Us For Availability
7
SHIELD, REAR WALL WCI 3131123 Contact Us For Availability
8
CLIP, RETAINER (2) WCI 3131720 Contact Us For Availability
8
COVER, LOWER ACCESS WCI 3051501 Contact Us For Availability
8
WCI 148T190P02 WCI 148T190P02 Contact Us For Availability
9
SEAL, FOAM (4) WCI 3934033 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
9
WCI 277T219P02 WCI 277T219P02 Contact Us For Availability
10
WCI 3051728 WCI 3051728 Contact Us For Availability
10
RETAINER, CLOCK LENS (2) WCI 612T123F01 Contact Us For Availability
11
SUPPORT, GLASS WCI 3131323 Contact Us For Availability
11
SCREW, LEVEL (4) WCI 636M004P01 Contact Us For Availability
11
WCI 699T015P02 WCI 699T015P02 Contact Us For Availability
12
COVER-HINGE CUTOUT (2) WCI 3131570 Contact Us For Availability
12
FASTENER, NYLON (6) WCI 3131974 Contact Us For Availability
12
WCI 3051315 WCI 3051315 Contact Us For Availability
13
SCREW, HANDLE, 10-24 SP. WASH RHD (2) WCI 3016420 Contact Us For Availability
13
WCI 3200825 WCI 3200825 Contact Us For Availability
13
THERMOSTAT, OVEN WCI 3051322 Contact Us For Availability
14
FASTENER, NYLON SPACER (3) WCI 241T017P185 Contact Us For Availability
14
CHANNEL, DOOR HINGE (2) WCI 3131569 Contact Us For Availability
14
WCI 3051487 WCI 3051487 Contact Us For Availability
14A
SCREW, 8 X 18 X 1/2`` (3) (NON-ILLUSTRATED) WCI 3131573 Contact Us For Availability
14A
WCI 3051490 WCI 3051490 Contact Us For Availability
14B
WCI 3051456 WCI 3051456 Contact Us For Availability
15
INSULATION, OVEN DOOR WCI 3131384 Contact Us For Availability
15
WCI 3051104 WCI 3051104 Contact Us For Availability
15
KNOB, CLOCK (3) WCI 358T201P01 Contact Us For Availability
16
FUSE, THERMOSTAT CUT-OUT WCI 3051385 Contact Us For Availability
16
WCI 318T023P12 WCI 318T023P12 Contact Us For Availability
16A
INDICATOR LIGHT, SWITCH (3) WCI 318T023P11 Contact Us For Availability
17
WCI 539T010F01-86 WCI 539T010F01-86 Contact Us For Availability
17
JEWEL, INDICATOR LENS (4) WCI 342T014P01 Contact Us For Availability
17A
RETAINER, LENS (4) (NON-ILLUSTRATED) WCI 3051224 Contact Us For Availability
18
WCI 3131356 WCI 3131356 Contact Us For Availability
18
THERMOSTAT, OVEN, SELF CONTAINED WCI 3051324 Contact Us For Availability
19
ANGLE SUPPORT, SELF CONTAINED THERMOSTAT WCI 3131467 Contact Us For Availability
20
WCI 711T048P01 WCI 711T048P01 Contact Us For Availability
20
WCI 3131237 WCI 3131237 Contact Us For Availability
21
CLIP, THERMAL BULB (2) WCI 3131295 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
24
GLASS, OVEN LITE LENS WCI 3131298 Contact Us For Availability
26
WCI 3051344 WCI 3051344 Contact Us For Availability
27
WCI 3131104 WCI 3131104 Contact Us For Availability
27A
INSULATION-TOP (NON-ILLUSTRATED) WCI 3131304 Contact Us For Availability
27B
INSULATION, BACK (NON-ILLUSTRATED) WCI 3131303 Contact Us For Availability
28
WCI 3015361 WCI 3015361 Contact Us For Availability
29
WCI 3051473 WCI 3051473 Contact Us For Availability
30
KNOB, LATCH WCI 358T158P02 Contact Us For Availability
30A
SCREW, SET, LATCH KNOB (NON-ILLUSTRATED) WCI 636T144P01 Contact Us For Availability
31
SHIELD-LATCH WCI 3051413 Contact Us For Availability
32
SHIELD, BI METAL LATCH WCI 3131593 Contact Us For Availability
33
FASTENER, PUSH ON (3) WCI 241T001P01 Contact Us For Availability
34
WCI 3131672 WCI 3131672 Contact Us For Availability
35
WCI 3131363 WCI 3131363 Contact Us For Availability
38
WCI 244T041P01 WCI 244T041P01 Contact Us For Availability
39
RETAINER, CATALYST WCI 612T079P01 Contact Us For Availability
40
WCI 695T128P01 WCI 695T128P01 Contact Us For Availability
41
BRACKET, LITE SWITCH WCI 3131289 Contact Us For Availability
42
WCI 3051495 WCI 3051495 Contact Us For Availability
43
WCI 174T329P01 WCI 174T329P01 Contact Us For Availability
44
BUTTON, REMOTE LITE SWITCH WCI 102T044P02 Contact Us For Availability
45
WCI 3200848 WCI 3200848 Contact Us For Availability
× ![]()
