Model Electrolux 31-6757-23-01 RANGE – Common Parts & Diagrams
02 - DOOR PARTS
03 - COOKTOP PARTS

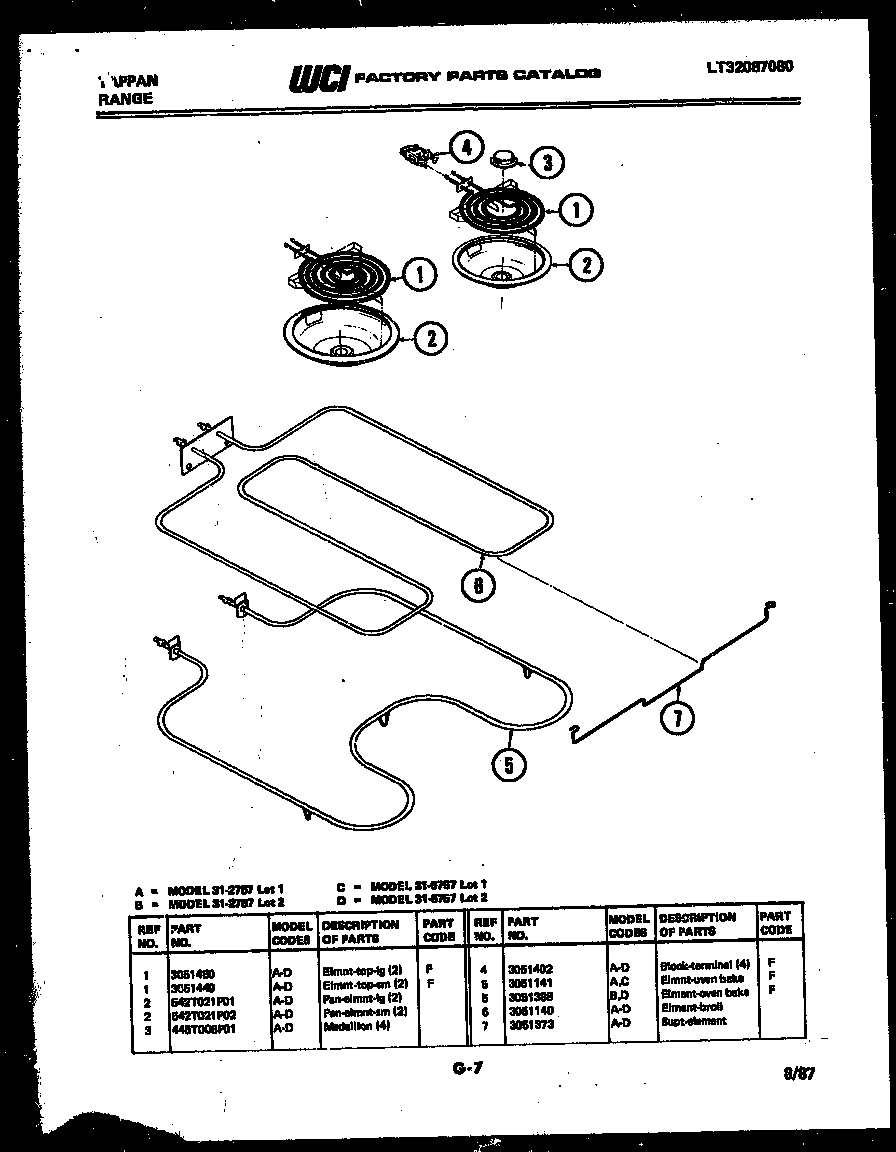

04 - BROILER PARTS

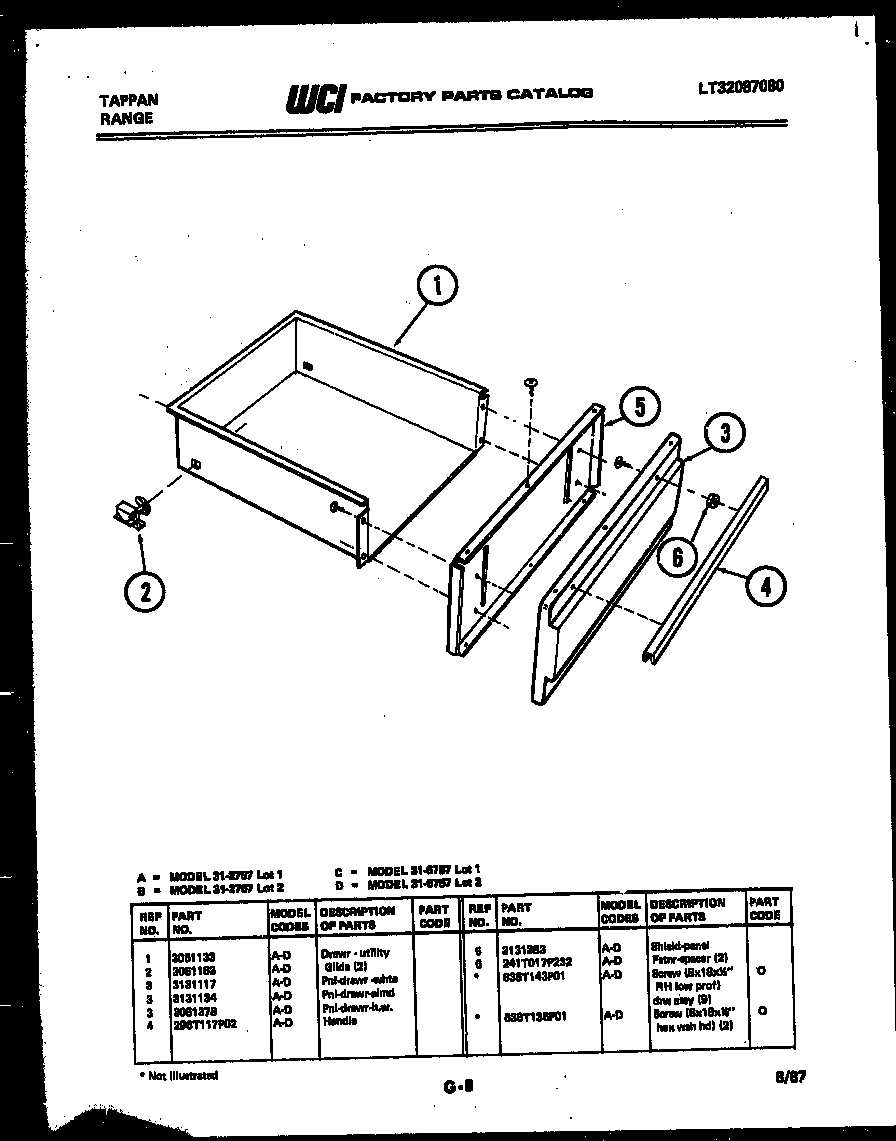

05 - DRAWER PARTS

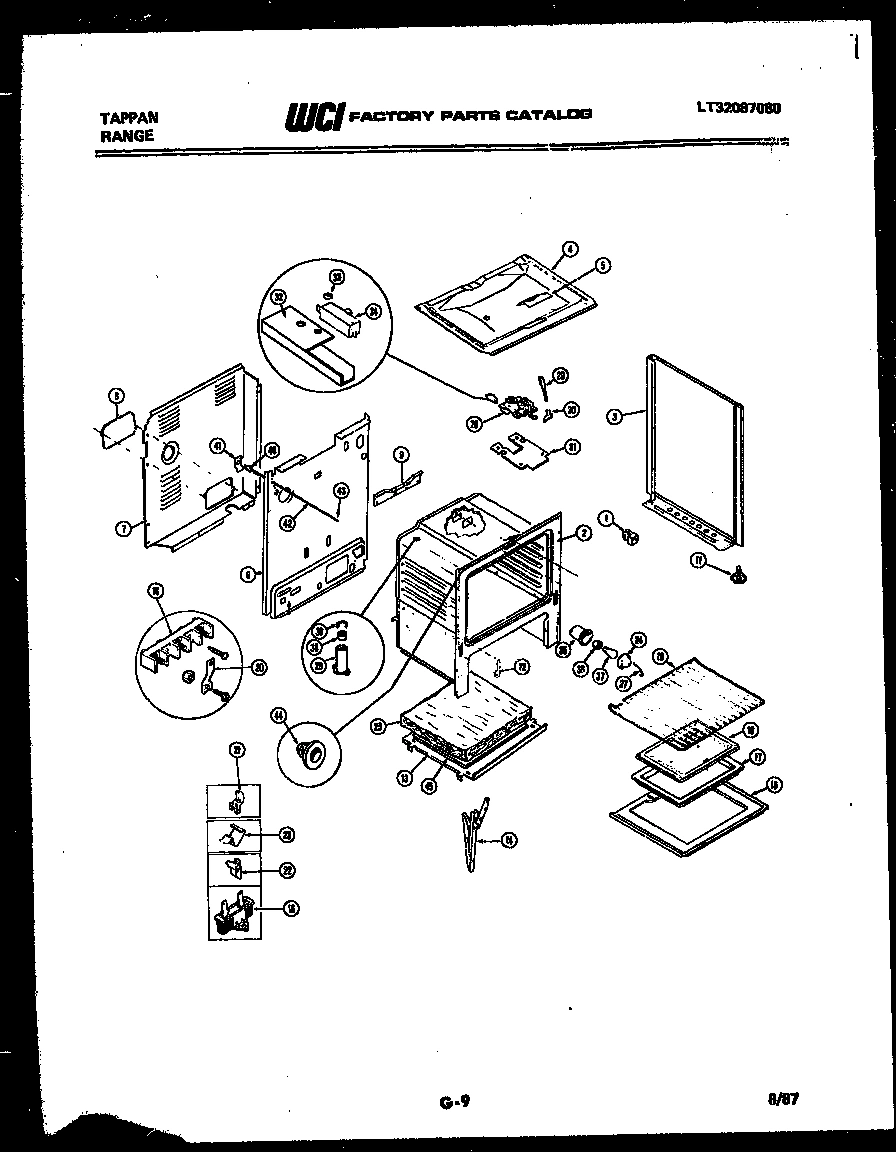

06 - BODY PARTS

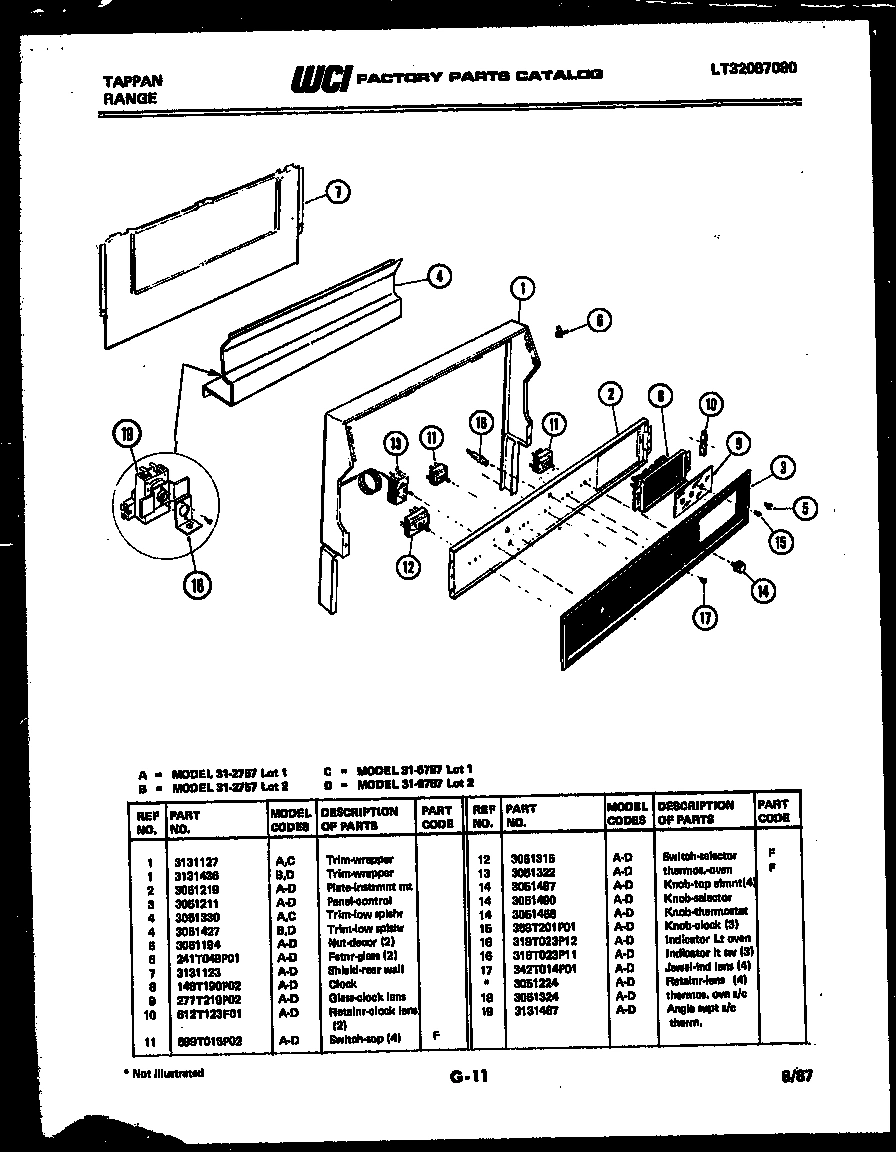

07 - BACKGUARD
Common parts from model Electrolux 31-6757-23-01 RANGE
*59564
SCREW 8 X 18 X 1/2`` HEX WSH HD (2) WCI 636T135P01 Contact Us For Availability
*59600
INSULATION, TOUCH WCI 3131305 Contact Us For Availability
1
MAIN TOP (ALMD) WCI 3051285 Contact Us For Availability
1
DRAWR - UTILITY WCI 3051133 Contact Us For Availability
1
SPACER-BDYSDE (8) WCI 665T188P02 Contact Us For Availability
1
WCI 3131127 WCI 3131127 Contact Us For Availability
2
BRKT-HNGE - LH WCI 3131286 Contact Us For Availability
2
BRKT-HNGE RH WCI 3131287 Contact Us For Availability
2
PLATE-INSTRMNT MT WCI 3051219 Contact Us For Availability
3
HANDL OVEN DR WCI 296T121P01 Contact Us For Availability
3
TOP SUPT ROD (2) WCI 618T038P05 Contact Us For Availability
3
WCI 445T006P01 WCI 445T006P01 Contact Us For Availability
3
PNL-DRAWR-ALMD WCI 3131134 Contact Us For Availability
3
PNL-BDYSDE-LH-ALMD WCI 3131453 Contact Us For Availability
3
PNL-BDYSDE-RH-ALMD WCI 3131454 Contact Us For Availability
3
WCI 3051211 WCI 3051211 Contact Us For Availability
4
WCI 3051277 WCI 3051277 Contact Us For Availability
4
WCI 296T117P02 WCI 296T117P02 Contact Us For Availability
4
WCI 3051109 WCI 3051109 Contact Us For Availability
4
TRIM-LOW SPLSHR WCI 3051330 Contact Us For Availability
5
LINER, OVEN DOOR WCI 381T092W05-86 Contact Us For Availability
5
ELMNT-OVEN BAKE WCI 3051141 Contact Us For Availability
5
WCI 3131383 WCI 3131383 Contact Us For Availability
5
WCI 3131101 WCI 3131101 Contact Us For Availability
5
NUT - DECOR (2) WCI 3051194 Contact Us For Availability
6
FSTNR-SPACER (2) WCI 241T017P232 Contact Us For Availability
6
WCI 021T055F02 WCI 021T055F02 Contact Us For Availability
6
WCI 3131567 WCI 3131567 Contact Us For Availability
6
FSTNR-GLASS(2) WCI 241T049P01 Contact Us For Availability
7
WCI 3051231 WCI 3051231 Contact Us For Availability
7
SHIELD-LWR WALL WCI 3051400 Contact Us For Availability
7
SHIELD, REAR WALL WCI 3131123 Contact Us For Availability
8
CLIP RETAINR (2) WCI 3131253 Contact Us For Availability
8
CVR-LWR ACCESS WCI 3051369 Contact Us For Availability
8
WCI 148T190P02 WCI 148T190P02 Contact Us For Availability
9
SEAL, FOAM (4) WCI 3131214 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
9
WCI 277T219P02 WCI 277T219P02 Contact Us For Availability
10
WCI 740T496P03 WCI 740T496P03 Contact Us For Availability
10
RETAINR-CLOCK LENS (2) WCI 612T123F01 Contact Us For Availability
11
SUPPORT, GLASS WCI 3131323 Contact Us For Availability
11
SCREW, LEVEL (4) WCI 636M004P01 Contact Us For Availability
11
WCI 699T015P02 WCI 699T015P02 Contact Us For Availability
12
CVR. HNG. CUTOUT (2) WCI 3131570 Contact Us For Availability
12
WCI 262T017P240 WCI 262T017P240 Contact Us For Availability
12
WCI 3051315 WCI 3051315 Contact Us For Availability
13
SCR HNDL 10-24 SP WSH RHD (2) WCI 3131213 Contact Us For Availability
13
SHIELD-WOOL LWR WCI 3051398 Contact Us For Availability
13
THERMOS.-OVEN WCI 3051322 Contact Us For Availability
14
FSTNR-NYL SPACER (3) WCI 241T017P185 Contact Us For Availability
14
CHANL-DR HNG (2) WCI 3131569 Contact Us For Availability
14
WCI 3051456 WCI 3051456 Contact Us For Availability
14
KNOB-TOP ELMNT (4) WCI 3051487 Contact Us For Availability
14
WCI 3051490 WCI 3051490 Contact Us For Availability
14A
SCR 8 X 18 X 1/2`` (3) (NON-ILLUSTRATED) WCI 3131573 Contact Us For Availability
15
INSUL OV. DR. (NON-ILLUSTRATED) WCI 3131384 Contact Us For Availability
15
WCI 3051104 WCI 3051104 Contact Us For Availability
15
KNOB, CLOCK (3) WCI 358T201P01 Contact Us For Availability
16
FUSE-THERM. CUTOUT WCI 3051385 Contact Us For Availability
16
INDICATOR LT SW (3) WCI 318T023P11 Contact Us For Availability
16
INDICATOR LT OVEN WCI 318T023P12 Contact Us For Availability
17
WCI 539T010F01-86 WCI 539T010F01-86 Contact Us For Availability
17
JEWEL-IND LENS (4) WCI 342T014P01 Contact Us For Availability
17A
RETAINR-LENS (4) (NON-ILLUSTRATED) WCI 3051224 Contact Us For Availability
18
WCI 3131356 WCI 3131356 Contact Us For Availability
18
WCI 3051324 WCI 3051324 Contact Us For Availability
19
ANGLE SUPT S/C THERM. WCI 3131467 Contact Us For Availability
20
WCI 711T048P01 WCI 711T048P01 Contact Us For Availability
21
CLIP, THERMAL BULB (2) WCI 3131295 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
24
WCI 3131298 WCI 3131298 Contact Us For Availability
25
WCI 3051429 WCI 3051429 Contact Us For Availability
26
TUQE-OVEN VENT WCI 3051344 Contact Us For Availability
27
WIRE-GLASS RETAINR WCI 3131104 Contact Us For Availability
27A
INSUL - WRAP (NON-ILLUSTRATED) WCI 3131304 Contact Us For Availability
27B
WCI 3131303 WCI 3131303 Contact Us For Availability
27D
SCREW-HNG MTG (6) (NON-ILLUSTRATED) WCI 636T163P01 Contact Us For Availability
27E
NUT-HEX BRASS (6) (NON-ILLUSTRATED) WCI 479T069P41 Contact Us For Availability
28
WCI 3051258 WCI 3051258 Contact Us For Availability
29
WCI 3051473 WCI 3051473 Contact Us For Availability
30
WCI 358T158S02 WCI 358T158S02 Contact Us For Availability
30A
SCREW, SET, LATCH KNOB (NON-ILLUSTRATED) WCI 636T144P01 Contact Us For Availability
31
SHIELD-LATCH WCI 3051413 Contact Us For Availability
32
SHIELD, BI METAL LATCH WCI 3131593 Contact Us For Availability
33
FASTNR-PUSH ON (3) WCI 241T001P01 Contact Us For Availability
34
WCI 695T226P01 WCI 695T226P01 Contact Us For Availability
35
TUBE-OV. LIGHT WCI 3131363 Contact Us For Availability
38
WCI 244T041P01 WCI 244T041P01 Contact Us For Availability
39
WCI 612T079P01 WCI 612T079P01 Contact Us For Availability
40
WCI 695T128P04 WCI 695T128P04 Contact Us For Availability
41
BRKT-LT SW. WCI 3131289 Contact Us For Availability
42
WCI 3051495 WCI 3051495 Contact Us For Availability
43
WCI 174T329P01 WCI 174T329P01 Contact Us For Availability
44
BUTN-REMOTE LT SW. WCI 102T044P02 Contact Us For Availability
45
WCI 3051430 WCI 3051430 Contact Us For Availability
× ![]()
