Model Electrolux 31-6239-23-02 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - DOOR PARTS

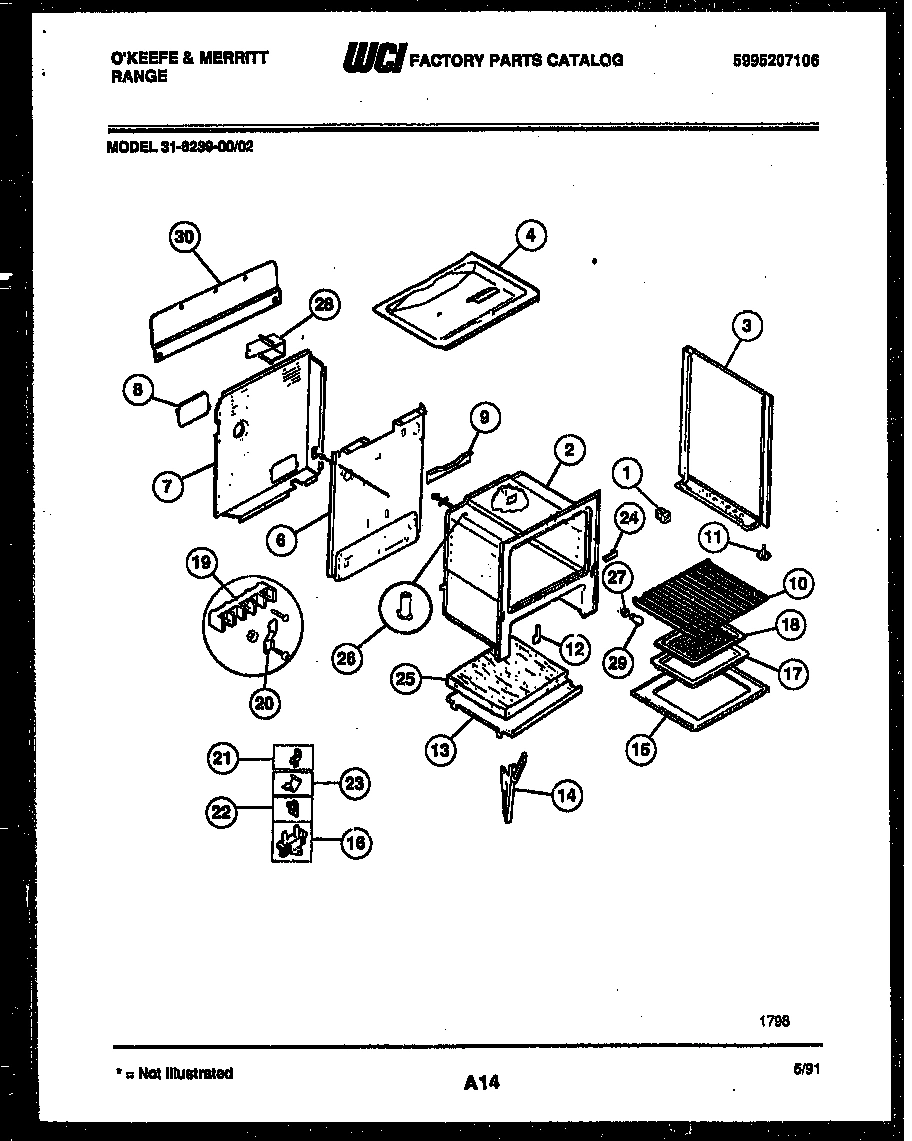

04 - BODY PARTS

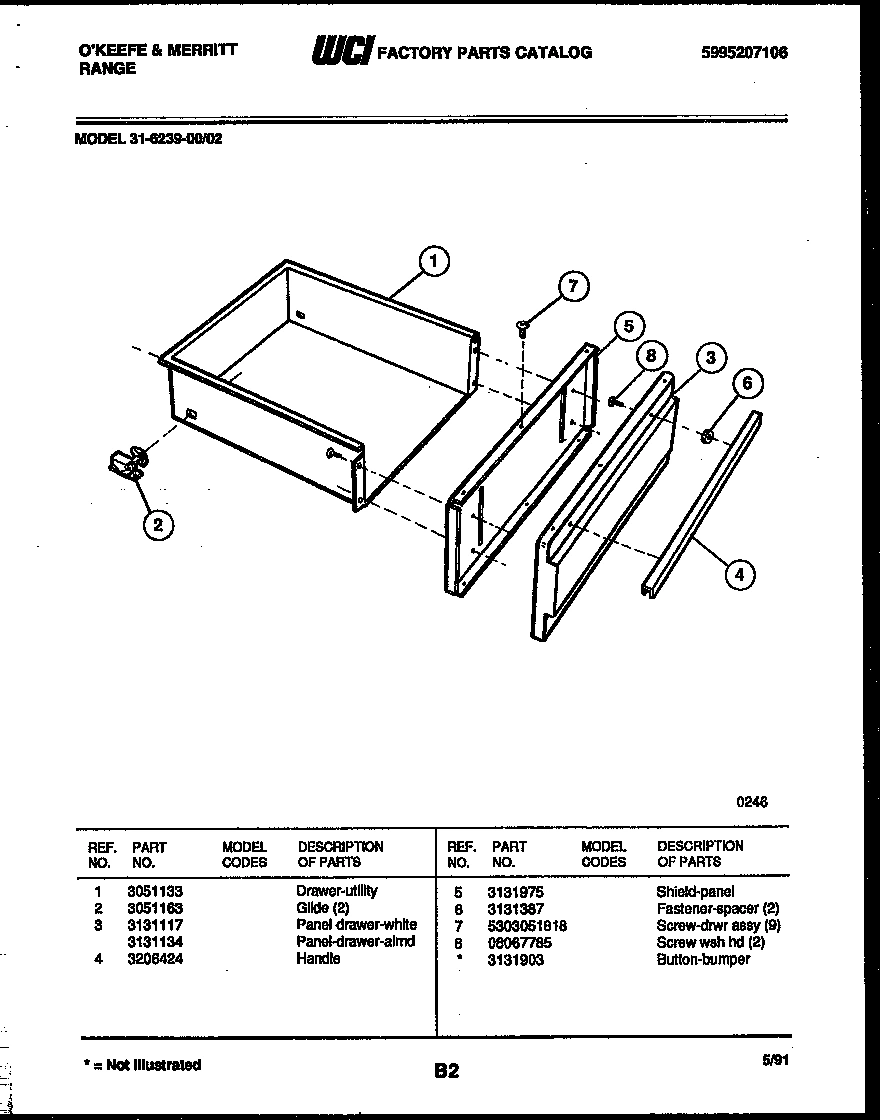

05 - DRAWER PARTS

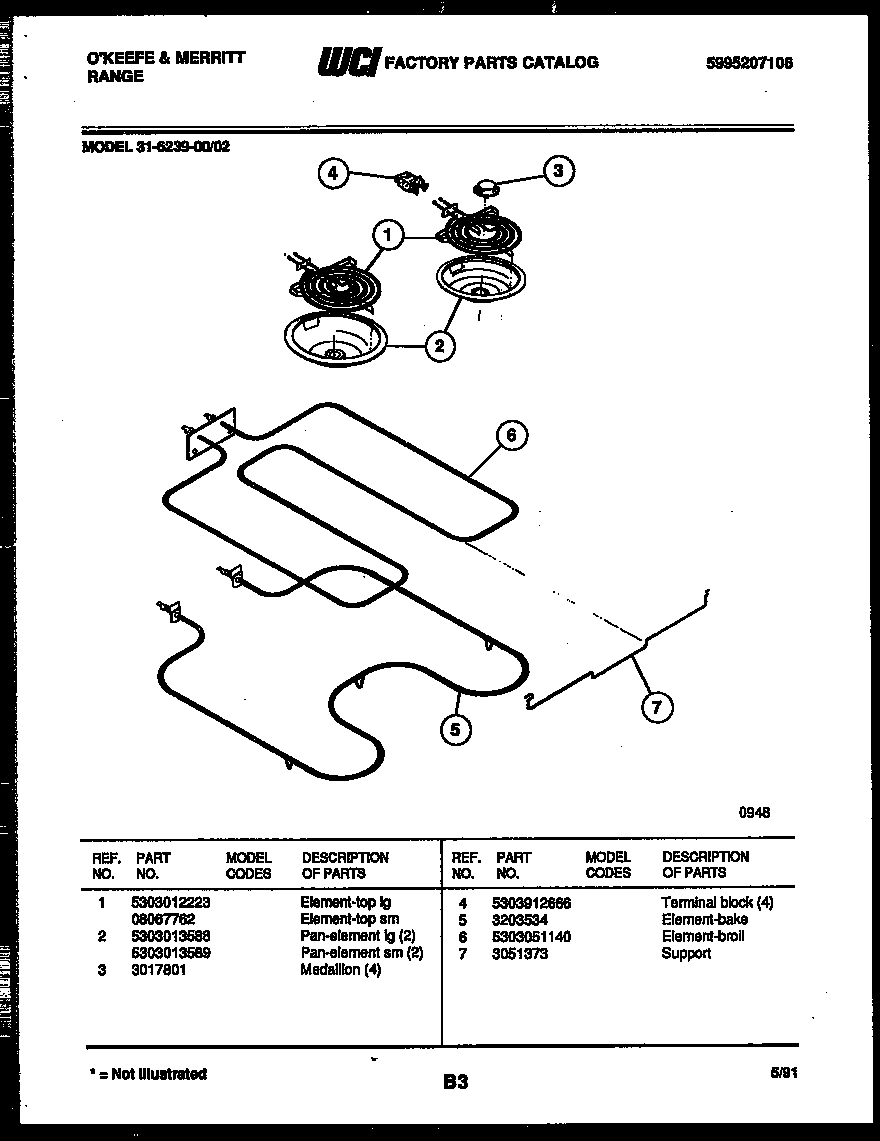

06 - BROILER PARTS

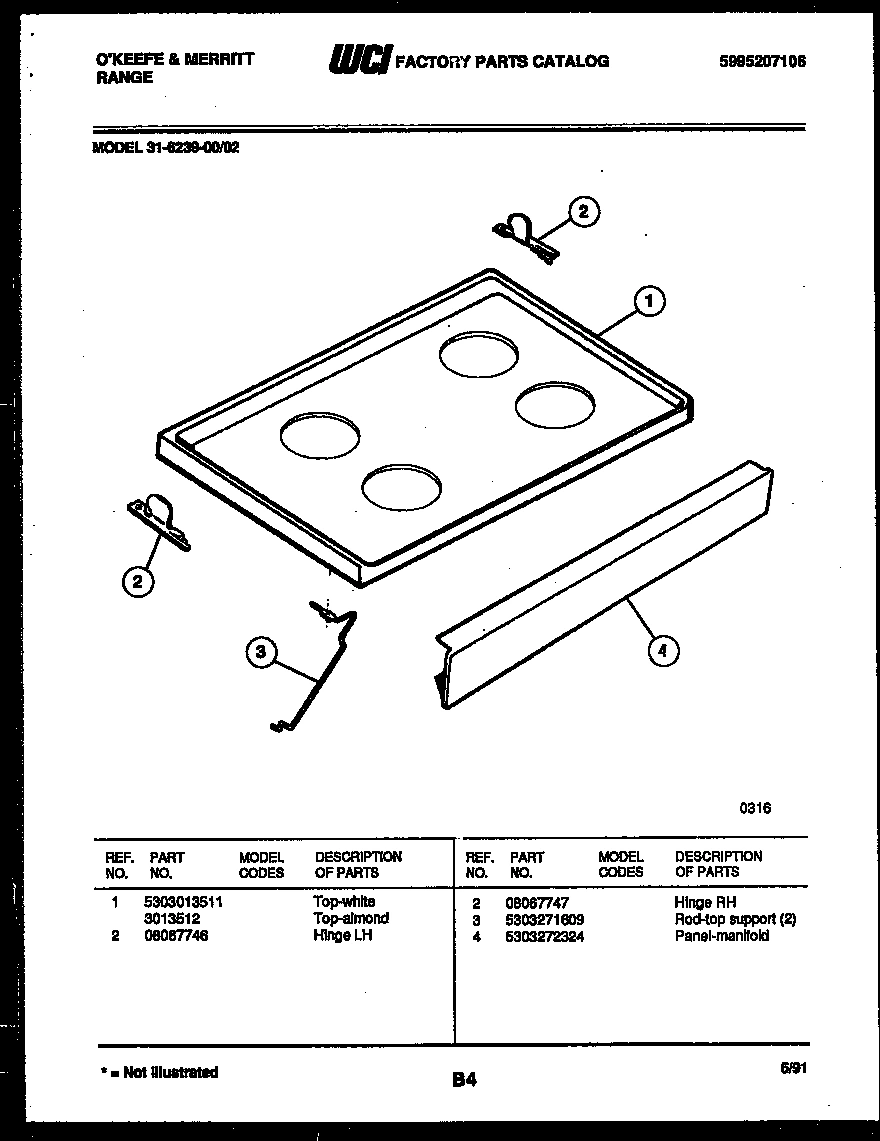

07 - COOKTOP PARTS
Common parts from model Electrolux 31-6239-23-02 RANGE
*49620
WIRING DIAGRAM (NOT FOR PURCHASING) WCI 19100180314 Contact Us For Availability
1
SPACER, B/S (8) WCI 3014099 Contact Us For Availability
1
GLASS-BLACK WCI 3051152 Contact Us For Availability
1
DRAWER, UTILITY WCI 3051133 Contact Us For Availability
1
TOP-ALMOND WCI 3013512 Contact Us For Availability
2
HINGE LH WCI 08067746 Contact Us For Availability
2
WCI 3200887 WCI 3200887 Contact Us For Availability
2
HINGE RH WCI 08067747 Contact Us For Availability
3
WCI 5303269545 WCI 5303269545 Contact Us For Availability
3
PANEL, DRAWER, (ALMD) WCI 3131134 Contact Us For Availability
3
WCI 3017801 WCI 3017801 Contact Us For Availability
3
ROD-TOP SUPPORT (2) WCI 5303271609 Contact Us For Availability
3A
WCI 5303269543 WCI 5303269543 Contact Us For Availability
4
WCI 5303209515 WCI 5303209515 Contact Us For Availability
4
WCI 3017926 WCI 3017926 Contact Us For Availability
4
WCI 3206424 WCI 3206424 Contact Us For Availability
4
WCI 5303272324 WCI 5303272324 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
6
WCI 5303210608 WCI 5303210608 Contact Us For Availability
6
WCI 3203082 WCI 3203082 Contact Us For Availability
6
FASTENER-SPACER (2) WCI 3131387 Contact Us For Availability
7
WCI 5303209518 WCI 5303209518 Contact Us For Availability
7
SHIELD-LOW WALL WCI 3203549 Contact Us For Availability
8
SCREW WSH HD (2) WCI 08067785 Contact Us For Availability
8
GLASS-INNER WCI 3018609 Contact Us For Availability
8
COVER-LOW ACCESS WCI 3203405 Contact Us For Availability
8A
SCREW 8 X 18 X 1/2 (3) (NON-ILLUSTRATED) WCI 5303269859 Contact Us For Availability
9
INSULATION, OVEN DOOR WCI 5303210607 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
10
WCI 5303015373 WCI 5303015373 Contact Us For Availability
11
SCREW-LEVEL (4) WCI 5303203397 Contact Us For Availability
11
SCREW-HANDLE 10-24 SP WSH RHD (2) WCI 3016420 Contact Us For Availability
11A
WCI 3206427 WCI 3206427 Contact Us For Availability
12
COVER-HINGE (2) WCI 3131570 Contact Us For Availability
12
KNOB-CLOCK WCI 3131472 Contact Us For Availability
13
BUSHING-SHAFT WCI 3204745 Contact Us For Availability
13
WCI 3200825 WCI 3200825 Contact Us For Availability
14
LIGHT-IND OVEN WCI 5303091462 Contact Us For Availability
14
WCI 5308037896 WCI 5308037896 Contact Us For Availability
14
CHANNEL - HINGE (2) WCI 3131569 Contact Us For Availability
15
LENS-IND LT (2) WCI 5308037703 Contact Us For Availability
15
WCI 3203540 WCI 3203540 Contact Us For Availability
15A
RETAINER-LENS (2) (NON-ILLUSTRATED) WCI 3051224 Contact Us For Availability
16
SUPPORT-BACKGUARD,(2) WCI 5303131237 Contact Us For Availability
16
FUSE-THERMAL WCI 5303203651 Contact Us For Availability
17
WCI 5303013568 WCI 5303013568 Contact Us For Availability
18
WCI 3206434 WCI 3206434 Contact Us For Availability
18
WCI 5303131356 WCI 5303131356 Contact Us For Availability
20
WCI 5303212739 WCI 5303212739 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
24
COVER-FRONT WCI 5303015372 Contact Us For Availability
26
WCI 3051344 WCI 3051344 Contact Us For Availability
28
WCI 3203582 WCI 3203582 Contact Us For Availability
29A
INSULATION, WRAP (NON-ILLUSTRATED) WCI 3017142 Contact Us For Availability
29B
WCI 3203541 WCI 3203541 Contact Us For Availability
29D
SCREW-HINGE (6) (NON-ILLUSTRATED) WCI 5303212740 Contact Us For Availability
29F
ANTI-TIP KIT (NON-ILLUSTRATED) WCI 3934056 Contact Us For Availability
29G
BRACKET-CABLE MTG (NON-ILLUSTRATED) WCI 5303206618 Contact Us For Availability
30
WCI 3131252 WCI 3131252 Contact Us For Availability
× ![]()
