Model Electrolux 31-4979-00-02 RANGE – Common Parts & Diagrams

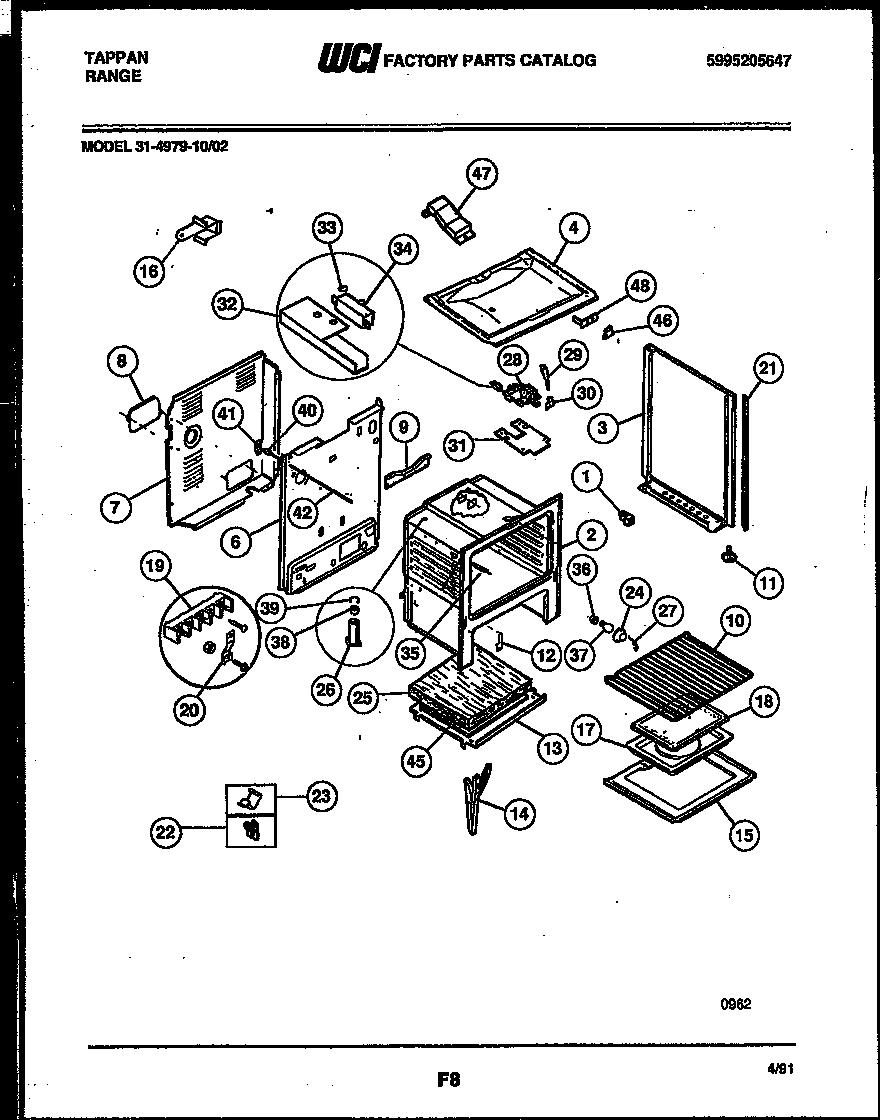

03 - BODY PARTS

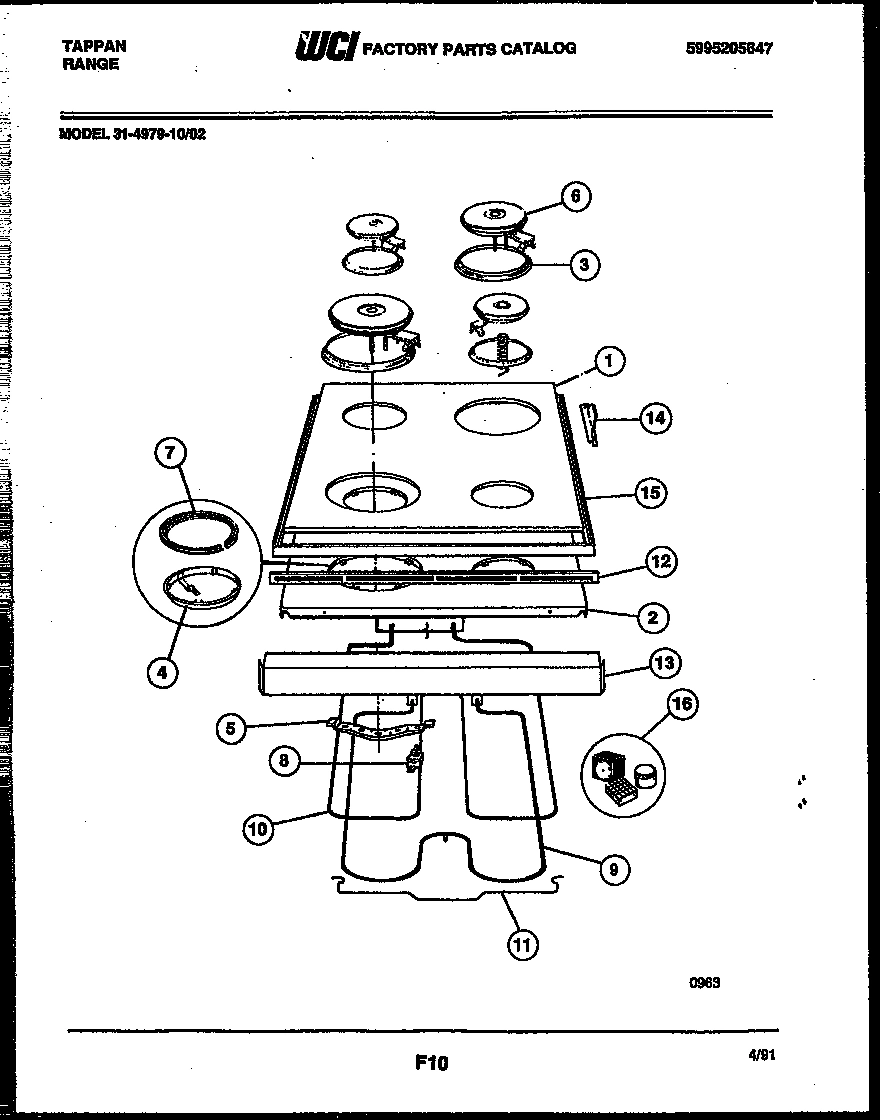

04 - COOKTOP AND BROILER PARTS
05 - DRAWER PARTS
06 - DOOR PARTS
Common parts from model Electrolux 31-4979-00-02 RANGE
*49371
SCREW 8 X 18 X 1/2`` HEX WSH HD (2) WCI 08067785 Contact Us For Availability
*49372
FOIL-ALUM BLK WCI 5303208656 Contact Us For Availability
*49372
SCREW-8-32 X 1.0 W/ WASHER WCI 5303212671 Contact Us For Availability
*49372
FASTENER-SPACER (1) WCI 5303212674 Contact Us For Availability
1
SPACER, B/S (8) WCI 3014099 Contact Us For Availability
1
WCI 3051156 WCI 3051156 Contact Us For Availability
1
DRAWER, UTILITY WCI 3051133 Contact Us For Availability
1
BRACKET-GLASS (2) WCI 5303209510 Contact Us For Availability
2
WCI 3018329 WCI 3018329 Contact Us For Availability
2
WCI 5303209513 WCI 5303209513 Contact Us For Availability
3
WCI 5303209512 WCI 5303209512 Contact Us For Availability
3
WCI 5303051334 WCI 5303051334 Contact Us For Availability
3
PANEL, DRWR., BLACK WCI 3131324 Contact Us For Availability
3A
TRIM-RING OUTER MED (1) WCI 3051335 Contact Us For Availability
3B
WCI 5303051336 WCI 5303051336 Contact Us For Availability
4
WCI 3051337 WCI 3051337 Contact Us For Availability
4
TRIM-RING INNER MED (1) WCI 3051338 Contact Us For Availability
4
TRIM-RING INNER LARGE (1) WCI 3051339 Contact Us For Availability
4
WCI 3131125 WCI 3131125 Contact Us For Availability
4
WCI 5303209517 WCI 5303209517 Contact Us For Availability
5
CHANNEL-TOP ELEMENT MTG MED (1) WCI 3051122 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
5
WCI 5303209511 WCI 5303209511 Contact Us For Availability
5A
CHANNEL-TOP ELEMENT MTG SM (2) WCI 3051120 Contact Us For Availability
6
ELEMENT-TOP SM (2) WCI 5303051142 Contact Us For Availability
6
FASTENER-SPACER (2) WCI 3131387 Contact Us For Availability
6
GLASS-FRONT VISULITE WCI 5303131132 Contact Us For Availability
6A
ELEMENT-TOP MED (1) WCI 5308014251 Contact Us For Availability
6B
ELEMENT-TOP LARGE (1) WCI 5308014263 Contact Us For Availability
7
WCI 3018330 WCI 3018330 Contact Us For Availability
7
SEAL-TOP ELEMENT MED (1) WCI 3018331 Contact Us For Availability
7
SEAL-TOP ELEMENT LG (1) WCI 3018332 Contact Us For Availability
7
HANDLE WCI 5303131256 Contact Us For Availability
8
SWITCH-THERMAL PROTECTOR (4) WCI 3051885 Contact Us For Availability
8
LINER WCI 5303209515 Contact Us For Availability
10
WCI 5303211084 WCI 5303211084 Contact Us For Availability
11
SCREW-LEVEL (4) WCI 5303203397 Contact Us For Availability
11
WCI 5303209518 WCI 5303209518 Contact Us For Availability
12
COVER-HNG CUTOUT WCI 3131570 Contact Us For Availability
12
WCI 355T377S01 WCI 355T377S01 Contact Us For Availability
12
WCI 3016851 WCI 3016851 Contact Us For Availability
13
WCI 3200825 WCI 3200825 Contact Us For Availability
13
WCI 5303206607 WCI 5303206607 Contact Us For Availability
14
BRKT-MAIN TOP HNG LH WCI 08067746 Contact Us For Availability
14
INSULATION-WOOL WCI 5303209514 Contact Us For Availability
14A
BRKT-MAIN TOP HNG RH WCI 08067747 Contact Us For Availability
15
WCI 3203540 WCI 3203540 Contact Us For Availability
15
WCI 3204894 WCI 3204894 Contact Us For Availability
15
WCI 5303211085 WCI 5303211085 Contact Us For Availability
16
WCI 3203582 WCI 3203582 Contact Us For Availability
16
CLEANER-ELEMENT WCI 5308016255 Contact Us For Availability
17
WCI 5303013568 WCI 5303013568 Contact Us For Availability
18
WCI 5303131356 WCI 5303131356 Contact Us For Availability
20
WCI 5303212739 WCI 5303212739 Contact Us For Availability
21
WCI 5303051326 WCI 5303051326 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
26
WCI 3051345 WCI 3051345 Contact Us For Availability
27
WIRE GLASS RETAINER WCI 3204585 Contact Us For Availability
27A
INSULATION-WRAP (NON-ILLUSTRATED) WCI 3200833 Contact Us For Availability
27B
WCI 3204582 WCI 3204582 Contact Us For Availability
27D
SCREW-HINGE MTG (4) (NON-ILLUSTRATED) WCI 5303212740 Contact Us For Availability
28
WCI 5303015361 WCI 5303015361 Contact Us For Availability
29
WCI 5303131357 WCI 5303131357 Contact Us For Availability
30
WCI 3203218 WCI 3203218 Contact Us For Availability
30A
WCI 08013188 WCI 08013188 Contact Us For Availability
31
SHIELD-LATCH WCI 3051413 Contact Us For Availability
32
SHIELD, BI METAL LATCH WCI 3131593 Contact Us For Availability
33
FASTENER, PUSH ON (3) WCI 3051733 Contact Us For Availability
34
WCI 5303269499 WCI 5303269499 Contact Us For Availability
38
WCI 08067810 WCI 08067810 Contact Us For Availability
39
WCI 08010606 WCI 08010606 Contact Us For Availability
40
SWITCH, DOOR WCI 5303202622 Contact Us For Availability
41
BRACKET-LIGHT SWITCH WCI 5303131289 Contact Us For Availability
42
ROD LIGHT WCI 5303209316 Contact Us For Availability
45
WCI 3200848 WCI 3200848 Contact Us For Availability
45A
INSULATION-TOP (NON-ILLUSTRATED) WCI 3131304 Contact Us For Availability
47
WCI 3051254 WCI 3051254 Contact Us For Availability
47A
WCI 3015337 WCI 3015337 Contact Us For Availability
48
WCI 3051242 WCI 3051242 Contact Us For Availability
48A
WCI 3051243 WCI 3051243 Contact Us For Availability
× ![]()
