Model Electrolux 31-4979-00-01 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - BODY PARTS

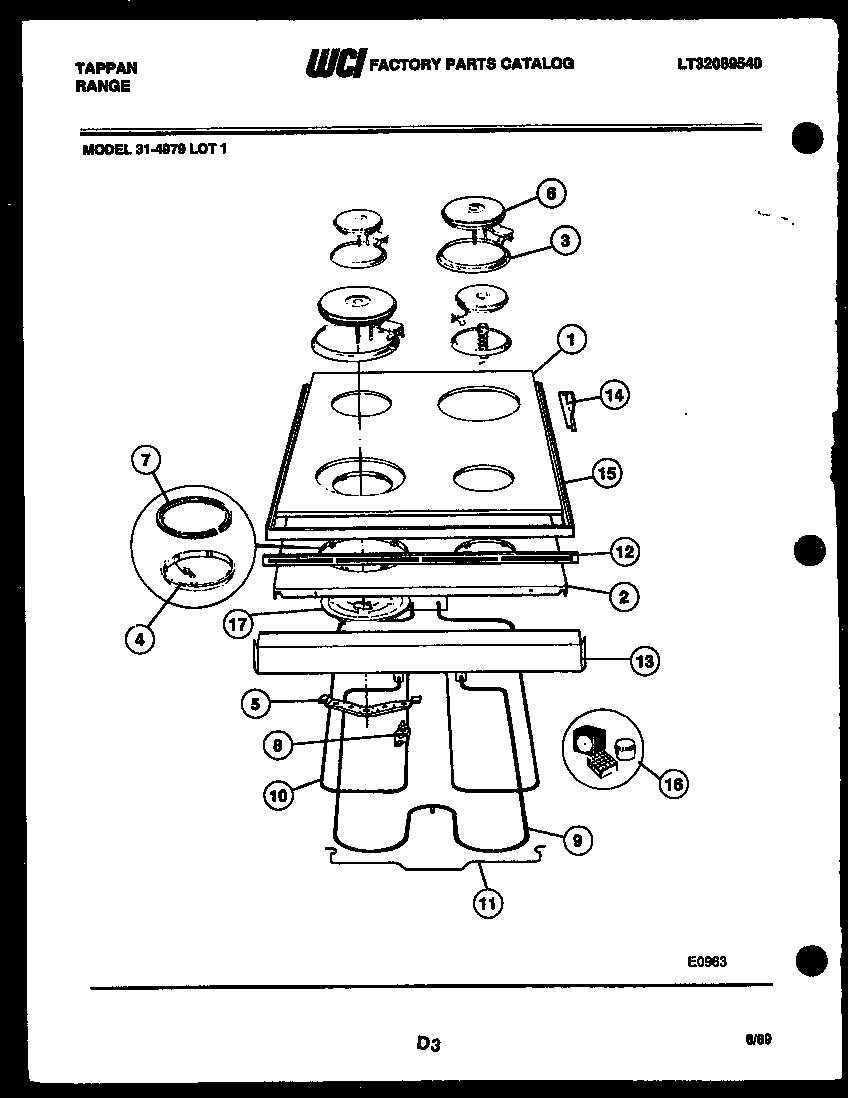

04 - COOKTOP AND BROILER PARTS

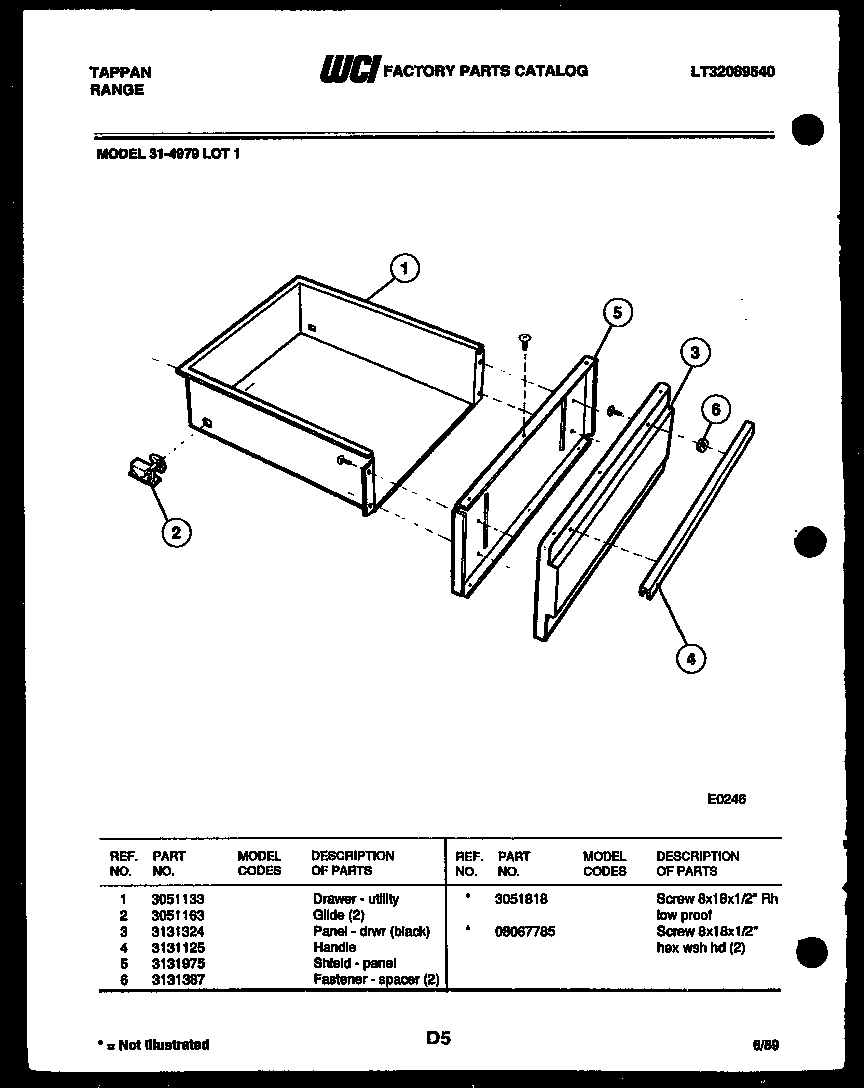

05 - DRAWER PARTS

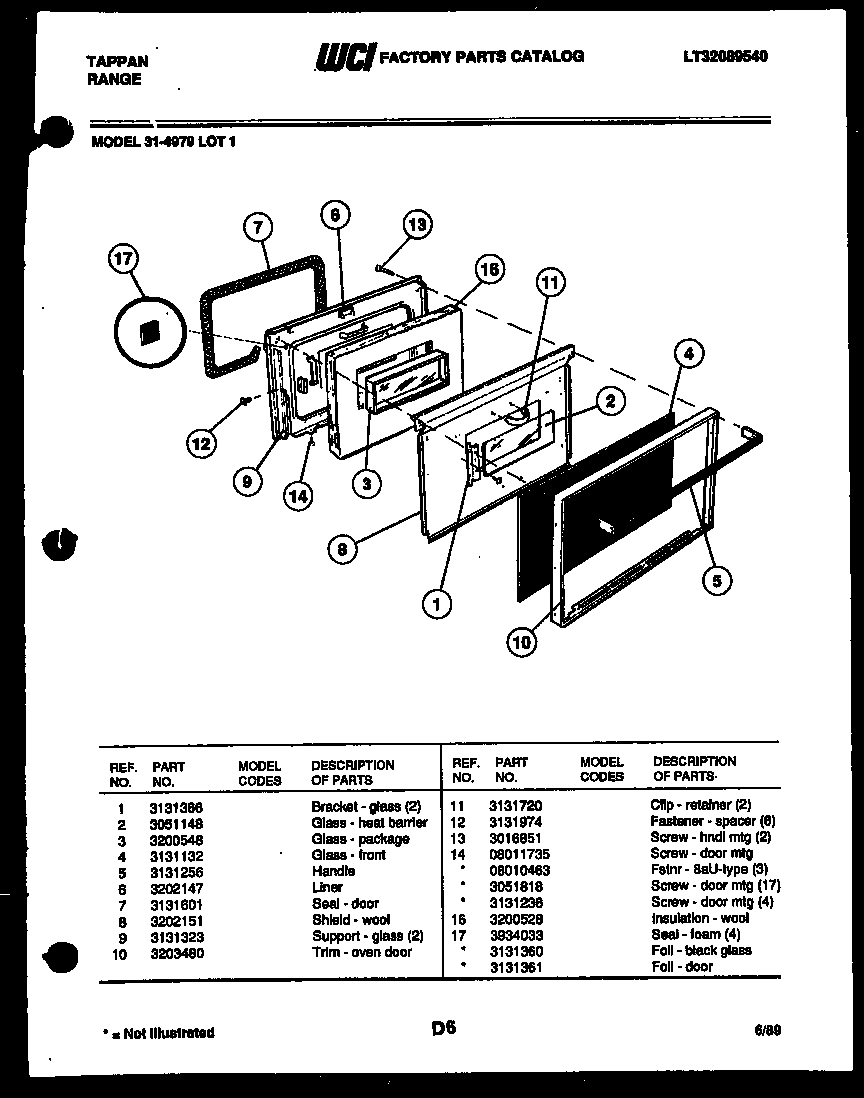

06 - DOOR PARTS
Common parts from model Electrolux 31-4979-00-01 RANGE
*27188
SHIELD HEAT B/S (2) WCI 3200834 Contact Us For Availability
*27188
FSTNR-EDGE MTG (2) WCI 3200846 Contact Us For Availability
*27188
BRACKET-CABLE MTG WCI 3204525 Contact Us For Availability
*27188
ANTI-TIP KIT WCI 3934056 Contact Us For Availability
*27190
SCREW 8 X 18 X 1/2`` HEX WSH HD (2) WCI 08067785 Contact Us For Availability
*27193
FOIL-DOOR WCI 3131361 Contact Us For Availability
1
SPACER, B/S (8) WCI 3014099 Contact Us For Availability
1
WCI 3051156 WCI 3051156 Contact Us For Availability
1
DRAWER, UTILITY WCI 3051133 Contact Us For Availability
1
BRACKET, GLASS (2) WCI 3131366 Contact Us For Availability
2
WCI 3018329 WCI 3018329 Contact Us For Availability
2
WCI 3051148 WCI 3051148 Contact Us For Availability
3
PANEL B/S LH-BLACK WCI 3201000 Contact Us For Availability
3
WCI 3051334 WCI 3051334 Contact Us For Availability
3
PANEL, DRWR., BLACK WCI 3131324 Contact Us For Availability
3
WCI 3200548 WCI 3200548 Contact Us For Availability
3A
PANEL B/S RH-BLACK WCI 3201001 Contact Us For Availability
3A
WCI 3051335 WCI 3051335 Contact Us For Availability
3B
WCI 3051336 WCI 3051336 Contact Us For Availability
4
WCI 3051109 WCI 3051109 Contact Us For Availability
4
WCI 3051337 WCI 3051337 Contact Us For Availability
4
WCI 3131125 WCI 3131125 Contact Us For Availability
4
WCI 3131132 WCI 3131132 Contact Us For Availability
4A
WCI 3051338 WCI 3051338 Contact Us For Availability
4B
WCI 3051339 WCI 3051339 Contact Us For Availability
5
CHANNEL-TOP ELEMENT MTG MED (2) WCI 3051122 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
5
WCI 3131256 WCI 3131256 Contact Us For Availability
5A
CHANNEL-TOP ELEMENT MTG SM (2) WCI 3051120 Contact Us For Availability
6
WCI 3203082 WCI 3203082 Contact Us For Availability
6
WCI 3051142 WCI 3051142 Contact Us For Availability
6
FASTENER-SPACER (2) WCI 3131387 Contact Us For Availability
6
LINER WCI 3202147 Contact Us For Availability
6A
ELEMENT - TOP MED (2) WCI 3051143 Contact Us For Availability
6B
WCI 3051144 WCI 3051144 Contact Us For Availability
7
SHIELD, REAR WALL WCI 3131123 Contact Us For Availability
7
SHIELD-LOWER ACCESS WCI 3203549 Contact Us For Availability
7
WCI 3018330 WCI 3018330 Contact Us For Availability
7A
SEAL-TOP ELEMENT MED WCI 3018331 Contact Us For Availability
7B
SEAL-TOP ELEMENT LG WCI 3018332 Contact Us For Availability
8
WCI 3204587 WCI 3204587 Contact Us For Availability
8
WCI 3203405 WCI 3203405 Contact Us For Availability
8
SWITCH-THERMAL PROTECTOR (4) WCI 3051885 Contact Us For Availability
8
WCI 3202151 WCI 3202151 Contact Us For Availability
9
SPRT-FLU RECPT MTG WCI 3131277 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
9
WCI 3131323 WCI 3131323 Contact Us For Availability
10
WCI 3203480 WCI 3203480 Contact Us For Availability
11
WCI 08010418 WCI 08010418 Contact Us For Availability
11
SCREW, LEVEL (4) WCI 3203397 Contact Us For Availability
11
CLIP, RETAINER (2) WCI 3131720 Contact Us For Availability
11A
WCI 3051318 WCI 3051318 Contact Us For Availability
12
COVER-HNG CUTOUT WCI 3131570 Contact Us For Availability
12
TRIM - GLASS RET LH WCI 3204753 Contact Us For Availability
12
WCI 355T377S01 WCI 355T377S01 Contact Us For Availability
12
FASTENER, SPACER (6) WCI 3131974 Contact Us For Availability
12A
TRIM - GLASS RET RH WCI 3204754 Contact Us For Availability
13
WCI 3200825 WCI 3200825 Contact Us For Availability
13
WCI 3204771 WCI 3204771 Contact Us For Availability
13
SCREW-HNDL MTG (2) WCI 3016851 Contact Us For Availability
14
CHANNEL - DOOR HNG WCI 316007002 No Longer Available
14
WCI 3204751 WCI 3204751 Contact Us For Availability
14
BRKT MAIN TOP HNG LH WCI 3131286 Contact Us For Availability
14
SCREW - DOOR MTG WCI 08011735 Contact Us For Availability
14A
WCI 3204893 WCI 3204893 Contact Us For Availability
14A
BRKT MAIN TOP HNG RH WCI 3131287 Contact Us For Availability
14A
WCI 08010463 WCI 08010463 Contact Us For Availability
14C
SCREW - DOOR MTG (4) (NON-ILLUSTRATED) WCI 3131236 Contact Us For Availability
15
KNOB-CLOCK WCI 3204590 Contact Us For Availability
15
WCI 3203540 WCI 3203540 Contact Us For Availability
15
WCI 3204894 WCI 3204894 Contact Us For Availability
16
INDICATOR-LIGHT S/U WCI 08037896 Contact Us For Availability
16
WCI 3203582 WCI 3203582 Contact Us For Availability
16
CLEANER-ELEMENT WCI 3051627 Contact Us For Availability
16
INSULATION-WOOL WCI 3200528 Contact Us For Availability
17
JEWEL - IND LIGHT WCI 342T017P01 Contact Us For Availability
17
BROILER PAN WCI 3013568 Contact Us For Availability
17
SEAL, FOAM (4) WCI 3934033 Contact Us For Availability
17A
RETAINER - LENS (2) (NON-ILLUSTRATED) WCI 3015224 Contact Us For Availability
18
WCI 3131356 WCI 3131356 Contact Us For Availability
19
BEZEL - SWITCH (2) WCI 3011507 Contact Us For Availability
20
SW - OVEN LIGHT WCI 3200479 Contact Us For Availability
20
WCI 08011708 WCI 08011708 Contact Us For Availability
21
WCI 3131275 WCI 3131275 Contact Us For Availability
21
TRIM - BODYSIDE (2) WCI 3051326 Contact Us For Availability
22
WCI 3200480 WCI 3200480 Contact Us For Availability
23
WCI 3051115 WCI 3051115 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
24
WCI 3204614 WCI 3204614 Contact Us For Availability
25
BRKT-FLUOR LT MTG LH WCI 3131576 Contact Us For Availability
25A
BRKT-FLUOR LT MTG RH WCI 3131577 Contact Us For Availability
26
RECPT-FLUOR LT LH WCI 3051222 Contact Us For Availability
26
WCI 3051345 WCI 3051345 Contact Us For Availability
26A
RECPT-FLUOR LT RH WCI 3051223 Contact Us For Availability
27
WIRE GLASS RETAINER WCI 3204585 Contact Us For Availability
27A
INSULATION-WRAP (NON-ILLUSTRATED) WCI 3200833 Contact Us For Availability
27B
WCI 3204582 WCI 3204582 Contact Us For Availability
27D
WCI 3131143 WCI 3131143 Contact Us For Availability
27E
WCI 08067783 WCI 08067783 Contact Us For Availability
28
BUTTON - ELEC CLOCK (8) WCI 3204586 Contact Us For Availability
28
WCI 3015361 WCI 3015361 Contact Us For Availability
29
WCI 3131357 WCI 3131357 Contact Us For Availability
30
GLASS - TIMER WCI 3204866 Contact Us For Availability
30
WCI 3203218 WCI 3203218 Contact Us For Availability
30A
WCI 08013188 WCI 08013188 Contact Us For Availability
31
WCI 3131237 WCI 3131237 Contact Us For Availability
31
SHIELD-LATCH WCI 3051413 Contact Us For Availability
32
SHIELD, BI METAL LATCH WCI 3131593 Contact Us For Availability
33
FASTENER, PUSH ON (3) WCI 3051733 Contact Us For Availability
34
SWITCH-LATCHING WCI 3204592 Contact Us For Availability
38
WCI 08067810 WCI 08067810 Contact Us For Availability
39
WCI 08010606 WCI 08010606 Contact Us For Availability
40
WCI 3202622 WCI 3202622 Contact Us For Availability
41
BRACKET, LIGHT SWITCH WCI 3131289 Contact Us For Availability
42
WCI 3051495 WCI 3051495 Contact Us For Availability
43
WCI 3051251 WCI 3051251 Contact Us For Availability
45
WCI 3200848 WCI 3200848 Contact Us For Availability
45A
INSULATION-TOP (NON-ILLUSTRATED) WCI 3131304 Contact Us For Availability
47
WCI 3051254 WCI 3051254 Contact Us For Availability
47A
WCI 3015337 WCI 3015337 Contact Us For Availability
48
WCI 3051242 WCI 3051242 Contact Us For Availability
48A
WCI 3051243 WCI 3051243 Contact Us For Availability
× ![]()
